Counter-Depth French Door Refrigerator with Intelligent Auto Fill
Model KRFC536SJPQuick Specs
Depth
32.125
Height
69.875
Fresh
23.1
Freezer
16.09
Cu Ft
6.57
Size
6.57
ADA
NO
Disp
YES
Counter-Depth French Door Refrigerator with Intelligent Auto Fill is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/23/2026
Sale Price
$3,399.00
$4,299.00
You save 20%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
32.125
Height
69.875
Fresh food Capacity
23.1
Freezer Capacity
16.09
Capacity (cu ft.)
6.57
Refrigerator Size
6.57
ADA
NO
Dispenser
YES
Icemaker
YES
Wifi Connected
NO
Counter Depth
YES
RPM
-1.0
Energy Star Rated
NO
- Adjustable Glass Shelving
- lets you accommodate your trickiest jars, glasses or containers. Shelves are fully removable for easy cleaning and customization.
- Designed to be Personalized
- with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles. Personalize your hardware with optional handle kits in Brass, Bronze, Black Ore and Stainless Steel.
- Dual Ice
- means you have ice at the ready-whether you want to quickly fill your cup with our in-door ice dispenser or be prepared for parties and more with our in-freezer ice maker.
- Extra Cold Zone
- keeps beverages up to 5f degrees colder than the rest of your refrigerator without a total freeze. Keep your sparking water and freshly squeezed juices cold and ready for serving to guests or to enjoy on your own at any time.
- FreshChill™ Temperature-Controlled Full-Width Pantry Drawer
- makes it easy to customize storage temperatures for different types of ingredients, helping to maintain freshness. Simply touch and select temperature presets for wine, deli, drinks and meat.
- FreshSeal™ Humidity-Controlled Crisper Bins
- help keep ingredients fresh, thanks to fully extendable FreshSeal™ gaskets that keep humidity locked in.
- In-Door-Ice® System
- frees up additional shelf space with a slim-profile ice bin cleverly concealed in the refrigerator door. The ice bin is removable for easy access and produces up to 3.5 lbs of ice per day.
- Intelligent Auto Fill
- lets you set your cup down and have it filled correctly, hands-free. AI intelligently senses when your cup is within the dispenser, your glass is off-center, or can even detect when a hand pulls your cup away, ensuring an easy, "set and forget" water-filling experience.
- Max Cool
- helps quickly chill recently loaded groceries to help keep them fresh by setting the refrigerator compartment to the lowest temperature level for up to 24 hours.
- Max Freeze
- lets you drop freezer temperature to coldest level at the touch of a button (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.
- Preserva® Food Care System
- helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.
- Removable Wine Rack
- lets you store up to 3 bottles of wine or remove completely to make room in your refrigerator for whatever you need.
- Signature Platinum Interior
- wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.
- Smart Refrigerator
- lets you control your refrigerator from your phone with the KitchenAid TM App. Change your refrigerator's temperature remotely, and get notifications for when the door is left open or when your water filter needs to be replaced so you can easily order a new one.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at kitchenaid.com/connect. - True Clearance Hinges
- let you open the refrigerator doors up to 135(degree) making it easy to unload groceries and remove refrigerator shelves while maintaining a True Counter Depth* aesthetic.
*Not including doors when installed in standard 25 1/2" cabinet and countertop - True Counter Depth
- refrigerator seamlessly fits* into your kitchen with a built-in look that doesn't stick out from your cabinets and counters. Experience a refrigerator that won't disrupt the flow of your kitchen's design with specially designed hinges that allow the door to open up to 135(degree) degrees.
*Not including doors when installed in standard 25 1/2" cabinet and countertop. - Two-Tier Freezer Drawer
- conveniently organizes frozen foods so they're easy to find. An adjustable storage divider in the lower drawer, pizza pocket and flat-item shelf help keep smaller items from getting lost under larger ones.
- Ultra-Bright LED Lighting
- turns on when the refrigerator doors or drawers are open, making it easy to find items inside.
- Wood-Look Sliding Storage Tray
- keeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.
- everydrop® Water Filter
- is easy to install, replace, and use. This filter* reduces 75 potentially harmful contaminants like microplastics and lead while giving you clean, fresh-tasting water for recipes and drinks.
*Filters certified by NSF International under NSF/ANSI Standards 42, 53, 372 and 401 to reduce specific contaminants. See everydropwater.com for details.
- Fit your most difficult-to-store containers with our Adjustable Glass Shelving
- Designed to be Personalized with a curated palette of finishes and handles
- PRESERVA Food Care System helps keep food fresh and flavorful
- Removable Wine Rack can store up to 3 bottles of wine
- Signature Platinum Interior wows with wood-look trim and metallic accents
- Control your refrigerator from your phone with the KITCHENAID App
- True Clearance Hinges allow doors to open up to 135(degree)
- True Counter Depth lets your refrigerator blend seamlessly into your kitchen
- Two-Tier Freezer Drawer conveniently organizes frozen foods
- Ultra-Bright LED Lighting makes it easy to find items inside
- Wood-Look Sliding Storage Tray keeps platters and ingredients easily accessible
- EVERYDROP Water Filter reduces 75 potentially harmful contaminants including microplastics and lead
- Dual Ice refrigerator with in-door dispenser and freezer storage
- Extra Cold Zone keeps beverages up to 5(degree)F degrees colder
- FRESHCHILL Temperature-Controlled Full-Width Pantry Drawer has digital presets for wine, deli, drinks and meat
- FRESHSEAL Humidity-Controlled Crisper Bins help lock in freshness
- IN-DOOR-ICE System produces up to 3.5 lbs of ice per day
- Fill your water bottle hands-free with Intelligent Auto Fill
- Max Cool drops the refrigerator temperature to help quickly chill groceries
- Max Freeze drops temperature to coldest level for optimal freezing
Feed your creativity with the KitchenAid French Door Bottom Mount Refrigerator with Intelligent Auto Fill. Easily fill cups of various sizes thanks to Intelligent Auto Fill, which automatically senses and fills containers and hands-free. Keep your food fresh and flavorful with the Preserva® Food Care System, FreshChill™ Temperature-Controlled Full-Width Pantry Drawer featuring temperature presets and fully extendable FreshSeal™ Humidity-Controlled Crisper Bins. Plus, with a number of finishes and hardware that are designed to be personalized, your refrigerator will seamlessly fit into your kitchen.
| Certifications | |
| Ada Compliant | No |
| Cee Tier Rating | Tier I |
| Energy Rating (kwh/year) | 569 |
| Prop65 | CA |
| Star K Certified | Star K Certified |
| Ul | Yes |
| Ul File Number | 24MBM6CD |
| Controls | |
| Automatic Defrost | Yes |
| Control Location | Side Door |
| Control Lockout | Yes |
| Control Options | Child Lock; Demo Mode; Sound on/off; Vacation Mode |
| Cooling Type | Single Evaporator |
| Door Ajar/open Alarm | Yes |
| LCD Touch Screen | No |
| Max Cool/fast Cool | Yes |
| Max Ice | No |
| Refrigerator Max Cool | Yes |
| Sabbath Mode | Yes |
| Details | |
| Door Opening Direction | N/A |
| Door Style Configuration | French Door |
| Fingerprint Resistant | No |
| Garage Ready | No |
| Ice Capacity Storage | 3.5 |
| Installation Configuration | Freestanding |
| Installation Option | Freestanding |
| Levelers | 2 |
| Refrigeration Configuration | Refrigerator |
| Refrigerator Type | French Door |
| Wheels | 2 Fixed Feet + 2 Wheels |

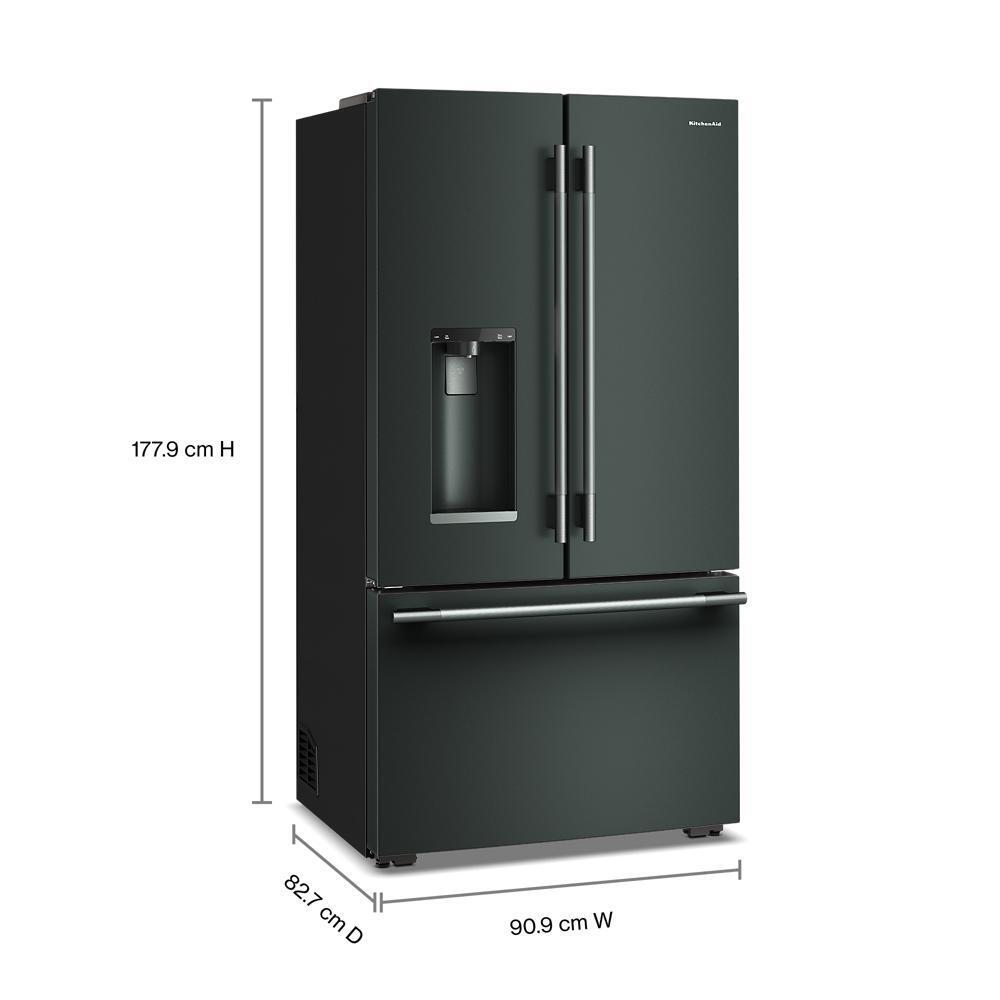

| Dimensions | |
| Width With Doors Closed | 35.625 |
| Product Height | 69.875 |
| Height To Top of Door Hinge | 69.875 |
| Carton Height | 0 |
| Gross Weight | 0 |
| Height To Top of Cabinet | 68.875 |
| Carton Width | 0 |
| Total Refrigerator Capacity Volume | 23.1 |
| Product Depth | 32.125 |
| Depth With Door Open 90 Degree | 44.25 |
| Depth Excluding Doors | 25 |
| Cabinet Width | 35.625 |
| Cutout Height | 70.125 |
| Depth Closed Excluding Handles | 29.438 |
| Depth Closed Including Handles | 32.125 |
| Dispenser Options | Control/Child Lock; Filtered Ice; Filtered Water; Intelligent AutoFill; Light; Paddle |
| Dispenser Type | Exterior Ice and Water |
| Carton Depth | 0 |
| Cutout Width | 36 |
| Freezer Capacity Volume | 6.57 |
| Refrigerator Capacity Volume | 16.09 |
| Net Weight | 0 |
| Product Width | 35.625 |
| Width Doors Open 90 Degrees | 44.5 |
| Exterior Details | |
| Cabinet Color | Juniper Green |
| Cabinet Finish | Textured |
| Counter Depth | Yes |
| Door Color | Juniper Green |
| Door Finish | Smooth |
| Door Style | Contour |
| Handle Color | Juniper |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Hidden Hinge | Yes |
| Reversible Door | No |
| Filter Details | |
| Air Filter Indicator/reset | No |
| Fresh Flow Air Filter Included | No |
| Produce Preserver | No |
| Water Filter Indicator/reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | EDRARXD1 |
| Freezer Details | |
| Defrost Type | Automatic Defrost |
| Freezer Compartment Type | Slide-Out Door 2 Tier |
| Freezer Door Bins | Pizza Pocket |
| Freezer Door Type | Pull-Out |
| Freezer Drawer/basket | 1 Full Width Lower Plastic with Adjustable Divider; 1 Full Width Upper Plastic |
| Freezer Fast Cool | Yes |
| Freezer Lighting | LED |
| General | |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Icemaker Details | |
| Icemaker | In-Door-Ice System |
| Icemaker Location | Refrigerator Door |
| Types of Ice | Crushed/Cubed |
| Refrigerator Details | |
| Additional Storage | Wine Rack |
| Conventional Shelves | 1 Fixed Full-Width Glass; 1 Slide-Out - Wood Finish; 4 Adjustable Half-Width Glass |
| Humidity-controlled Crispers | 2 Fresh Seal Crispers; 60/40 Split Width |
| Liner Finish | Platinum |
| Number of Doors | 3 |
| Number of Interior Shelves | 6 |
| Pantry Drawer | Yes |
| Pantry Drawer Setting | Meat, Drink, Deli, Wine |
| Refrigerator Door Bins | 2 Fixed Full-Width; 3 Adjustable Gallon; Extra Cold Bin Full Width |
| Refrigerator Lighting | LED |
| Spill-proof Glass Shelves | No |
| Supplementary Containers | N/A |
| Temperature-controlled Drawers | 1 Full Width Pantry |
| Smart Compatibility | |
| Connectivity | No |
| Smart Appliance | No |
| Works With | WiFi |
| Warming Drawer Details | |
| Temperature Range | -5F/+5F FC 30F/45F RC |
- Fit your most difficult-to-store containers with our Adjustable Glass Shelving
- Designed to be Personalized with a curated palette of finishes and handles
- PRESERVA Food Care System helps keep food fresh and flavorful
- Removable Wine Rack can store up to 3 bottles of wine
- Signature Platinum Interior wows with wood-look trim and metallic accents
- Control your refrigerator from your phone with the KITCHENAID App
- True Clearance Hinges allow doors to open up to 135(degree)
- True Counter Depth lets your refrigerator blend seamlessly into your kitchen
- Two-Tier Freezer Drawer conveniently organizes frozen foods
- Ultra-Bright LED Lighting makes it easy to find items inside
- Wood-Look Sliding Storage Tray keeps platters and ingredients easily accessible
- EVERYDROP Water Filter reduces 75 potentially harmful contaminants including microplastics and lead
- Dual Ice refrigerator with in-door dispenser and freezer storage
- Extra Cold Zone keeps beverages up to 5(degree)F degrees colder
- FRESHCHILL Temperature-Controlled Full-Width Pantry Drawer has digital presets for wine, deli, drinks and meat
- FRESHSEAL Humidity-Controlled Crisper Bins help lock in freshness
- IN-DOOR-ICE System produces up to 3.5 lbs of ice per day
- Fill your water bottle hands-free with Intelligent Auto Fill
- Max Cool drops the refrigerator temperature to help quickly chill groceries
- Max Freeze drops temperature to coldest level for optimal freezing
