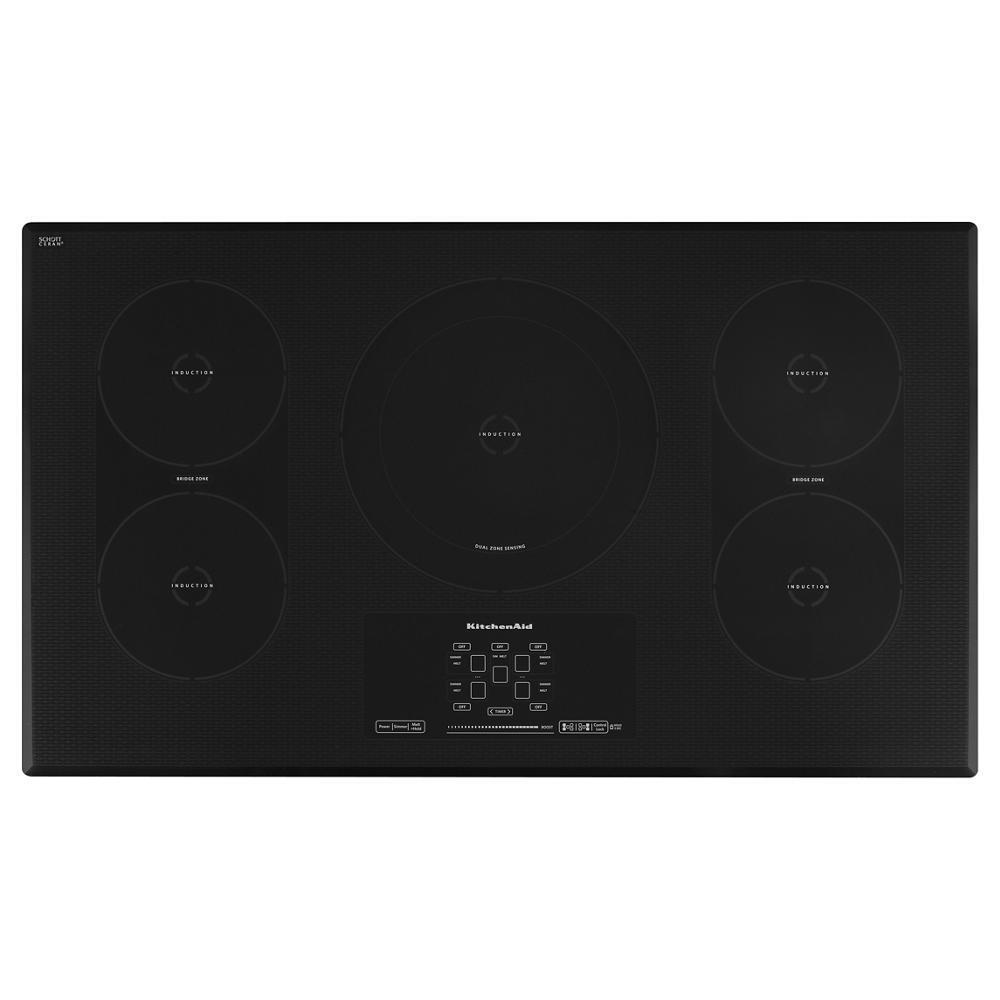

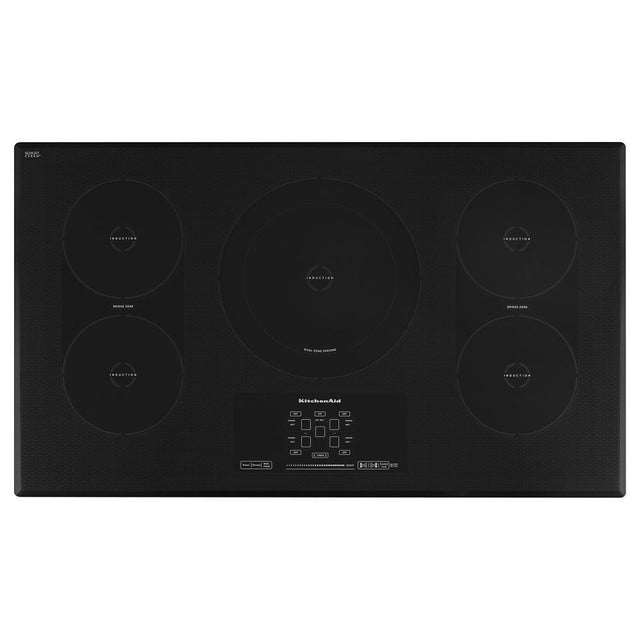

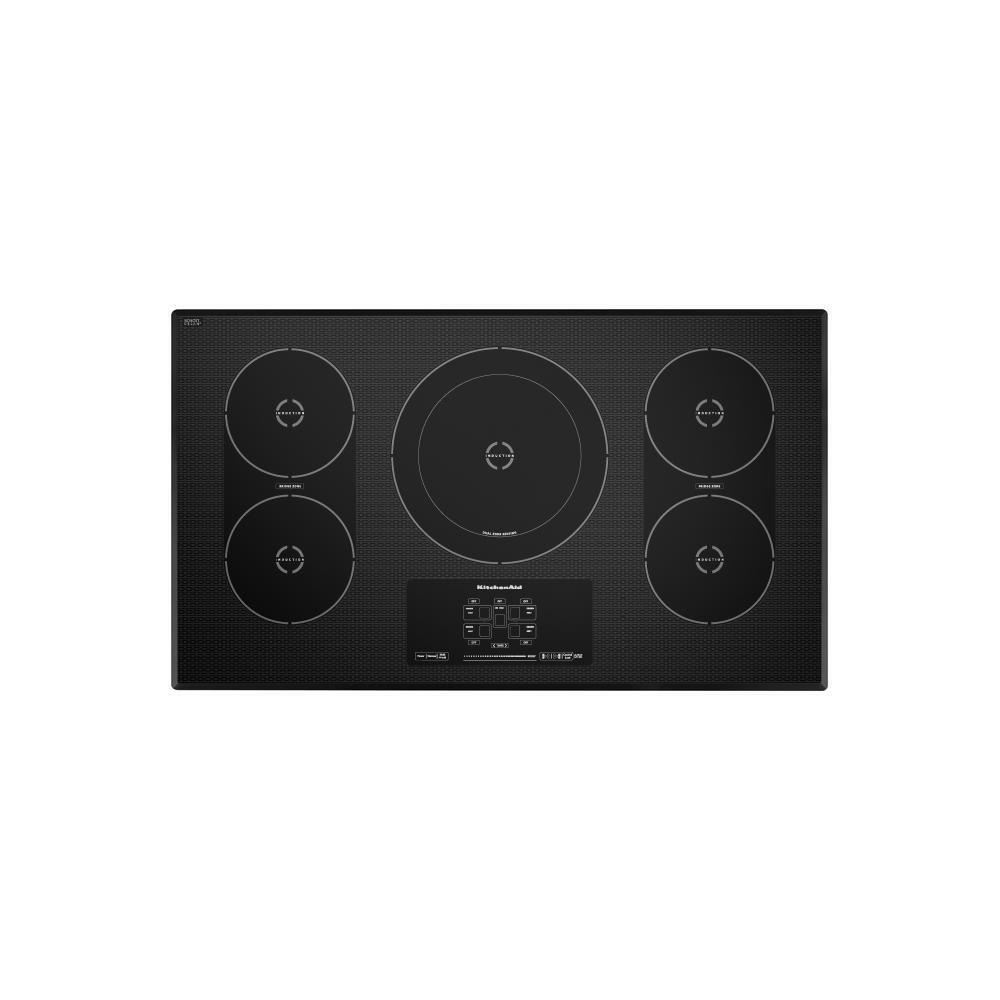

36-Inch 5-Element Induction Cooktop, Architect® Series II
Model: KICU569XBLQuick Specs
Depth
21.3125
Height
3.125
Sabbath
NO
ADA
NO
Wifi
NO
Cooktop
5
Vent
NO
Induction
YES
36-Inch 5-Element Induction Cooktop, Architect® Series II is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,082.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21.3125
Height
3.125
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Cooking oven number of cooktop element
5
Downdraft Ventilation
NO
Cooking is Induction
YES
12 Heat Level Settings
Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.
5 Element Cooktop
Cook more of your family's favorites and enjoy added versatility with a fifth element.
4 Elements with Bridge Functions
Allows the flexibility to convert four cooking zones into two large cooking zones which provides additional space to accommodate specialty cookware.
5-Element Cooktop
Provides five independent cooking surface areas.
- 12 Heat Level Settings
- Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.
- 12''/9'', 4800/2500-Watt Element
- Offers two element sizes in one space to accommodate a variety of pan sizes without changing elements and allows you the power needed to cook at high heat.
- 4 Elements with Bridge Functions
- Allows the flexibility to convert four cooking zones into two large cooking zones which provides additional space to accommodate specialty cookware.
- 5 Element Cooktop
- Cook more of your family's favorites and enjoy added versatility with a fifth element.
- 5-Element Cooktop
- Provides five independent cooking surface areas.
- Control Lock
- Disables cooking mode for easy cleaning when not in use.
- Melt and Hold
- Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
- Pan Size Detection
- Provides feedback on whether pan size is suitable for the selected element.
- recognizes the size and placement of cookware to generate heat directly within the pan. Display will alert you if you turn the cooktop on without a pan on the selected element or if your pan is not compatible with induction cooking.
- Performance Boost
- Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
- Simmer Function
- Automatically selects a low power level to help maintain a constant simmer without boiling over.
- Touch-Activated Controls
- Offer an intuitive, easy-to-use touch screen experience.
- Enjoy added versatility with a fifth element
- Control Lock disables cooking for easy cleaning when not in use
- Pan Size Detection adapts heat to pan size and placement
- Touch-Activated Controls are simple to use and easy to clean
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Tap Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |

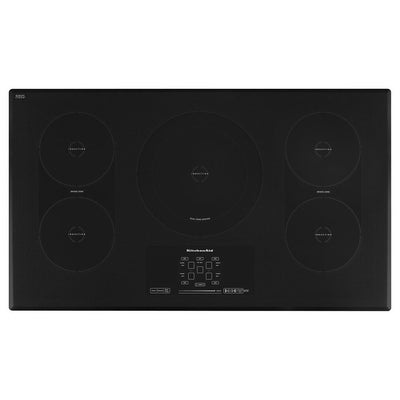

| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | Yes |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Details | |
| Automatic Pan Detection | Yes |
| Cooktop Selections | Control Lock; Melt; Power Boost; Power On Indicator Light; Simmer; Timer |
| Installs Over Built-in Oven | Yes |

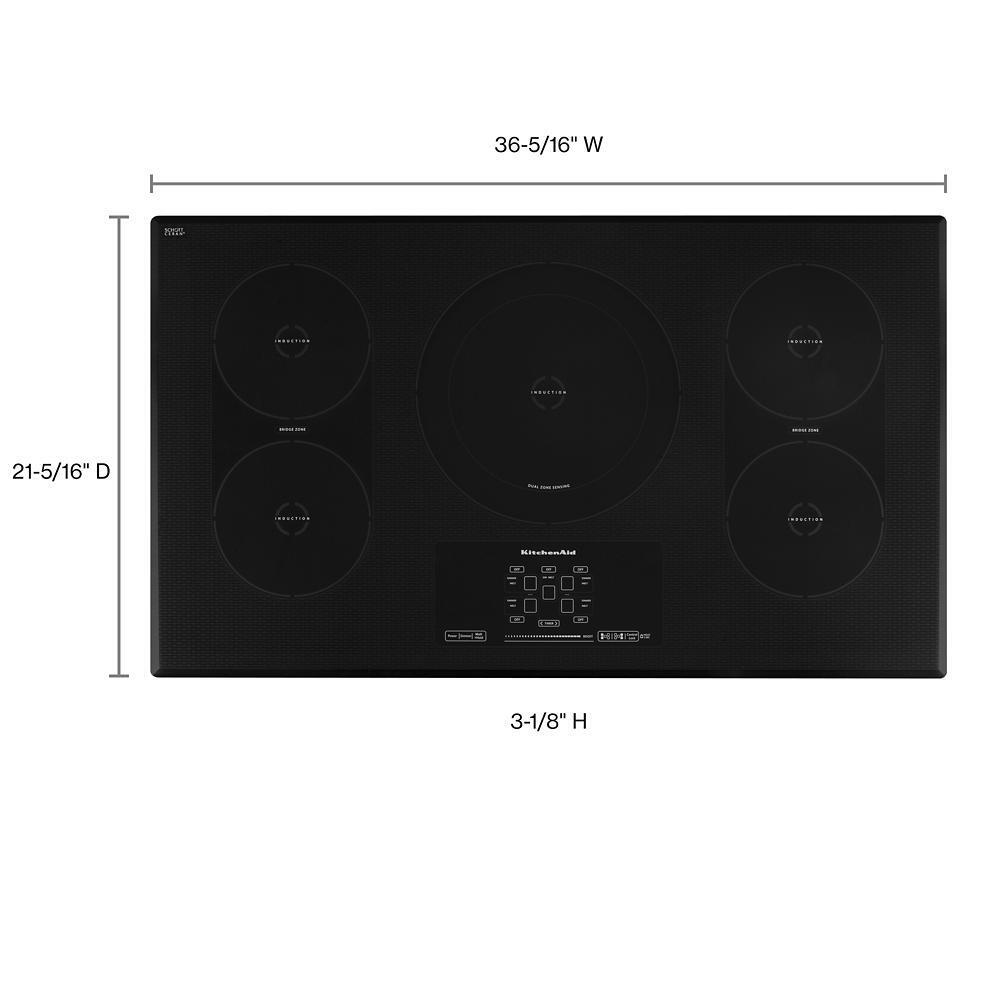

| Dimensions | |
| Product Height | 3.125 |
| Cutout Depth | 19.313 |
| Carton Height | 7.75 |
| Gross Weight | 64 |
| Carton Depth | 25.5 |
| Carton Width | 39.5 |
| Cutout Width | 33.063 |
| Product Depth | 21.3125 |
| Net Weight | 0 |
| Product Width | 36.3125 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Front Element-burner Size | 12in. |
| Center Front Element-burner Type | Dual |
| Center Rear Element-burner Power | 4800/2800W |
| Center Rear Element-burner Size | 12in. |
| Center Rear Element-burner Type | Dual |
| Cooktop Element Style | Induction |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 2500W/1800W |
| Left Front Element-burner Size | 7in. |
| Left Front Element-burner Type | Bridge |
| Left Rear Element-burner Power | 2500W/1800W |
| Left Rear Element-burner Size | 7in. |
| Left Rear Element-burner Type | Bridge |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 2500W/1800W |
| Right Front Element-burner Size | 7in. |
| Right Front Element-burner Type | Bridge |
| Right Rear Element-burner Power | 2500W/1800W |
| Right Rear Element-burner Size | 7in. |
| Right Rear Element-burner Type | Bridge |
| Exterior Details | |
| Knob Color | NA |
| General | |
| Combination Match With Oven | KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Ventilation Details | |
| Downdraft Vent | No |
