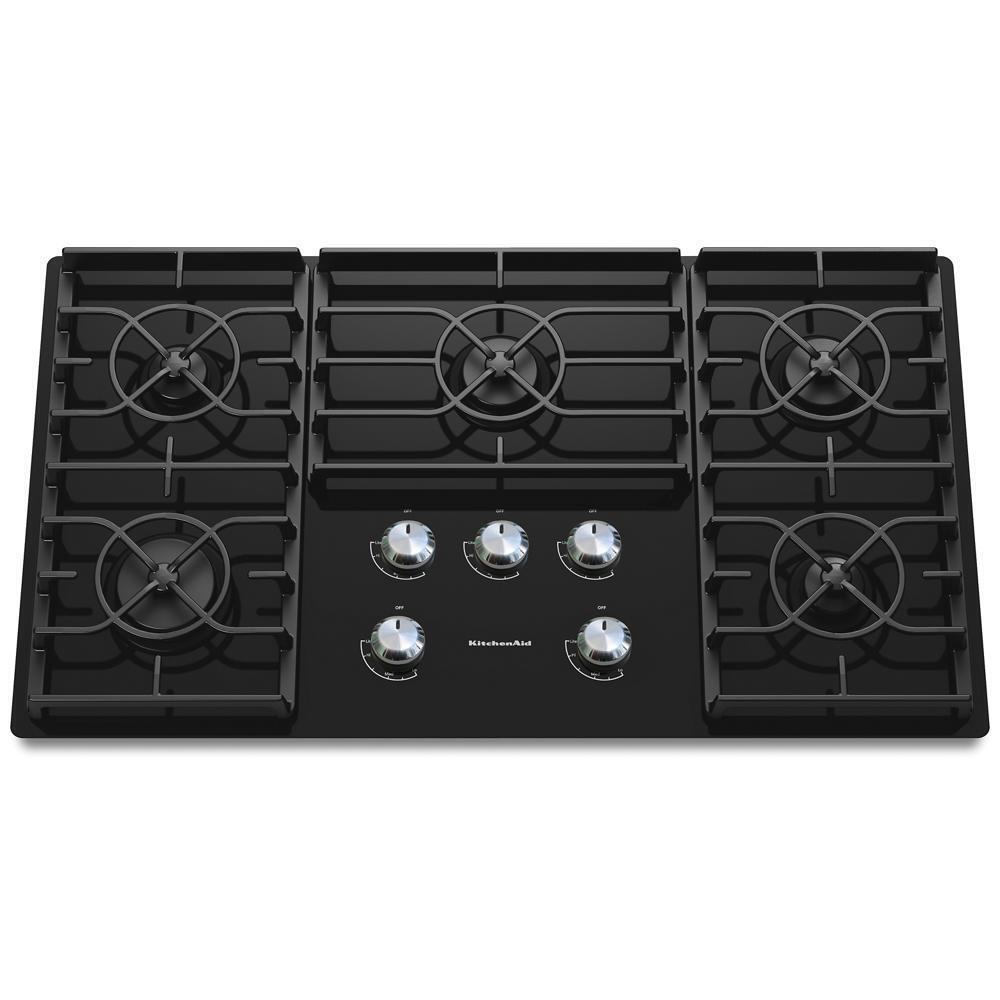

36-Inch 5 Burner Gas Cooktop, Architect® Series II
Model: KGCC566RBL
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
36-Inch 5 Burner Gas Cooktop, Architect® Series II
Model: KGCC566RBLQuick Specs
Depth
19"
Height
3.37"
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Burners
5
Grate
YES
36-Inch 5 Burner Gas Cooktop, Architect® Series II is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$1,620.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19"
Height
3.37"
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
5
Continuous Grate
YES
Downdraft Ventilation
NO
Oven Ignition Type
ELECTRONIC
Gas-on-Glass Surface
Offers a stylish appearance and wipes clean easily.
Electronic Ignition
Automatically lights burners so no standing pilot light is needed.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP Conversion Kit
Allows you to convert the cooktop so it can be used with LP gas.
Two 6K BTU Simmer Burners
Allow more accurate simmer control at the lowest setting, and are ideal for cooking smaller quantities of food, using smaller pots and pans.
- Gas-on-Glass Surface
- Offers a stylish appearance and wipes clean easily.
- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- 17K BTU Professional Burner
- Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- Two 6K BTU Simmer Burners
- Allow more accurate simmer control at the lowest setting, and are ideal for cooking smaller quantities of food, using smaller pots and pans.
- Electronic Ignition
- Automatically lights burners so no standing pilot light is needed.
- LP Conversion Kit
- Allows you to convert the cooktop so it can be used with LP gas.
- Gas-on-Glass Surface
- Full-Width Cast-Iron Grates
- 17K BTU Professional Burner
- Two 6K BTU Simmer Burners
- Electronic Ignition
| Details | |
| Cooktop Surface Material | Ceramic Glass |
| Description | |
| Fuel Type | Gas |
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
| Size (in.) | 36 |
| Cooktop Type | Standard |
| Certifications | |
| ADA Compliant | No |
| Prop 65 | Standard |
| UL | Yes |
| Cooktop Details | |
| Number of Cooking Element-Burners | 5 |
| Left Front Element-Burner Type | Professional Burner |
| Right Rear Element-Burner Type | Burner |
| Grate Details | Cast Iron Grates,Continuous,Matte Finish |
| Right Front Element-Burner Type | Simmer |
| Left Front Element-Burner Power | 17,000 BTU |
| Number of Grates | 3 |
| Left Rear Element-Burner Type | Simmer |
| Right Front Element-Burner Power | 6,000 BTU |
| Ignition Type | Direct Spark Ignition |
| Center Rear Element-Burner Type | Single |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Left Rear Element-Burner Power | 6,000 BTU |
| Right Rear Element-Burner Power | 12,500 BTU |
| Center Rear Element-Burner Power | 9,000 BTU |
| General | |
| Cookshield Finish | Cookshield Finish |
| Accessory Relationships | Yes |
| Controls | |
| Knob Color | Color Coordinated |
| Infinite Heat Controls | Yes |
| Control Location | Front |
| Knob Type | Dishwasher-Safe Plastic |
| Control Type | Knobs |

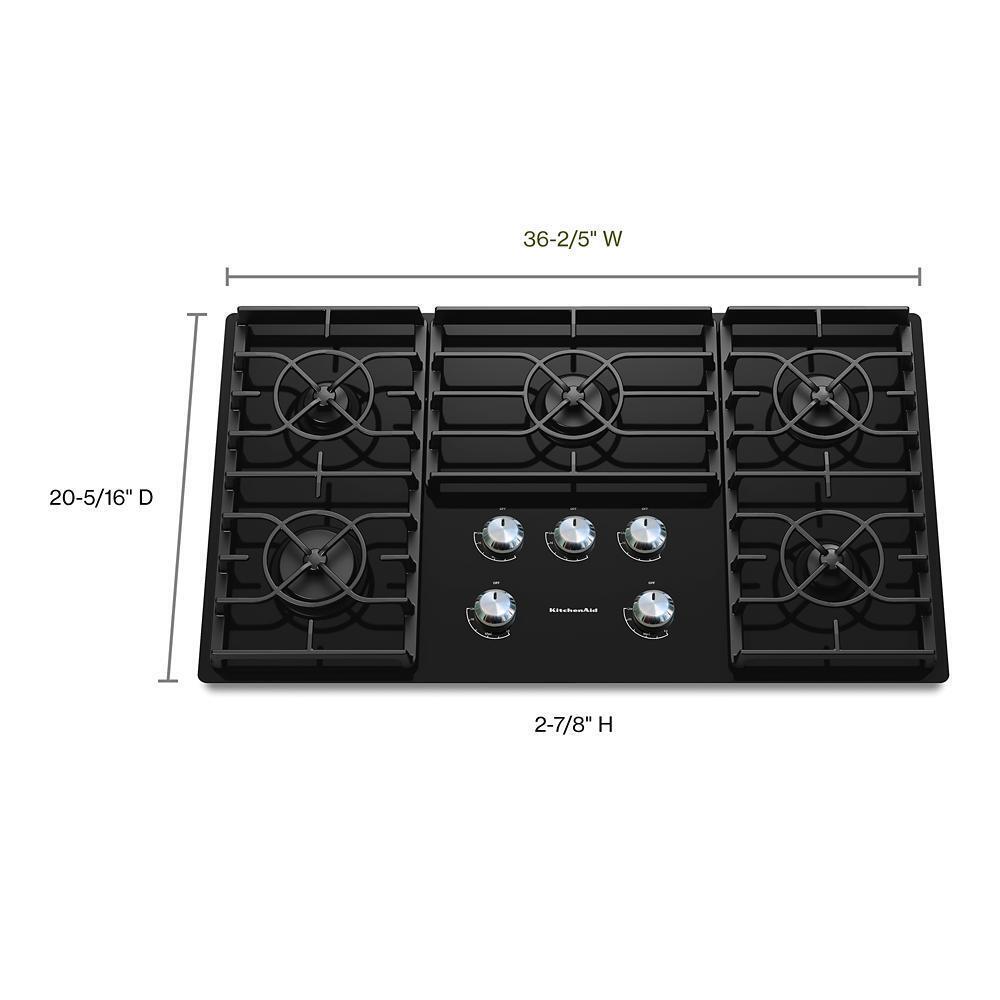

| Dimensions | |
| Depth(IN,inches) | 20 5/16 |
| Carton Height(IN,inches) | 8 3/4 |
| Cutout Width(IN,inches) | 35 1/4 |
| Gross Weight(LB,pounds) | 62 |
| Height(IN,inches) | 2 7/8 |
| Cutout Depth(IN,inches) | 19 |
| Width(IN,inches) | 36 7/16 |
| Carton Depth(IN,inches) | 25 3/4 |
| Carton Width(IN,inches) | 42 |
| Cutout Height Min(IN,inches) | 2 7/8 |
| Features | |
| Digital Display | No |
| Downdraft Vent | No |
| Griddle | Optional Accessory |
| Installs Over Built-In Oven | Yes |
| Power Boost | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Automatic Pan Detection | No |
| Electrical | |
| Volts | 120 |
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
- Gas-on-Glass Surface
- Full-Width Cast-Iron Grates
- 17K BTU Professional Burner
- Two 6K BTU Simmer Burners
- Electronic Ignition
