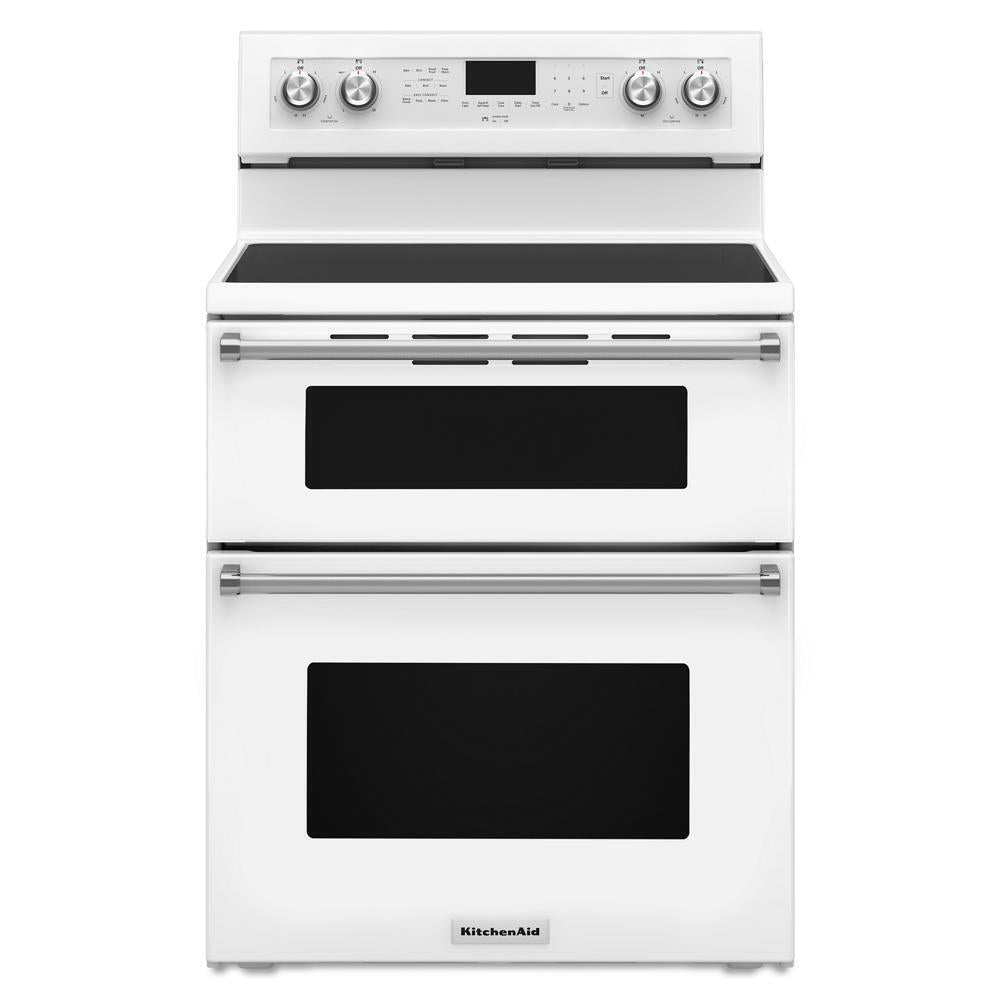

30-Inch 5 Burner Electric Double Oven Convection Range
Model KFED500EWH
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
30-Inch 5 Burner Electric Double Oven Convection Range
Model KFED500EWHQuick Specs
Width
29.87"
Depth
28.5
Height
47.375
Sabbath
YES
ADA
NO
Wifi
NO
Storage
NO
Warming
NO
Color
30-Inch 5 Burner Electric Double Oven Convection Range is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,154.05
Regular price
$2,499.00
Unit price
/
Unavailable
You save 13%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability

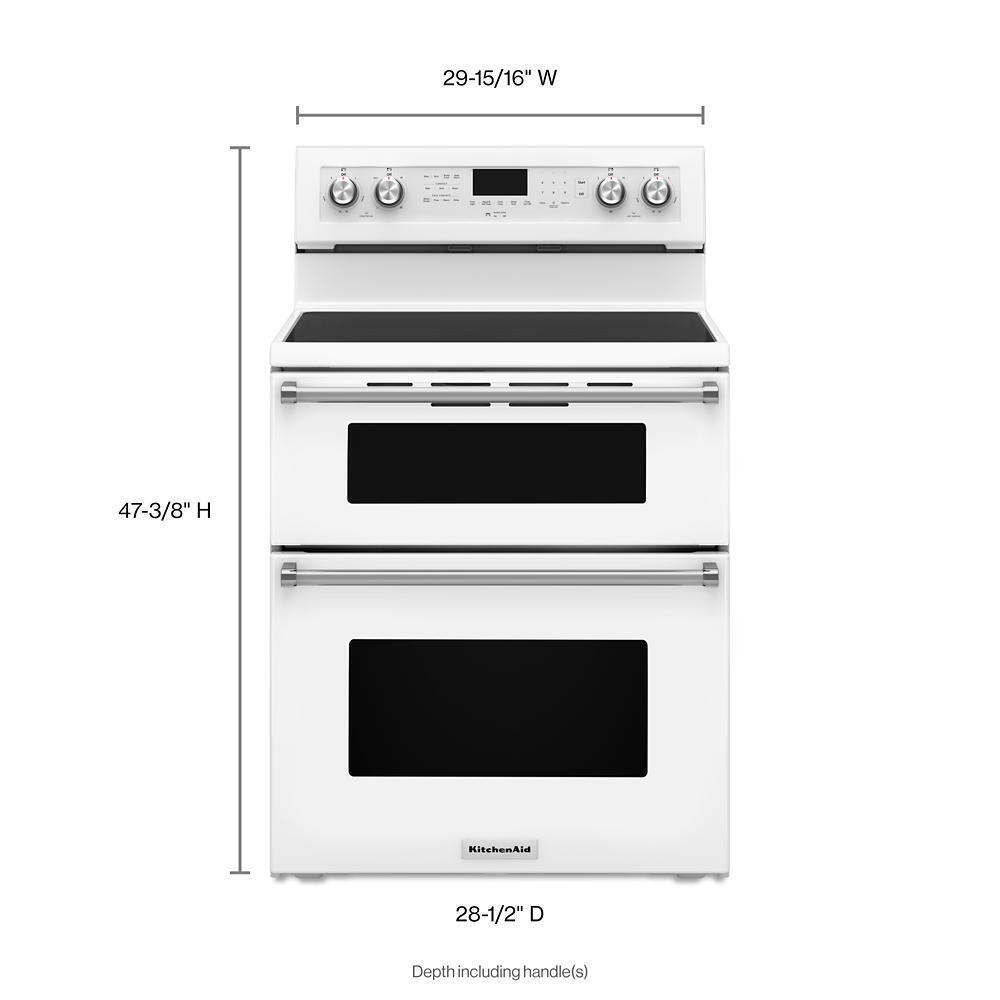

Quick Specs
Width
29.87"
Depth
28.5
Height
47.375
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
5
Cooking First Oven Capacity
2.5
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Downdraft Ventilation
NO
Nominal Width
30.0
Cooking is Induction
NO
RPM
-1.0
Drawer Proof Mode
YES
Energy Star Rated
NO
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
Professionally-Inspired Design
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
6.7 Cu. Ft. Total Capacity
Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
- 10" Even-Heat™ Ultra Element
- Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
- 5 Cooking Elements Including a Warm Zone
- Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
- 6.7 Cu. Ft. Total Capacity
- Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
- EasyConvect™ Conversion System
- Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- Even-Heat™ True Convection
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- Hidden Bake
- Covers up the baking element, making it easier to wipe away spills.
- Professionally-Inspired Design
- Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
- combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
- SatinGlide® Rack
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Triple-Ring Element
- With three element sizes at one location, you get the versatility to match cooking surface to cookware size.
- EASYCONVECT Conversion System automatically adjusts temperatures
- EVEN-HEAT True Convection for consistent baking and roasting
| Certifications | |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Display Color | Red; White |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Fuel Type | Electric |
| Oven Configuration | Double Oven |
| Oven Selections | Control Lock; Cook Time Indicator; Delay Start; Easy Convect Conversion; Keep Warm Setting; Proofing; Sabbath Mode; Slow Cook |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Double Oven |
| Range Drawer Type | None |
| Range Type | Freestanding Double Oven |
| Dimensions | |
| Product Height | 47.375 |
| Carton Height | 49.5 |
| Gross Weight | 242 |
| Upper Oven Capacity | 2.5 |
| Carton Width | 30.75 |
| Lower Oven Interior Height | 16 |
| Upper Oven Interior Width | 25 |
| Product Depth | 28.5 |
| Depth With Door Open 90 Degree | 45 |
| Lower Oven Interior Width | 25 |
| Depth Closed Including Handles | 28.5 |
| Lower Oven Capacity | 4.2 |
| Upper Oven Interior Depth | 19.25 |
| Carton Depth | 30.25 |
| Upper Oven Interior Height | 8.5 |
| Net Weight | 203.6 |
| Product Width | 29.9375 |
| Lower Oven Interior Depth | 18.75 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Rear Element-burner Power | 100W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Warming |
| Cooktop Element Style | Radiant |
| Left Front Element-burner Power | 2700W/1950W/1050W |
| Left Front Element-burner Size | 12in./9in./6in. |
| Left Front Element-burner Type | Triple |
| Left Rear Element-burner Power | 700W |
| Left Rear Element-burner Size | 6in. |
| Left Rear Element-burner Type | Single |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 3,200W |
| Right Front Element-burner Size | 10in. |
| Right Front Element-burner Type | Radiant Hyper |
| Right Rear Element-burner Power | 1,200W |
| Right Rear Element-burner Size | 6in. |
| Right Rear Element-burner Type | Single |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Oven Details | |
| Bake Element Power | 2,000 W Both |
| Broiler Element Power | 3,600 W Both |
| Broiler Location | Top of Oven |
| Convection Element Power | 1,600 |
| Convection Element Type | Fan |
| Convection Functions | Bake; Broil; Roast |
| Hidden Bake Element | Yes |
| Interior Color | Blue |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 1 Upper-2 Lower |
| Number of Rack Guides | 2 Upper-5 Lower |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
- EASYCONVECT Conversion System automatically adjusts temperatures
- EVEN-HEAT True Convection for consistent baking and roasting
