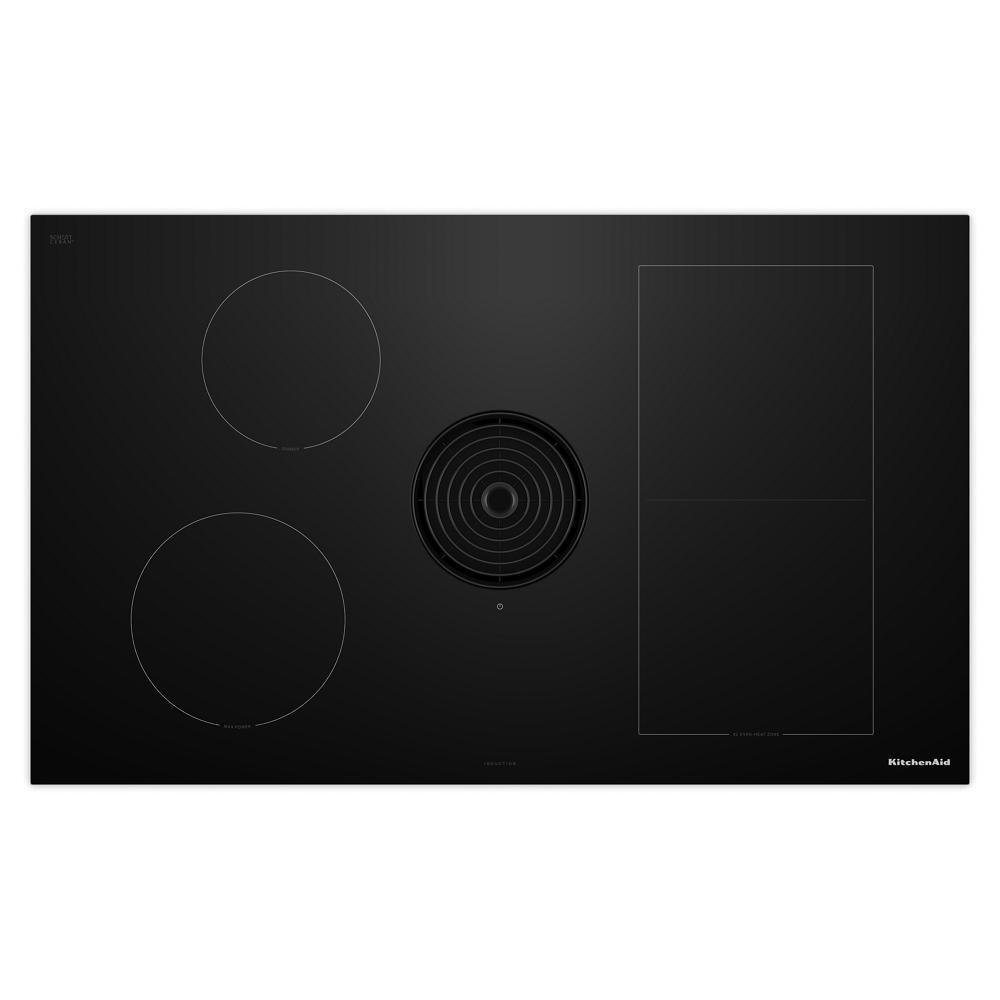

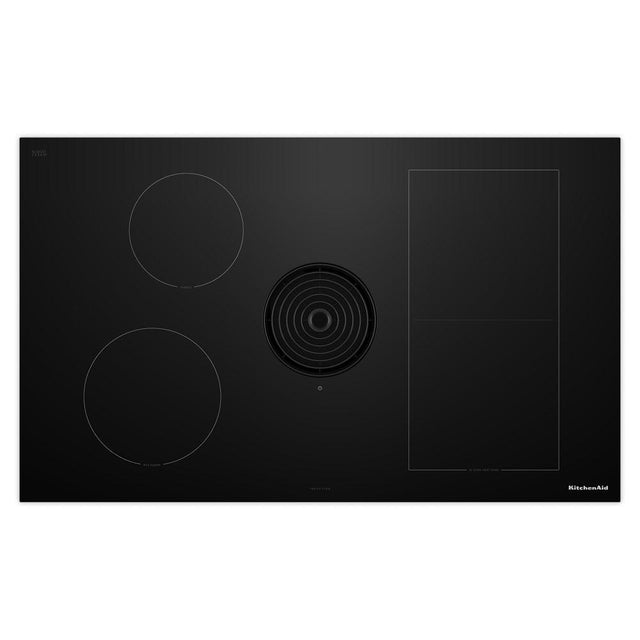

36-inch NextGen Induction Downdraft Cooktop with Bridge XL Even-Heat™ Zone
Model KCID936SBL
Authorized Dealer
1
of
8
Loading...
Authorized Dealer
36-inch NextGen Induction Downdraft Cooktop with Bridge XL Even-Heat™ Zone
Model KCID936SBLQuick Specs
Depth
22.0469
Height
7.8281
Sabbath
NO
ADA
NO
Wifi
NO
Cooktop
4
Vent
YES
Induction
YES
36-inch NextGen Induction Downdraft Cooktop with Bridge XL Even-Heat™ Zone is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,830.72
Regular price
$3,899.00
Unit price
/
Unavailable
You save 27%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
22.0469
Height
7.8281
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Cooking oven number of cooktop element
4
Downdraft Ventilation
YES
Cooking is Induction
YES
RPM
-1.0
Energy Star Rated
NO
- Assisted Cooking Presets
- let you quickly set your cooktop to the optimal temperatures you need-from melting delicate chocolate (42(degree)C/108(degree)F), to keeping rich sauces warm (74(degree)C/165(degree)F), or even simmering soups, stews, and rice (94(degree)C/201(degree)F).
- Bridge XL Even-Heat™ Zone
- optimizes your cooking surface to your flow-with plenty of room for pots, pans, griddles and roasters of various shapes and sizes.
- Charcoal Filter
- (optional accessory) helps to neutralize unpleasant odors from the extraction system, reducing the chances of them lingering or being recirculated into your home.
- Cleaner Air
- comes from a cutting-edge air extraction system featuring an automatic fan that adjusts to power level and an integrated filter to help remove unpleasant odors in recirculation mode to promote long-lasting freshness.
- Control Lock for Cleaning
- disables cooking mode for 10 seconds to allow for cleaning when the cooktop is not in use. Press the hand icon to lock controls and easily wipe off grease or splatters.
- Dishwasher-Safe Grease Filter
- catches 96% of grease and holds both solids and liquids.
- Energy Star® Certified
- to exceed government standards to help save money on utility bills.
- External or Recirculating Venting Options
- allow for more flexibility on how your downdraft cooktop vents. Choose between external ventilation or convert to duct-free recirculation (kit sold separately), ideal for installation in an island.
- Four Versatile Cooking Zones
- give you flexibility and control of your cooktop, allowing you to cook at four different temperatures simultaneously.
- Frameless Design
- allows for flush installation for a seamless look, or standard installation to fit an existing cooktop cutout.
- Hot-Surface Indicator
- provides a clear signal that a cooking surface is on or still hot to the touch.
- Maximizes Space
- with a flush installation and hood-free design that allows you to customize your kitchen to your personal flow. Whether you want to connect with your friends and family while cooking or move your cooktop to an island-with this downdraft cooktop, you can have it all.
- Pan Size Detection
- recognizes the size and placement of cookware to generate heat directly within the pan. Display will alert you if you turn the cooktop on without a pan on the selected zone or if your pan is not compatible with induction cooking.
- Power Boost Function
- allows you to exceed the maximum heat-level setting for up to 5 minutes, helping you get to a rapid boil.
- Power-On Indicator Light
- lets you know at a glance when a zone is on.
- Powerful Extraction System
- with downdraft ventilation that can adjust automatically to remove odors, steam and smoke 5x faster than steam can rise.
- Quiet Ventilation Technology
- features efficient airflow technology and a precision-engineered low-noise fan. Its weight-balanced blades are the secret to a quiet yet powerful extraction, perfect for the modern, peaceful kitchen.*

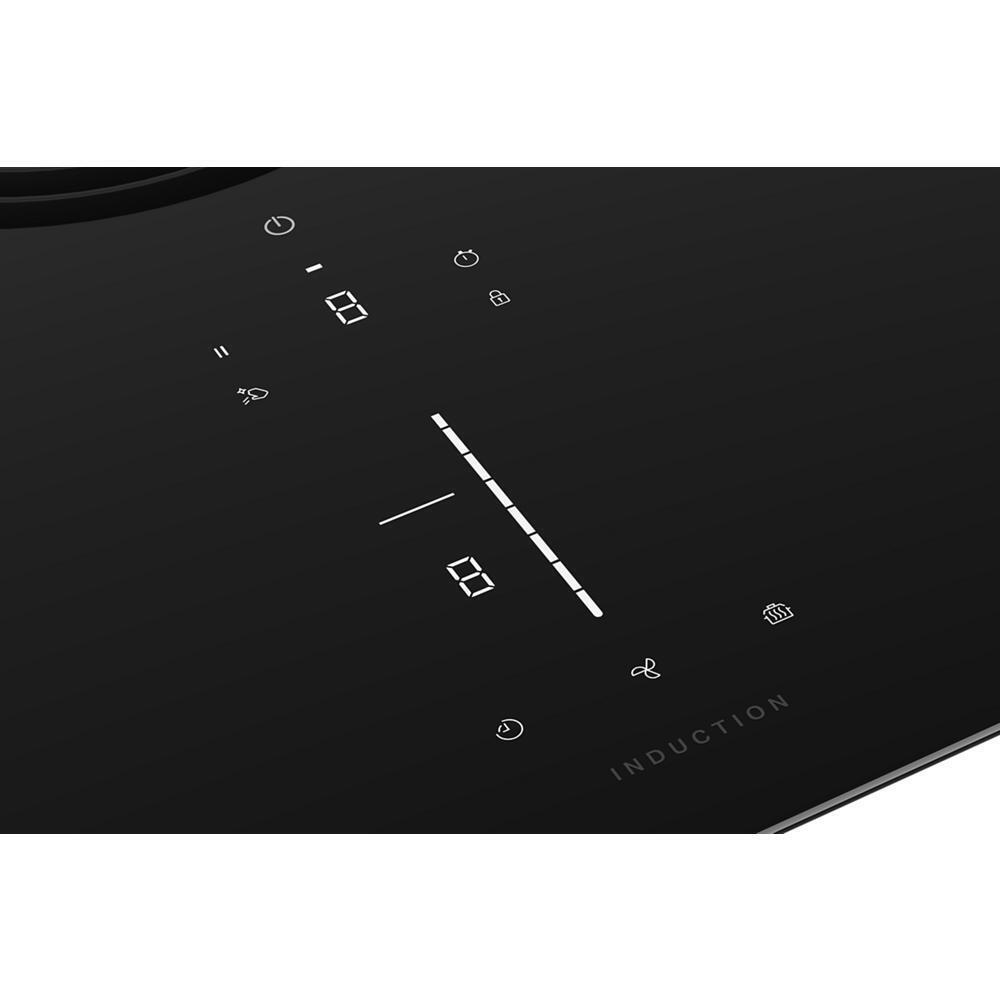

*Performance varies based on installation. Resources available at AHAM.org - Sliding Touch-Activated Controls
- allow you to easily control your downdraft cooktop. An easy-to-use vertical slider allows you to seamlessly adjust temperature settings and offers a built-in timer function.
- Works with Most High-Quality Cookware
- such as multi-ply stainless steel, enamelled steel or cast iron. Aluminum and copper cookware will not work unless it has a base made of iron or steel. Look for pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.
- Assisted Cooking Presets let you quickly set and use your cooktop
- Bridge XL EVEN-HEAT Zone fits cookware of various and sizes
- Hot-Surface Indicator light shows if cooking surface is hot
- Maximizes Space with a hood-free design and island install
- Pan Size Detection adapts heat to pan size and placement
- Power Boost Function lets you exceed maximum heat for 5 minutes
- Power-On Indicator Light lets you know when a zone is on
- Powerful Extraction System helps remove unwanted odors and smoke
- Quiet Ventilation Technology as low as 30 dBA
- Sliding Touch-Activated Controls offer intuitive touch operation
- Works with Most High-Quality Cookware like multi-ply stainless
- Charcoal Filter (optional) helps keep odors from recirculating
- Cleaner Air comes from a cutting-edge air extraction system
- Control Lock for Cleaning disables cooking for easy cleaning
- Dishwasher-Safe Grease Filter catches 96% of grease
- ENERGY STAR Certified
- External or Recirculating Venting Options to fit your kitchen
- Four Versatile Cooking Zones give you flexibility on your cooktop
- Frameless Design allows for flush installation and seamless look
Recenter, refresh and reconnect to your kitchen with the 36" KitchenAid® Downdraft Cooktop. Designed to reconnect you to what matters most, this cooktop features a flexible install designed to fit within your island counter without a bulky hood and make your cooktop the center of your kitchen with whisper-quiet ventilation and powerful extraction. Plus, enjoy the largest induction bridge available with the Bridge XL Even-Heat™ Zone, with plenty of room for cookware of various shapes and sizes.
| Certifications | |
| Ada Compliant | No |
| Cec Listed | No |
| Prop65 | Standard |
| Controls | |
| Control Location | Front |
| Control Type | Tap Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Griddle Included | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | Yes |
| Ignition Type | Electronic Button |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | Yes |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric Induction |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Power Outage Compatible | No |

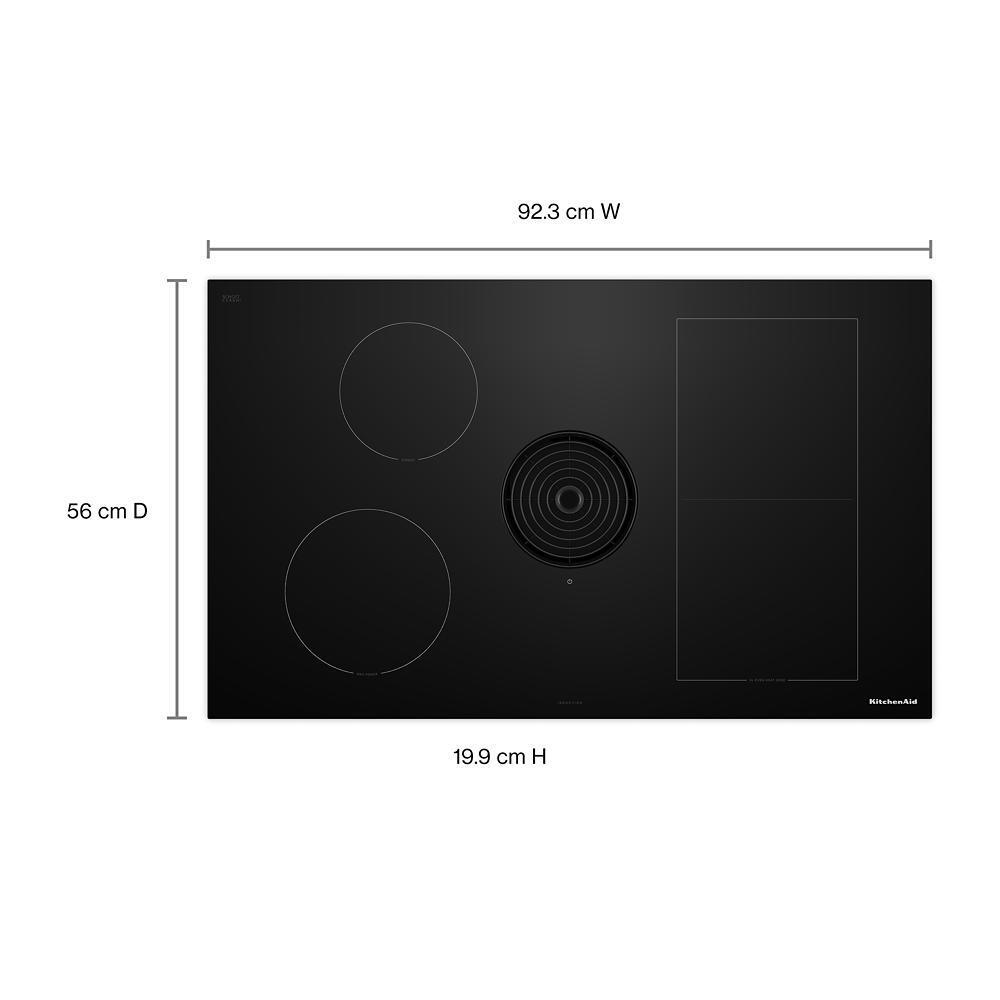

| Dimensions | |
| Product Height | 7.8281 |
| Carton Height | 13.39 |
| Gross Weight | 67.02 |
| Carton Depth | 29.13 |
| Carton Width | 38.19 |
| Product Depth | 22.0469 |
| Cutout Depth Min | 21.14 |
| Cutout Width Max | 34.563 |
| Net Weight | 46.12 |
| Product Width | 36.3438 |
| Electrical | |
| 208v Compatible | Yes |
| Element/burner Details | |
| Cooktop Element Style | Induction |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 2300/3200 watt (Boost) |
| Left Front Element-burner Size | 8in. |
| Left Front Element-burner Type | Round |
| Left Rear Element-burner Size | 7in. |
| Left Rear Element-burner Type | Round |
| Number of Cooking Element-burners | 4 |
| Power Boost | Yes |
| Right Front Element-burner Power | 2100W/ 3000W Boost |
| Right Front Element-burner Size | 9in. |
| Right Front Element-burner Type | Bridge |
| Right Rear Element-burner Power | 2100W/ 3000W Boost |
| Right Rear Element-burner Size | 9in. |
| Right Rear Element-burner Type | Bridge |
| Smart Compatibility | |
| Connectivity | No |
| Ventilation Details | |
| Downdraft Vent | Yes |
- Assisted Cooking Presets let you quickly set and use your cooktop
- Bridge XL EVEN-HEAT Zone fits cookware of various and sizes
- Hot-Surface Indicator light shows if cooking surface is hot
- Maximizes Space with a hood-free design and island install
- Pan Size Detection adapts heat to pan size and placement
- Power Boost Function lets you exceed maximum heat for 5 minutes
- Power-On Indicator Light lets you know when a zone is on
- Powerful Extraction System helps remove unwanted odors and smoke
- Quiet Ventilation Technology as low as 30 dBA
- Sliding Touch-Activated Controls offer intuitive touch operation
- Works with Most High-Quality Cookware like multi-ply stainless
- Charcoal Filter (optional) helps keep odors from recirculating
- Cleaner Air comes from a cutting-edge air extraction system
- Control Lock for Cleaning disables cooking for easy cleaning
- Dishwasher-Safe Grease Filter catches 96% of grease
- ENERGY STAR Certified
- External or Recirculating Venting Options to fit your kitchen
- Four Versatile Cooking Zones give you flexibility on your cooktop
- Frameless Design allows for flush installation and seamless look
