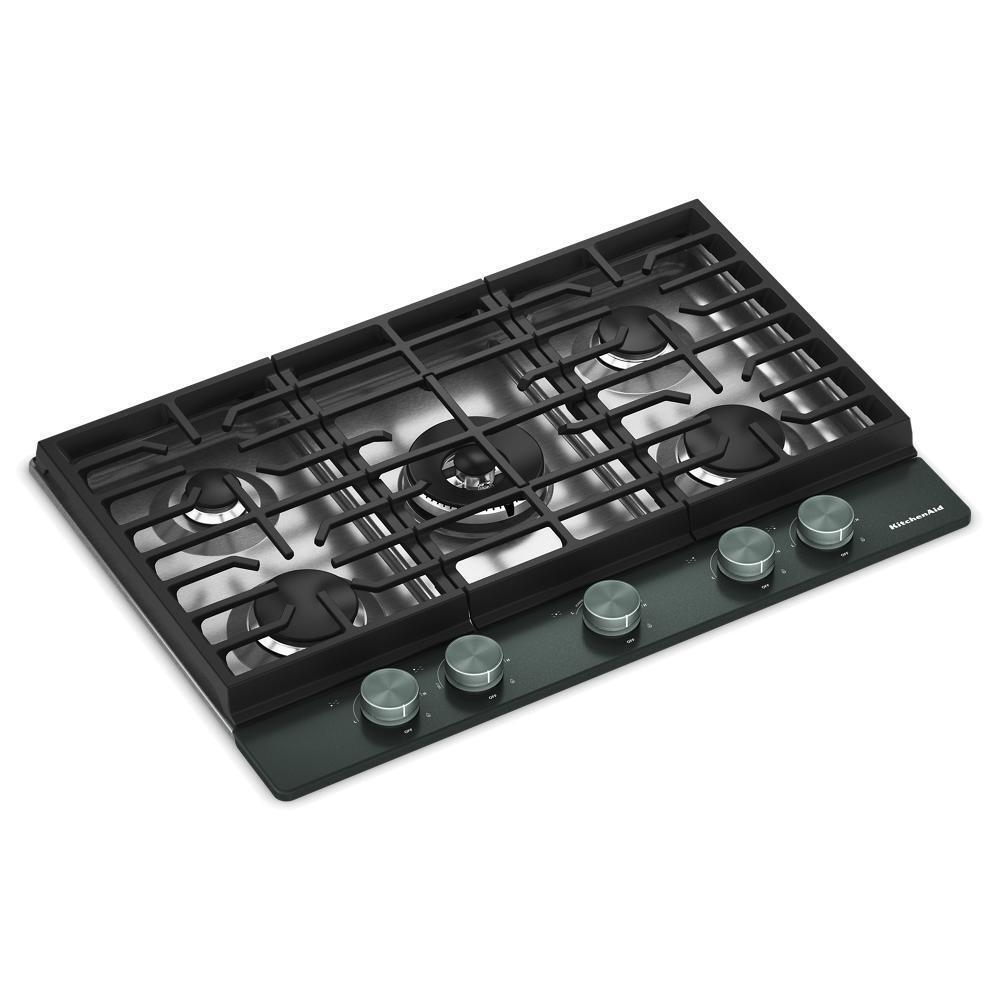

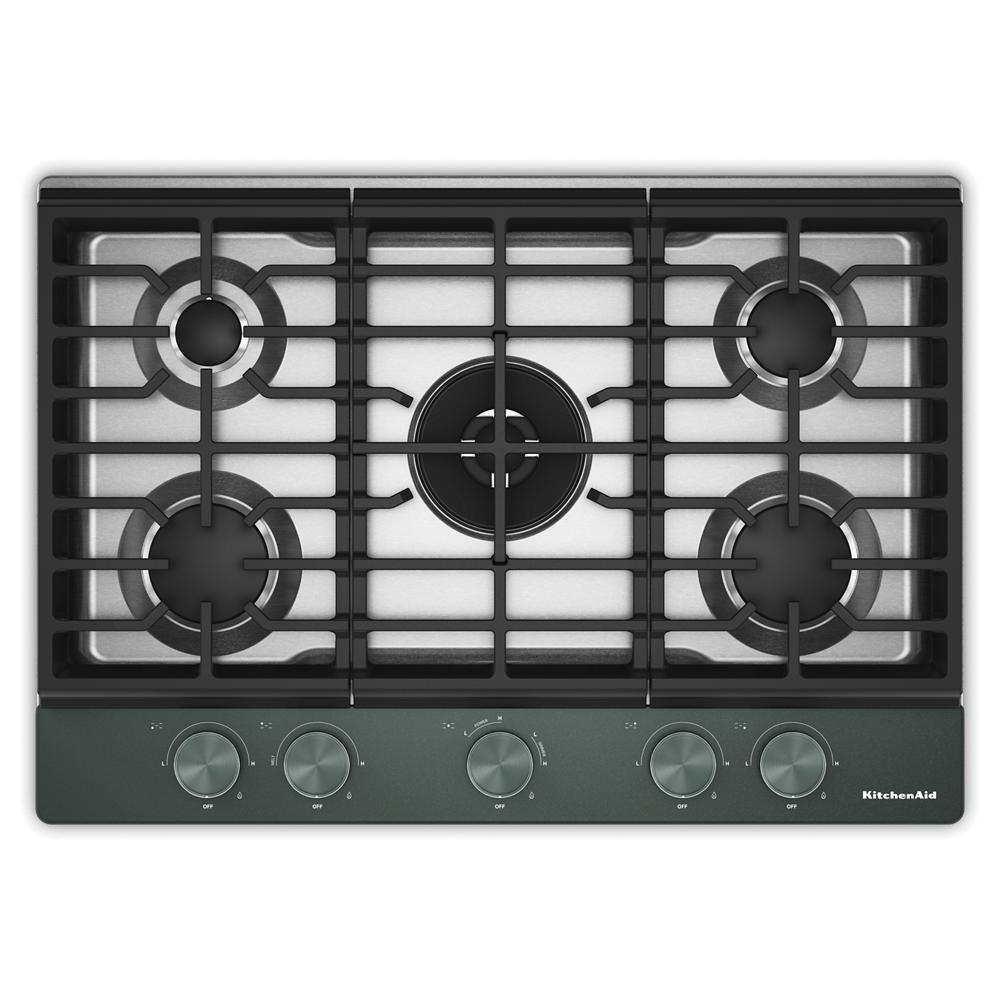

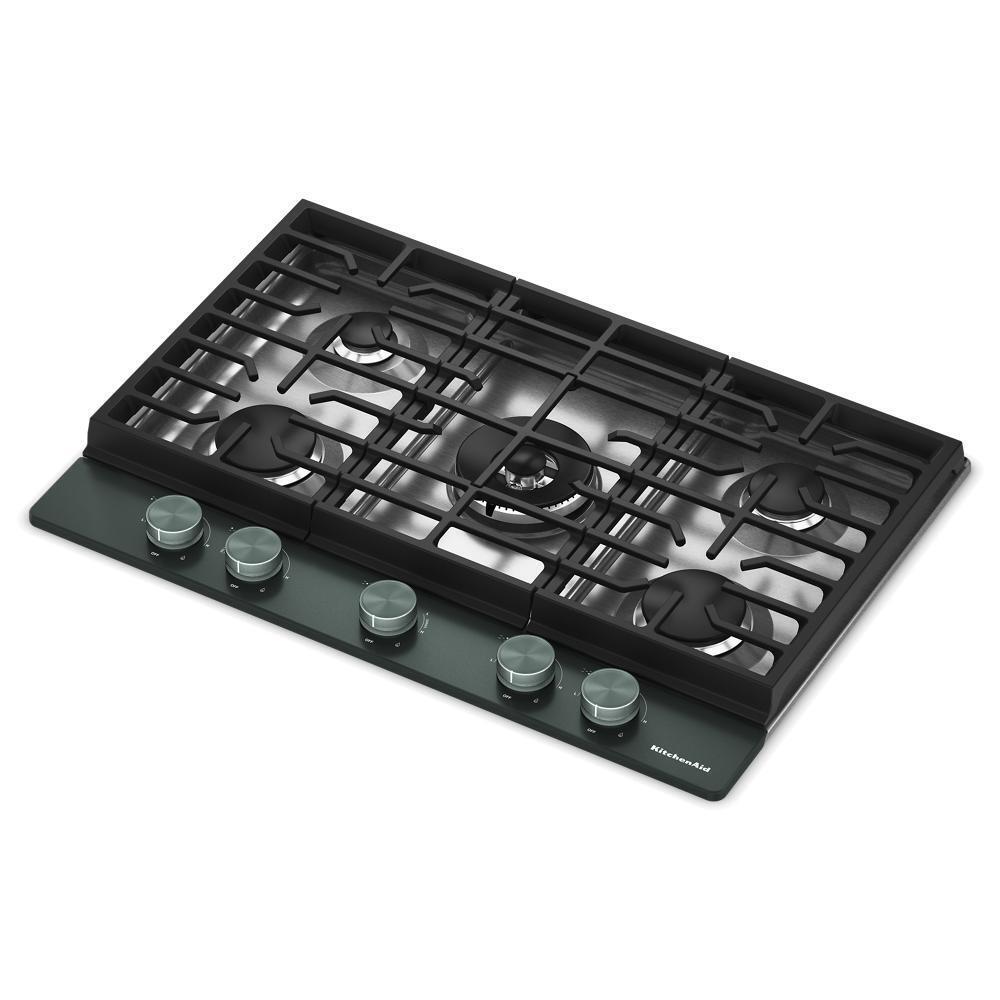

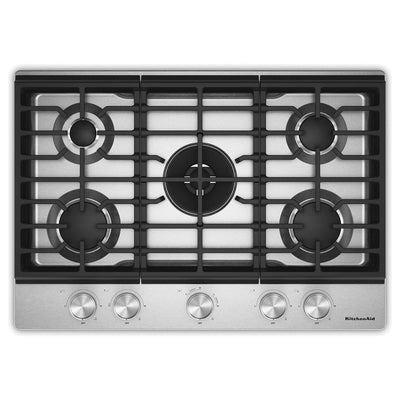

KitchenAid® 30 in. Gas Cooktop with 5 Burners and Integrated Wok Grate
Model KCGK530SJP
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
KitchenAid® 30 in. Gas Cooktop with 5 Burners and Integrated Wok Grate
Model KCGK530SJPQuick Specs
Depth
20.98
Height
6.42
Sabbath
NO
ADA
YES
Wifi
NO
Burner
Sealed
Burners
5
Grate
YES
KitchenAid® 30 in. Gas Cooktop with 5 Burners and Integrated Wok Grate is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/23/2026
Sale Price
Sale price
$1,092.40
Regular price
$1,899.00
Unit price
/
Unavailable
You save 42%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
20.98
Height
6.42
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
5
Continuous Grate
YES
Downdraft Ventilation
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- 17,000 BTU Professional Dual Ring Burner
- allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
- 6,000 BTU Simmer Burner
- allows control of the flame at the lowest setting, for precise simmering and melting.
- ADA Compliant
- this appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Designed to be Personalized
- with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching knobs. Personalize your hardware with optional knob accessory kits in Brass, Bronze, Black Ore and Stainless Steel.
- Edge-to-Edge Cast-Iron Grates
- enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.
- Electronic Ignition
- automatically lights burners so no standing pilot light is needed.
- Integrated Wok Grate
- lets you experience high-heat wok cooking with authentic stir-fry flavor right at home. The removable grate seamlessly allows you to nestle a round-bottom wok directly into the burner's flames so you can flash-sear garlic shrimp, toss spicy beef or caramelize crisp vegetables in minutes.
- LP Conversion Kit
- allows you to convert the cooktop so it can be used with liquid propane

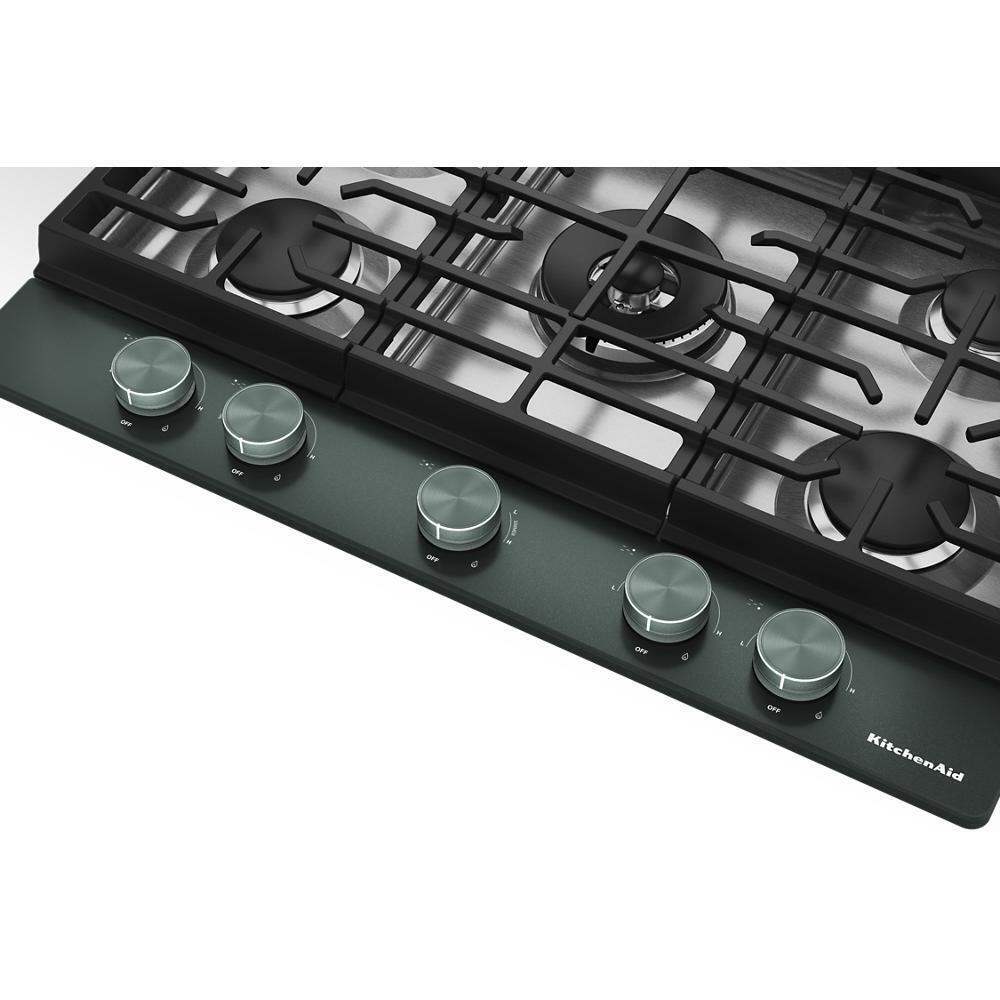

- Premium Weighted Knobs
- offer an enhanced, tactile feel when controlling your cooktop.

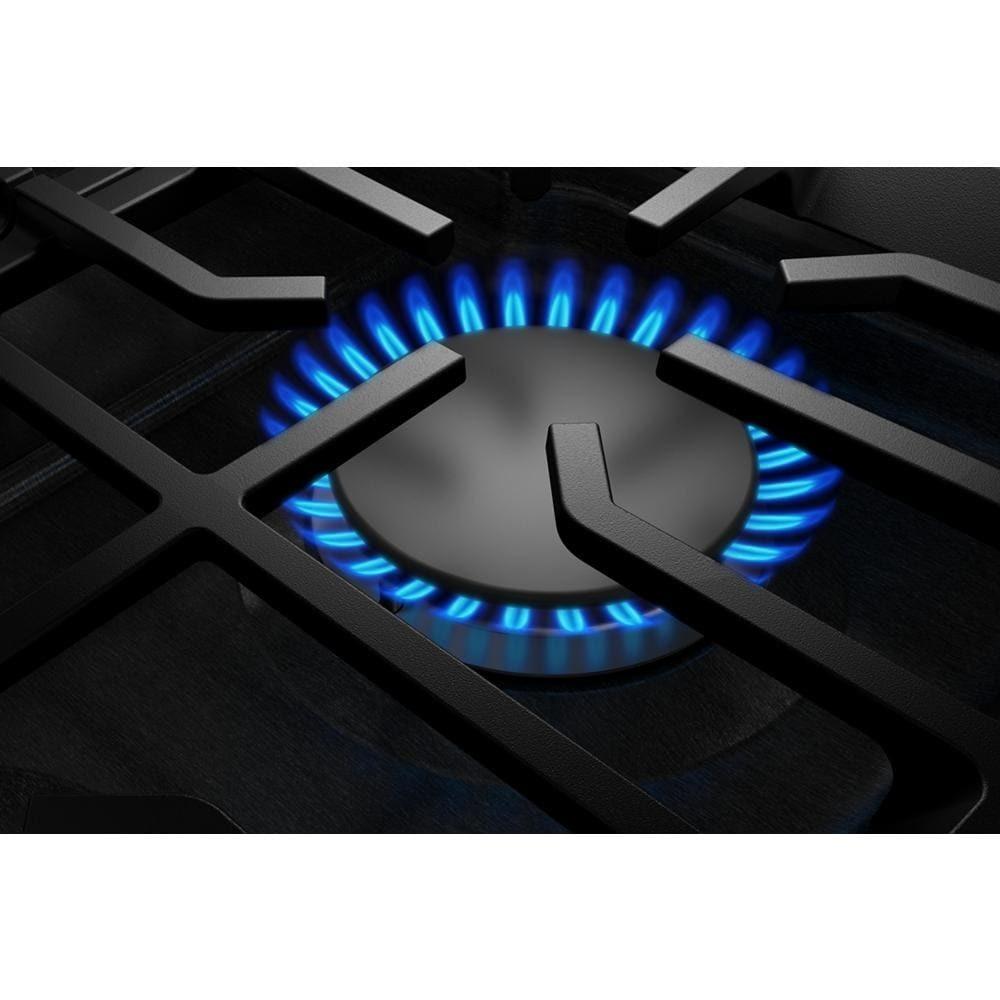

- Sealed Burners
- prevent crumbs, spills and boilovers from falling into the cooktop interior, making cleanup easy.
- Wall Oven Compatible
- install this cooktop above a wall oven or on its own for more flexibility
- Get a simmer or a boil on a 17K BTU Professional Dual Ring Burner
- Enjoy precise control with a 6K BTU Simmer Burner
- Wall Oven Compatible
- ADA Compliant
- Designed to be Personalized with curated finishes and knobs
- Edge-to-Edge Cast-Iron Grates that are dishwasher safe
- Electronic Ignition automatically lights burners
- Transform your burner with a seamlessly Integrated Wok Grate
- The LP Conversion Kit (Included) allows you to convert the cooktop so it can be used with liquid propane.
- Enjoy the tactile feel of Premium Weighted Knobs
- Sealed Burners make cleanup easy
Fuel more moments with the KitchenAid® Gas-on-Metal Cooktop featuring a seamlessly Integrated Wok Grate. The cooktop is Designed to be Personalized with a curated palette of exterior finishes and Premium Weighted Knobs. Go from a delicate simmer to a rolling boil on a powerful 20,000 BTU Professional Dual Ring Burner.
| Certifications | |
| Ada Compliant | ADA Height and Side Reach Compliant |
| Cec Listed | Yes |
| Cul | Yes |
| Prop65 | CA |
| Star K Certified | No |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Surface Color | Stainless |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic Automatic |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| Installation Configuration | Built-In |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

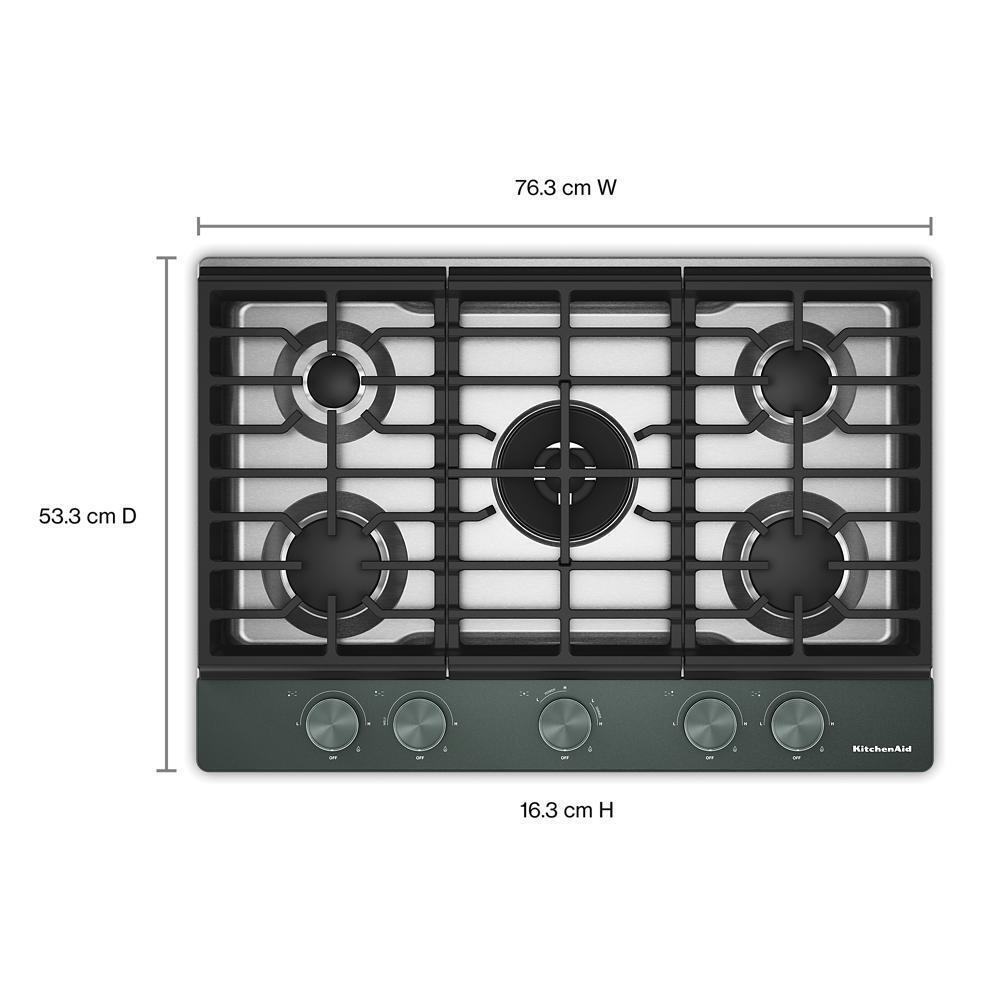

| Dimensions | |
| Product Height | 6.42 |
| Carton Height | 13 |
| Gross Weight | 59 |
| Carton Width | 35 |
| Product Depth | 20.98 |
| Cutout Depth Max | 20 |
| Cutout Width Min | 28.5 |
| Cutout Depth | 19.813 |
| Cutout Height | 5 |
| Carton Depth | 25 |
| Cutout Width | 28.875 |
| Cutout Depth Min | 19.5 |
| Cutout Width Max | 29.313 |
| Net Weight | 53 |
| Product Width | 30.02 |
| Electrical | |
| 208v Compatible | No |
| Power Cord Included | Yes |
| Element/burner Details | |
| Center Element Burner Power | 17,000 BTU |
| Center Element Burner Type | Professional Dual Ring |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 10000 BTU |
| Left Front Element-burner Type | Rapid |
| Left Rear Element-burner Power | 6,000 BTU |
| Left Rear Element-burner Type | Melt / Simmer |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 10,000 BTU |
| Right Front Element-burner Type | Rapid |
| Right Rear Element-burner Power | 7,000 BTU |
| Right Rear Element-burner Type | Semirapid |
| Exterior Details | |
| Knob Color | Juniper |
| Knob Type | Premium Weighted |
| General | |
| Backlit Knobs | No |
| Combination Match With Oven | KOES430R; KOES527P; KOES530P; KOES530S; KOES630S; KOES727S; KOES730P; KOES730S; KOES930S; KOSE500E; KOSE507E; KOSE900; KOSE900H |
| Cooktop Features | Cookshield Finish |
| Gas Regulator Inlet Thread Size | .75 |
| Personalized Hardware | Yes |
| Total Maximum BTU Output (cooktop & Oven) | 50000 BTU |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Integrated Wok Grate; Matte Finish |
| Number of Grates | 3 |
| Oven Details | |
| Natural Gas Convertible | Yes |
| Smart Compatibility | |
| Connectivity | No |
| Ventilation Details | |
| Downdraft Vent | No |
