30" 4 Burner Gas Downdraft Cooktop
Model KCGD500GSS
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
30" 4 Burner Gas Downdraft Cooktop
Model KCGD500GSSQuick Specs

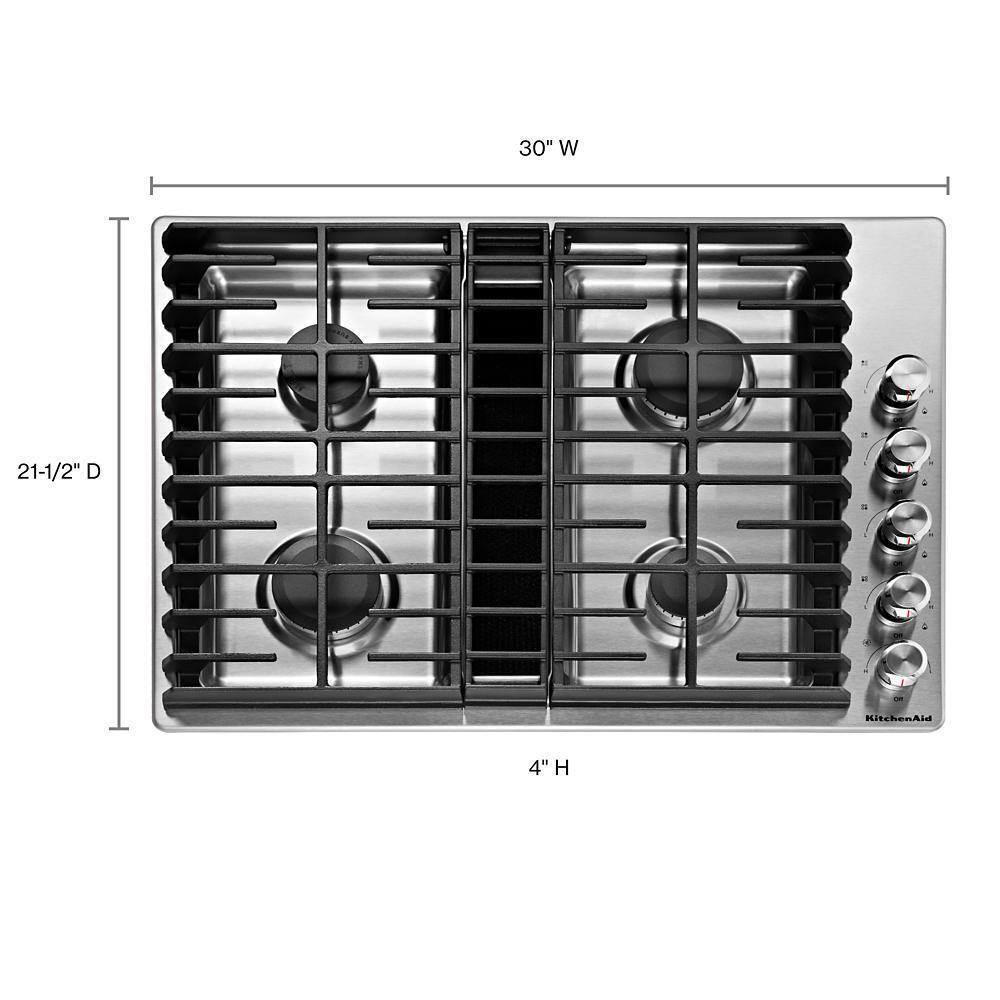

Width
30.0
Depth
21.5
Height
18.4375
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Storage
NO
30" 4 Burner Gas Downdraft Cooktop is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$2,249.00
$2,499.00
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30.0
Depth
21.5
Height
18.4375
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
NO
Downdraft Ventilation
YES
Nominal Width
30.0
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
Downdraft Ventilation
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- 15K BTU Professional Burner
- Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
- 17K BTU Professional Burner
- Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- 3-Speed Fan Control
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- 300 CFM Exhaust Rating
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- 5K BTU Even-Heat™ Simmer Burner
- A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
- Convertible to Duct-Free Ventilation
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- Downdraft Ventilation
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Electronic Ignition and Automatic Re-Ignition
- Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- LP Conversion Kit
- Allows you to convert the cooktop so it can be used with LP gas.
- Melt Cap
- Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
- Stainless Steel Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- 15K BTU Burner reaches temperatures needed for searing and quick boiling
- 17K BTU burner allows high temperatures for searing as well as low simmer
- Produce low heat for melting with a wider burner cap
- Stainless steel knobs add a premium feel with their sturdy construction
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- Burner with a diffuser plate for precise simmering and melting
- Vent kit to filter and recirculate air inside, allowing flexible placement
- Downdraft ventilation captures smoke/odors at the surface
- Lights burners with an electric spark and relights them if flame goes out
- Full-width grates create a beautiful look and easy movement of cookware
- LP Conversion Kit (not included) allows use cooktop with LP gas
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Digital Display | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Flame-Sensing™ Re-ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Fuel Type | Gas |
| Installs Over Built-in Oven | No |
| Lp Convertible | Yes |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | Yes |
| Dimensions | |
| Product Height | 18.4375 |
| Cutout Depth | 19.938 |
| Carton Height | 23.78 |
| Gross Weight | 78 |
| Carton Depth | 26.38 |
| Carton Width | 35.12 |
| Cutout Width | 28.625 |
| Product Depth | 21.5 |
| Net Weight | 66 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 17,000 BTU |
| Left Front Element-burner Type | Burner |
| Left Rear Element-burner Power | 5,000 BTU |
| Left Rear Element-burner Type | Even-Heat™ |
| Number of Cooking Element-burners | 4 |
| Power Boost | No |
| Right Front Element-burner Power | 10,000 BTU |
| Right Front Element-burner Type | Burner |
| Right Rear Element-burner Power | 15,000 BTU |
| Right Rear Element-burner Type | Burner |
| Exterior Details | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| General | |
| Cooktop Features | Downdraft Ventilation; Even-Heat Melt Burner |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Matte Finish |
| Number of Grates | 3 |
| Ventilation Details | |
| Cfm Motor Class | 300 |
| Downdraft Vent | Yes |
- 15K BTU Burner reaches temperatures needed for searing and quick boiling
- 17K BTU burner allows high temperatures for searing as well as low simmer
- Produce low heat for melting with a wider burner cap
- Stainless steel knobs add a premium feel with their sturdy construction
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- Burner with a diffuser plate for precise simmering and melting
- Vent kit to filter and recirculate air inside, allowing flexible placement
- Downdraft ventilation captures smoke/odors at the surface
- Lights burners with an electric spark and relights them if flame goes out
- Full-width grates create a beautiful look and easy movement of cookware
- LP Conversion Kit (not included) allows use cooktop with LP gas
