24.2 Cu. Ft. 42" Built-In Panel-Ready French Door Bottom Mount Refrigerator with Platinum Interior
Model KBFN542TPA
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
24.2 Cu. Ft. 42" Built-In Panel-Ready French Door Bottom Mount Refrigerator with Platinum Interior
Model KBFN542TPAQuick Specs
Depth
24.0
Height
83.125
Fresh
6.45
Freezer
24.2
Cu Ft
24.1
Size
24.1
ADA
NO
Disp
NO
24.2 Cu. Ft. 42" Built-In Panel-Ready French Door Bottom Mount Refrigerator with Platinum Interior is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$8,281.49
Regular price
$10,699.00
Unit price
/
Unavailable
You save 22%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
24.0
Height
83.125
Fresh food Capacity
6.45
Freezer Capacity
24.2
Capacity (cu ft.)
24.1
Refrigerator Size
24.1
ADA
NO
Dispenser
NO
Icemaker
YES
Wifi Connected
NO
Energy Star Rated
NO
- Adjustable Spill-Resistant Glass Shelves
- feature premium glass, offering edge-to-edge storage for whatever you need. Plus, its nano-etched edges help prevent spills from overflowing into other parts of your refrigerator, and its design allows you to remove them for easy cleaning. Sleek metallic trim on the front edges adds a striking accent.
- Automatic Ice Maker
- ensures that you have a continuous supply of fresh, filtered ice for entertaining or everyday beverages and creations.
- Fit System Limited Guarantee
- offers support if your NEW 36 or 42 built-in refrigerator doesn t fit your existing cutout, you may get up to $500 for professional modifications. Existing cabinet modifications only. Exclusions apply. For Full terms and details visit https://www.kitchenaid.com/promotions/promotions.html
- FreshFlow™ Air Filter
- deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.
- Galloon Door Bins
- maximize storage with thoughtfully designed and adjustable bins, accommodating gallon jugs, large containers and bulky items with ease.
- Intuitive Controls
- provide an easy-to-use touch pad control system that puts every refrigerator function right at your fingertips. Up-Front Temperature Controls make it easy to choose temperature settings, control the ice maker and check the status of the water filter.
- Max Cool
- lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.
- Max Freeze
- lets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.
- Panel-Ready Design
- allows you to install custom front panels and handles over the refrigerator doors to create a seamless look with kitchen cabinetry. Panels and handles not included.
- Personalized Door Stop
- tailors your refrigerator to suit your space by setting the door to stop at 90(degree), 110(degree) or 130(degree). This prevents the door from swinging open too widely, giving you the flexibility to load or find ingredients without hitting counters or handles.
- Preserva®+ Cooling System
- features two independent cooling systems that work together to keep the humidity at the right level to help keep all your produce fresh.
- Produce Preserver
- helps delay over-ripening to extend freshness of fruits and vegetables. This replaceable filter for crisper drawers absorbs the ethylene gas produced as part of the natural ripening process for up to 6 months.
- SatinGlide® Drawer System
- adds a smooth experience to the crisper drawers. Its ball-bearing rollers enhance the opening and closing experience every time, whether it is nearly empty or fully loaded.
- Signature Platinum Interior
- wows from the inside out with premium craftsmanship and design. Metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.
- Ultra-Bright LED Lighting
- gradually brightens to fully illuminate the freezer and refrigerator, making it easy to find what you need.
- Adjustable Spill-Resistant Glass Shelves trap spills before they spill over
- Automatic Ice Maker ensures continuous supply of ice
- PRESERVA+ Cooling System has multiple evaporators to help keep your produce fresh
- Produce Preserver helps extend freshness of fruits and vegetables
- SATINGLIDE Drawer System rolls smoothly, even while fully loaded
- Signature Platinum Interior wows with metallic accents
- Ultra-Bright LED Lighting makes it easy to find items inside
- Fit System Guarantee provides a budget to adjust your cabinets
- FRESHFLOW Air Filter deodorizes 15x better than baking soda
- Galloon Door Bins adjust for custom storage
- Intuitive Controls simplify system adjustments
- Max Cool drops temperature to coldest level for optimal cooling
- Max Freeze drops temperature to coldest level for optimal freezing
- Panel-Ready Design lets you seamlessly match your cabinetry
- The Personalized Door Stop allows you to customize how wide the doors open
This Built-In French Door Bottom Mount Refrigerator elevates your style with an Aesthetic Panel exterior. Multiple Installation Options allow you to choose between flush installation for an integrated look or proud for a prominent look. Signature Platinum Interior wows with metallic accents. Preserva® Food Care System helps keep food fresh thanks to independent cooling systems.
| Certifications | |
| Ada Compliant | No |
| Cee Tier Rating | Tier I |
| Prop65 | CA |
| Ul | Yes |
| Controls | |
| Automatic Defrost | Yes |
| Control Location | Interior Up Front |
| Cooling Type | Dual Evaporator |
| Door Ajar/open Alarm | Yes |
| LCD Touch Screen | No |
| Max Cool/fast Cool | Yes |
| Refrigerator Max Cool | Yes |
| Sabbath Mode | Yes |
| Details | |
| Advance Foam Insulation | 99.9% lower Global Warming Potential and Better Energy Performance |
| Door Opening Direction | N/A |
| Door Style Configuration | French Door |
| Garage Ready | No |
| Installation Configuration | Built-In |
| Installation Option | Built-In |
| Refrigeration Configuration | Refrigerator |
| Refrigerator Type | French Door |

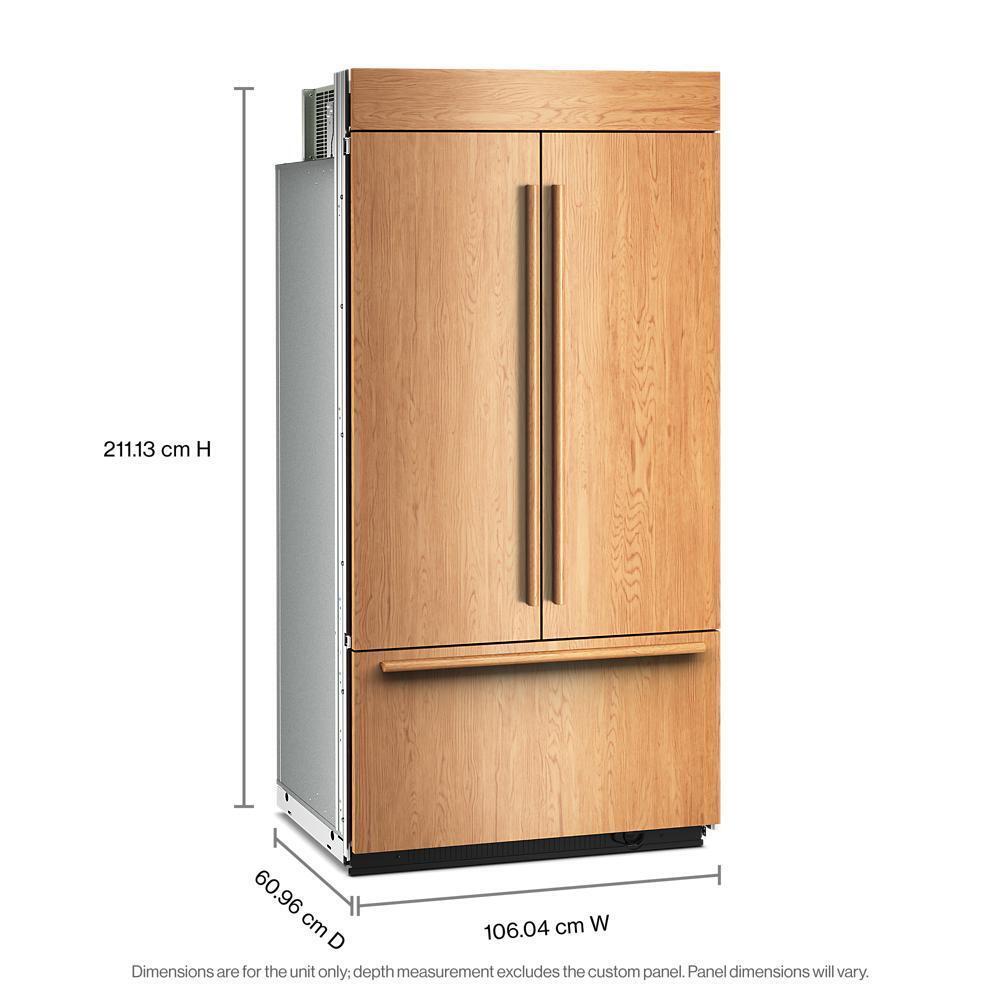

| Dimensions | |
| Width With Doors Closed | 41.75 |
| Product Height | 83.125 |
| Height To Top of Door Hinge | 76.188 |
| Carton Height | 86.57 |
| Gross Weight | 612.85 |
| Height To Top of Cabinet | 83.125 |
| Carton Width | 45.74 |
| Total Refrigerator Capacity Volume | 24.1 |
| Product Depth | 24.0 |
| Depth With Door Open 90 Degree | 44 |
| Depth Excluding Doors | 22.375 |
| Cabinet Width | 42 |
| Depth Closed Excluding Handles | 24 |
| Carton Depth | 32.04 |
| Cutout Width | 42 |
| Freezer Capacity Volume | 6.45 |
| Refrigerator Capacity Volume | 17.6 |
| Net Weight | 551.56 |
| Product Width | 41.75 |
| Height To Top of Door Trim | 76.688 |
| Width Doors Open 90 Degrees | 50.25 |
| Exterior Details | |
| Cabinet Color | Grey |
| Cabinet Finish | Smooth |
| Door Color | Panel Ready |
| Door Finish | Smooth |
| Door Style | Flat |
| Hidden Hinge | Yes |
| Reversible Door | No |
| Filter Details | |
| Air Filter Indicator/reset | No |
| Air Filter Part Number | W10311524 |
| Fresh Flow Air Filter Included | Yes |
| Produce Preserver | No |
| Water Filter Indicator/reset | Yes |

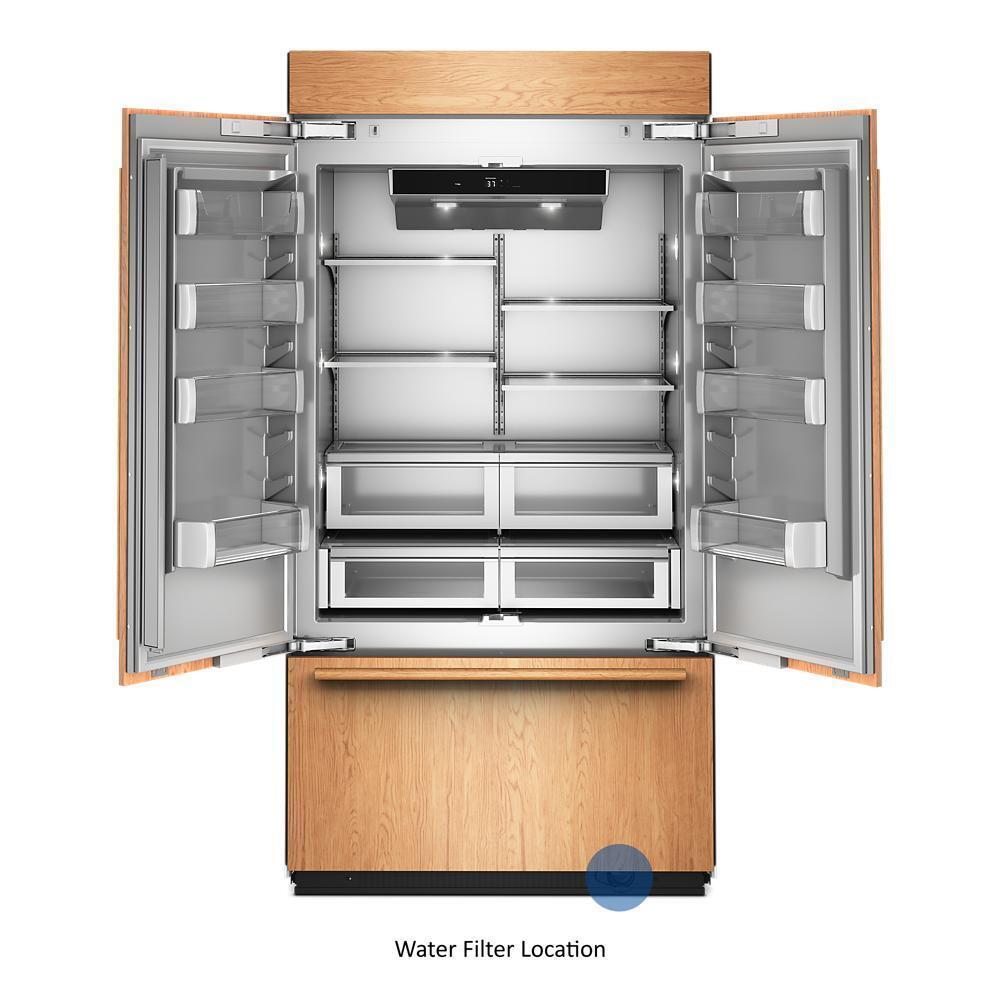

| Water Filter Location | Exterior |
| Water Filter Part Number | EDR3RXD1 |
| Freezer Details | |
| Defrost Type | Automatic Defrost |
| Freezer Door Type | Pull-Out |
| Freezer Drawer/basket | 1 Full Width Lower Metal; 1 Half Width Upper Plastic |
| Freezer Lighting | LED |
| Freezer Number of Shelves | 0 |
| Freezer Shelves | None |
| Freezer Type | Slide-Out Door 2 Tier |
| General | |
| Energy Star® Qualified | No |
| Icemaker Details | |
| Icemaker | Factory Installed |
| Types of Ice | Cubed |
| Refrigerator Details | |
| Liner Finish | Platinum |
| Non Climate Control Drawers | 4 Half Width |
| Number of Interior Shelves | 4 |
| Refrigerator Door Bins | 2 Half-Width Gallon; 4 Adjustable Half-Width |
| Refrigerator Lighting | LED |
| Spill-proof Glass Shelves | 4 Adjustable Half Width |
- Adjustable Spill-Resistant Glass Shelves trap spills before they spill over
- Automatic Ice Maker ensures continuous supply of ice
- PRESERVA+ Cooling System has multiple evaporators to help keep your produce fresh
- Produce Preserver helps extend freshness of fruits and vegetables
- SATINGLIDE Drawer System rolls smoothly, even while fully loaded
- Signature Platinum Interior wows with metallic accents
- Ultra-Bright LED Lighting makes it easy to find items inside
- Fit System Guarantee provides a budget to adjust your cabinets
- FRESHFLOW Air Filter deodorizes 15x better than baking soda
- Galloon Door Bins adjust for custom storage
- Intuitive Controls simplify system adjustments
- Max Cool drops temperature to coldest level for optimal cooling
- Max Freeze drops temperature to coldest level for optimal freezing
- Panel-Ready Design lets you seamlessly match your cabinetry
- The Personalized Door Stop allows you to customize how wide the doors open
