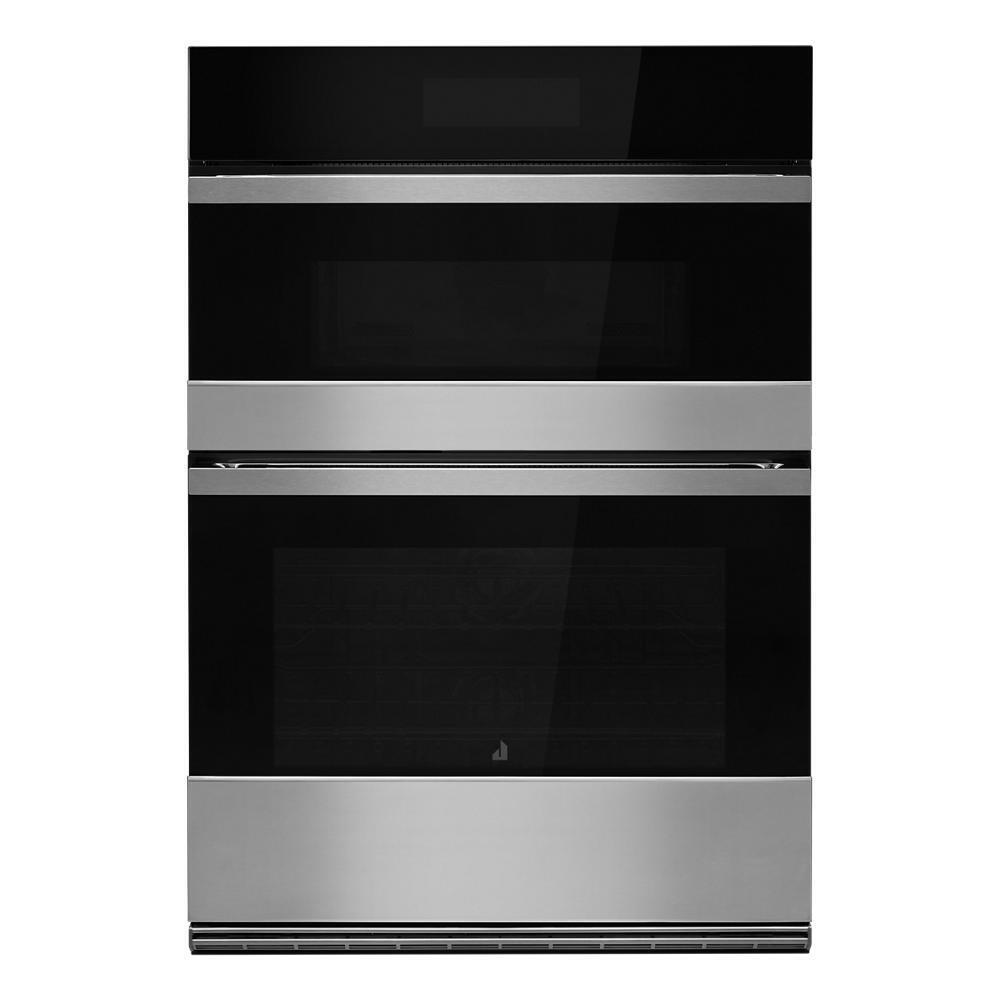

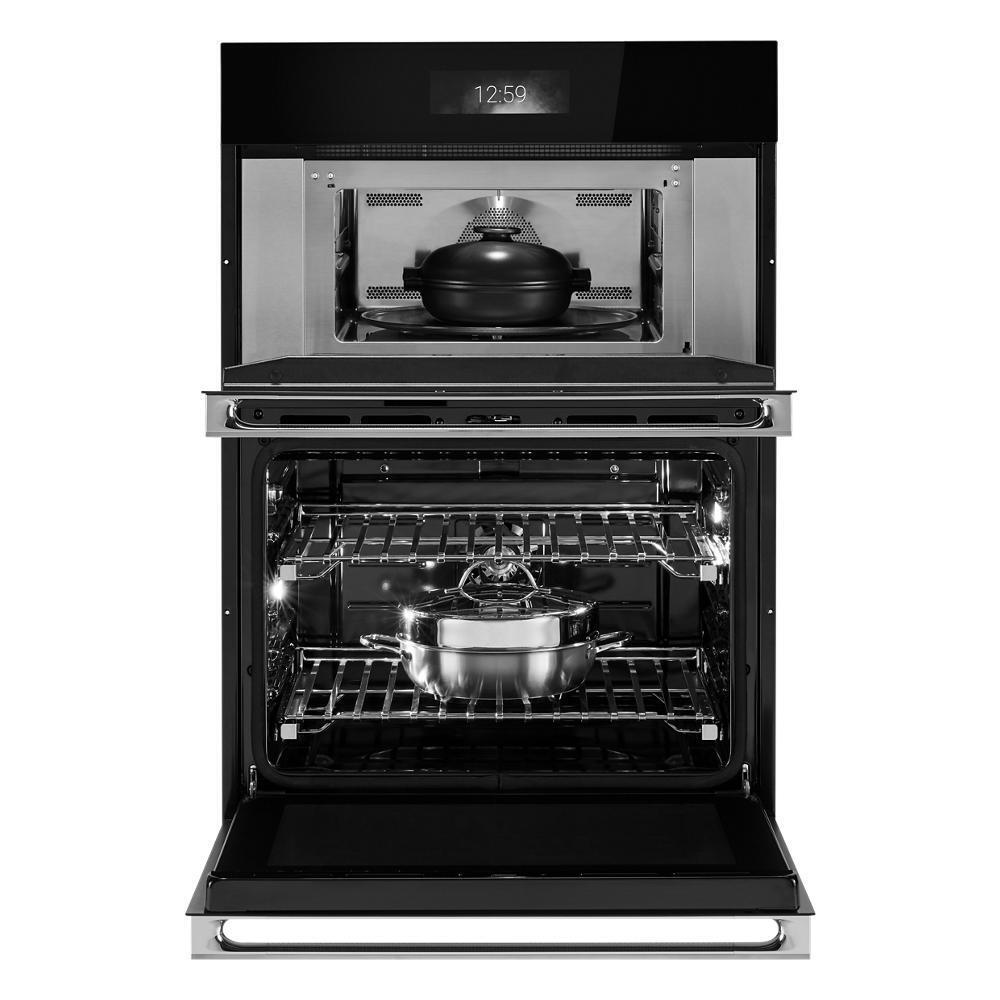

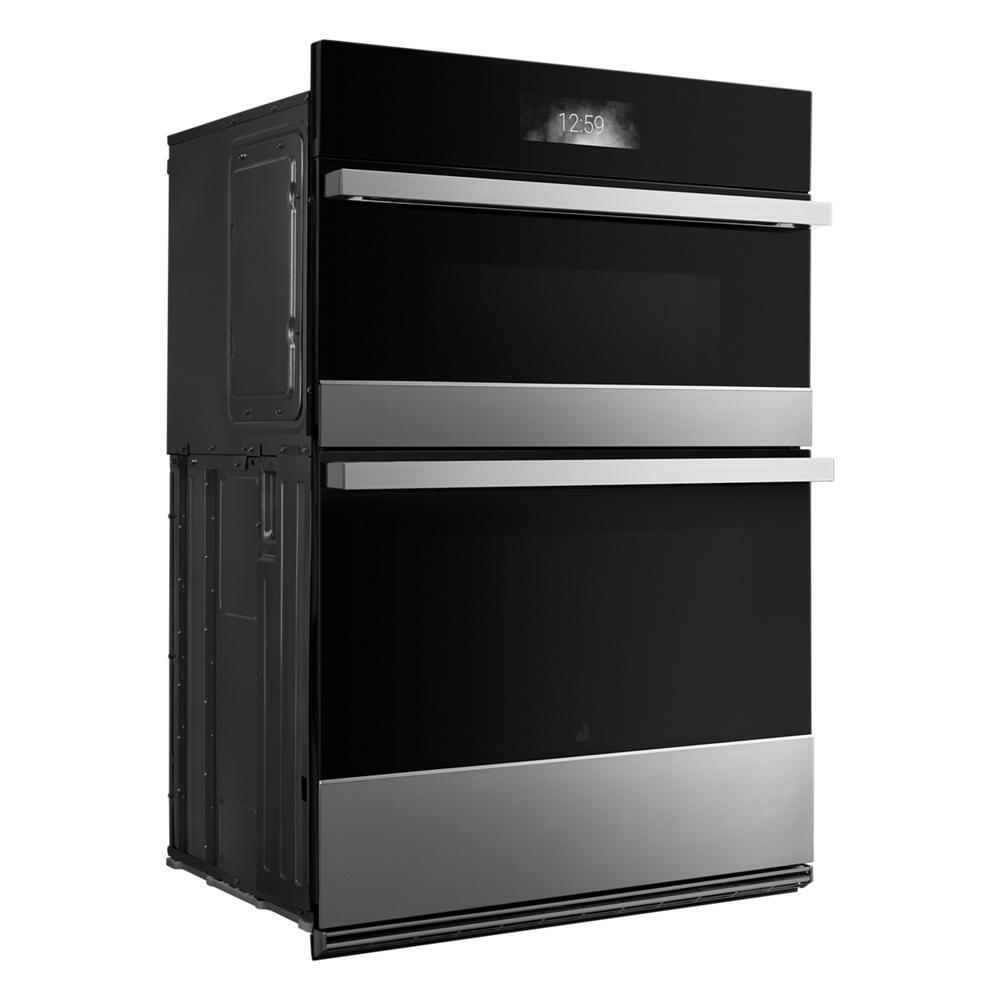

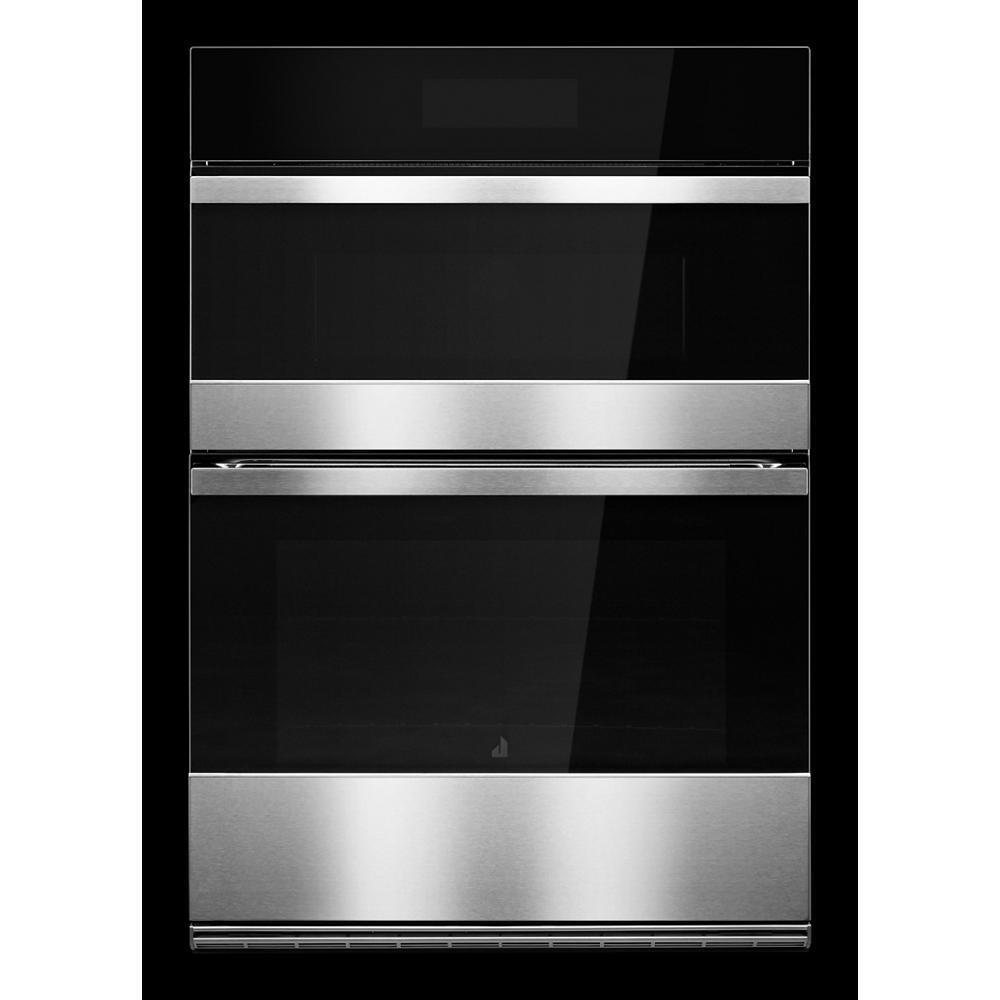

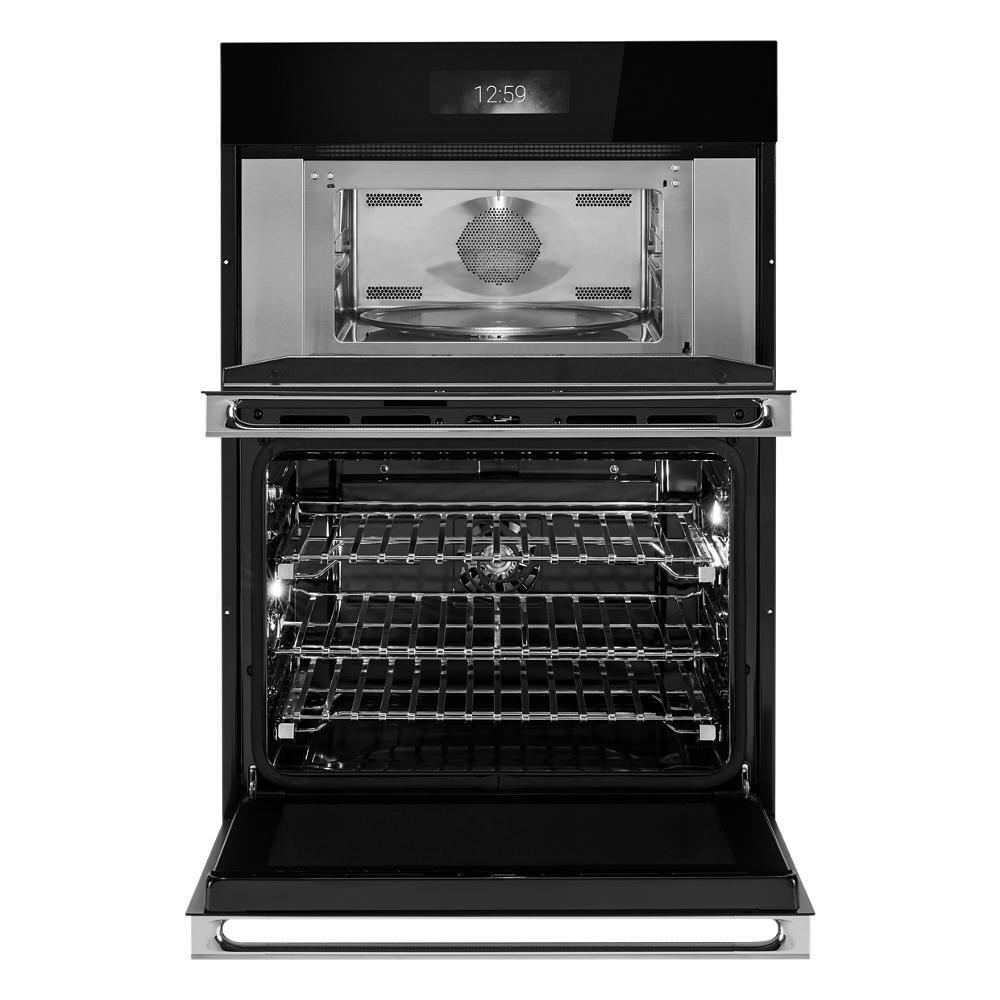

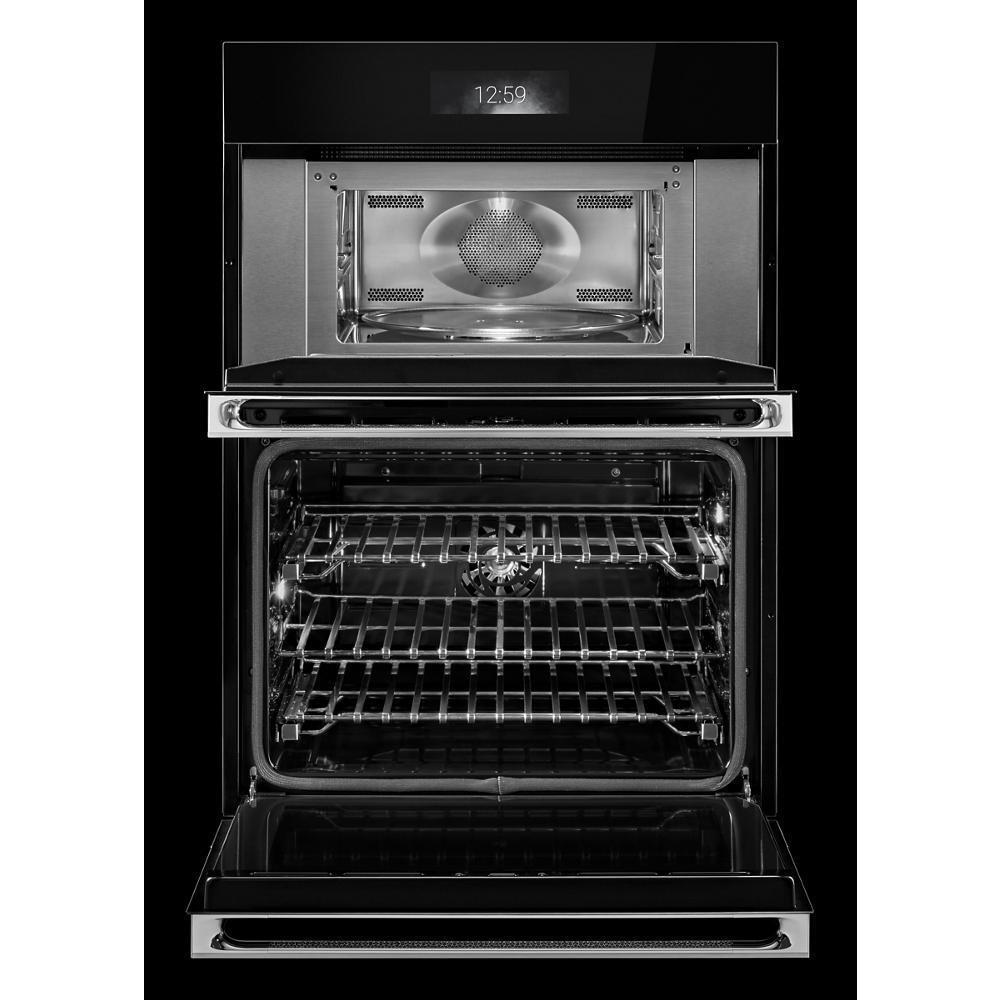

NOIR™ Microwave Combination Wall Oven with MultiMode® Convection
Model JOECC530RMNOIR™ Microwave Combination Wall Oven with MultiMode® Convection
Model JOECC530RMQuick Specs
NOIR™ Microwave Combination Wall Oven with MultiMode® Convection is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 1,200-Watt Convection Element
- This 1,200-watt element surrounds dishes with circulating, uniform heat until food is baked to your satisfaction.
- 1,600-Watt Grill Element
- Indulge in tastes and textures unattainable with microwave technology alone. Working together with the crisp pan, this element grills, toasts and browns.
- 1.4 Cu. Ft. Microwave Capacity
- 1.4 cu. ft. of microwave capacity fits up to a 9" x 13" glass dish. There s room for whatever you or your guests are craving.
- 2,800-Watt Hidden Bake Element
- This 2,800-watt bake element is concealed beneath the oven floor, providing intense heat and a smooth surface that is easy to clean.
- 3,200-Watt Convection Element
- This convection element wraps dishes in heat and maintains a controlled cooking environment.
- 4,000-Watt Broil Element
- Tap into high-wattage heat designed to broil meats to tantalizing caramelization.
- 5.0 Cu. Ft. Capacity
- A generous 5.0 cu. ft. capacity lets you cook multiple dishes at once, so you can go all out on entertaining.

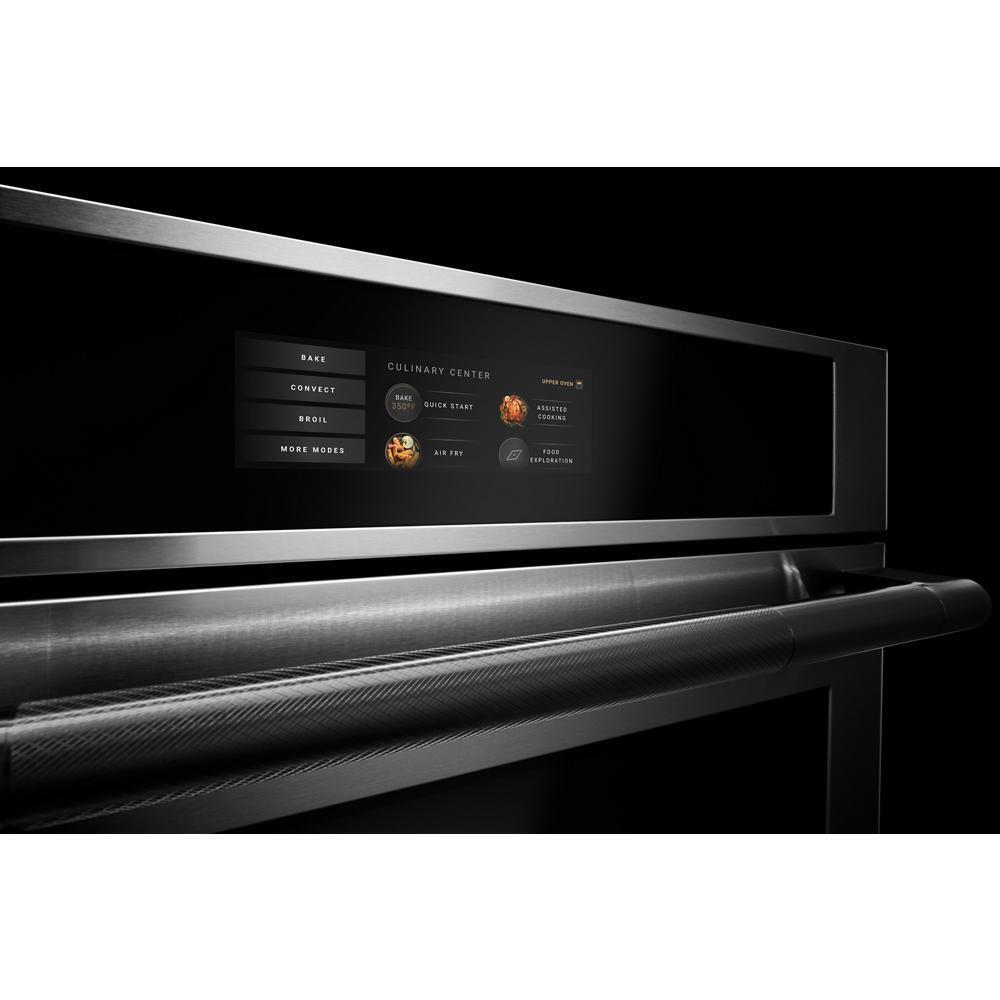

- 7.8 Full Color Ultra Wide LCD Display With Culinary Center
- Visually vibrant. This highly interactive, full-color LCD display allows you to navigate effortlessly through settings and the algorithms of JennAir® Culinary Center recipes.
- 8-Pass Reflective Broil Element
- This broiler element crosses the length of the oven 8 times for optimal coverage and intense heat. Plus, a stainless steel plate sits above the element to reflect heat back onto food.
- 900-Watt Microwave Element
- Harness 900 watts of microwave energy to rapidly cook and reheat a variety of foods.
- Cinematic Lighting
- Halogen lighting increases to full intensity, minimizing shadows and dramatically showcasing food against the Jet Black Interior.
- Closed Door Infrared Broiling
- Caramelized crusts. Delicate chars. Tender centers. High, even broiler heat with fan ventilation means you can sear fearlessly without opening the door.
- Control Lock
- Control Lock prevents unintended use of the oven and ensures complete, simple cleaning of the controls.
- Convection & Microwave Combination Cooking
- Let your appetite run wild-create oven-caliber baked goods and meals quickly when you broil, bake or warm with convection and microwave energy combined.
- Crisp Pan
- Crisp and brown food to a satisfying crunch with a crisp pan that works with microwave energy.
- Favorites
- Create custom favorite settings by choosing cooking mode and temperature.
- Flush Install Kit Included
- These wall ovens can be installed flush, creating a seamless visual line with cabinetry, without the purchase of a separate accessory. The flush install kit is shipped with the product.
- Jet Black Oven Interior
- Captivation cloaked in black. Behind the dark glass door, ramp-up cinematic lighting illuminates smooth-gliding flat-tine racks and an enticing jet black interior.
- Microwave Soften/Melt Cycle
- Melt and soften food with delicate heat to create ribbons of molten chocolate and butter that yields easily to your knife.
- MultiMode® True Convection System
- Steady heat generated by a 3,200W element is circulated by whirling metal blades, weaving around every flat tine. Wield your cooking prowess from marbled meats to succulent roasts.
- NOIR™ Design Expression
- Sculpted in stainless steel, the NOIR™ Design Expression features hidden lace textures, discoverable only by touch.
- On-Demand Experts
- Connect through chat, email, or call to tap into the brilliant minds at the JennAir Epicenter, who know JennAir® appliances inside and out. Receive diagnostic codes on the app and they ll deploy service targeted to your wall oven s best interest.*
*WiFi & App required. Features subject to change. Details and privacy info at jennair.com/connect. - Sabbath Mode
- Select this function to bypass the oven s automatic shut off when observing the Sabbath and other religious holidays.
- Sensor Cooking
- An intuitive sensor responds to humidity levels inside the microwave, altering time and power settings for crave-worthy results.
- Serviced By a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
- Smart Wall Oven
- Fluently control your wall oven-whether in the kitchen or not. The JennAir® App empowers you to remotely control and monitor the oven, prompts you when it's time to tend to your dish or you can select from chef-inspired recipes designed to provide you with effortlessly delicious results. Use simple voice commands with your Google Assistant or Alexa-enabled device* for an even more seamless cooking experience.
*Appliance must be set to remote enable. WiFi & App required. Features subject to change. Details and privacy info at jennair.com/connect. Amazon Alexa and Google Home features available in U.S. only. - Smooth Close Door
- Quiet, soft, controlled. Your oven gently pulls the door closed.
- Smooth Glide Flat-Tine Racks
- The glide rack slides in and out smoothly and quietly, even when fully loaded.
- Speed Cook
- Three potent cooking methods converge to deliver an oven-caliber bite: steady convection baking, microwave speed and intense broiler caramelization.
- Stainless Steel Microwave Interior
- Luminous steel coats the entire microwave interior, reflecting its intrinsic beauty while you brown, bake and grill.
- Versatile Cooking Modes
- Uncompromising results, untroubled process. Rapid Preheat Mode lets you bake on a single rack without the wait. Dough rises quickly and evenly with Proofing mode, and the Keep Warm™ setting lets you serve your entire menu at the same time.
- 1,200-watt convection element bakes food with optimal heat
- 1,600-watt grill element grills, toasts and browns
- Ramp-up lighting minimizes shadows to dramatically showcase food
- Sear fearlessly with even broiler heat and outstanding ventilation
- Control Lock prevents unintended use of the oven
- Broil, bake or warm with convection and microwave energy combined
- Crisp and brown food to a satisfying crunch with a crisp pan
- Create your own quick presets with Favorites
- No separate accessory is required for a flush install
- Up the drama with a captivating jet black oven interior
- Gently melt and soften food with delicate heat
- Steady heat is circulated with MultiMode(R) True Convection
- 1.4 cu. ft. of microwave capacity fits a 9" x 13" glass dish
- Minimalist appeal-sculpted with hidden lace details
- On-Demand Experts are available through chat, email or call
- Sabbath Mode bypasses the oven s automatic shut off
- Sensor cooking responds to humidity levels inside the microwave
- Serviced by a dedicated network of experienced service providers
- Take effortless control of your wall oven with smart features
- The oven gently pulls the door closed
- The glide rack slides in and out smoothly and quietly
- Achieve an oven-caliber bite with Speed Cook
- Luminous stainless steel coats the microwave interior
- The hidden bake element provides intense heat and easy cleaning
- Versatile cooking modes help you match the method to your menu
- 3,200-watt convection element wraps dishes in heat
- 4,000-watt broil element provides optimal caramelization
- 5.0 cu. ft. capacity lets you cook multiple dishes at once
- A 7.8-Inch full-color LCD display is packed with dynamic features
- The 8-pass reflective broil element offers high-heat coverage
- Harness 900 watts of microwave energy for rapid heating
An upper convection microwave with Speed Cook helps you create chef-inspired meals quickly. Below, the lower cavity's MultiMode® True Convection system with Air Fry transforms prepped food into delicious dinners.
| Certifications | |
| Energy Rating (kwh/year) | 390 |
| Prop65 | Standard |
| Controls | |
| Control Type | Tap Touch |
| Display Color | Full Color |
| Electronic Display Type | 4.3-Inch Full Color LCD |
| Microwave Selections | Add 30 Seconds; Auto Cook; Beverage; Boil & Simmer; Control Lock; Convect; Cook Power; Cook Time; Cook/Start; Crisp; Defrost; Dinner Plate; Easy Convect; End of Cycle Signal; Fresh Vegetable; Frozen Entree; Frozen Vegetable; Grill; Keep Warm; My Creations; Off/Cancel; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; Speed Cook; Steam; Timer |
| Details | |
| Air Fry | Yes |
| Design Expression | NOIR™ |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Grill | Yes |
| Grill Power | 1,600 |
| Oven Automatic Shut-off | Yes |
| Oven Configuration | Microwave Combination |
| Oven Selections | Assisted Cooking; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Cook and Hold; Delay Start; Favorites; Keep Warm/Warm Hold; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Temperature Conversion; Temperature Probe; Temperature-Sensor Baking; Timer |
| Oven Type | Combination |
| Turntable | Stoppable |
| Dimensions | |
| Product Height | 43.75 |
| Carton Height | 46 |
| Gross Weight | 293.88 |
| Oven Interior Height | 18 |
| Carton Width | 35 |
| Product Depth | 23.25 |
| Oven Interior Depth | 19 |
| Depth With Door Open 90 Degree | 45.438 |
| Depth Excluding Doors | 23 |
| Cutout Depth | 24 |
| Cutout Height | 41.5 |
| Depth Closed Excluding Handles | 24.313 |
| Carton Depth | 31 |
| Cutout Width | 28.5 |
| Oven Capacity | 5 |
| Oven Interior Width | 25 |
| Net Weight | 288.88 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Type | Metal & Glass |
| General | |
| Microwave Door Swing | Drop Down |
| Microwave Interior Light | Incandescent |
| Microwave Details | |
| Door Release | Handle |
| Language Conversion | English/French |
| Microwave Capacity | 1.4 |
| Number of Microwave Racks | 1 |
| Sensor Cooking | Yes - Microwave |
| Turntable Diameter Size | 14.125 |
| Oven Details | |
| Bake Element Power | 2,800 W/2,427W |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top of Oven |
| Convection | Yes |
| Convection Element Power | 3,200 |
| Convection Element Type | Single Fan |
| Convection Functions | Bake, Broil, and Roast |
| Convection Power | 900 |
| Cooking Power | 900 |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Hidden Bake Element | Yes |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | MultiMode® True Convection |
| Oven Light Type | Halogen |
| Self-cleaning Oven Racks | No |
| Smart Compatibility | |
| Smart Appliance | Yes |
| Works With | No |
