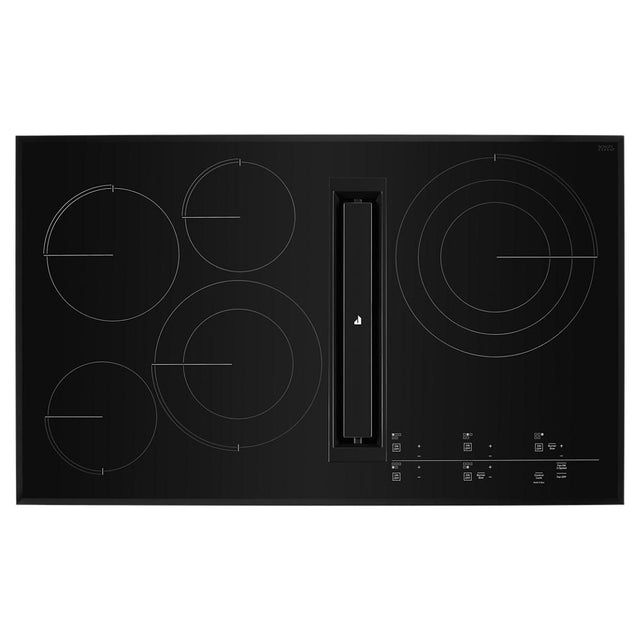

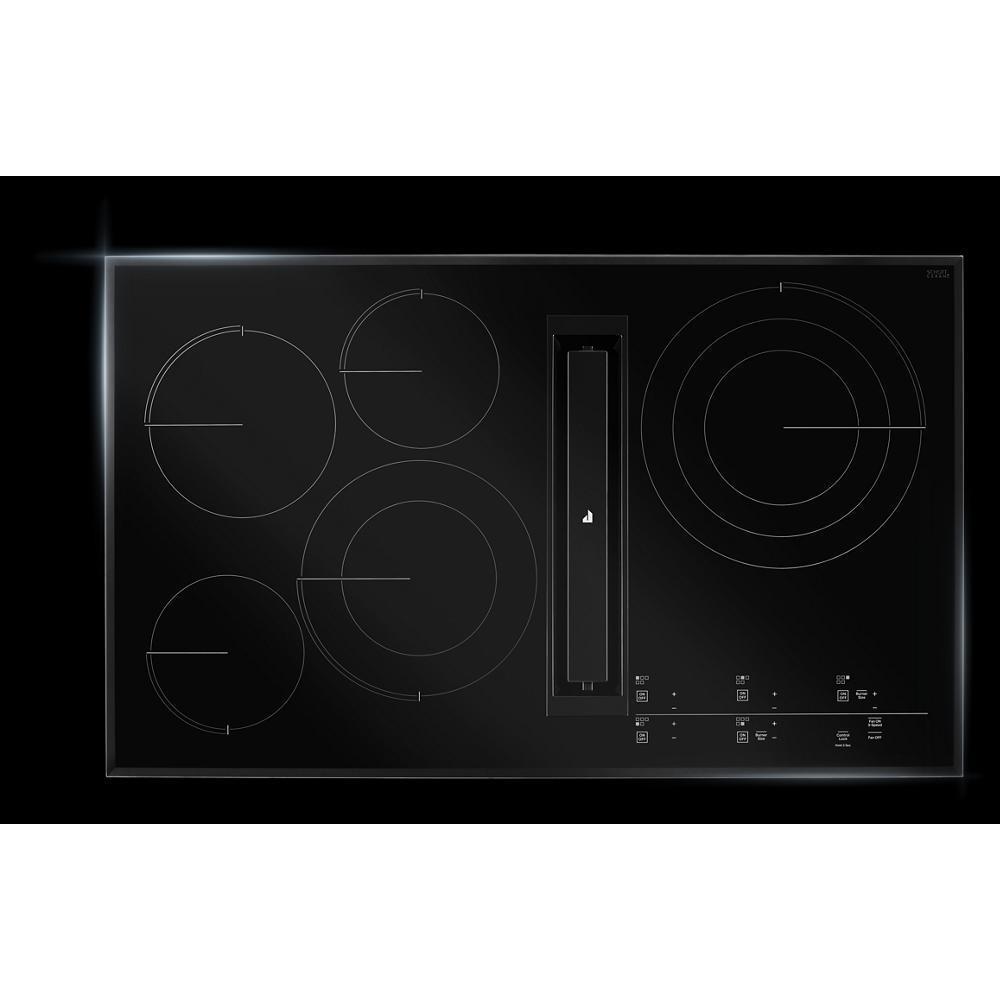

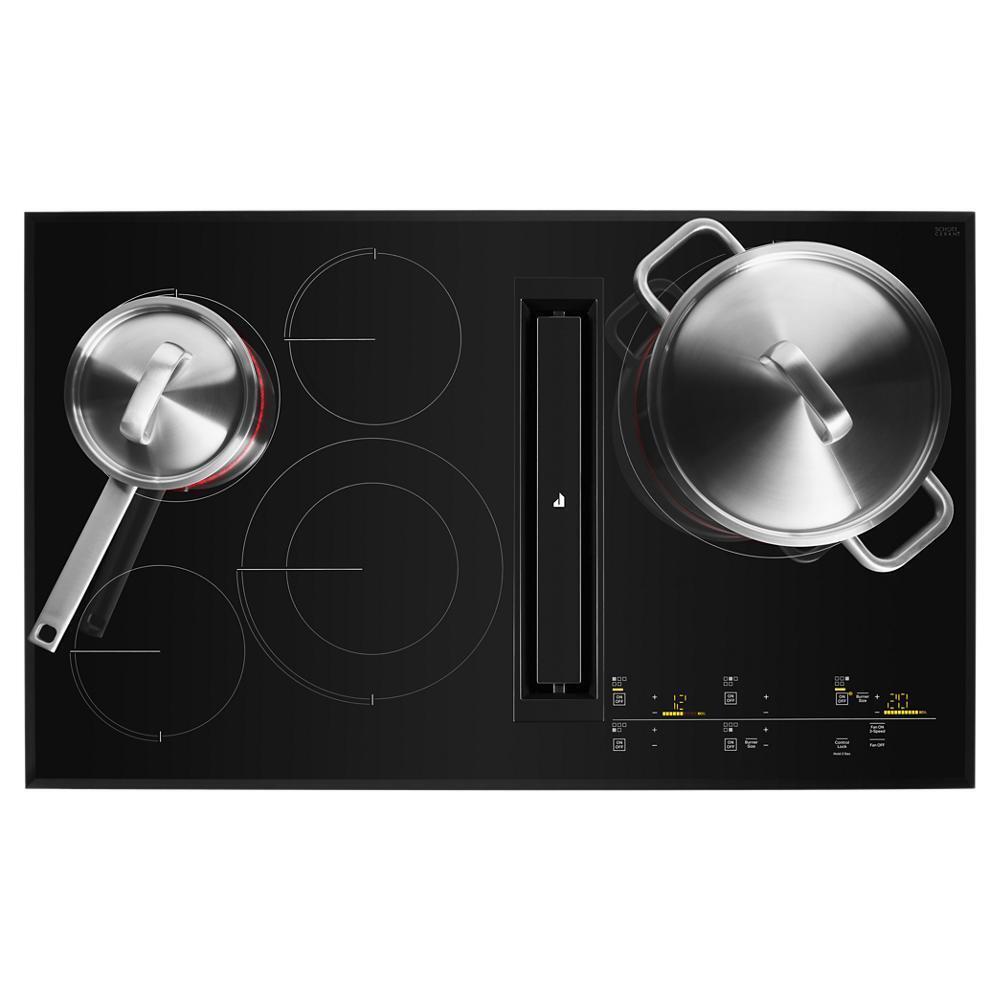

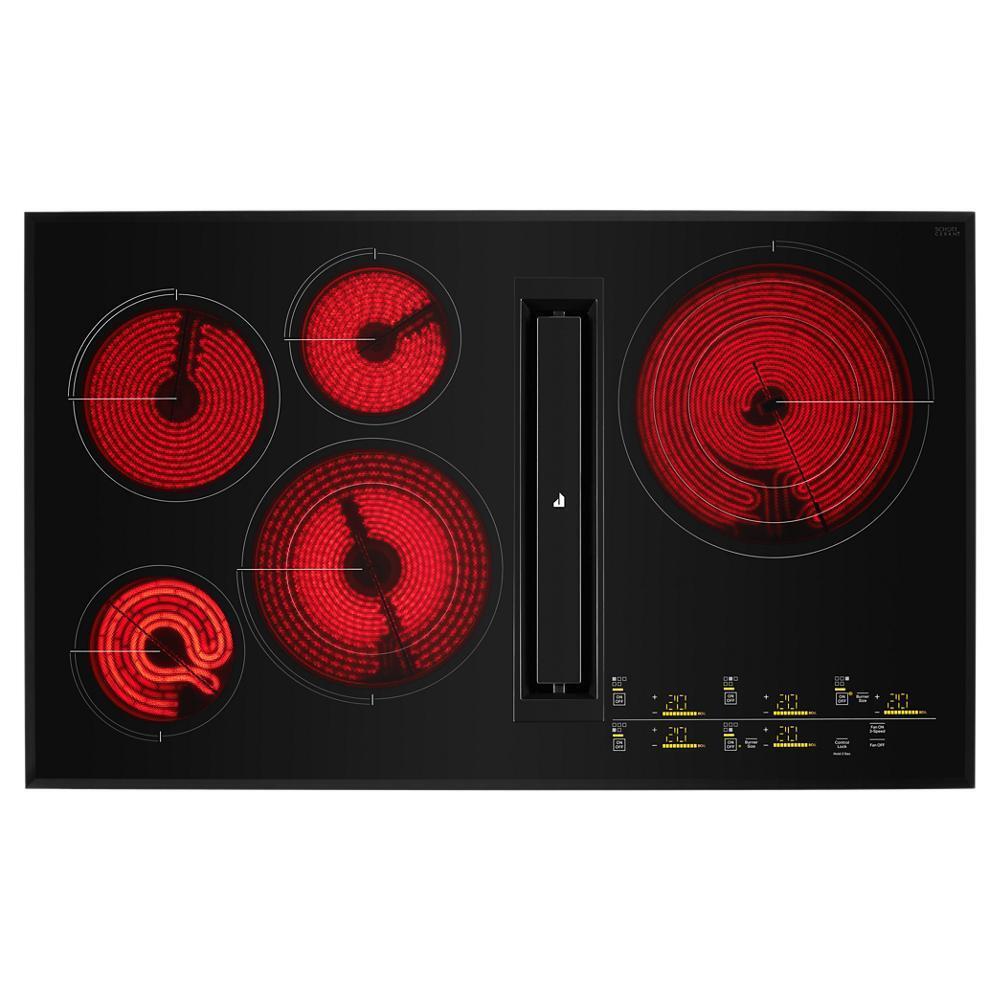

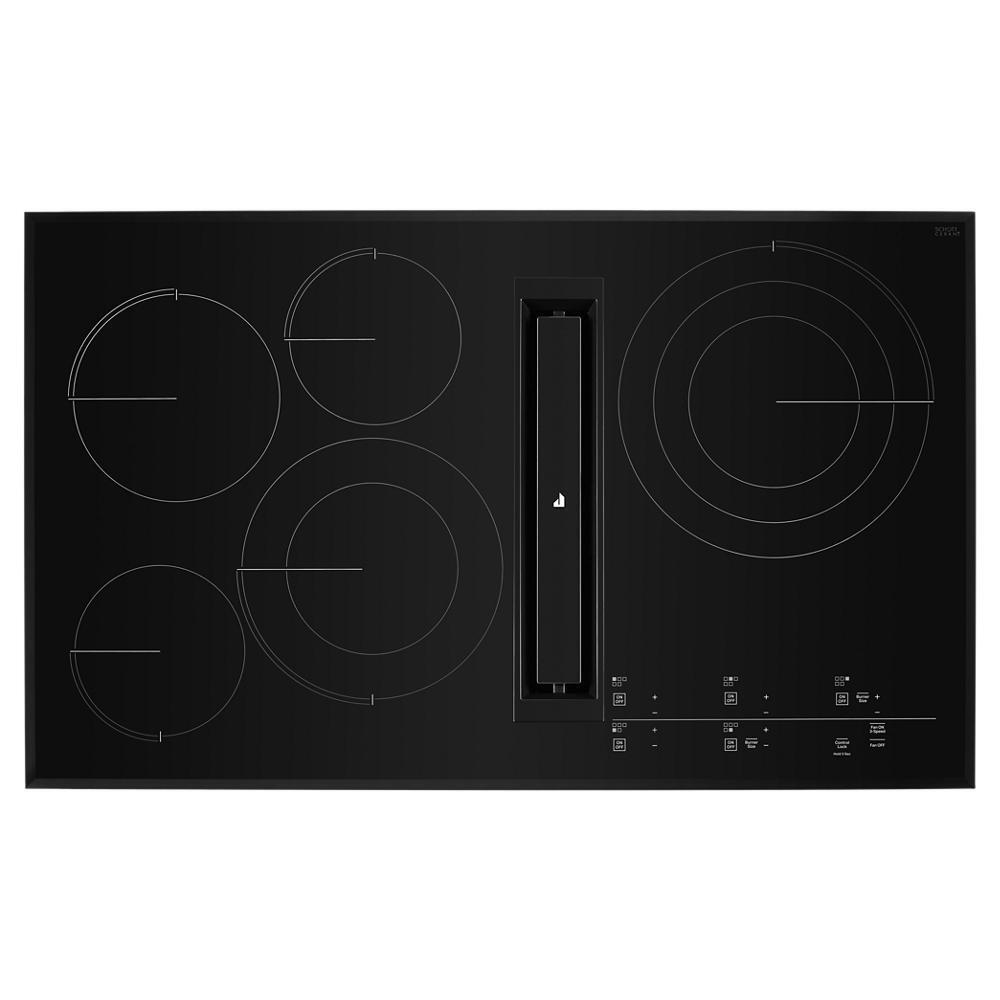

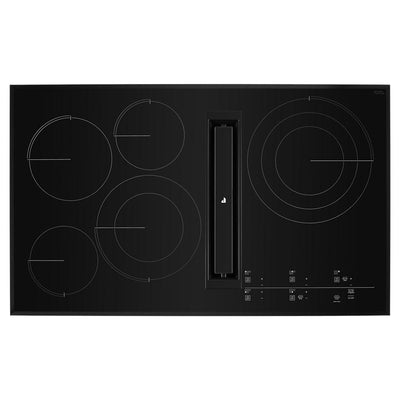

36" Oblivion Glass Electric Radiant Downdraft Cooktop with Tap Touch Controls
Model: JED4536KB
Authorized Dealer
1
of
17
Loading...
Authorized Dealer
36" Oblivion Glass Electric Radiant Downdraft Cooktop with Tap Touch Controls
Model: JED4536KBQuick Specs
Depth
22.0625
Height
3.6563
Sabbath
NO
ADA
YES
Wifi
NO
Cooktop
5
Vent
YES
Induction
NO
36" Oblivion Glass Electric Radiant Downdraft Cooktop with Tap Touch Controls is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$3,017.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.0625
Height
3.6563
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Cooking oven number of cooktop element
5
Downdraft Ventilation
YES
Cooking is Induction
NO
10"/6" Dual-Choice(TM) Element
An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.

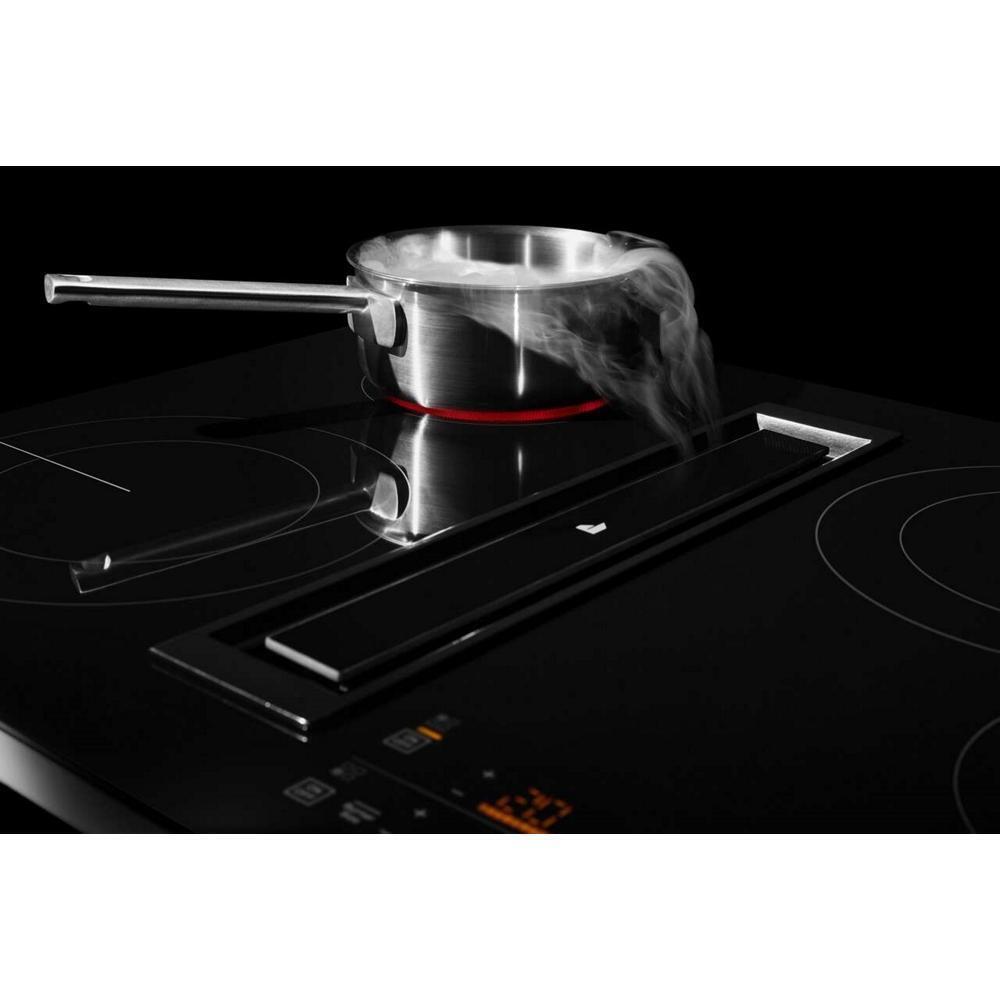

Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

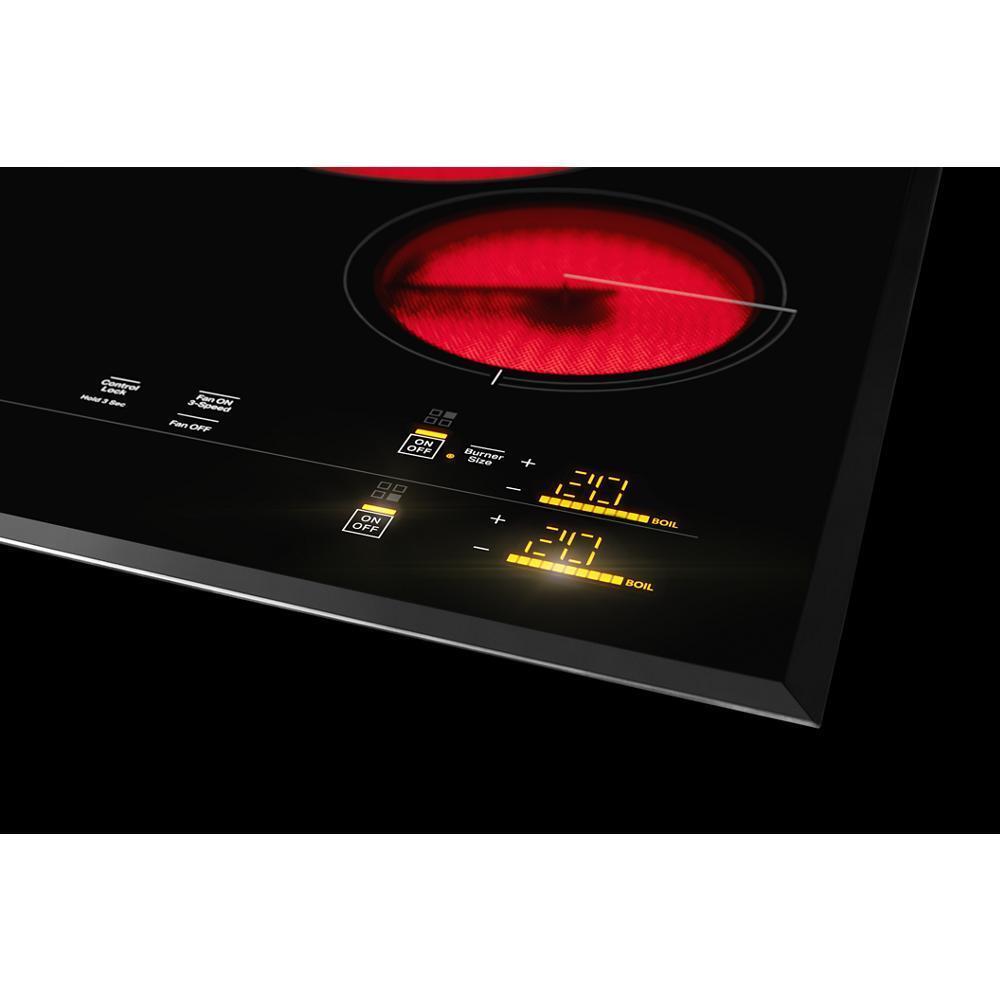

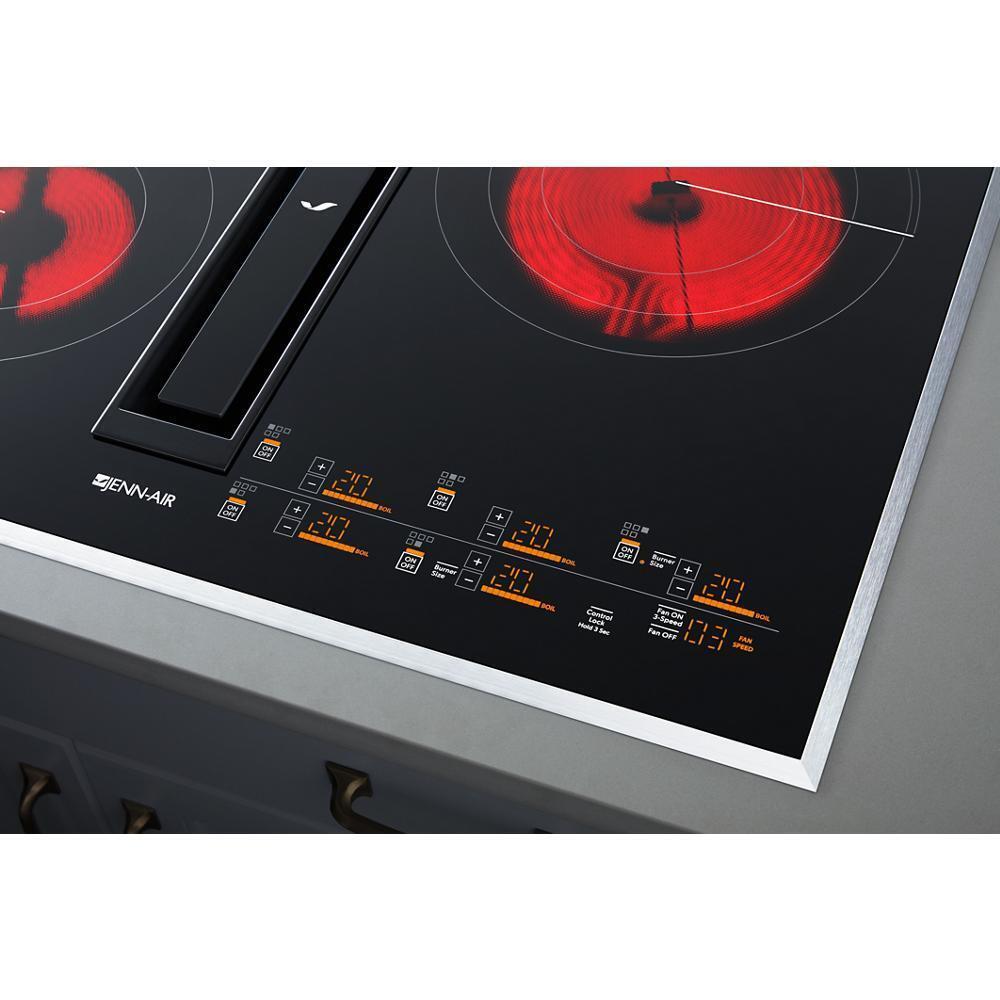

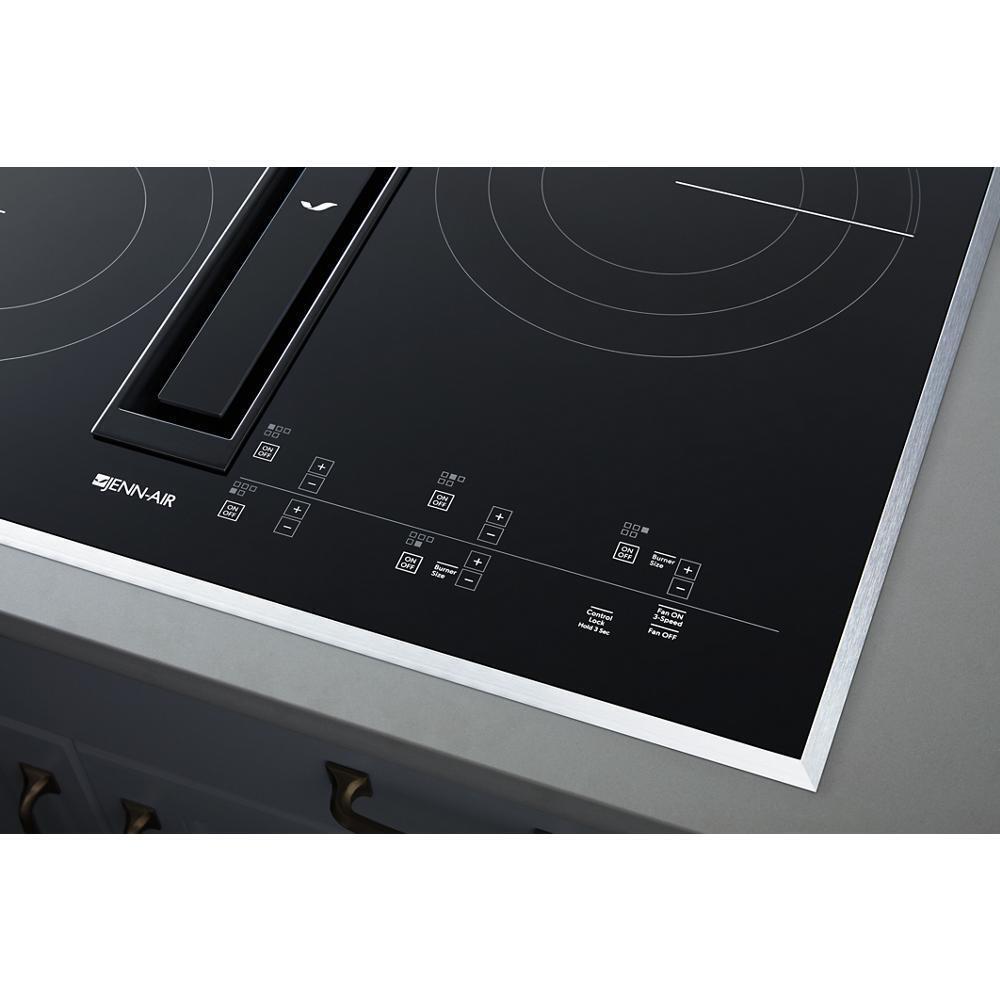

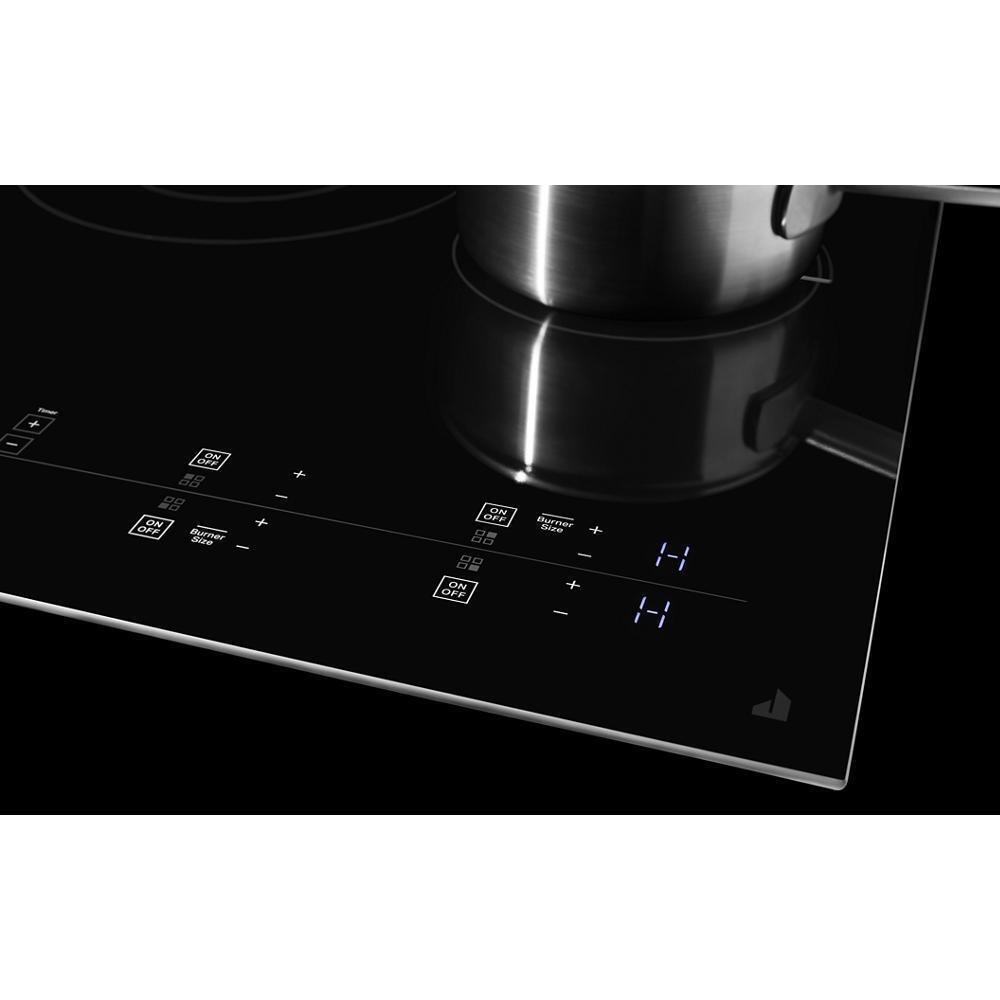

Emotive Controls
Striking and inviting controls with LED lighting unleash performance at your touch.

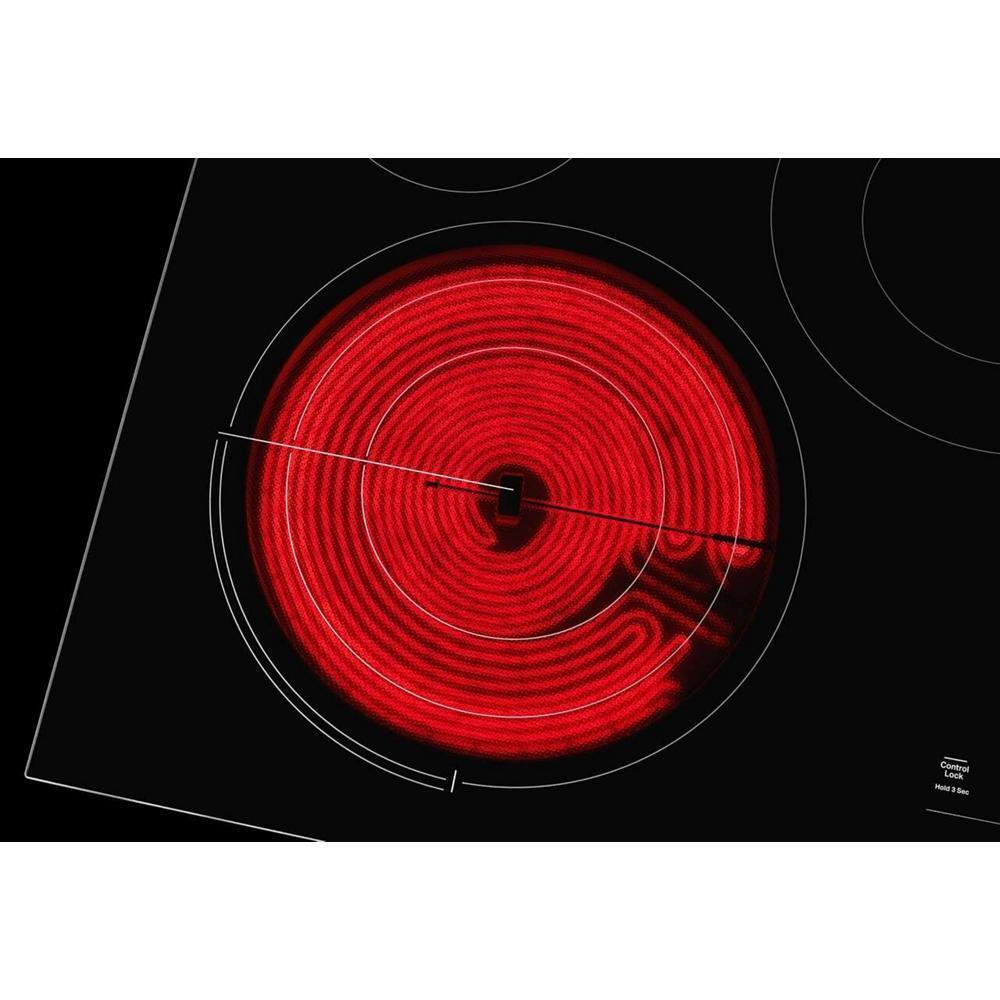

12"/9"/6" Triple-Choice(TM) Element
Reaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.

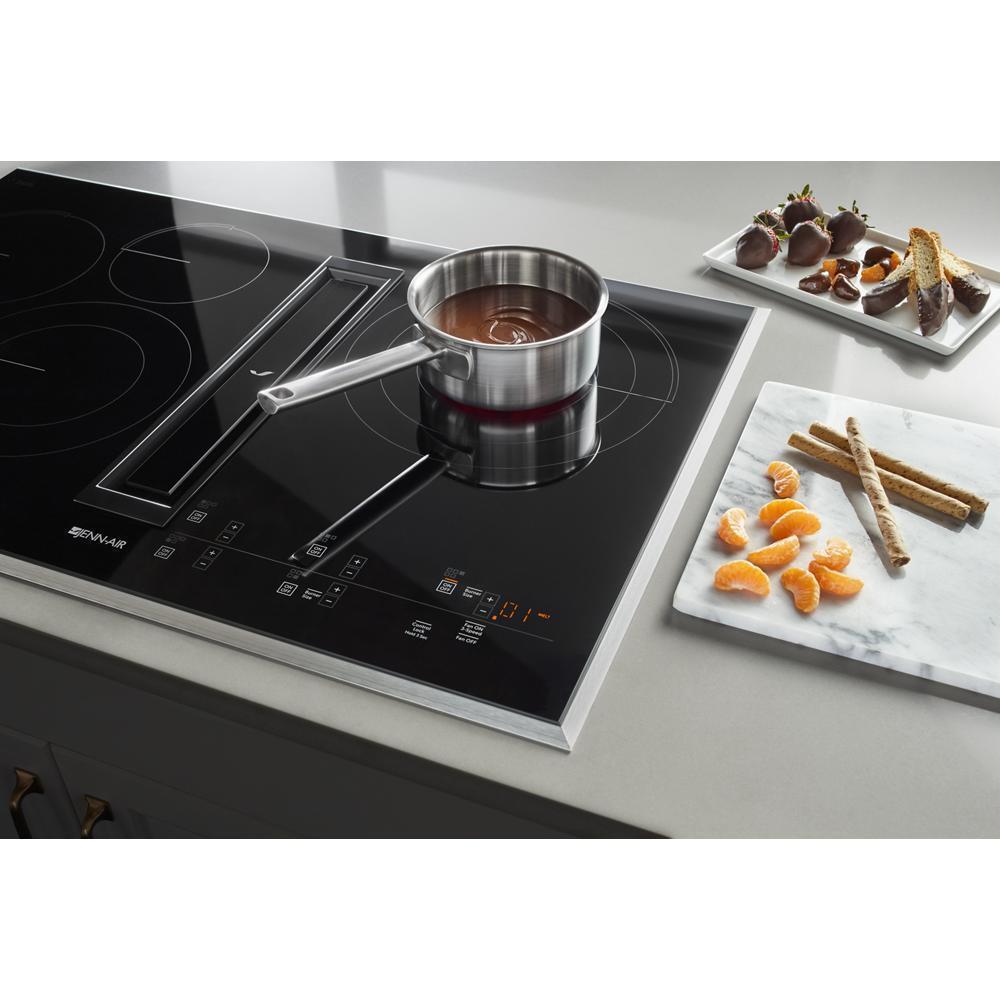

Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

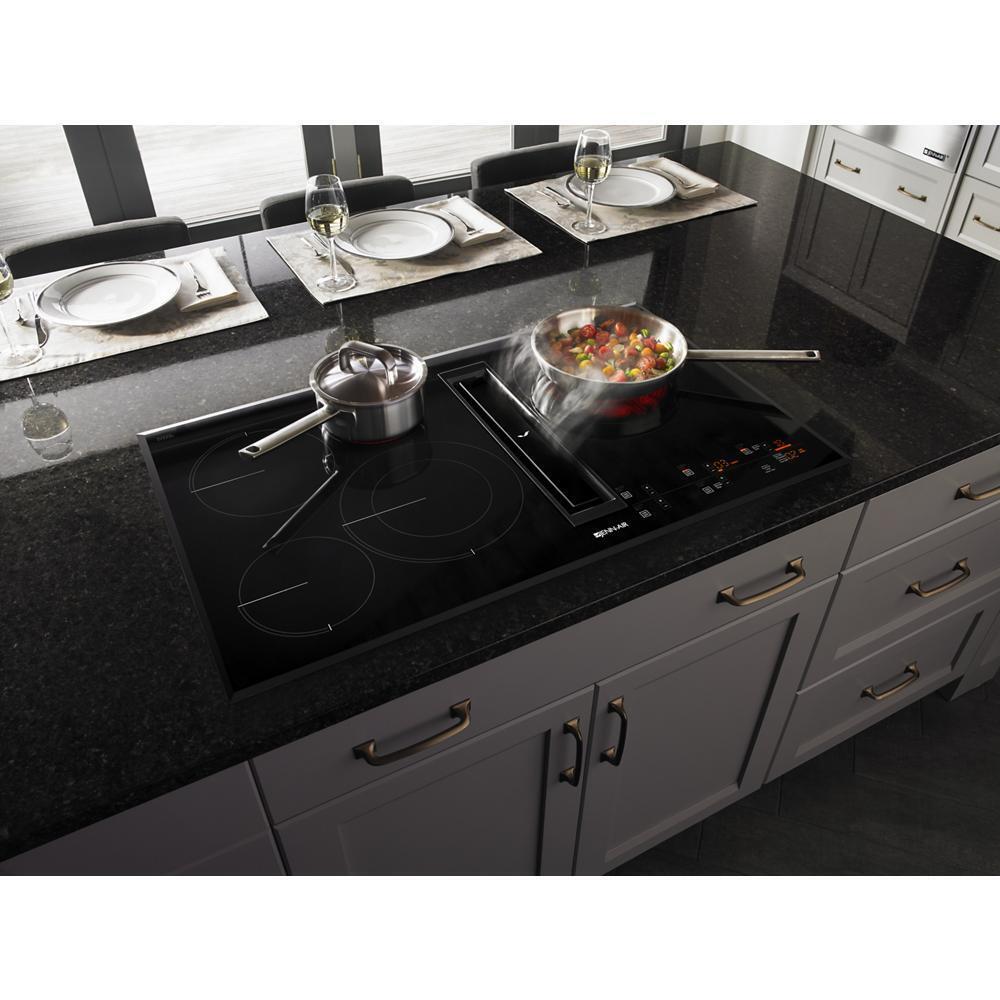

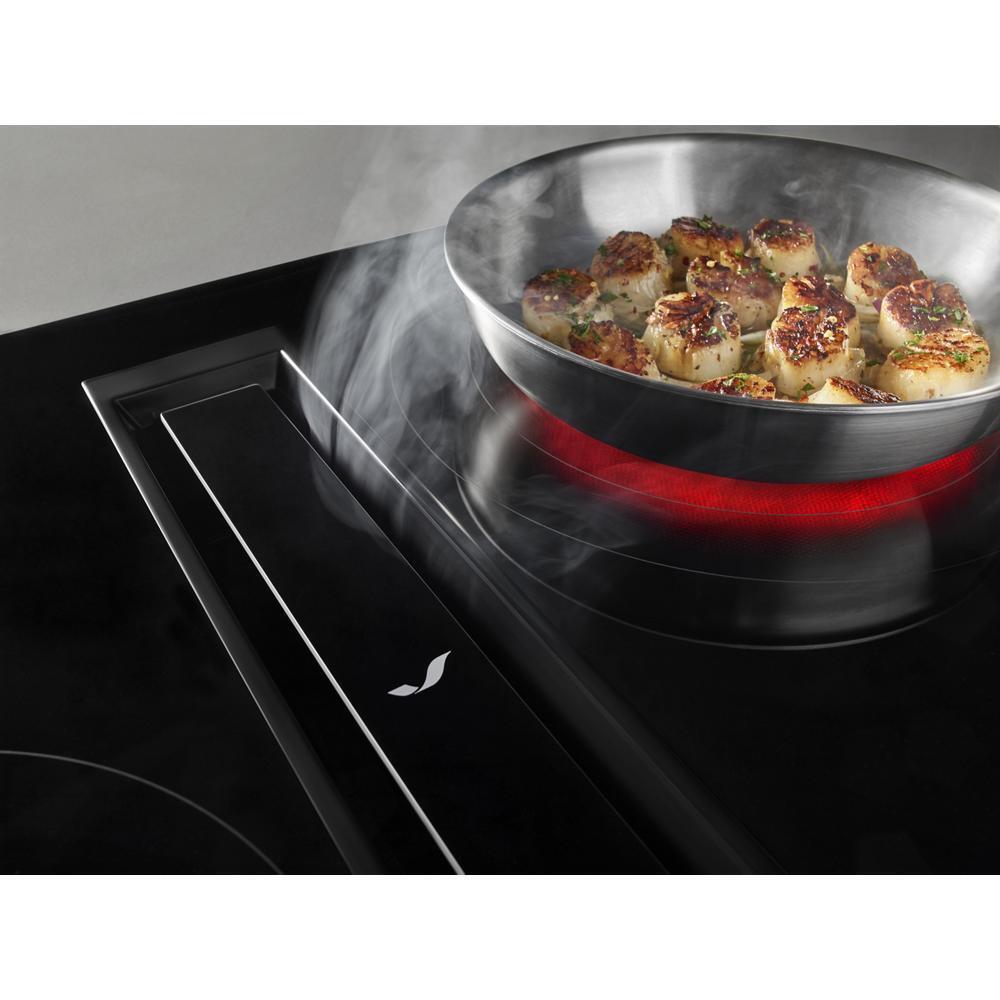

JX3(TM) Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir(R), this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
- 10"/6" Dual-Choice™ Element
- An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
- 12"/9"/6" Triple-Choice™ Element
- Reaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.
- 297 CFM Motor Class Blower
- A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class.
- 8 Inch Element
- A heating element sealed underneath a ceramic glass cooking surface that offers up to 1,800 watts of power.
- Badasses at the Ready
- Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you-from sales to installation to ownership.
- Duct-Free Filter
- Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
- Emotive Controls
- Striking and inviting controls with LED lighting unleash performance at your touch.
- Hot Surface Indicators
- Light(s) positioned at the controls instantly show which element is still hot - even if the element has been turned off.
- JX3™ Downdraft Ventilation System with 3 Speeds
- Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

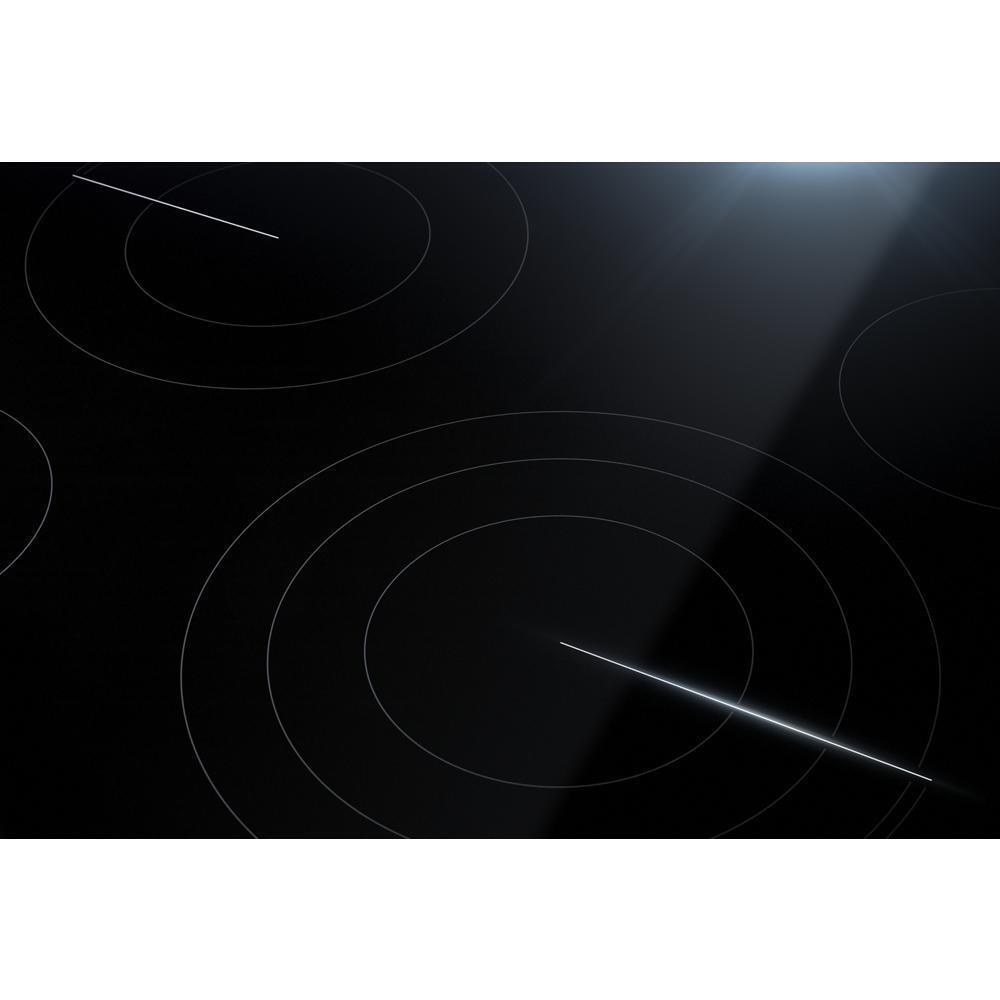

- Oblivion Glass Surface
- Sleek black glass with a beveled edge that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
- Optional Duct-Free Ventilation Kit
- Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)
- Perimetric Extraction
- Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

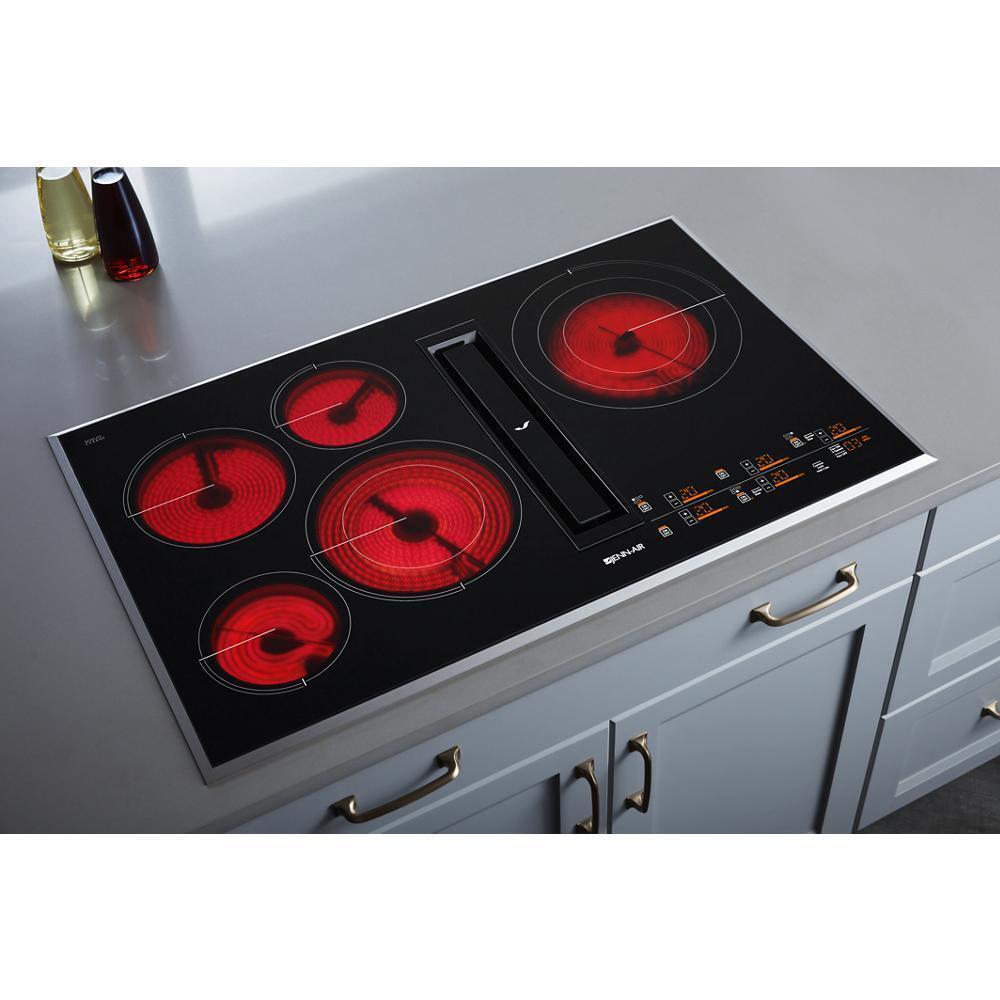

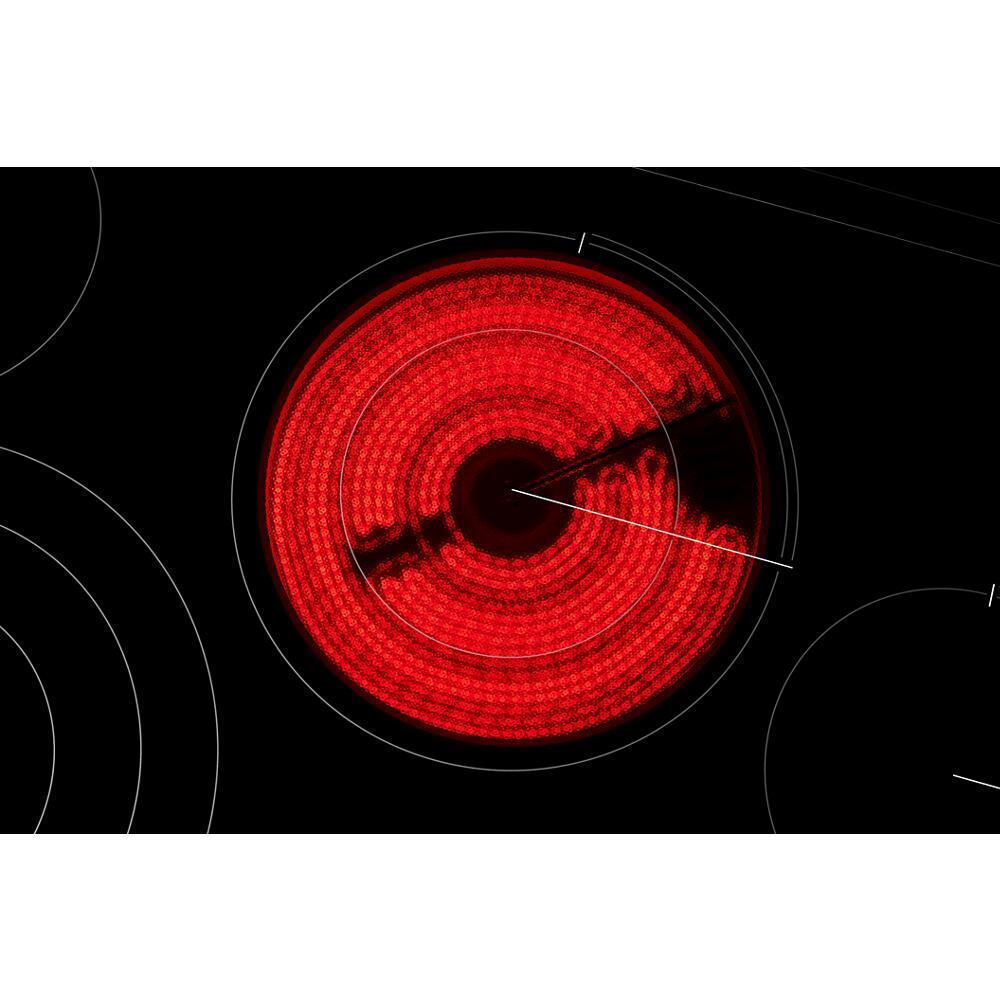

- Radiant Elements
- Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command.
- Semi-Flush Installation
- Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
- Serviced by a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
- Two 6 Inch Elements
- Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power.
- An element with three sizes and a maximum output of 4,500 watts
- White LEDs unleash performance at your touch.
- Helps capture smoke, steam and odors at the cooking surface.
- A frameless cooktop in obsidian black glass.
- Installs semi-flush, 3mm above the countertop
| Certifications | |
| Ada Compliant | Yes |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Front |
| Control Type | Electronic Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | Yes |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Details | |
| Automatic Pan Detection | No |
| Cooktop Selections | Convertible to Duct Free Ventilation; DownDraft |
| Design Expression | Black Glass |
| Fuel Type | Electric Radiant |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |

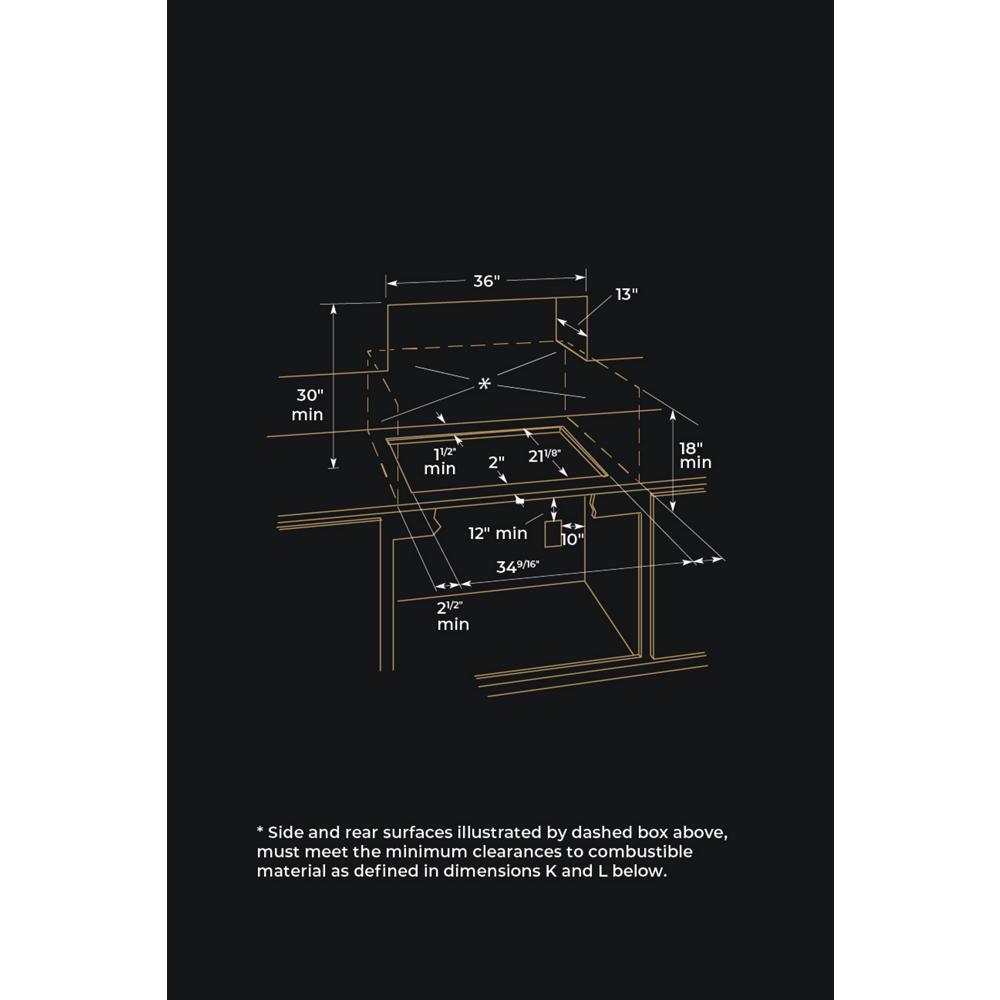

| Dimensions | |
| Product Height | 3.6563 |
| Cutout Depth | 21.125 |
| Carton Height | 23.78 |
| Gross Weight | 98 |
| Carton Depth | 26.38 |
| Carton Width | 41.5 |
| Cutout Width | 34.563 |
| Product Depth | 22.0625 |
| Net Weight | 82.94 |
| Product Width | 36.3125 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Front Element-burner Power | 3000W/1400W |
| Center Front Element-burner Size | 10in./6in. |
| Center Front Element-burner Type | Dual |
| Center Rear Element-burner Power | 1,200W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Single |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 1,300W |
| Left Front Element-burner Size | 6in. |
| Left Front Element-burner Type | Hyper |
| Left Rear Element-burner Power | 1,800W |
| Left Rear Element-burner Size | 8in. |
| Left Rear Element-burner Type | Single |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Rear Element-burner Power | 4500/3100/1550W |
| Right Rear Element-burner Size | 12in./9in./6in. |
| Right Rear Element-burner Type | Triple |
| Ventilation Details | |
| Cfm Motor Class | 310 |
| Downdraft Vent | Yes |
