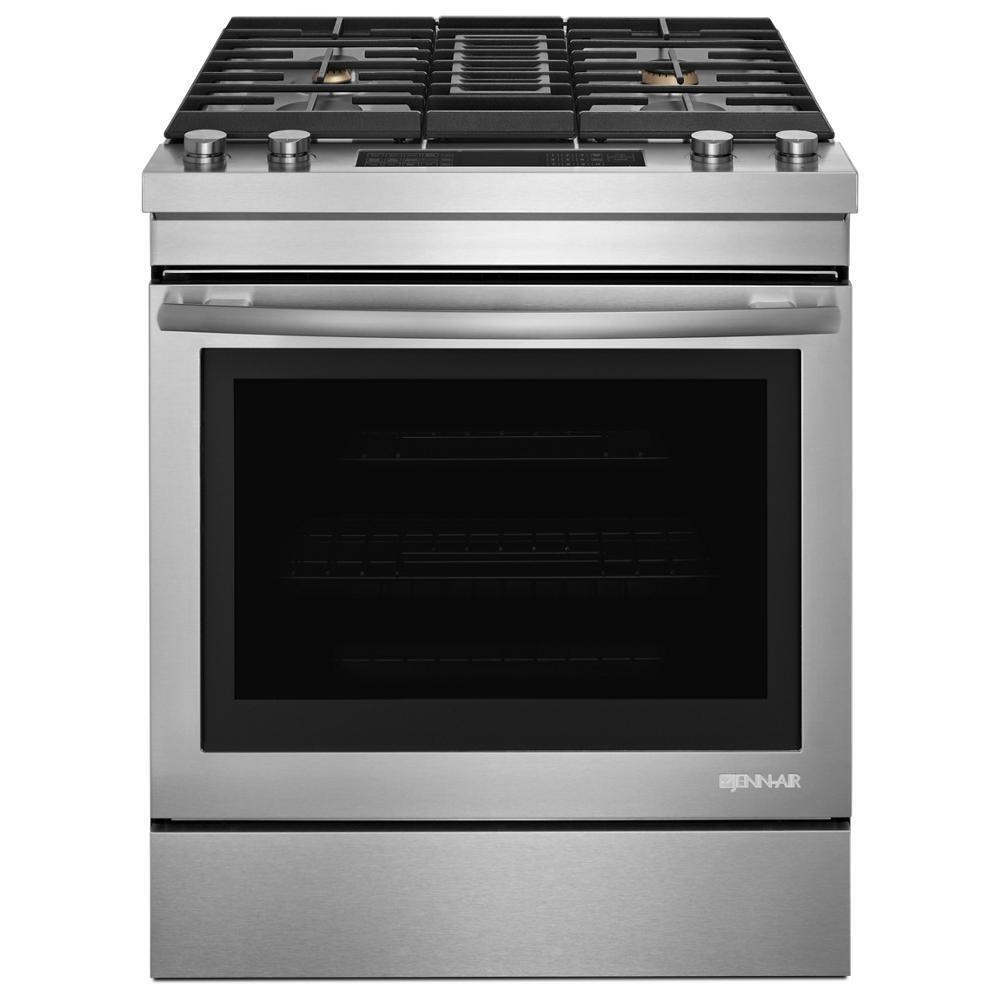

Euro-Style 30" Dual-Fuel Downdraft Range
Model: JDS1750FS
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
Euro-Style 30" Dual-Fuel Downdraft Range
Model: JDS1750FSQuick Specs
Depth
28.3125
Height
36.0
Sabbath
YES
ADA
YES
Wifi
NO
Burner
Sealed
Storage
NO
Warming
NO
Euro-Style 30" Dual-Fuel Downdraft Range is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$4,161.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
28.3125
Height
36.0
Sabbath Mode
YES
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Downdraft Ventilation
YES
Drawer Proof Mode
NO
Dual Fuel
YES
Oven Ignition Type
ELECTRONIC
- 17,000-BTU Burner
- This 17,000 BTU burner can handle high-powered cooking while still being gentle enough for delicate simmering.
- Brass Burners
- Brass burners add durability and elegance to the cooking surface.

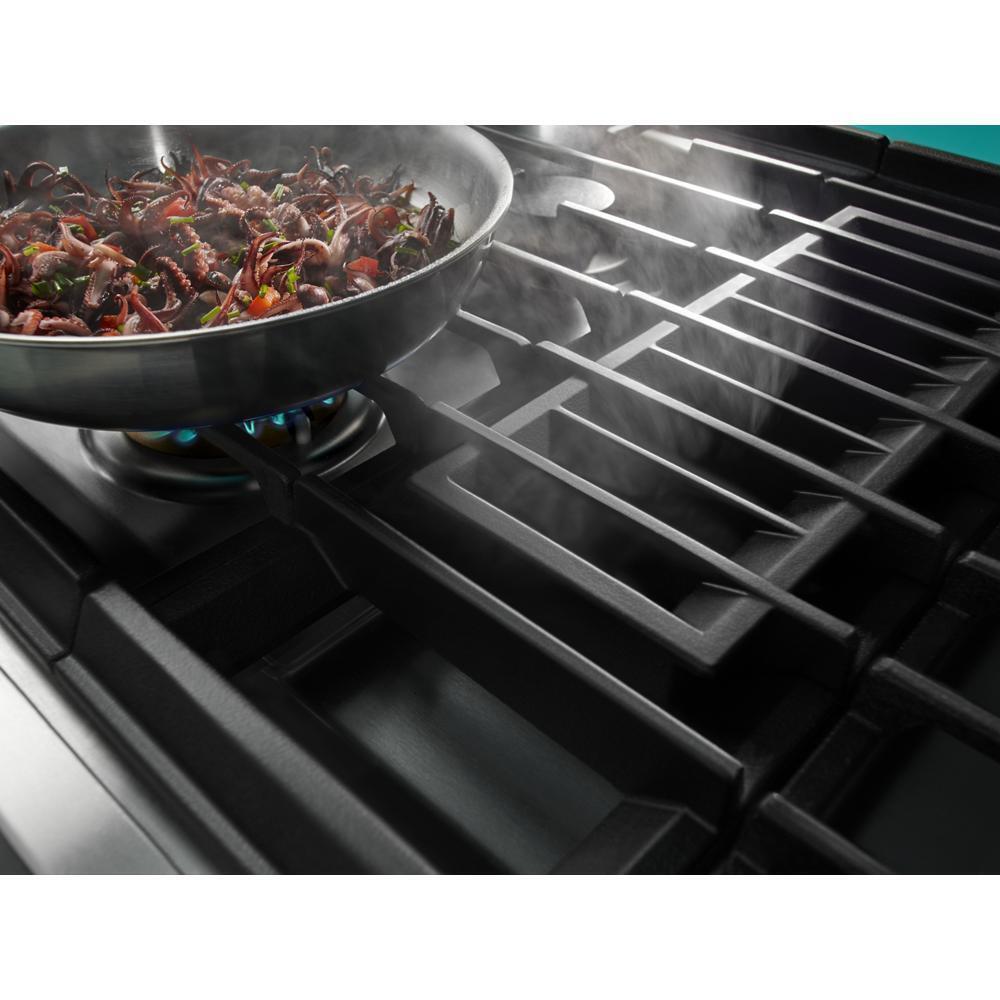

- Downdraft Ventilation
- Developed and refined by Jenn-Air®, downdraft ventilation uses proximity ventilation to capture smoke, steam and odors at the cooking surface. whisking them down and out for a fresher, cleaner kitchen.
- Duct-Free Filter Kit
- Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
- DuraFinish™ Protection
- With excellence in every detail, DuraFinish™ Protection keeps your cooktop s surface looking like new, resisting yellowing, staining and scratching.
- Telescoping Glide Rack
- This roll-out rack lets you easily position and remove dishes.
- True Convection
- uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.
- True Convection for consistent baking and roasting
Featuring downdraft ventilation, the original Jenn-Air® brand innovation, this dual-fuel range boasts a powerful 17,000 BTU burner, DuraFinish® Protection, brass burners and an optional duct-free filter kit that allows for installation virtually anywhere. Easily installing in a standard opening, this range pairs beautifully with appliances in our Euro-Style, Black Floating Glass and Pro-Style® Stainless suites.
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Energy Rating (kwh/year) | 393 |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Display Color | Red; White |
| Cooktop Details | |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Stainless |
| Cooktop Surface Material | Stainless Steel |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Design Expression | Euro-Style |
| Fuel Type | Dual Fuel |
| Oven Configuration | Single Oven |
| Oven Light Switch Location | Oven Control |
| Oven Selections | DownDraft |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Drawer Type | Access Panel |
| Range Type | Slide-in |
| Dimensions | |
| Product Height | 36.0 |
| Carton Height | 43.5 |
| Gross Weight | 258 |
| Depth Closed Including Handles | 28.875 |
| Carton Depth | 30.5 |
| Carton Width | 31.5 |
| Product Depth | 28.3125 |
| Net Weight | 220 |
| Product Width | 29.875 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Cooktop Element Style | Gas Burner |
| Left Front Element-burner Power | 17,000 BTU |
| Left Front Element-burner Type | Burner |
| Left Rear Element-burner Power | 5,600 BTU |
| Left Rear Element-burner Type | Burner |
| Number of Cooking Element-burners | 4 |
| Right Front Element-burner Power | 15,000 BTU |
| Right Front Element-burner Type | Burner |
| Right Rear Element-burner Power | 9,200 BTU |
| Right Rear Element-burner Type | Burner |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Location | Front |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 3 |
| Oven Details | |
| Bake Element Power | 3,600 W |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3,200 |
| Convection Element Type | Fan |
| Convection Functions | Bake; Broil; Roast |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | Max Capacity, Gliding Roll-Out, and Heavy Duty |
- True Convection for consistent baking and roasting
