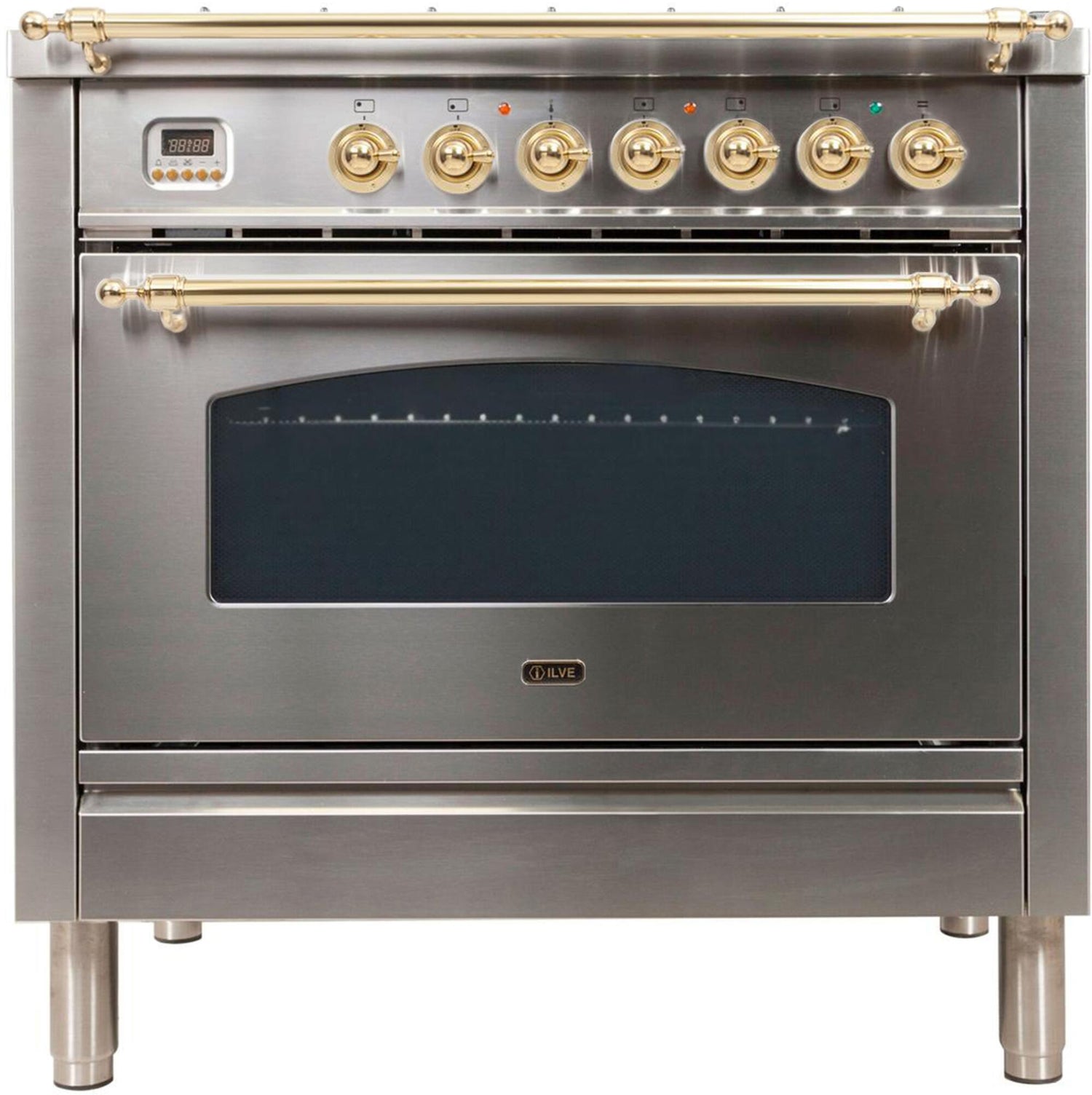

36" Nostalgie Series Freestanding Single Oven Dual Fuel Range with 5 Sealed Burners and Griddle in Stainless Steel
Model: UPN90FDMPILP
36" Nostalgie Series Freestanding Single Oven Dual Fuel Range with 5 Sealed Burners and Griddle in Stainless Steel
Model: UPN90FDMPILPQuick Specs
36" Nostalgie Series Freestanding Single Oven Dual Fuel Range with 5 Sealed Burners and Griddle in Stainless Steel is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

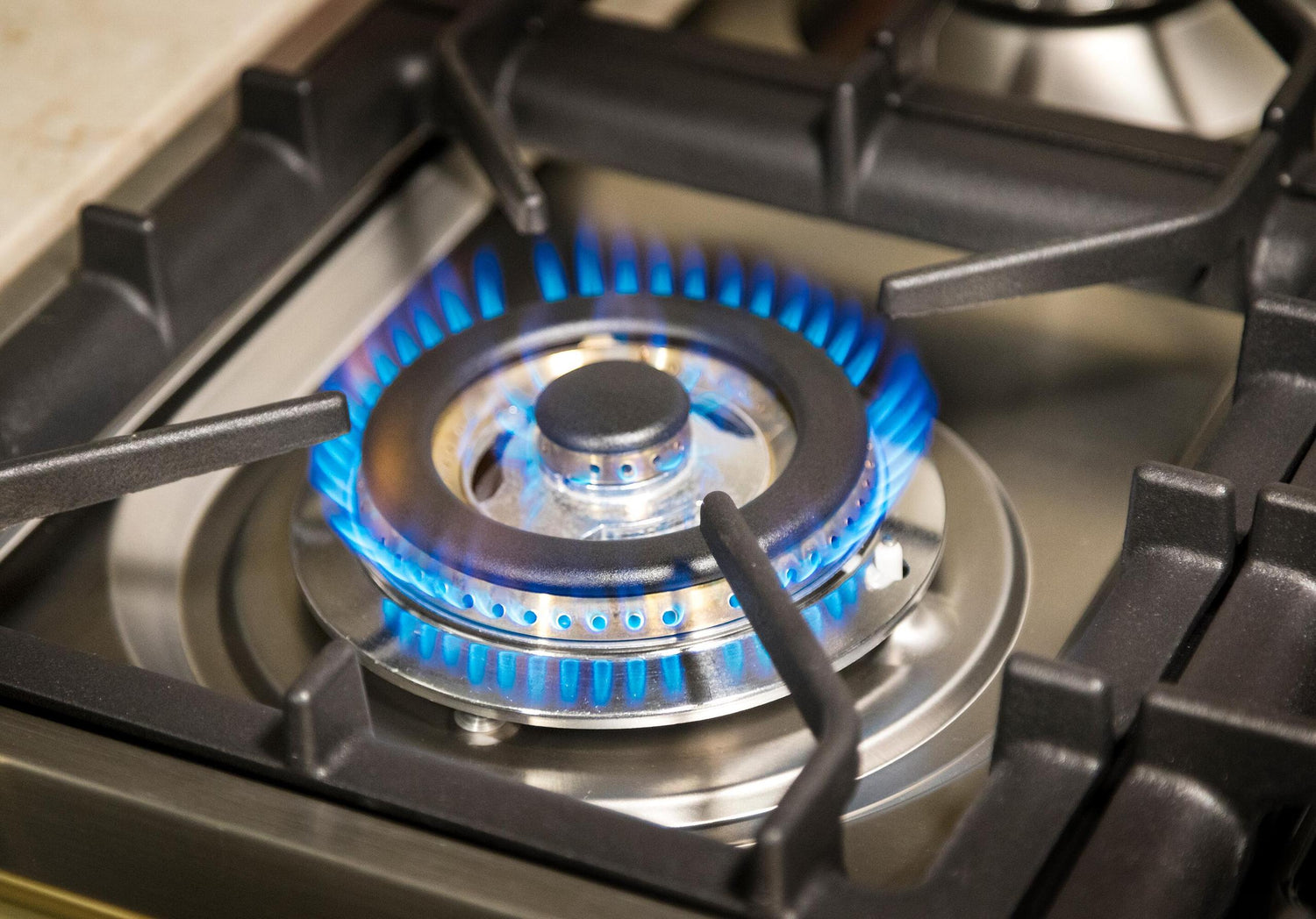

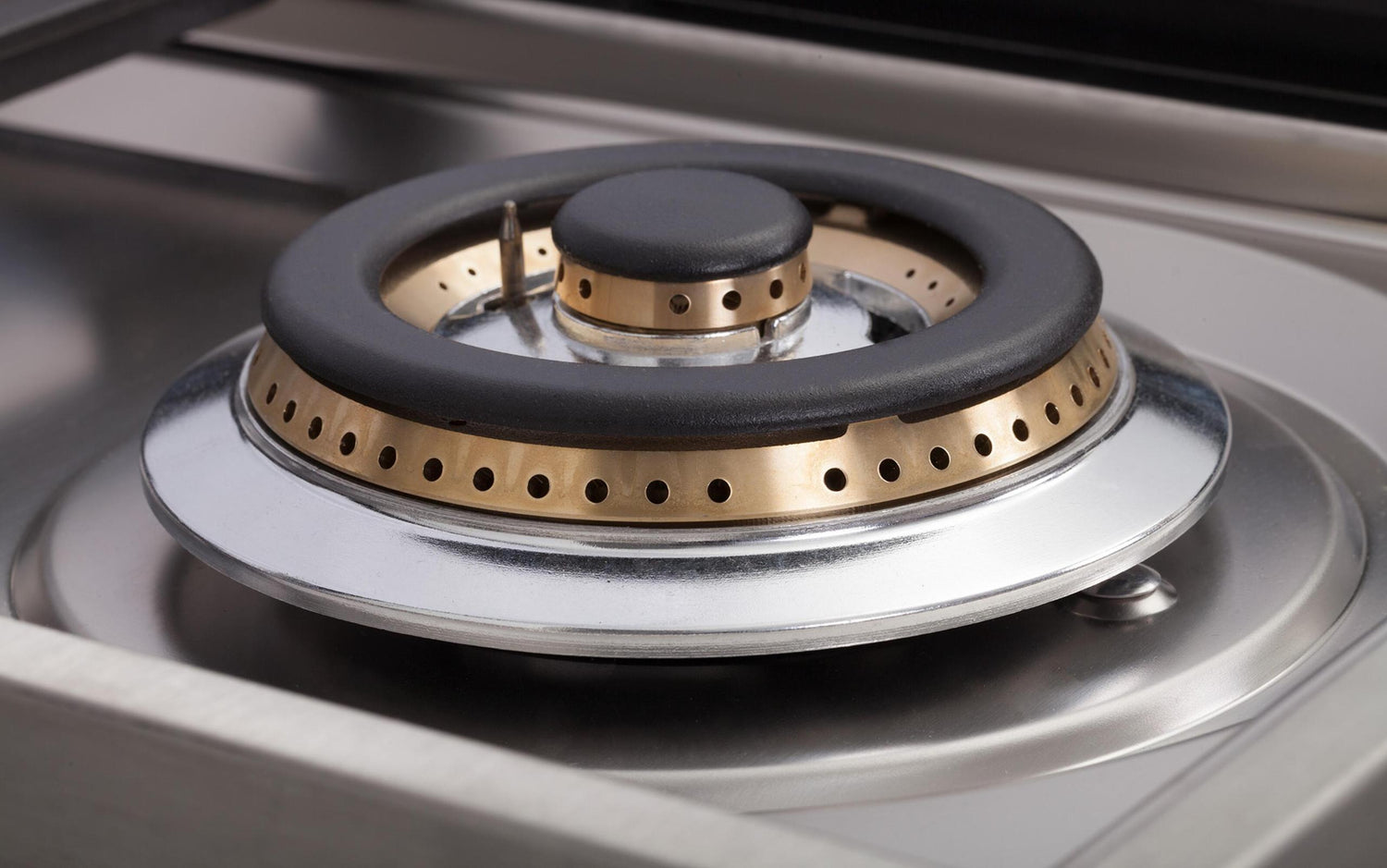

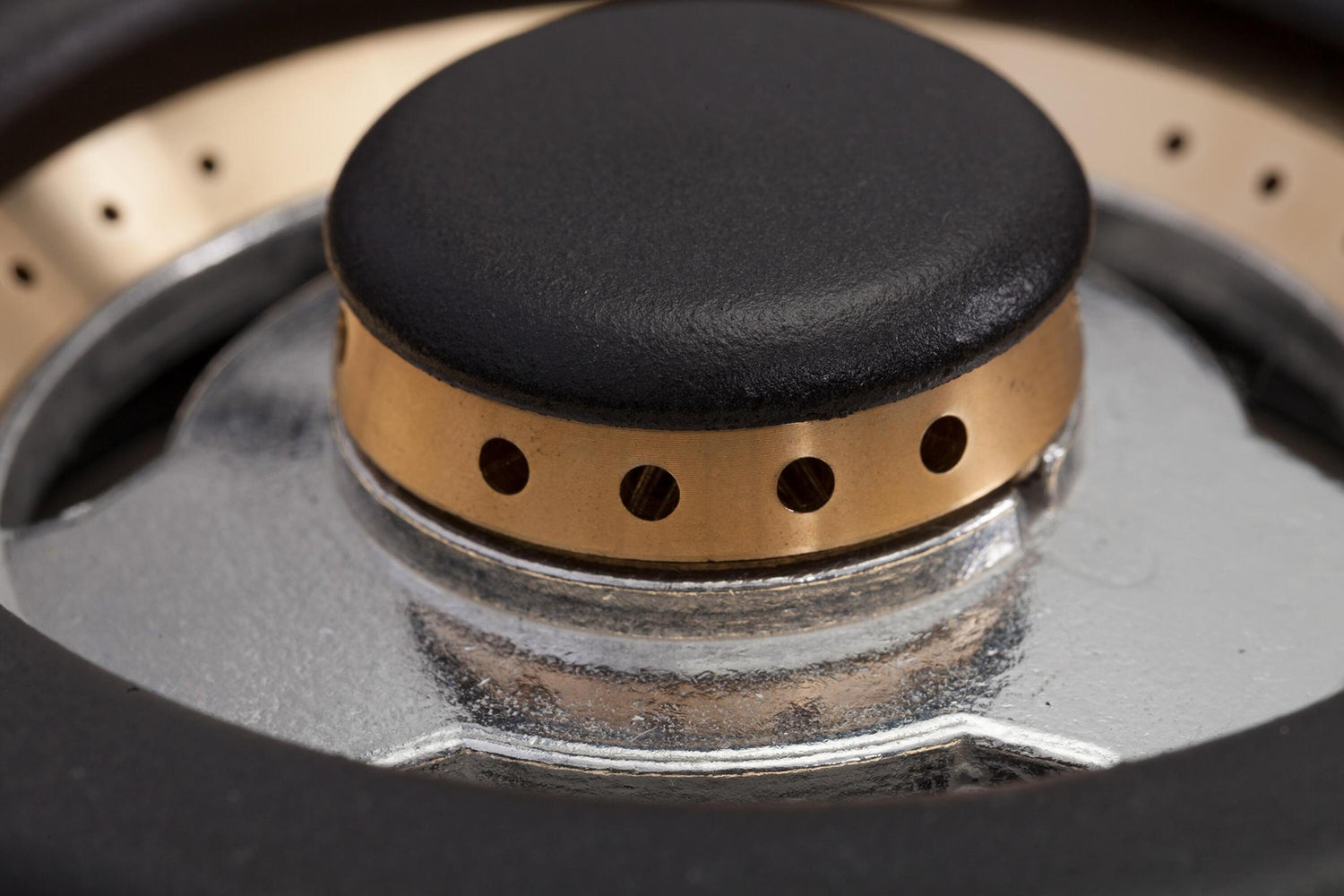

- 15,500 BTU Dual-Ring Burner

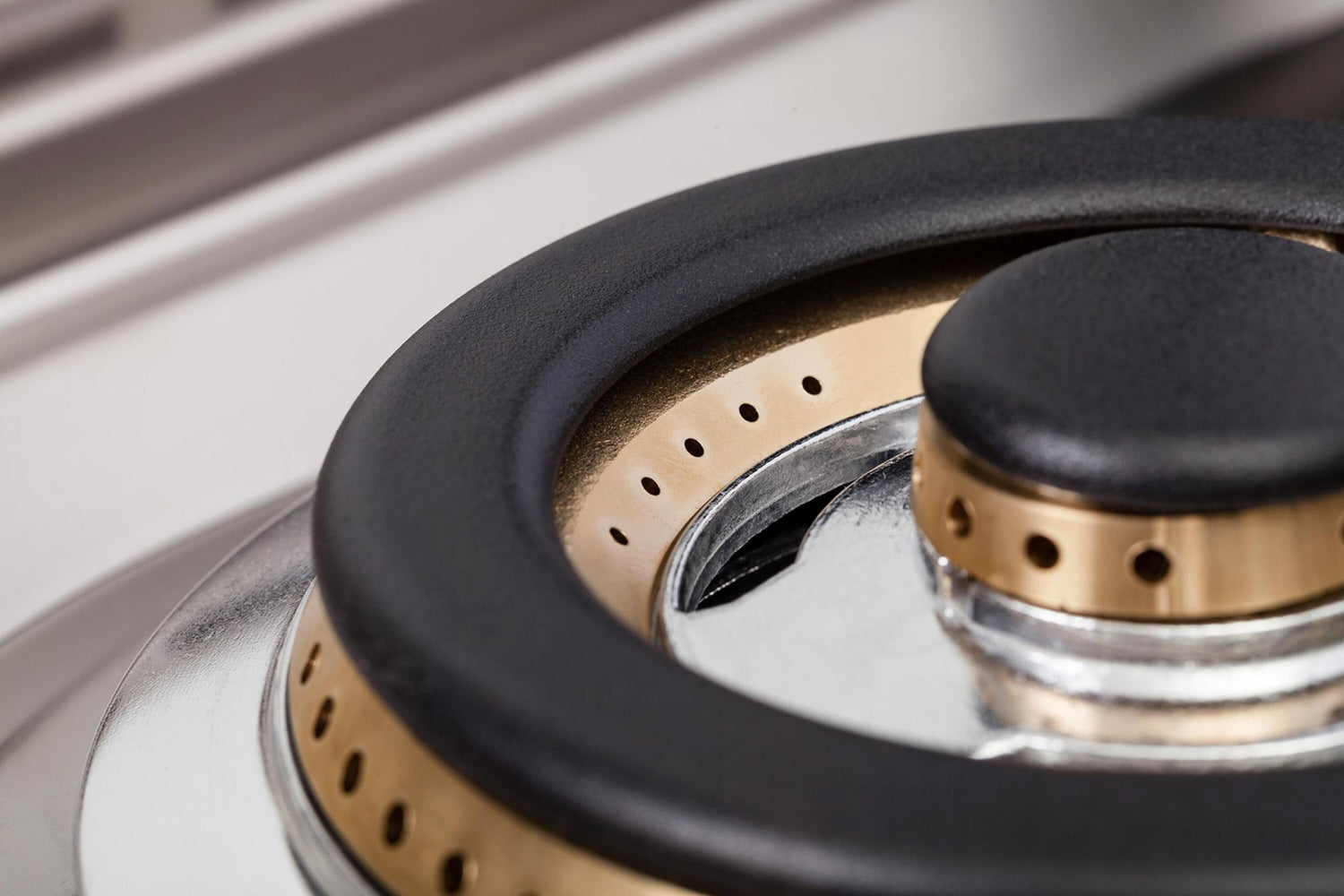

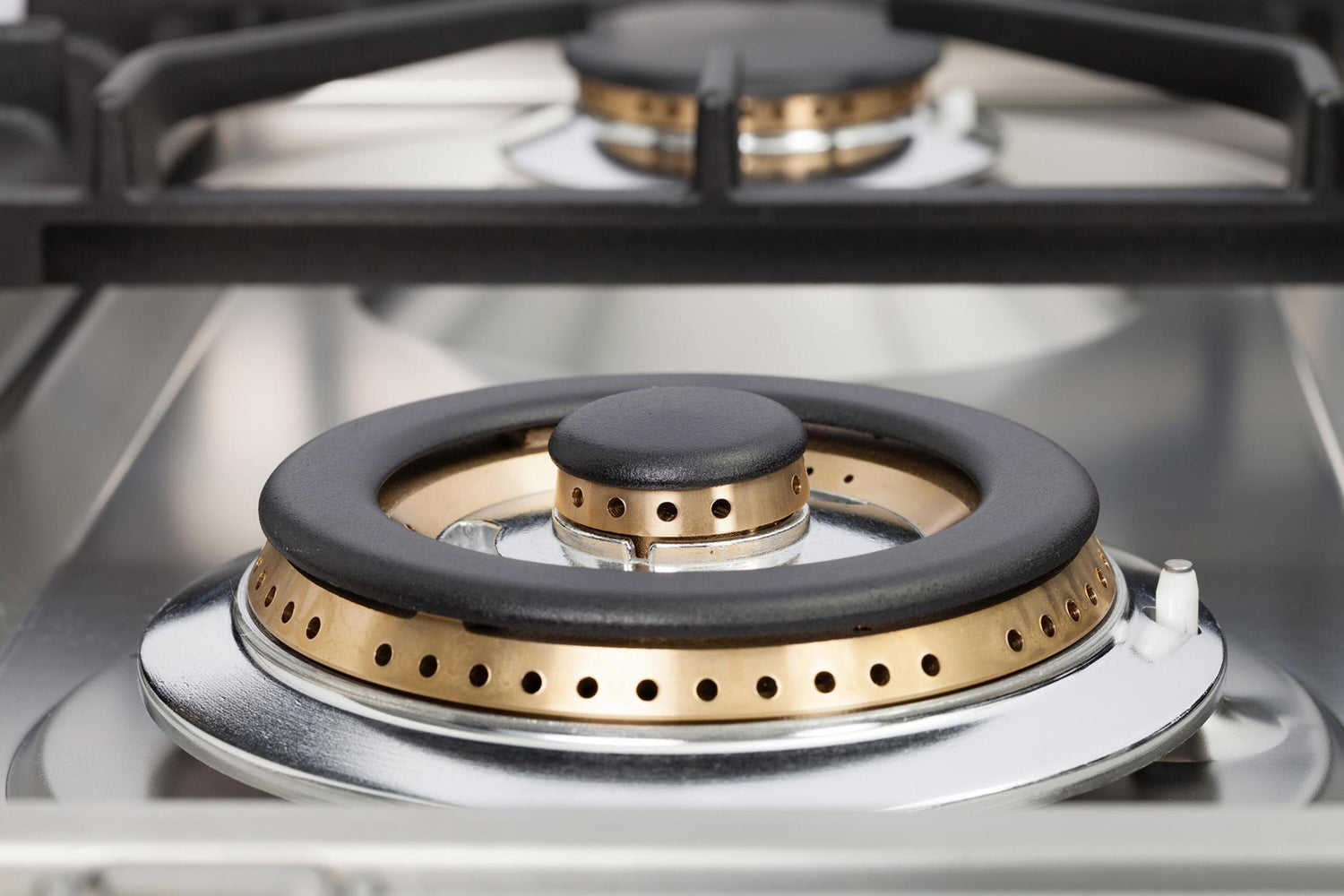

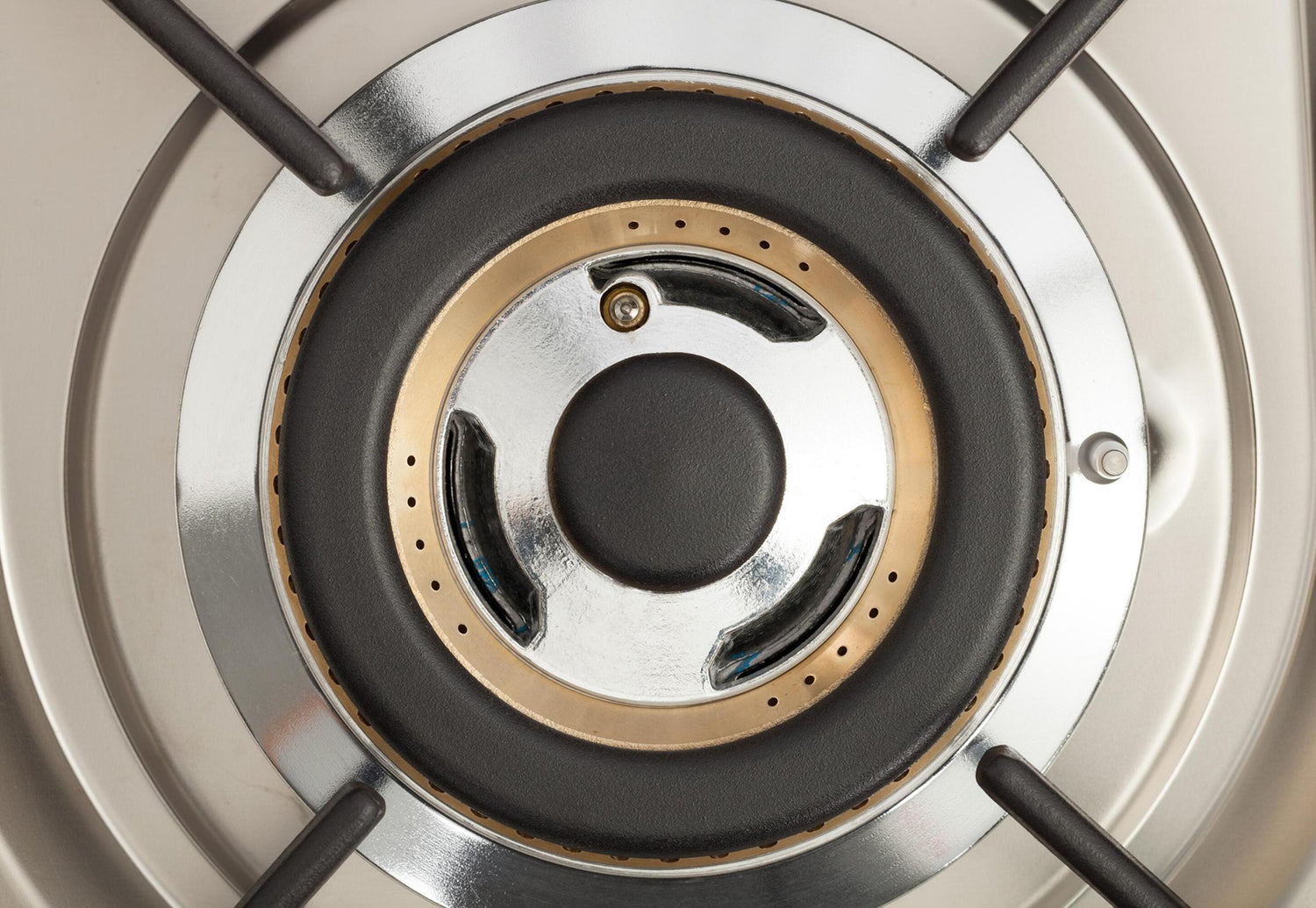

- 15,500 BTU Dual-Ring Burner Allows the internal ring to be regulated independently of the external burner. With a single knob the power varies from a minimum of 7,000 BTUs to a maximum of 15,500 BTUs

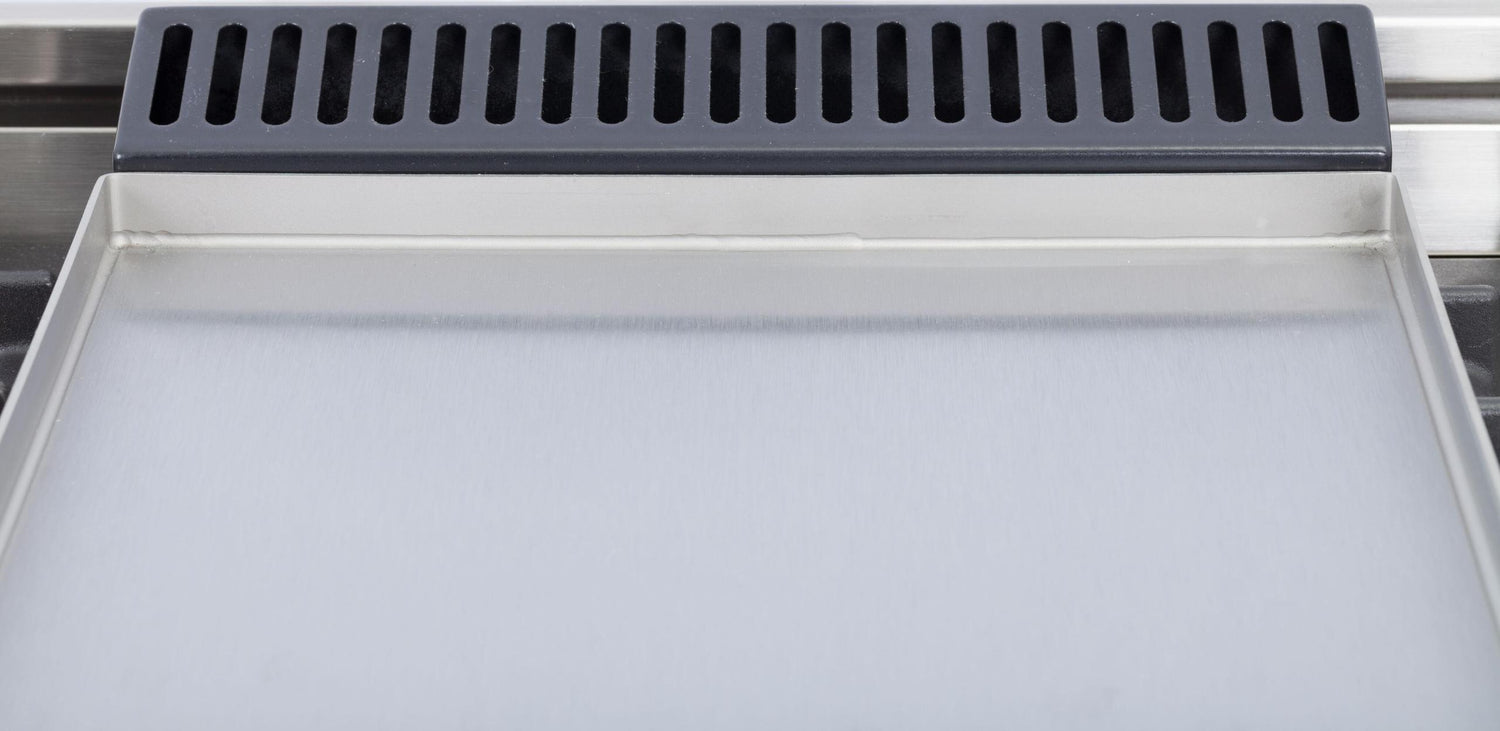

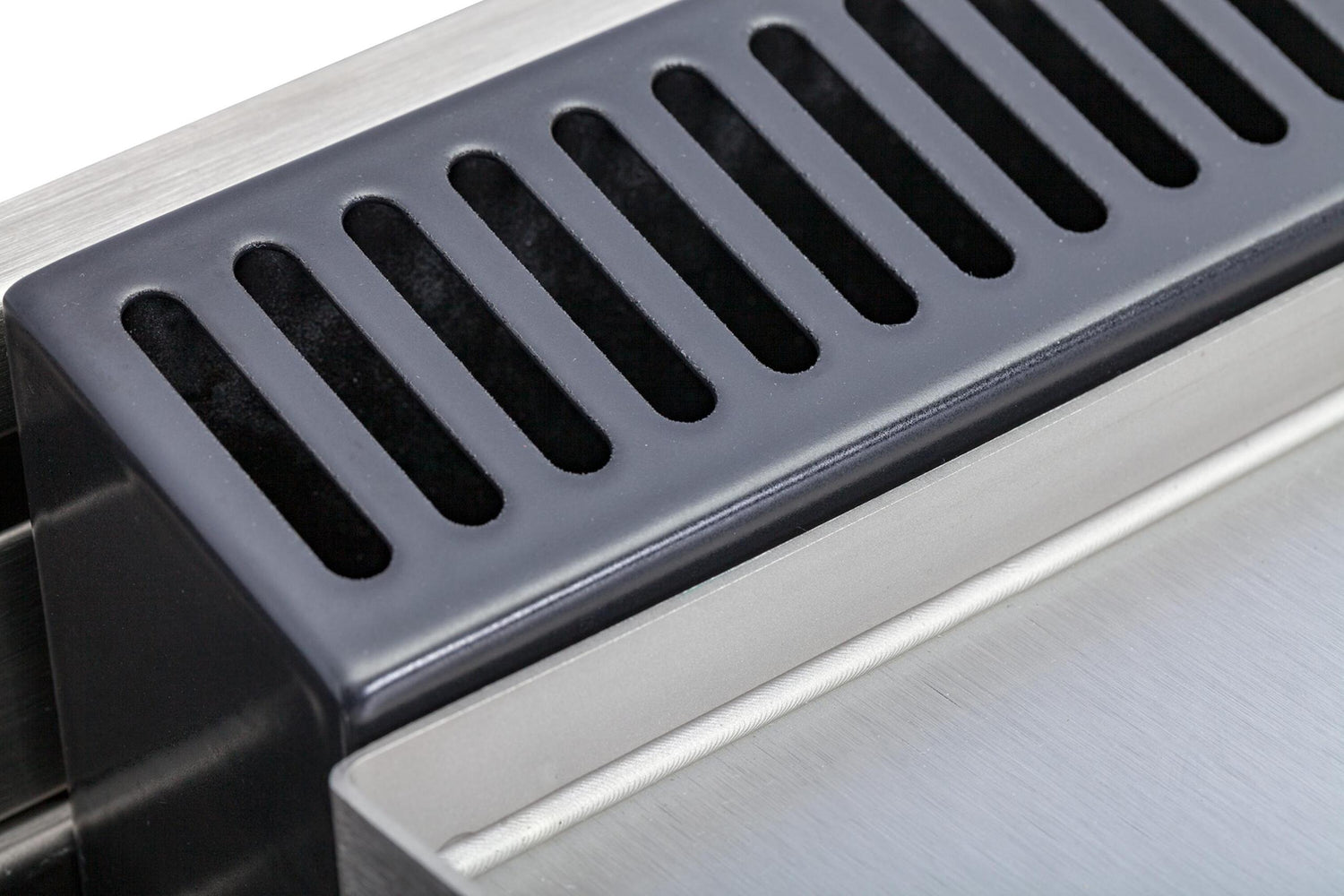

- 10,500 BTU Integrated Griddle

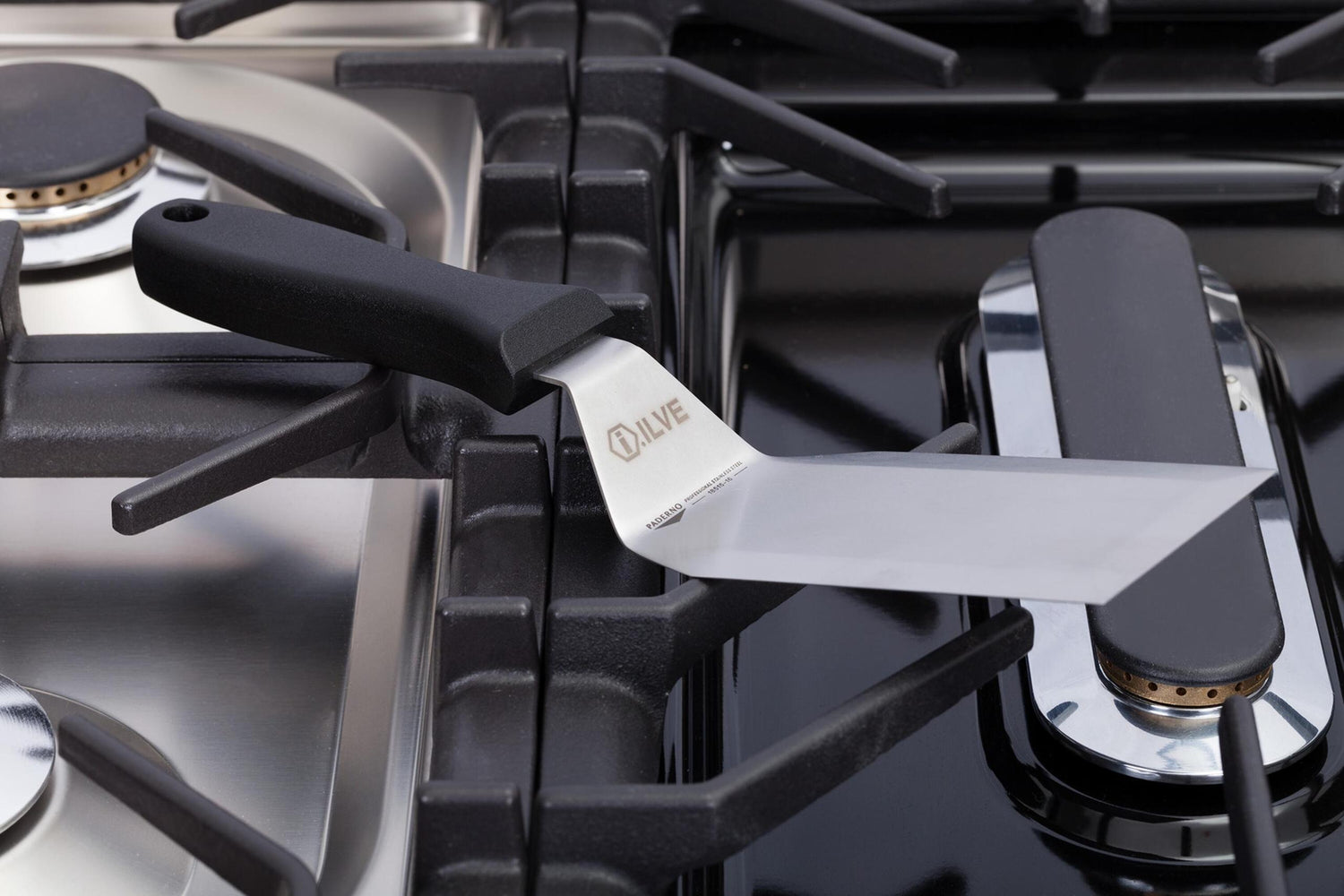

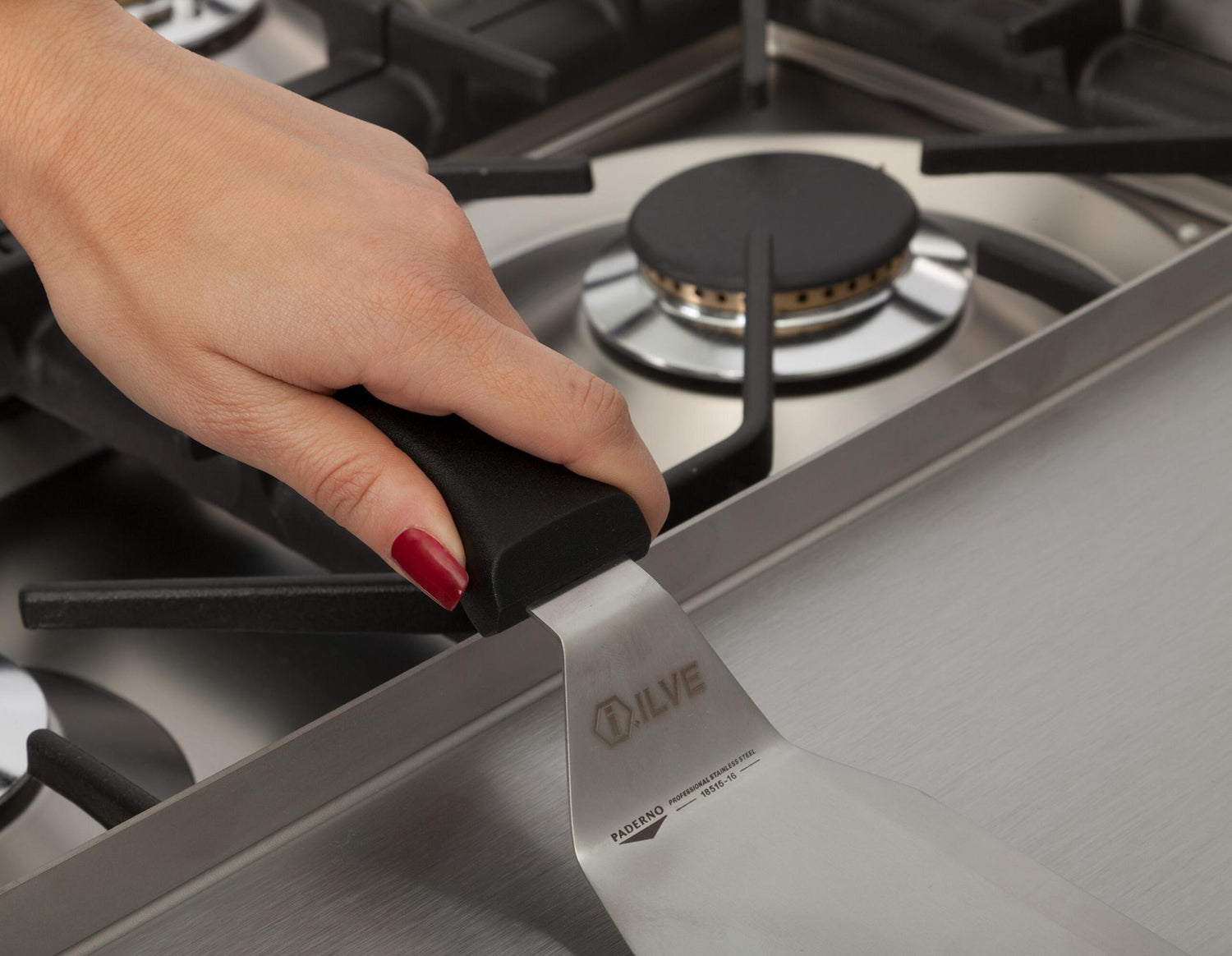

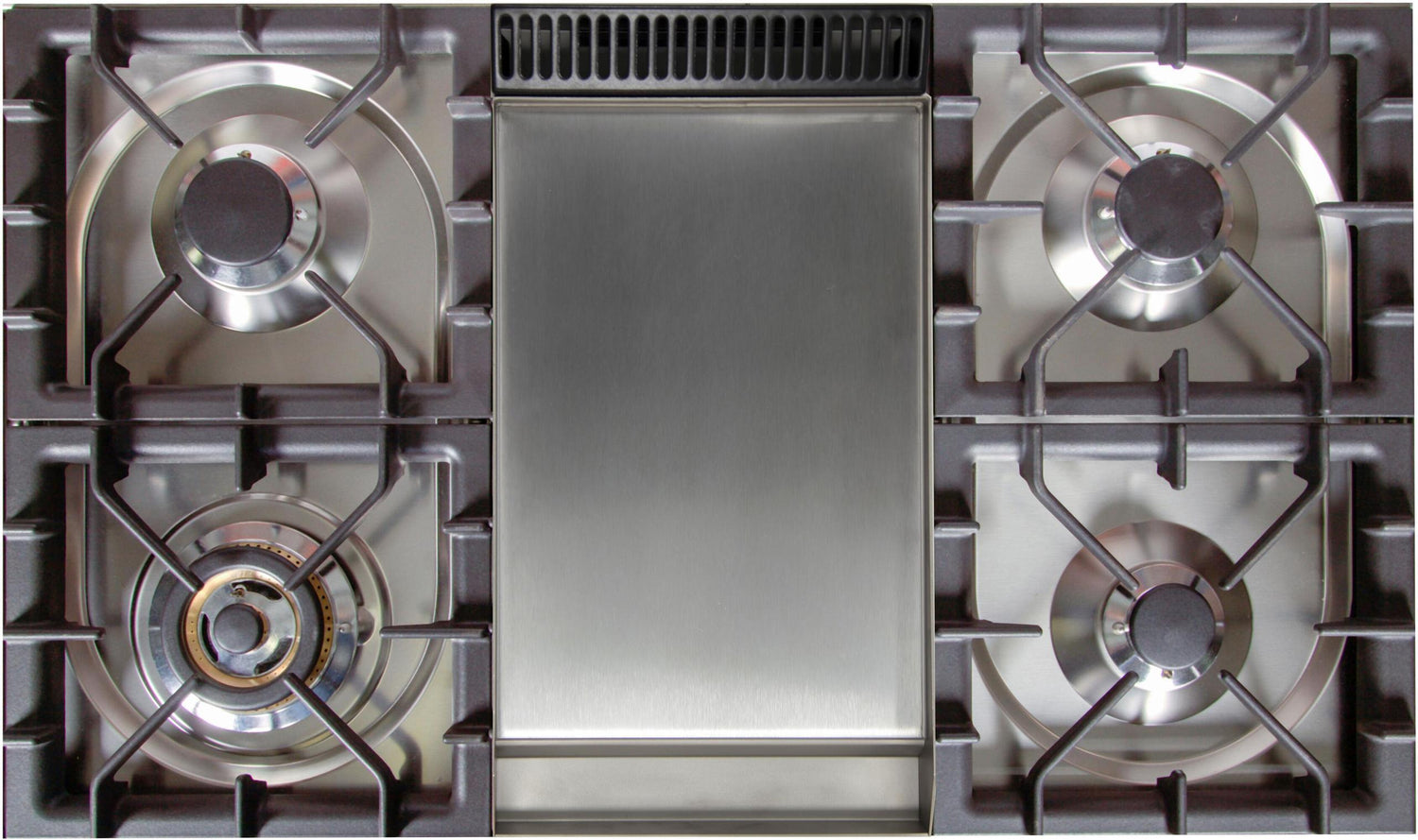

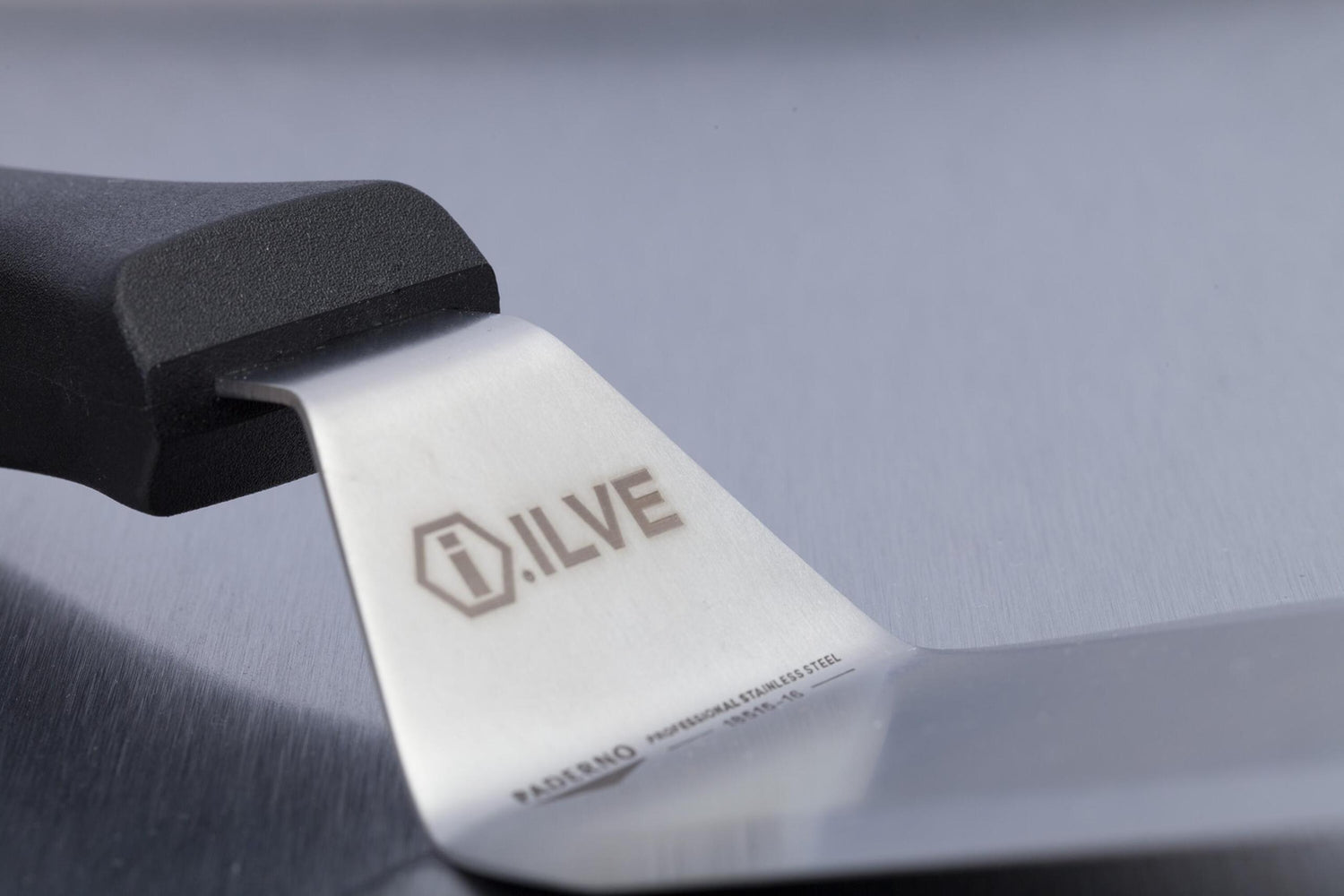

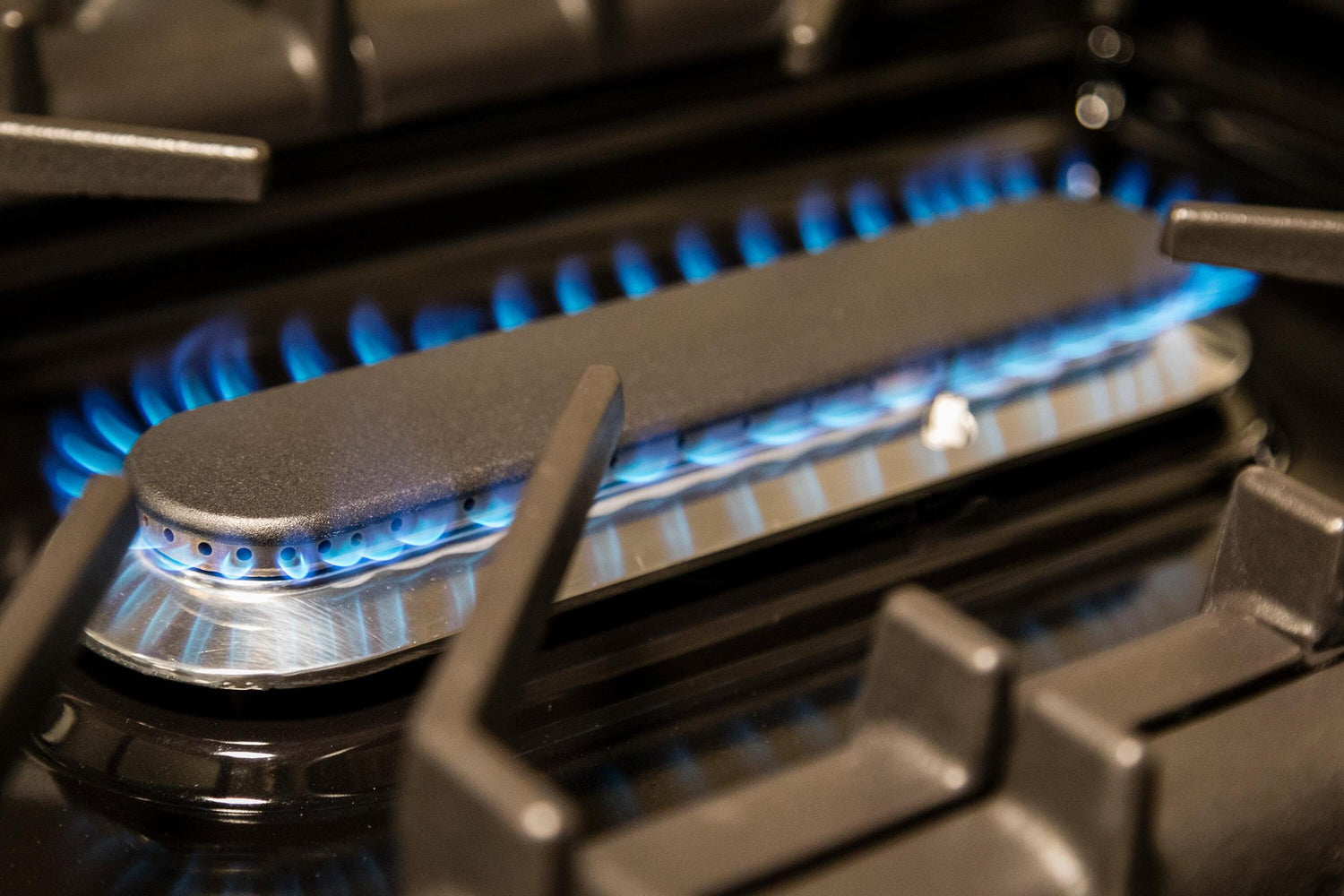

- 10,500 BTU Integrated Griddle The removable, stainless steel griddle is positioned over a 10,500 BTU large oval brass burner to provide a powerful and flexible cooktop. When not using the griddle you can remove it and replace with grates and use as a burner
- Full-Width Warming Drawer
- Full-Width Warming Drawer Keep prepared foods or dishes warm with the conveniently located warming drawer, with temperatures between 125(degree) and 200(degree)

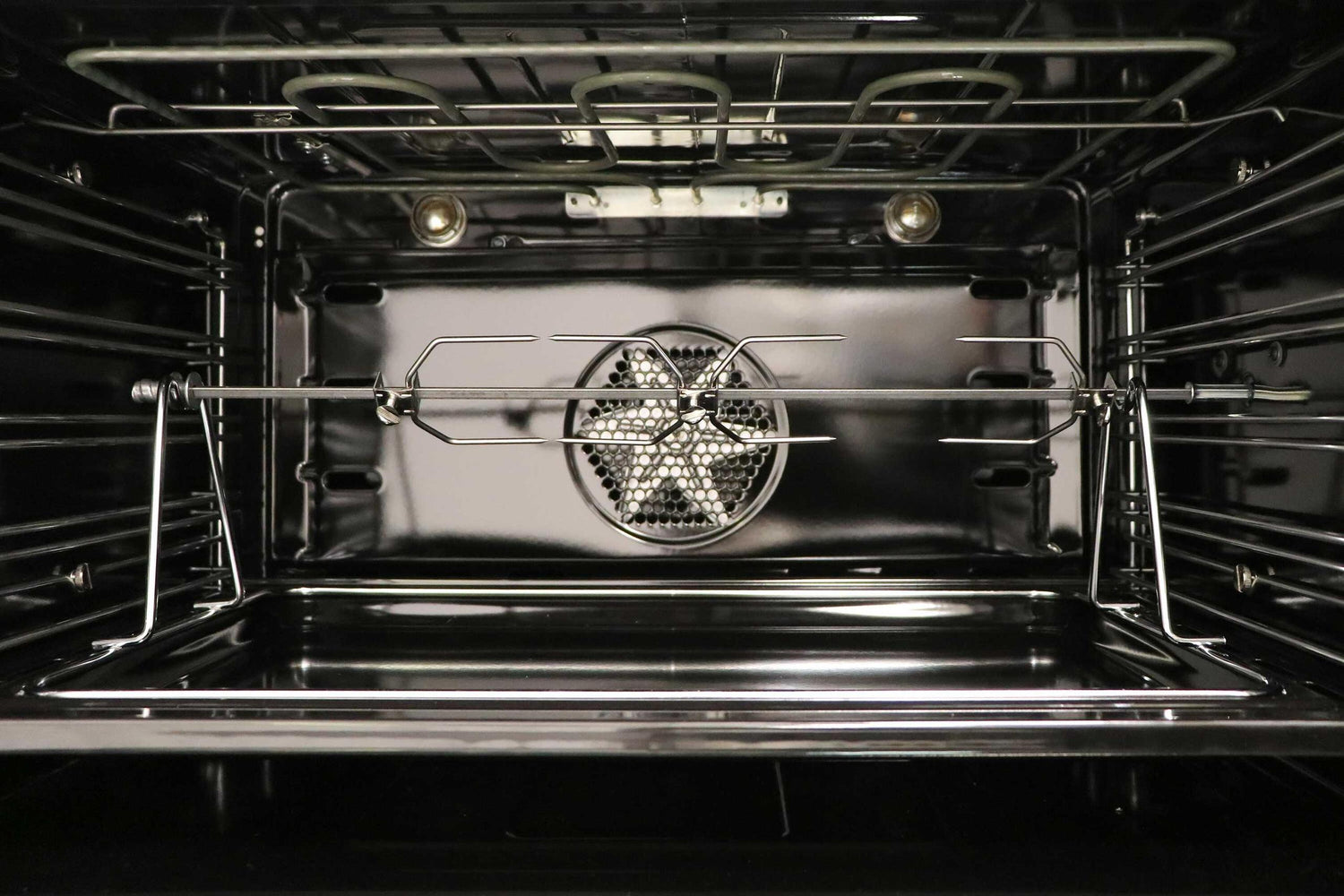

- Electric Rotisserie
- Electric Rotisserie Perfect professional roasting using the electric rotisserie function option
- 3.55 cu. ft. capacity Convection Oven
- 3.55 cu. ft. capacity Convection Oven Provides the space and versatility to bring joy and convenience to cooking

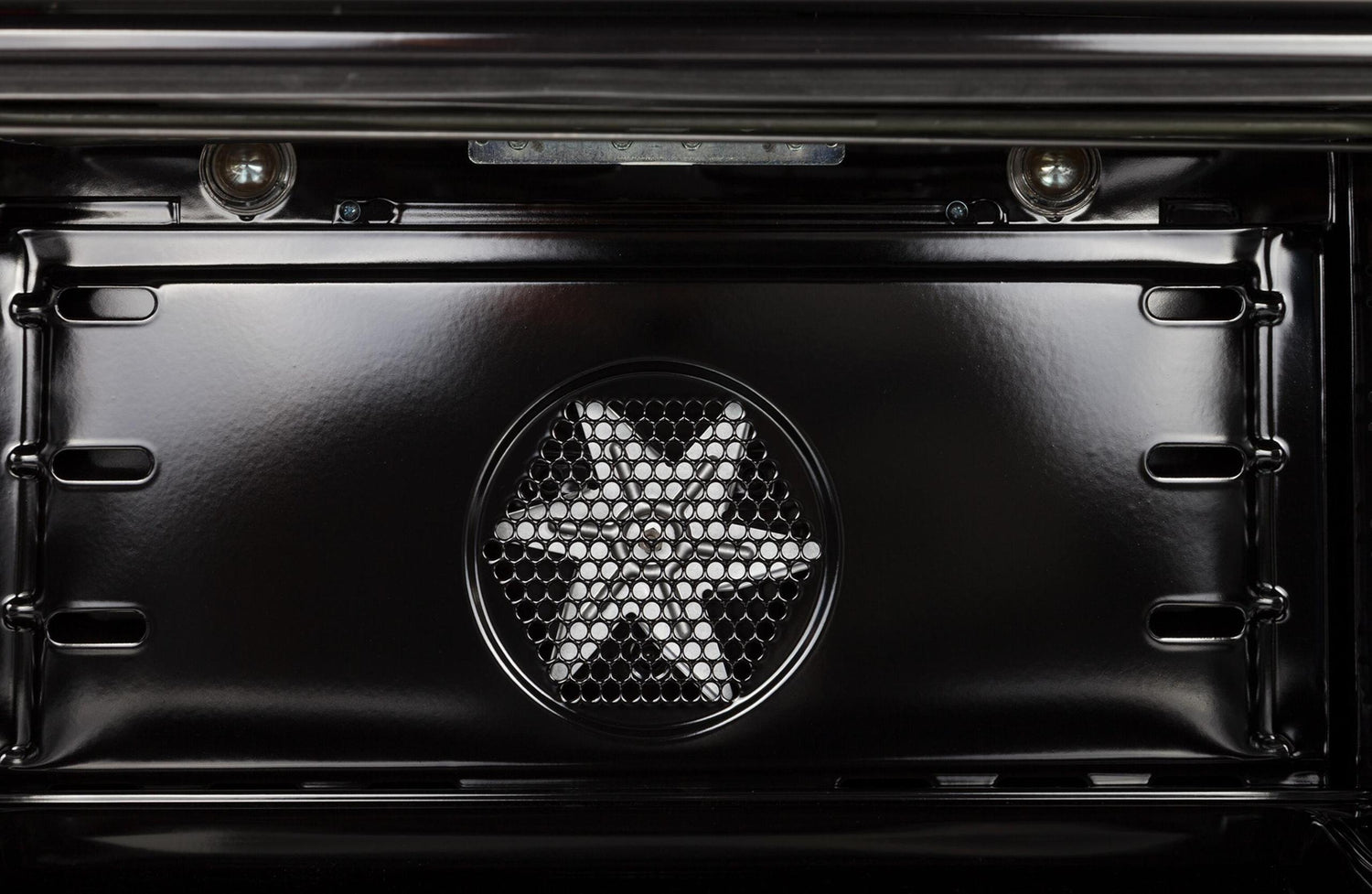

- True European Convection
- True European Convection The Convection Bake and Broil features true European convection to provide even heat distribution and guarantee perfect results
- Easy-to-Use Selector Knob
- Easy-to-Use Selector Knob Helps you choose which Multi-Function Oven Control function is best suited to your meal, including convection or conventional heating, and a pizza mode

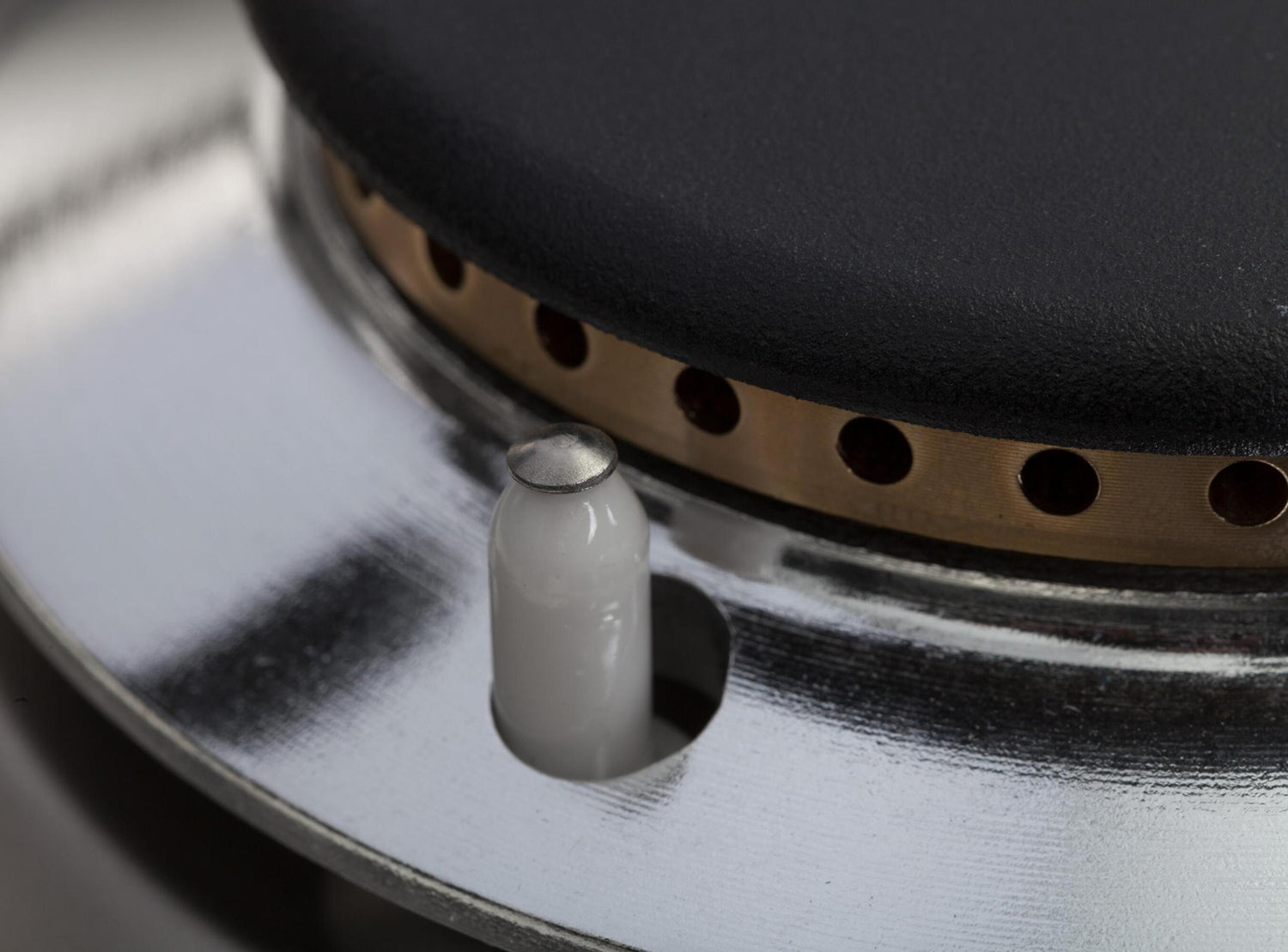

- Electronic Ignition
- Electronic Ignition Included in the knobs - Just press a knob and the burner will light up
- Precision Burner
- Precision Burner Controls each with position accurate thermostatic control large cooking surface with spacious burner layout

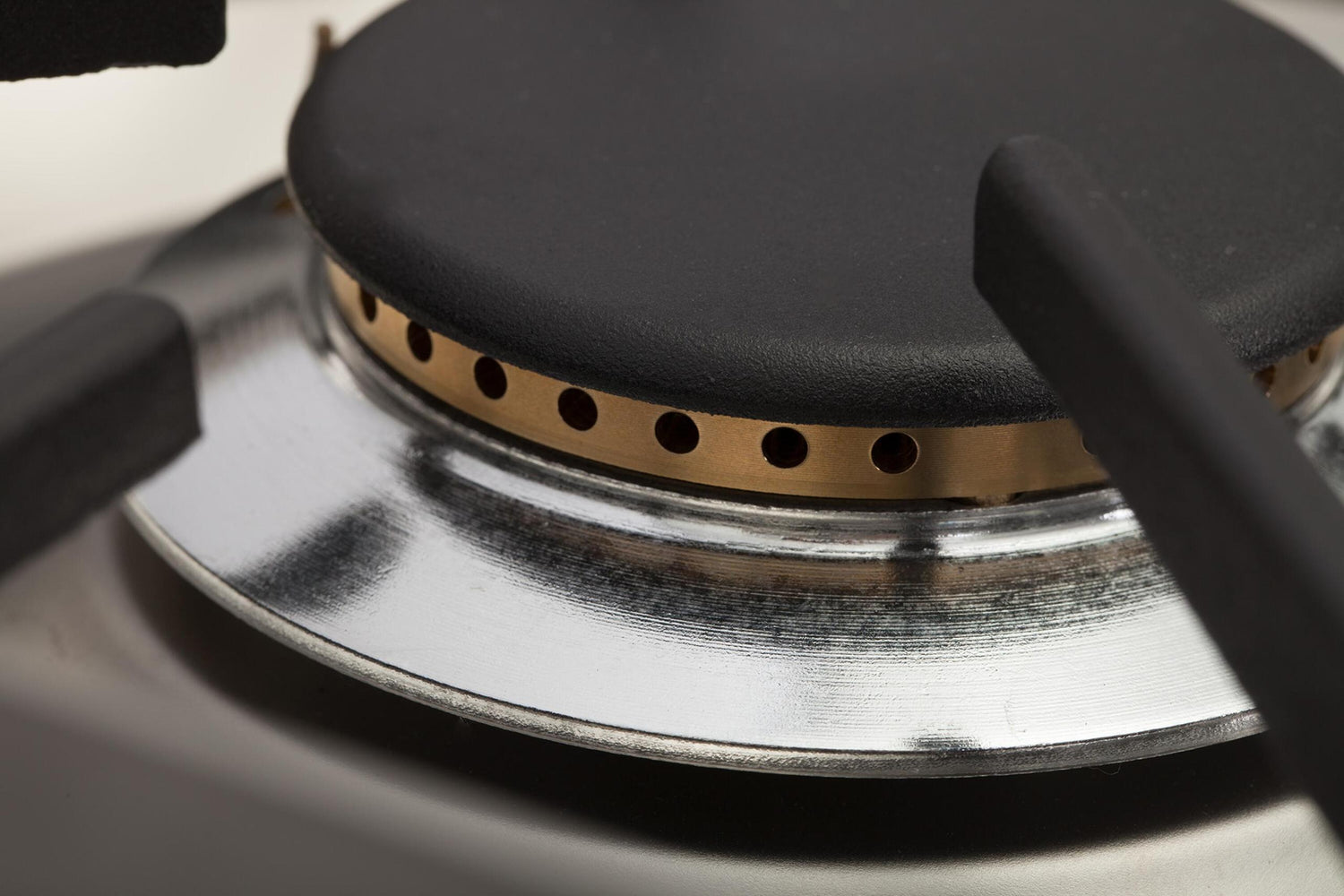

- Multi-Gas Burners with Stabilized Flame

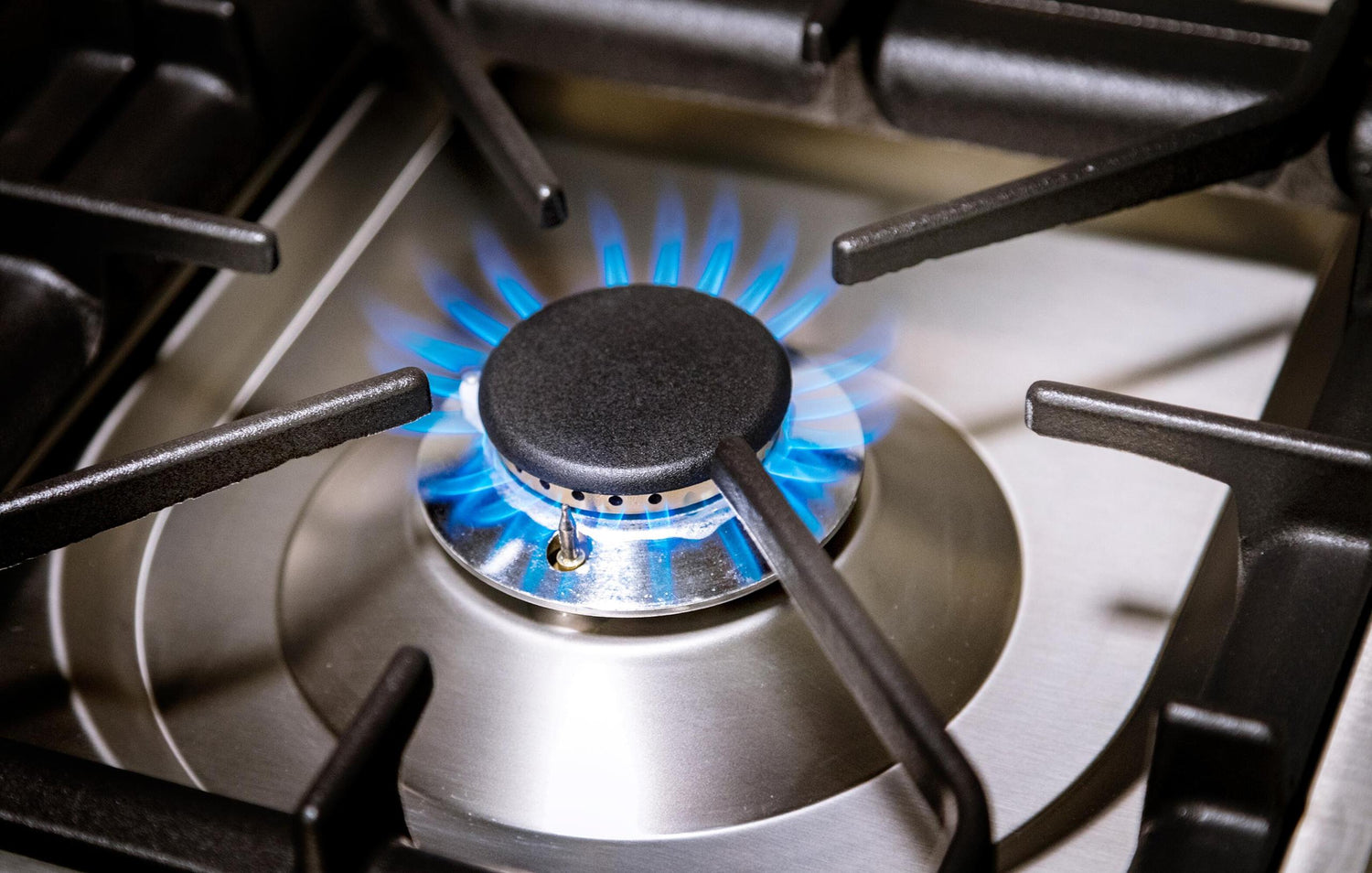

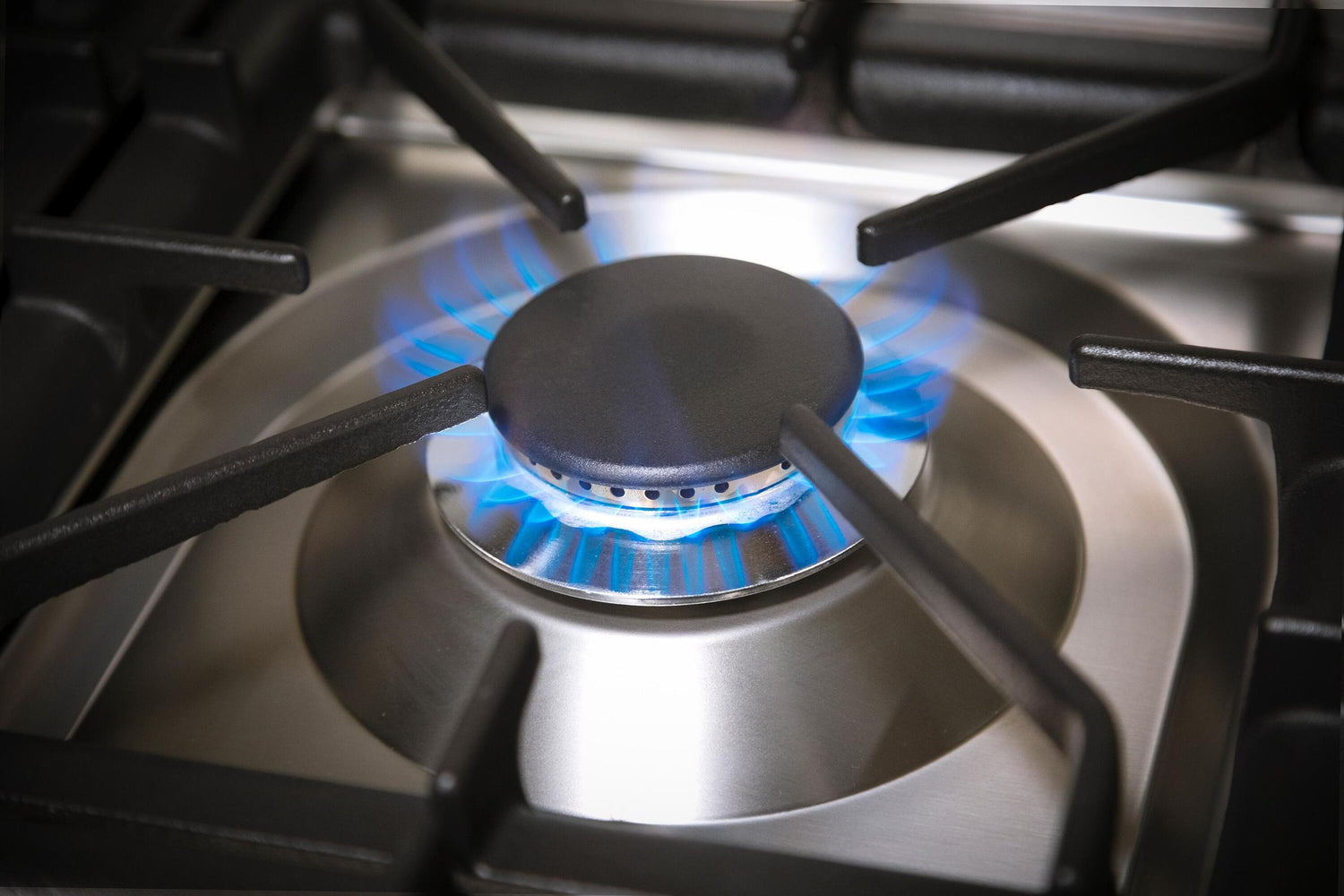

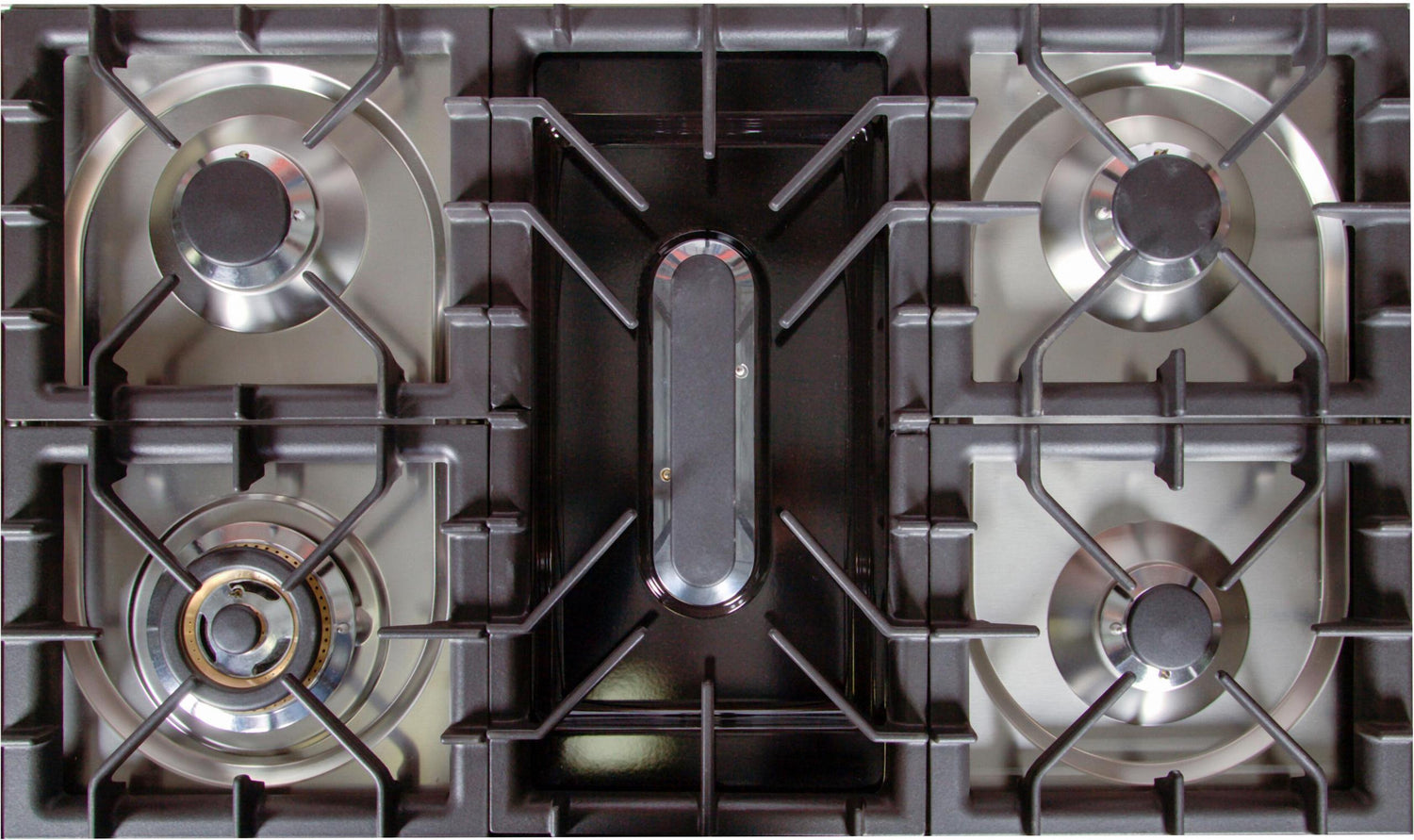

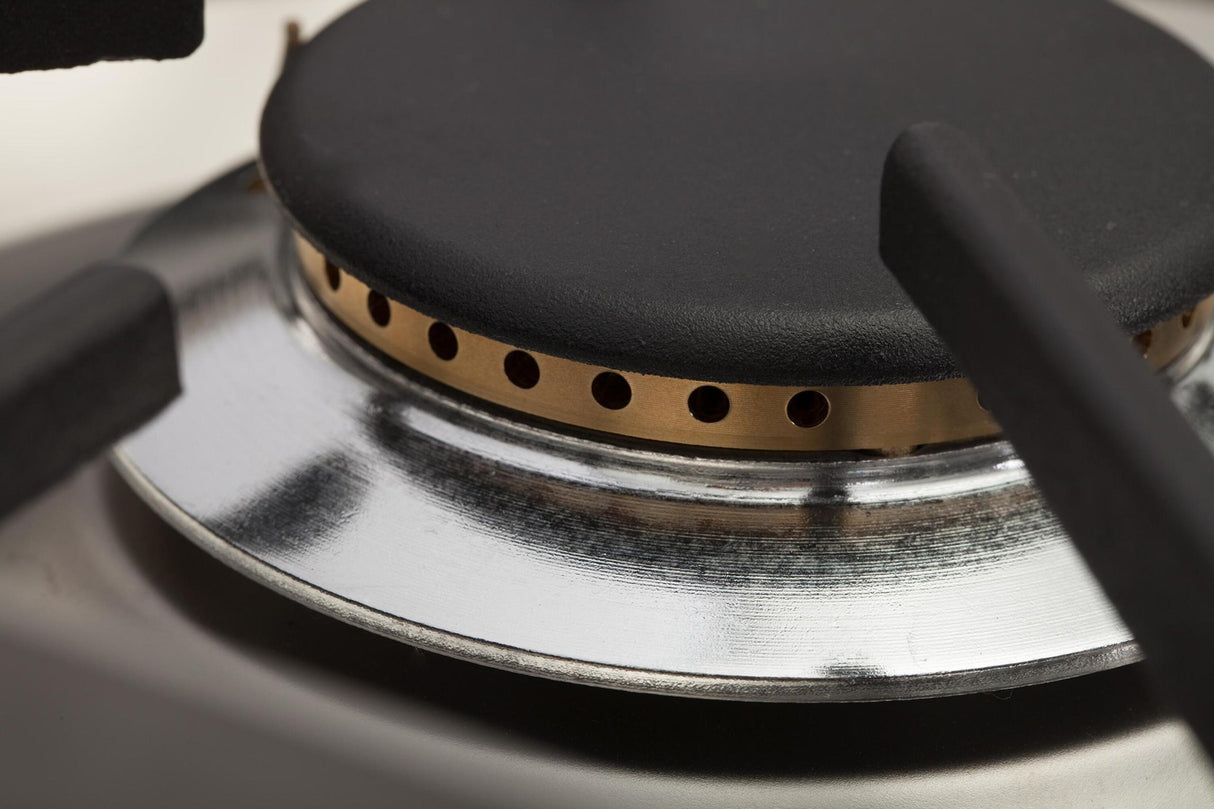

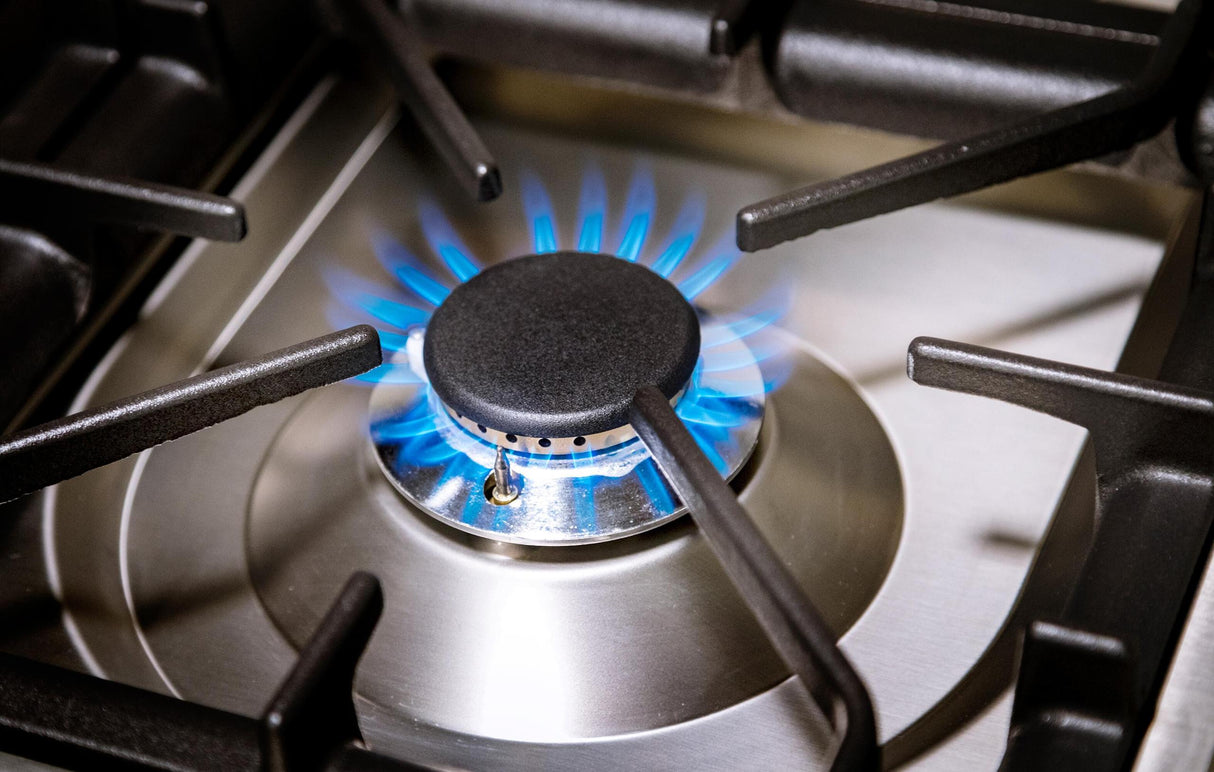

- Multi-Gas Burners with Stabilized Flame Eliminated eventual flame extinctions due to drought or liquid overflow. Burner sizes Include 1 triple ring burner, 2 big burners and 2 small burners. Enameled removable burner caps and sturdy grates for easy
- Other Features
- Cast iron heavy duty trivets and burners in matte black finish

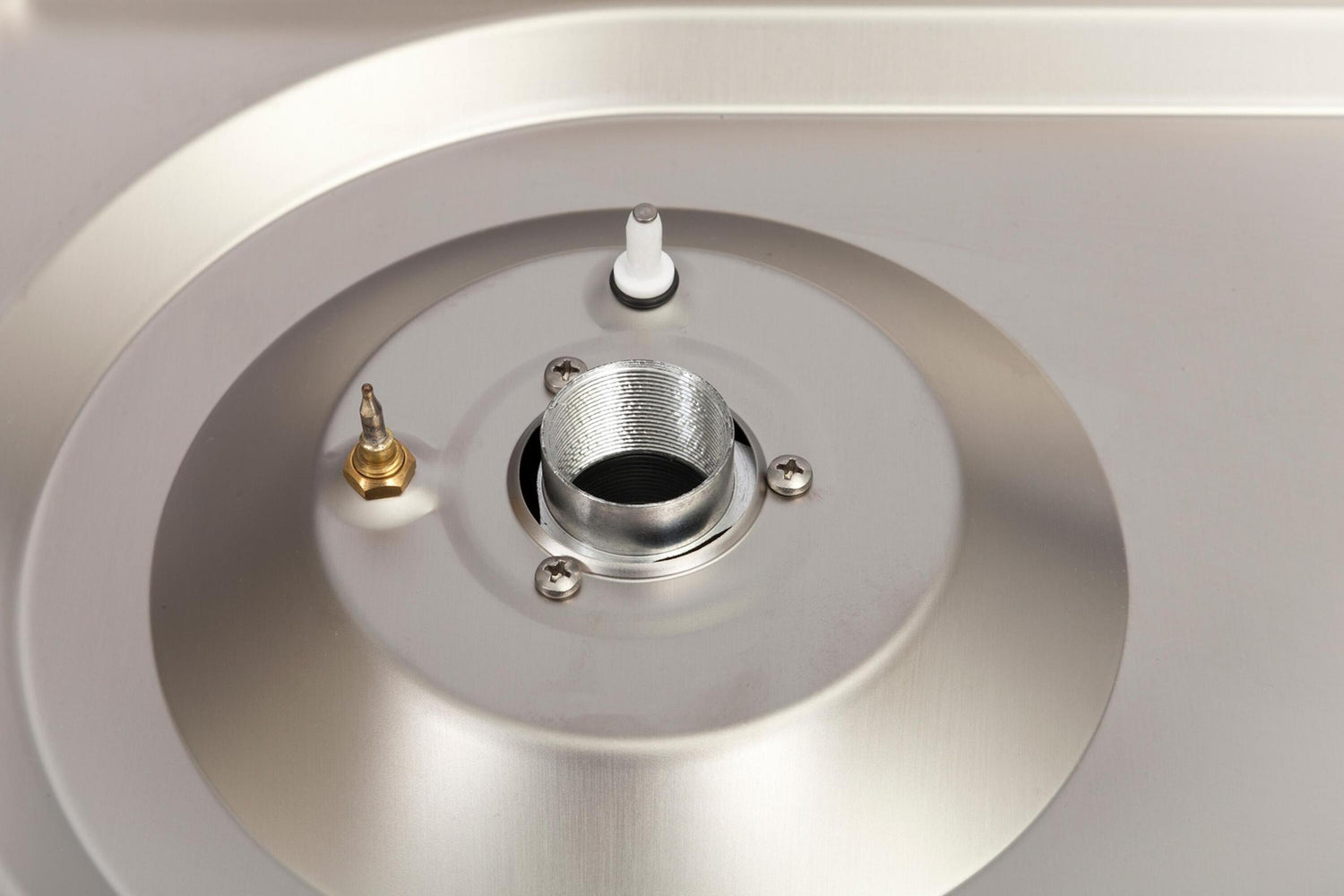

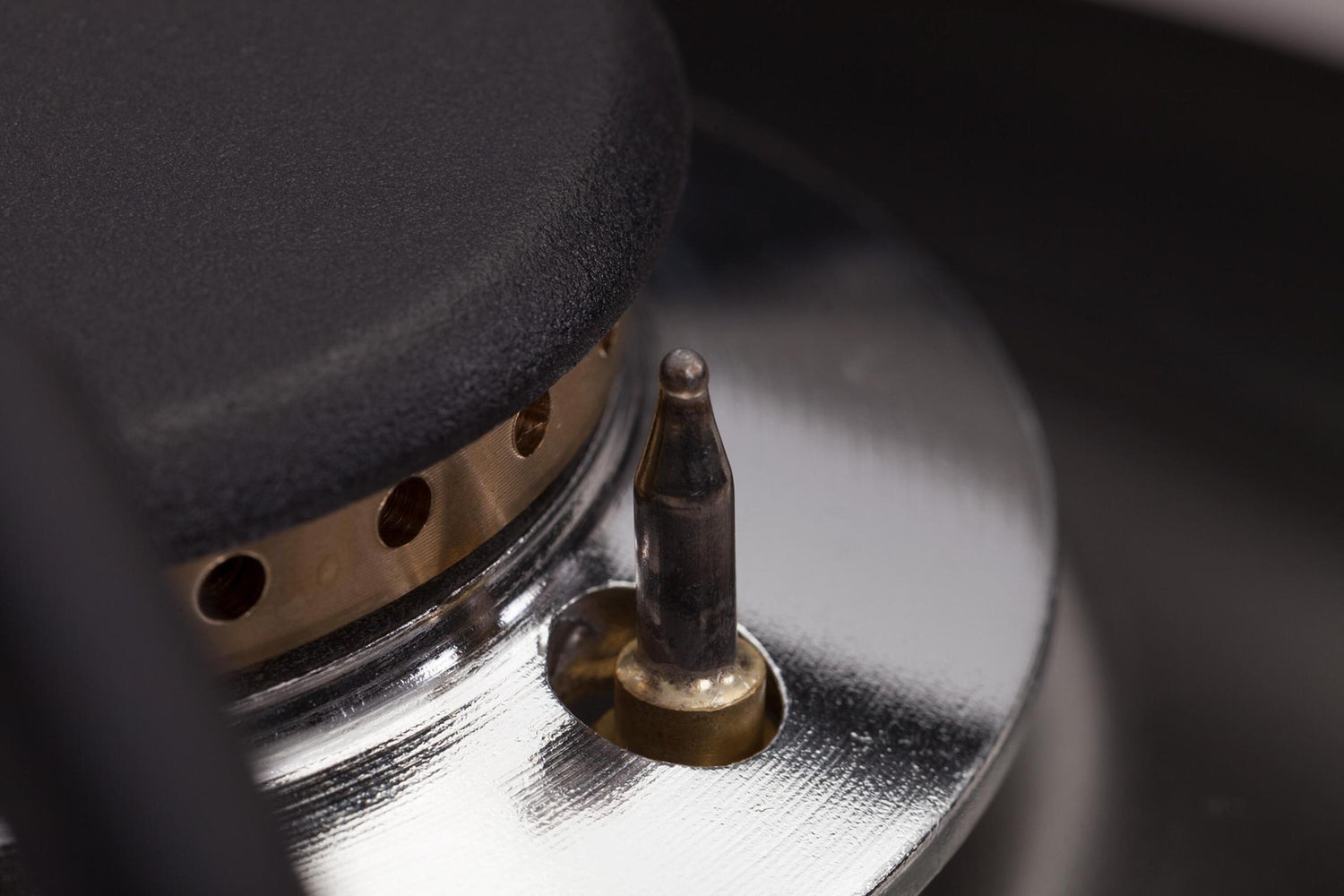

- All gas burners fitted with flame failure safety devices

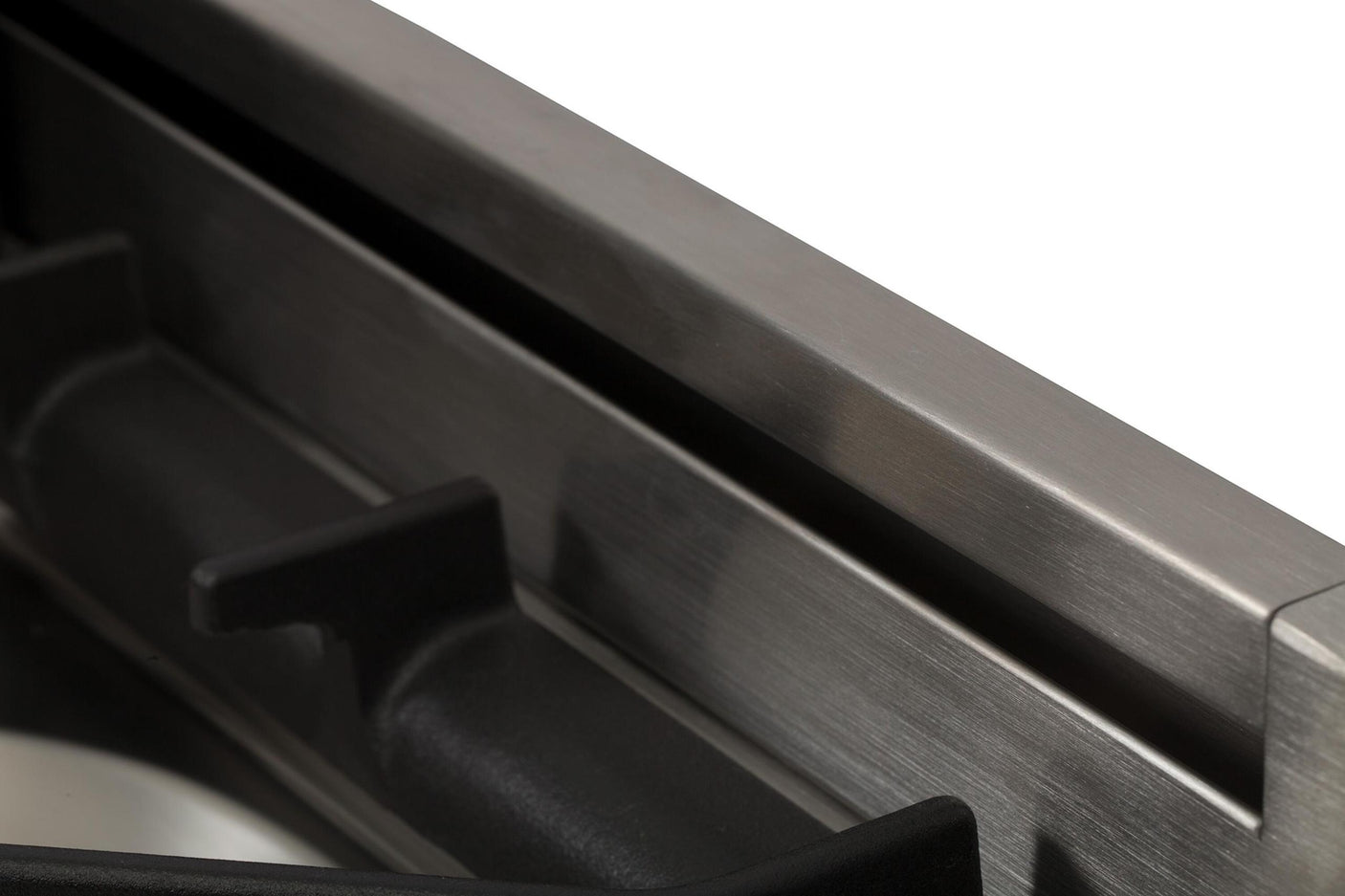

- Deep recessed stainless steel spill trays
- Continuous Grates
- Electrical Specifications
- 220 - 240 Volts
- 30 Amps
- 4 Prong Wire
- Warranty: 2 Year Limited Warranty
- Warranty: 2 Year Limited Warranty
- Self Clean Mode (Self Clean Panel - Sold Separately)
- Storage Drawer
- Pizza Function
- Convection Oven
- Handcrafted from Italy
- Timer
- Broiler
15,500 BTU Dual-Ring Burner Allows the internal ring to be regulated independently of the external burner. With a single knob the power varies from a minimum of 7,000 BTUs to a maximum of 15,500 BTUs 10,500 BTU Integrated Griddle The removable, stainless steel griddle is positioned over a 10,500 BTU large oval brass burner to provide a powerful and flexible cooktop. When not using the griddle you can remove it and replace with grates and use as a burner Full-Width Warming Drawer Keep prepared foods or dishes warm with the conveniently located warming drawer, with temperatures between 125(degree) and 200(degree) Electric Rotisserie Perfect professional roasting using the electric rotisserie function option 3.55 cu. ft. capacity Convection Oven Provides the space and versatility to bring joy and convenience to cooking True European Convection The Convection Bake and Broil features true European convection to provide even heat distribution and guarantee perfect results Easy-to-Use Selector Knob Helps you choose which Multi-Function Oven Control function is best suited to your meal, including convection or conventional heating, and a pizza mode Electronic Ignition Included in the knobs - Just press a knob and the burner will light up Precision Burner Controls each with position accurate thermostatic control large cooking surface with spacious burner layout Multi-Gas Burners with Stabilized Flame Eliminated eventual flame extinctions due to drought or liquid overflow. Burner sizes Include 1 triple ring burner, 2 big burners and 2 small burners. Enameled removable burner caps and sturdy grates for easy Other Features Cast iron heavy duty trivets and burners in matte black finish All gas burners fitted with flame failure safety devices Deep recessed stainless steel spill trays Continuous Grates Note: Oven temperature range may vary up to 50 degrees, it is recommended that customers set it 40 to 50 degrees less than their desired settings.
| UPC Code | 7415977730523 |
| Range Series | Nostalgie |
| Range Size | 36 |
| Fuel Type | Dual Fuel |
| Gas type | Liquid Propane |
| Number of Ovens | Single Oven |
| Door Type | Removable Triple Layer Glass Door |
| Griddle Included | Included |
| Trim | Brass |
| Color | Stainless Steel |
| Product Type | Freestanding |
| Cooktop Surface | Deep Recessed |
| Number of Burners / Elements | 5 |
| Burner Type Configuration | Sealed burners |
| Burner/ Element Fuel | Gas |
| Cooktop Control Type | Knobs |
| Cooktop Control Location | Front |
| Front Left Burner Output | 15500 |
| Back Left Burner Output | 10500 |
| Center Output | N/A |
| Front Center Right Burner Output | N/A |
| Back Center Right Burner Output | N/A |
| Front Center Burner Output | 10500 |
| Back Center Burner Output | N/A |
| Front Right Burner Output | 7000 |
| Back Right Burner Output | 10500 |
| Oven Fuel | Electric |
| Oven Door Type | Removable Triple Oven Glass |
| Convection Oven | Yes |
| Oven Cleaning Type | Manual |
| Oven Control Type | Knobs |
| Oven Control Place | Front |
| Interior Oven Light | Yes |
| Number of Racks | 2 |
| Number of rack Place | 5 |
| Heigths Between Rack Places | 2.25 |
| Height between lowest rack and top rack | 8.5 |
| Soft Close Door | No |
| Main Oven Capacity cu.ft. | 3.55 |
| Second Oven Capacity cu.ft. | N/A |
| Overall Width | 35.433070866141733 |
| Range Height (without legs) | 29.527559055118108 |
| Legs Height (minimal) | 6.1 |
| Legs Height (maximum) | 10.039999999999999 |
| Range Minimal Height with legs | 35.627559055118105 |
| Range Maximum Height with legs | 39.56755905511811 |
| Backsplash Height | 5.9055118110236222 |
| Grate Height | 0.78740157480314965 |
| Top Handle Length | 34.65 |
| Main Oven Handle Length | 28.94 |
| Second Oven Handle Length | 0 |
| Cooktop Depth | 23.622047244094489 |
| Range Depth | 21.653543307086615 |
| Cooktop Front Depth | 0.59055118110236227 |
| Cooktop Back Depth | 1.3779527559055118 |
| Back Lip Depth | 0.59055118110236227 |
| Oven Handle Depth | 2.1653543307086616 |
| Overall Depth | 26.377952755905515 |
| Main Oven 90 Degree open Door Depth | 15.354330708661417 |
| Main Oven Interior Width (actual) | 25.196850393700789 |
| Main Oven Interior Height (actual) | 13.385826771653544 |
| Main Oven Interior Depth (actual) | 15.748031496062993 |
| Main Oven Interior Width (usable) | 23.228346456692911 |
| Main Oven Interior Height (usable) | 10.236220472440944 |
| Main Oven Interior Depth (usable) | 14.566929133858268 |
| Second Oven 90 Degree open Door Depth | N/A |
| Second Oven Interior Width (actual) | N/A |
| Second Oven Interior Height (actual) | N/A |
| Second Oven Interior Depth (actual) | N/A |
| Second Oven Interior Width (useable) | N/A |
| Second Oven Interior Height (useable) | N/A |
| Second Oven Interior Depth (useable) | N/A |
| Storage 1 Width | 25.787401574803148 |
| Storage 1 Heght | 3.3464566929133861 |
| Storage 1 Depth | 16.141732283464567 |
| Product Weight | 250 |
| Additional Parts Required | No |
| Weight (Shipping) | 270 |
| Width (Shipping) | 40 |
| Height (Shipping) | 40 |
| Length (Shipping) | 30 |
| Warranty Length | 2 Year |
| Full or Limited Warranty | Limited |
| Primary Material | Stainless Steel |
| Display | Yes |
| Display Type | LED Display |
| Broiler | Yes |
| Cooktop Warming Center | No |
| Child Safety Lock | No |
| LP Gas Convertible | Yes |
| Timer | Yes |
| Hot Surface Indicator | No |
| Voltage | 220 |
| Amperage | 30 |
| Storage Drawer | Yes |
| Warming Drawer | Yes - Heat from Oven |
| Range Hood Included | No |
| Power Cord Included | Yes |
| Legs Included | Yes |
| Backsplash Included | Yes |
| Convertion Kit Included | Yes |
| Supplier Intended and Approved Use | Residential Use |
