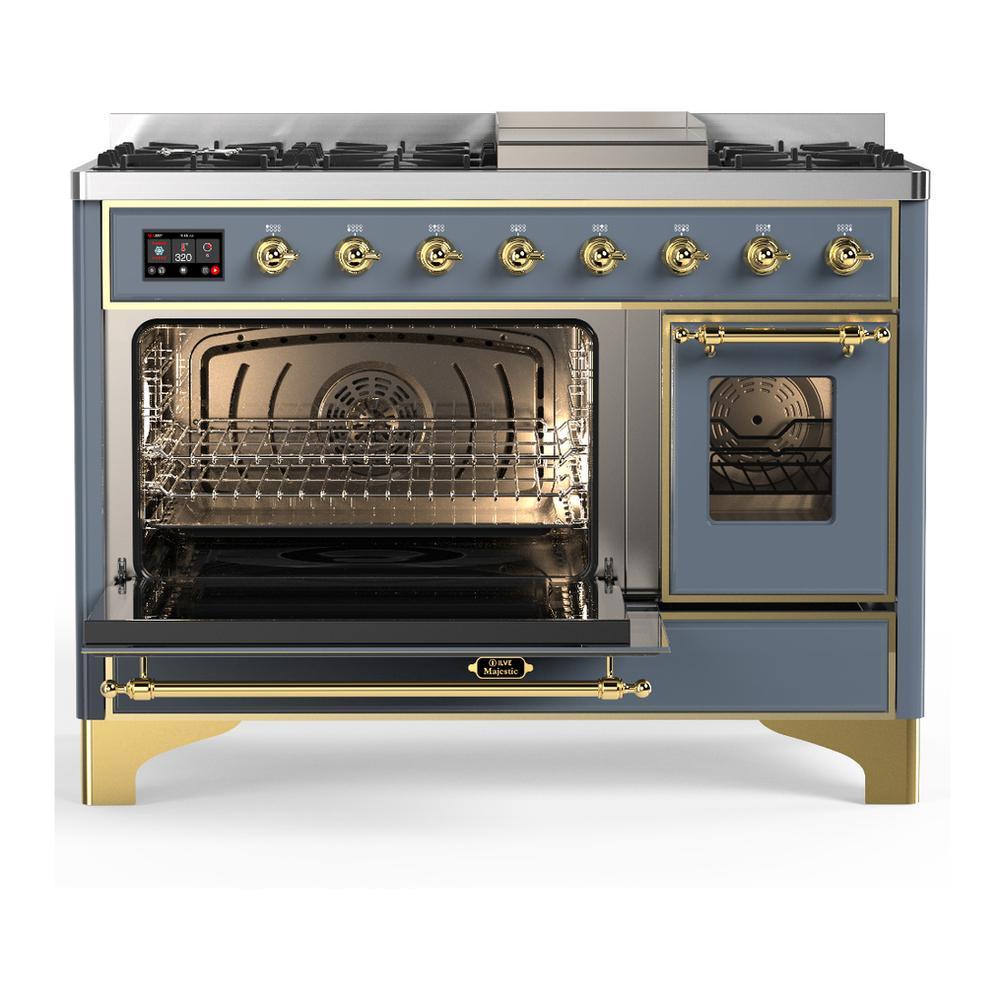

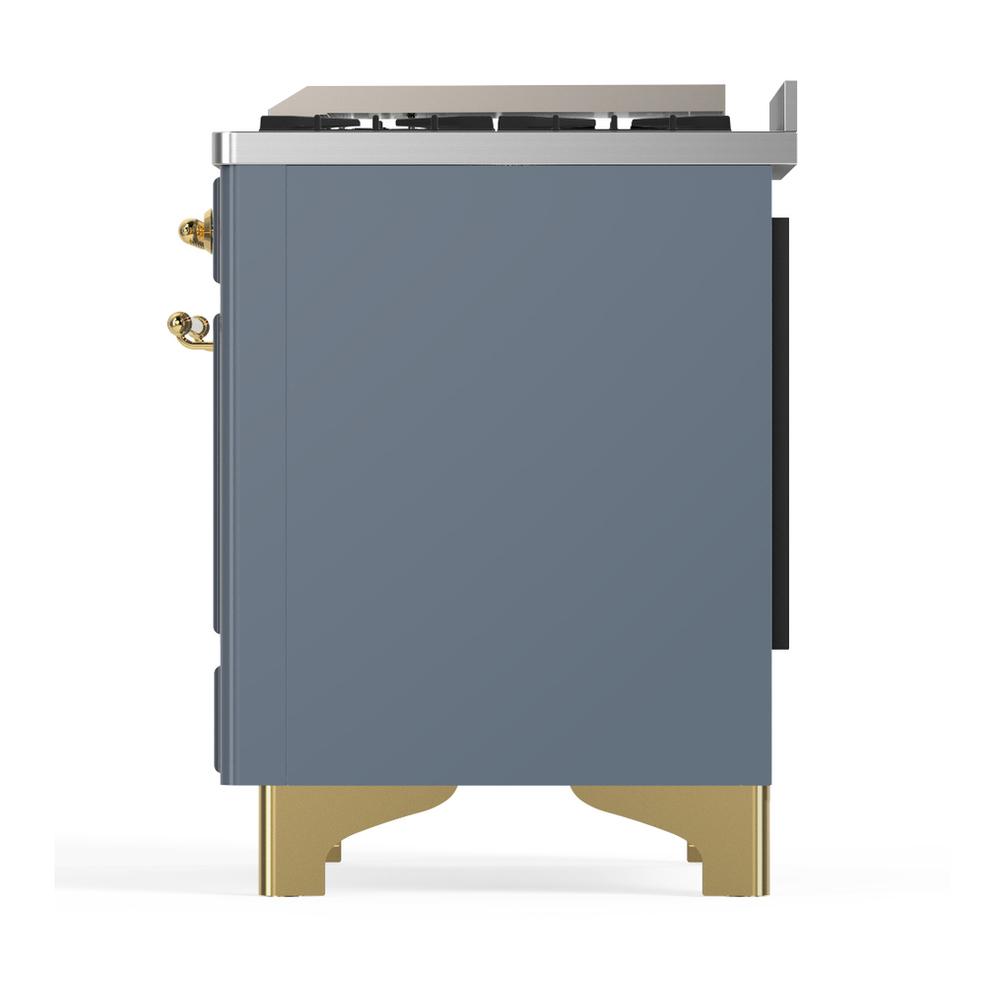

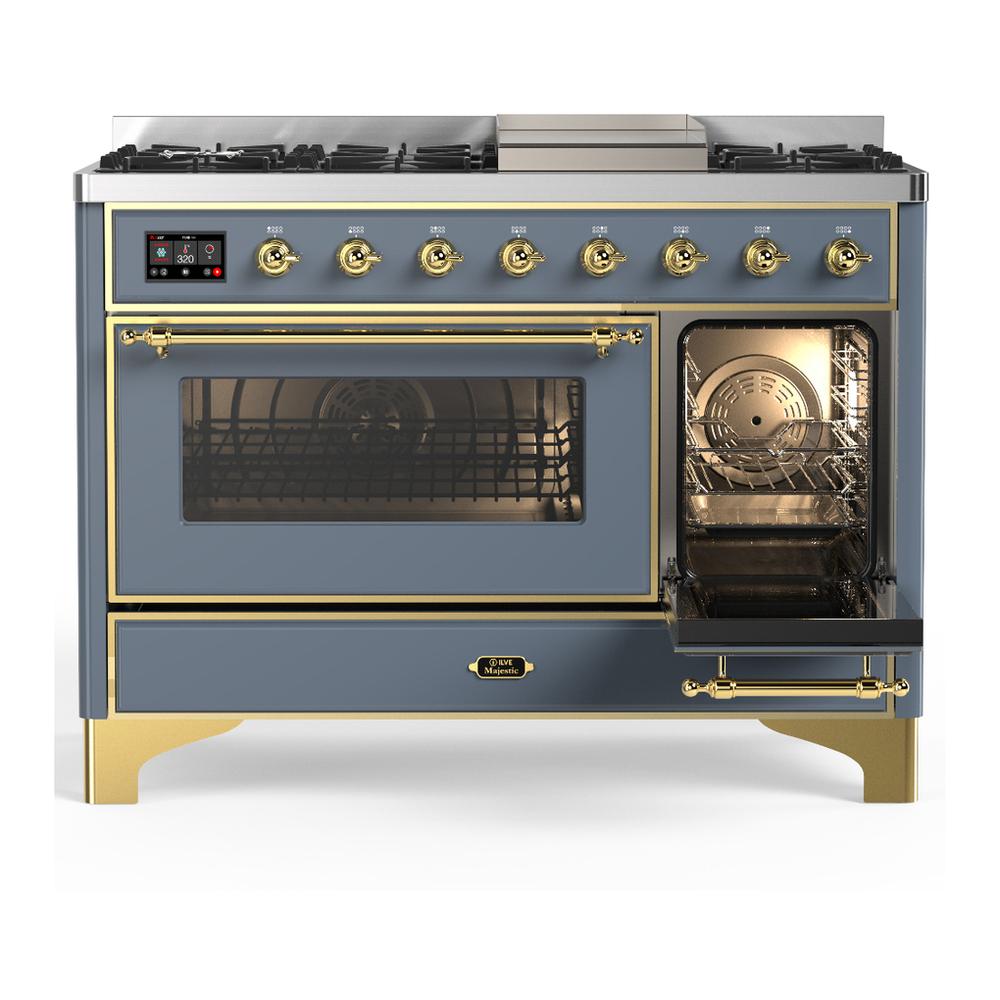

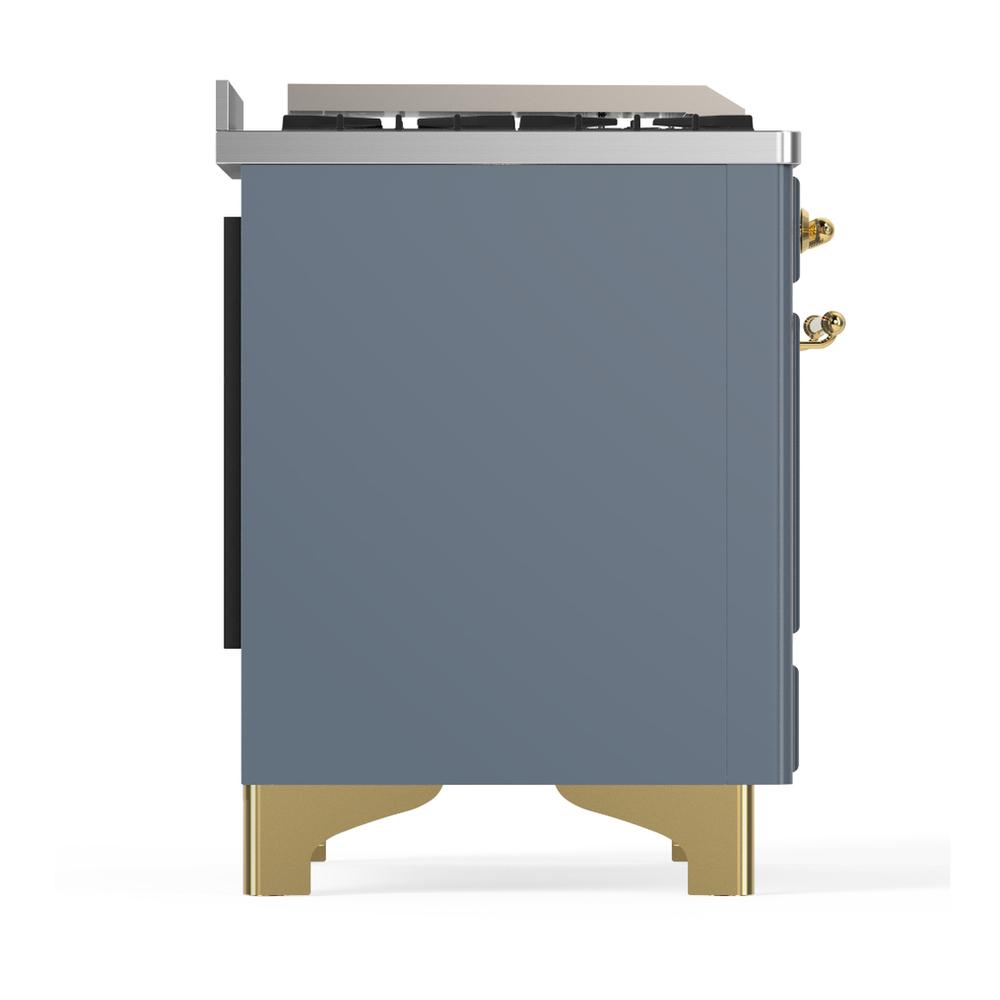

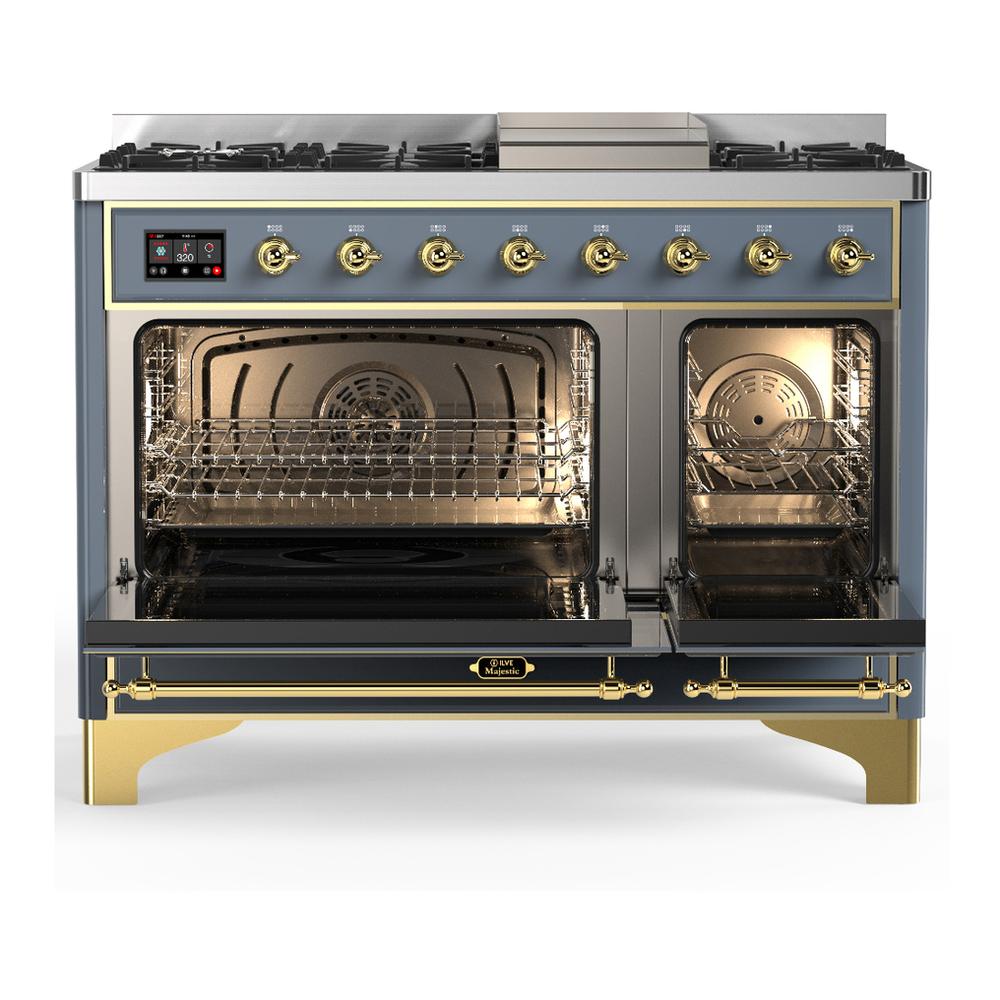

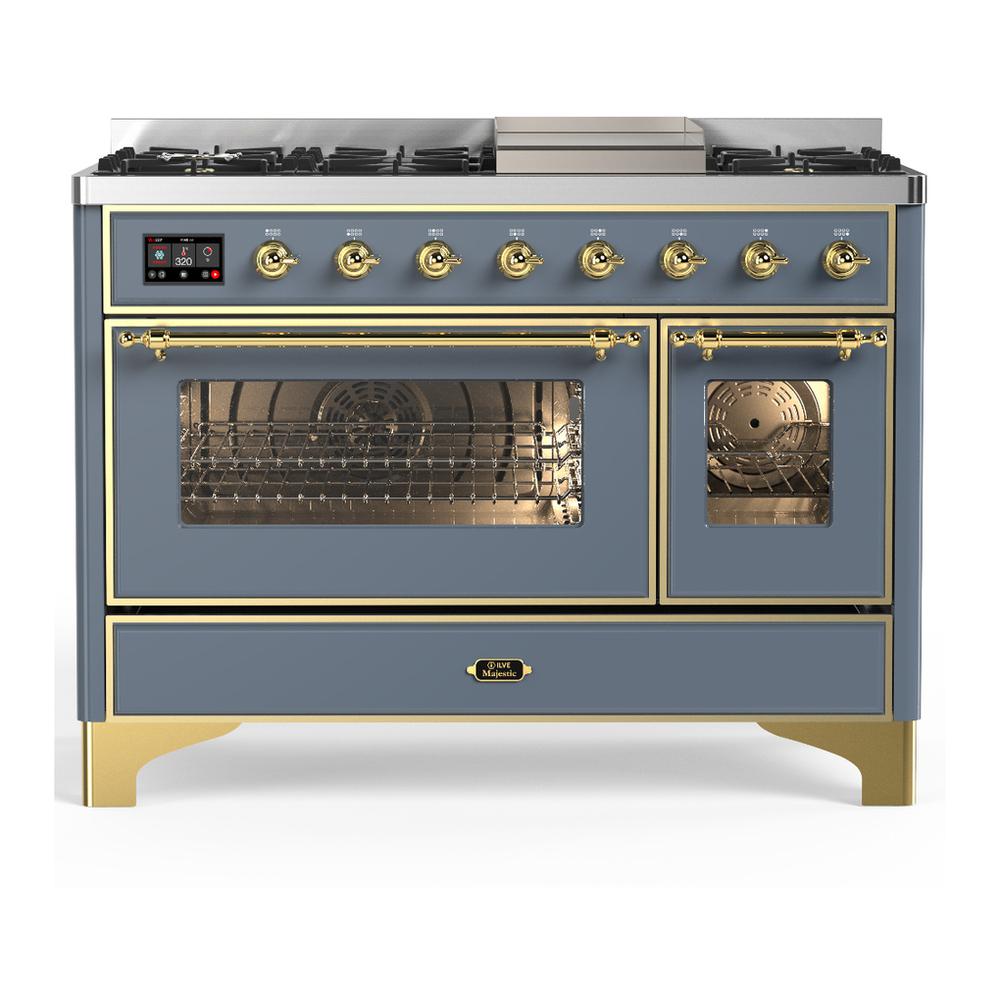

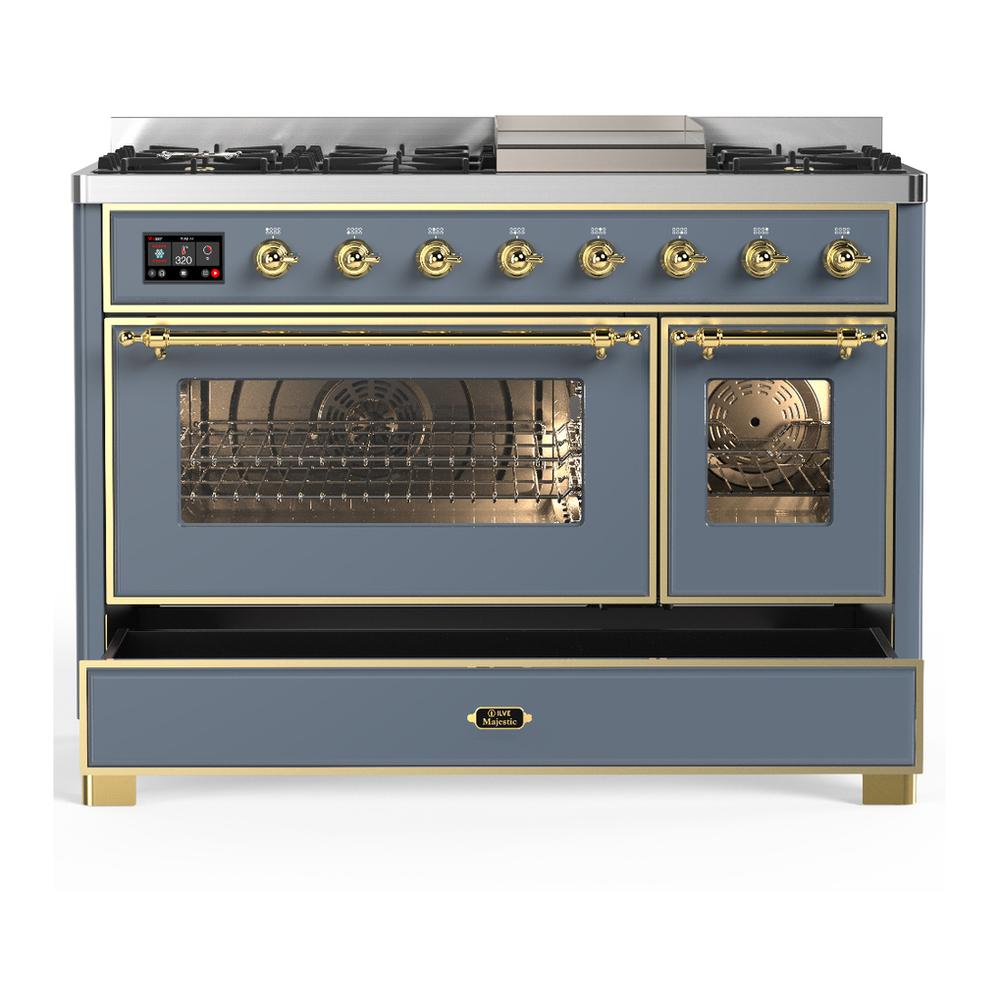

ILVE UM48FNR3BGGLP Majestic III 48 inch Dual Fuel Range with 8 Burners and Griddle, Dual Function Burner up to 25,000 BTU (Liquid Propane, Triple Glass Door, Blue Grey, Brass)
Model: UM48FNR3BGGLP
ILVE UM48FNR3BGGLP Majestic III 48 inch Dual Fuel Range with 8 Burners and Griddle, Dual Function Burner up to 25,000 BTU (Liquid Propane, Triple Glass Door, Blue Grey, Brass)
Model: UM48FNR3BGGLPQuick Specs
Color
ILVE UM48FNR3BGGLP Majestic III 48 inch Dual Fuel Range with 8 Burners and Griddle, Dual Function Burner up to 25,000 BTU (Liquid Propane, Triple Glass Door, Blue Grey, Brass) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
(P)(B)Majestic(/B)(/P)(P)The statement range cooker which makes your kitchen unique.(/P)(P)(/P)(P)A fusion of beauty and functionality, Majestic is a bold, masterful embodiment of the ultimate range cooker. A free-standing statement-piece that blends into every setting and immediately takes center stage, with a style featuring rounded lines, crafted details, fine finishes, solutions and technologies deriving directly from the world of professional cooking.(/P)(P)(/P)(P)Majestic range cookers are appliances that decorate the home thanks to their rounded shapes forged in pure steel with painstakingly made details. (/P)(P)(/P)(P)They are true gems of professionalism, designed for the kitchen in your home. They are available in a range of selected colors or in RAL Classic shades on request, combined with fine metallic finishes. Offered in a wide range of sizes (from 30 to 60 inches), they offer multiple set-up possibilities. There are three cooktop (hob) configurations to choose from: dual gas burners or fry top while the induction models are available up to the 40" size.(/P)(P)(/P)(UL)(LI)Dual gas burners with power up to 25000 BTU as standard(/LI)(LI)Highly specialized cooktops(/LI)(LI)Precise electronic temperature control(/LI)(LI)4.3" Digital touch screen display(/LI)(LI)Black brass burner coated with non-stick(BR) nanotechnological coating(/LI)(LI)Cooktop with cast iron pan supports.(/LI)(LI)Door and drawer with soft-closing system(/LI)(LI)Steam discharge for moist cooking(/LI)(LI)True, independent warming drawer(/LI)(LI)Cooking probe(/LI)(/UL)(P)(/P) (P)(B)Product Technologies(/B)(/P)(P)Aesthetics is important, but that's not all. It is essential to have the best technologies available to cook well and with pleasure. ILVE puts all its experience and research at your service, offering solutions that combine top-level performance and maximum simplicity, safety and user-friendliness: to always guarantee the best satisfaction.(/P)(P)(/P)(P)(B)Cooktop (Hob) Technologies(/B)(/P)(P)(/P)(P)(B)Dual Gas Burners with Power Up to 25000 BTU as Standard(/B)(/P)(P)Optimal supply and perfect distribution of the heat, for all types of cooking.(/P)(P)(/P)(P)(B)Highly Specialized Cooktops(/B)(/P)(P)Structure in AISI 304 steel with 12/10 thickness, option to choose ideal combination between a gas cooktop(hob) with up to 9 burners or induction, mixed and in various setups.(/P)(P)(/P)(P)(B)Total Black Brass Burner with Non-Stick Nanotechnological Coating(/B)(/P)(P)The noble technical characteristics of brass are enriched with a nanotechnological coating that assures easy cleaning, with an elegant Total Black finish.(/P)(P)(/P)(P)(B)Cooktop (Hob) with Cast Iron Pan Supports(/B)(/P)(P)The indestructible cast iron pan supports provide a functional and safe support for the pots.(/P)(P)(/P) (P)(B)Oven Technologies(/B)(/P)(P)(/P)(P)(B)The Ovens: Grand Size and Performance.(/B)(/P)(P)Any single or double combination oven you choose, will provide you with all the space you need, even for large dishes. Our 48-inch range has an oven capacity up to 4 cubic feet.(/P)(P)(/P)(P)(B)Precise Electronic Temperature Control(/B)(/P)(P)The electronic control ensures that the temperature of the oven remains constant throughout, without fluctuating, as is the case in conventional ovens.(/P)(P)(/P)(P)(B)4.3" Full Touch Display(/B)(/P)(P)Thanks to TFT technology, the display assures superior readability, displaying every function with clear and immediate graphics.(/P)(P)(/P)(P)(B)TFT Display User-Friendly, Comprehensive and High Resolution. (/B)(/P)(P)Simply touch the large display with one finger to control all the functions of the single oven or of the two ovens, with a single device. Temperature, timer, and automatic cooking start and end programmer: everything is controlled with one move and at a glance.(/P)(P)(/P)(P)(B)Door with Soft Closing System(/B)(/P)(P)The door hinges are fitted with a shock absorber that makes closure more gradual and noiseless.(/P)(P)(/P)(P)(B)Warming Drawer with Soft-Closing System(/B)(/P)(P)(/P)(P)(B)Cooking Probe(/B)(/P)(P)An essential accessory to check the temperature at the core, for example in meat cuts.(/P)(P)(/P)(P)(B)Steam Discharge (Moist Cooking)(/B)(/P)(P)Thanks to this system, the vapors are removed from inside the cavity, allowing you to choose a drier or more moist cooking. This way, you can achieve a crispy baked dish, or a soft and juicy roast.(/P)(P)(/P)(P)(B)Temperature from 85(degree) to 575(degree) F(/B)(/P)(P)From proofing to cooking, roasting to low temperature, ILVE ovens allow you to prepare complex and sophisticated recipes very easily, with perfect results.(/P)(P)(/P)(P)(B)Tangential Cooling Ventilation and High-Density Insulation (/B)(/P)(P)Prevents the furniture next to the oven and the kitchen from overheating.(/P)(P)(/P)(P)(B)Folding Grill Coil for Complete Cleaning(/B)(/P)(P)Thanks to the articulated support, the electric heating element of the grill can be lowered to clean the top part of the cavity more easily.(/P)(P)(/P)(P)(B)Easy Clean Enamel(/B)(/P)(P)The grease does not stick to the surface and can therefore be cleaned more easily.(/P)(P)(/P)(P)(B)Primary Oven functions. UOV 80 E3 TFT S(/B)(/P)(P)(/P)(UL)(LI)Pizza function(/LI)(LI)Defrosting(/LI)(LI)Intensive cooking(/LI)(LI)Quick start(/LI)(LI)Moist intensive cooking(/LI)(LI)Fan grill cooking(/LI)(LI)Grill cooking with closed door(/LI)(LI)Cooking from above(/LI)(LI)Moist cooking from above(/LI)(LI)Cooking from below(/LI)(LI)Moist cooking from below(/LI)(LI)Static normal cooking(/LI)(LI)Moist static normal cooking(/LI)(LI)Multiple fan cooking(/LI)(LI)Multiple moist fan cooking(/LI)(LI)ECO cooking(/LI)(/UL)(P)(/P)(P)(B)Secondary Oven functions. UOV 30 E3 TF T(/B)(/P)(P)(/P)(UL)(LI)Grill cooking with closed door(/LI)(LI)Cooking from above(/LI)(LI)Cooking from below(/LI)(LI)Static normal cooking(/LI)(LI)ECO cooking(/LI)(/UL)
| Specifications | |
| Brand | ILVE |
| Series | Majestic III |
| Appliance Category | Range |
| Appearance | |
| Color | Blue Grey |
| Color Family | Blue Grey |
| Design Style | Retro Style |
| Trim | Brass |
| Dimensions | |
| Exterior Width | 48" |
| Width | 47 7/8" |
| Depth | 29" |
| Height | 38 7/8" |
| Depth with Door Opened at 90 Degrees | 42 7/8" |
| Fuel Type | |
| Fuel Type | Dual Fuel |
| Gas Type | Liquid Propane |
| Style | |
| Style | Freestanding |
| Control Location | Front |
| Capacity | |
| Total Capacity (cu. ft.) | 5.02 |
| Number of Ovens | Double Oven |
| Main Oven Capacity (cu. ft.) | 3.5 |
| Second Oven Capacity (cu. ft.) | 1.52 |
| Cooking Surface | |

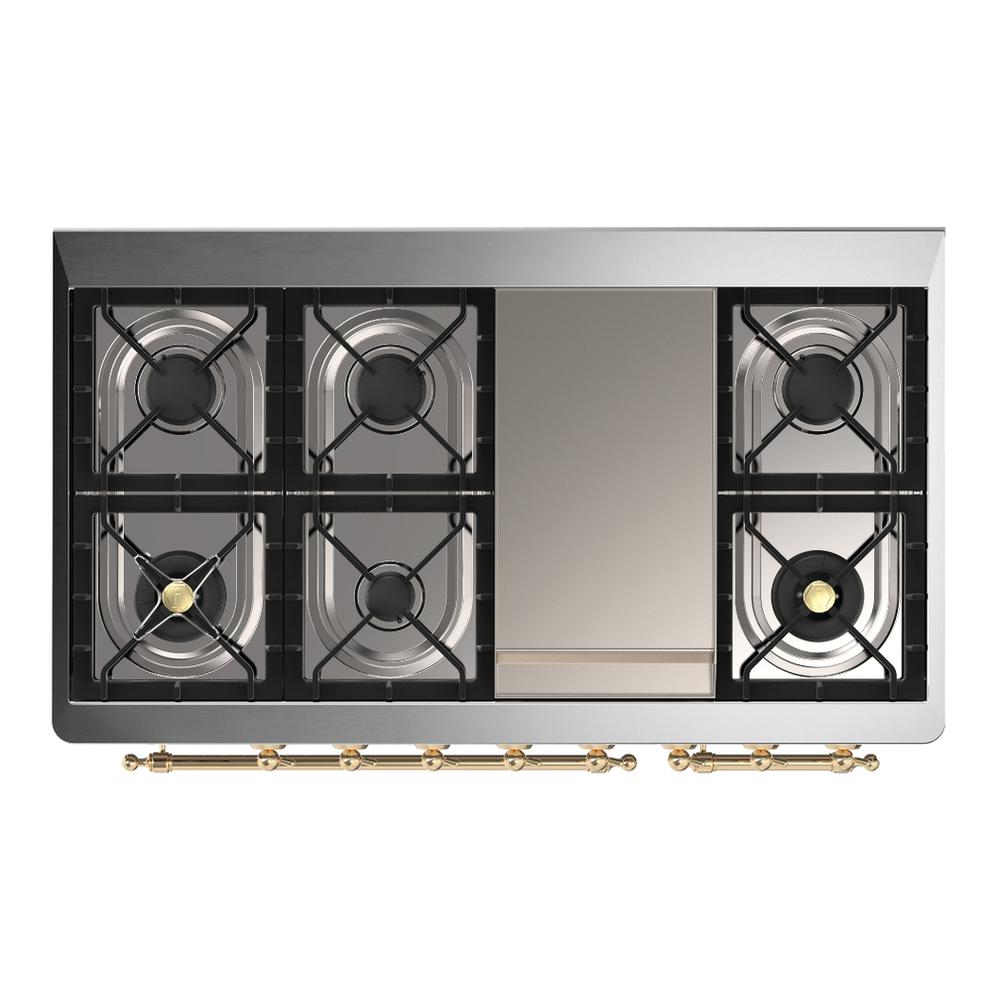

| Cooktop Configuration | 8 Sealed Burners + Griddle |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 8 |
| Grill | No |
| Griddle | Yes |
| French Top | No |
| Highest Burner Output | 25000 BTU |
| Burner/Element Output N1 | 25000 BTU |
| Burner/Element Output N2 | 25000 BTU |
| Burner/Element Output N3 | 10500 BTU |
| Burner/Element Output N4 | 10500 BTU |
| Burner/Element Output N5 | 10500 BTU |
| Burner/Element Output N6 | 10500 BTU |
| Burner/Element Output N7 | 7000 BTU |
| Burner/Element Output N8 | 7000 BTU |
| Oven | |

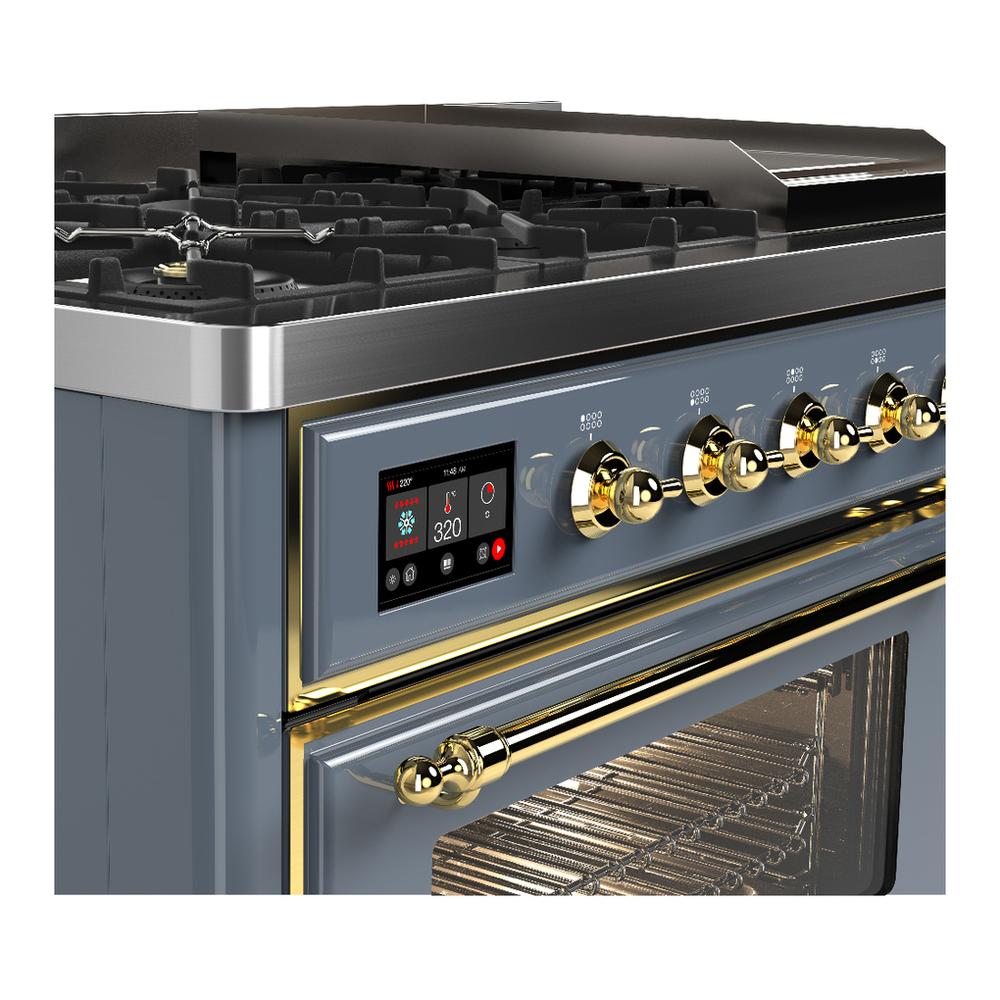

| Oven Control Type | TFT Electronic Touchscreen |
| Oven Door Type | Triple Glass Door |
| Oven Cleaning Type | Easy Clean Enamel Cavities |
| Main Oven Type | UOV 80 E3 TFT S |
| Interior Width | 26 3/8" |
| Interior Height | 14 3/8" |
| Interior Depth | 16 1/8" |
| Second Oven Type | UOV 30 E3 TFT |
| Secondary Interior Width | 10 7/8" |
| Secondary Interior Height | 14" |
| Secondary Interior Depth | 17 1/3" |
| Technical Details | |
| Voltage | 240 |
| Amps | 50 |
| Certifications | |
| ADA Compliant | No |
| Star-K Certified | Yes |
| Warranty | |
| Warranty | 2 Year Parts and Labor |
| Features | |
| Convection | Yes |
| Sabbath Mode | Yes |
| Display Type | TFT Display |
| Number of Racks | 2 Rack |
| Drawer | Warming Drawer |
| Timer | Yes |
| Temperature Probe | Yes |
| Rotisserie | Yes |
| Soft Close Door | Yes |
| Gas Conversion Kit Included | Yes |
| European Convection | Yes |
- ILVE Warranty.pdf
- How to Replace the TFT Display on ILVE Majestic Ranges.pdf
- Majestic III Dimensions.pdf
- How to Unbox and Install the Legs on Your ILVE Majestic Range 14 Easy Steps.pdf
- Majestic User Manual.pdf
- How to Use ILVE Stainless Steel Ring Reducer.pdf
- How to Install or Replace Handles on Your ILVE Majestic Range.pdf
- Mastering ILVE Gas Cooktops.pdf
- ILVE Ranges Electrical Configuration Guide.pdf
- How to Replace Internal and Intermediate Glass Panels on ILVE Ranges.pdf
- Oven Functions.pdf
- Cleaning & Maintenance.pdf
- How to Replace a Gas Cooktop on Majestic.pdf
- UM48FNR3 Window Oven Product Sheet US.pdf
- How to Install a Rotisserie.pdf
- How to Replace the Power Board on ILVE Majestic Ranges.pdf
- UM48FQNR3 Solid Door Product Sheet US.pdf
 | |
|---|---|
