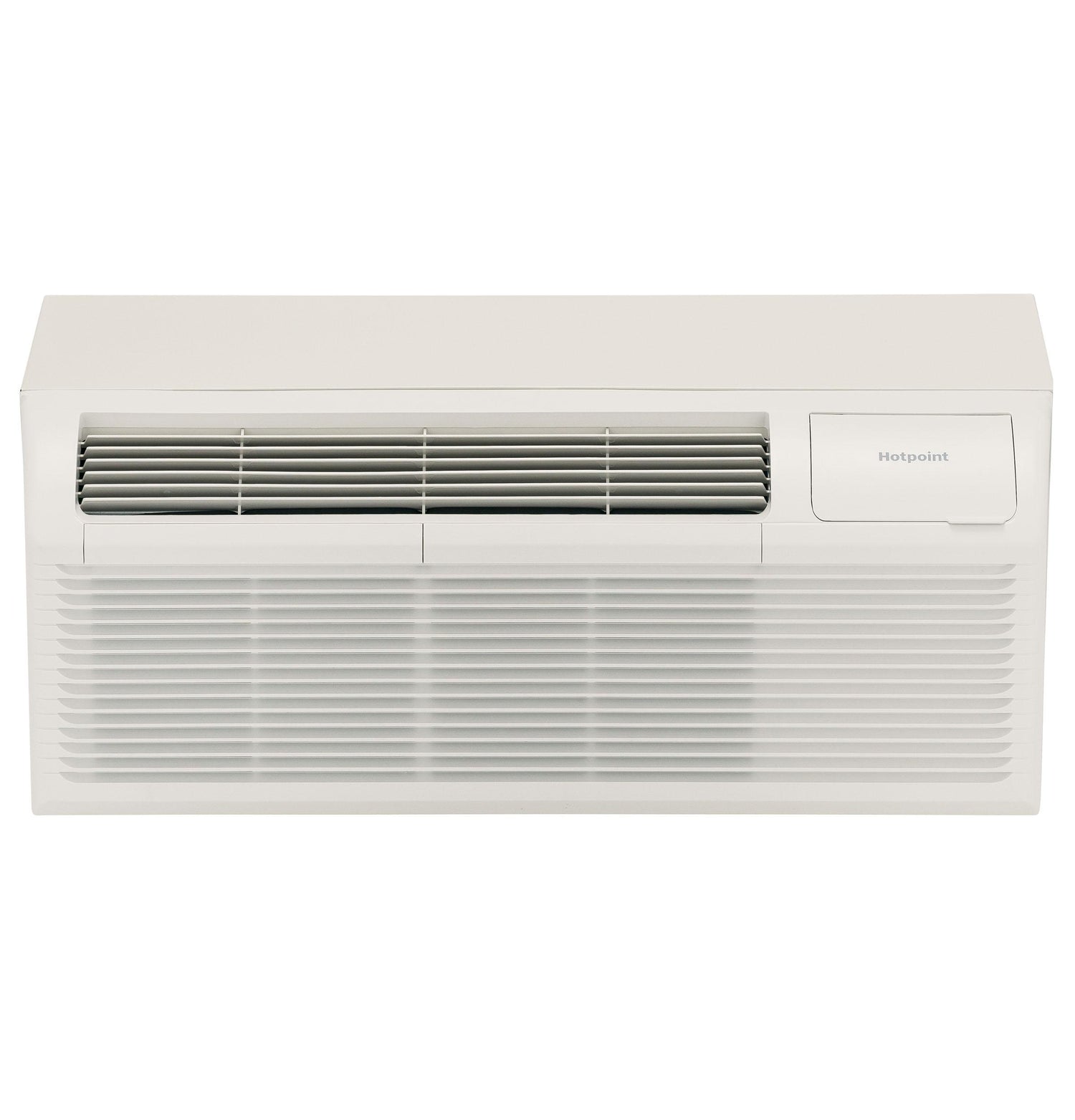

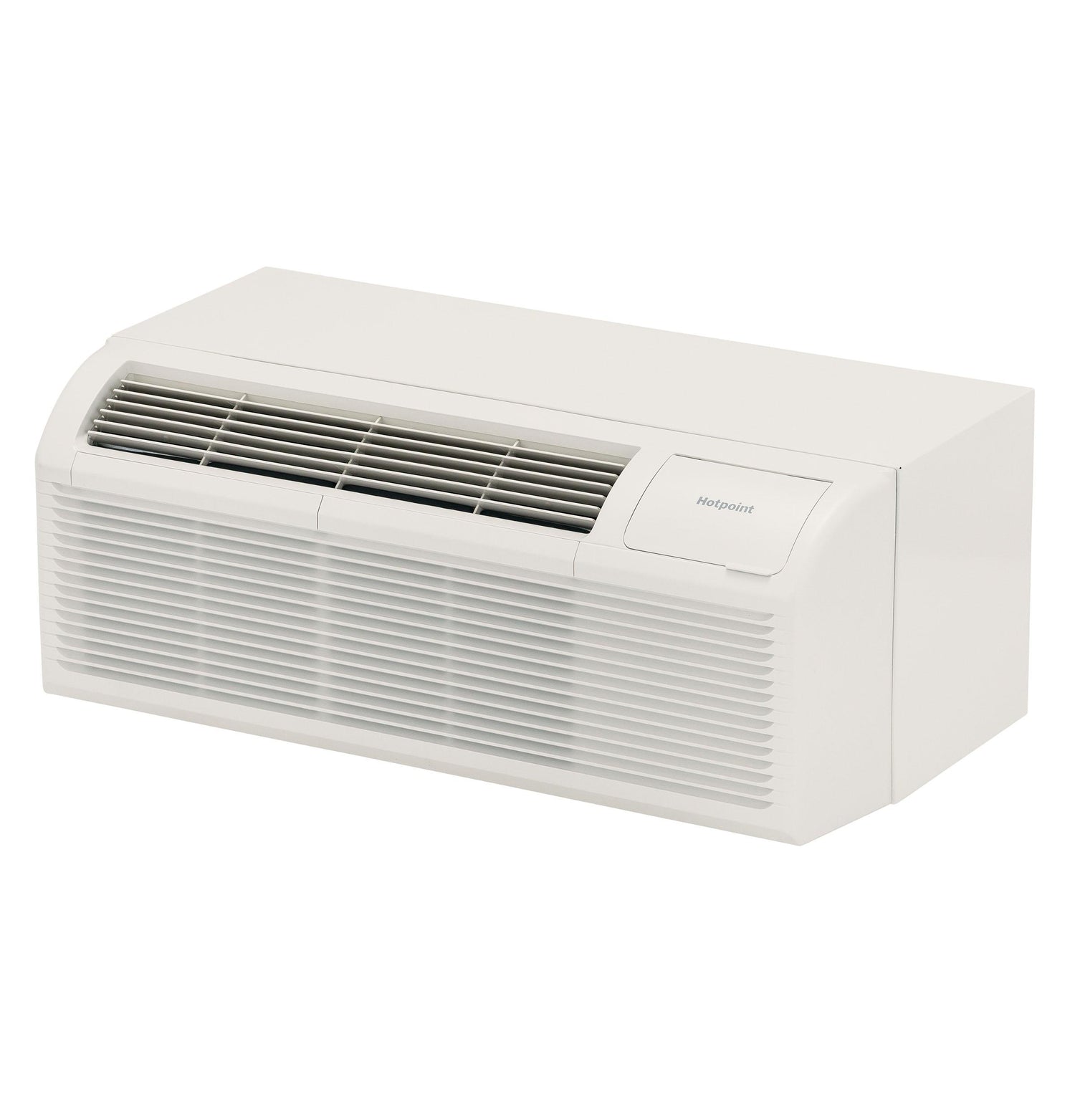

Hotpoint® PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt
Model: AH11E12D3B
Authorized Dealer
1
of
15
Loading...
Authorized Dealer
Hotpoint® PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt
Model: AH11E12D3BHotpoint® PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$818.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
3-speed fan
Give guests control over their comfort with three fan speeds to choose from

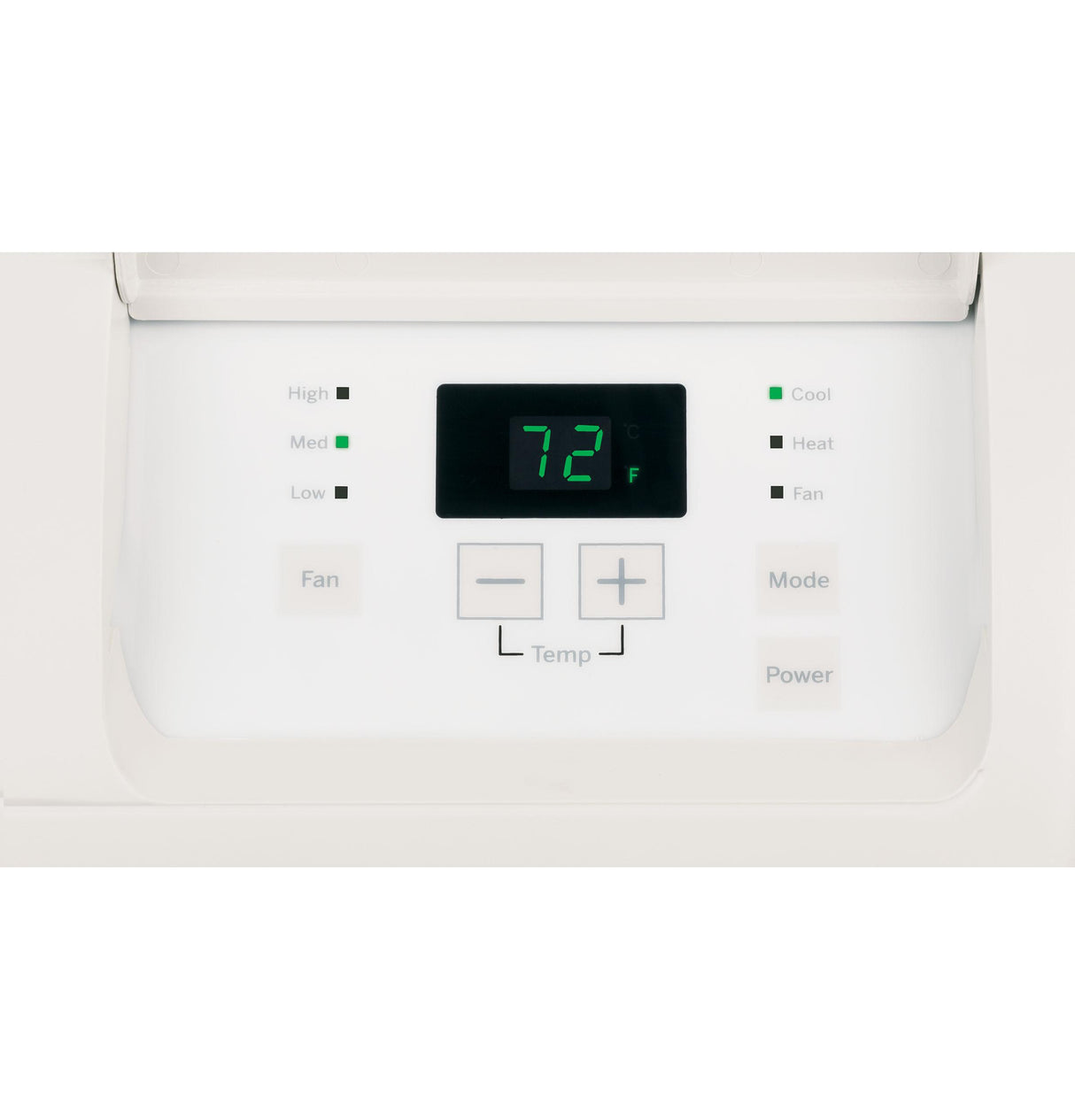

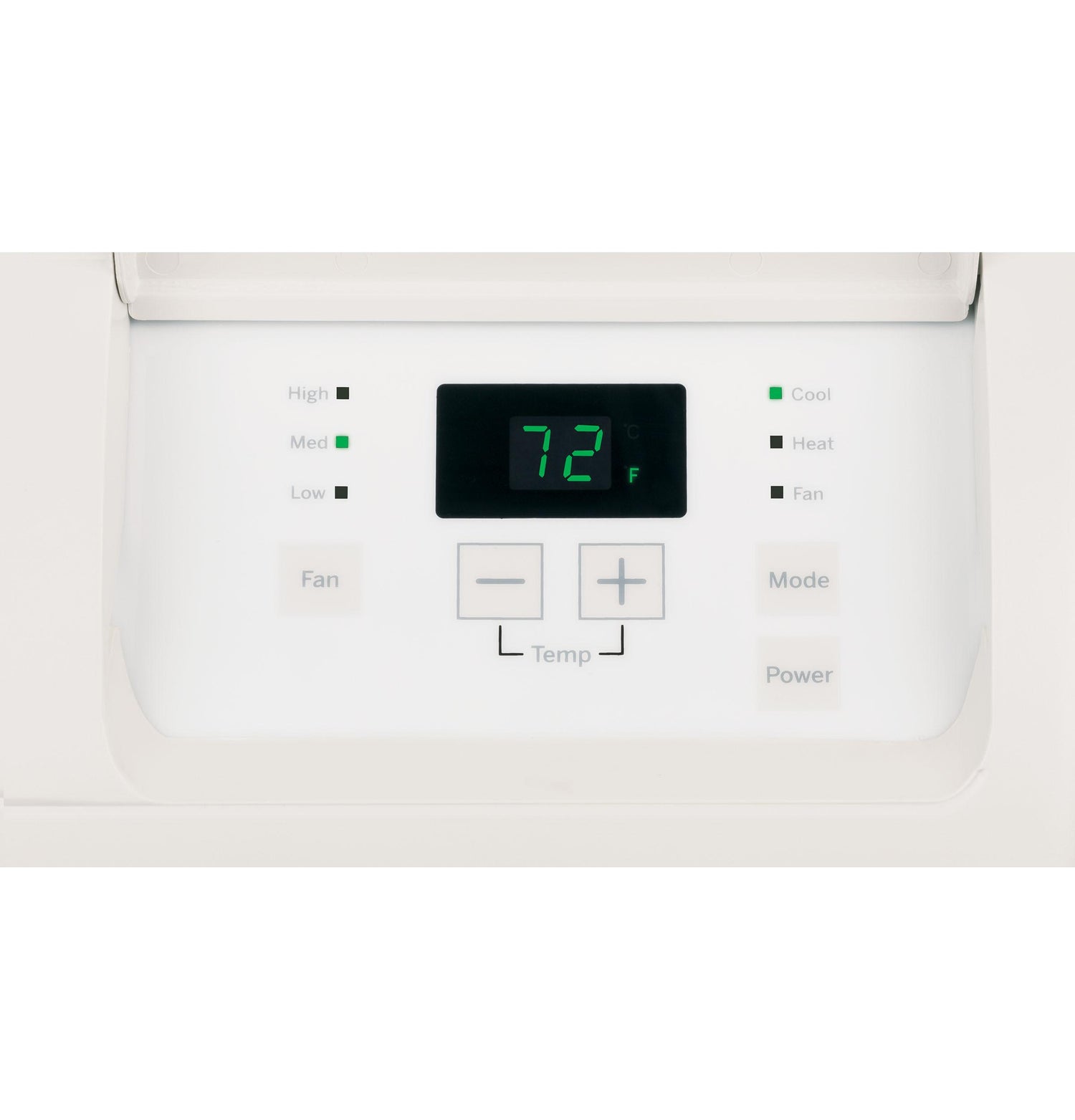

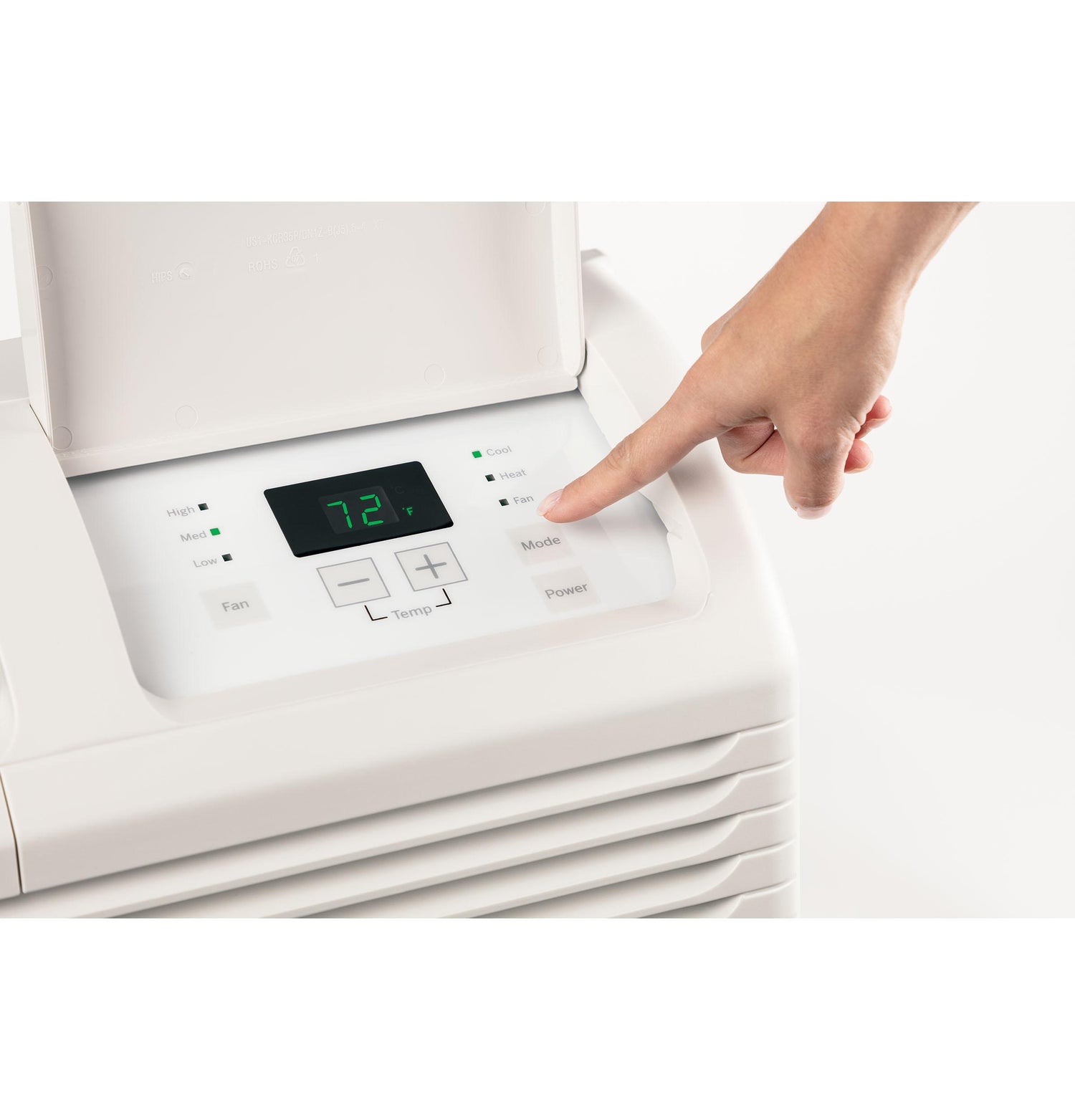

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
- 3-speed fan
- Give guests control over their comfort with three fan speeds to choose from
- 4-temperature limiting options
- Easily select one of four temperature ranges for peak efficiency and total customer comfort
- Freeze and frost protection
- Automatic freeze and indoor frost control keep units operating in peak condition
- Auto power recovery
- In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
- Self diagnostics
- Quickly and easily identify service needs with a nine-point diagnostic code system
- Automatic emergency heat
- Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
- Backed by an industry leader
- With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
- Intuitive display
- Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
- Power cord (LCDI) included
- Hotpoint PTACs come with everything needed for a quick and easy installation
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound

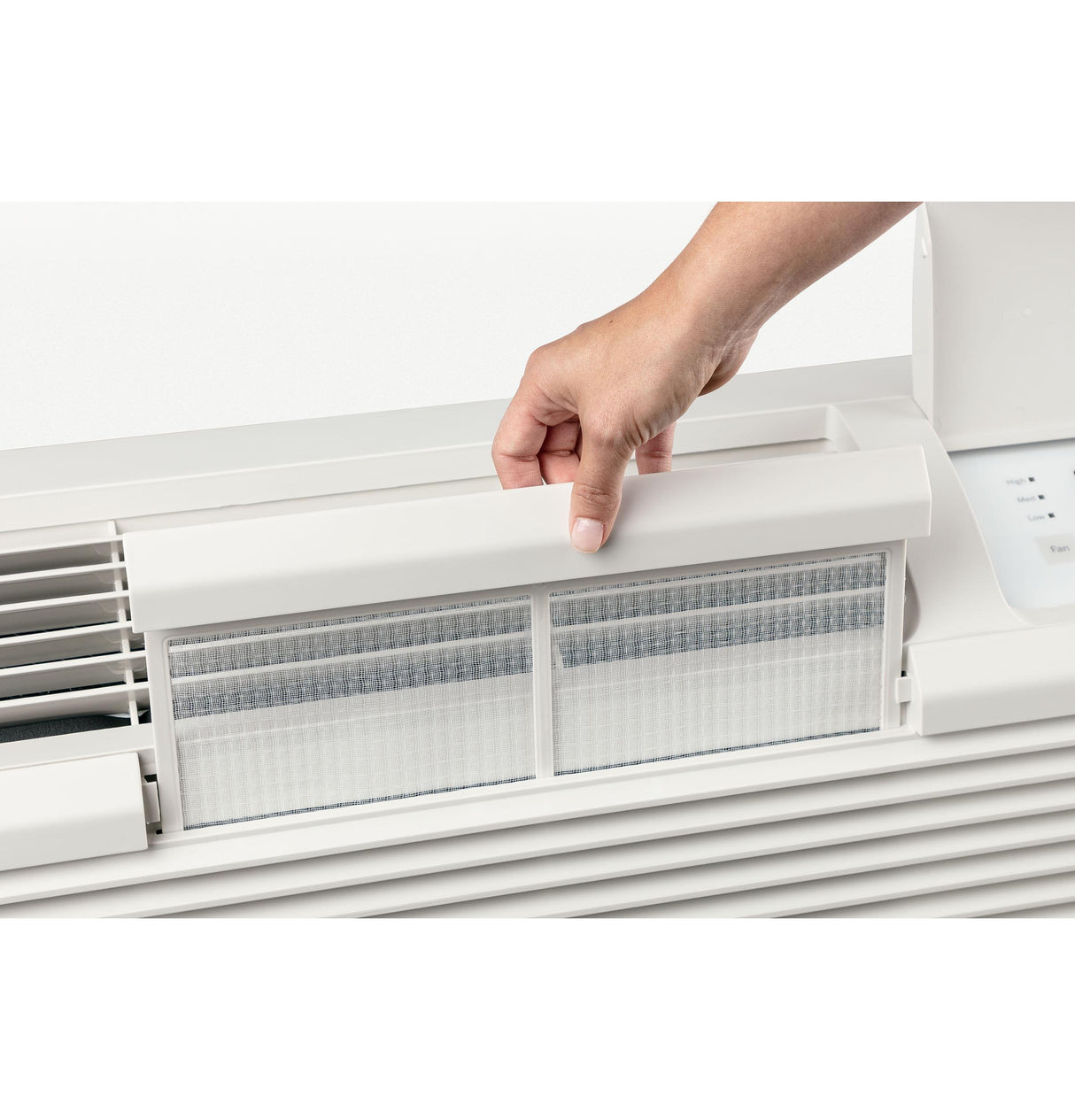

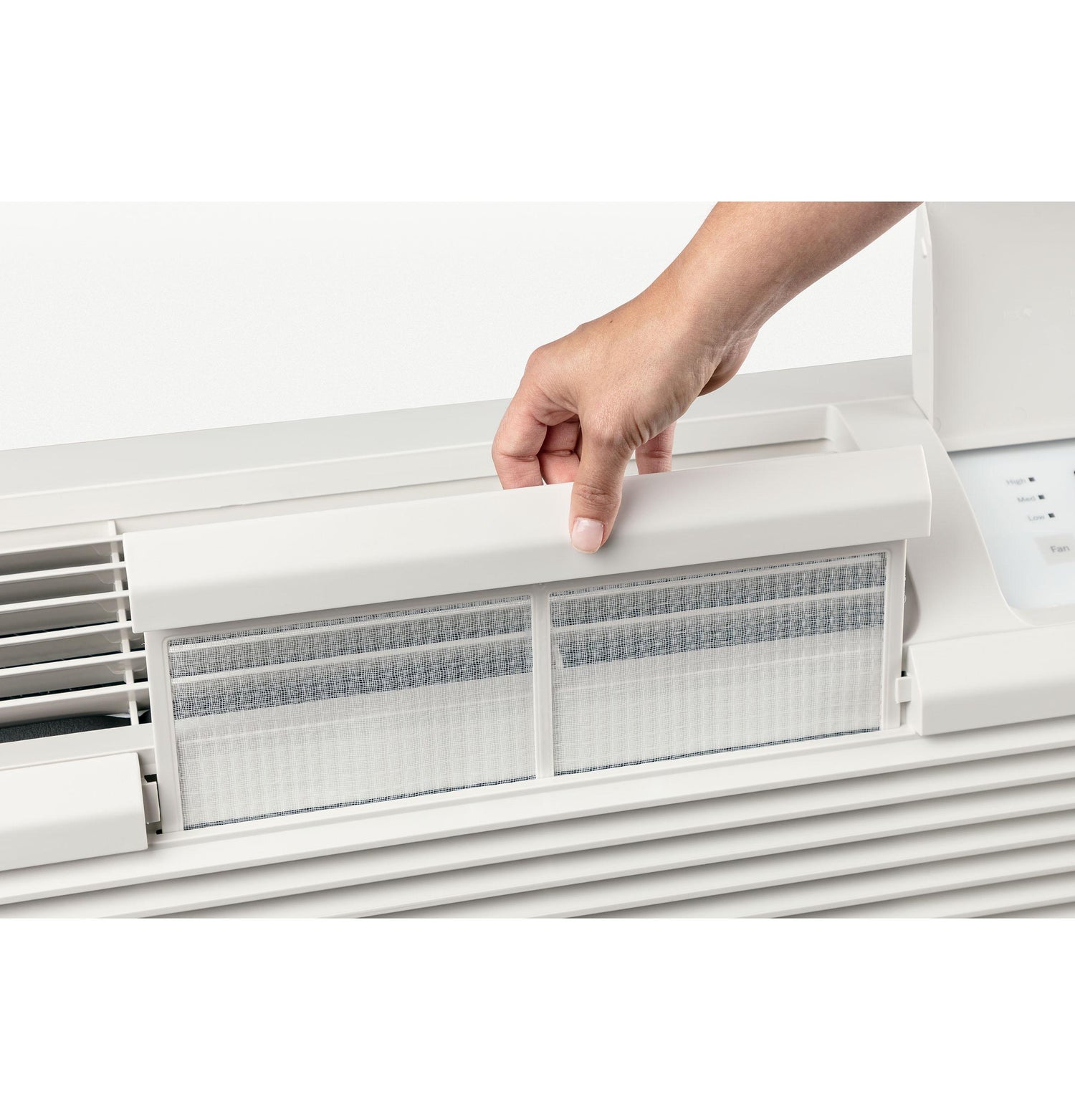

- Removable filters for easy maintenance
- 3-speed fan
- 4-temperature limiting options
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
- Removable filters for easy maintenance
- Freeze and and frost protection
- Auto power recovery
- Self diagnostics
- Automatic emergency heat
- Backed by an industry leader
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- Intuitive display
- Power cord (LCDI) included
| CAPACITY | |
| Cooling BTUH (MAX) | 12000 Btu |
| CFM Indoor Fan Low | 310 |
| CFM Indoor Fan Medium | 349 |
| CFM Indoor Fan High | 383 |
| Cooling EER (BTUH / Watt) | 10.7 |
| Cooling BTUH (MIN) | 11800 Btu |
| APPEARANCE | |
| Installation | Through-the-Wall |
| Color Appearance | White |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 4.9/5.3 |
| Cooling - Amperes | 4.9/5.3 |
| Cooling - Watts | 1120/1100 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2935 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |

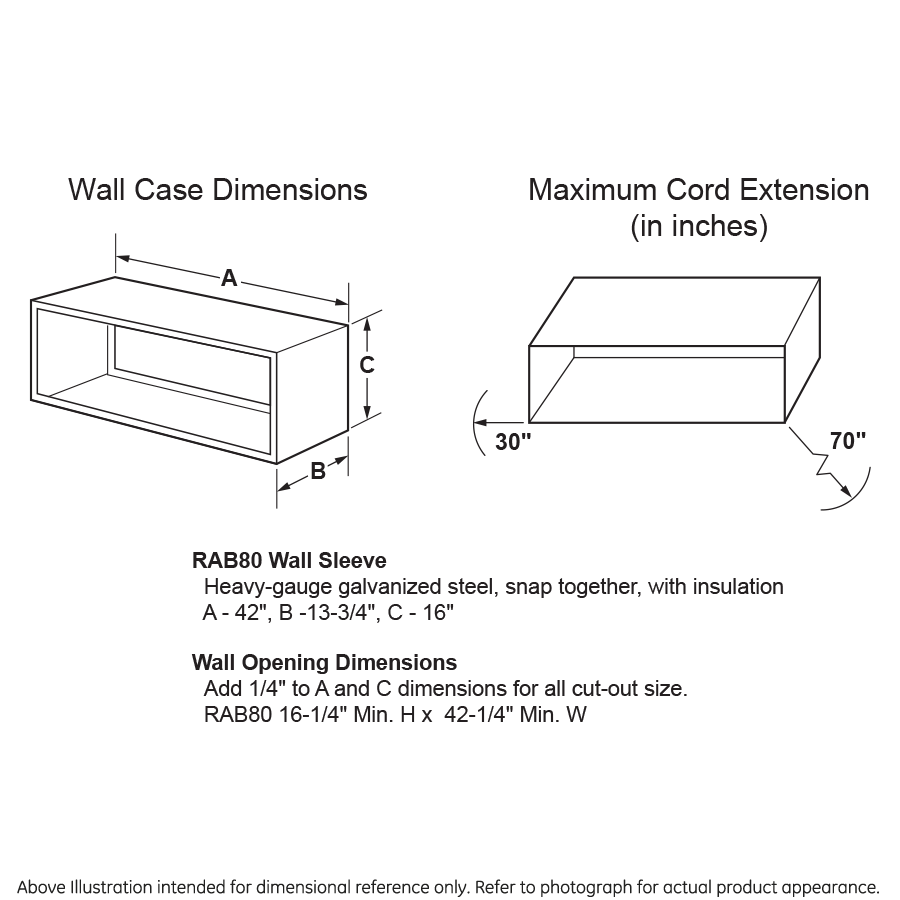

| WEIGHTS & DIMENSIONS | |
| Overall Width | 42 in |
| Approximate Shipping Weight | 136 lb |
| Overall Height | 16 in |
| Overall Depth | 21 in |
| Net Weight | 111.8 lb |
| FEATURES | |
| Control Type | Electronic |
| Discharge Grille | 2-position |
| Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |

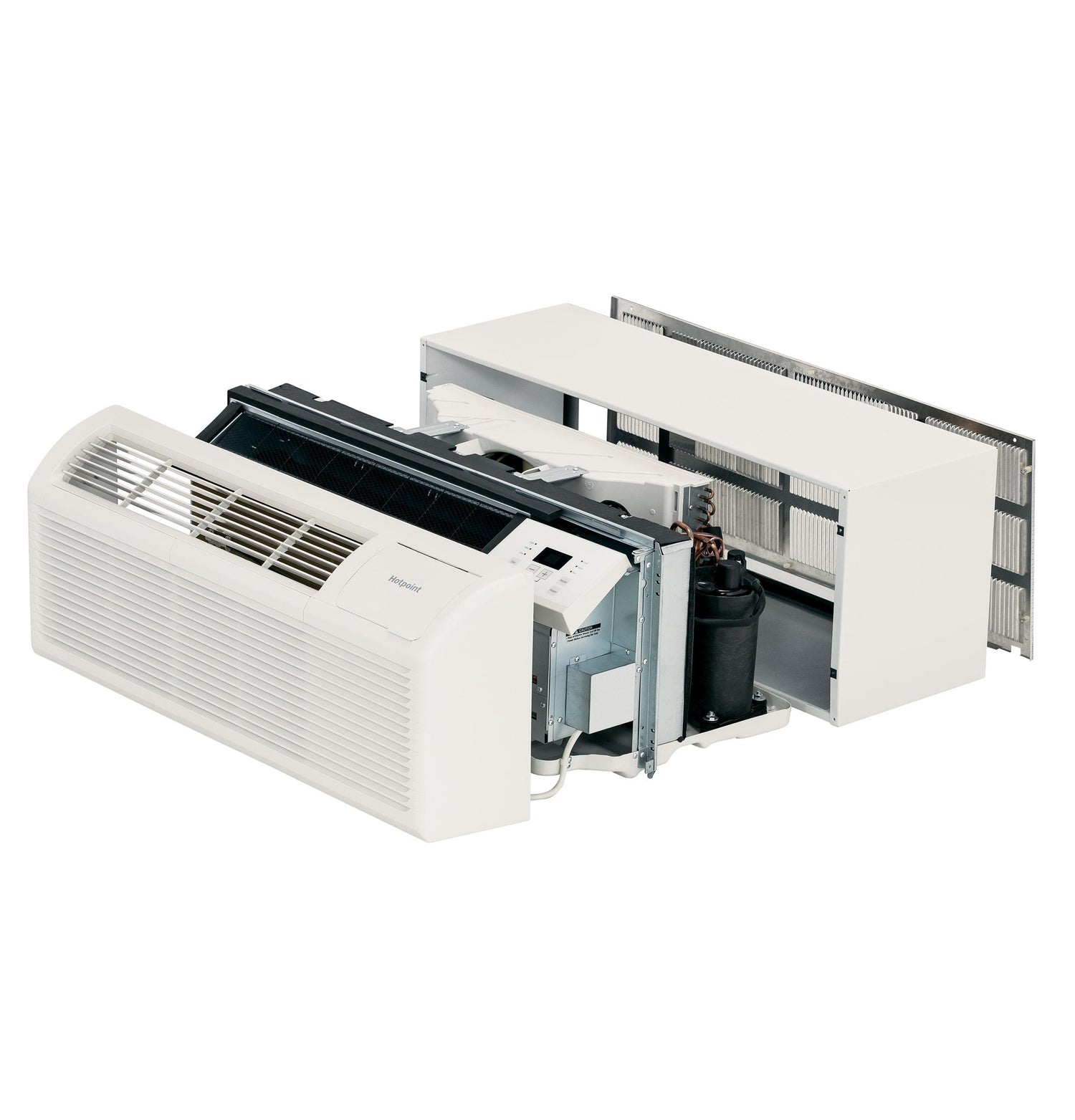

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Unit Features | Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control Vent Air Filter |
| Heating System | Electric Resistance |
- 3-speed fan
- 4-temperature limiting options
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
- Removable filters for easy maintenance
- Freeze and and frost protection
- Auto power recovery
- Self diagnostics
- Automatic emergency heat
- Backed by an industry leader
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- Intuitive display
- Power cord (LCDI) included
