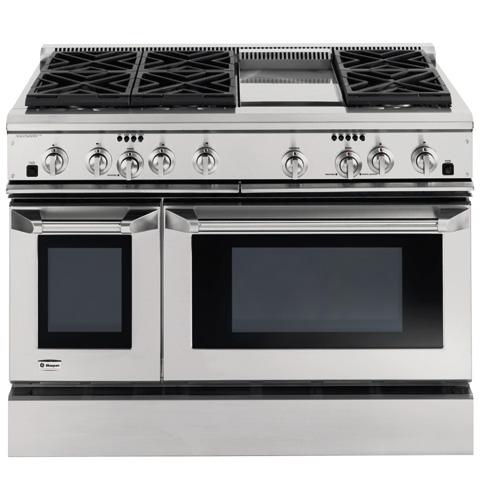

GE Monogram® 48" Dual-Fuel Professional Range with 6 Burners and Griddle (Liquid Propane)
Model: ZDP48L6DHSS
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
GE Monogram® 48" Dual-Fuel Professional Range with 6 Burners and Griddle (Liquid Propane)
Model: ZDP48L6DHSSQuick Specs
Depth
28 1/4"
Height
35 1/4"
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
NO
Burners
6
GE Monogram® 48" Dual-Fuel Professional Range with 6 Burners and Griddle (Liquid Propane) is backordered and will ship as soon as it is back in stock.
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
28 1/4"
Height
35 1/4"
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
6
Continuous Grate
YES
Convection
YES
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
YES
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Sophisticated styling Designed with chamfered edges and die cast knobs, Monogram stainless steel ranges offer the bold appearance and high-performance cooking capabilities of commercial appliances
- Sealed, dual-flame stacked burner Each gas burner uses two separate flames to give you a range of precise temperature options, from an ultra-low 140 degree simmer to a powerful 15,000 BTU setting. The burners are sealed to the recessed cooktop surface for easy cleaning

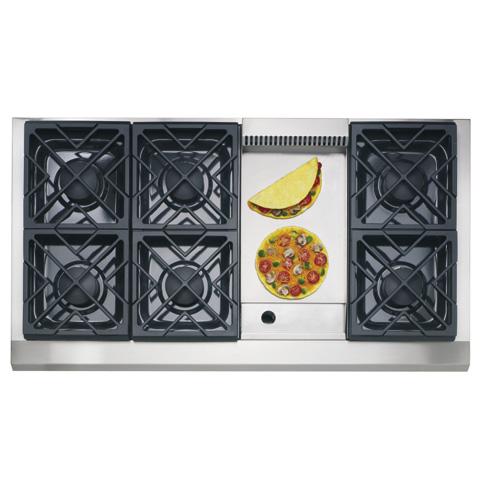

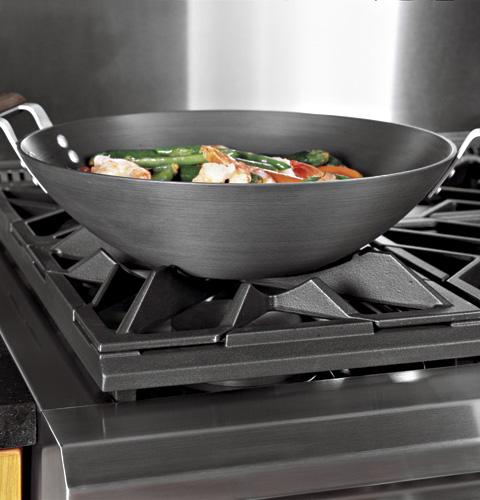

- Reversible grates Uniquely designed, dishwasher-safe grates give you the option of cooking on a flat or contoured wok surface

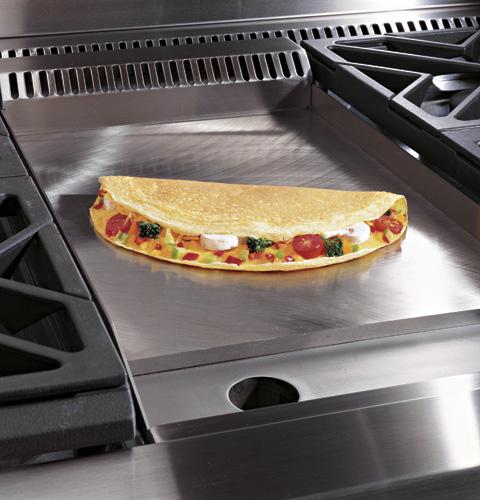

- 15,000-BTU Griddle The 3/8" thick, stainless steel griddle is sloped to offer a clean cooking surface; thermostatic control ensures even heating and cooking results

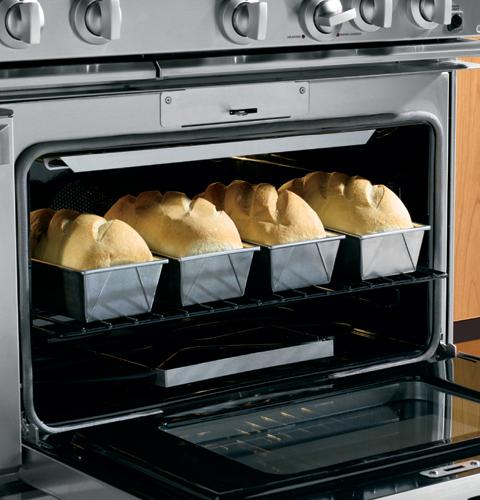

- Main oven (4.6 cu.ft., 27" wide)/Companion oven (2.1 cu.ft., 12" wide) The large, self-cleaning convection oven offers two multipass broil and bake elements for even browning, with no hot or cold spots. The companion oven is equipped with an 8-pass broil element and 4-pass bake element
- Self-Clean oven racks The main oven and companion oven are equipped with heavy-duty, porcelain-coated racks which are designed to remain in the oven during the self-clean cycle for effortless cleaning. (Companion oven racks can only be self-cleaned in the main oven)
| CAPACITY | |
| Total Capacity (cubic feet) | 6.7 cu ft |
| Capacity (Cu. Ft.) | 4.6 Main Oven / 2.1 Companion Oven |
| FEATURES | |
| Cooktop Burner Type | 6 Sealed, Dual Flame Stacked |
| Removable Drip Tray Liners | (1) Beneath Griddle |
| Broiler Pan and Grid | Master Oven - 1; Companion Oven - 1 |
| Convection Roasting Rack | Yes |
| Griddle | 15,000-BTU Thermostatically Controlled 3/8" Stainless Steel |
| Stainless Steel, Slide-Out Drip Trays | 1 |
| Stainless Steel Grill / Griddle Covers | 1 |
| Interior Oven Light | 2 Halogen Main Oven 1 Halogen Companion Oven |
| Oven Control Features | Oven "ON" Light Oven Lock Light - Main Oven Only |
| Ignition System | Electronic w/Auto Reignition |
| Oven Cleaning Type | Main - Self-Clean; Companion - Standard Clean |
| Fuel Type | Electric and Liquid Propane Gas |
| Automatic Self-Clean Oven Door Lock | Yes |
| Configuration | 6 Burners; Griddle |
| Cleaning Time | 5 Hours |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Oven Features | 10-Pass Bake Element - Main Oven 4-Pass Bake Element - Companion Oven 8-Pass Broil Element - Main Oven 6-Pass Broil Element - Companion Oven |
| Oven Rack Features | 3 Self-Clean Oven Racks (main), 2 Self-Clean Oven Racks (companion) 4 Rack Positions Each Oven |
| APPEARANCE | |
| Design | Professional |
| Color Appearance | Stainless Steel |
| WEIGHTS & DIMENSIONS | |
| Interior Dimensions - Main Oven (WxHxD) (in.) | 27-3/4 x 14-1/4 x 18-1/2 |
| Height With Legs Retracted (In.) | 35-1/4 |
| Approximate Shipping Weight | 600 lb |
| Cabinet Width | 48 in |
| Height w/Legs Extended (in.) | 36-3/4 |
| Net Weight (lbs.) | 538 lb |
| Overall Height | 35 1/4 in |
| Overall Width | 47 7/8 in |
| Height to Cooking Surface (in.) | 35-1/4 to 36-3/4 |
| Overall Depth | 28 1/4 in |
| Interior Dimensions - Companion Oven (WxHxD) (in.) | 12 x 14-1/4 x 20-1/2 |
| POWER / RATINGS | |
| Bake/Broil Wattage - Companion Oven | 2800/3600W |
| Amp Rating at 208V | 34.6 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 17.0, 140 Degree simmer |
| Griddle BTU Rating (000's/BTU) - LP Gas | 15.0 |
| Electrical Requirements | 208V/240V |
| Amp Rating at 240V | 41.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 15.0, 140 Degree simmer |
| Bake/Broil Wattage - Main Oven | 3100/4000W |
| ACCESSORIES | |
| Factory-installed island backguard | yes |
| Available Backguard | ZX12B48HSS; ZX22B48HSS |
| Natural Gas Conversion Kit | WB49x10133 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
- Sophisticated styling Designed with chamfered edges and die cast knobs, Monogram stainless steel ranges offer the bold appearance and high-performance cooking capabilities of commercial appliances
- Sealed, dual-flame stacked burner Each gas burner uses two separate flames to give you a range of precise temperature options, from an ultra-low 140 degree simmer to a powerful 15,000 BTU setting. The burners are sealed to the recessed cooktop surface for easy cleaning
- Reversible grates Uniquely designed, dishwasher-safe grates give you the option of cooking on a flat or contoured wok surface
- 15,000-BTU Griddle The 3/8" thick, stainless steel griddle is sloped to offer a clean cooking surface; thermostatic control ensures even heating and cooking results
- Main oven (4.6 cu.ft., 27" wide)/Companion oven (2.1 cu.ft., 12" wide) The large, self-cleaning convection oven offers two multipass broil and bake elements for even browning, with no hot or cold spots. The companion oven is equipped with an 8-pass broil element and 4-pass bake element
- Self-Clean oven racks The main oven and companion oven are equipped with heavy-duty, porcelain-coated racks which are designed to remain in the oven during the self-clean cycle for effortless cleaning. (Companion oven racks can only be self-cleaned in the main oven)
