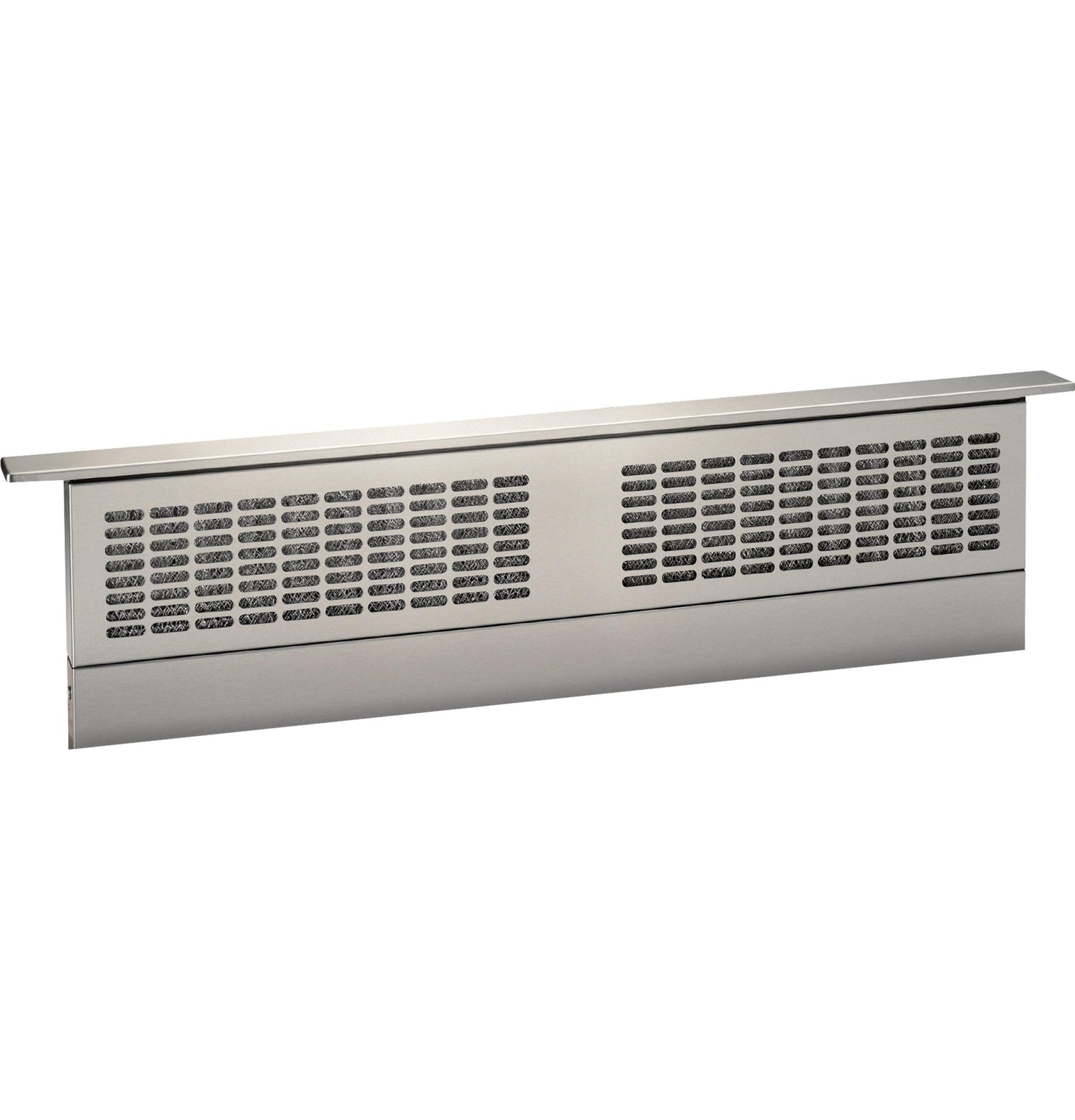

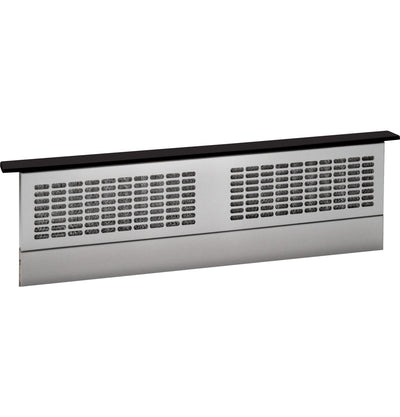

Universal 30" Telescopic Downdraft System
Model UVB30SKSS
Authorized Dealer
1
of
11
Loading...
Authorized Dealer
Universal 30" Telescopic Downdraft System
Model UVB30SKSSQuick Specs
Depth
9 1/2
Height
27
Universal 30" Telescopic Downdraft System is backordered and will ship as soon as it is back in stock.
Regular price
$2,296.54
Unit price
/
Unavailable
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
9 1/2
Height
27

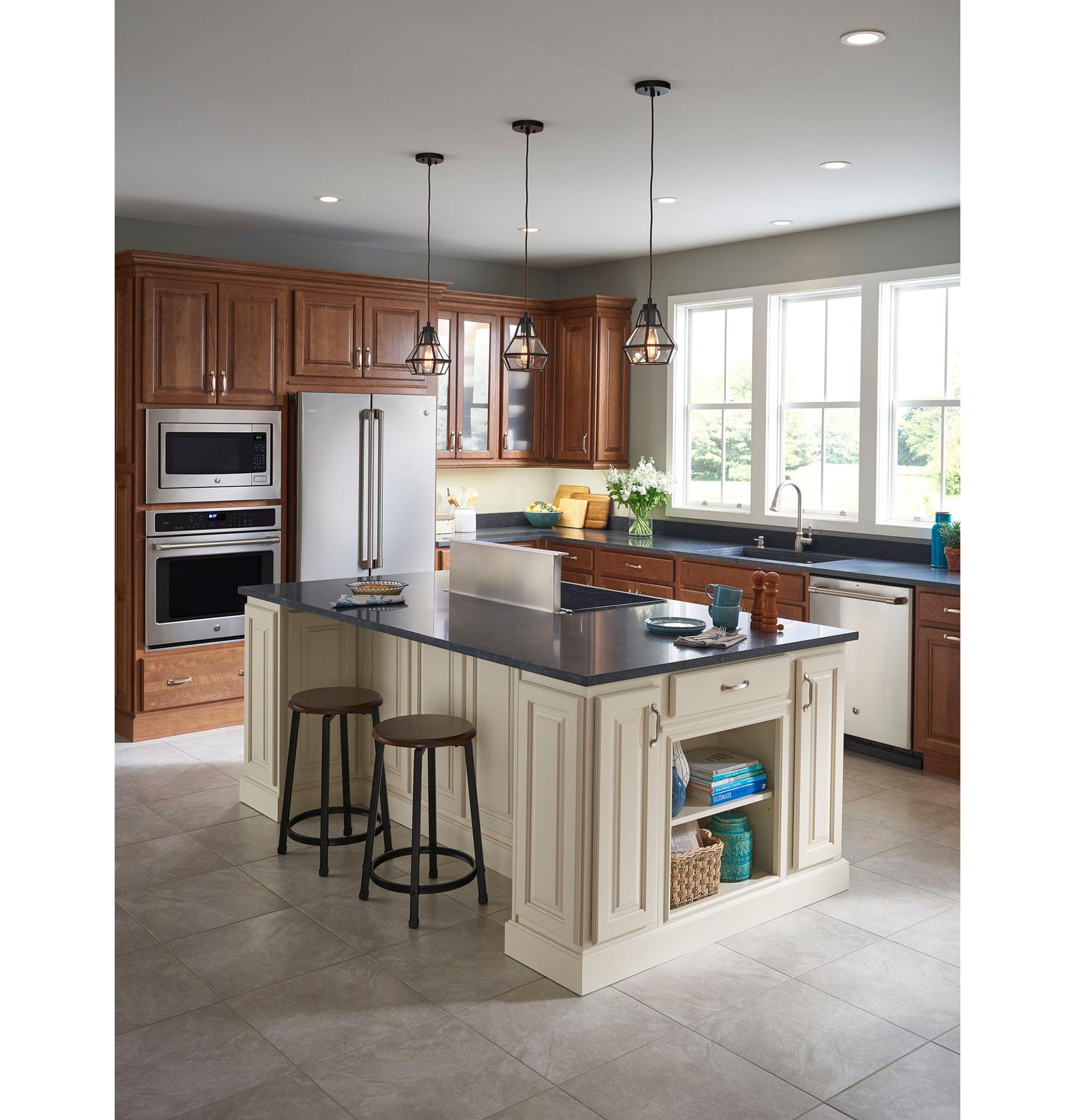

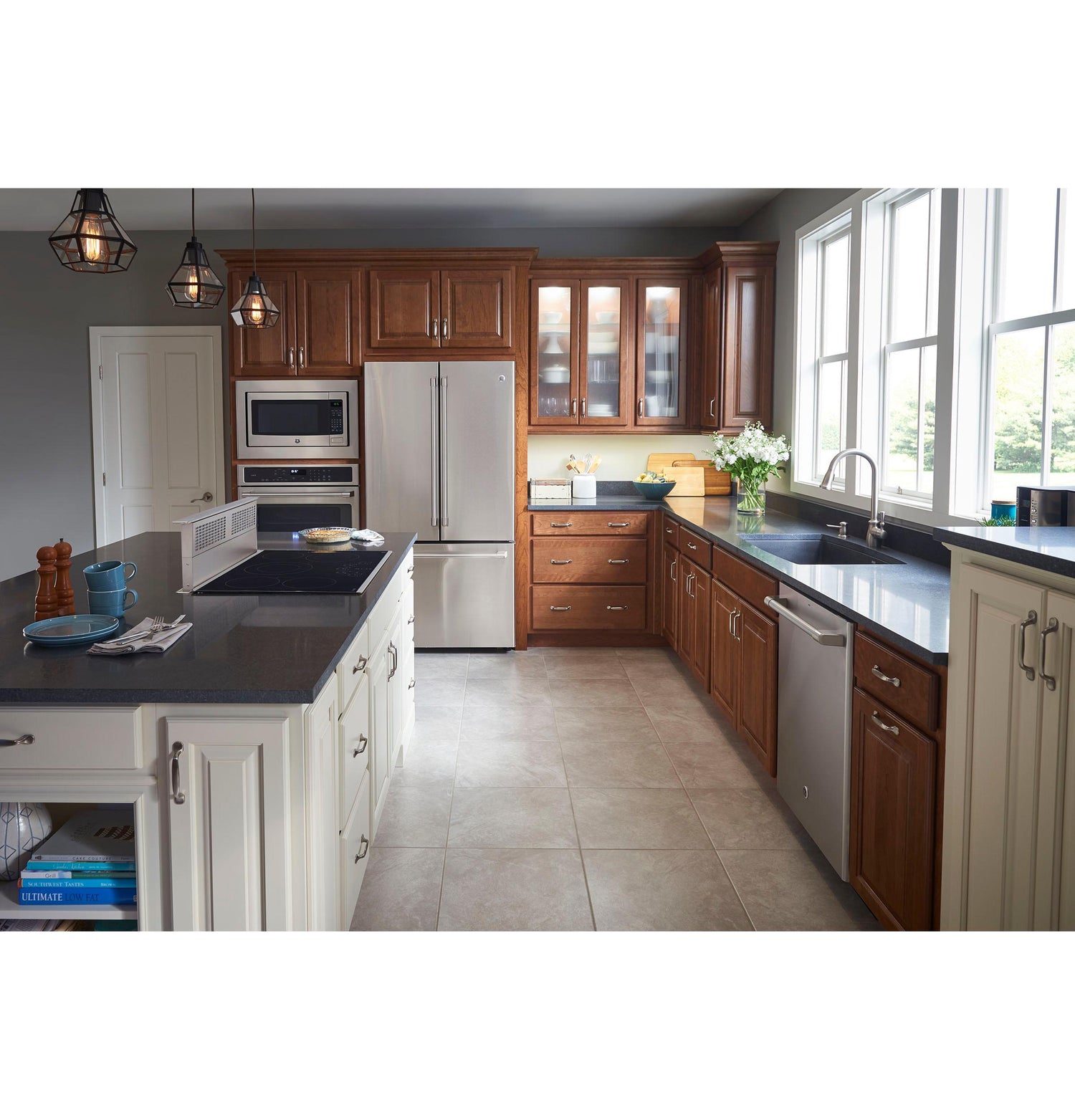

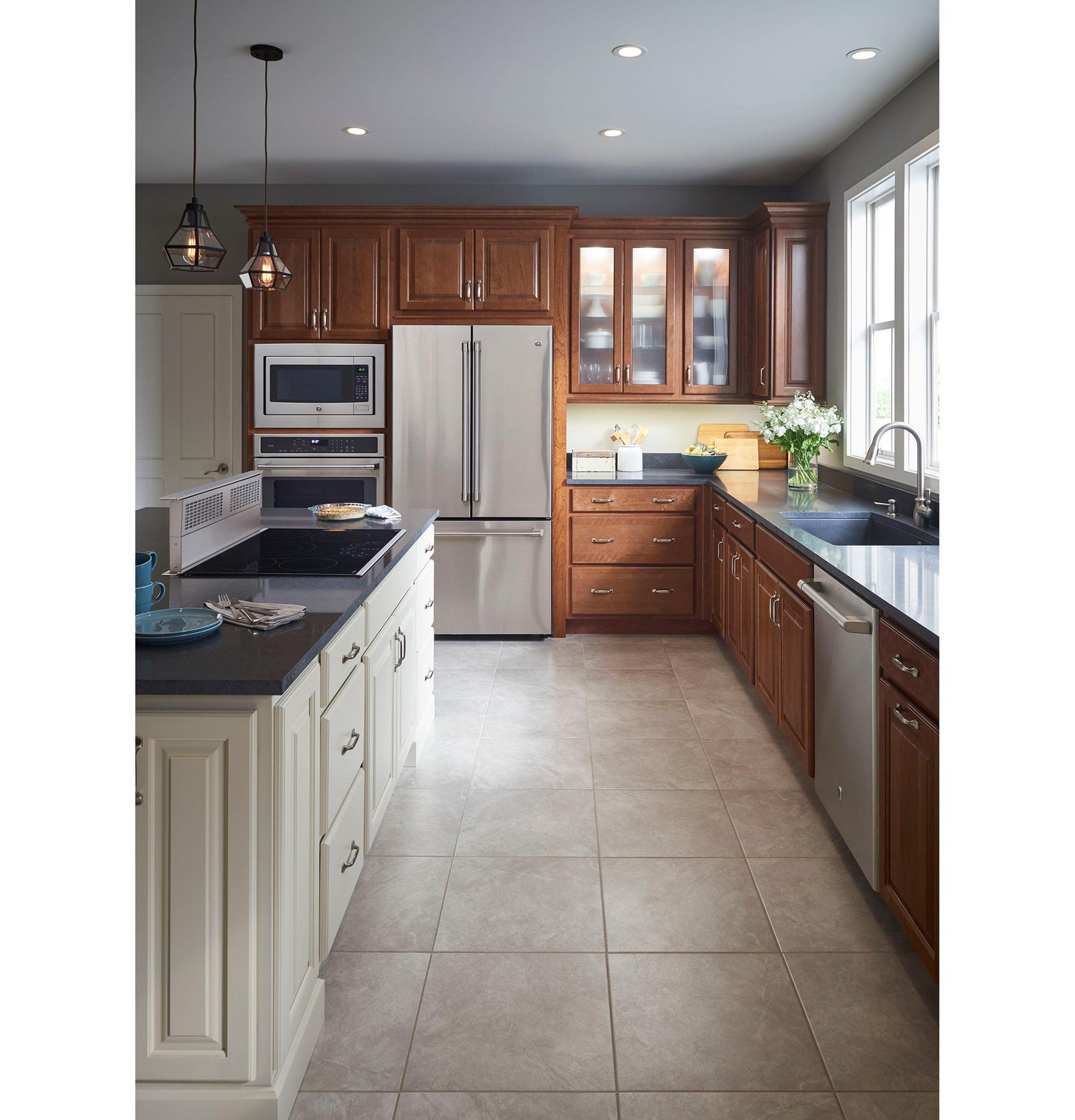

Telescopic hood
Raises over cooktop surface and retracts when not in use
- 370-CFM venting system
- Effectively remove smoke, grease, odor and moisture
- 370-CFM venting system
- Effectively remove smoke, grease, odor and moisture
- Four-speed fan control
- Helps draw smoke, grease, odors and moisture out of the kitchen air
- Four-speed fan control
- Helps draw smoke, grease, odors and moisture out of the kitchen air
- Telescopic hood
- Raises over cooktop surface and retracts when not in use
- Telescopic hood
- Raises over cooktop surface and retracts when not in use
- Separate remote raise/lower switch
- Separate remote raise/lower switch
- 370-CFM venting system
- Four-speed fan control
- Telescopic hood
- Separate remote raise/lower switch
| FILTER | |
| App Filter-Multi Brand | GE Monogram |
| App Filter - Hood Type | Telescopic downdraft |
| App Filter - Venting Type | External |
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
| APPEARANCE | |
| Color Appearance | Stainless Steel |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| POWER / RATINGS | |
| Amp Rating at 120V | 4.0 |
| ACCESSORIES | |
| Duct Extension | 100 ft. |

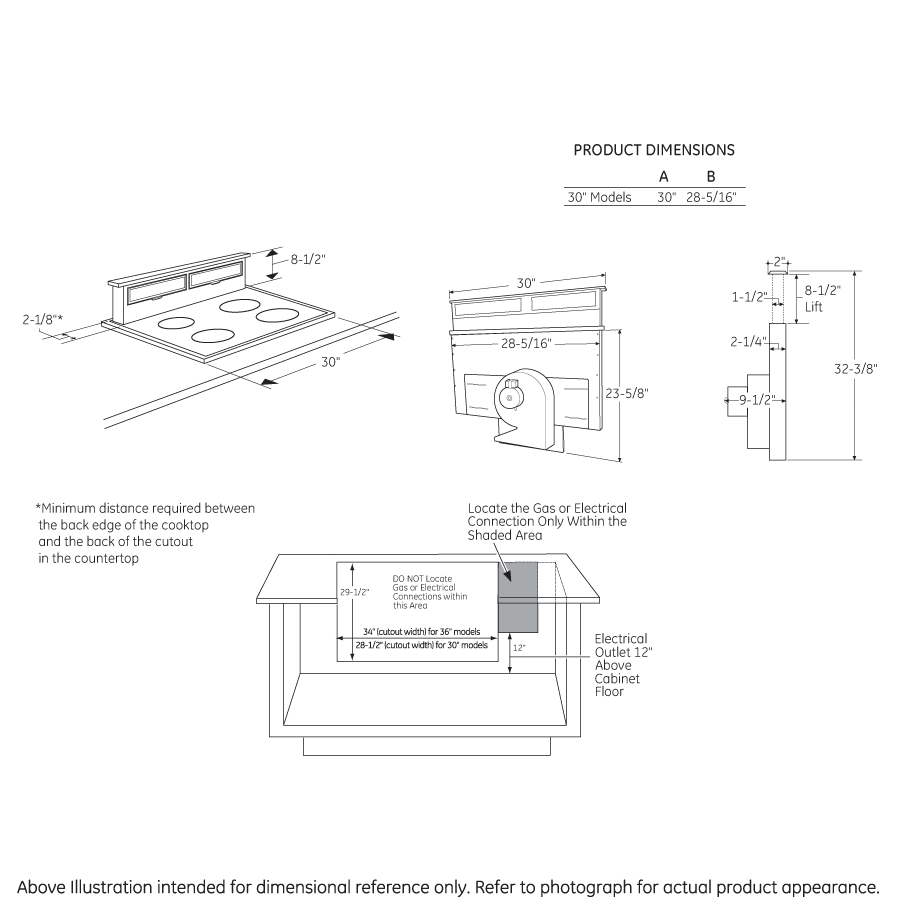

| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 54 lb |
| Overall Depth | 9.5 in |
| Approximate Shipping Weight | 69 lb |
| Telescoping Height | 8.5 in |
| Overall Height | 27 in |
| Overall Width | 30 in |
| FEATURES | |
| Fan Speed Control | 4-Speed |
| Max CFM | 390 |
| Optional Blower Mount Capabilities | Yes |
| CFM/ Sones Rating | 140/2.5 (Working Speed) 390/9.0 (High Speed) |
| Exhaust Options | 3-1/4" x 10" Rectangular Duct Downdraft Minimum 6" Round Duct Capability Vented to Outside |
| Product Type | Telescopic Downdraft |
| Control Type | Electronic Remote Control |
| Telescopic Assembly | Stainless Steel |
| Cover Plate | Stainless Steel |
| Removable Grease Filter(s) | Mesh Yes |
