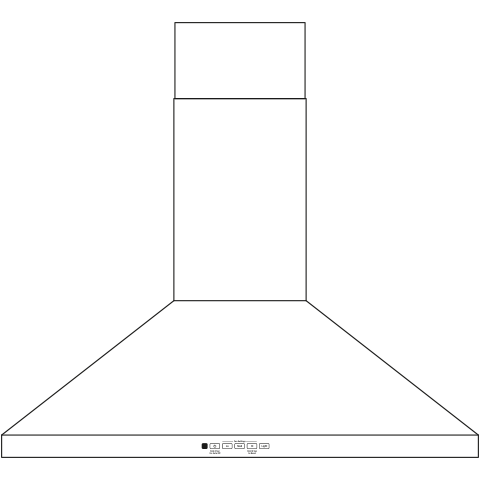

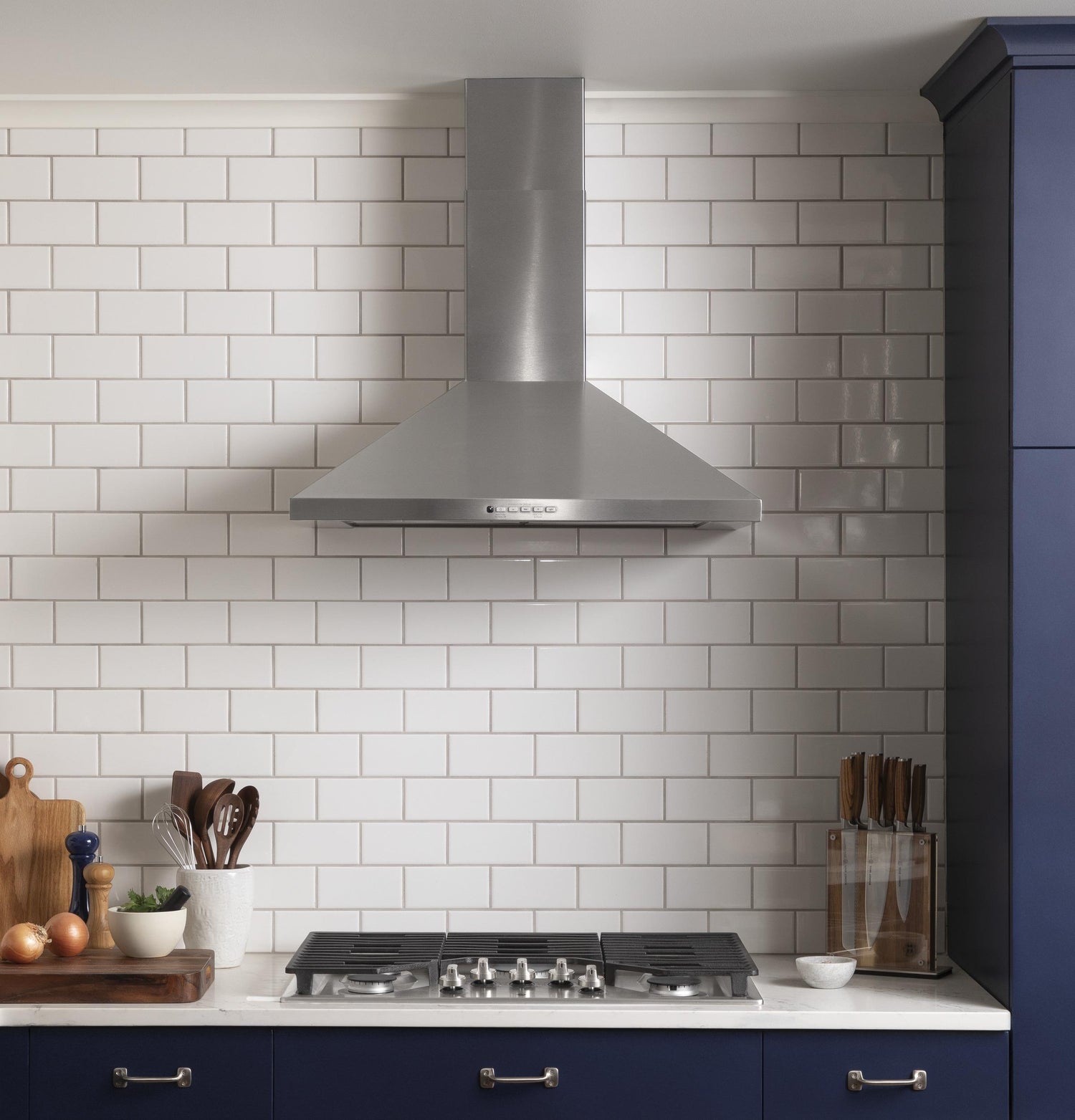

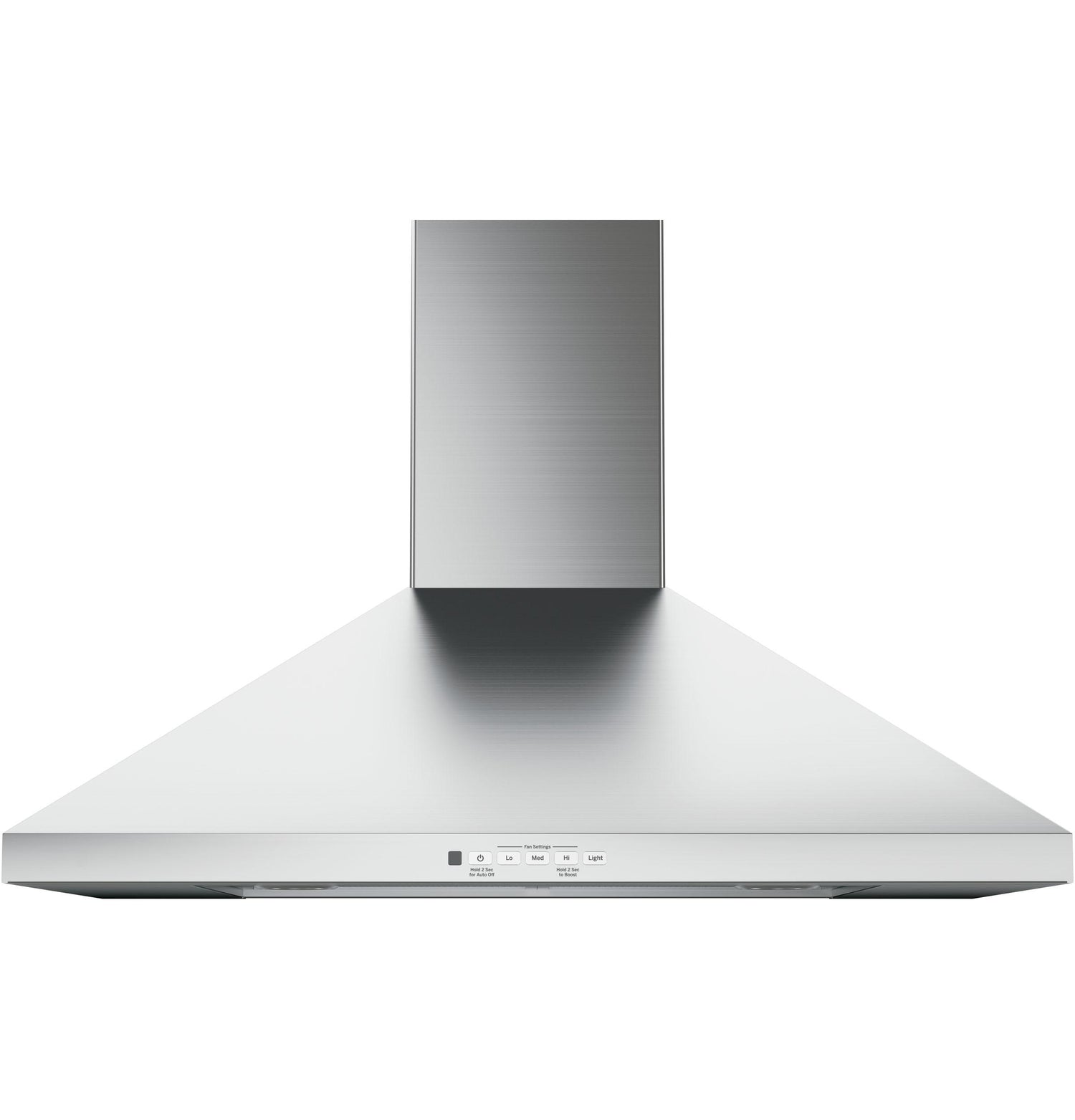

GE® 30" Wall-Mount Pyramid Chimney Hood
Model JVW5301SJSS
Authorized Dealer
1
of
20
Loading...
Authorized Dealer
GE® 30" Wall-Mount Pyramid Chimney Hood
Model JVW5301SJSSQuick Specs
Width
30
Depth
18 1/2
Height
9 7/8
RPM
-1.0
Energy
NO
Color
GE® 30" Wall-Mount Pyramid Chimney Hood is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 04/15/2026
Sale Price
Sale price
$696.38
Regular price
$729.00
Unit price
/
Unavailable
You save 4%
Couldn't load pickup availability
Quick Specs
Width
30
Depth
18 1/2
Height
9 7/8
RPM
-1.0
Energy Star Rated
NO

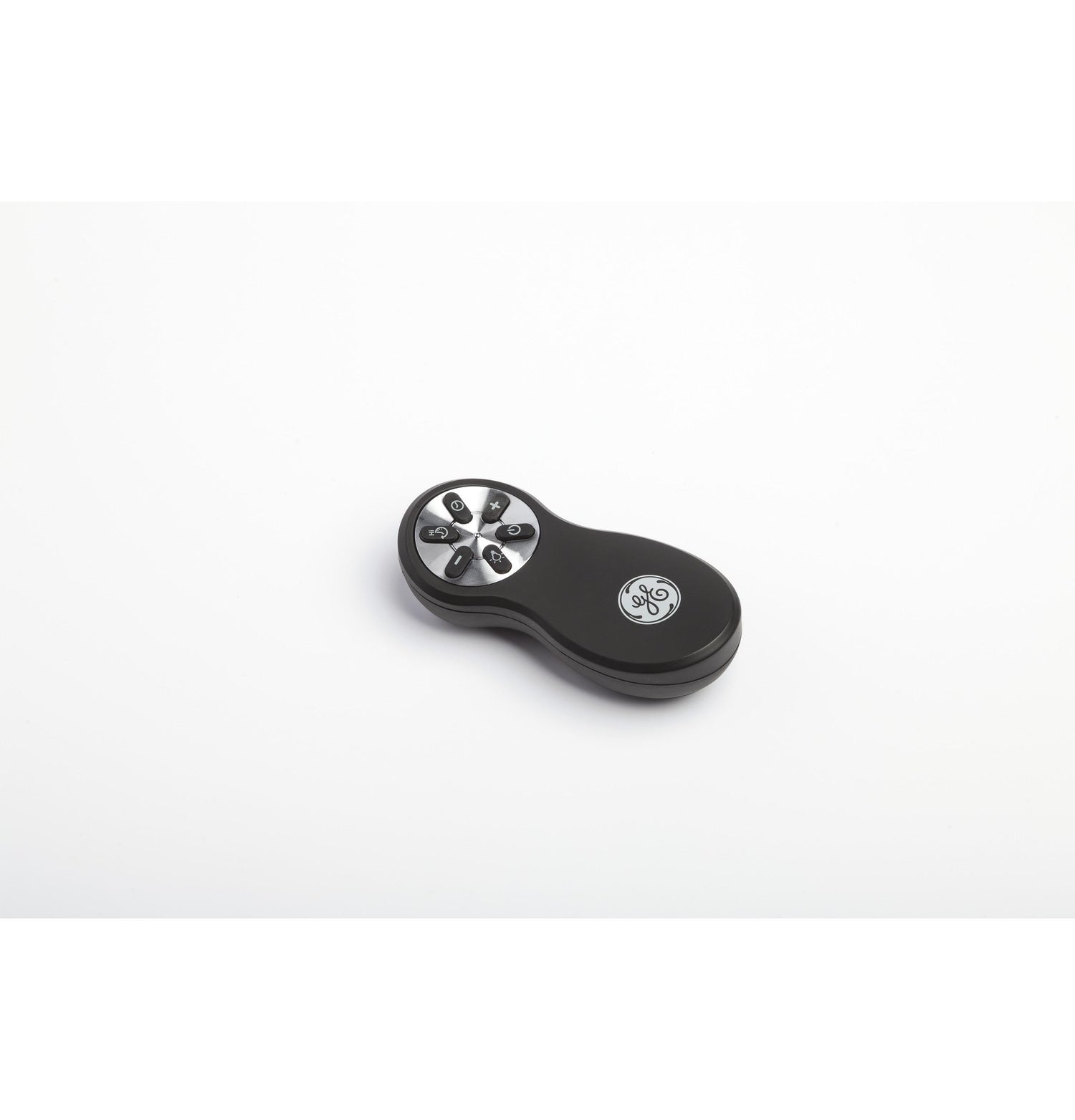

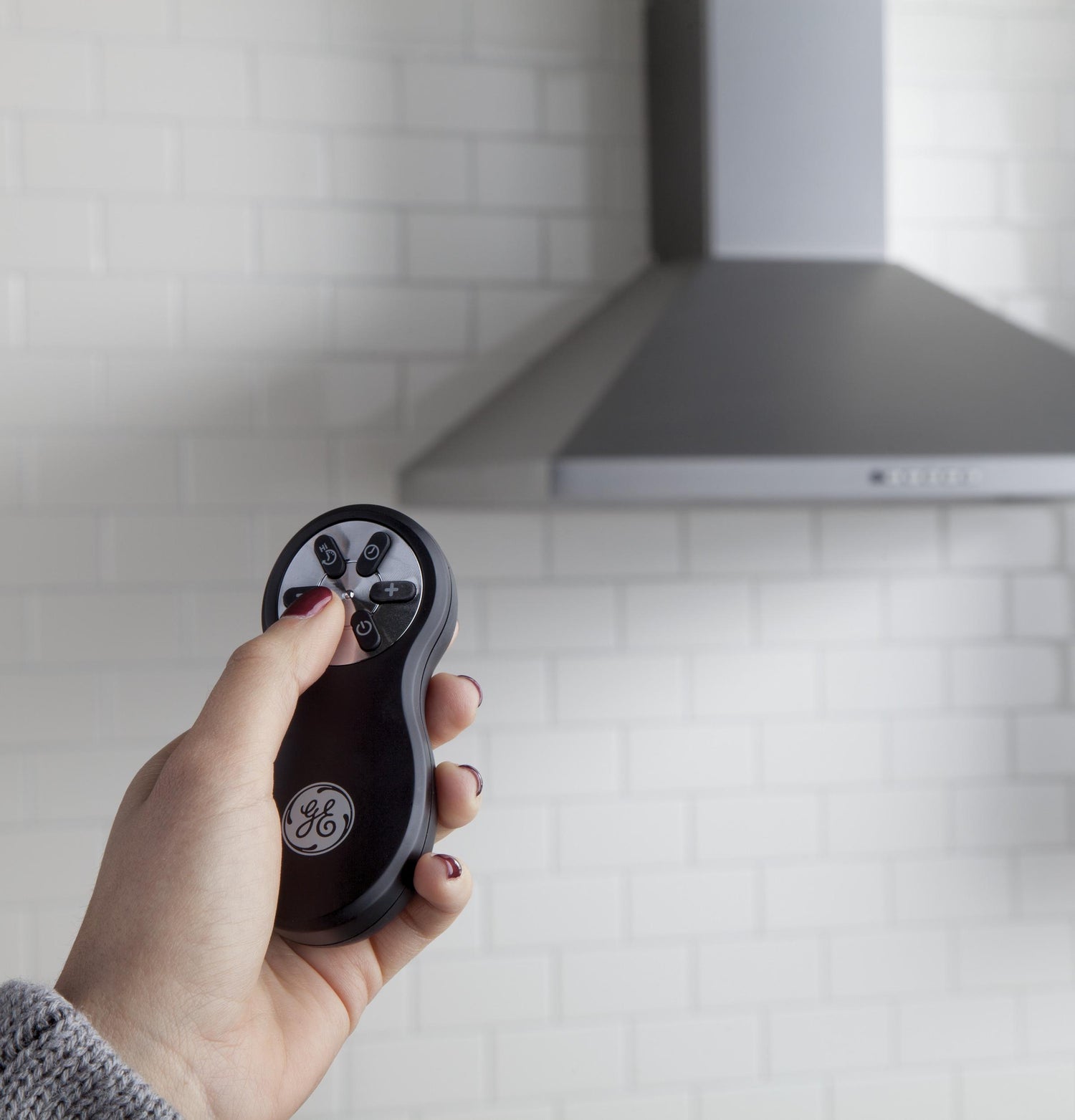

Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen

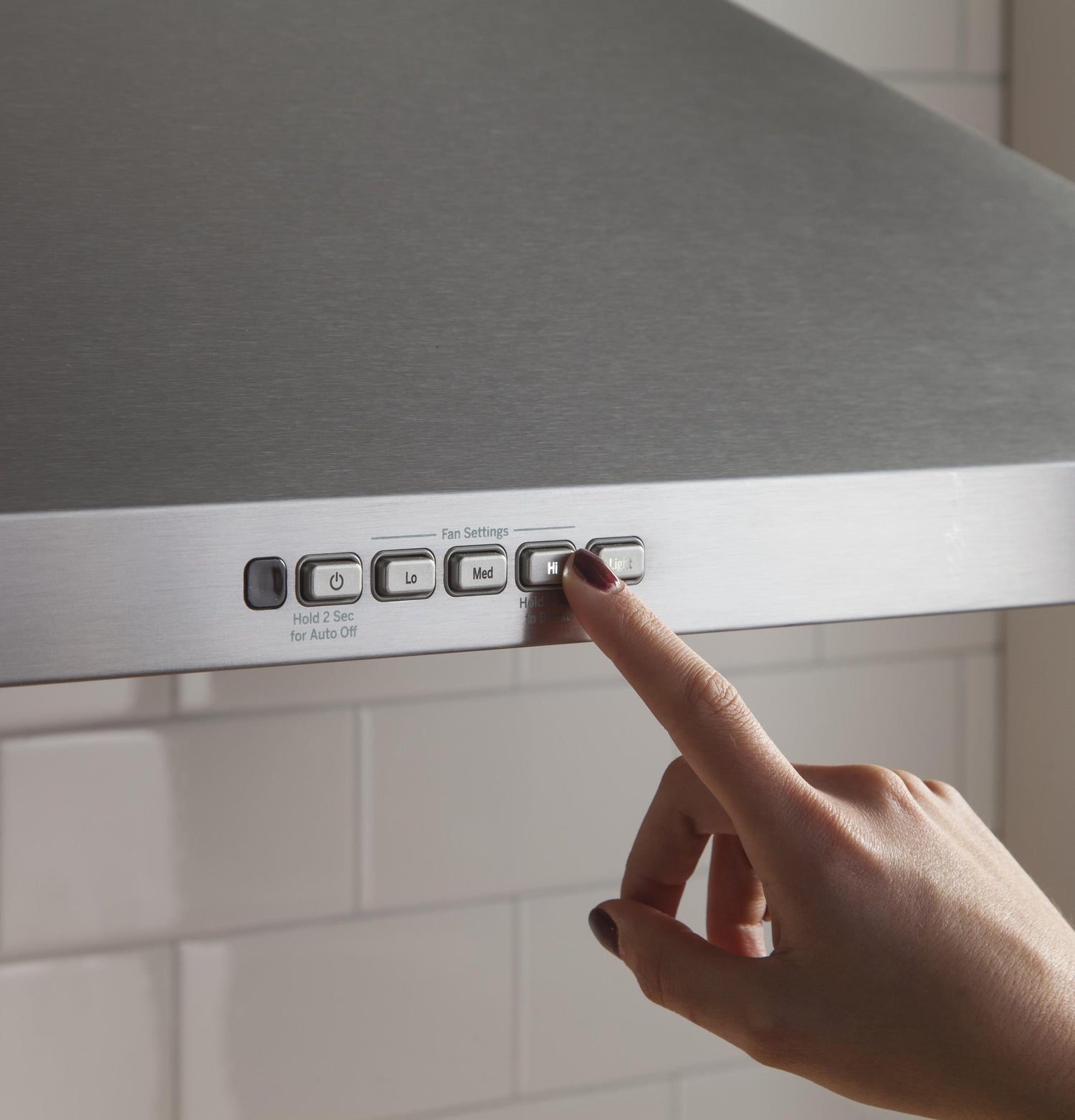

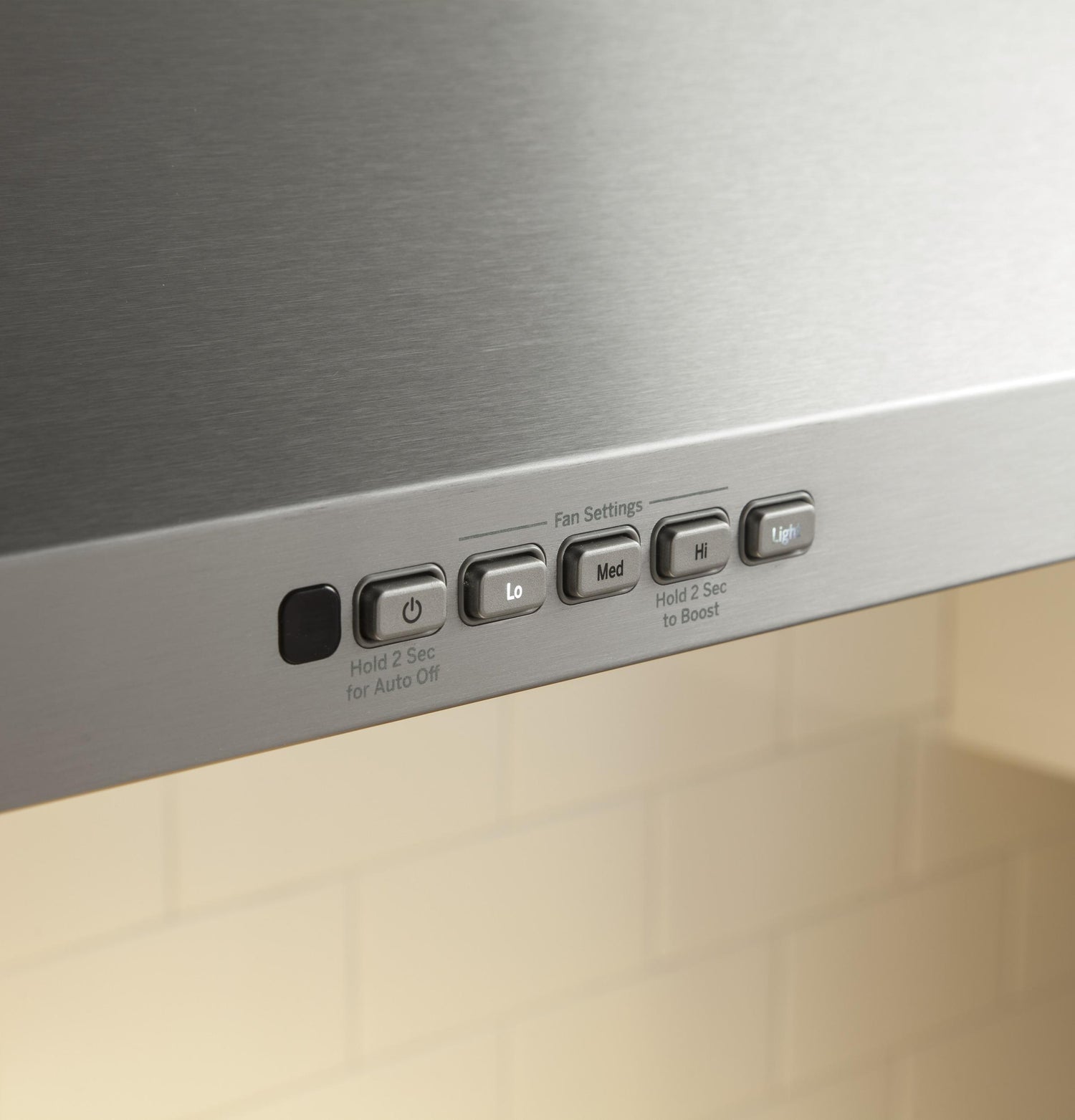

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture

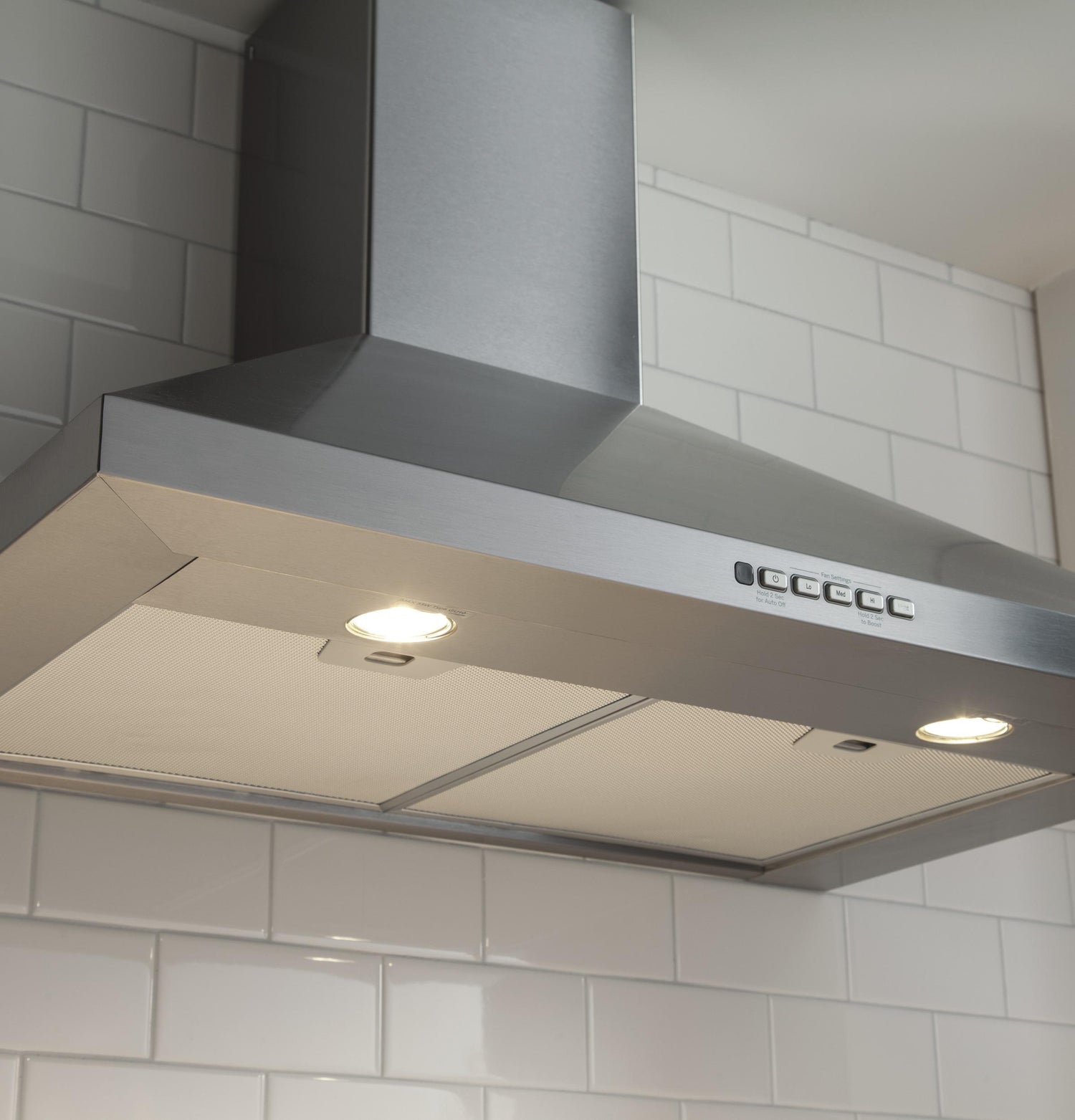

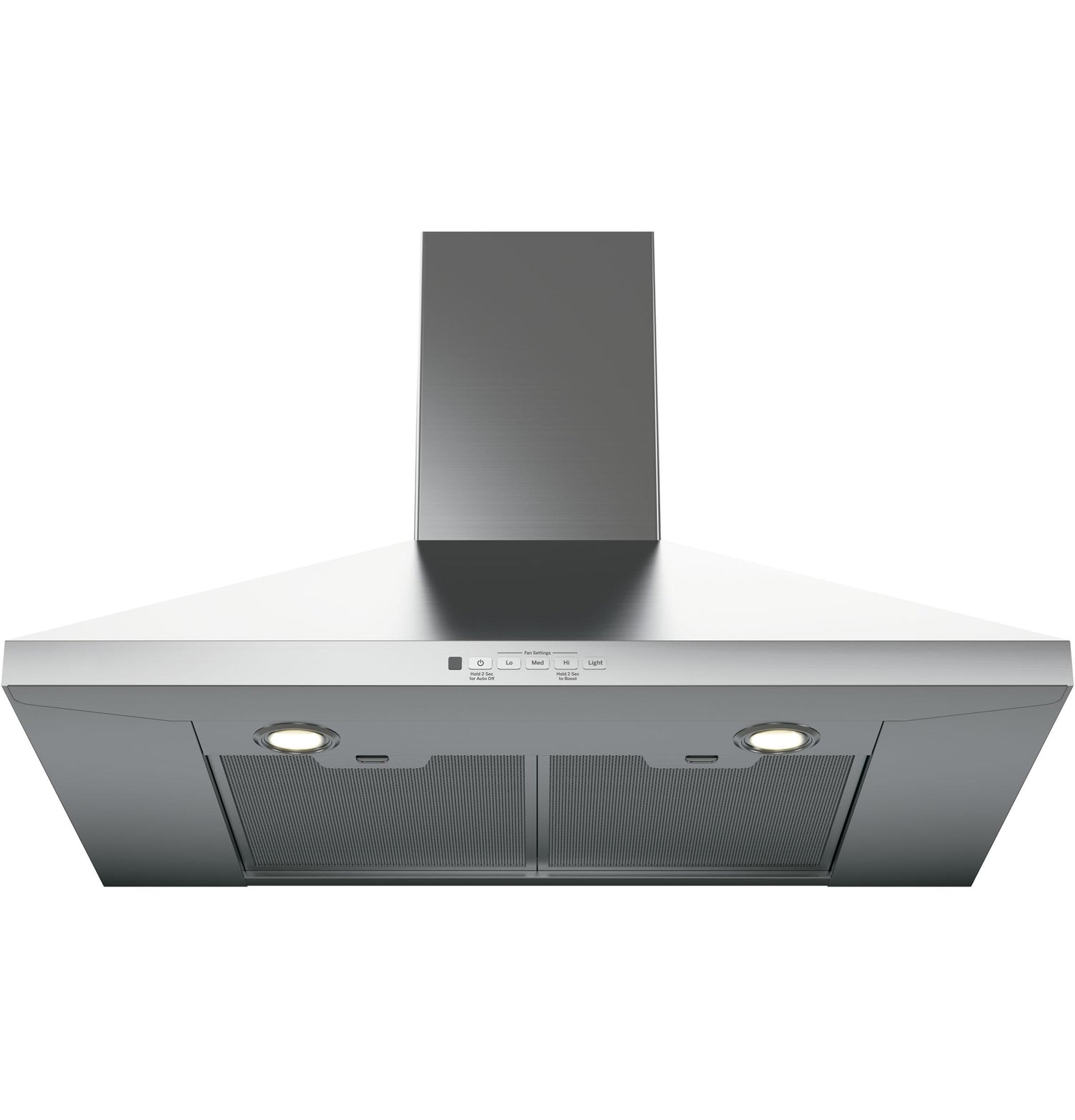

Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood
- Easy do-it-yourself Installation
- Can be installed either as a recirculating or external-venting hood
- 350-CFM venting system with boost
- Effectively remove smoke, grease, odor and moisture
- Electronic backlit controls
- Add a sophisticated look with this up-front, easy-to-use display
- Dual halogen cooktop lighting
- Enjoy better visibility with a brightly lit cooktop and surrounding surface
- Night light
- Keep a dim light on for visibility at all hours
- Convertible venting options
- Select recirculating or external venting
- Optional remote control (UXRC70)
- Control your ventilation lighting and fan speed from anywhere in the kitchen
- Auto-off
- Set the vent hood to automatically shut off after 15 minutes
- Dishwasher safe filter
- Filters grease and is dishwasher-safe
- Easy do-it-yourself Installation
- 350-CFM venting system with boost
- Electronic backlit controls
- Dual halogen cooktop lighting
- Night light
- Convertible venting options
- Optional remote control (UXRC70)
- Auto-off
- Dishwasher safe filter
| FILTER | |
| App Filter - Hood Type | Designer (includes "canopy" and "chimney") |
| App Filter - Venting Type | Convertible |
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
| APPEARANCE | |
| Blower / Light Switch Color | Backlit |
| Material | Metal |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Watts | 226 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 2.5A |
| Amp Rating at 120V | 2.5 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Convertible |
| ACCESSORIES | |

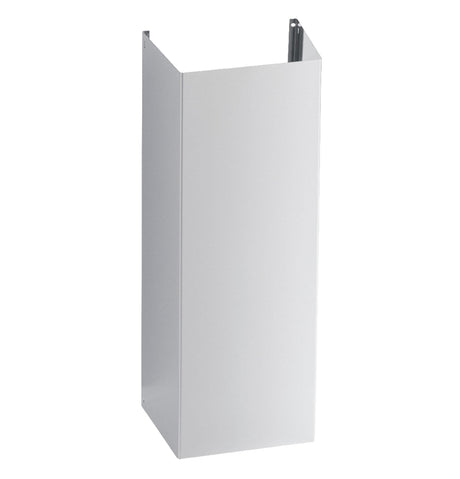

| Optional Accessories | JXCF72 - Charcoal Filter UXDC53SJSS - 10 (ft.) Ceiling Duct Cover Kit UXDC72SJSS - 9 (ft.) Ceiling Duct Cover Kit UXRC70 - Remote Control |

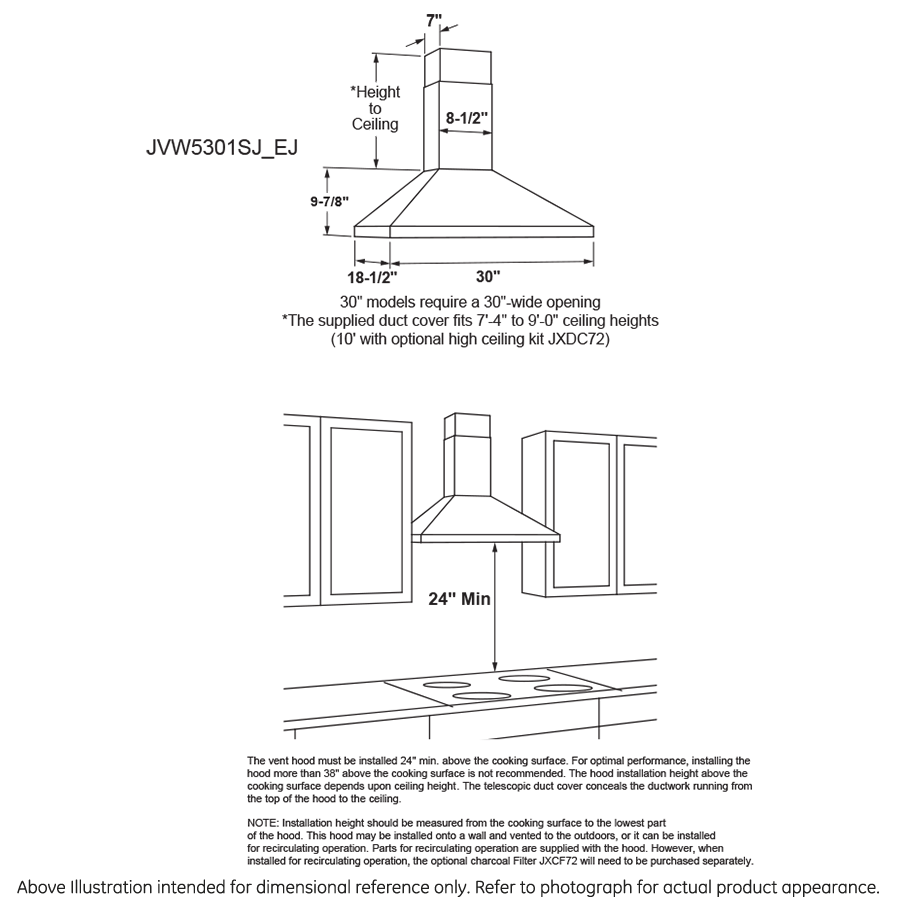

| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 43 lb |
| Overall Depth | 18.5 in |
| Approximate Shipping Weight | 61 lb |
| Overall Height | 9.875 in |
| Overall Width | 30 in |
| FEATURES | |
| Cooktop Lighting | 1 Halogen |
| Fan Speed Control | 4-Speed |
| Max CFM | 350 |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 150/1.0 (Working Speed) 340/5.1 (High Speed) 350/6.6 (Boost Speed) |
| Exhaust Options | Recirculating Vented to Outside |
| Product Type | Designer Hood |
| Remote Control | Optional (UXRC70) |
| 6" Round Duct | Yes |
| Control Type | Backlit Electronic Touch |
| Control Location | Front |
| Blower Type | Internal |
| Removable Grease Filter(s) | Yes |
- Easy do-it-yourself Installation
- 350-CFM venting system with boost
- Electronic backlit controls
- Dual halogen cooktop lighting
- Night light
- Convertible venting options
- Optional remote control (UXRC70)
- Auto-off
- Dishwasher safe filter
