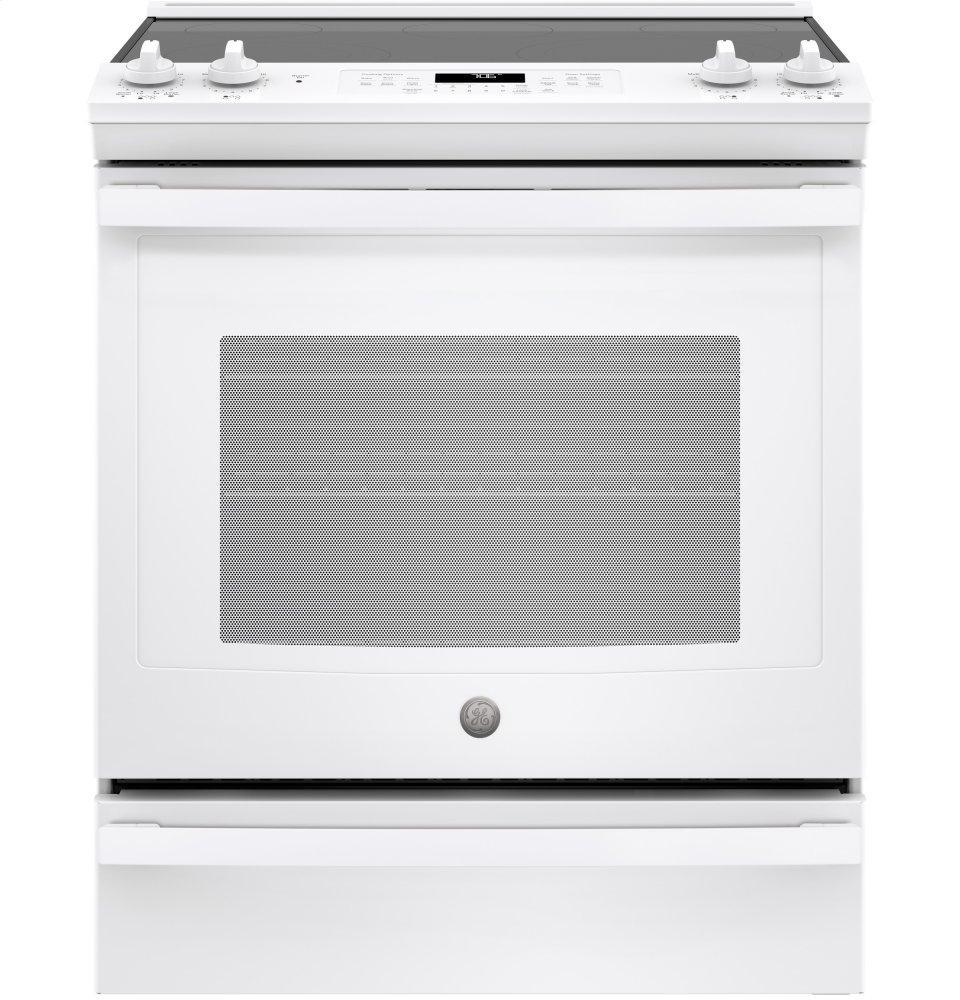

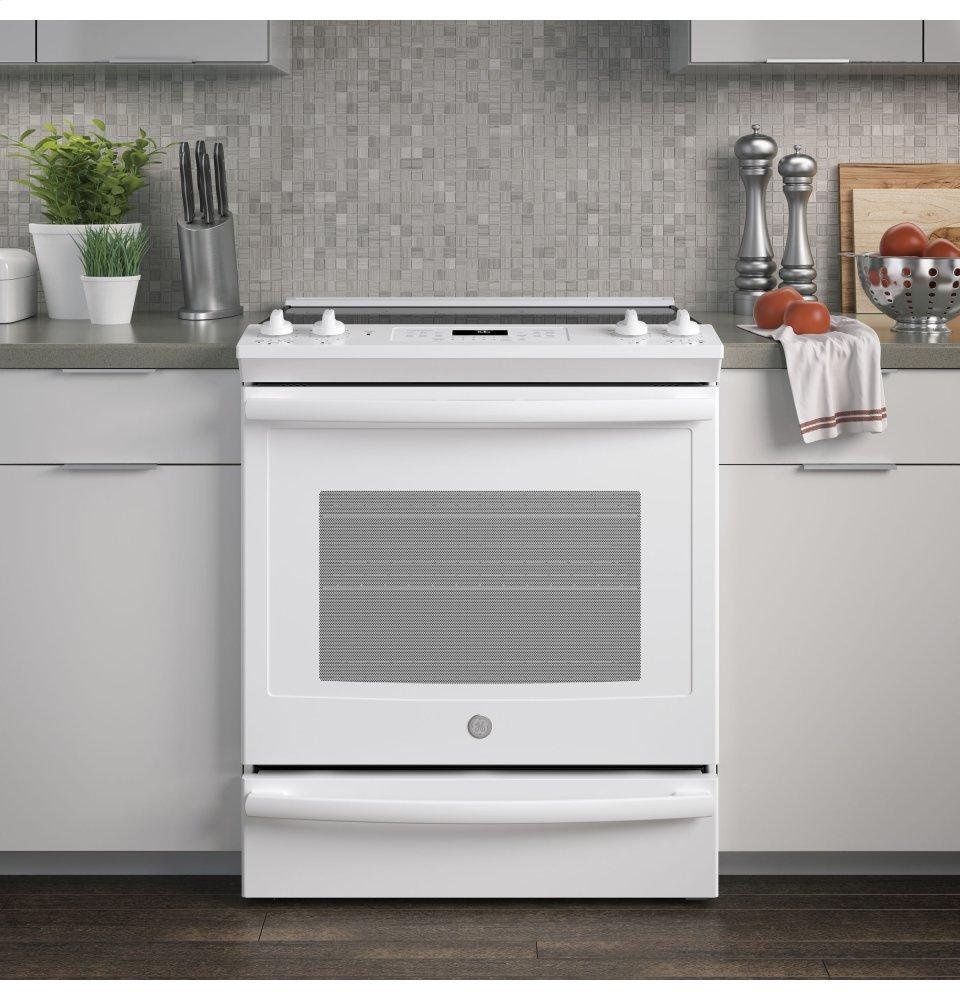

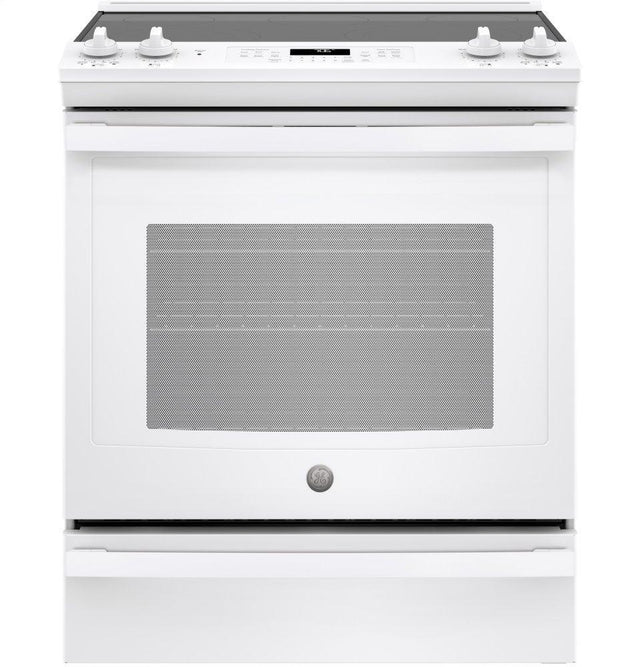

GE® 30" Slide-In Electric Convection Range
Model: JS760DLWW
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
GE® 30" Slide-In Electric Convection Range
Model: JS760DLWWQuick Specs
Depth
25.875
Height
37.25
Sabbath
YES
ADA
NO
Wifi
NO
Storage
YES
Warming
NO
Cooktop
5
GE® 30" Slide-In Electric Convection Range is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,050.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
25.875
Height
37.25
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
5
Convection
YES
Self Clean
YES
Downdraft Ventilation
NO
Cooking is Induction
NO
Drawer Proof Mode
NO
Fit Guarantee
Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
Fifth element warming zone
Provides low-heat capability for foods

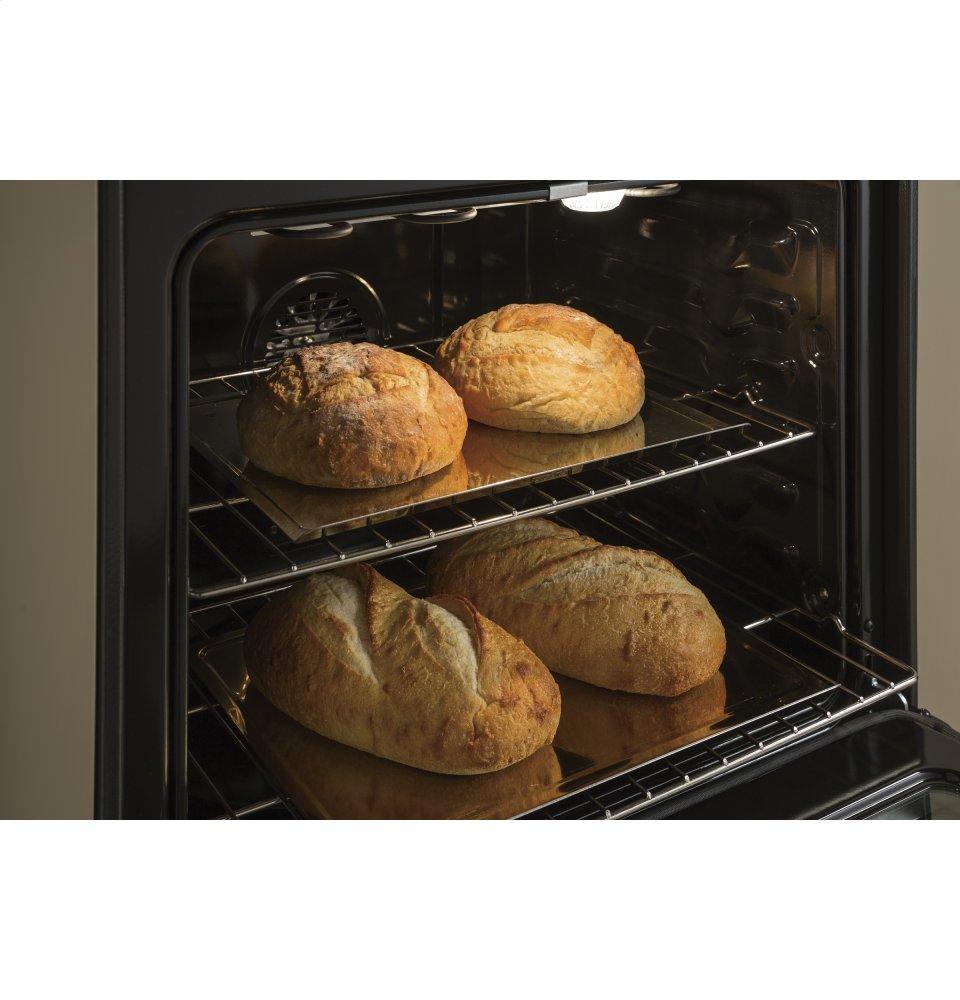

True European Convection with Precise Air
Accurate heat circulation ensures evenly baked foods

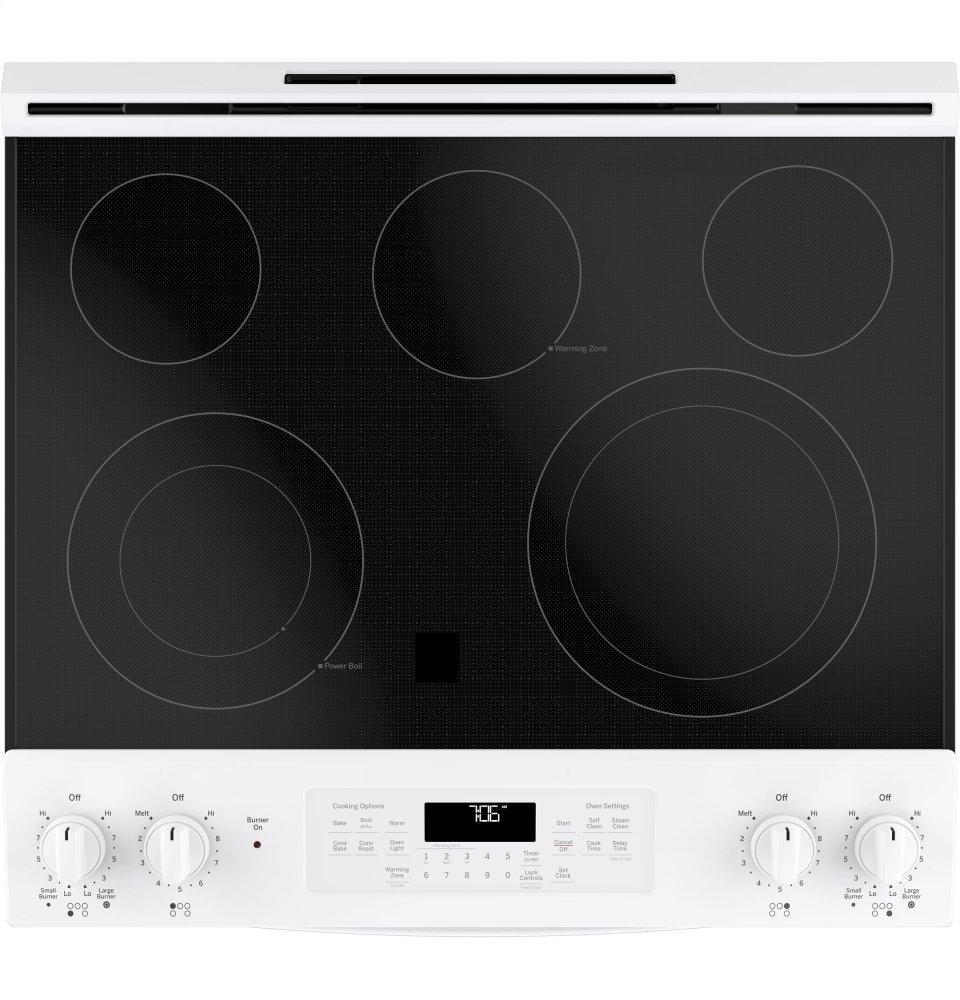

12"/9" dual element
Two heating elements in one offer flexibility
Fast preheat
Make hot meals in a hurry with less time preheating
9"/6" Power Boil element
Produces rapid, powerful heat

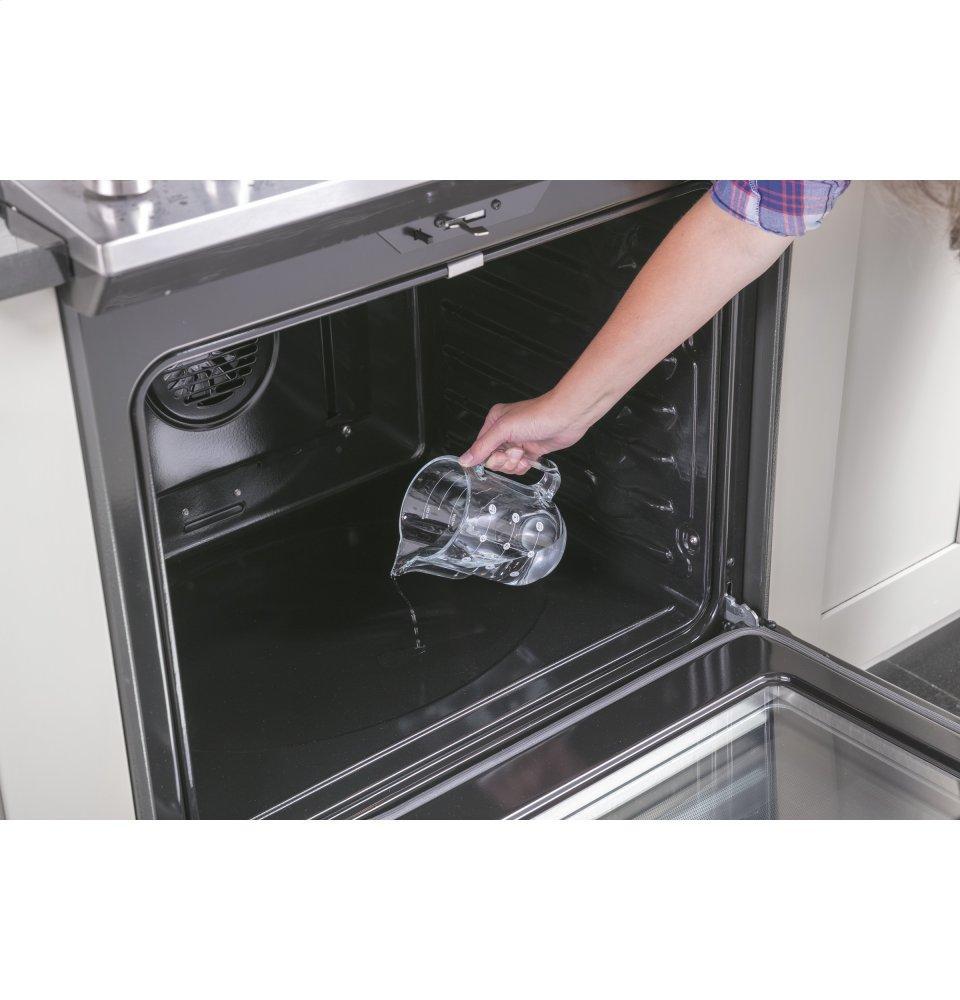

Self-clean with Steam Clean option
Clean your oven the way you want

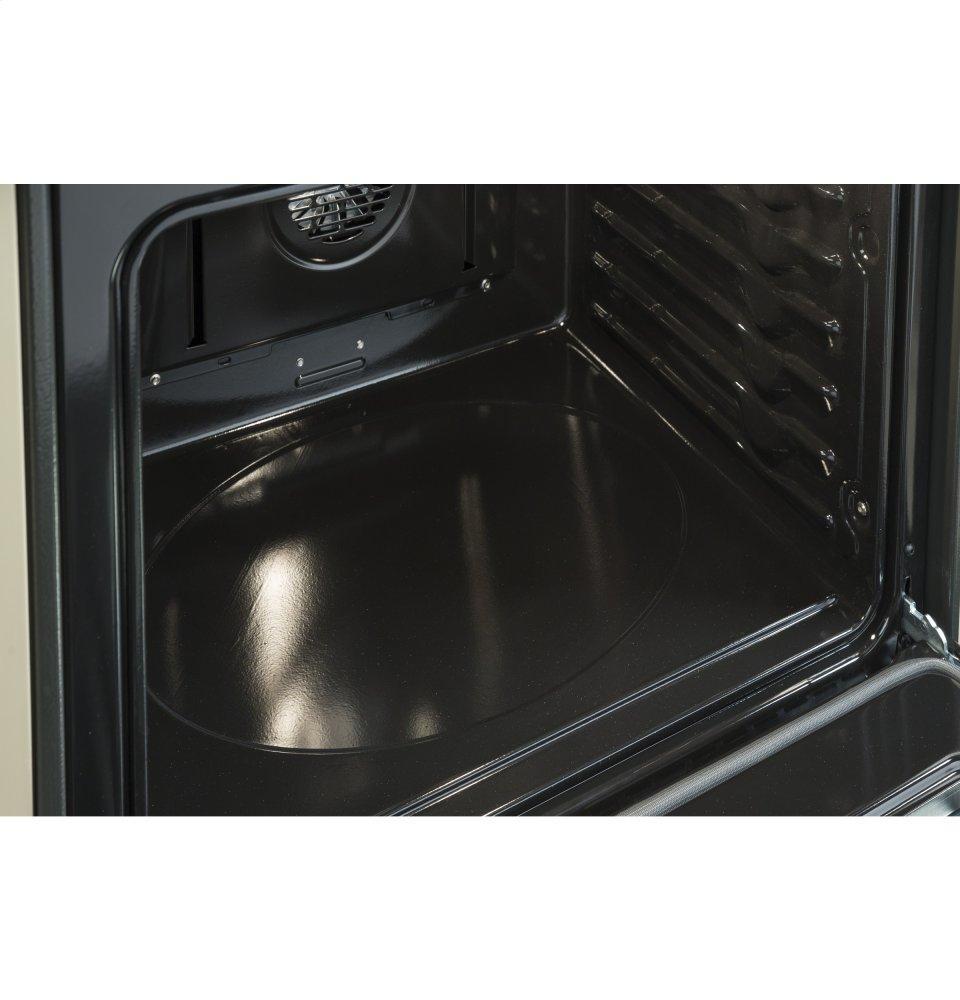

Hidden bake oven interior
Make cleanup easy by eliminating hard-to-reach areas
Smooth-glide storage drawer
Drawer opens and closes easily for instant access and extra storage
- Fit Guarantee
- Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
- 12"/9" dual element
- Two heating elements in one offer flexibility
- True European Convection with Precise Air
- Accurate heat circulation ensures evenly baked foods
- 9"/6" Power Boil element
- Produces rapid, powerful heat
- Fifth element warming zone
- Provides low-heat capability for foods
- Fast preheat
- Make hot meals in a hurry with less time preheating
- Self-clean with Steam Clean option
- Clean your oven the way you want
- Hidden bake oven interior
- Make cleanup easy by eliminating hard-to-reach areas
- Smooth-glide storage drawer
- Drawer opens and closes easily for instant access and extra storage
- Fit Guarantee
- 12"/9" dual element
- True European Convection with Precise Air
- 9"/6" Power Boil element
- Fifth element warming zone
- Fast preheat
- Self-clean with Steam Clean option
- Hidden bake oven interior
- Smooth-glide storage drawer
| CAPACITY | |
| Total Capacity (cubic feet) | 5.3 |
| FILTER | |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Drawer Type | Storage |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Voltage | 240V |
| App Filter - Cooking Technology | Convection |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Slide-In Single Oven |
| App Filter - Convection | Yes |
| App Filter - Fuel Type | Electric |
| APPEARANCE | |
| Control Knobs | Color-Matched |
| Handle | Color-Matched |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Big View Oven Window Clearview Glass Door |
| Color Appearance | White on White |
| POWER / RATINGS | |
| KW Rating at 208V | 10.2 |
| Bake Wattage | 2850W |
| KW Rating at 240V | 13.6 |
| Convection Wattage | 2500W |
| Broiler Wattage | 4000W |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Trim Kit | JXFILLR1BB Optional |
| Cooktop Cleaning | Cream Included Sponge |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 179.0 |
| Height to Cooking Surface (in.) | 36 |
| Depth Without Handle | 27.375 |
| Overall Depth | 28.25 |
| Depth with Door Open | 48.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Overall Width | 29.875 |
| Overall Height | 37.25 |
| Approximate Shipping Weight | 200.0 |
| Cabinet Width | 30.0 |
| Height to Top of Rear Vent Trim | 37.25 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Hot Surface Indicator Lights | 1 |
| Cooktop Burner Type | Radiant Smoothtop |
| Cooking System | True European Convection with Precise Air |
| Oven Interior | 1 Incandescent Light Black |
| Element - Center | 6" 100W Warming Zone |
| Element - Left Front | 9"/6" 3100W Power Boil |

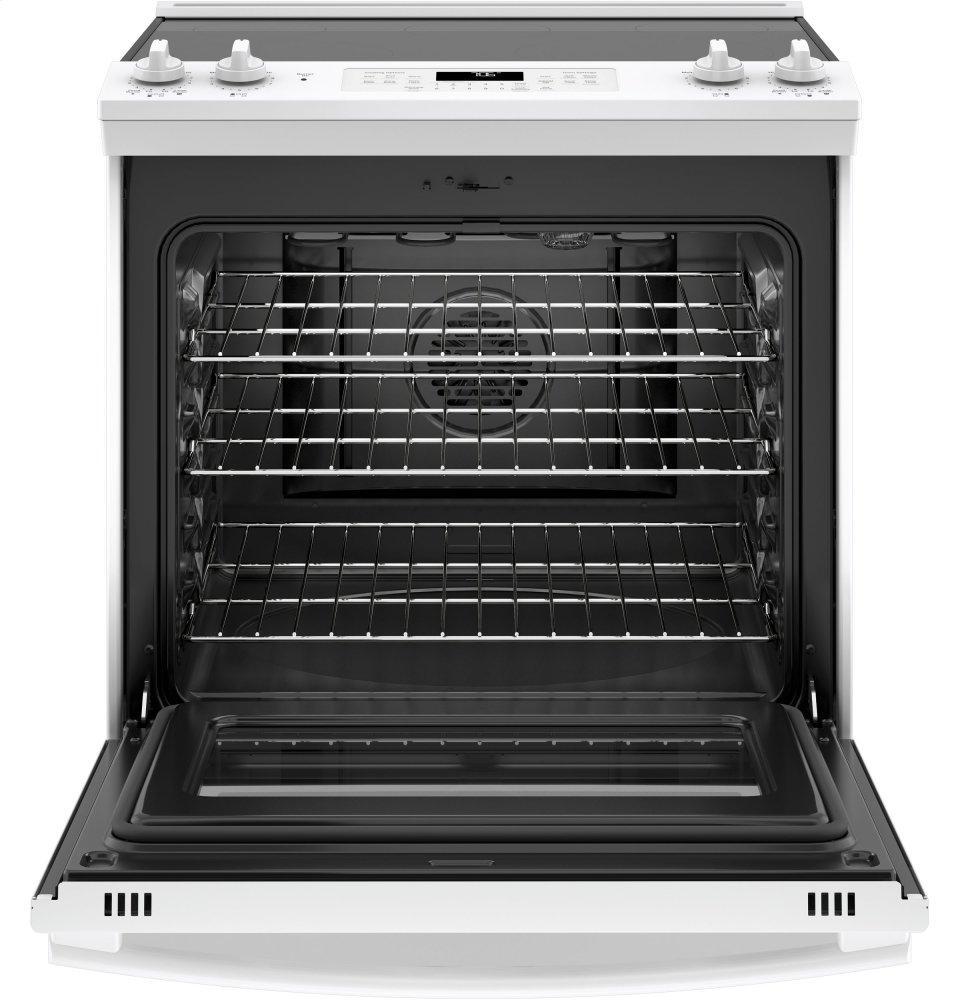

| Oven Rack Features | 3 Oven Racks 6 Rack Positions |
| Melt Setting | Yes |
| Oven Features | 4-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Optional Accessories | WB48X20881 Roller Rack |
| Fuel Type | Electric |
| Cooking Technology | Convection |
| Cooktop Surface | Black Ceramic Glass |
| Configuration | Range with Storage Drawer |

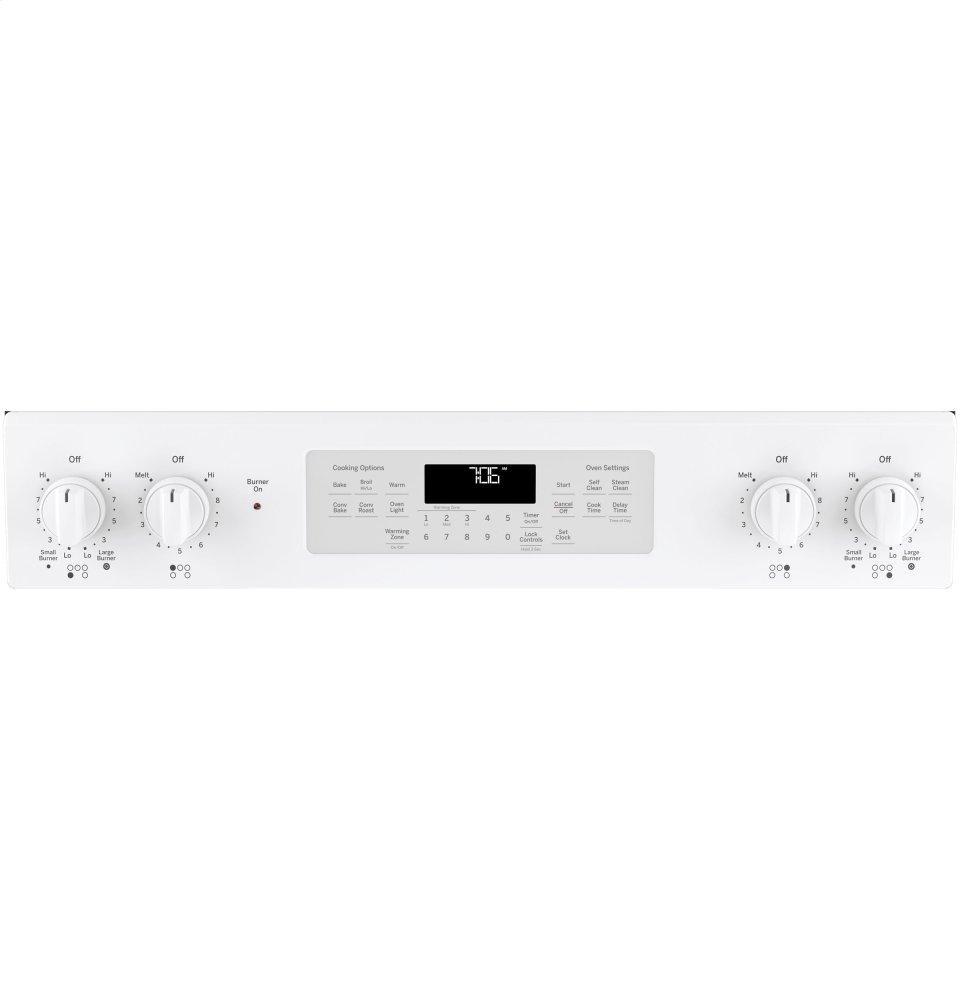

| Control Type | Digital Temperature Display Electronic Touchpads |
| Element - Right Front | 12"/9" 3000W |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off with Override Auto Recipe Conversion Auto Self Clean Certified Sabbath Mode Control Lock Capability Convection Bake Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock & Kitchen Timer Fast Preheat Hi / Low Broil Oven "ON" Light Self-Clean Cool Down Time Display Self-Cleaning Cycling Light |
| Product Type | Slide-In Single Oven |
| Drawer Type | Storage |
| Interior Oven Light | 1 Halogen Preheat Notification |
| Cooktop Type | Radiant Smoothtop |
| Control Location | Front |
| Element - Right Rear | 6" 1200W |
| Storage Drawer Features | Removable Full-Width |
| Heating Element "ON" Indicator Light | 1 |
| Element - Left Rear | 6" 1200W |
