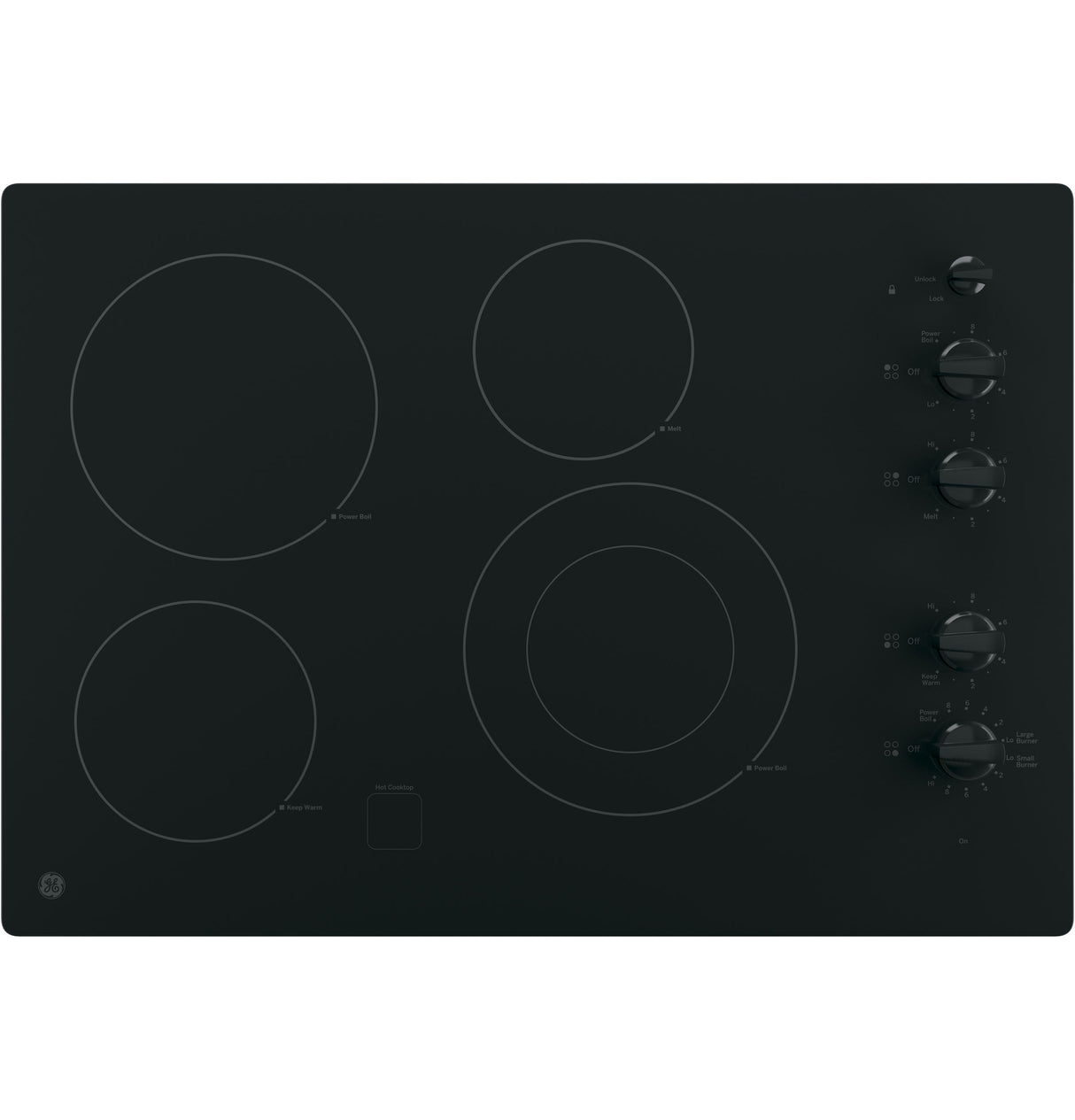

GE® 30" Built-In Knob Control Electric Cooktop
Model: JP3530DJBB
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
GE® 30" Built-In Knob Control Electric Cooktop
Model: JP3530DJBBQuick Specs
Depth
20 7/8
Height
4
Sabbath
NO
ADA
YES
Wifi
NO
Cooktop
4
Vent
NO
Induction
NO
GE® 30" Built-In Knob Control Electric Cooktop is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$1,051.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
20 7/8
Height
4
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Cooking oven number of cooktop element
4
Downdraft Ventilation
NO
Cooking is Induction
NO

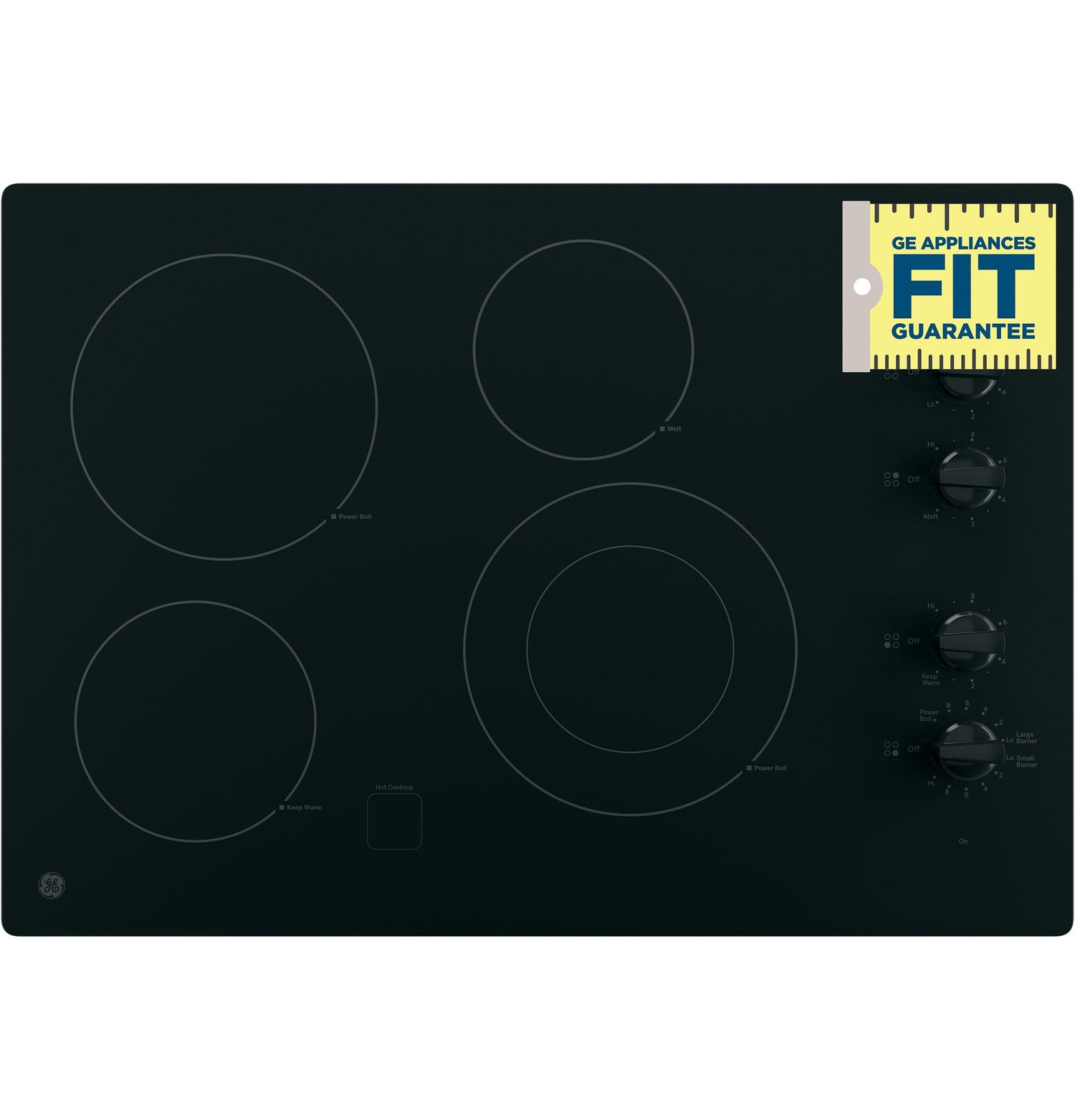

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Power Boil Dual-Ring Element
Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling

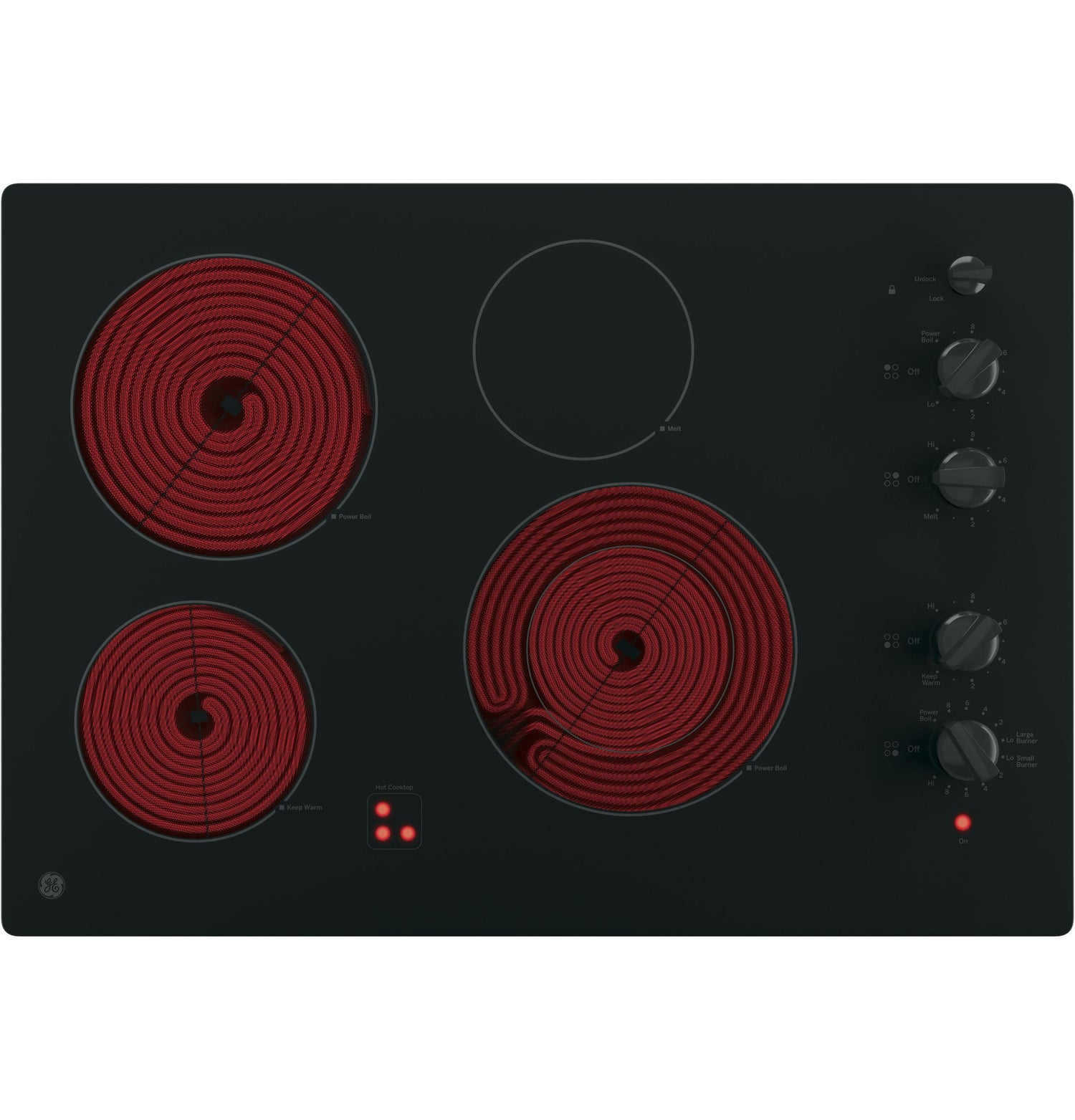

Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
8" Power Boil element
Get rapid heat from this powerful 2,500-watt element
- Fit Guarantee
- Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- Four radiant cooking elements
- Cook foods quickly and evenly on this sleek, glass surface
- Power Boil Dual-Ring Element
- Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling
- 8" Power Boil element
- Get rapid heat from this powerful 2,500-watt element
- Keep Warm Setting
- A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
- Melt Setting
- Gently melt delicate foods without scorching thanks to a convenient melt setting
- Control lock capability
- Protects against unintended activation
- Hot surface indicator lights
- Know when elements are too hot to touch with a quick glance
- Cooktop "On" indicator light
- A light lets you know when an element is active
- Fit Guarantee
- Four radiant cooking elements
- Power Boil Dual-Ring Element
- 8" Power Boil element
- Keep Warm Setting
- Melt Setting
- Control lock capability
- Hot surface indicator lights
- Cooktop "On" indicator light
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Fuel Type | Electric |
| App Filter - Control Type | Rotary knobs |
| APPEARANCE | |
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 8.3 |
| Max. Current Draw (Amps) at 240V | 34.6 |
| Max. Connected Load (kW) at 208V | 6.2 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 30.0 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 30 in |
| Overall Height | 4 in |

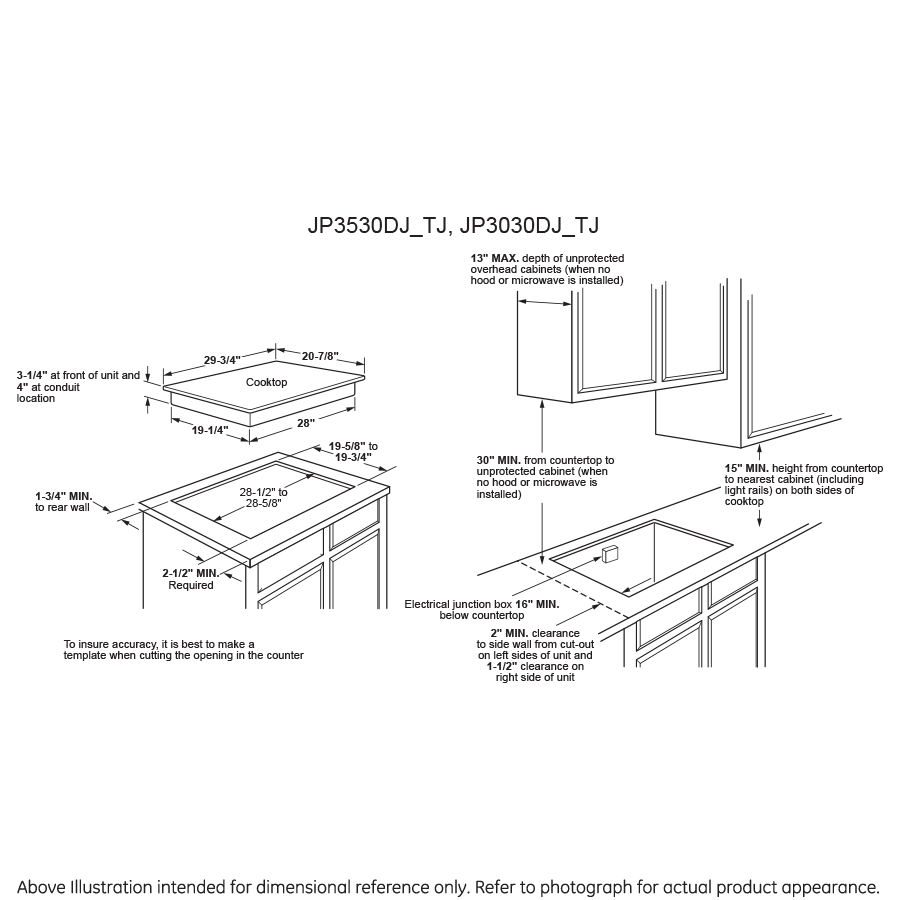

| Cutout Depth (in) | 19-5/8 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Overall Width | 29.75 in |
| Net Weight | 37 lb |
| Cutout Width (in) | 28-1/2 |
| Overall Depth | 20.875 in |
| FEATURES | |
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32B |
| Cooktop Burner Type | 4 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 7" 1500W |
| Indicator Lights | 4 Hot Surface Red Surface Element "ON" |
| Element - Right Front | 9"/6" 3100W Power Boil |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | Control Lock Capability Keep-Warm Setting Melt Setting |
| Element - Left Rear | 8" 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6" 1200W |
