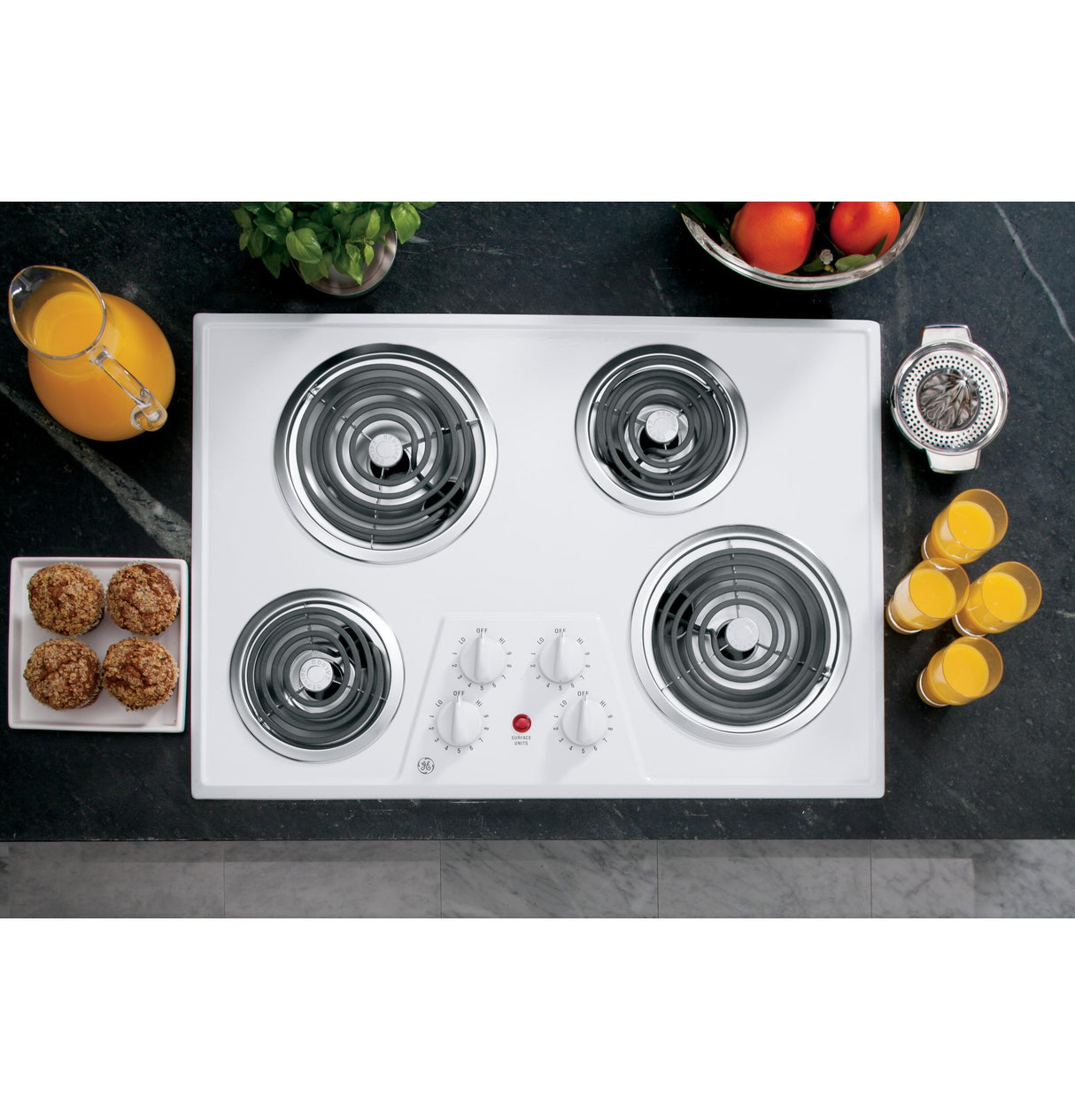

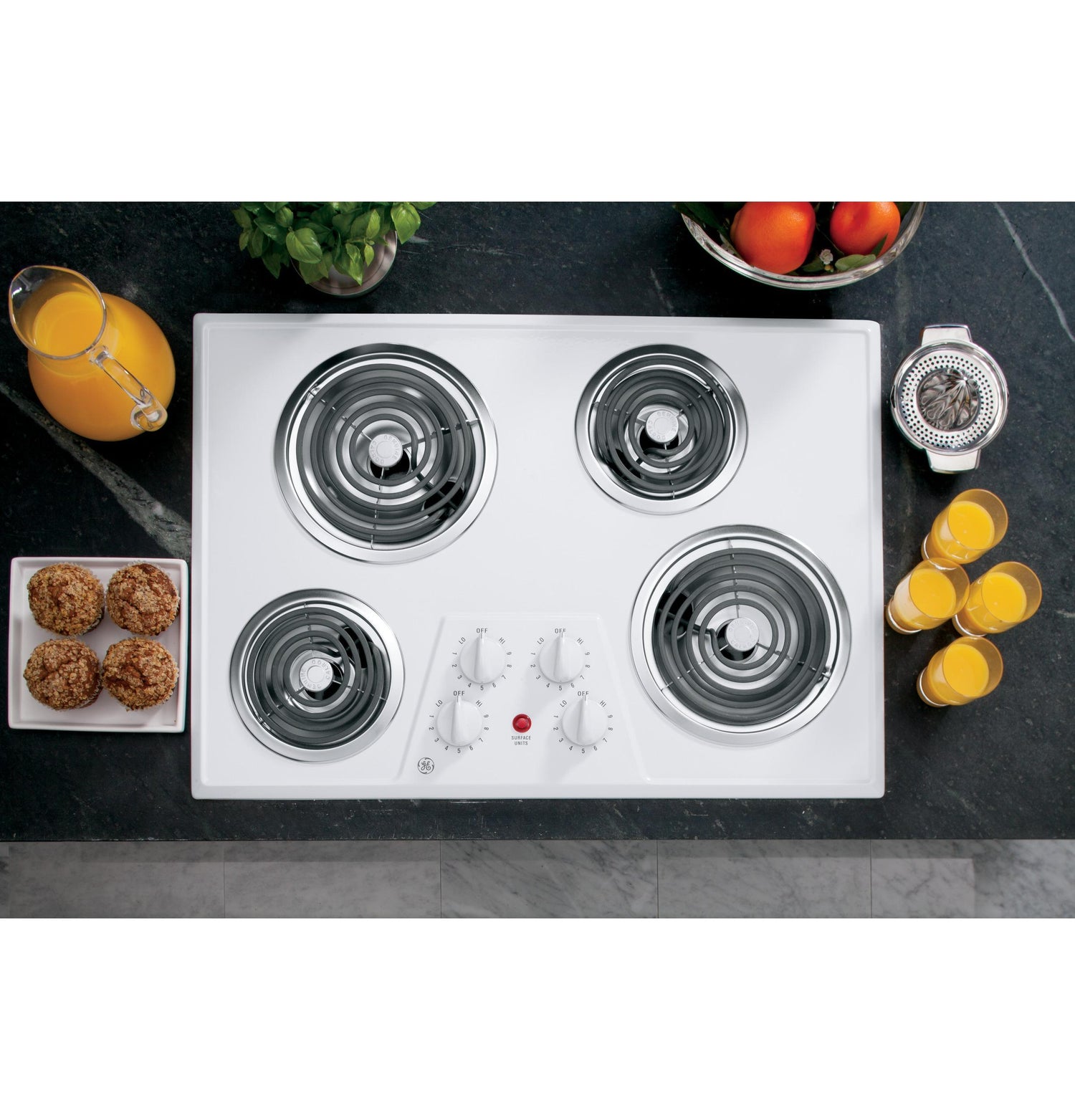

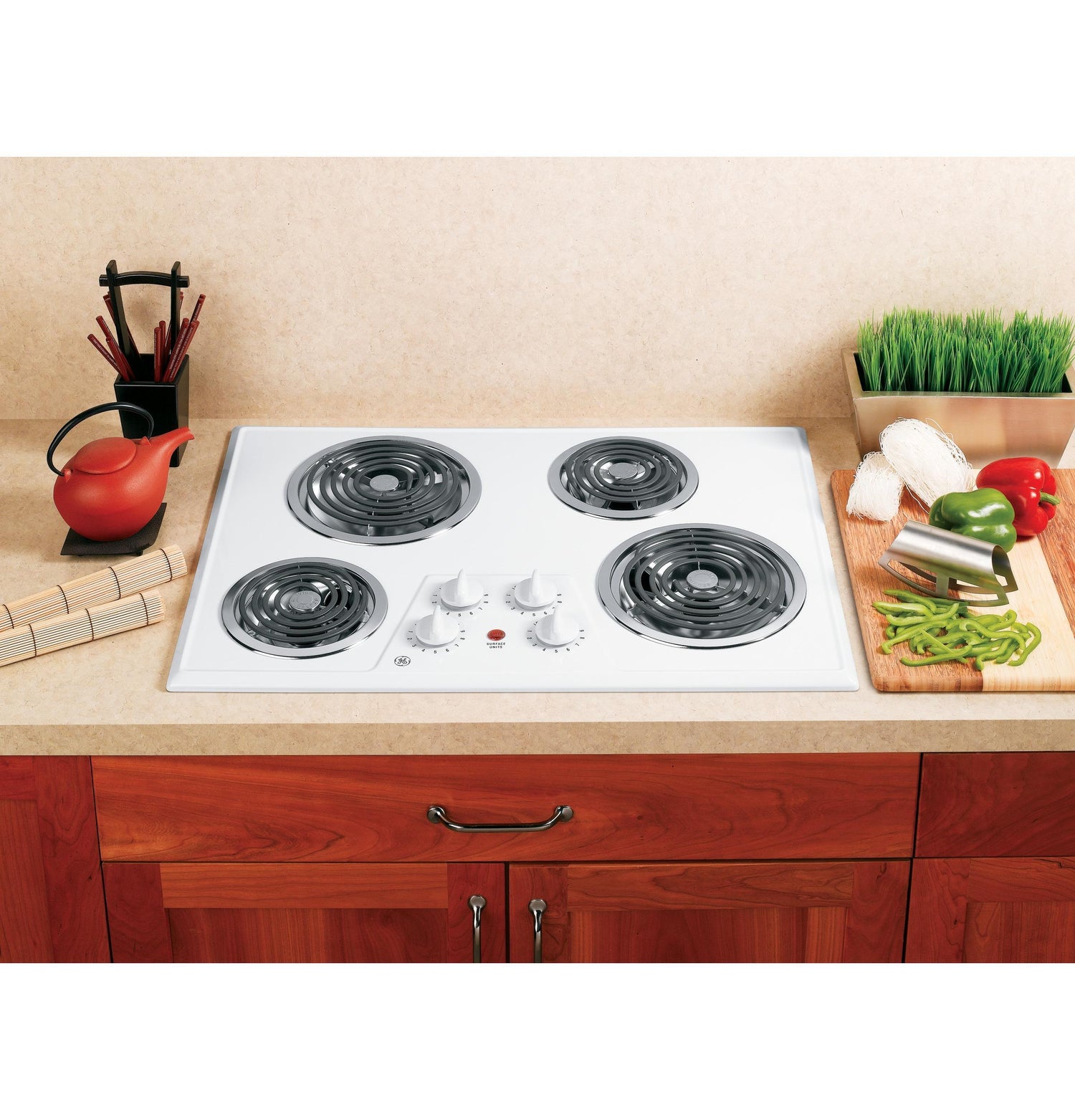

GE® 30" Built-In Electric Cooktop
Model: JP328WKWW
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
GE® 30" Built-In Electric Cooktop
Model: JP328WKWWQuick Specs
Depth
21 1/4
Height
3
ADA
NO
Wifi
NO
Cooktop
4
Vent
NO
Induction
NO
GE® 30" Built-In Electric Cooktop is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$367.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21 1/4
Height
3
ADA
NO
Wifi Connected
NO
Cooking oven number of cooktop element
4
Downdraft Ventilation
NO
Cooking is Induction
NO
Fit Guarantee

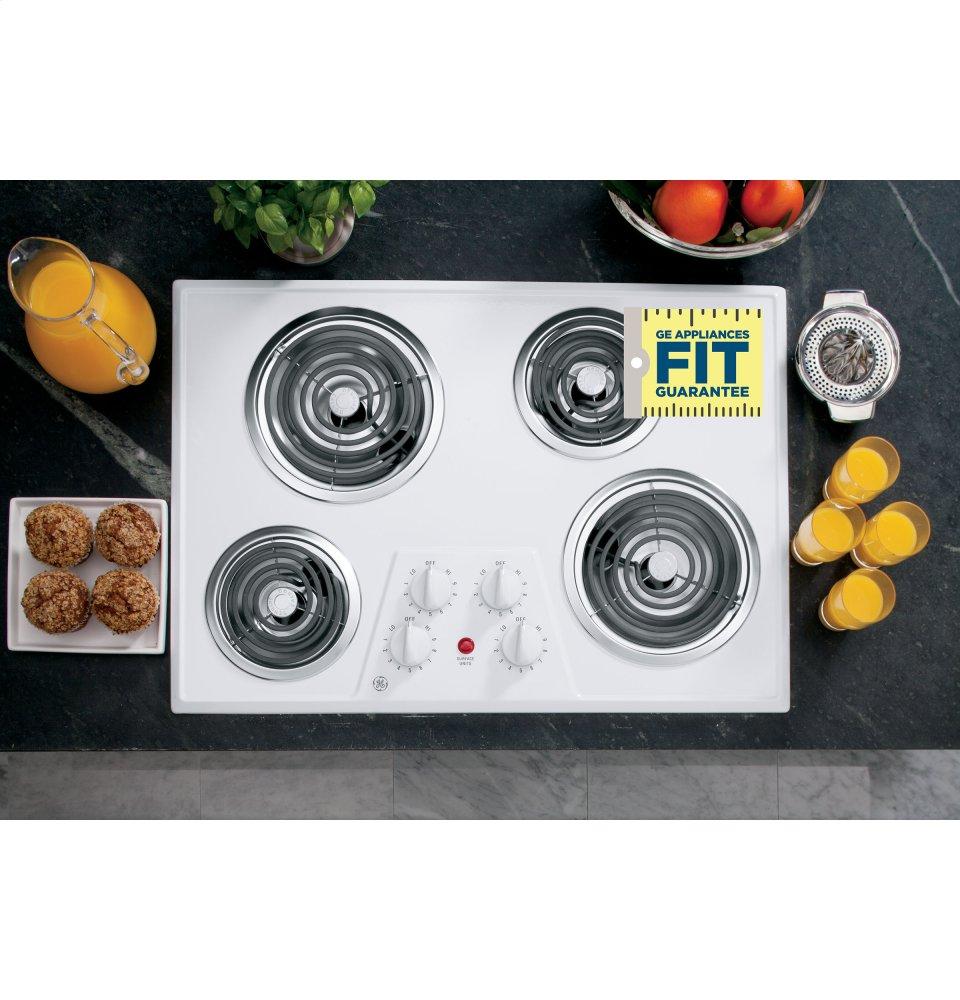

Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Fit Guarantee
- Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Coil heating elements
- Provide even heat and easy cleanup
- Removable drip bowls
- Removable for easy cleaning
- Lift up cooktop with support rod
- Access messes under the cooktop for easy cleanability
- Upfront controls
- Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
- Heating element "On" light
- Know when an element is on
- Fit Guarantee
- Coil heating elements
- Removable drip bowls Removable for easy cleaning
- Lift up cooktop with support rod
- Upfront controls
- Heating element "On" light
| FILTER | |
| App Filter - Control Type | Rotary knobs |
| App Filter - Cooktop Type | Coil |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Fuel Type | Electric |
| APPEARANCE | |
| Color Appearance | White on White |
| POWER / RATINGS | |
| KW Rating at 208V | 5.6 |
| KW Rating at 240V | 7.4 |
| Amp Rating at 208V | 30 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 27.0 |
| Cooktop Size | 30.0 |
| Overall Depth | 21.25 |
| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-1/2 |
| Overall Width | 30.25 |
| Overall Height | 3.0 |
| Approximate Shipping Weight | 32.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Cooktop Burner Type | 4 Plug-In Calrod™ Coil |
| Element - Left Front | 6" 1300W |
| Removable One-Piece Drip Bowls | Chrome with Removable Trim Rings |
| Cooktop Surface | White Porcelain-Enamel |
| Indicator Lights | Surface Element "ON" |
| Control Type | Infinite Heat Rotary |
| Lift-Up Cooktop With Support Rods | Yes |
| Element - Right Front | 8" 2400W |
| Control Location | Front Center |
| Element - Right Rear | 6" 1300W |
| Element - Left Rear | 8" 2400W |
