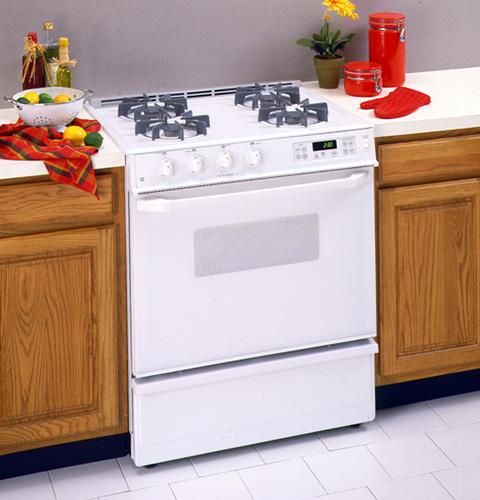

GE® 30" Slide-In Gas Range
Model JGSP23CEYCC
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Slide-In Gas Range
Model JGSP23CEYCCQuick Specs
Depth
28 7/8
Height
36 1/4
ADA
NO
Burner
Open
Storage
YES
Warming
NO
Burners
4
Grate
NO
GE® 30" Slide-In Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/23/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28 7/8
Height
36 1/4
ADA
NO
Burner Type
Open
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
NO
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-Clean Oven: Conveniently cleans the oven cavity without the need for scrubbing
- Sealed Cooktop Burners: Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
- Standard Simmer Burner Provides low, even heat distribution for all of your delicate foods and sauces
- Electronic Oven Controls One-touch electronic pads are easy-to-use and allow for simple oven operation
- Porcelain Drip Bowls Contains minor spills and are removable for cleaning in the sink or dishwasher
- ClearView Window Features a convenient viewing area to check the progress of food
| FEATURES | |
| Cooktop Burner Type | Sealed |
| Broiler Pan and Grid | Yes |
| One-Piece Drip Pans | Porcelain-Enameled |
| Leveling System | 4 Leveling Legs |
| Interior Oven Light | Yes |
| Oven Control Features | Delay Bake Option With Cook & Hold C° or F° Programmable Audible Preheat Signal Auto Oven Shut-Off with Override Electronic Clock & Kitchen Timer Start Pad Control Lock Capability In-Oven Broiling Temperature Display |
| Standard Simmer Burner | Yes |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Fuel Type | Natural Gas (factory set) |
| Automatic Self-Clean Oven Door Lock | Yes |
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| All-Purpose Burners | 3 |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Features | 2 Oven Racks |
| Cooktop Burner Grate Material | Standard Cast Round |
| APPEARANCE | |
| Handle | Designer-Style |
| Color Appearance | Bisque on Bisque |
| Cooktop Burner Grate Color | Grey |
| Oven Door Features | ClearView Oven Window |
| Frameless Oven Door(s) | Bisque Glass |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 192 lb |
| Depth With Oven Door Open 90 Degrees (in.) | 45-1/8 |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 22-3/4 x 13 x 17 |
| Net Weight (lbs.) | 167 lb |
| Overall Height | 36 1/4 in |
| Cabinet Opening | 30 in |
| Overall Width | 30 in |
| Overall Depth | 28 7/8 in |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (3) 9.5; (1) 5.0 |
| Electrical Requirements | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (3) 7.0; (1) 4.0 |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 |
| ACCESSORIES | |
| Optional Backguard | JXS31 (White) |
| Trim Kit - Lower | JXS56CC (Bisque) |
| Rear Filler Strip Kit (Included) | JXS63WW (White) |
| LP Conversion Kit | Included |
| Trim Kit - Endcap | JXS40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
- Self-Clean Oven: Conveniently cleans the oven cavity without the need for scrubbing
- Sealed Cooktop Burners: Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
- Standard Simmer Burner Provides low, even heat distribution for all of your delicate foods and sauces
- Electronic Oven Controls One-touch electronic pads are easy-to-use and allow for simple oven operation
- Porcelain Drip Bowls Contains minor spills and are removable for cleaning in the sink or dishwasher
- ClearView Window Features a convenient viewing area to check the progress of food
