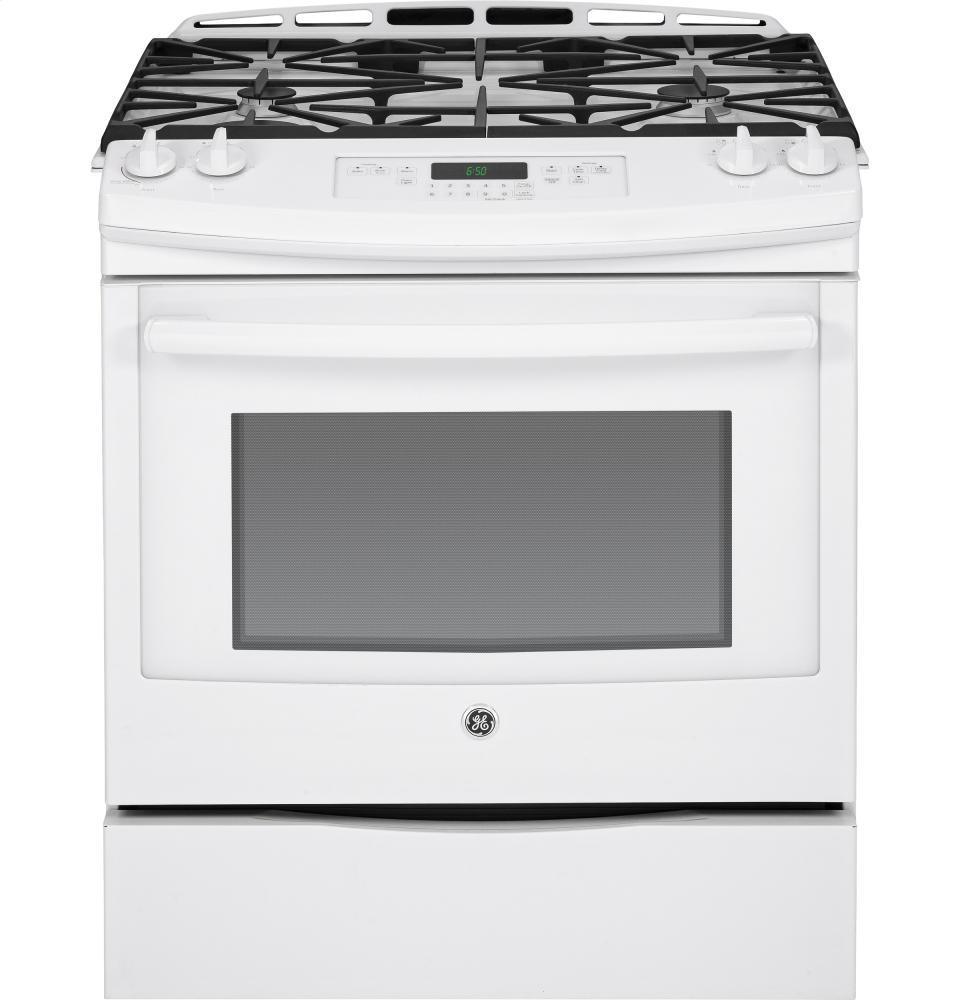

GE® 30" Slide-In Front Control Gas Range
Model JGS650DEFWW
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
GE® 30" Slide-In Front Control Gas Range
Model JGS650DEFWWQuick Specs
Depth
29 3/8
Height
39 1/4
ADA
YES
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
Grate
YES
GE® 30" Slide-In Front Control Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
29 3/8
Height
39 1/4
ADA
YES
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Deep-recessed cooktop
- Contains spills for quick and easy cleaning
- 5.6 cu. ft. oven capacity
- Enough room to cook an entire meal at once
- Deep-recessed cooktop Contains spills for quick and easy cleaning
- 5.6 cu. ft. oven capacity Enough room to cook an entire meal at once

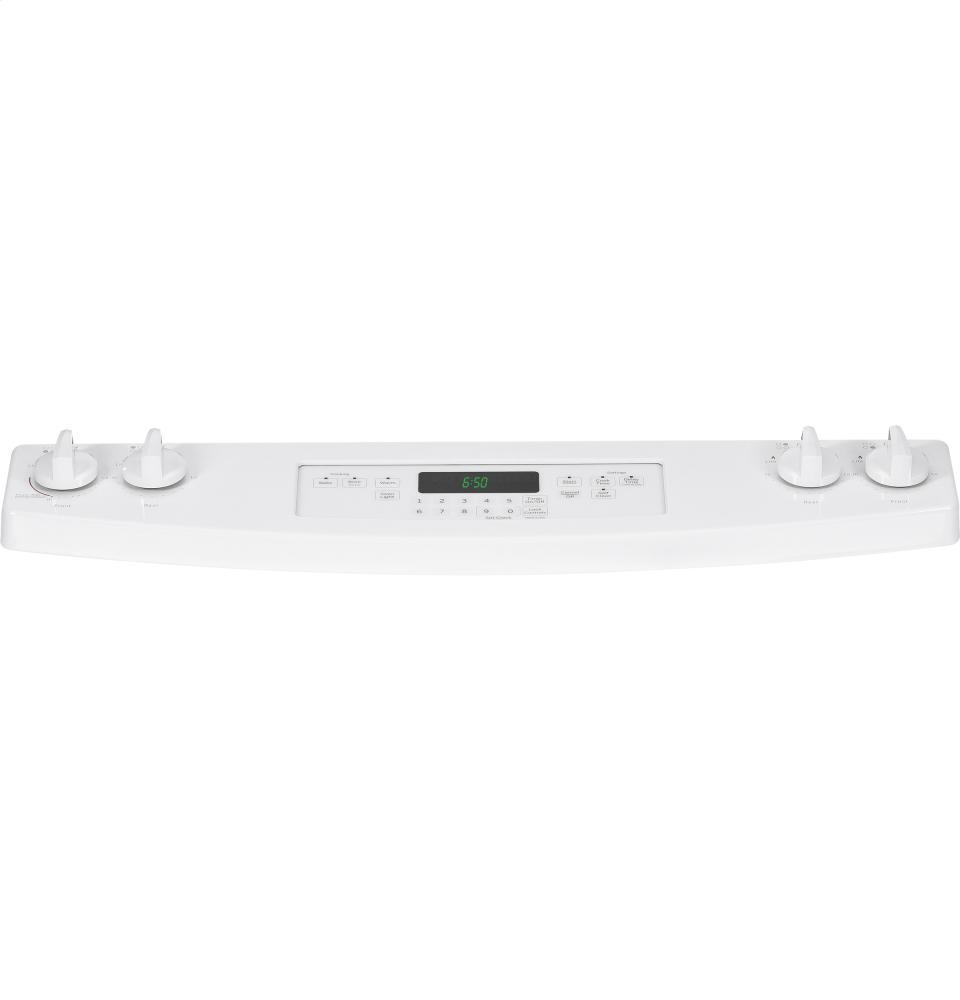

- Front controls

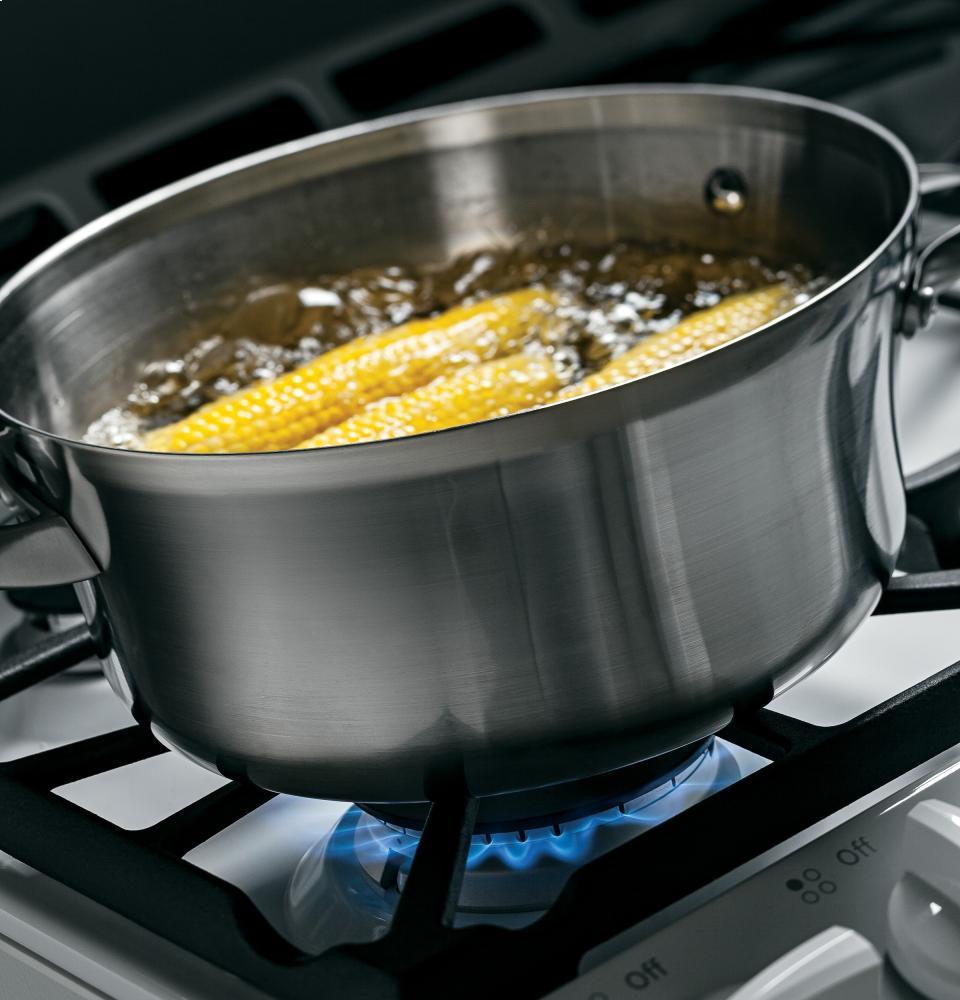

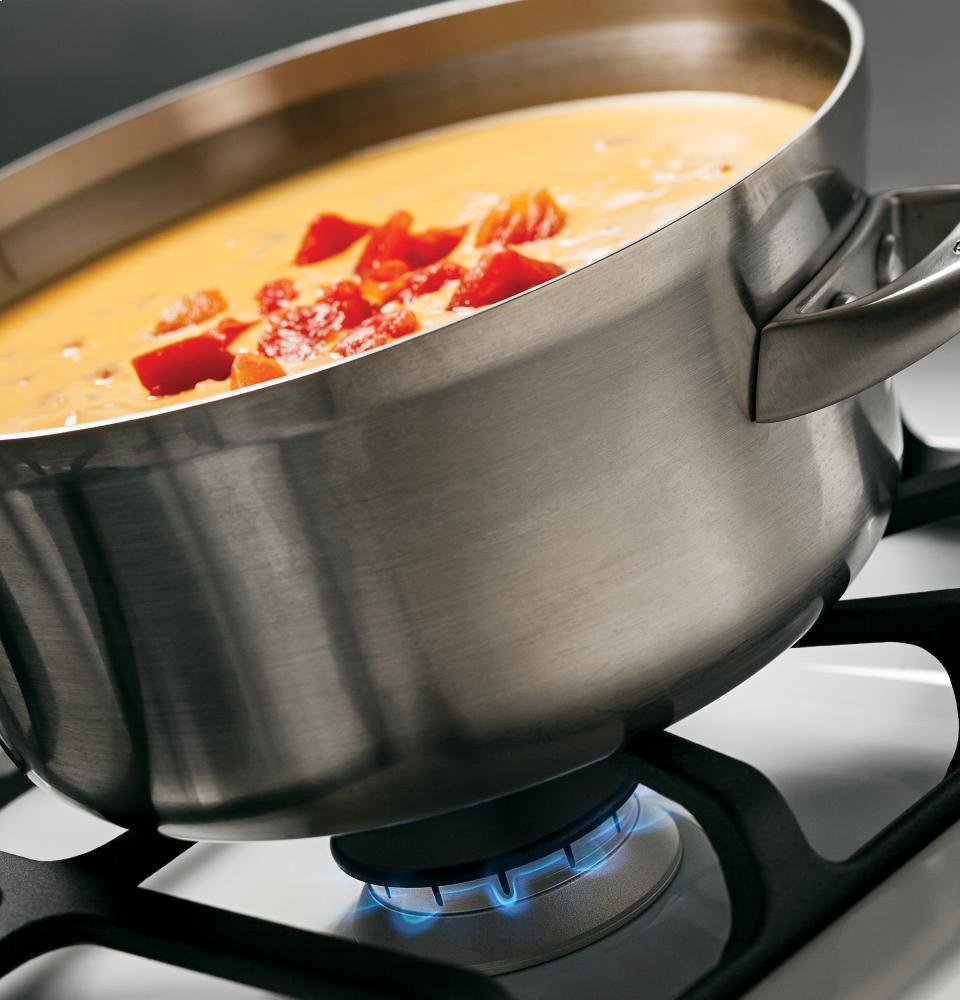

(B)15,000 BTU Power Boil burner(/B)(P)Delivers high heat for fast boiling(/P)(BR)(B)Precise Simmer burner(/B)(P)Delicate foods don't burn with low, even heat(/P)(BR)(B)Heavy-cast, continuous grates(/B)(P)Allow for easy movement of pans between burners(/P)(BR)(B)Self-clean oven(/B)(P)Cleans the oven cavity without the need for scrubbing(/P)
| FEATURES | |

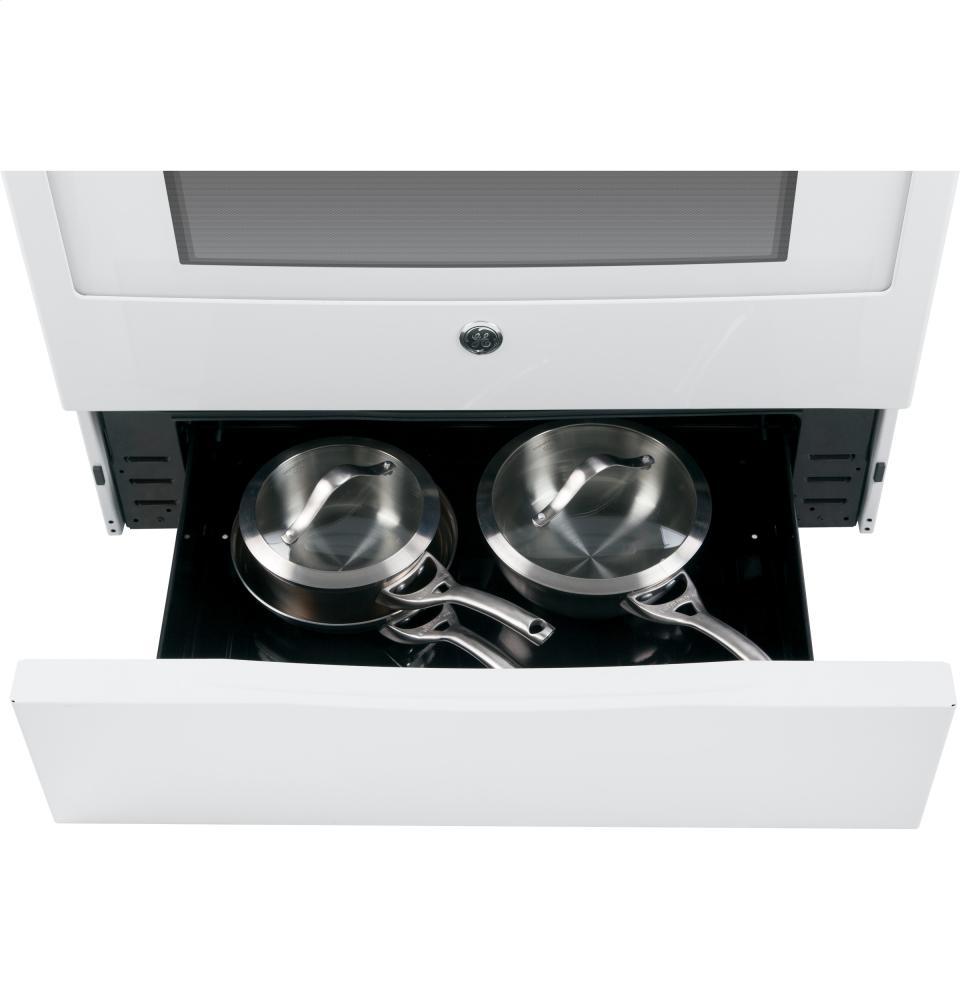

| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |

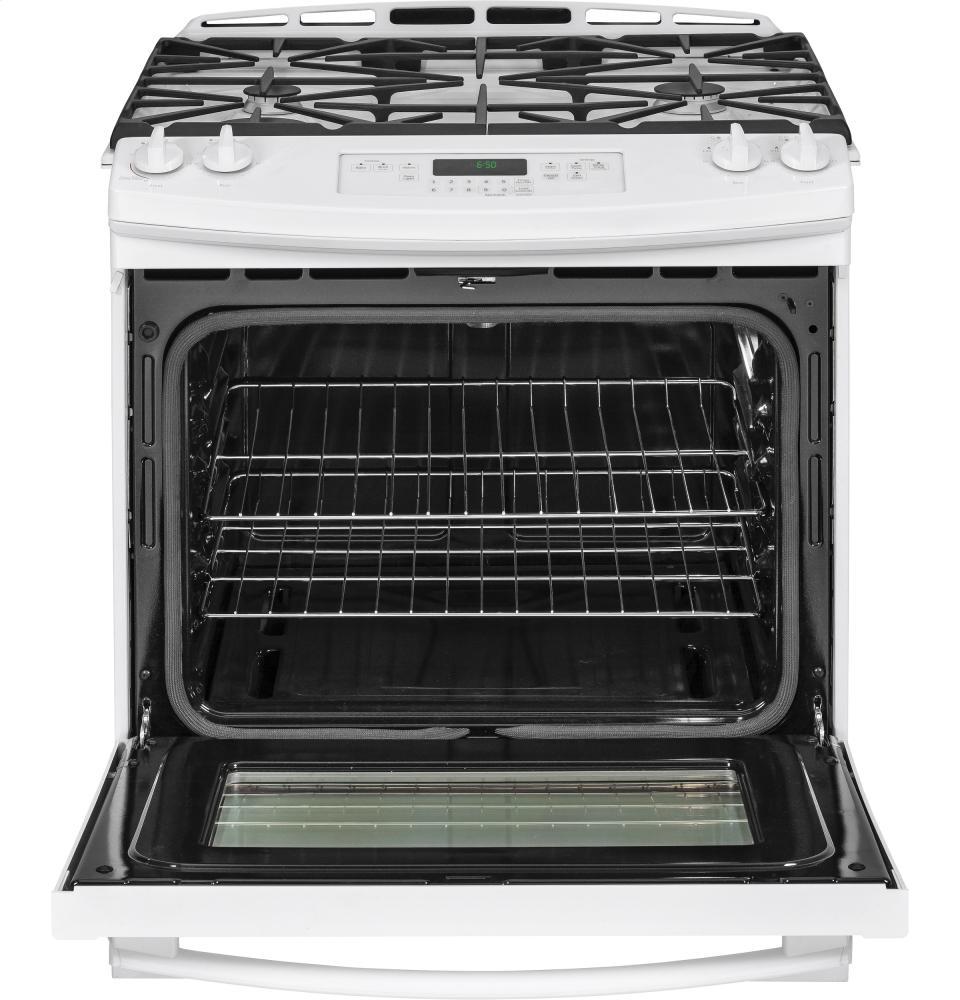

| Oven Rack Features | 2 Oven Racks |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep Recessed Overhanging Cooktop Porcelain-Enamel White |
| Burner - Left Front | 15,000 BTU Power Boil |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 11,000 BTU |
| Burner - Right Rear | 9,100 BTU |
| Control Type | Electronic |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Certified Sabbath Mode Front Controls |
| Control Location | Front controls |

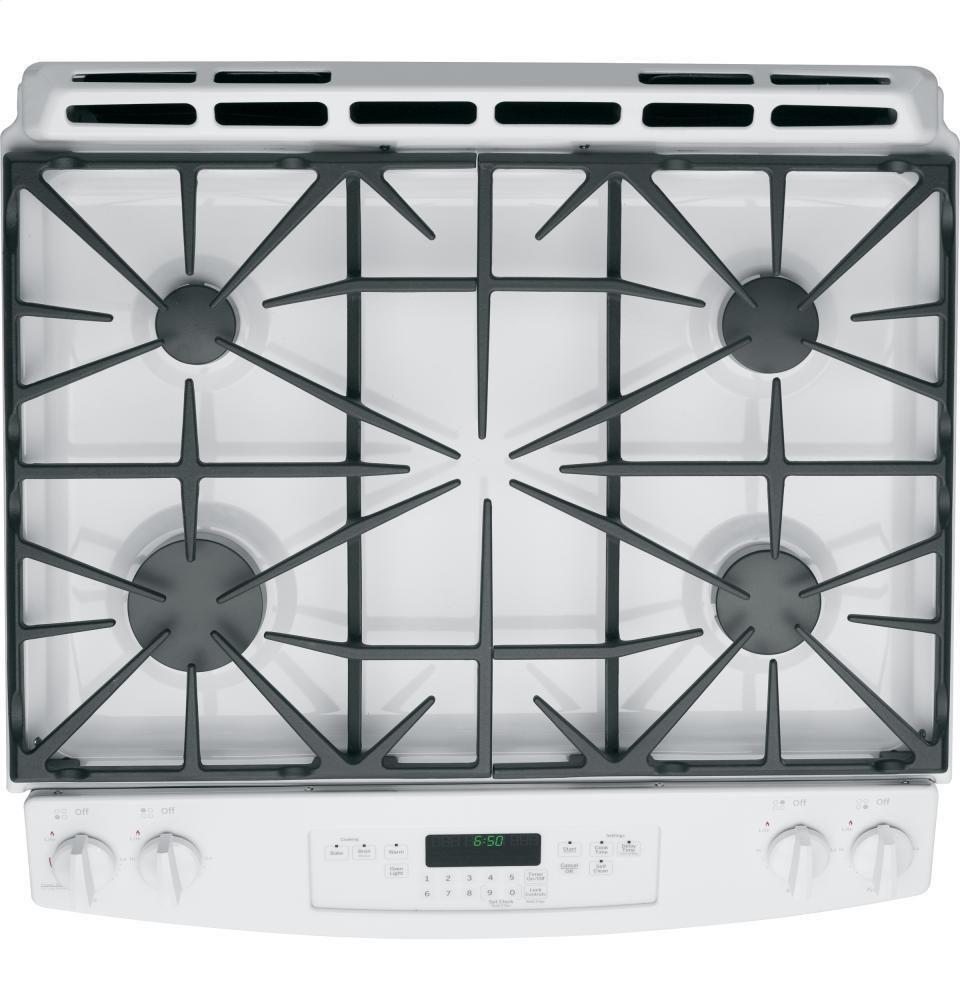

| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| Cooking System | Traditional |
| CAPACITY | |

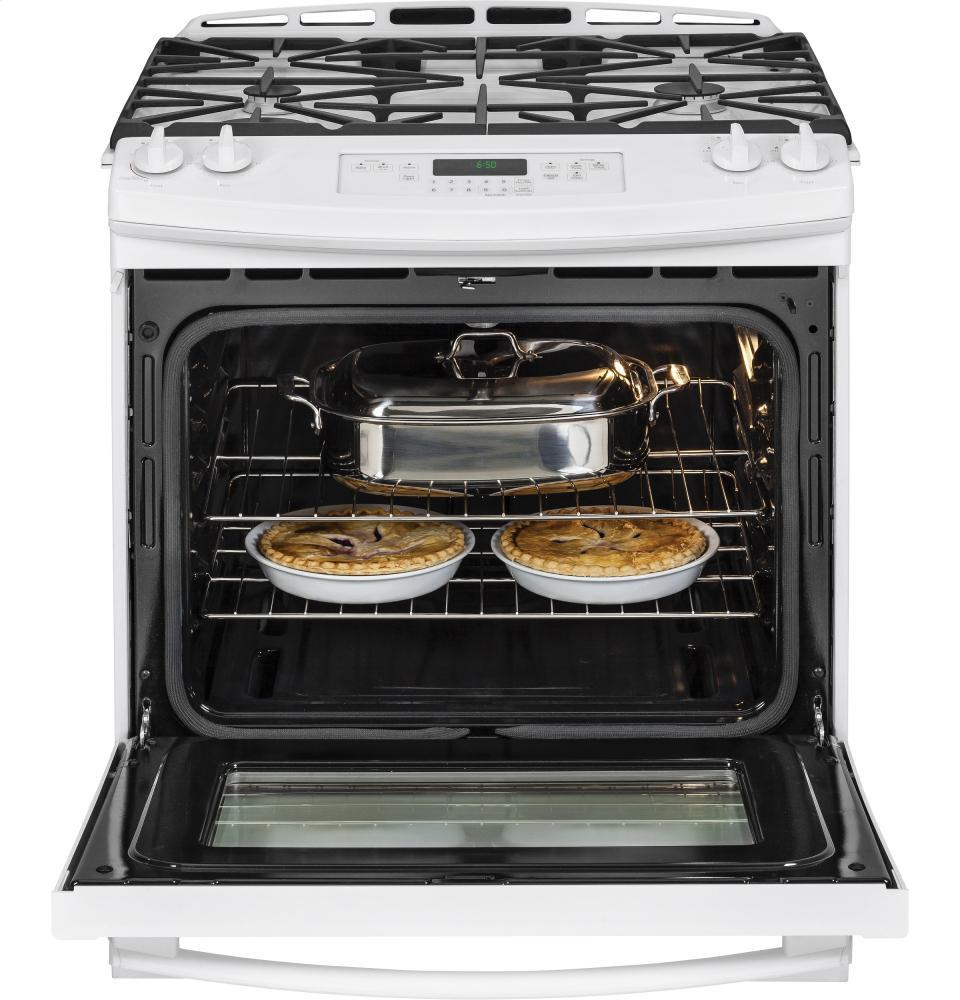

| Total Capacity (cubic feet) | 5.6 cu ft |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Color-Matched Weighted |
| Cooktop Burner Grate Color | Black Matte |
| Handle | Color-Matched Designer Style |

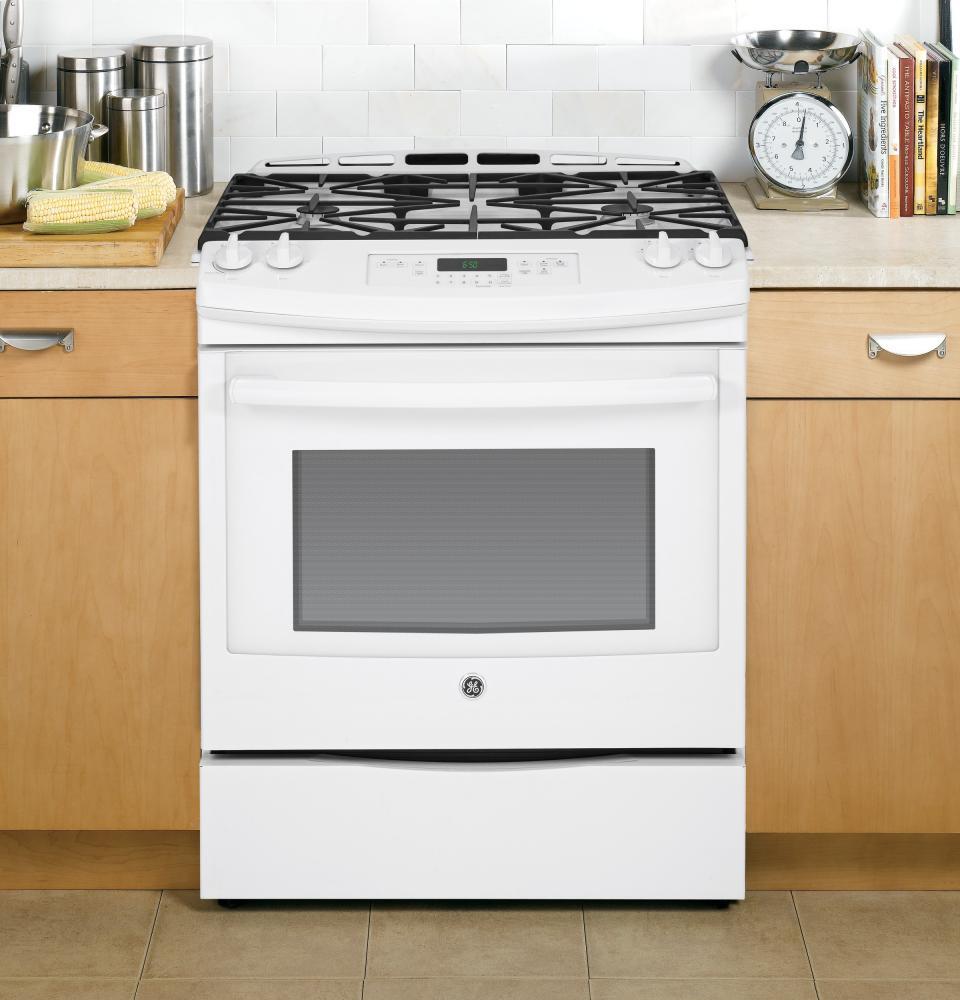

| Installation | Flush Appearance Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 245 lb |
| Cabinet Opening | 30 in |
| Cabinet Width | 30 in |
| Net Weight | 225 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Overall Depth | 29 3/8 in |
| Overall Height | 39 1/4 in |
| Overall Width | 31 1/4 in |
| Depth with Door Open | 47 5/8 in |
| Depth Without Handle | 26 7/8 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 5.0; (1) 10.0; (1) 9.1 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 11.0 (1) 9.1; (1) 15.0; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| CLAIMS & CERTIFICATIONS | |
| ADA Compliant | |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Optional Body Sides | Included |
| Trim Kit - Island | JXS81WW |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
- Deep-recessed cooktop Contains spills for quick and easy cleaning
- 5.6 cu. ft. oven capacity Enough room to cook an entire meal at once
- Front controls
