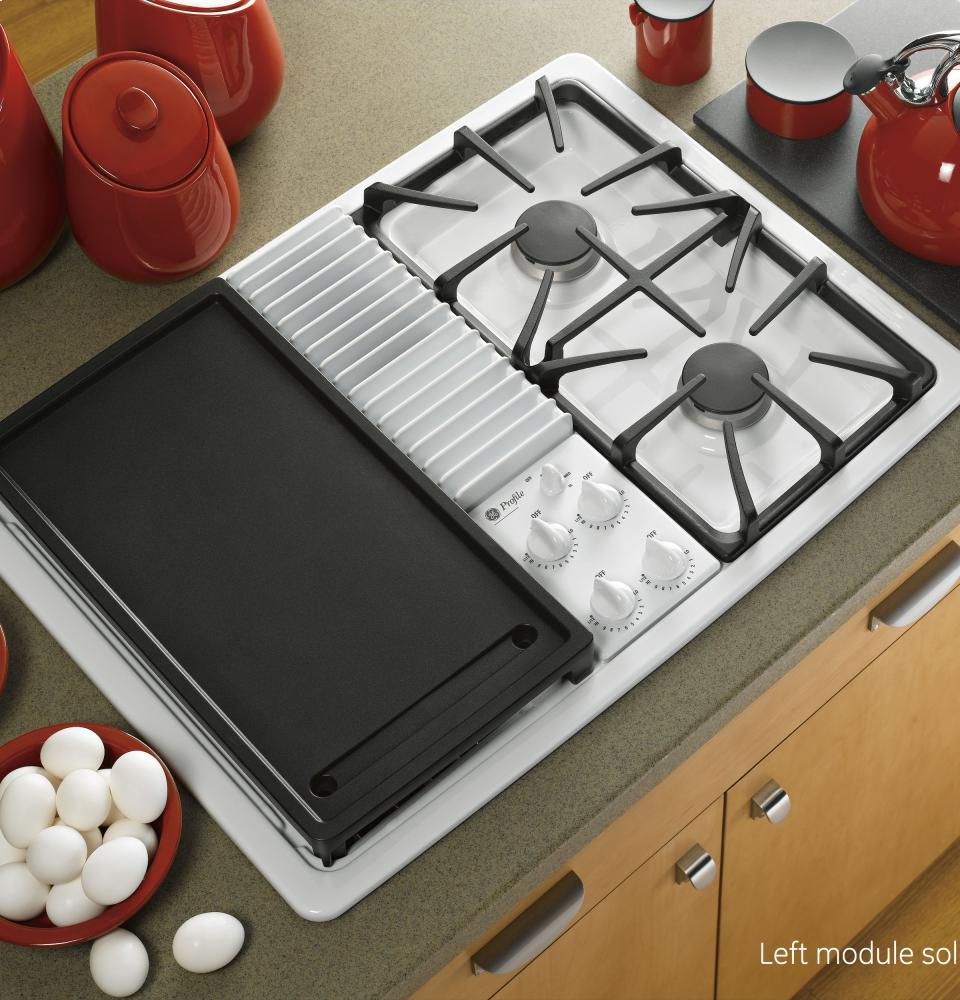

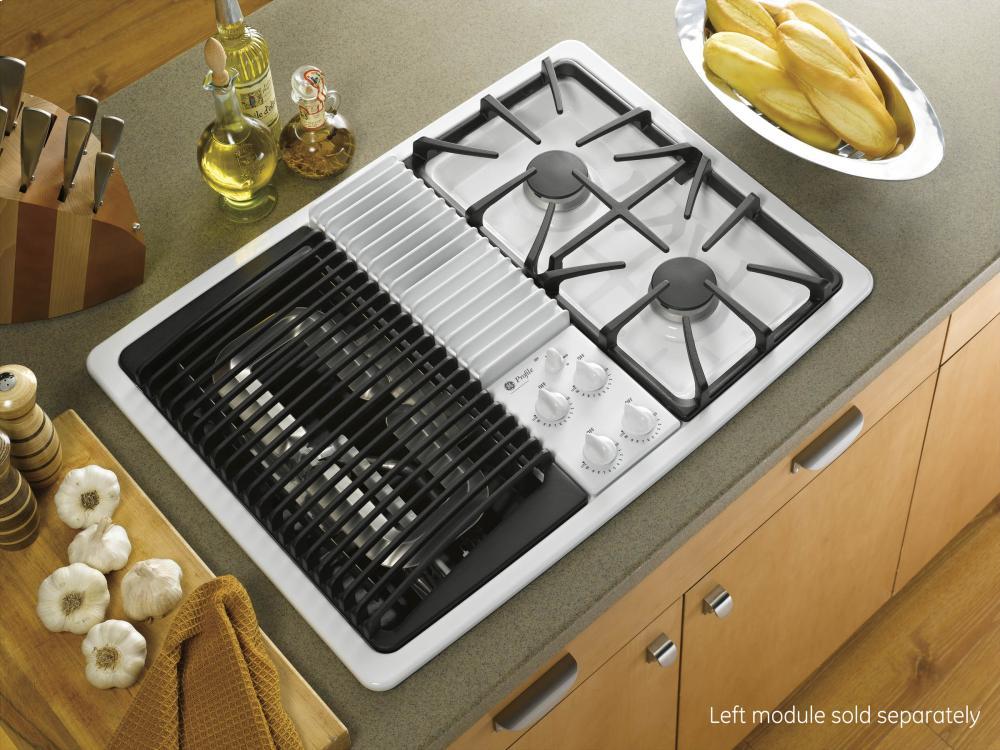

GE Profile™ Built-In Downdraft Gas Modular Cooktop
Model JGP990WELWW
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
GE Profile™ Built-In Downdraft Gas Modular Cooktop
Model JGP990WELWWQuick Specs
Depth
21.75
Height
18.5
ADA
NO
Burner
Sealed
Burners
2
Grate
YES
Vent
YES
RPM
-1.0
GE Profile™ Built-In Downdraft Gas Modular Cooktop is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
21.75
Height
18.5
ADA
NO
Burner Type
Sealed
Cooking oven number of burners
2
Continuous Grate
YES
Downdraft Ventilation
YES
RPM
-1.0
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Modular Cooktop Options
- Allows the cooktop to be customized to suit individual cooking styles and tastes. Modules sold separately
- Two-Burner Gas Module
- Shipped with unit (right bay) offers a range of temperature settings for cooking versatility
- Downdraft exhaust
- Powerful exhaust system effectively pulls smoke and steam out of the kitchen
- Variable 3 Speed Fan Control
- Powerful variable speed exhaust system that effectively pulls smoke and vapors out of the kitchen
- Sealed Cooktop Burners
- Adhere to cooktop to help contain spills and make cleaning quick and easy
- Continuous Grates
- Provide a flat, sturdy surface allowing easy movement of pans between burners
- Modular Cooktop Options
- Two-Burner Gas Module
- Downdraft exhaust
- Variable 3 Speed Fan Control
- Sealed Cooktop Burners
- Continuous Grates
| Cooktop Burner Type | 2 Sealed, 10,000 BTU |
| Cooktop Surface | Deep Porcelain-Enamel |
| Ignition System | Electronic |
| Accepts Modules | Left Side Only |
| Component Style | Downdraft Vent |
| Configuration | Dual Modular - Both sides accept optional modules |
| Control Type | Infinite Heat Rotary |
| Control Location | Upfront |
| Downdraft Exhaust (CFM) | 400 |
| Variable Speed Fan | 3 Speeds - Hi/Med/Low |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Dishwasher Safe Knobs | Yes |
| Fuel Type | Natural Gas (factory set) |
| Gas Grill Module (sold separately) | JXGG90L (left side only) |
| Griddle Module (sold separately) | JXGL90L (left side only, requires grill module (JXGG90L) to operate) |
| LP Convertible | Yes, Kit Included |
| Mix or Match Component Capability | Yes |
| Optional Blower Mount Capabilities | Back or Straight Down |
| Removable Grease Filter(s) | Yes |
| Style | Downdraft |
| Two Burner Gas Module (right side included) | JXGB90W (left side sold separately) |
| Valves (Degree of Turn) | 270 |
| APPEARANCE | |
| Control Panel Color | White |
| Color Appearance | White on White |
| Cooktop Burner Grate Color | Black Matte |
| claims & certifications | |
| ADA Compliant | |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 74 lb |
| Cabinet Width | 30 in |
| Net Weight | 64 lb |
| Overall Depth | 21 3/4 in |
| Overall Height | 18 1/2 in |
| Overall Width | 30 in |
| Space Required Below Cooktop | 6 in |
| POWER / RATINGS | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 9.1 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 10.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | (1) 9.1 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | (1) 10.0 |
| Grill BTU Rating (000's/BTU) - LP Gas | (1) 9.1 |
| Grill BTU Rating (000's/BTU) - Natural Gas | (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
