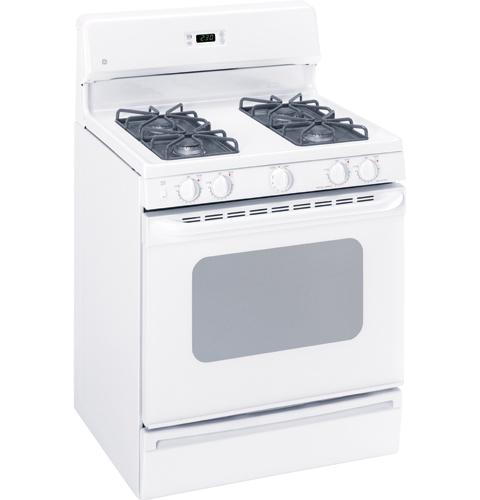

GE® 30" Free-Standing Gas Range
Model JGBS23WEHWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBS23WEHWWQuick Specs
Depth
26 1/4
Height
46 1/2
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
NO
Burners
4
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26 1/4
Height
46 1/2
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
NO
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Extra-Large Oven Capacity Provides a large oven interior ideal for cooking more items at once
- High Output Burner: Provides a powerful burner output for efficient heat-up and boiling
- Precise Simmer Burner: Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
- All Purpose Burners Deliver a wide range of heat output ideal for most cooking requirements
- Sealed Cooktop Burners: Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
- Electronic Clock And Timer Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
| CAPACITY | |
| Total Capacity (cubic feet) | 4.4 cu ft |
| Unit Capacity | Extra-Large Oven |
| FEATURES | |
| Cooktop Burner Type | Sealed |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| One-Piece Drip Pans | Grey Porcelain-Enameled |
| High Output Burner | (1) 12000/1000 BTU |
| Precise Simmer Burner | (1) 5000/600 BTU |
| Leveling System | 4 Leveling Legs |
| Interior Oven Light | Yes |
| Oven Control Features | Electronic Clock and Timer |
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Backguard | Yes |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean |
| Fuel Type | Natural Gas (factory set) |
| All-Purpose Burners | (2) 9500/850 BTU |
| Cooktop Surface | Porcelain-Enamel One-Piece Upswept |
| Valves (Degree of Turn) | 270 |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel Square |
| Broiler Pan | Yes |
| APPEARANCE | |
| Handle | Designer-Style |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Grey |
| Oven Door Features | Big ClearView Oven Window |
| Frameless Oven Door(s) | White Glass |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 180 lb |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Net Weight (lbs.) | 160 lb |
| Overall Height | 46 1/2 in |
| Overall Width | 30 in |
| Overall Depth | 26 1/4 in |
| POWER / RATINGS | |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
- Extra-Large Oven Capacity Provides a large oven interior ideal for cooking more items at once
- High Output Burner: Provides a powerful burner output for efficient heat-up and boiling
- Precise Simmer Burner: Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
- All Purpose Burners Deliver a wide range of heat output ideal for most cooking requirements
- Sealed Cooktop Burners: Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
- Electronic Clock And Timer Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
