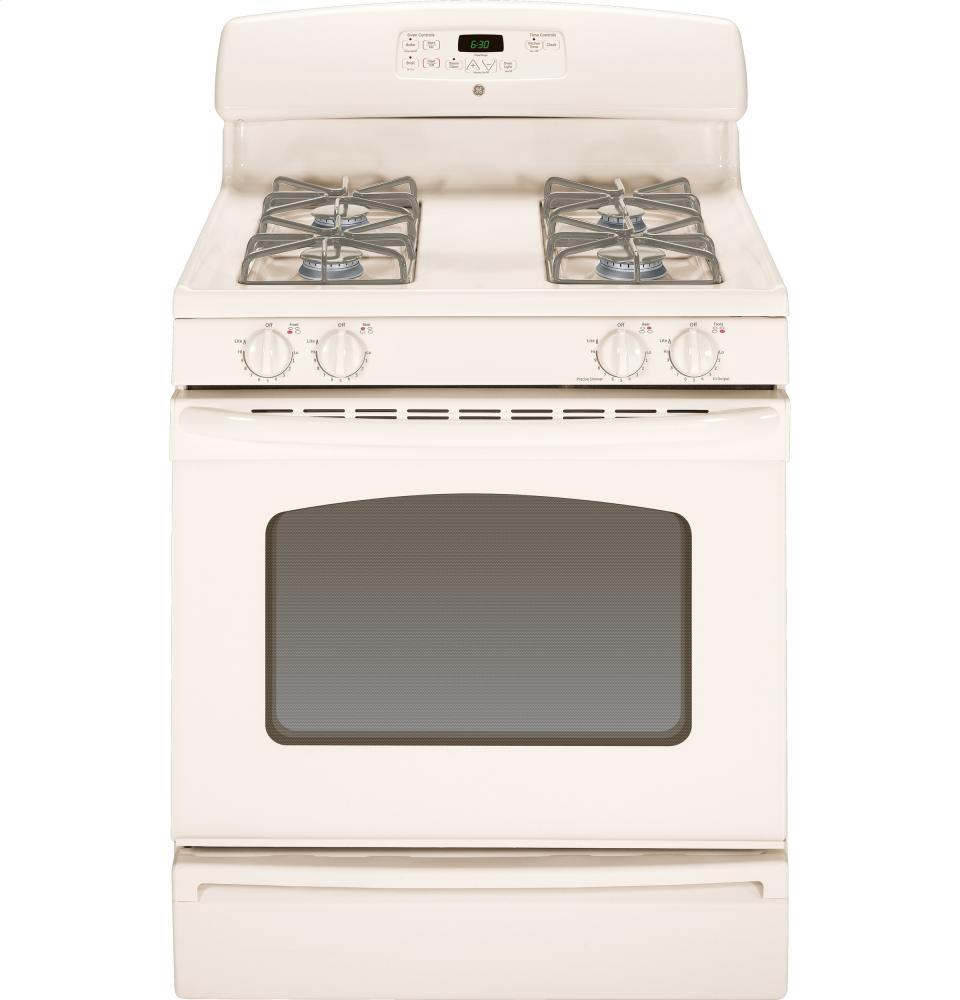

GE® 30" Free-Standing Gas Range with Steam Clean
Model JGBS23DETCC
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range with Steam Clean
Model JGBS23DETCCQuick Specs
Depth
26.25
Height
46.5
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
GE® 30" Free-Standing Gas Range with Steam Clean is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.25
Height
46.5
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- 4.8 cu. ft. oven capacity
- More room for cooking more dishes at once
- Steam Clean Cycle
- The power of steam loosens baked-on foods and assists in oven cleaning
- High output burner
- This 12,500 BTU burner element provides the high heat ideal for frying or saute ing and fast heat-up
- Precise Simmer Burner
- Delivers a low setting of 140 degrees, ideal for delicate foods and sauces
- Big hearth window
- Elegant shaped window makes it easy to monitor the progress of food
- 4.8 cu. ft. oven capacity
- Steam Clean Cycle
- High output burner
- Precise Simmer Burner
- Big hearth window
| Configuration | Range with Broiler Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean with Steam Option |
| Temperature Management System | TrueTemp™ System |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (2) 9,500 BTU |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel Square |
| High Output Burner | (1) 12,500 BTU |
| Precise Simmer Burner | (1) 5,000 BTU |
| Valves (Degree of Turn) | 270 |
| Control Type | Electronic Oven Controls QuickSet III |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Certified Sabbath Mode Control Lock Capability Electronic Clock and Timer Hi / Low Broil |
| Cooking Technology | Traditional |
| Broiler Pan and Grid | Yes |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Porcelain-Enameled Backguard | Yes |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Slide - Out Broiler Drawer | Yes |
| Oven Interior | Oven Interior Light |
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 cu ft |
| APPEARANCE | |
| Color Appearance | Bisque on Bisque |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Taupe |
| Frameless Oven Door(s) | Bisque Glass |
| Handle | Color-Matched |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 180 lb |
| Cabinet Width | 30 in |
| Net Weight | 160 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/2 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 1/4 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
