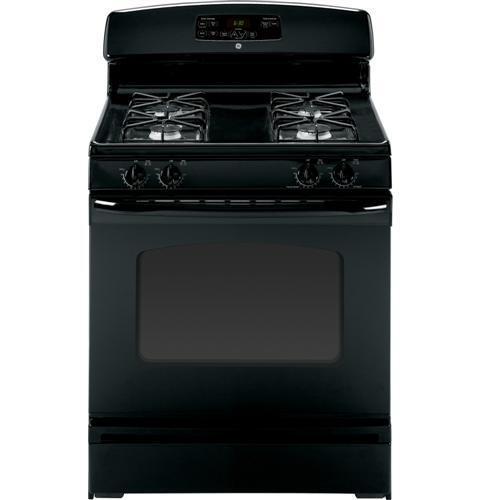

GE® 30" Free-Standing Gas Range with Steam Clean
Model JGBS23DETBB
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range with Steam Clean
Model JGBS23DETBBQuick Specs
Depth
26.25
Height
46.5
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
GE® 30" Free-Standing Gas Range with Steam Clean is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.25
Height
46.5
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- 4.8 cu. ft. oven capacity
- More room for cooking more dishes at once
- Steam clean
- Helps to clean with the power of steam
- 12,500 BTU high-output burner
- Quickly produces high heat
- Precise Simmer burner
- Delivers a low setting of 140 degrees
- Big hearth window
- Makes monitoring of foods easy
- More room for cooking more dishes at once
- Helps to clean with the power of steam
- Quickly produces high heat
- Delivers a low setting of 140 degrees
- Makes monitoring of foods easy
| APPEARANCE | |
| Color Appearance | Black on Black |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black |
| Frameless Oven Door(s) | Black Glass |
| Handle Color | Color-Matched |
| Handle Design | D-shaped |
| Oven Door Features | Big Hearth Oven Window |
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 |
| FEATURES | |
| Configuration | Range with Broiler Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean with Steam Option |
| Temperature Management System | True Temp System |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | One-Piece UpsweptPorcelain-Enamel |
| Burner - Left Front | 9,500 BTU |
| Burner - Left Rear | 9,500 BTU |
| Burner - Right Front | 12,500 BTU |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Cooktop Burner Grate Material | Deluxe Porcelain SteelSquare |
| Valves (Degree of Turn) | 270 |
| Control Type | Electronic Oven Controls |
| CAPACITY | |
| Cooking Technology | Traditional |
| APPEARANCE | |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Oven Rack Features | 2 Oven Racks6 Embossed Rack Positions |
| Porcelain-Enameled Backguard | Yes |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Slide - Out Broiler Drawer | Yes |
| WEIGHTS & DIMENSIONS | |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| POWER / RATINGS | |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 180.0 |
| Cabinet Width | 30.0 |
| Net Weight | 160.0 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| ACCESSORIES | |
| Overall Height | 46.5 |
| WARRANTY | |
| Overall Width | 30.0 |
| Depth with Door Open 90 ° | 46.25 |
| Warranty Notes | See written warranty for full details |
