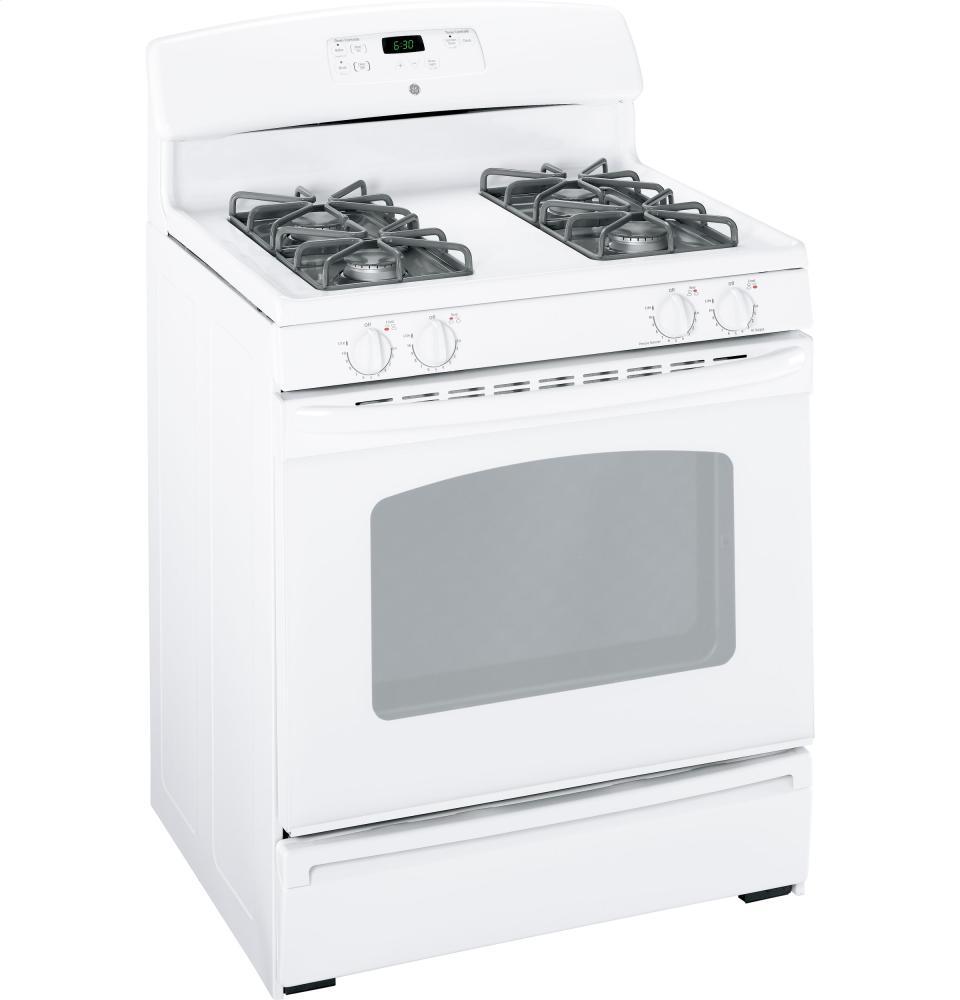

GE® 30" Free-Standing Gas Range
Model JGBS23DEMWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBS23DEMWWQuick Specs
Depth
26 1/4
Height
46 1/2
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
NO
Burners
4
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26 1/4
Height
46 1/2
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
NO
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Extra-large oven capacity
- Enough room to cook an entire meal at once
- Standard clean oven
- Smooth surface and rounded corners make clean-up quick and easy
- Precise Simmer burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces
- All purpose burners
- All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs
- Sealed cooktop burners
- Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
- Electronic clock and timer
- Convenient clock and timer helps you coordinate meal preparation and cooking
- Extra-large oven capacity: Enough room to cook an entire meal at once
- Standard clean oven: Smooth surface and rounded corners make clean-up quick and easy
- Precise Simmer burner: Allows for low, even heat distribution that is ideal for delicate foods and sauces
- All purpose burners: All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs
- Sealed cooktop burners: Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
- Electronic clock and timer: Convenient clock and timer helps you coordinate meal preparation and cooking
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 cu ft |
| FEATURES | |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel Square |
| High Output Burner | (1) 12,000/1,000 BTU |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Valves (Degree of Turn) | 270 |
| Control Type | Electronic Oven Controls QuickSet III |
| Broiler Pan and Grid | Yes |
| Clock and Minute Timer | Electronic |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Grey Porcelain-Enameled |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Slide - Out Broiler Drawer | Yes |
| Oven Interior | Oven Interior Light |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Grey |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched Gloss |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 180 lb |
| Cabinet Width | 30 in |
| Net Weight | 160 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/2 in |
| Overall Width | 30 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
