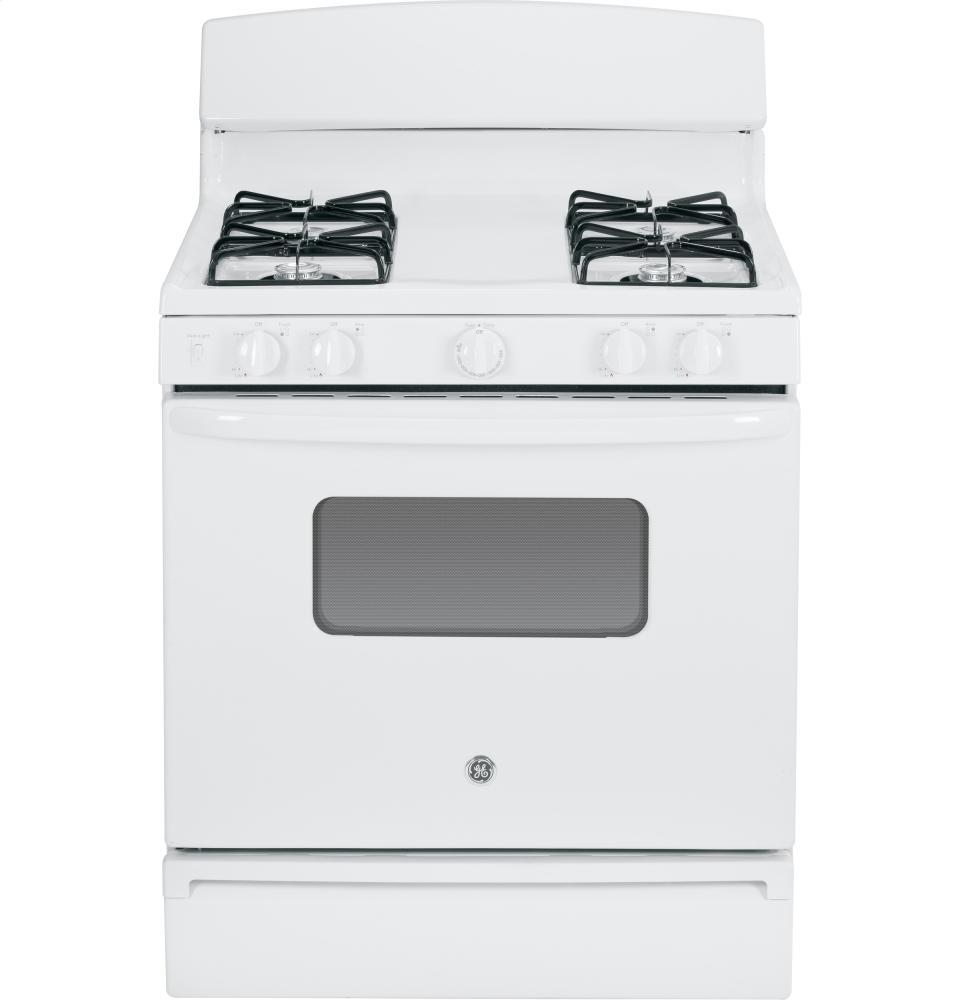

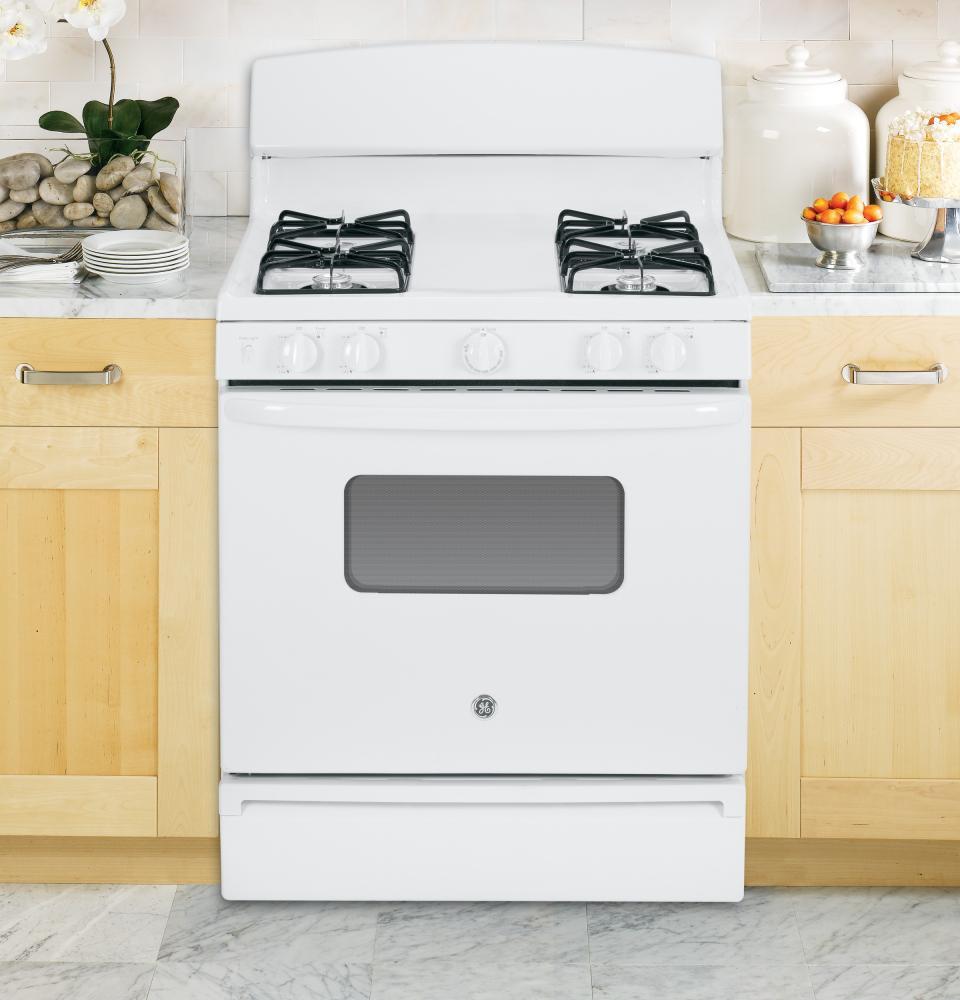

GE® 30" Free-Standing Gas Range
Model JGBS10DEFWW
Authorized Dealer
1
of
8
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBS10DEFWWQuick Specs
Depth
28 3/4
Height
46 1/4
ADA
YES
Burner
Sealed
Storage
NO
Warming
NO
Burners
4
Grate
YES
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28 3/4
Height
46 1/4
ADA
YES
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
NO
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

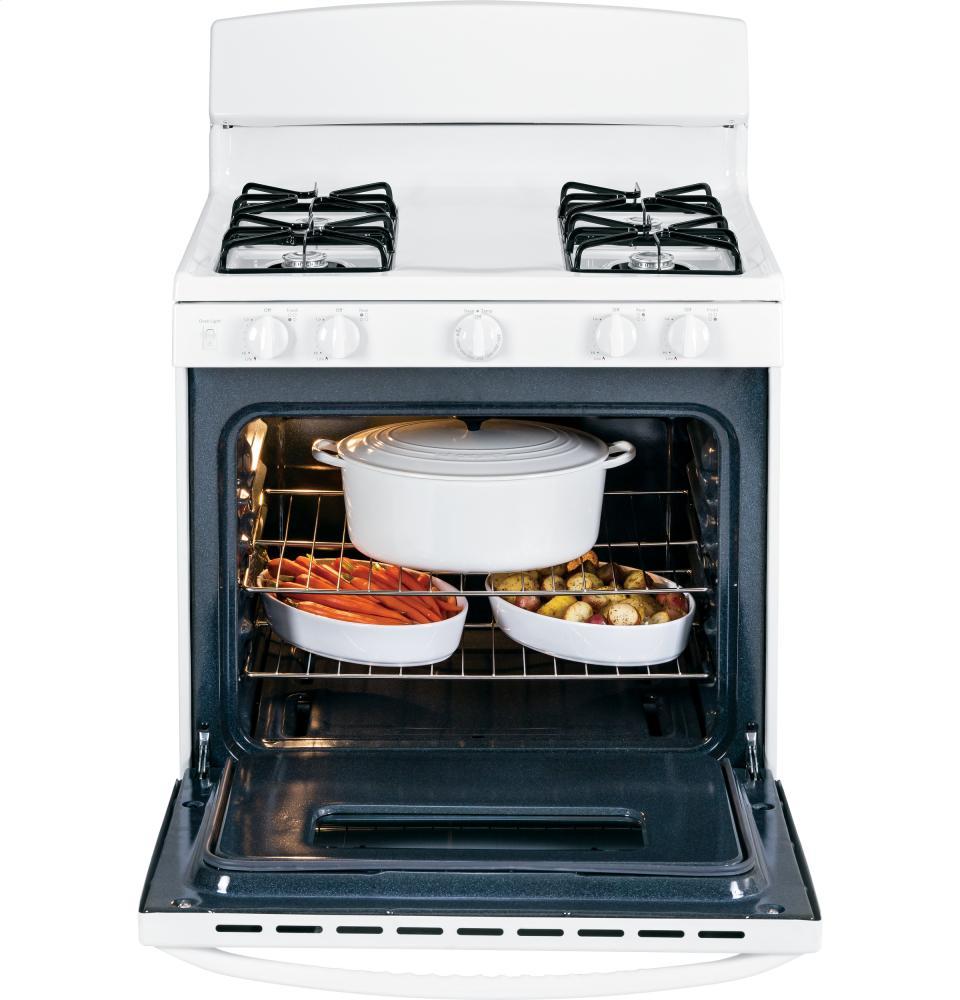

- 4.8 cu. ft. oven capacity
- Enough room to cook an entire meal at once

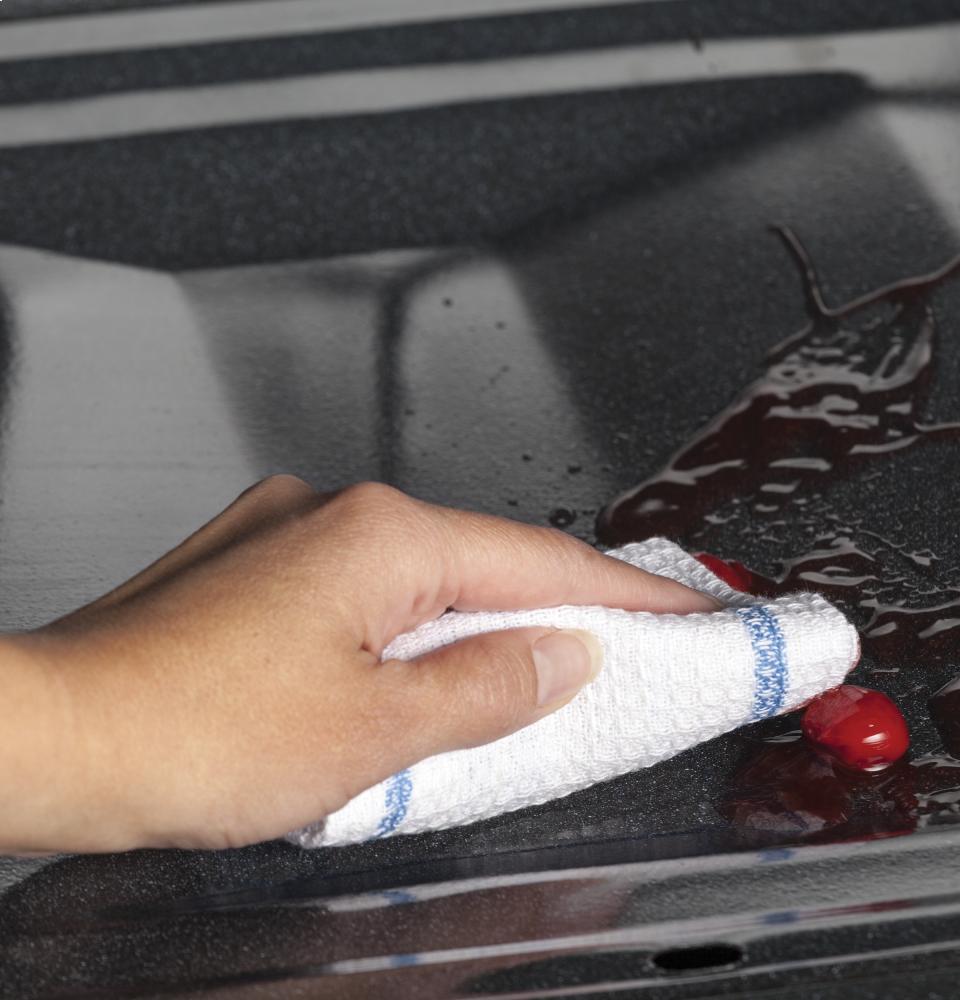

- Standard clean oven
- Smooth surface and rounded corners make clean-up quick and easy

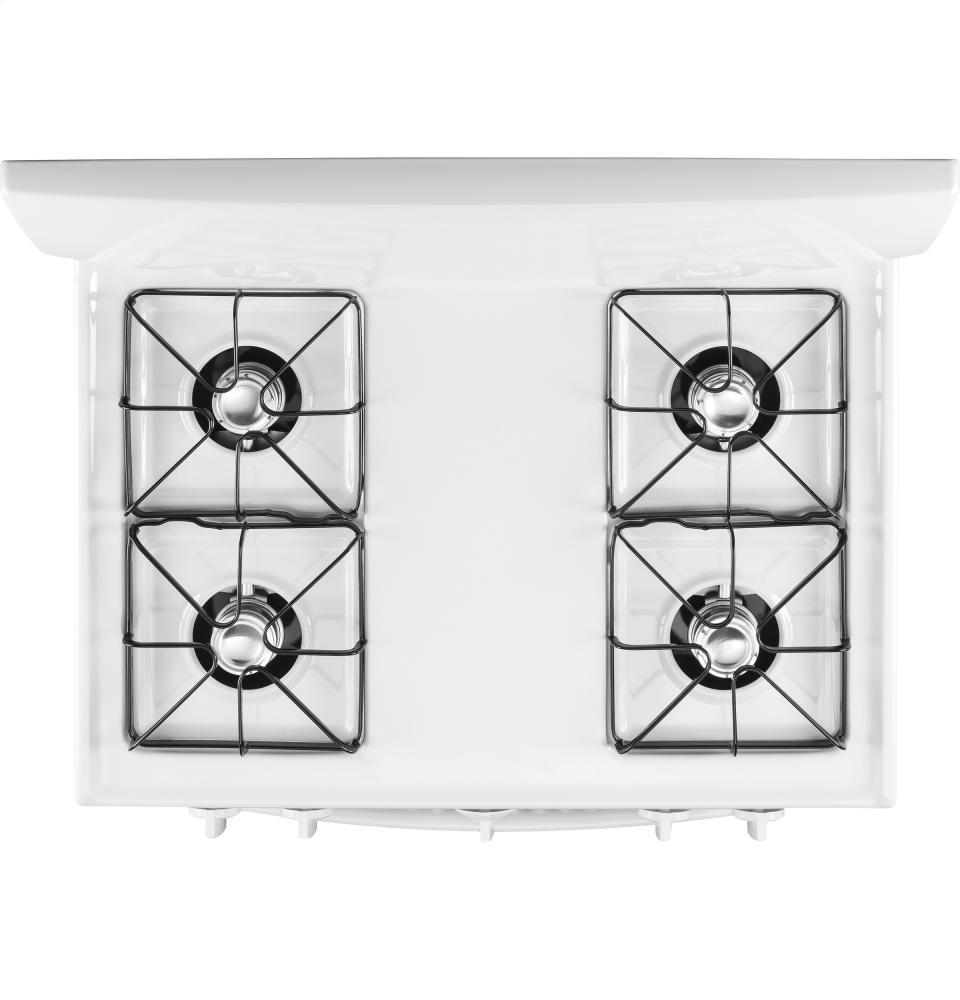

- Standard grates
- Hold cookware securely over burners

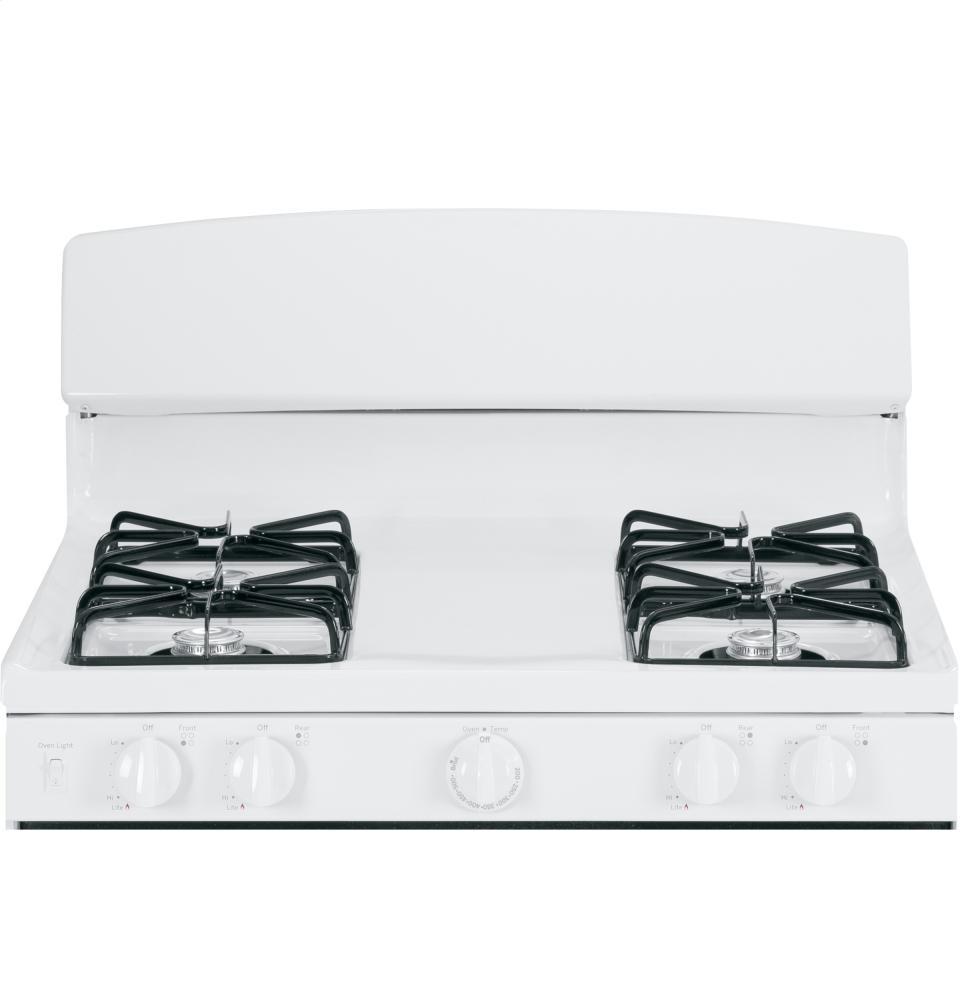

- Porcelain upswept cooktop
- Raised edges contain spills, while the surface is easy to wipe clean
- 4.8 cu. ft. oven capacity Enough room to cook an entire meal at once
- Standard clean oven Smooth surface and rounded corners make clean-up quick and easy
- Standard grates Hold cookware securely over burners
- Porcelain upswept cooktop Raised edges contain spills, while the surface is easy to wipe clean
| FEATURES | |
| Configuration | Range with Broiler Drawer |
| Cooking System | Traditional |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Standard |
| Cooktop Surface | Lift-Up Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |
| Burner - Left Rear | 9,100 BTU |
| Burner - Right Front | 9,100 BTU |
| Burner - Right Rear | 9,100 BTU |
| Cooktop Burner Grate Material | Porcelain on Steel Square |
| Broiler Pan and Grid | Yes |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| One-Piece Drip Pans | Optional Accessory |

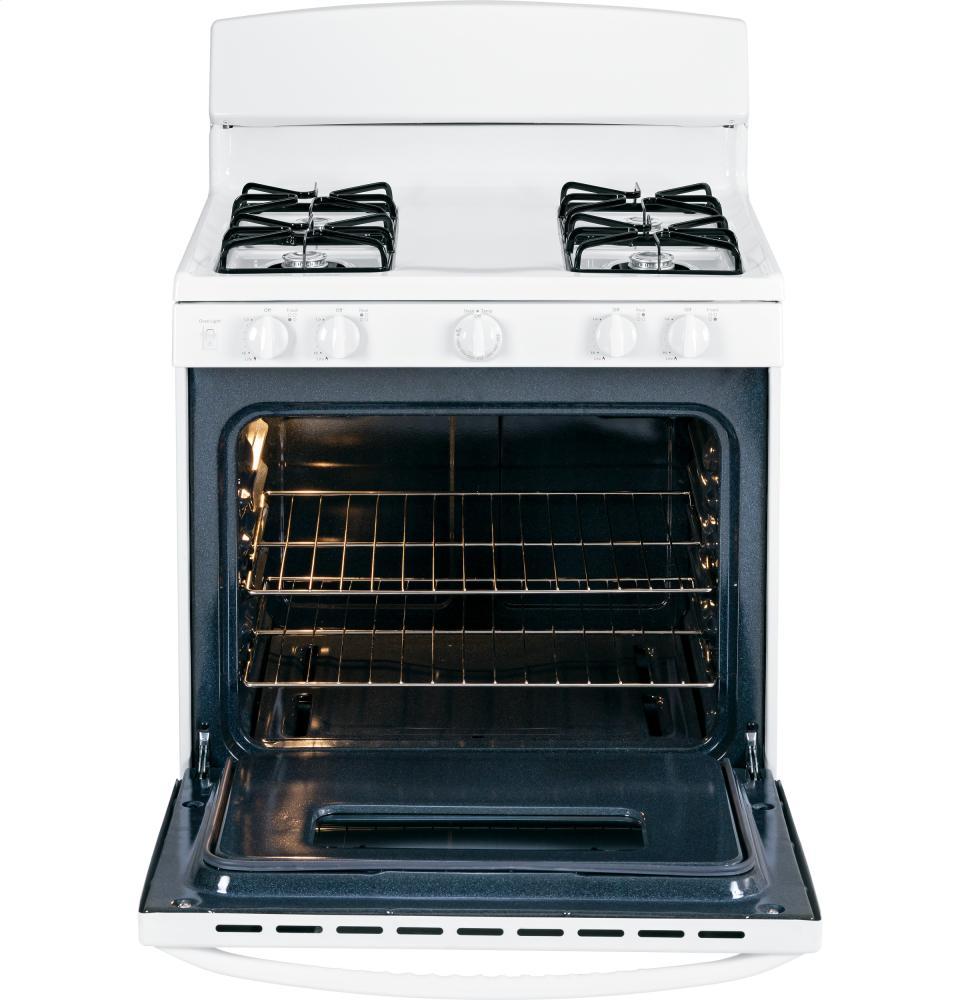

| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Porcelain-Enameled Subtop | Yes |

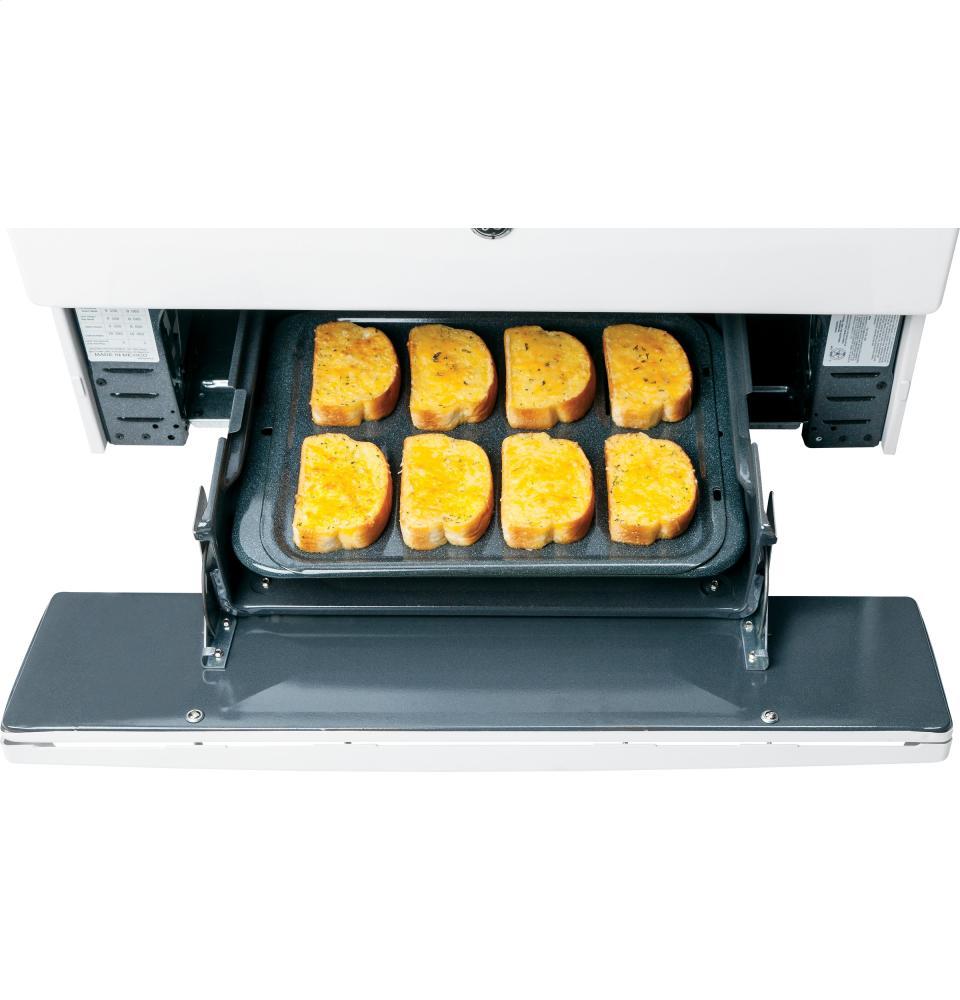

| Slide - Out Broiler Drawer | Drop Down Door |
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 cu ft |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Color-Matched |
| Cooktop Burner Grate Color | Black Gloss |
| Handle | Color-Matched Designer Style |
| Oven Door Features | Oven Window |
| WEIGHTS & DIMENSIONS | |
| Depth Without Handle | 26 1/4 in |
| Approximate Shipping Weight | 165 lb |
| Cabinet Width | 30 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Overall Width | 30 in |
| Depth with Door Open | 46 1/4 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 Bake / 16.5 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| CLAIMS & CERTIFICATIONS | |
| ADA Compliant | |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K1001 black; WB35K1002 chrome |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- 4.8 cu. ft. oven capacity Enough room to cook an entire meal at once
- Standard clean oven Smooth surface and rounded corners make clean-up quick and easy
- Standard grates Hold cookware securely over burners
- Porcelain upswept cooktop Raised edges contain spills, while the surface is easy to wipe clean
