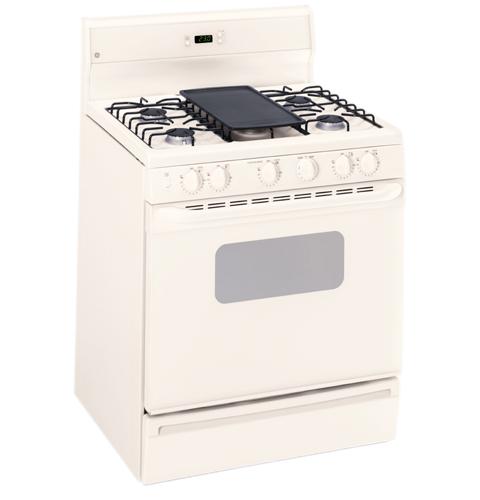

GE® 30" Free-Standing Gas Range
Model JGBS10CEHCC
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBS10CEHCCQuick Specs
Depth
25 5/16
Height
45
ADA
NO
Burner
Sealed
Storage
NO
Warming
NO
Burners
5
Grate
YES
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
25 5/16
Height
45
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
NO
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Center Oval Burner: Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
- Non-Stick Griddle: Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
- Sealed Cooktop Burners: Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
- All Purpose Burners Deliver a wide range of heat output ideal for most cooking requirements
- Porcelain Upswept Cooktop Features raised edges to help contain spills and make clean-up easy
- Easy Clean Subtop Porcelain enameled subtop collects spills and messes for easy cleaning
| CAPACITY | |
| Total Capacity (cubic feet) | 4.4 cu ft |
| Unit Capacity | Extra-Large Oven |
| FEATURES | |
| Cooktop Burner Type | Sealed |
| Center Oval Burner | (1) 6000 BTU |
| Scratch-Resistant Backguard | Glass |
| Griddle | Non-Stick |
| Leveling System | 4 Leveling Legs |
| Interior Oven Light | Yes |
| Oven Control Features | Electronic Clock |
| Ignition System | Electronic |
| Oven Cleaning Type | Standard Clean |
| Fuel Type | Natural Gas (factory set) |
| All-Purpose Burners | (1) 8000 BTU/(3) 7000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Broiler Drawer | Drop Down Door |
| Cooktop Burner Grate Material | Wire |
| Broiler Pan | Yes |
| APPEARANCE | |
| Handle | Designer-Style |
| Color Appearance | Bisque on Bisque |
| Control Knobs | Designer-Style |
| Oven Door Features | ClearView Oven Window |
| Frameless Oven Door(s) | Bisque Glass |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 165 lb |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Net Weight (lbs.) | 145 lb |
| Overall Height | 45 in |
| Overall Width | 30 in |
| Overall Depth | 25 5/16 in |
| POWER / RATINGS | |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 8.0; (3) 7.0; (2) 6.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 8.0; (3) 7.0; (2) 6.0 |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
- Center Oval Burner: Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
- Non-Stick Griddle: Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
- Sealed Cooktop Burners: Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
- All Purpose Burners Deliver a wide range of heat output ideal for most cooking requirements
- Porcelain Upswept Cooktop Features raised edges to help contain spills and make clean-up easy
- Easy Clean Subtop Porcelain enameled subtop collects spills and messes for easy cleaning
