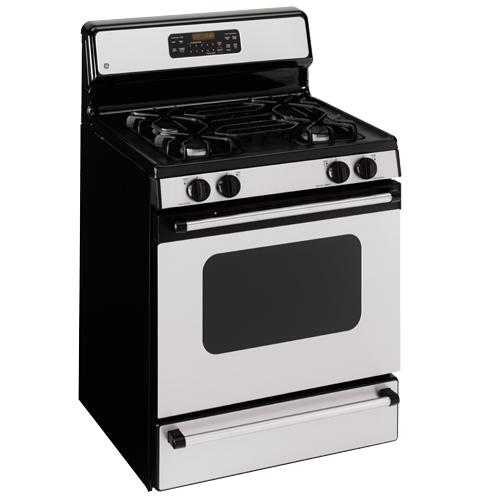

GE® 30" Free-Standing Gas Range
Model JGBP90MEHBC
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBP90MEHBCQuick Specs
Depth
28 1/4
Height
46 7/8
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
YES
Burners
4
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28 1/4
Height
46 7/8
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
YES
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Extra-large oven capacity
- Enough room to cook an entire meal at once
- TrueTemp™ oven system
- This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
- QuickSet oven controls
- Electronic touch pads on the control panel make controlling your oven effortless
- Precise Simmer burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces
- High output burner
- This 12,000 (or 11,000) BTU burner element provides the high heat ideal for frying or saute ing and fast heat-up
- Self-clean oven: Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Extra-large oven capacity: Enough room to cook an entire meal at once
- TrueTemp(TM) oven system: This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
- QuickSet oven controls: Electronic touch pads on the control panel make controlling your oven effortless
- Precise Simmer burner: Allows for low, even heat distribution that is ideal for delicate foods and sauces
- High output burner: This 12,000 (or 11,000) BTU burner element provides the high heat ideal for frying or saute ing and fast heat-up
| CAPACITY | |
| Unit Capacity | Extra Large Oven |
| FEATURES | |
| Configuration | Range with Warming Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Porcelain-Enamel One-Piece Upswept |
| All-Purpose Burners | (1) 9,500/850 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (2) 12,000/1,000 BTU |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Valves (Degree of Turn) | 270 |
| Control Type | QuickSet V Digital Temperature Display |
| Oven Control Features | Delay Bake Option (Time Bake) Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Electronic Clock and Timer Automatic Oven Timer (Time Bake) Self-Clean Cool Down Time Display Certified Sabbath Mode Delay Clean Option Hi / Low Broil In-Oven Broiling Digipad Numeric Entry |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | Yes |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Black Porcelain-Enameled |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Soft Stainless |
| Warming Drawer Features | Electronic Control |
| APPEARANCE | |
| Color Appearance | Brushed Chrome |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | Soft Stainless |
| Handle | Professional Style |
| Oven Door Features | Big ClearView™ Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 240 lb |
| Cabinet Width | 30 in |
| Net Weight | 220 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 28 1/4 in |
| Overall Height | 46 7/8 in |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 12.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 11.0; (1) 9.5; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 12.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| Warming Drawer Wattage | 450 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
- Self-clean oven: Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Extra-large oven capacity: Enough room to cook an entire meal at once
- TrueTemp(TM) oven system: This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
- QuickSet oven controls: Electronic touch pads on the control panel make controlling your oven effortless
- Precise Simmer burner: Allows for low, even heat distribution that is ideal for delicate foods and sauces
- High output burner: This 12,000 (or 11,000) BTU burner element provides the high heat ideal for frying or saute ing and fast heat-up
