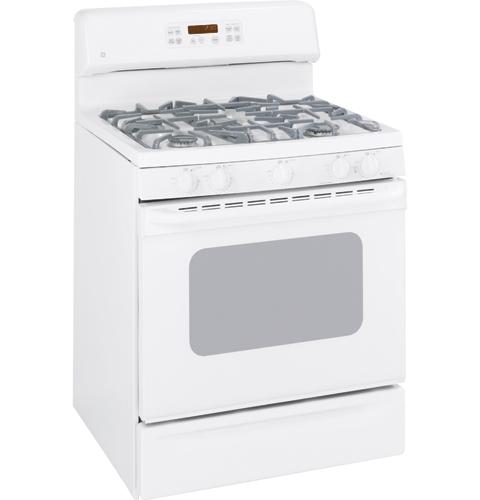

GE® 30" Free-Standing Gas Range
Model JGBP86WEKWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBP86WEKWWQuick Specs
Depth
26 1/4
Height
47 1/2
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
YES
Burners
5
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26 1/4
Height
47 1/2
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
YES
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-Clean Oven: Conveniently cleans the oven cavity without need of scrubbing
- Extra-Large Oven Capacity Provides a large oven interior ideal for cooking more items at once
- Deep Recessed Cooktop Designed with a recessed surface to help contain spills and make cleaning easy
- Center Oval Burner: Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
- Non-Stick Griddle: Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
- PowerBoil 16,000 BTU Burner Delivers 16,000 BTUs of forceful heat for rapid boiling
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| Unit Capacity | Extra-Large Oven |
| FEATURES | |
| Cooktop Burner Type | Sealed |
| Oven Lockout | Manual |
| Center Oval Burner | (1) 6000 BTU |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Griddle | Non-Stick |
| High Output Burner | (1) 11000 BTU/150F degree simmer |
| Precise Simmer Burner | (1) 5000 BTU/140F degree simmer |
| Leveling System | 4 Leveling Legs |
| Interior Oven Light | Yes |
| Oven Control Features | Delay Bake Option (Time Bake) Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Electronic Clock and Timer Automatic Oven Timer (Time Bake) Self-Clean Cool Down Time Display Certified Sabbath Mode Control Lock Capability Delay Clean Option Hi / Low Broil In-Oven Broiling |
| Temperature Management System | TrueTemp System |
| Power Boil Burner | (1) 16,000 BTU |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Fuel Type | Natural Gas (factory set) |
| Configuration | Range with Warming Drawer |
| Cleaning Time | Variable |
| All-Purpose Burners | (1) 9100 BTU/150F degree simmer |
| Valves (Degree of Turn) | 270 |
| Cooktop Surface | Porcelain-Enamel Recessed One-Piece Upswept |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Cooktop Burner Grate Material | Heavy Cast |
| Control Type | QuickSet V Digital Temperature Display |
| APPEARANCE | |
| Handle | Designer-Style |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Grey |
| Oven Door Features | Big ClearView Oven Window |
| Frameless Oven Door(s) | White Glass |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 220 lb |
| Depth With Oven Door Open 90 Degrees (in.) | 46-3/8 |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Net Weight (lbs.) | 200 lb |
| Overall Height | 47 1/2 in |
| Overall Width | 30 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Depth | 26 1/4 in |
| POWER / RATINGS | |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 12.5 Broiler |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
- Self-Clean Oven: Conveniently cleans the oven cavity without need of scrubbing
- Extra-Large Oven Capacity Provides a large oven interior ideal for cooking more items at once
- Deep Recessed Cooktop Designed with a recessed surface to help contain spills and make cleaning easy
- Center Oval Burner: Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
- Non-Stick Griddle: Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
- PowerBoil 16,000 BTU Burner Delivers 16,000 BTUs of forceful heat for rapid boiling
