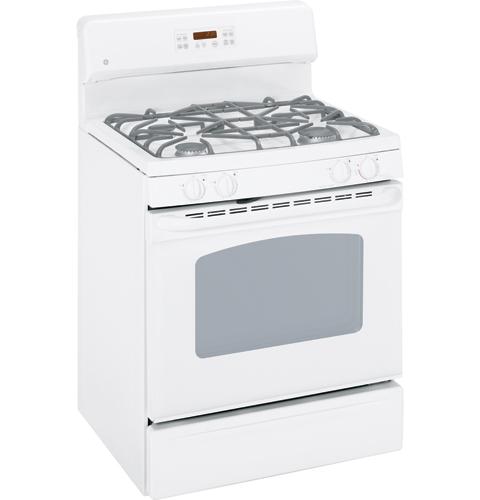

GE® 30" Free-Standing Gas Range
Model JGBP36WELWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGBP36WELWWQuick Specs
Depth
28 1/4
Height
46 7/8
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28 1/4
Height
46 7/8
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-Clean Oven
- Conveniently cleans the oven cavity without need of scrubbing
- Extra-Large Oven Capacity
- Provides a large oven interior ideal for cooking more items at once
- Deep Recessed Cooktop
- Designed with a recessed surface to help contain spills and make cleaning easy
- TrueTemp™ System
- Delivers even heat distribution and maximum oven control
- QuickSet IV Oven Controls
- Feature an easy to use design which allows you to set precise cooking temperatures
- 15K Power Boil Burner
- Provides 15,000 BTUs of forceful heat for rapid boiling
- Self-Clean Oven: Conveniently cleans the oven cavity without need of scrubbing
- Extra-Large Oven Capacity Provides a large oven interior ideal for cooking more items at once
- Deep Recessed Cooktop Designed with a recessed surface to help contain spills and make cleaning easy
- TrueTemp(TM) System: Delivers even heat distribution and maximum oven control
- QuickSet IV Oven Controls Feature an easy to use design which allows you to set precise cooking temperatures
- 15K Power Boil Burner Provides 15,000 BTUs of forceful heat for rapid boiling
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| Unit Capacity | Extra Large Oven |
| FEATURES | |
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Porcelain-Enamel Recessed One-Piece Upswept |
| All-Purpose Burners | (1) 9,100 BTU/850 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Medium Cast |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Power Boil Burner | (1) 15,000 BTU/180F degree simmer |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Valves (Degree of Turn) | 270 |
| Control Type | QuickSet IV Digital Temperature Display |
| Oven Control Features | Delay Bake Option (Time Bake) Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Electronic Clock and Timer Automatic Oven Timer (Time Bake) Self-Clean Cool Down Time Display Certified Sabbath Mode Control Lock Capability Delay Clean Option Hi / Low Broil In-Oven Broiling |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | Yes |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 3 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Grey |
| Frameless Oven Door(s) | White Glass |
| Handle | High-Gloss Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Net Weight | 202 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 30 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 12.5 Broiler |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0 (1) 9.1; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
- Self-Clean Oven: Conveniently cleans the oven cavity without need of scrubbing
- Extra-Large Oven Capacity Provides a large oven interior ideal for cooking more items at once
- Deep Recessed Cooktop Designed with a recessed surface to help contain spills and make cleaning easy
- TrueTemp(TM) System: Delivers even heat distribution and maximum oven control
- QuickSet IV Oven Controls Feature an easy to use design which allows you to set precise cooking temperatures
- 15K Power Boil Burner Provides 15,000 BTUs of forceful heat for rapid boiling
