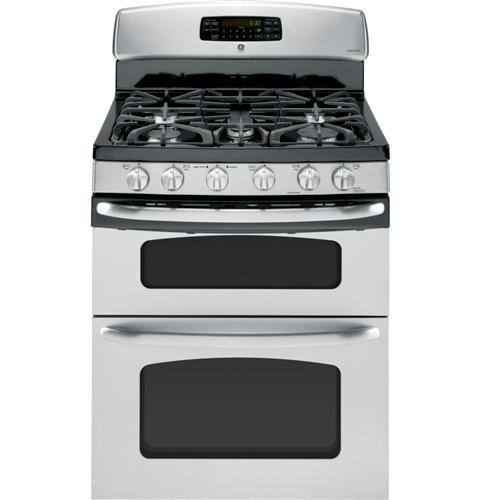

GE® 30" Free-Standing Gas Double Oven Range with Convection
Model JGB870SETSS
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Double Oven Range with Convection
Model JGB870SETSSQuick Specs
Depth
29.6875
Height
47.4375
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
NO
Burners
5
GE® 30" Free-Standing Gas Double Oven Range with Convection is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
29.6875
Height
47.4375
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
YES
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Double oven 6.7 cu. ft. total capacity
- Largest capacity in the industry means cooking more at once and in less time
- Gas Convection Oven
- Circulates heat for high-quality results
- 17,000 BTU Power Boil Burner
- Delivers intense heat for fast boiling
- Non-Stick Griddle
- Large non-stick surface perfect for griddle cooking
- Precise Simmer burner
- Delivers a low setting of 140 degrees
- Largest capacity in the industry means cooking more at once and in less time
- Circulates heat for high-quality results
- Cleans the oven cavity without the need for scrubbing
- Delivers intense heat for fast boiling
- Large non-stick surface perfect for griddle cooking
- Delivers a low setting of 140 degrees
| APPEARANCE | |
| Color Appearance | Stainless Steel |
| Control Knobs | Deluxe Heavy-Duty |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | Stainless Steel |
| Handle Color | Stainless Steel |
| Handle Design | D-shaped |
| Oven Door Features | Big Hearth Oven WindowsEasy clean oven door |
| CAPACITY | |
| Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
| Total Capacity (cubic feet) | 6.7 |
| FEATURES | |
| Configuration | Double Oven Range |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Temperature Management System | True Temp System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-MatchedDeep RecessedOne-Piece UpsweptPorcelain-Enamel |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 11,000 BTU |
| Power Boil Burner | (1) 17,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| All-Purpose Burners | (1) 9,100 BTU |
| Valves (Degree of Turn) | 270 |
| CAPACITY | |
| Oven Control Features | Audible Preheat SignalAutomatic Oven Timer (Time Bake)Auto Oven Shut-OffAuto Self CleanCertified Sabbath ModeControl Lock CapabilityDelay Bake Option (Time Bake)Delay Clean OptionDigipad Numeric EntryElectronic Clock and TimerHi / Low BroilIn-Oven BroilingSelf-Clean Cool Down Time Display |
| Cooking Technology | Traditional Upper; Convection Lower |
| APPEARANCE | |
| Dishwasher Safe Knobs | Yes |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Cooking Modes | Convection BakeConvection Roast |
| Oven Rack Features | 3 Oven Racks |
| Scratch-Resistant Backguard | Stainless Steel |
| Oven Interior | Oven Interior Light (Both Ovens) |
| WEIGHTS & DIMENSIONS | |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 10.0 / 10.0 - Upper; 13.5 / 1150W - Lower |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 12.0 / 10.0 Upper; 16.0 / 1150W Lower |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.1; (1) 5.0; (1) 6.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| POWER / RATINGS | |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 225.0 |
| Cabinet Width | 30.0 |
| Net Weight | 205.0 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9 1/8 x 18 7/8 - Upper; 24 x 15 x 20 5/8 - Lower |
| ACCESSORIES | |
| Overall Height | 47.4375 |
| WARRANTY | |
| Overall Width | 30.0 |
| Depth with Door Open 90 ° | 43.75 |
| Warranty Notes | See written warranty for full details |
- Largest capacity in the industry means cooking more at once and in less time
- Circulates heat for high-quality results
- Cleans the oven cavity without the need for scrubbing
- Delivers intense heat for fast boiling
- Large non-stick surface perfect for griddle cooking
- Delivers a low setting of 140 degrees
