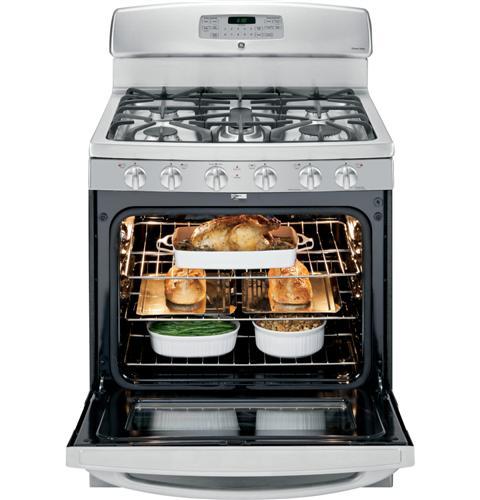

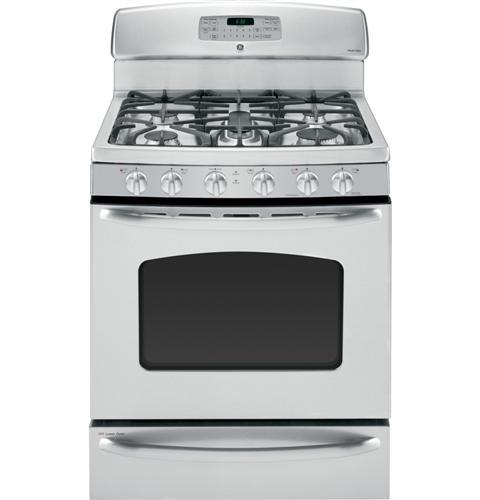

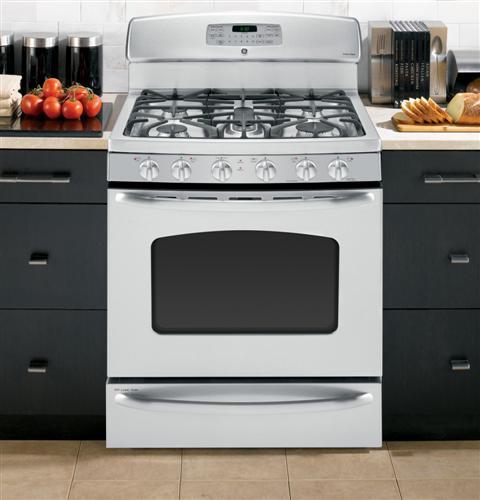

GE® 30" Free-Standing Gas Range with Baking Drawer
Model JGB840SETSS
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range with Baking Drawer
Model JGB840SETSSQuick Specs
Depth
26.625
Height
47
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
NO
Burners
5
GE® 30" Free-Standing Gas Range with Baking Drawer is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.625
Height
47
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
YES
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

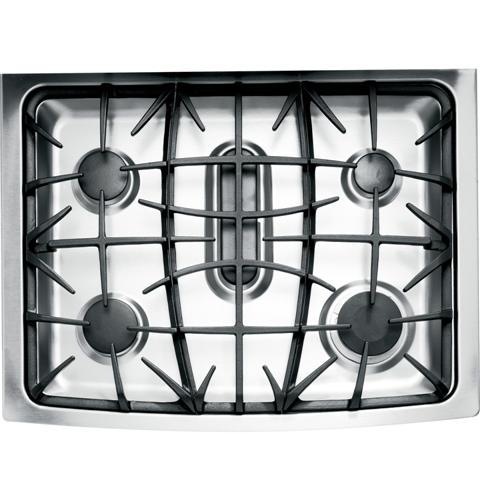

- Stainless Steel, Deep-Recessed Cooktop
- Contains spills for quick and easy cleaning
- Gas Convection Oven
- Circulates heat for high-quality results
- 5.0 cu. ft. oven capacity
- Enough room to cook an entire meal at once
- Baking Drawer
- Offers an additional 1.0 cu. ft. of capacity for convenient baking from 140 to 450
- Reversible cast-iron griddle/grill
- Provides the flexibility to sear meats and cook delicate meals
- Contains spills for quick and easy cleaning
- Circulates heat for high-quality results
- Enough room to cook an entire meal at once
- Offers an additional 1.0 cu. ft. of capacity for convenient baking from 140 to 450
- Provides the flexibility to sear meats and cook delicate meals
- Delivers intense heat for fast boiling
| APPEARANCE | |
| Color Appearance | Stainless Steel |
| Control Knobs | LargeDesigner-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | Stainless Steel |
| Handle Color | Stainless Steel |
| Handle Design | D-shaped |
| Oven Door Features | Big Hearth Oven Window |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| FEATURES | |
| Configuration | Range with Baking Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | True Temp System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep RecessedOne-Piece UpsweptStainless Steel |
| Center Oval Burner | (1) 10,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | 12,000 BTU |
| Power Boil Burner | (1) 17,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| All-Purpose Burners | (1) 9,500 BTU |
| Valves (Degree of Turn) | 270 |
| CAPACITY | |

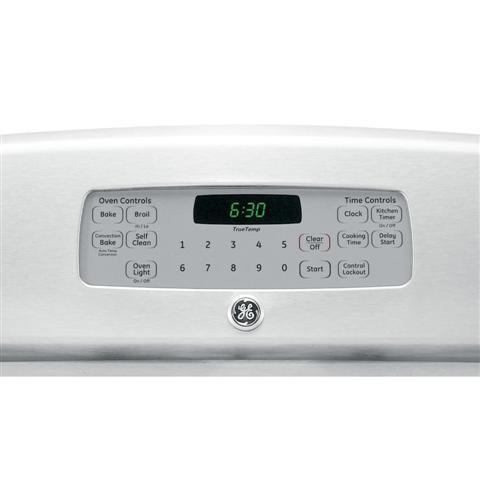

| Oven Control Features | Audible Preheat SignalAutomatic Oven Timer (Time Bake)Auto Self CleanCertified Sabbath ModeControl Lock CapabilityDelay Bake Option (Time Bake)Delay Clean OptionDigipad Numeric EntryElectronic Clock and TimerHi / Low BroilIn-Oven BroilingOven Cycle LightOven "ON" LightSelf-Clean Cool Down Time Display |
| APPEARANCE | |
| Baking Drawer | Yes |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Cooking Modes | Convection Bake |
| Oven Rack Features | 2 Oven Racks6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Stainless Steel |
| Oven Interior | Interior Oven Light |
| WEIGHTS & DIMENSIONS | |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.5; (1) 8.0; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 9.9A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| POWER / RATINGS | |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 225.0 |
| Cabinet Width | 30.0 |
| Net Weight | 205.0 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| ACCESSORIES | |
| Overall Height | 47.0 |
| WARRANTY | |
| Overall Width | 30.0 |
| Depth with Door Open 90 ° | 46.375 |
| Warranty Notes | See written warranty for full details |
