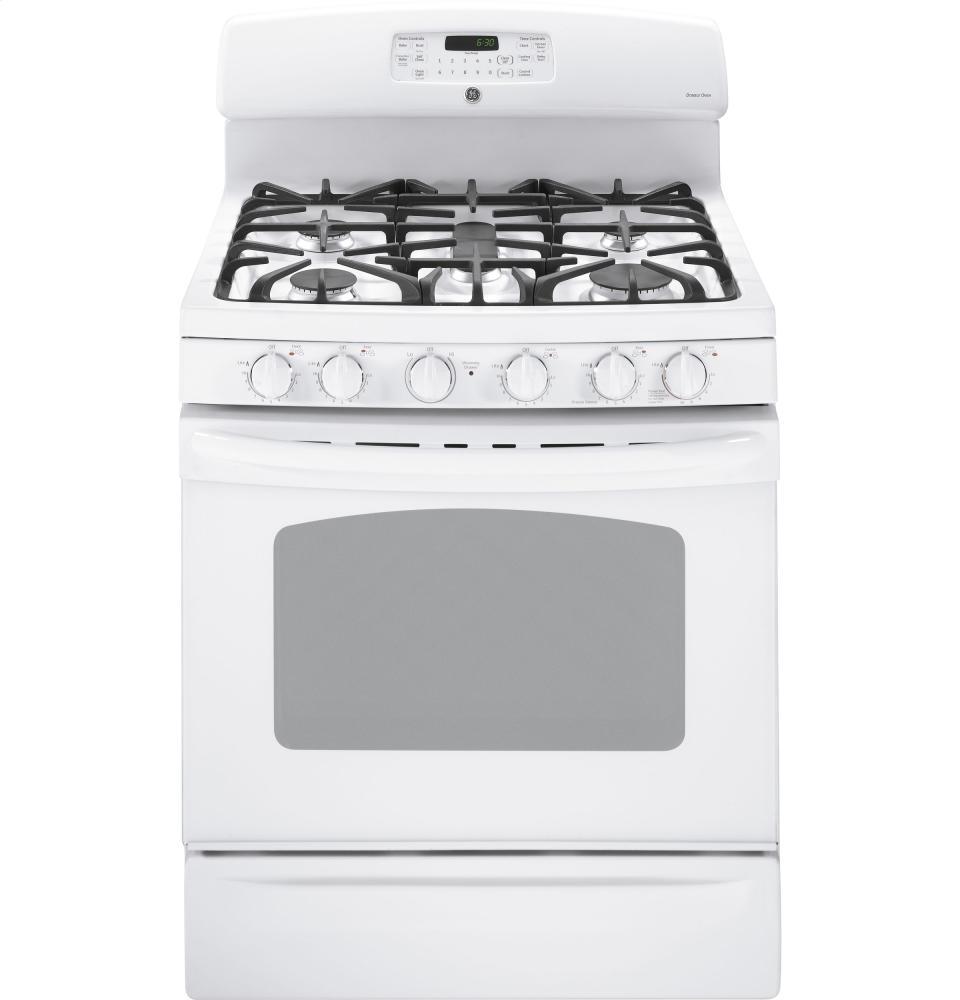

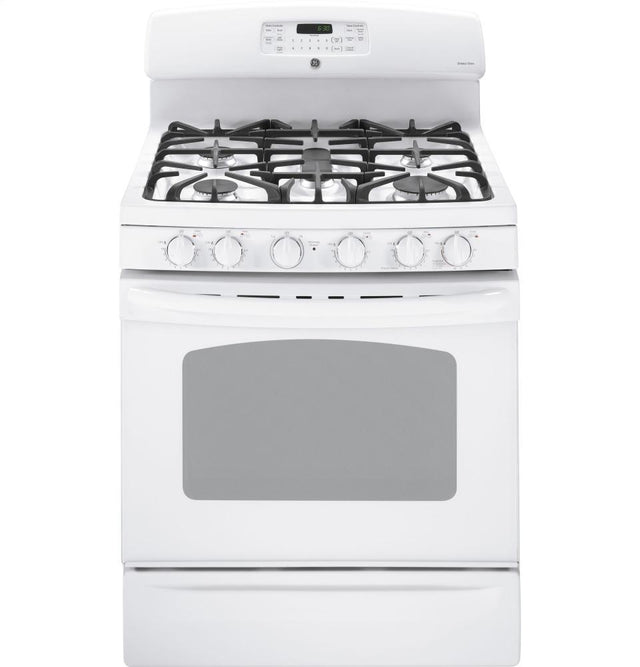

GE® 30" Free-Standing Gas Range with Warming Drawer
Model JGB820DEPWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range with Warming Drawer
Model JGB820DEPWWQuick Specs
Depth
26.25
Height
47
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
YES
Burners
5
GE® 30" Free-Standing Gas Range with Warming Drawer is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.25
Height
47
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
YES
Cooking oven number of burners
5
Continuous Grate
YES
Convection
YES
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Super-large oven capacity
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
- Heavy-cast, continuous grates
- Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
- Gas convection oven
- Convection heating circulates the air to keep the heat consistent, enhancing the baking or roasting results
- Warming drawer
- The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier
- Reversible cast-iron griddle/grill
- Provides the flexibility to sear meats on the grill and cook delicate meals on the griddle
- Self-clean oven
- Super-large oven capacity
- Heavy-cast, continuous grates
- Gas convection oven
- Warming drawer
- Reversible cast-iron griddle/grill
| Configuration | Range with Warming Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Deep Recessed One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (1) 9,500 BTU |
| Center Oval Burner | (1) 10,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 12,000 BTU |
| Power Boil Burner | (1) 17,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | QuickSet V Digital Temperature Display |
| Oven Control Features | Audible Preheat Signal Automatic Oven Timer (Time Bake) Auto Self Clean Certified Sabbath Mode Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Hi / Low Broil In-Oven Broiling |
| Cooking Technology | Convection |
| Clock and Minute Timer | Electronic |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Warming Drawer Features | Infinite Control Knob |
| Oven Interior | Oven Interior Light |
| Griddle | Pre-Seasoned Cast Iron |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 220 lb |
| Cabinet Width | 30 in |
| Net Weight | 200 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.5; (1) 8.0; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 9.9A |
| Warming Drawer Wattage | 450 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean oven
- Super-large oven capacity
- Heavy-cast, continuous grates
- Gas convection oven
- Warming drawer
- Reversible cast-iron griddle/grill
