GE® 30" Free-Standing Gas Range with Warming Drawer
Model JGB800SEPSS
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range with Warming Drawer
Model JGB800SEPSSQuick Specs
Depth
26.25
Height
47
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
NO
Warming
YES
Burners
5
GE® 30" Free-Standing Gas Range with Warming Drawer is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.25
Height
47
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
YES
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Super-large 5.0 oven capacity
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

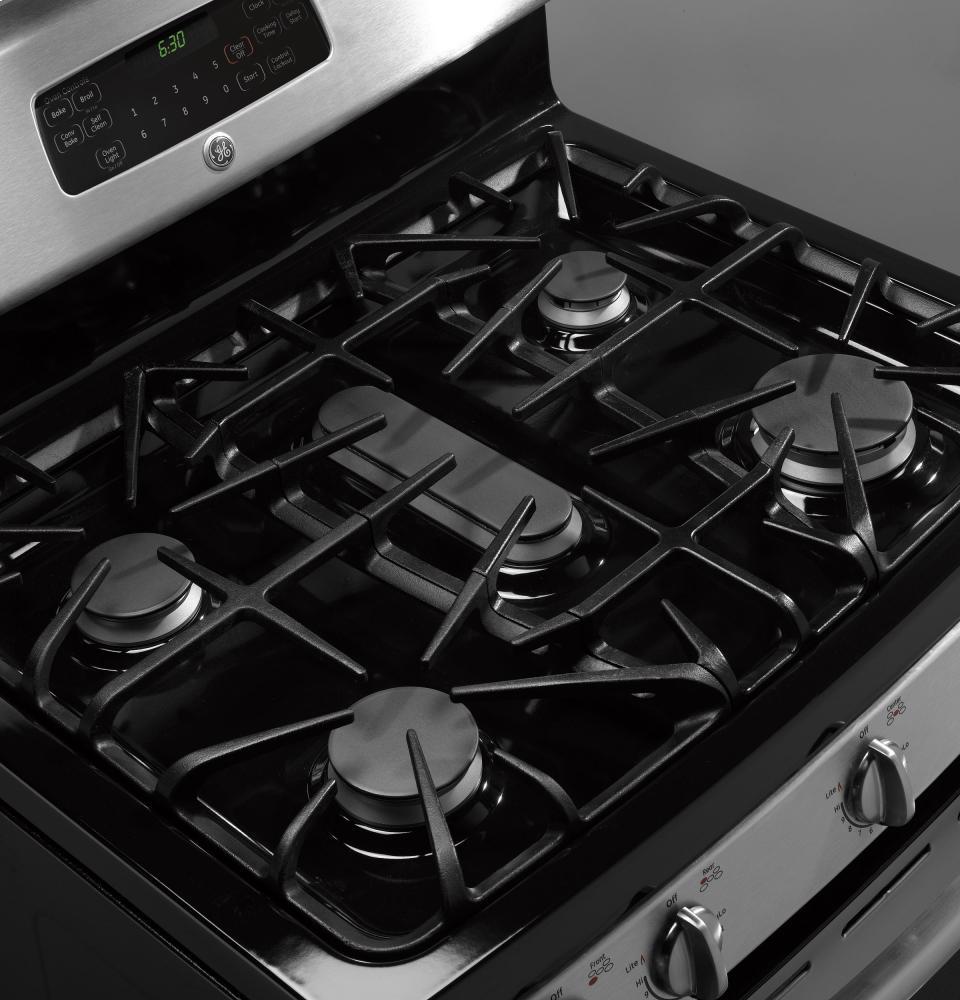

- Heavy-cast, continuous grates
- Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
- Warming drawer
- The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier

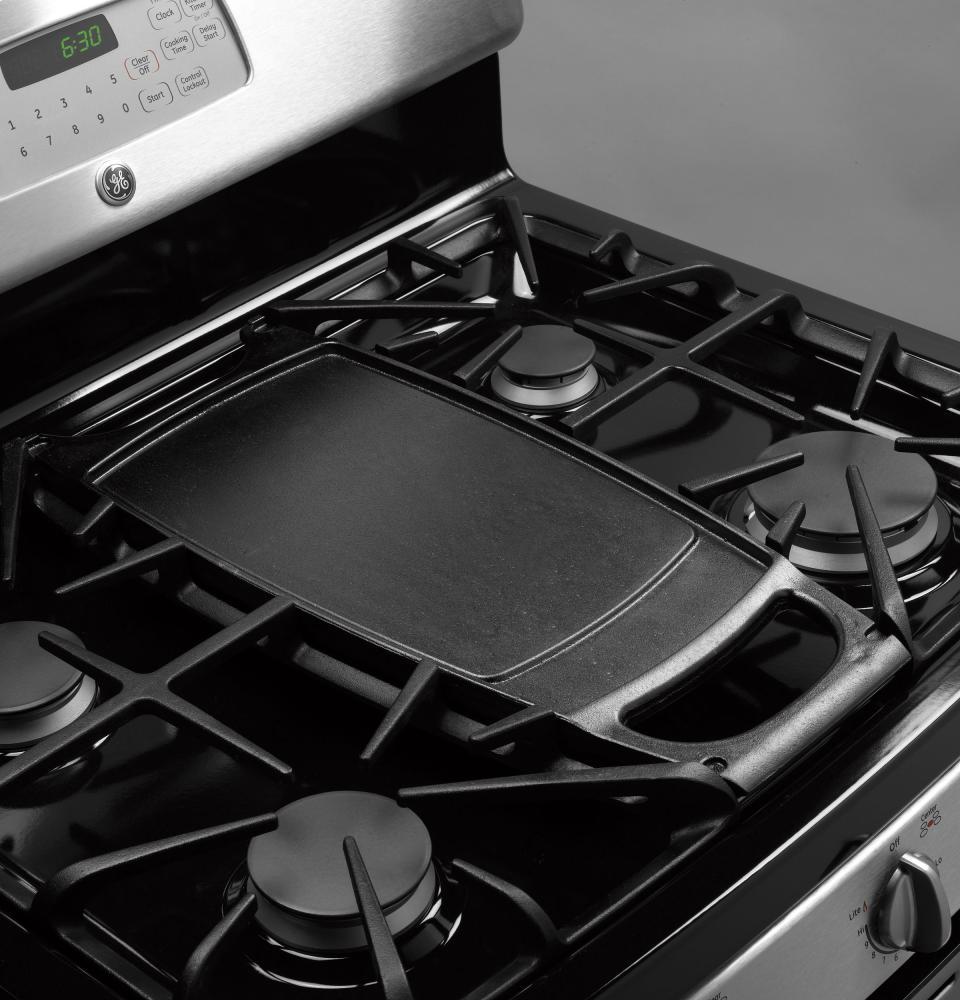

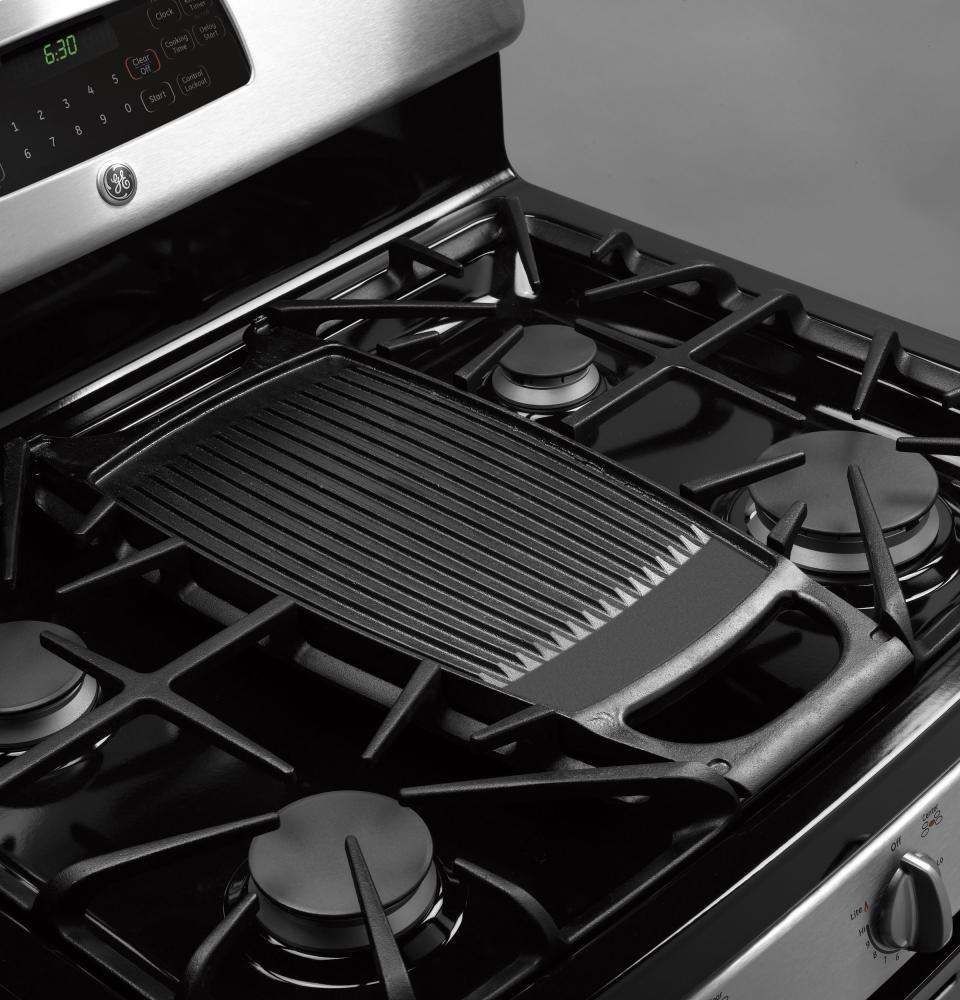

- Reversible cast-iron griddle/grill
- Provides the flexibility to sear meats on the grill and cook delicate meals on the griddle
- PowerBoil™ 17,000 burner
- This powerful element instantly supplies the intense heat need for boiling, saute ing and stir frying
- Self-clean oven
- Super-large 5.0 oven capacity
- Heavy-cast, continuous grates
- Warming drawer
- Reversible cast-iron griddle/grill
- PowerBoil(TM) 17,000 burner
| Configuration | Range with Warming Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Deep Recessed One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (1) 9,500 BTU |
| Center Oval Burner | (1) 10,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 12,000 BTU |
| Power Boil Burner | (1) 17,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display QuickSet V |
| Oven Control Features | Audible Preheat Signal Automatic Oven Timer (Time Bake) Auto Self Clean Certified Sabbath Mode Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Hi / Low Broil In-Oven Broiling |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Stainless |
| Oven Interior | Oven Interior Light |
| Griddle | Reversible Cast Griddle/Grill |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | Stainless Steel |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | Stainless Steel |
| Handle | Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Net Weight | 205 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| Warming Drawer Wattage | 450 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean oven
- Super-large 5.0 oven capacity
- Heavy-cast, continuous grates
- Warming drawer
- Reversible cast-iron griddle/grill
- PowerBoil(TM) 17,000 burner
