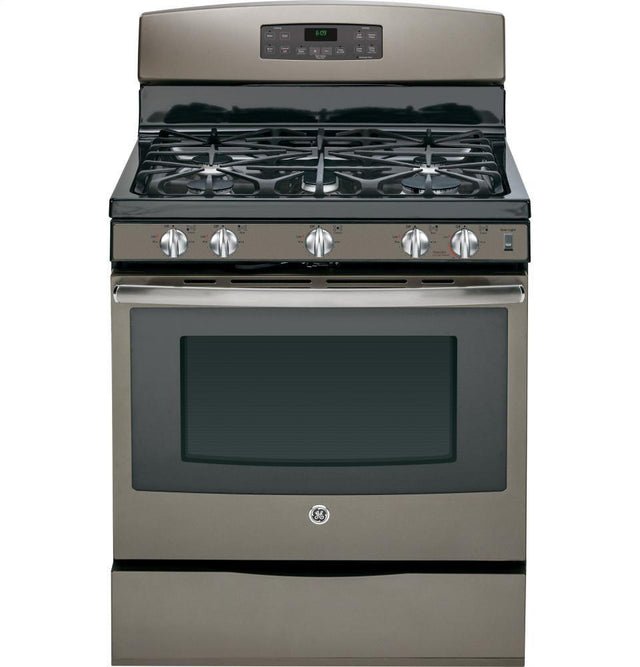

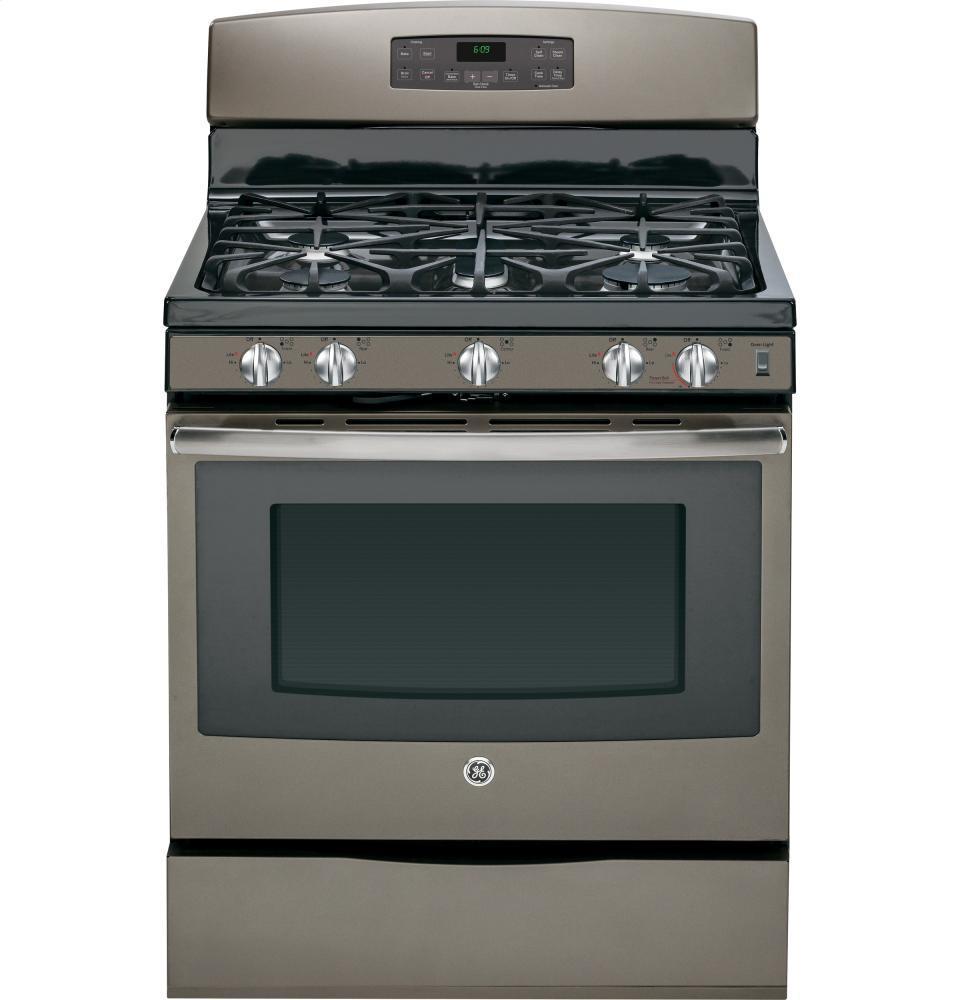

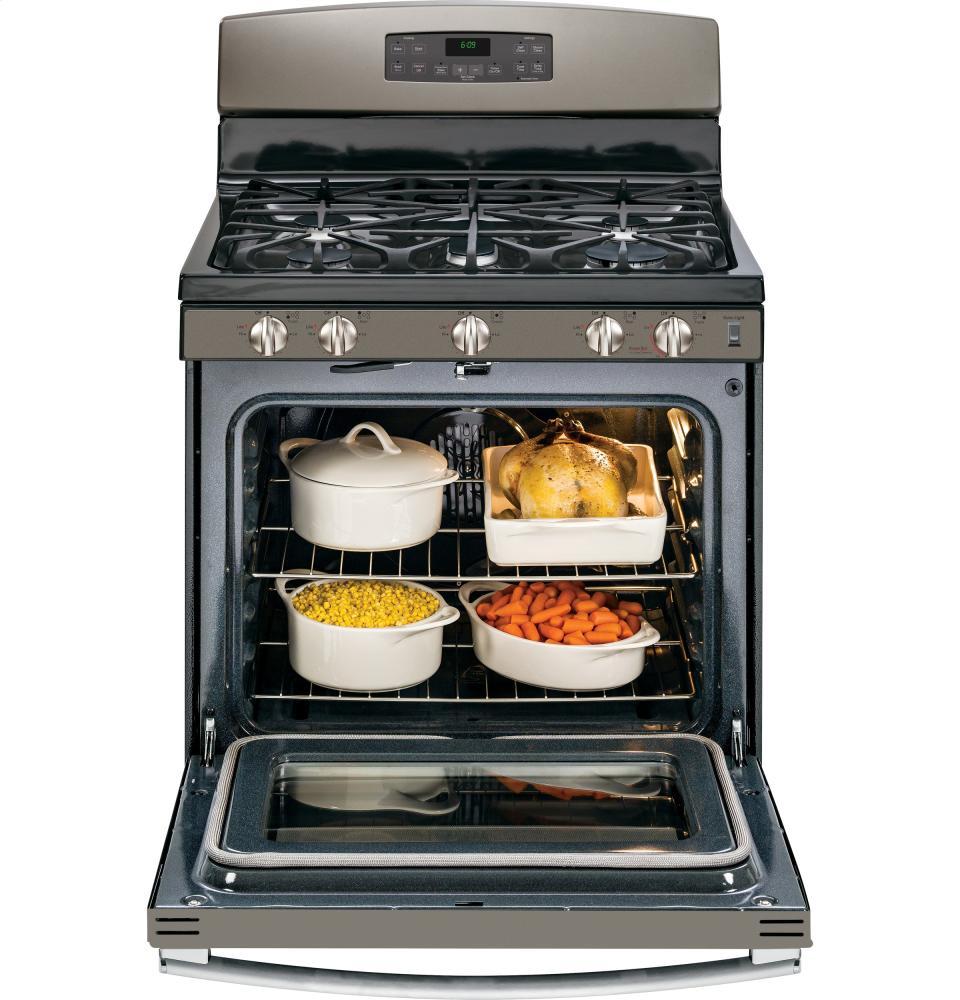

GE® 30" Free-Standing Gas Convection Range
Model JGB697EEHES
Authorized Dealer
1
of
13
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Convection Range
Model JGB697EEHESQuick Specs
Depth
29.25
Height
47.25
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
5
Grate
YES
GE® 30" Free-Standing Gas Convection Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
29.25
Height
47.25
ADA
NO
Burner Type
Sealed

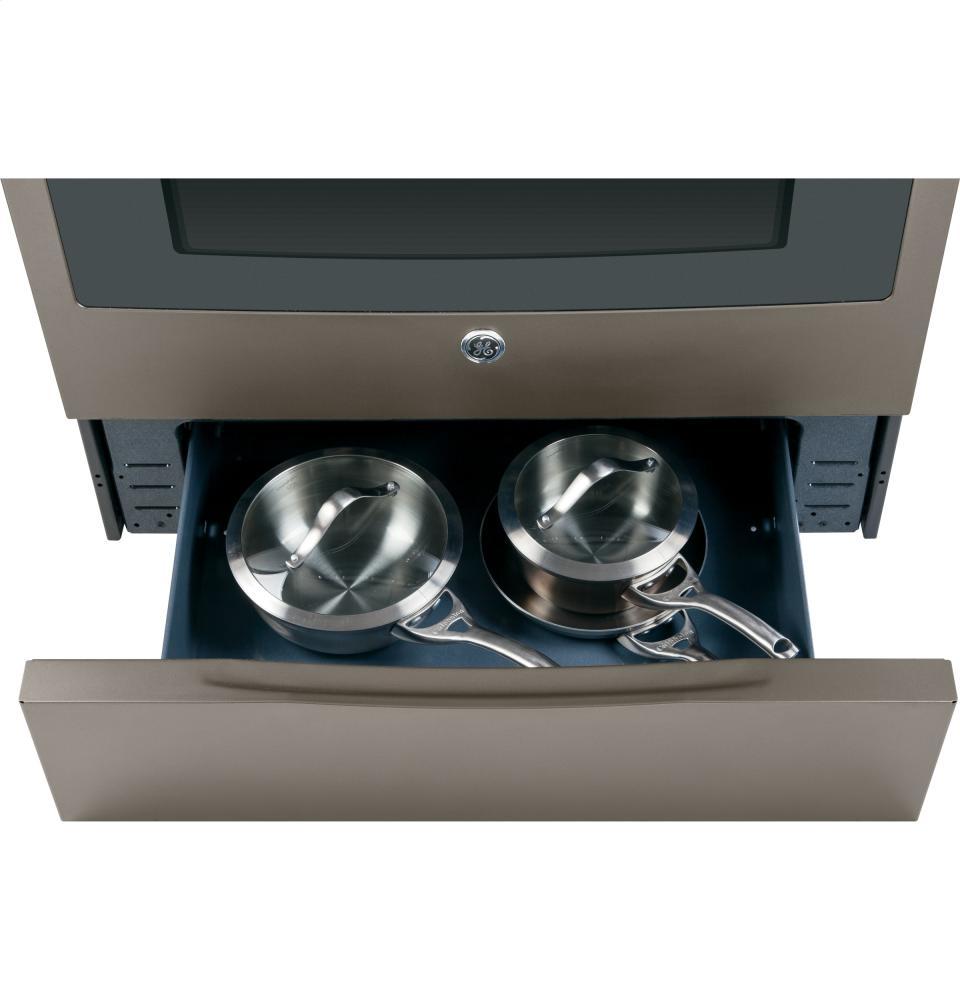

Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
YES
Self Clean
YES
Oven Rack Type
SLIDING
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

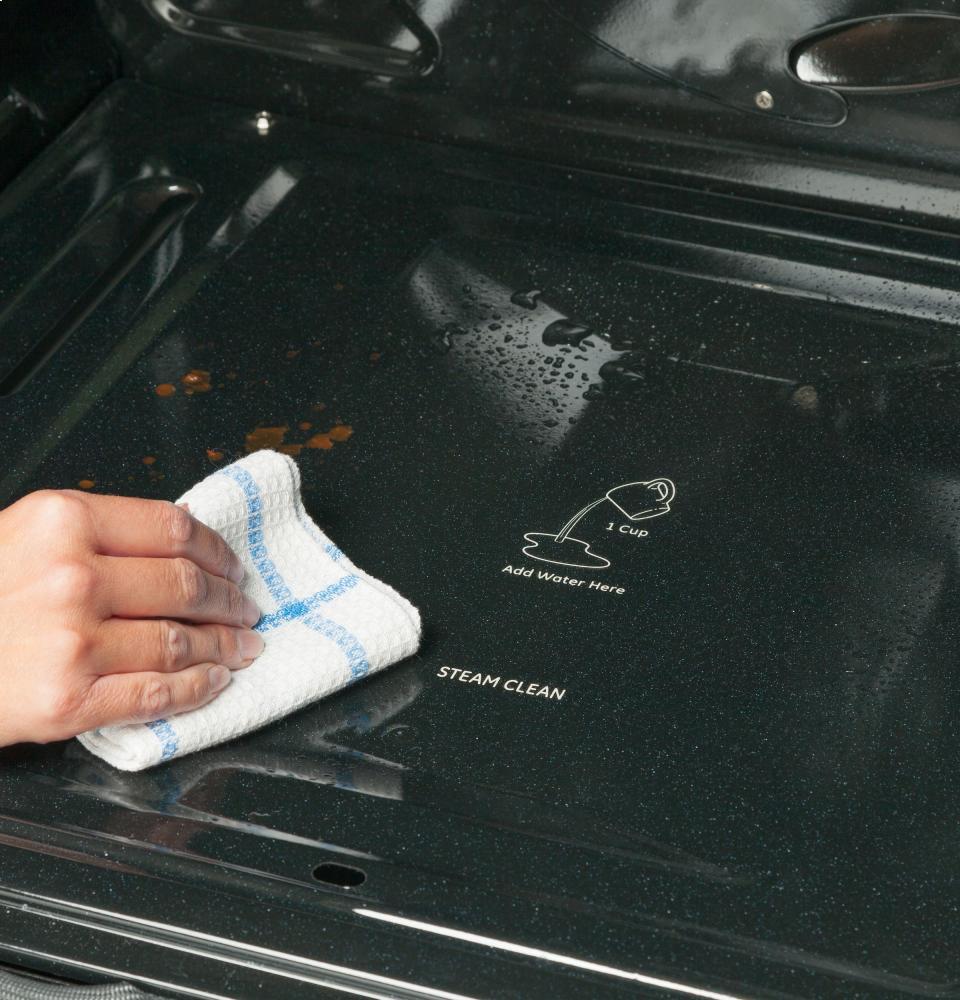

- Self-clean with Steam Clean option
- Clean your oven the way you want

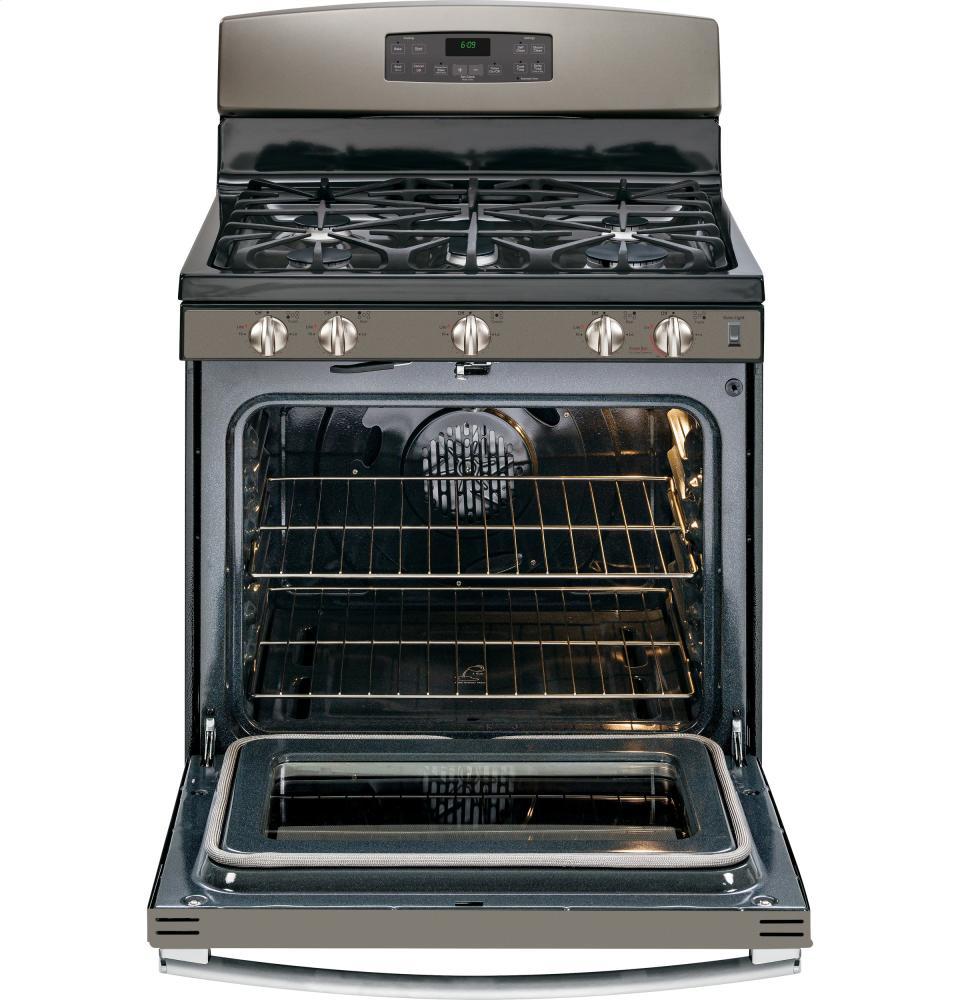

- Gas convection oven
- Circulates heat for high-quality results

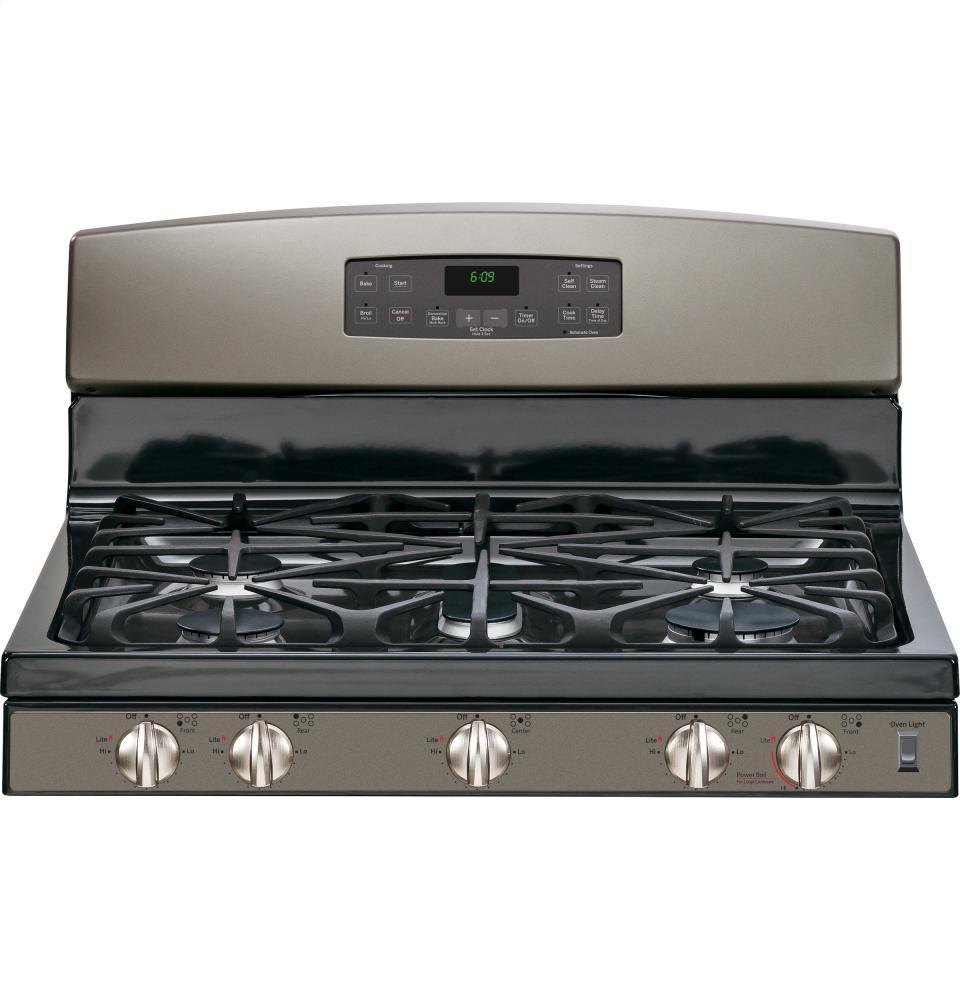

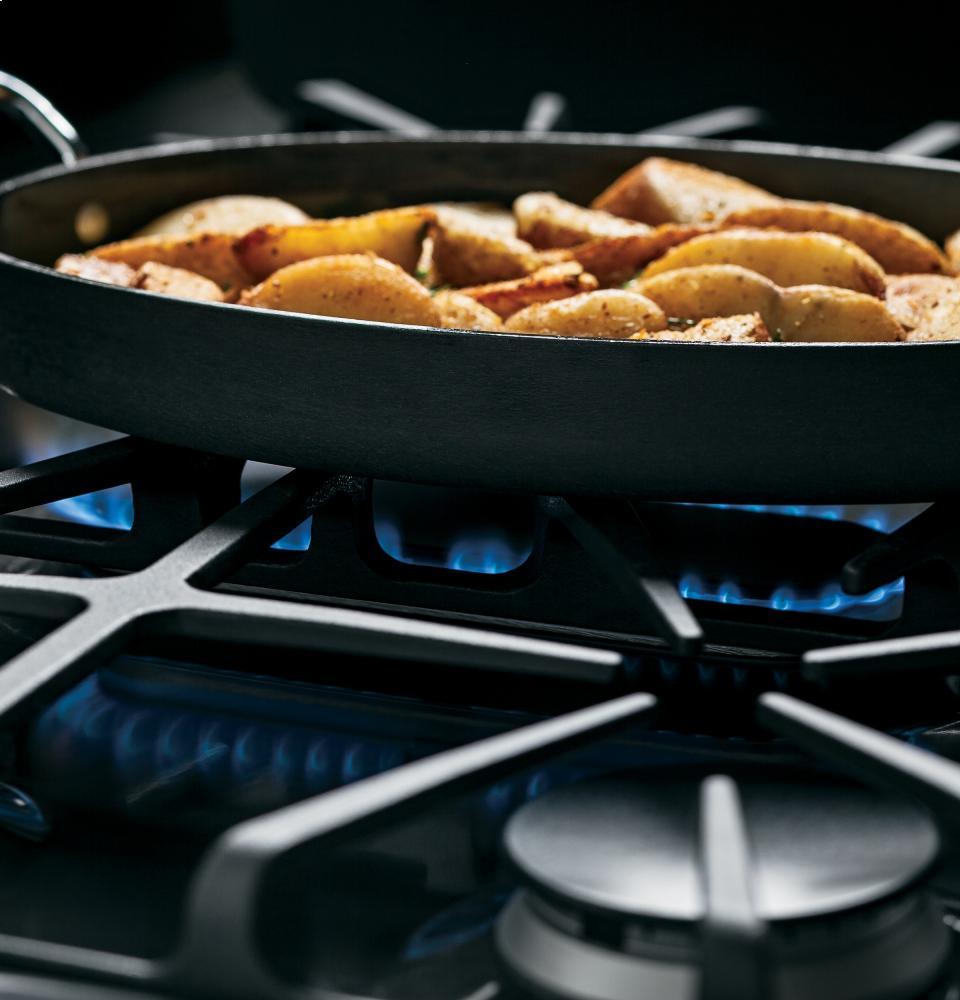

- Heavy-cast, continuous grates
- Allow for easy movement of pans between burners
- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- Black gloss oven interior
- Enjoy a clean and sleek appearance
- Self-clean with Steam Clean option Clean your oven the way you want
- Gas convection oven Circulates heat for high-quality results
- Heavy-cast, continuous grates Allow for easy movement of pans between burners
- 5.0 cu. ft. oven capacity Cook more dishes at once
- Black gloss oven interior Enjoy a clean and sleek appearance

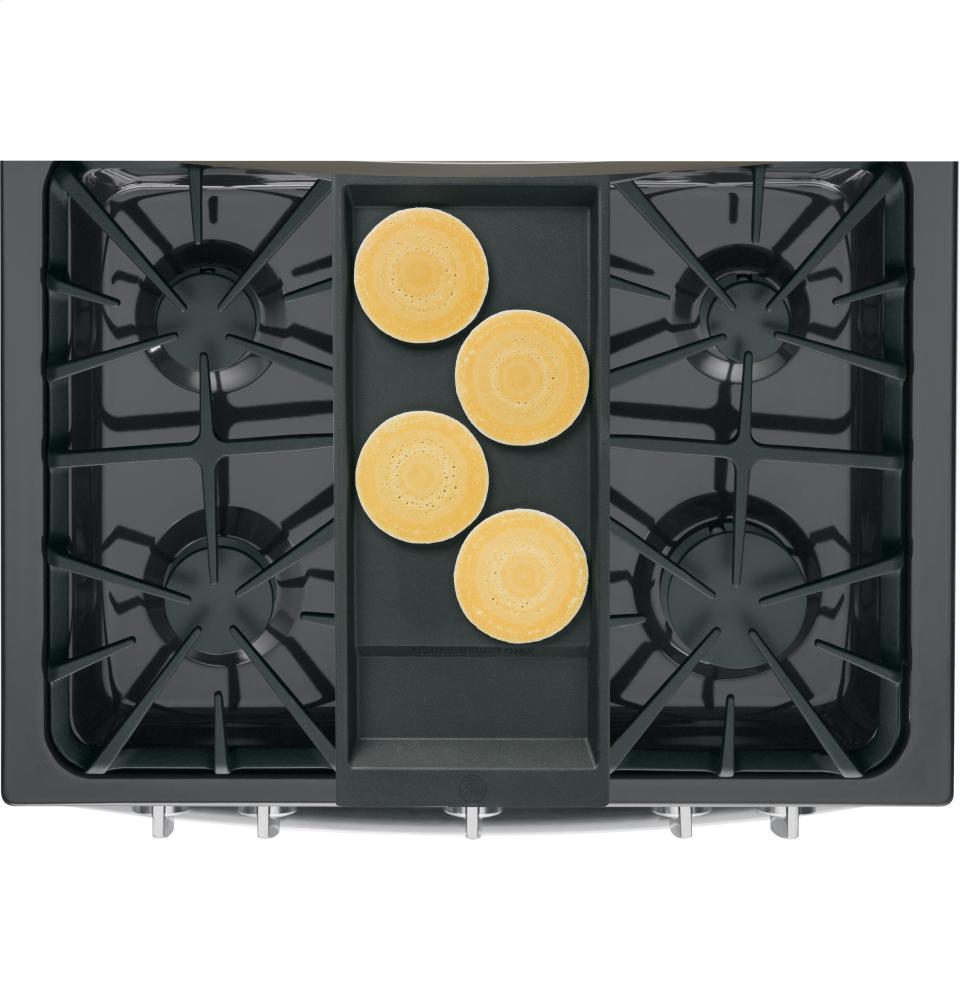

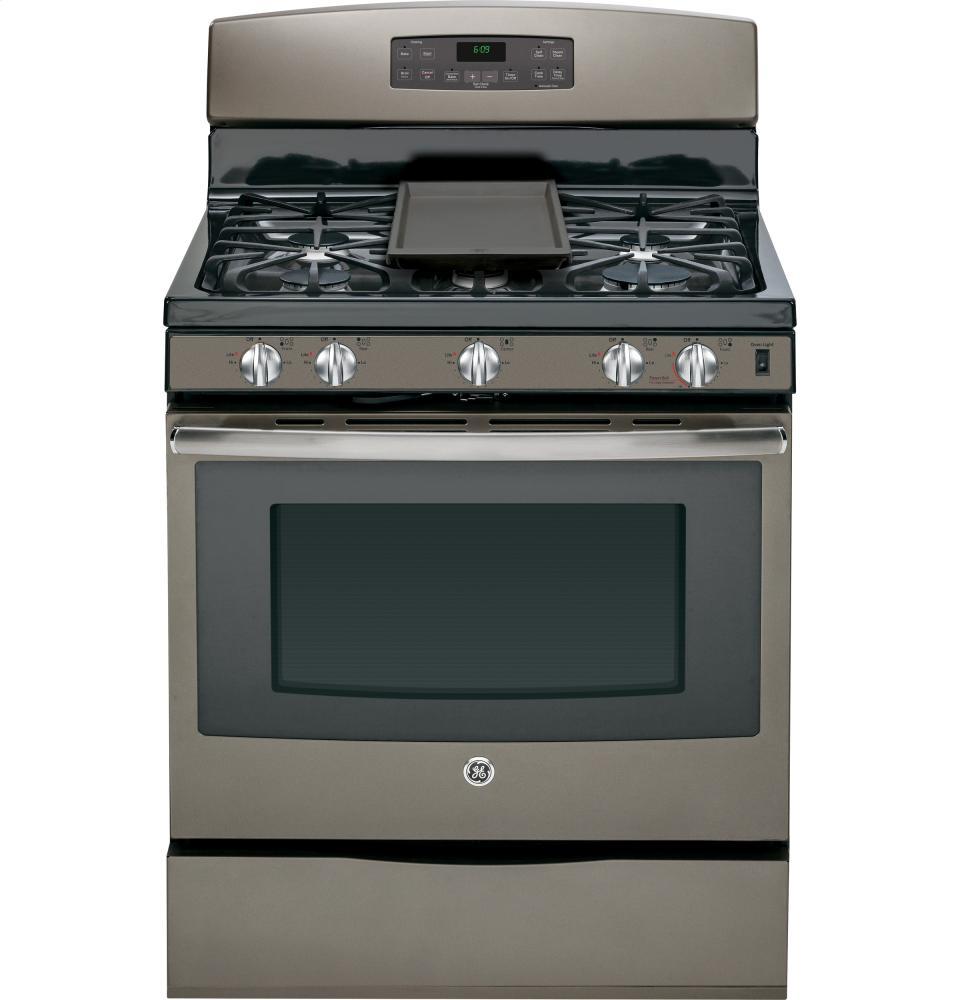

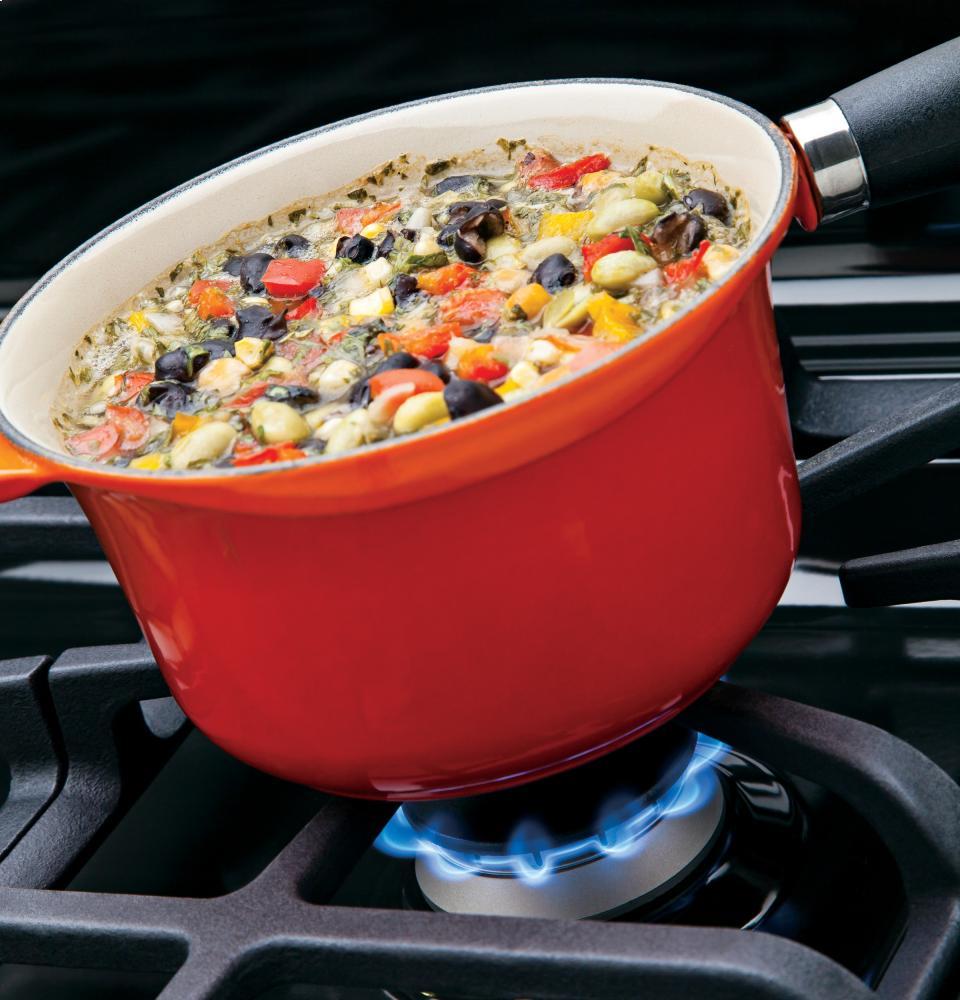

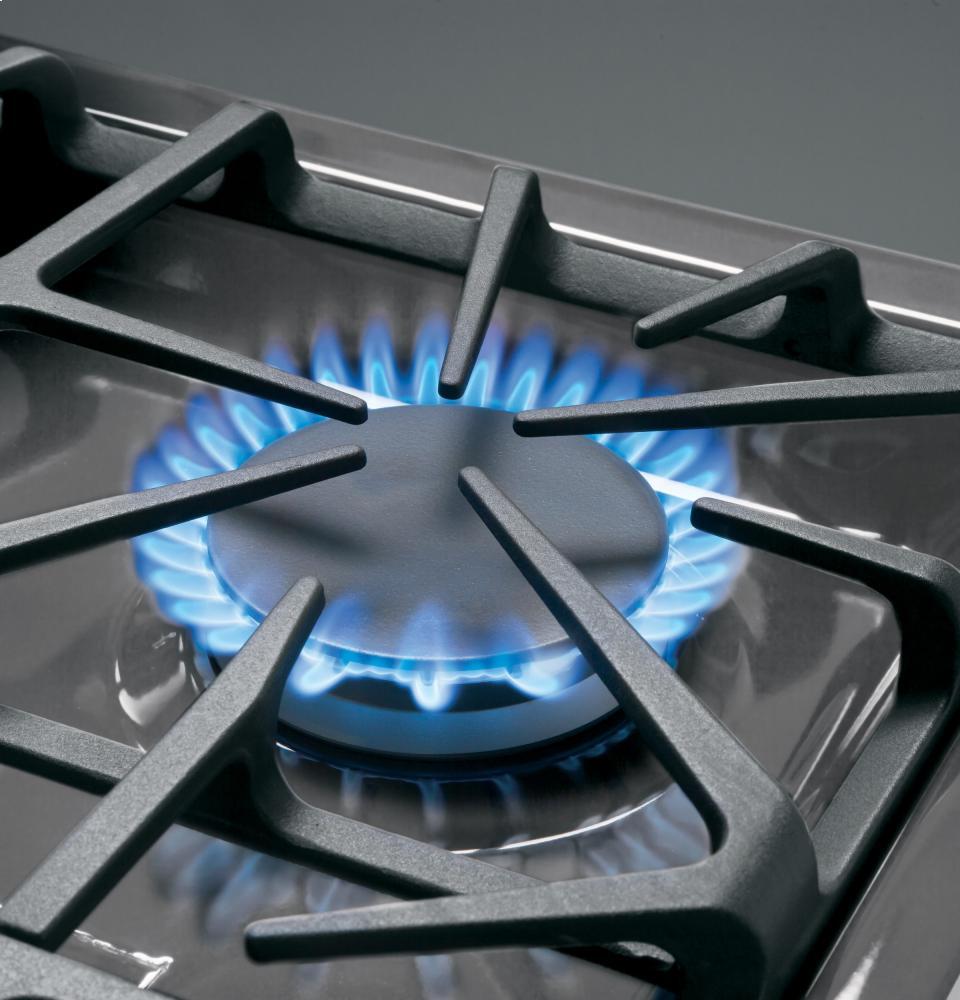

(P) (B)17,000 BTU Power Boil burner(/B)(BR) Delivers intense heat for fast boiling (/P) (P) (B)Center oval burner(/B)(BR) Large oval fifth burner is ideal for griddle or odd-size cookware (BR) (/P) (P) (B)Precise Simmer burner(/B)(BR) Delicate foods don't burn with low, even heat (BR) (/P) (P) (B)Non-stick griddle(/B)(BR) Large non-stick surface perfect for griddle cooking (BR) (/P)
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep Recessed One-Piece Upswept Porcelain-Enamel Gray |
| Burner - Left Front | 11,000 BTU |
| Burner - Left Rear | 9,500 BTU |
| Burner - Right Front | 17,000 BTU Power Boil |
| Burner - Right Rear | 5,000 BTU Precise Simmer |

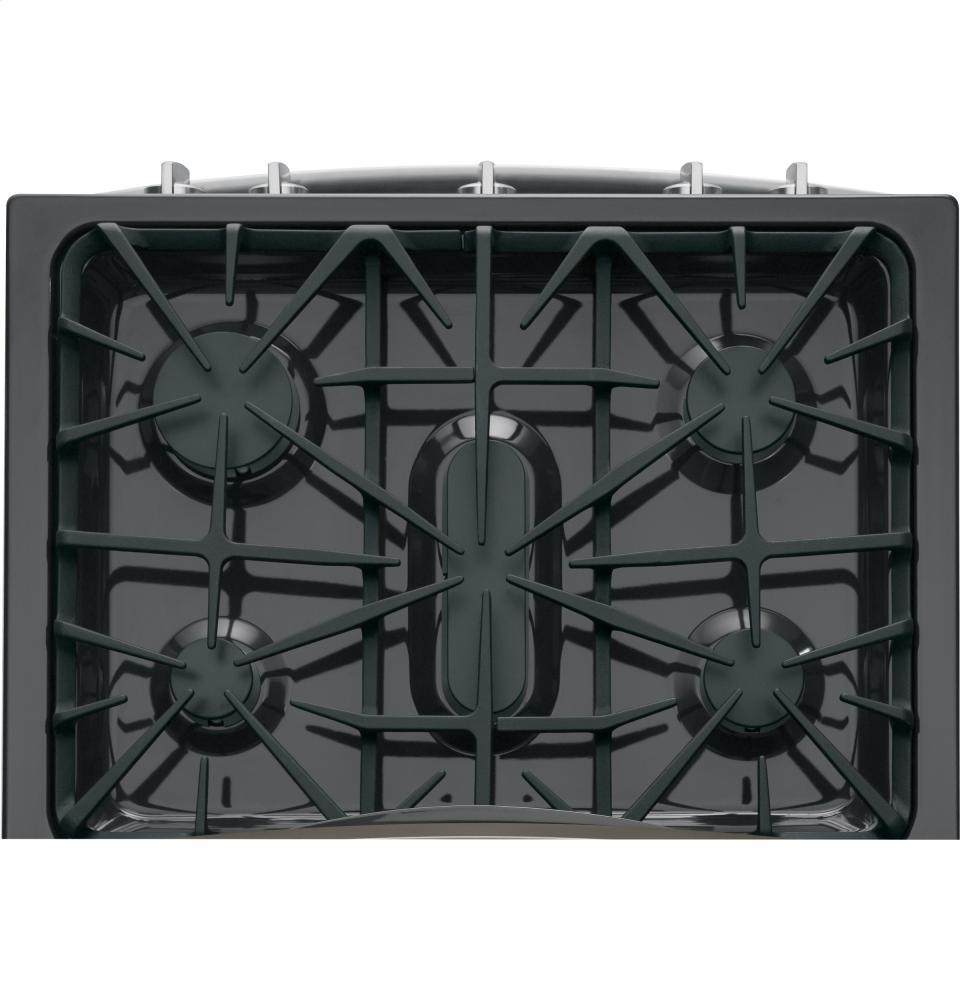

| Burner - Center | 8,000 BTU Oval |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Electronic Touch |
| Oven Control Features | Auto Self Clean Certified Sabbath Mode Delay Bake Option Audible Preheat Signal |
| Cooking Technology | Convection |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Auto Incandescent |
| Oven Cooking Modes | Convection Bake |
| Oven Rack Features | 2 Oven Racks |
| Griddle | Non-Stick |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | Slate |
| Control Knobs | Stainless Steel Appearance |
| Cooktop Burner Grate Color | Black Matte |
| Handle | Stainless Steel Designer-Style |
| Oven Door Features | Big View Oven Window |
| Claims & Certifications | |
| Star-K | |
| WEIGHTS & DIMENSIONS | |
| Depth Without Handle | 26 1/4 in |
| Approximate Shipping Weight | 210 lb |
| Cabinet Width | 30 in |
| Net Weight | 190 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Overall Width | 30 in |
| Depth with Door Open | 46 1/4 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0; (1) 6.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean with Steam Clean option Clean your oven the way you want
- Gas convection oven Circulates heat for high-quality results
- Heavy-cast, continuous grates Allow for easy movement of pans between burners
- 5.0 cu. ft. oven capacity Cook more dishes at once
- Black gloss oven interior Enjoy a clean and sleek appearance
