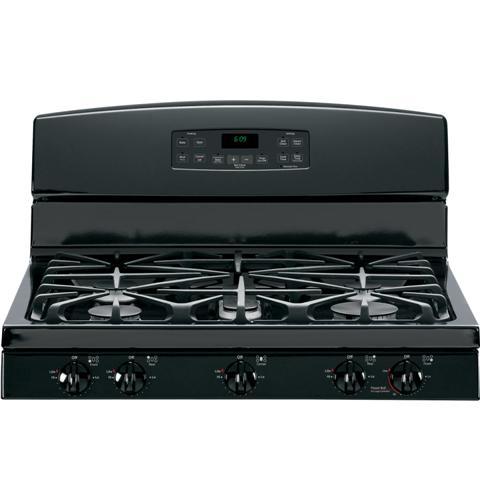

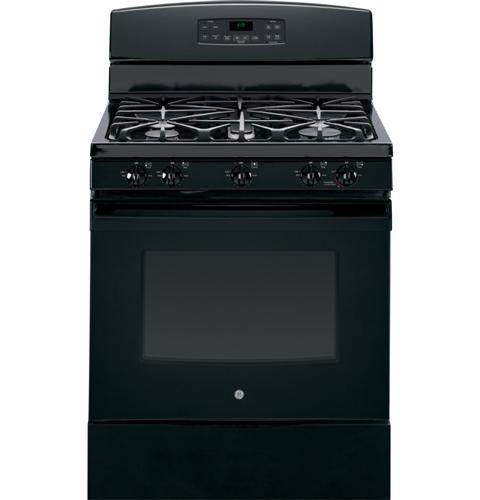

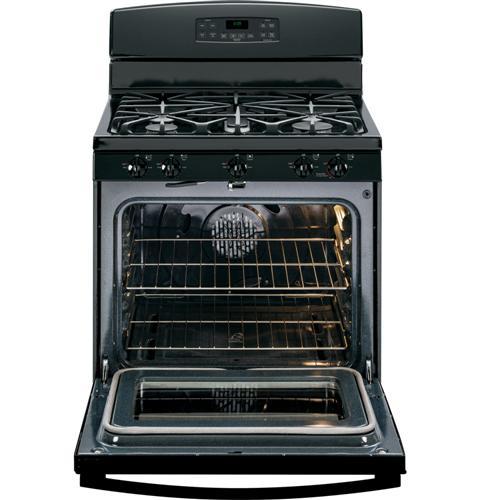

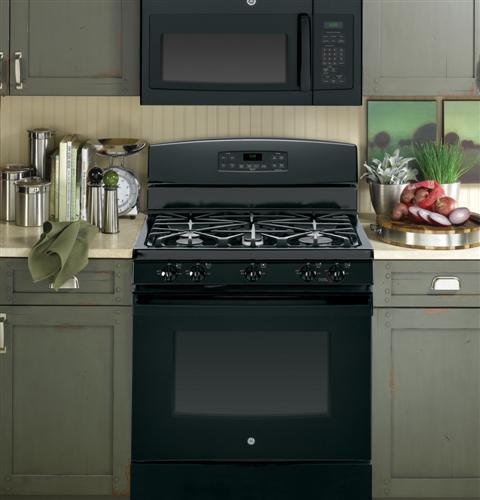

GE® 30" Free-Standing Gas Convection Range
Model JGB690DEFBB
Authorized Dealer
1
of
10
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Convection Range
Model JGB690DEFBBQuick Specs
Depth
29.25
Height
47.25
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
5
Grate
YES
GE® 30" Free-Standing Gas Convection Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
29.25
Height
47.25
ADA
NO
Burner Type
Sealed

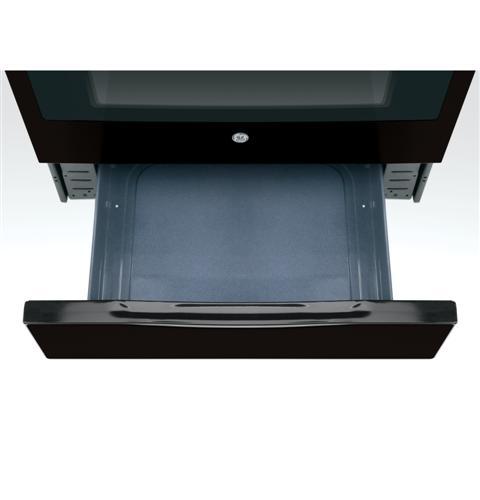

Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
YES
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

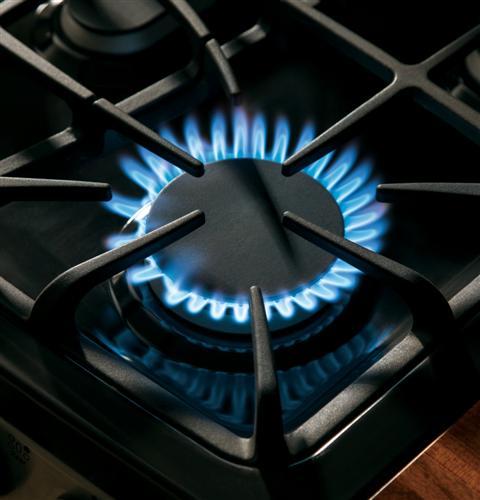

- 17,000 BTU power boil burner
- Delivers intense heat for fast boiling

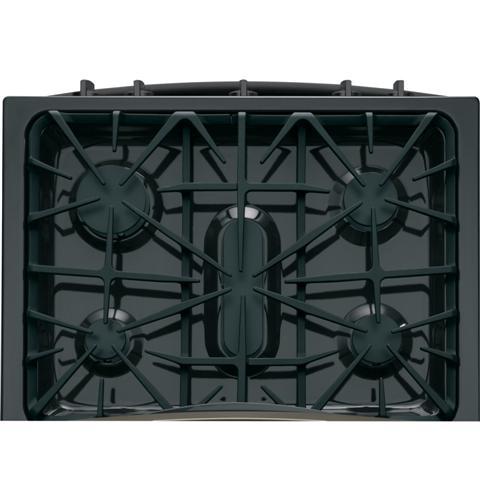

- Center Oval Burner
- Large oval fifth burner is ideal for griddle or odd-size cookware
- Self-Clean with Steam Clean Option
- Clean your oven the way you want
- Gas convection oven
- Circulates heat for high-quality results

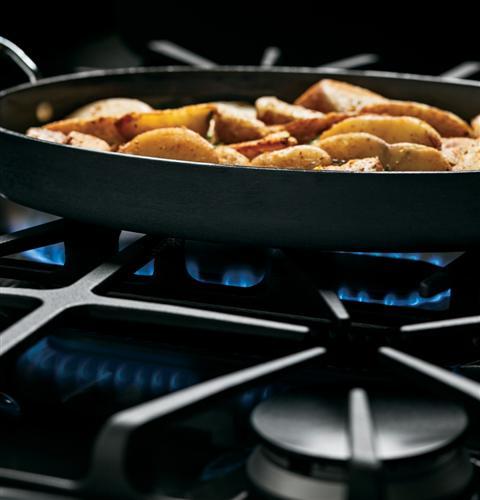

- Heavy-Cast, Continuous Grates
- Allow for easy movement of pans between burners
- Delivers intense heat for fast boiling
- Large oval fifth burner is ideal for griddle or odd-size cookware

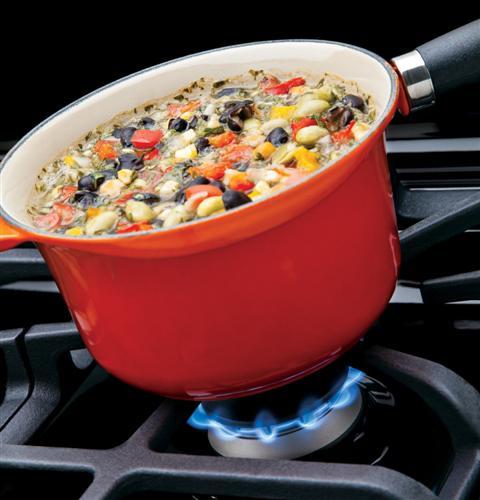

- Delicate foods don't burn with low, even heat
- Clean your oven the way you want
- Circulates heat for high-quality results
- Allow for easy movement of pans between burners

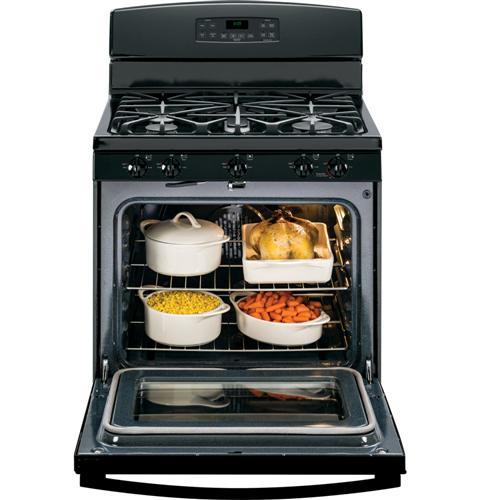

- Cook more dishes at once
- Enjoy a clean and sleek appearance
| APPEARANCE | |
| Color Appearance | Black on Black |
| Control Knobs | Color-Matched |
| Cooktop Burner Grate Color | Black Matte |
| Handle | Color-MatchedDesigner-Style |
| Oven Door Features | Big View Oven Window |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| FEATURES | |
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep RecessedOne-Piece UpsweptPorcelain-EnamelBlack |
| Burner - Left Front | 11,000 BTU |
| Burner - Left Rear | 9,500 BTU |
| Burner - Right Front | 17,000 BTU Power Boil |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Burner - Center | 8,000 BTU Oval |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Electronic Touch |
| Oven Control Features | Auto Self CleanCertified Sabbath ModeDelay Bake OptionAudible Preheat Signal |
| Cooking Technology | Convection |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Auto Incandescent |
| Oven Cooking Modes | Convection Bake |
| Oven Rack Features | 2 Oven Racks |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Depth Without Handle | 26.75 |
| Approximate Shipping Weight | 210.0 |
| Cabinet Width | 30.0 |
| Net Weight | 190.0 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 29.25 |
| Overall Height | 47.25 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Overall Width | 30.0 |
| Depth with Door Open | 46.75 |
