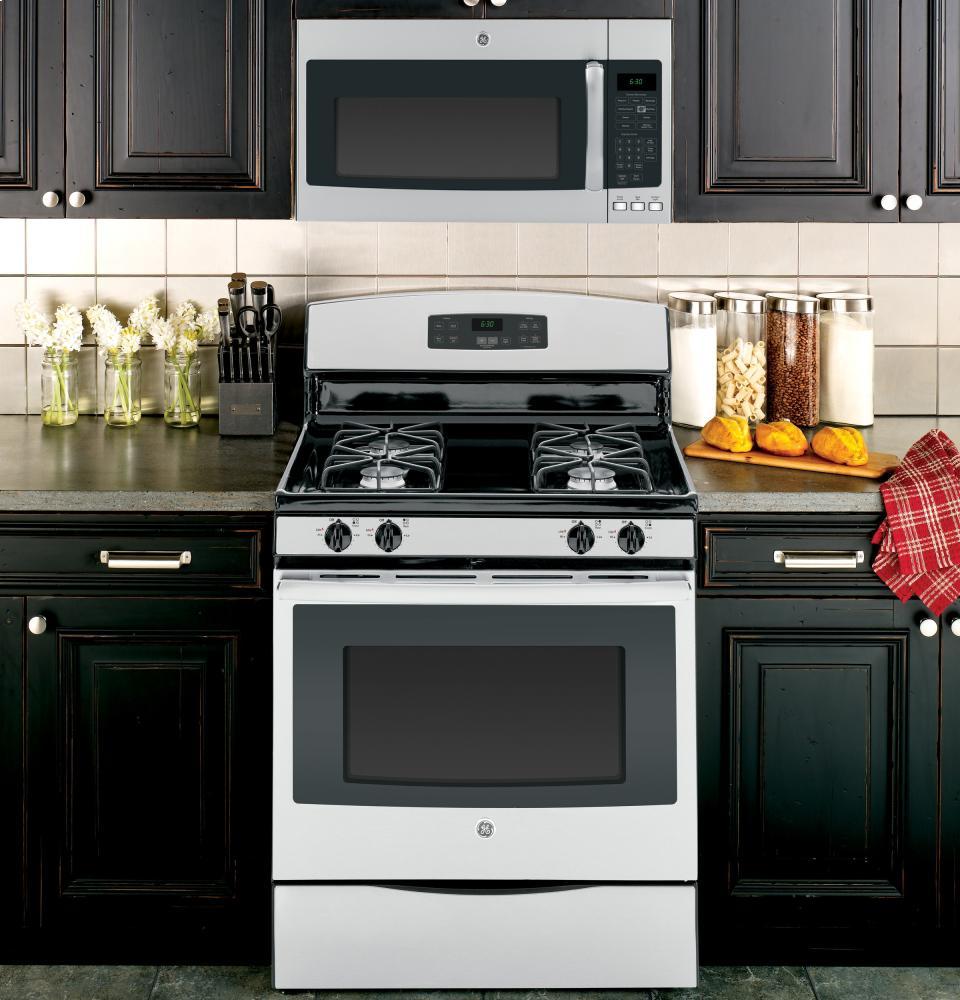

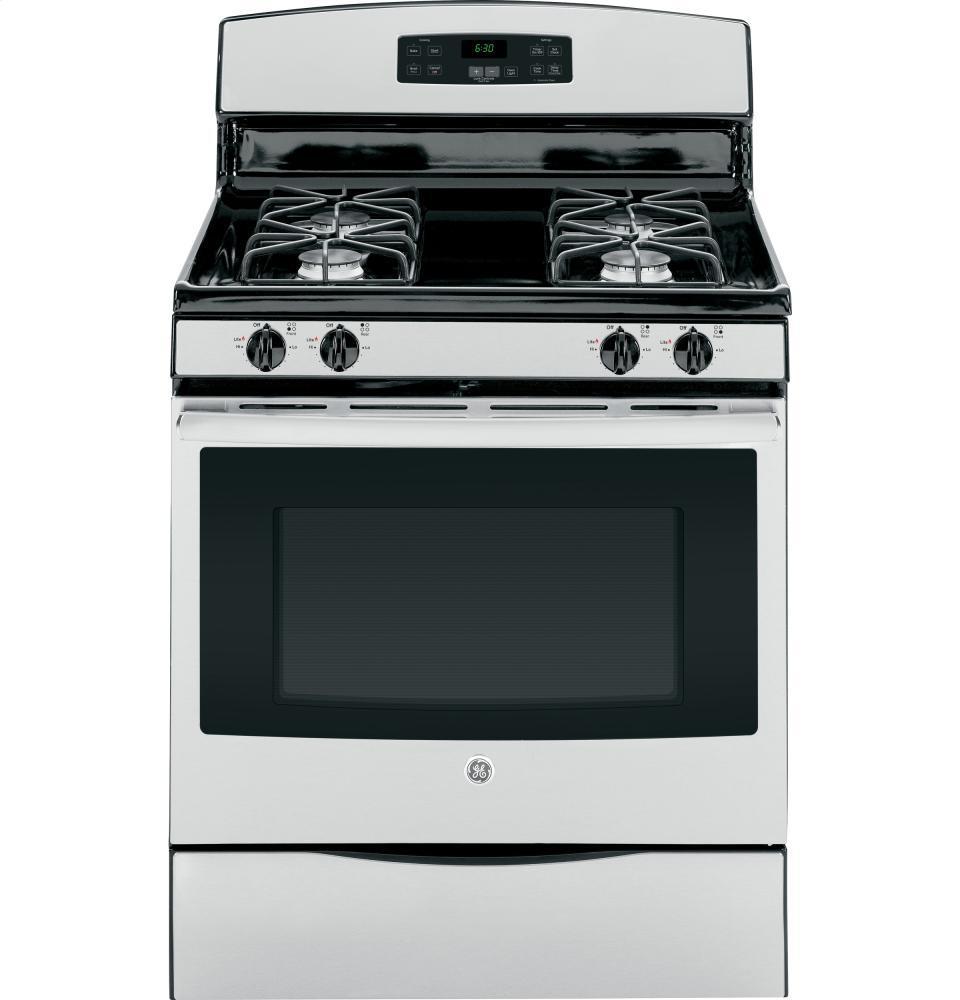

GE® 30" Free-Standing Gas Range
Model JGB630REFSS
Authorized Dealer
1
of
12
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB630REFSSQuick Specs
Depth
28 3/4
Height
46 1/4
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
Grate
YES
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28 3/4
Height
46 1/4
ADA
NO
Burner Type
Sealed

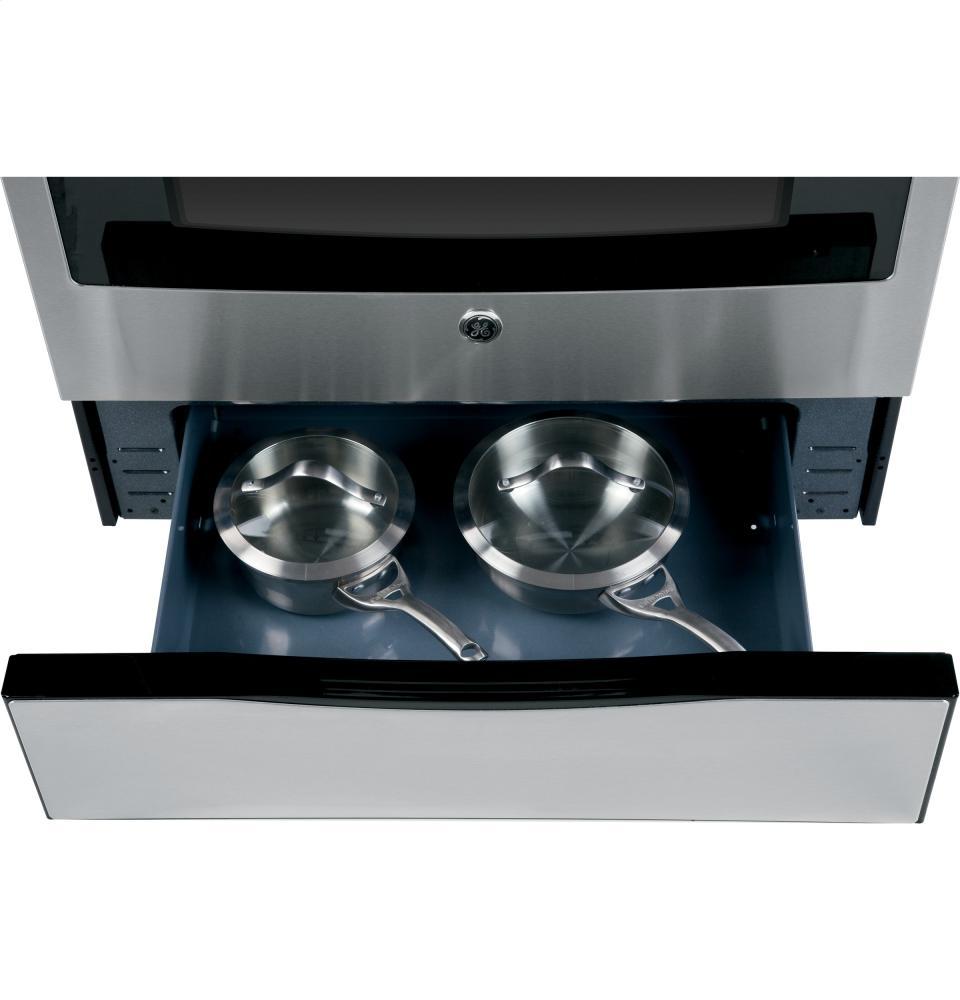

Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

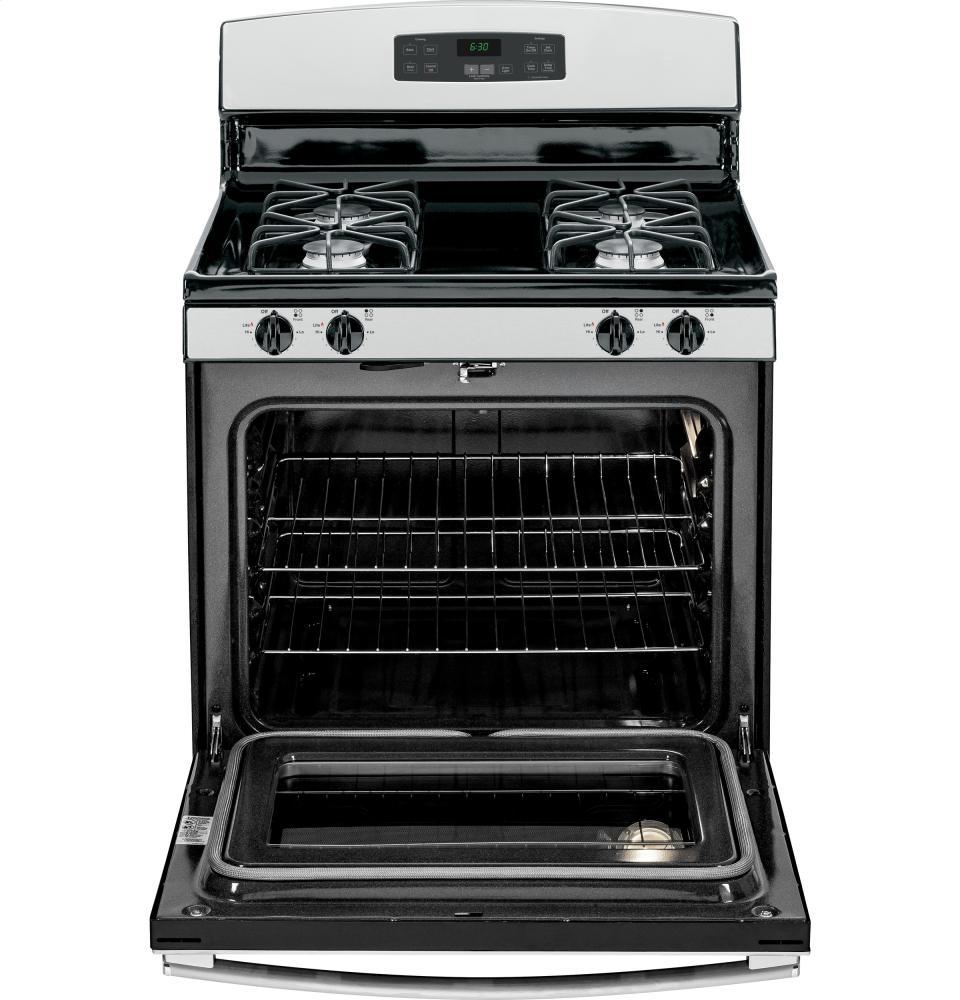

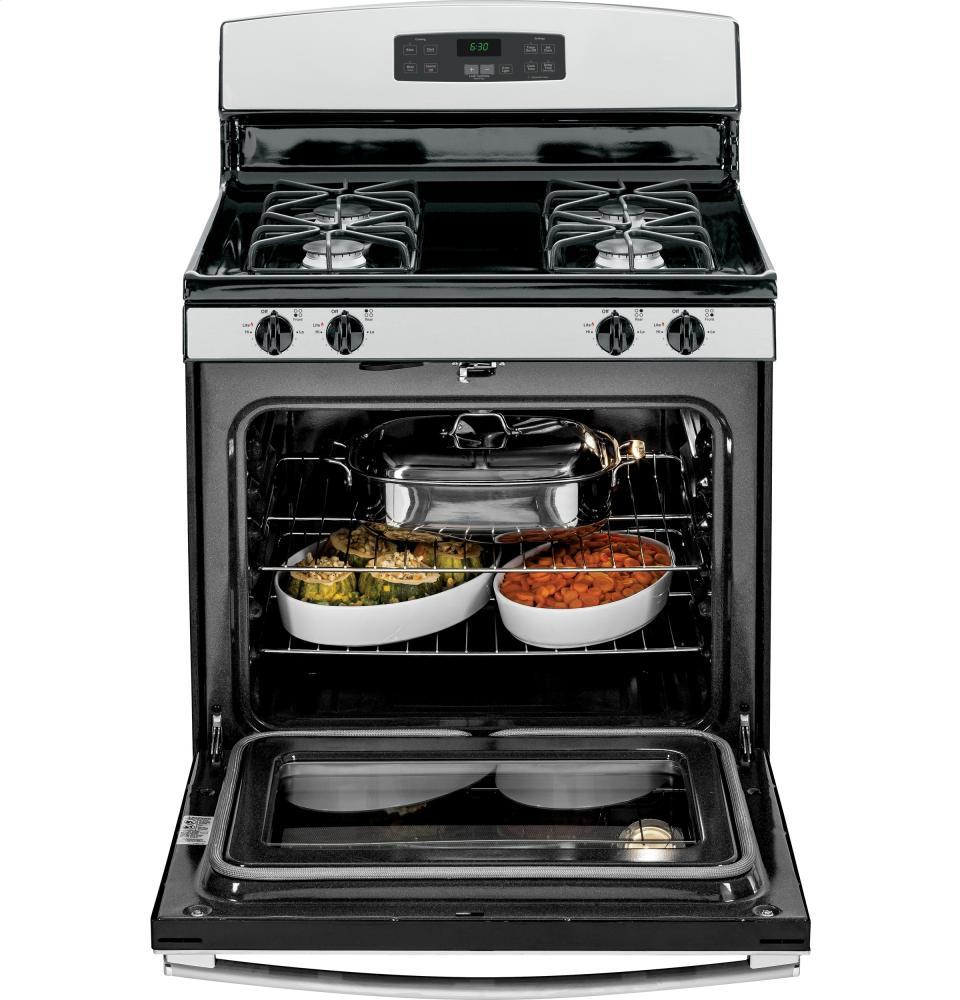

- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- In-oven broil
- Healthy meals are hassle-free with in-oven broiling
- 5.0 cu. ft. oven capacity Cook more dishes at once
- In-oven broil Healthy meals are hassle-free with in-oven broiling

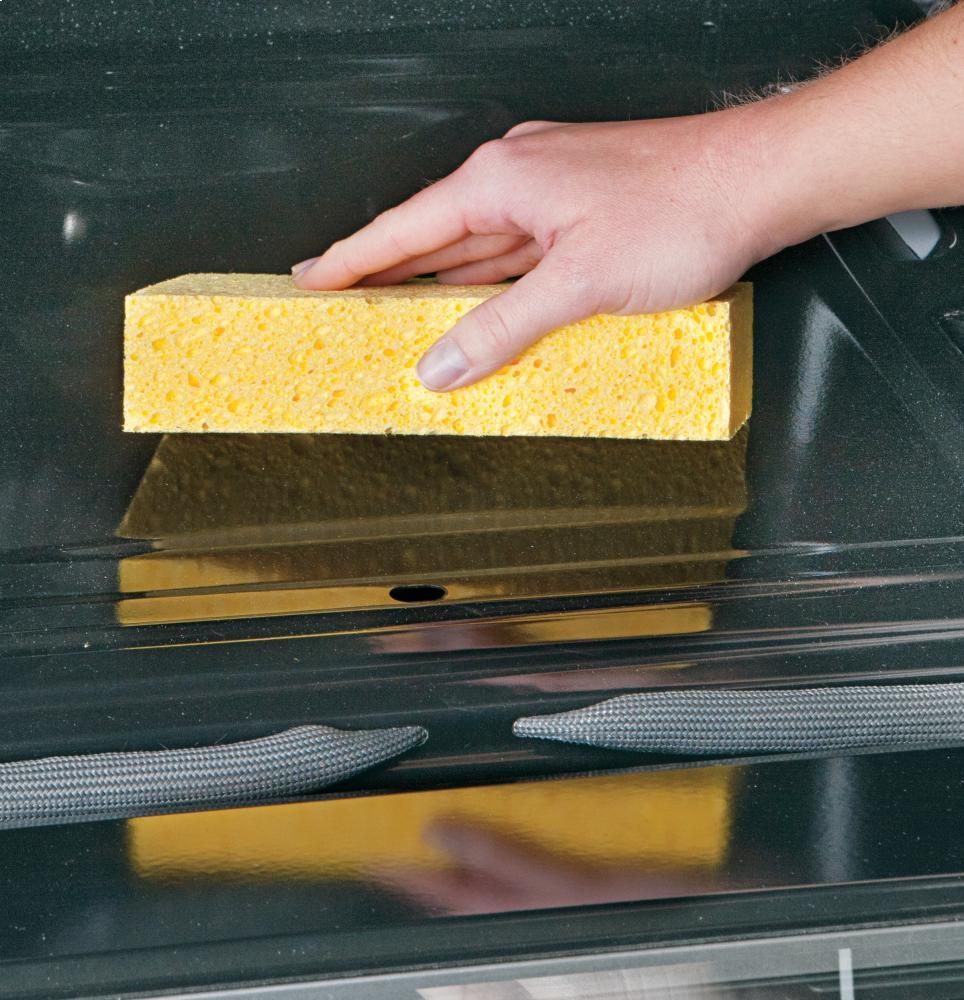

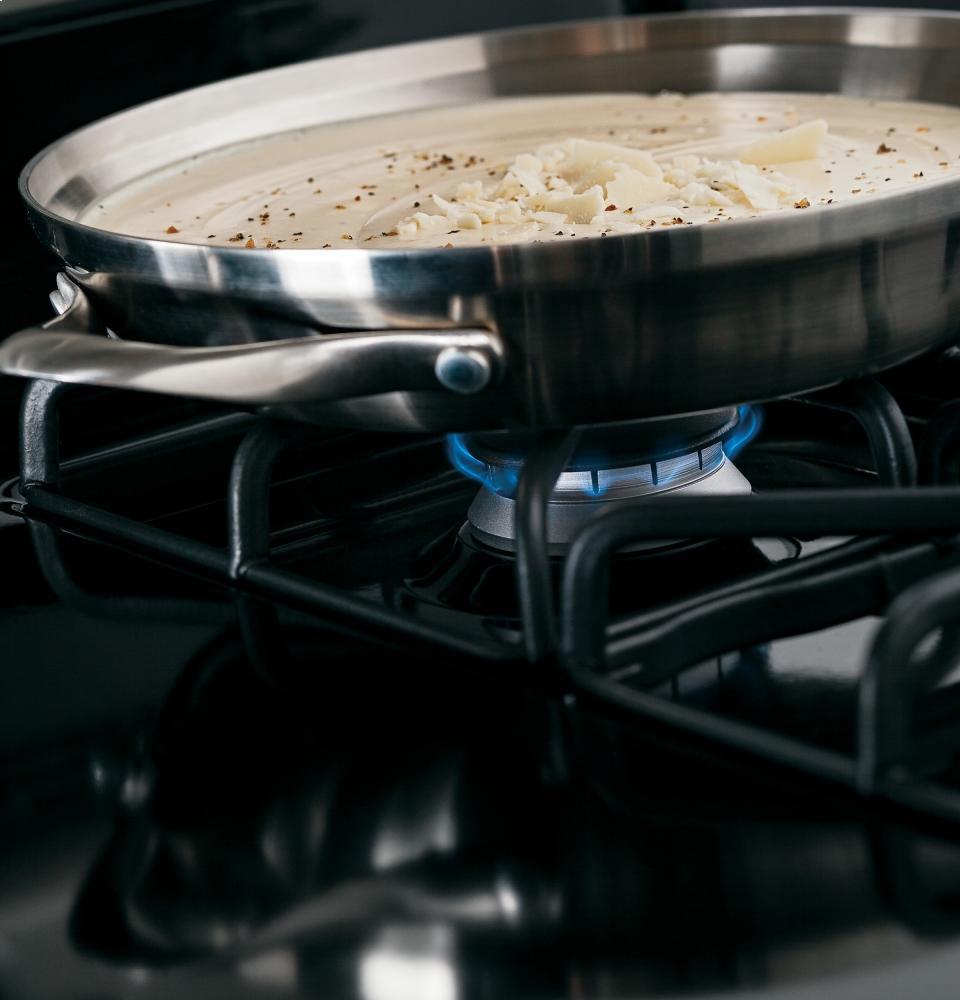

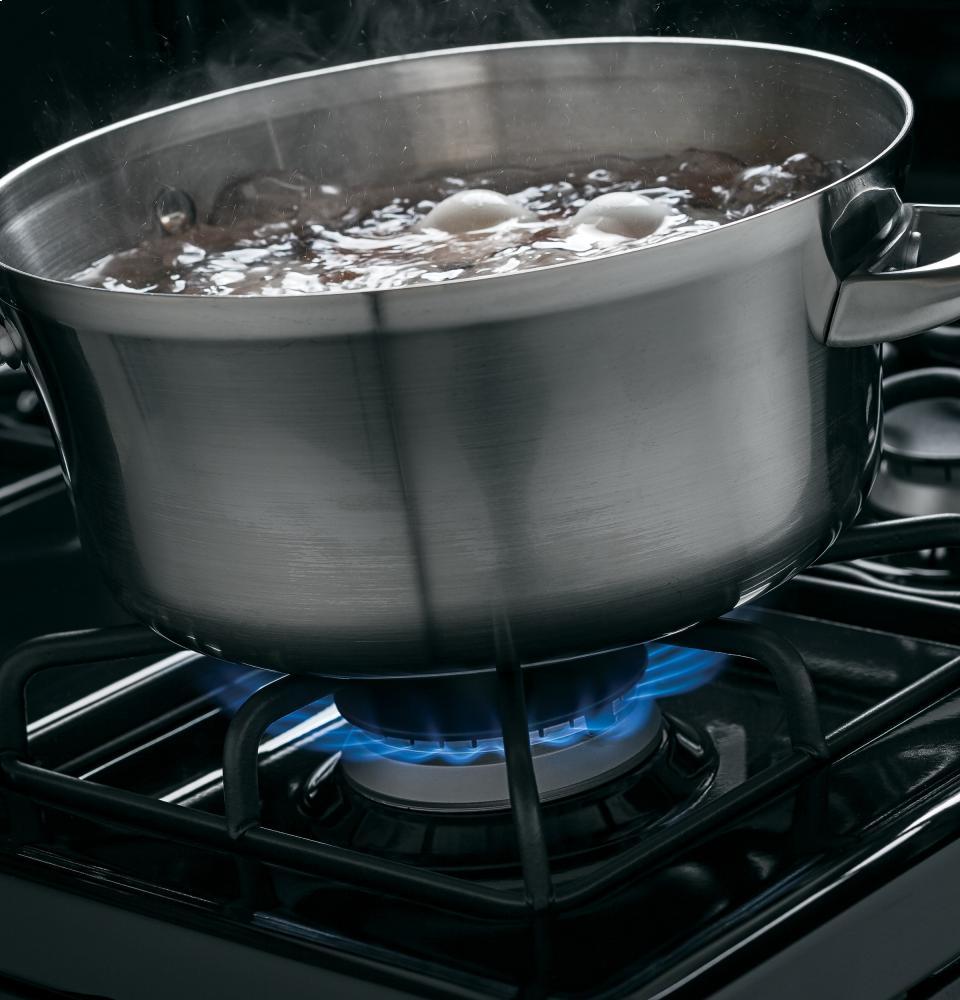

(B)12,500 BTU burner(/B)(P)Quickly produces high heat(/P)(BR)(B)Precise Simmer burner(/B)(P)Delicate foods don't burn with low, even heat(/P)(BR)(B)Self-clean oven(/B)(P)Cleans the oven cavity without the need for scrubbing(/P)(BR)(B)Sealed cooktop burners(/B)(P)Contains spills and make cleaning quick and easy(/P)
| FEATURES | |
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |

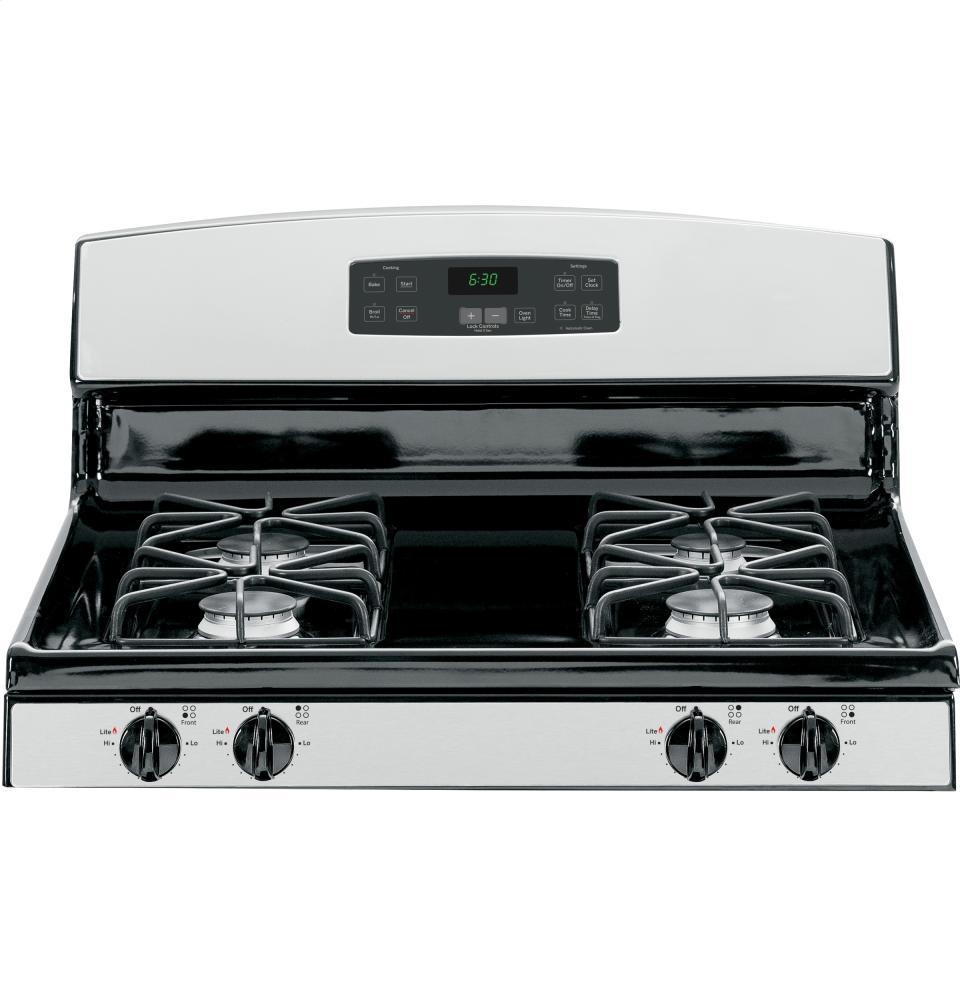

| Cooktop Burner Type | Sealed |

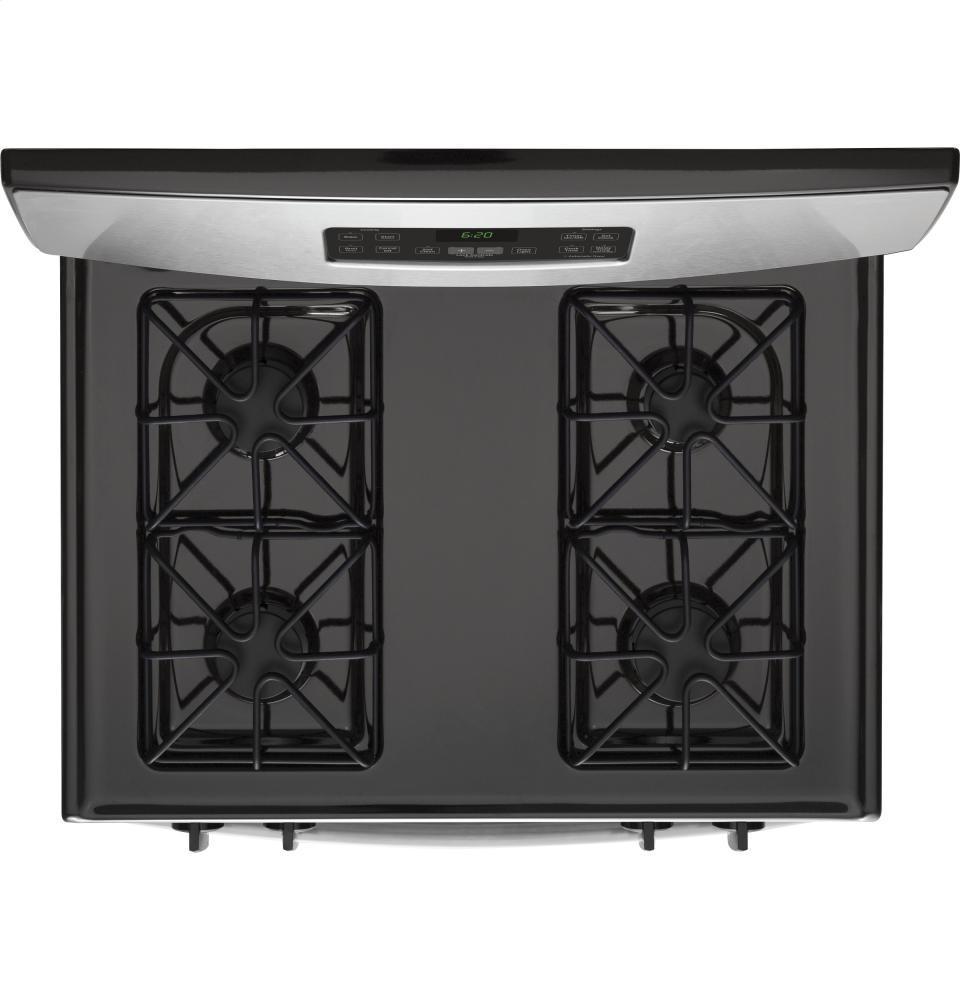

| Cooktop Surface | Black One-Piece Upswept Porcelain-Enamel |
| Burner - Left Front | 9,500 BTU |
| Burner - Left Rear | 9,500 BTU |
| Burner - Right Front | 12,500 BTU |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Cooktop Burner Grate Material | Extra-Heavy Steel |
| Control Type | Electronic Touch |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Certified Sabbath Mode Control Lock Capability Delay Bake Option |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| One-Piece Drip Pans | Optional Accessory |
| Oven Rack Features | 2 Oven Racks |
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| APPEARANCE | |
| Color Appearance | Stainless Steel/Black |
| Control Knobs | Gloss Black |
| Cooktop Burner Grate Color | Black Matte |
| Handle | Designer Style Stainless Steel |
| Oven Door Features | Big View Oven Window |
| WEIGHTS & DIMENSIONS | |
| Depth Without Handle | 26 1/4 in |
| Approximate Shipping Weight | 215 lb |
| Cabinet Width | 30 in |
| Net Weight | 195 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36 1/4 |
| Overall Width | 30 in |
| Depth with Door Open | 46 1/4 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| CLAIMS & CERTIFICATIONS | |
| Star-K | |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- 5.0 cu. ft. oven capacity Cook more dishes at once
- In-oven broil Healthy meals are hassle-free with in-oven broiling
