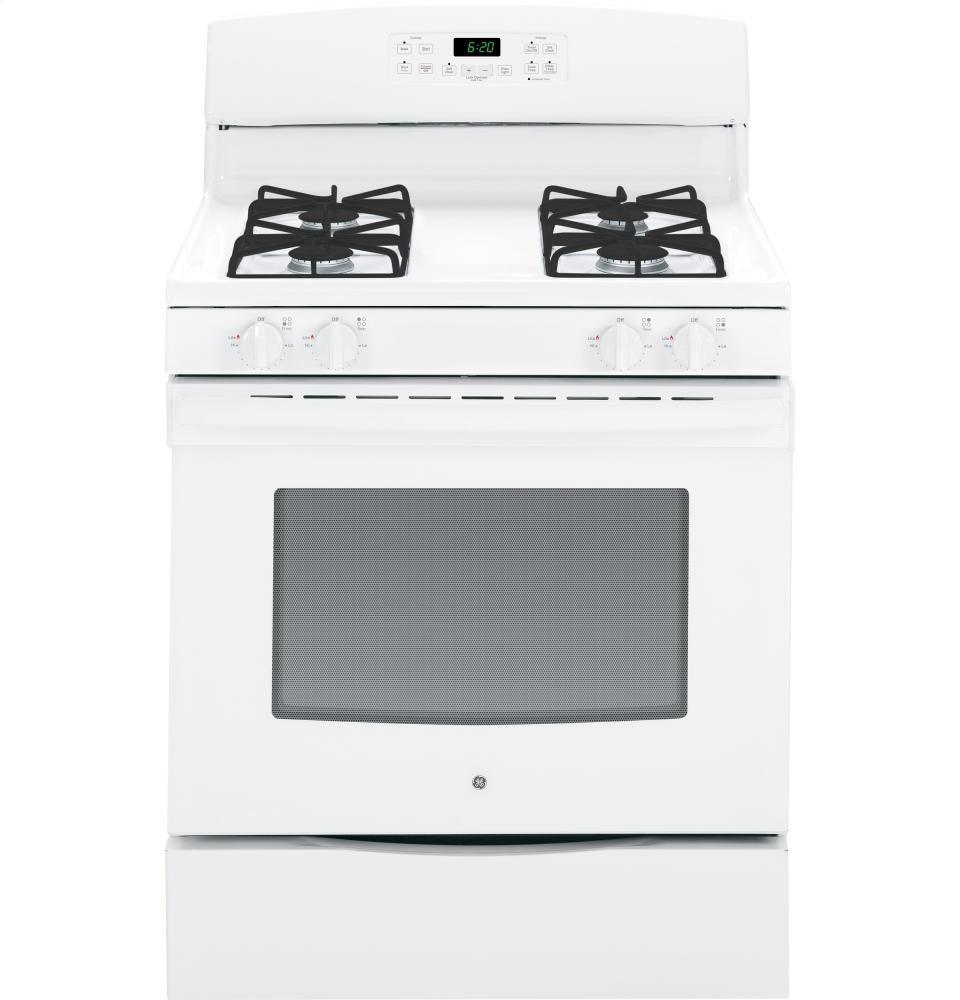

GE® 30" Free-Standing Gas Range
Model JGB620DEFWW
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB620DEFWWQuick Specs
Depth
28.75
Height
46.25
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
Grate
YES
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28.75
Height
46.25
ADA
NO
Burner Type
Sealed

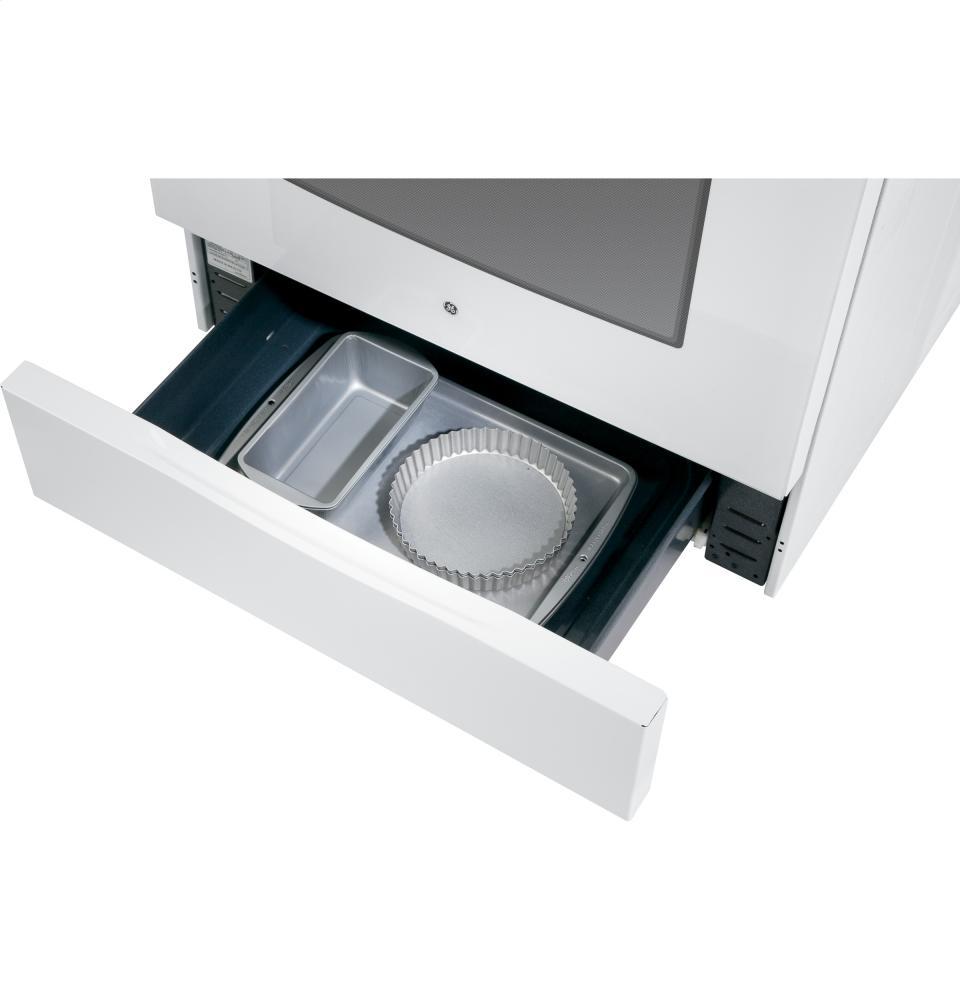

Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4

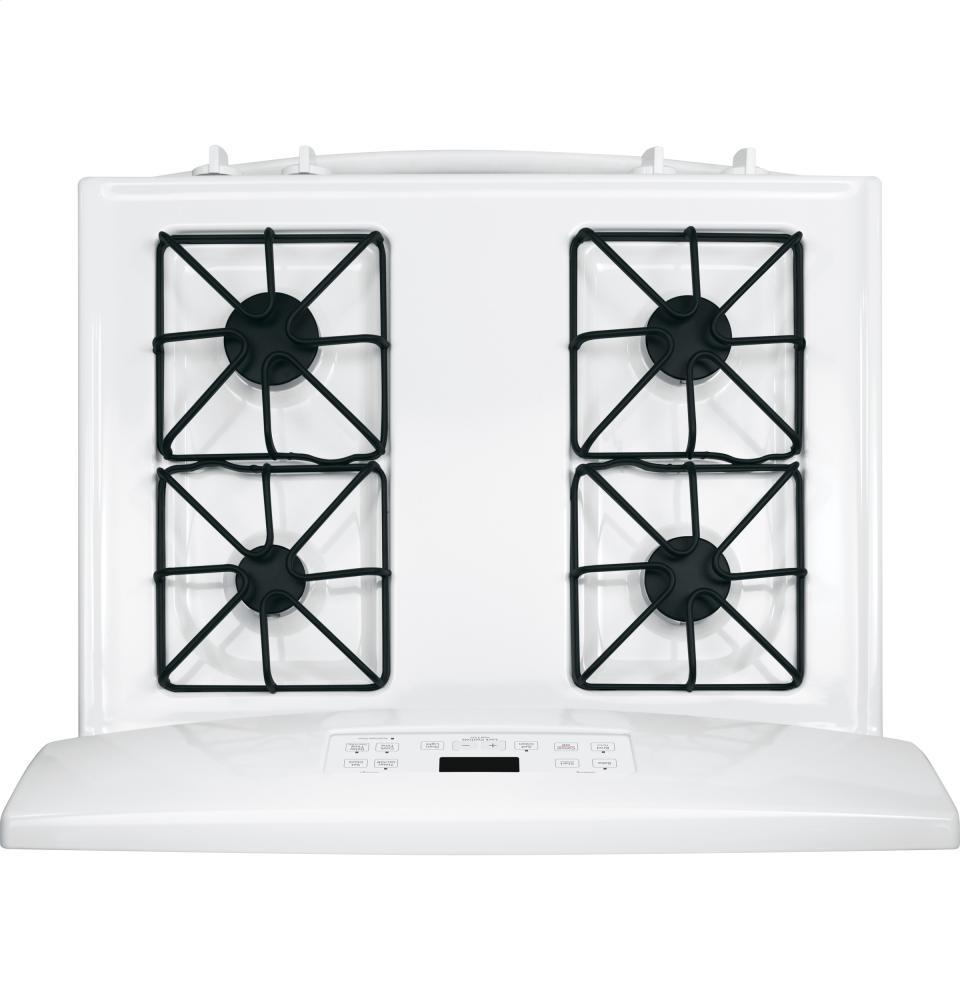

Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

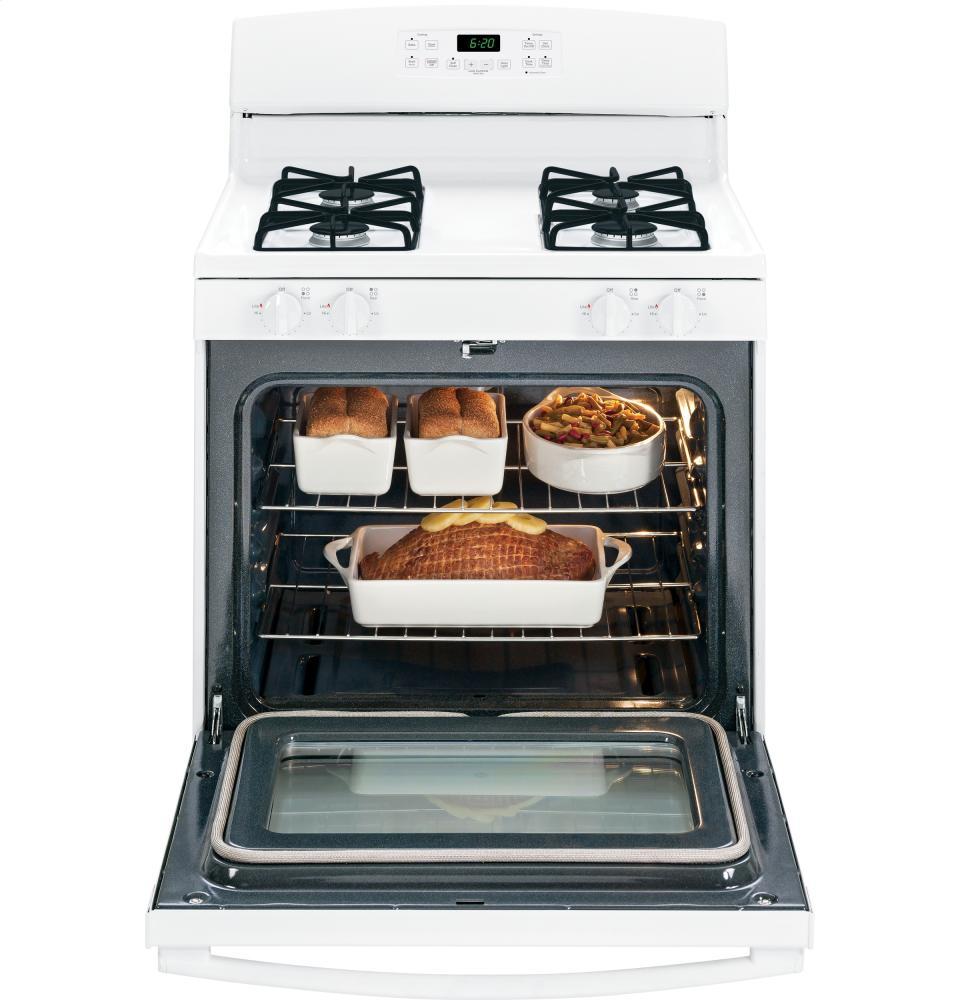

- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- Electronic oven controls
- Electronic touch pads are easy to operate
- 5.0 cu. ft. oven capacity Cook more dishes at once
- Electronic oven controls Electronic touch pads are easy to operate
(P) (B)12,500 BTU burner(/B)(BR) Quickly produces high heat (/P) (P) (B)Precise Simmer burner(/B)(BR) Delicate foods don't burn with low, even heat (BR) (/P) (P) (B)Self-clean oven(/B)(BR) Cleans the oven cavity without the need for scrubbing (BR) (/P) (P) (B)Sealed cooktop burners(/B)(BR) Contains spills and make cleaning quick and easy (/P)
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel White |
| Burner - Left Front | 9,500 BTU |
| Burner - Left Rear | 9,500 BTU |
| Burner - Right Front | 12,500 BTU |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Cooktop Burner Grate Material | Heavy Steel |
| Control Type | Electronic Touch |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Certified Sabbath Mode Oven Control Lock Capability |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| One-Piece Drip Pans | Optional Accessory |

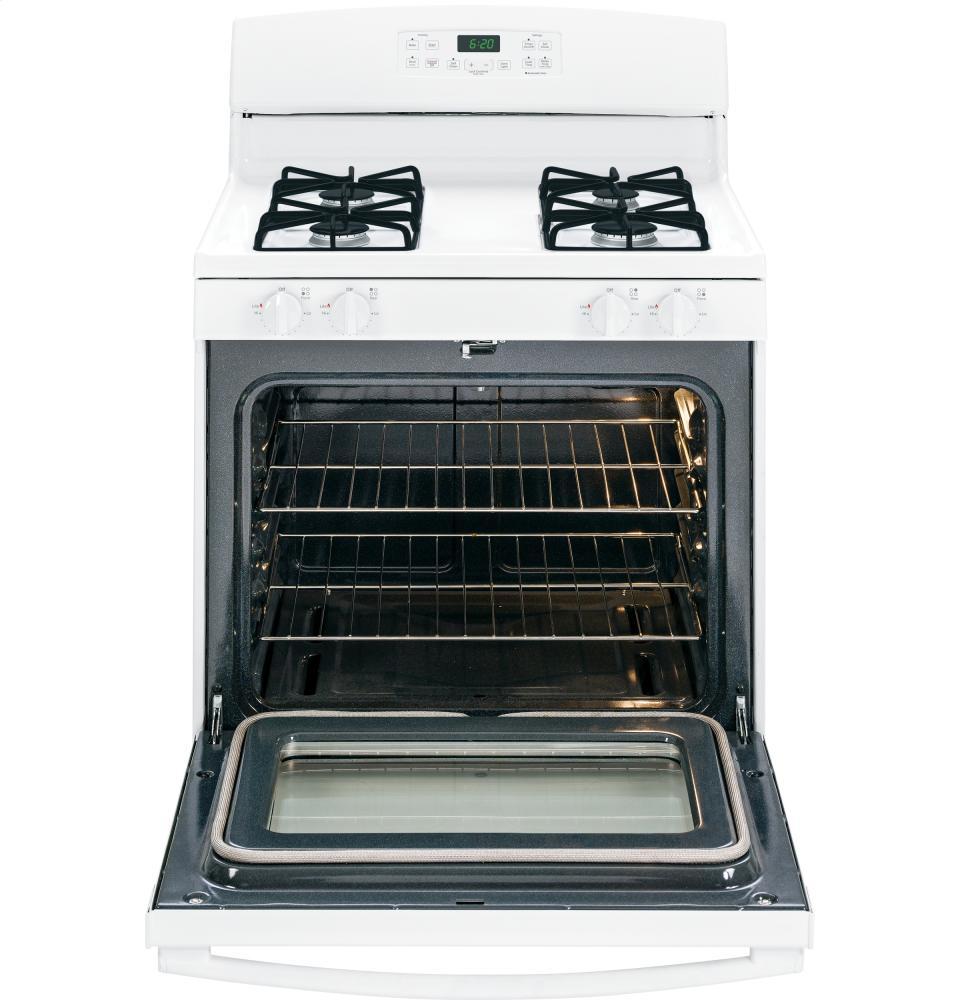

| Oven Rack Features | 2 Oven Racks |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | White on White |

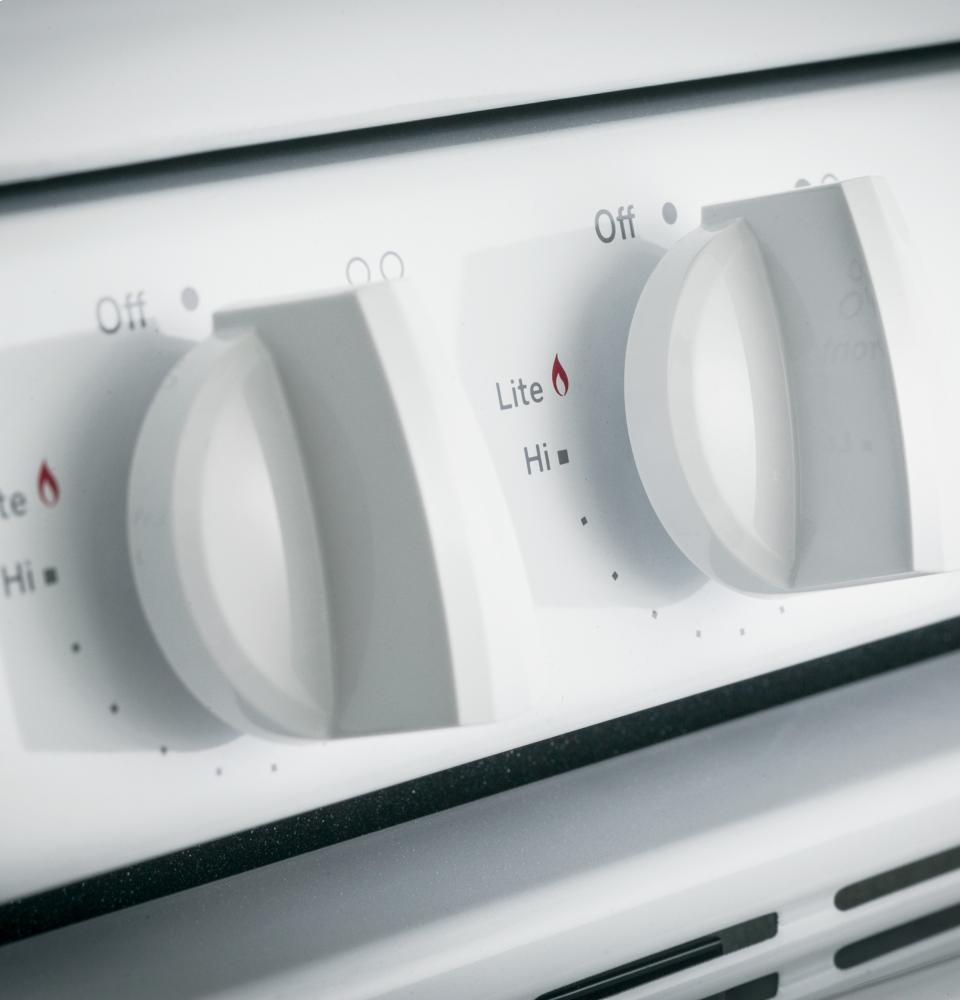

| Control Knobs | Color-Matched |
| Cooktop Burner Grate Color | Black Matte |
| Handle | Color-Matched Designer-Style |
| Oven Door Features | Big View Oven Window |
| Claims & Certifications | |
| Star-K | |
| WEIGHTS & DIMENSIONS | |
| Depth Without Handle | 26 1/4 in |
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Net Weight | 202 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36 1/4 |
| Overall Width | 30 in |
| Depth with Door Open | 46 1/4 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- 5.0 cu. ft. oven capacity Cook more dishes at once
- Electronic oven controls Electronic touch pads are easy to operate
