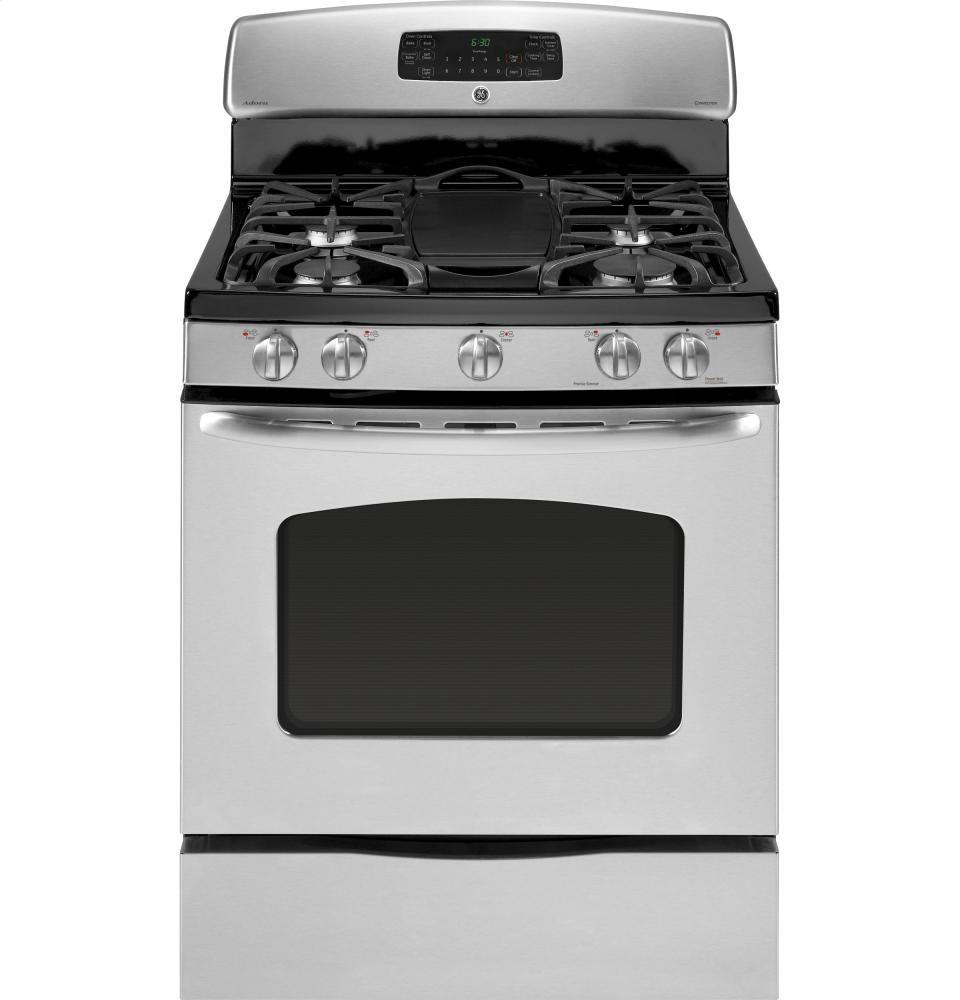

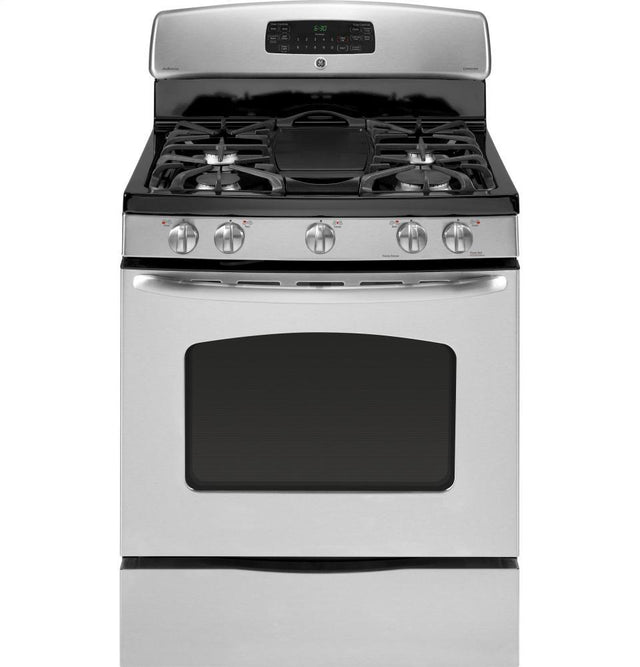

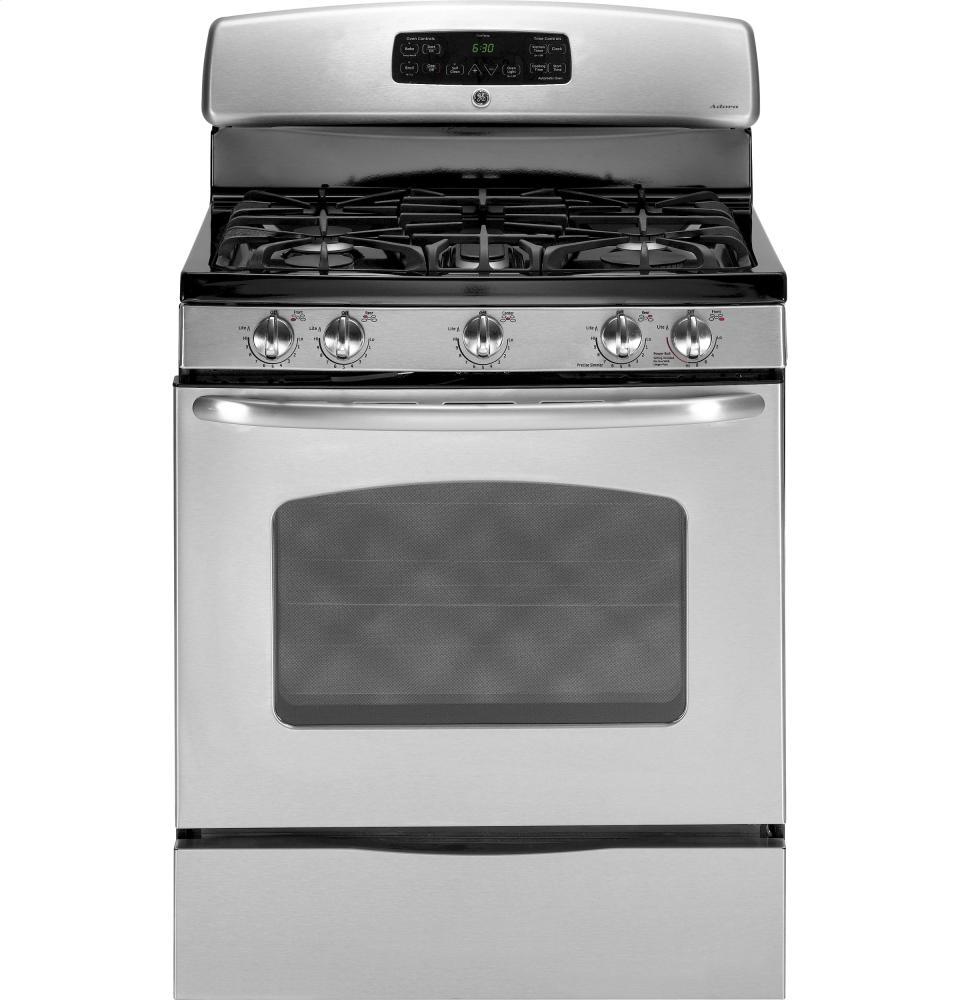

GE® 30" Free-Standing Gas Range
Model JGB605SETSS
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB605SETSSQuick Specs
Depth
28.5
Height
46.88
ADA
YES
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
Grate
NO
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
28.5
Height
46.88
ADA
YES
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
NO
Convection
NO
Self Clean
YES
Oven Rack Type
SLIDING
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- 5.0 cu. ft. oven capacity
- Enough room to cook an entire meal at once
- Gas convection oven
- Circulates air throughout the oven cavity ensuring better baking and roasting results

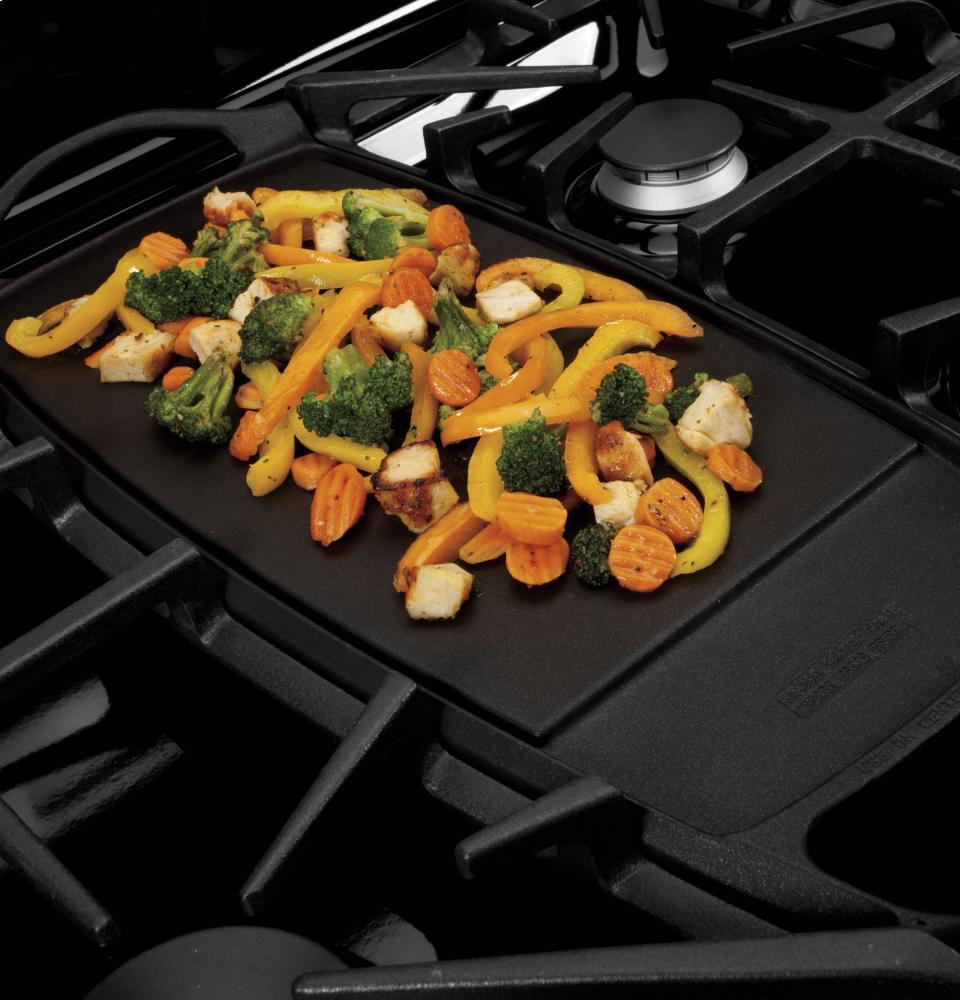

- Non-stick griddle
- Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean
- 17,000 BTU power boil burner
- Delivers intense heat for fast boiling

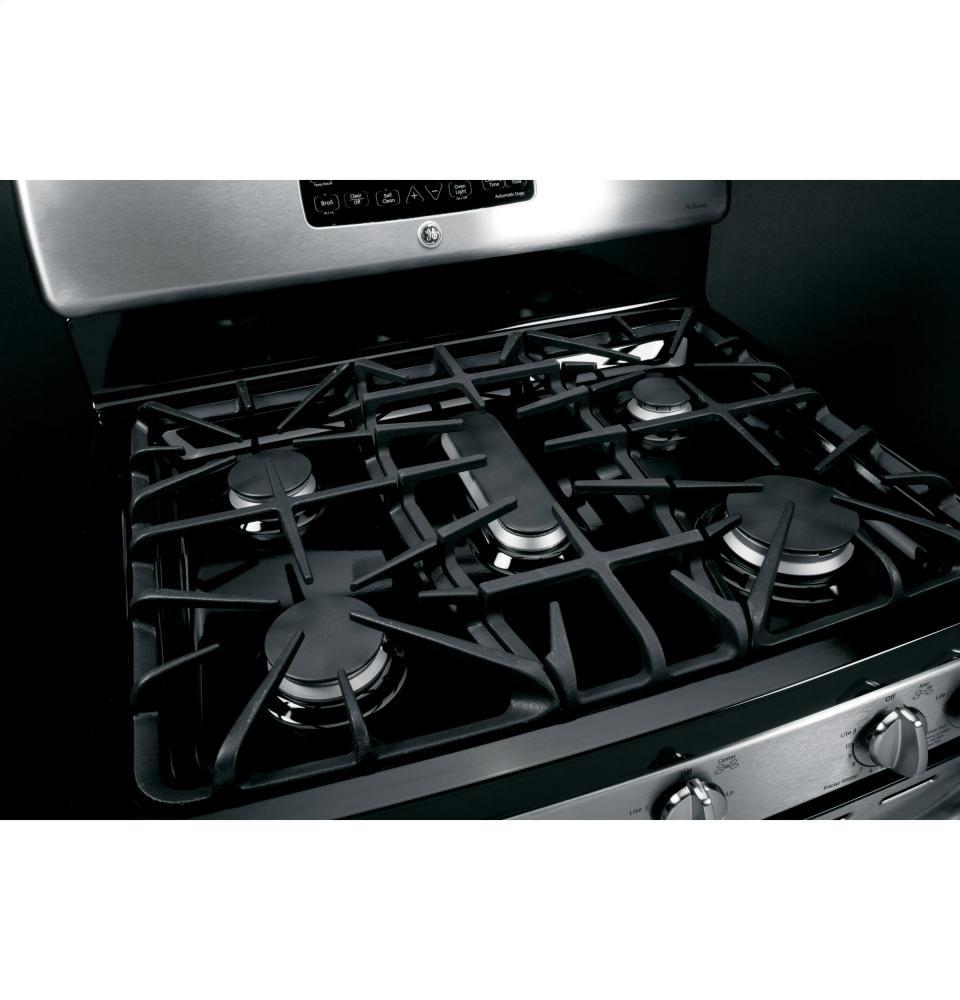

- Center oval burner
- Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles
- 5.0 cu. ft. oven capacity Enough room to cook an entire meal at once
- Gas convection oven Circulates air throughout the oven cavity ensuring better baking and roasting results
- Non-stick griddle Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean
- 17,000 BTU power boil burner Delivers intense heat for fast boiling
- Center oval burner Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | True Temp System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Deep Recessed One-Piece Upswept Porcelain-Enamel |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 11,000 BTU |
| Power Boil Burner | (1) 17,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| All-Purpose Burners | (1) 9,100 BTU |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display Electronic Oven Controls |
| Oven Control Features | Audible Preheat Signal Automatic Oven Timer (Time Bake) Auto Oven Shut-Off Auto Self Clean Certified Sabbath Mode Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock and Timer Hi / Low Broil In-Oven Broiling Oven Cycle Light Oven "ON" Light Self-Clean Cool Down Time Display |
| Cooking Technology | Convection |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Stainless Steel |
| Oven Interior | Interior Oven Light |
| Griddle | Non-Stick |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | Stainless Steel |
| Control Knobs | Large Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | Stainless |
| Handle | Stainless Steel |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Net Weight | 205 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- 5.0 cu. ft. oven capacity Enough room to cook an entire meal at once
- Gas convection oven Circulates air throughout the oven cavity ensuring better baking and roasting results
- Non-stick griddle Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean
- 17,000 BTU power boil burner Delivers intense heat for fast boiling
- Center oval burner Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles
