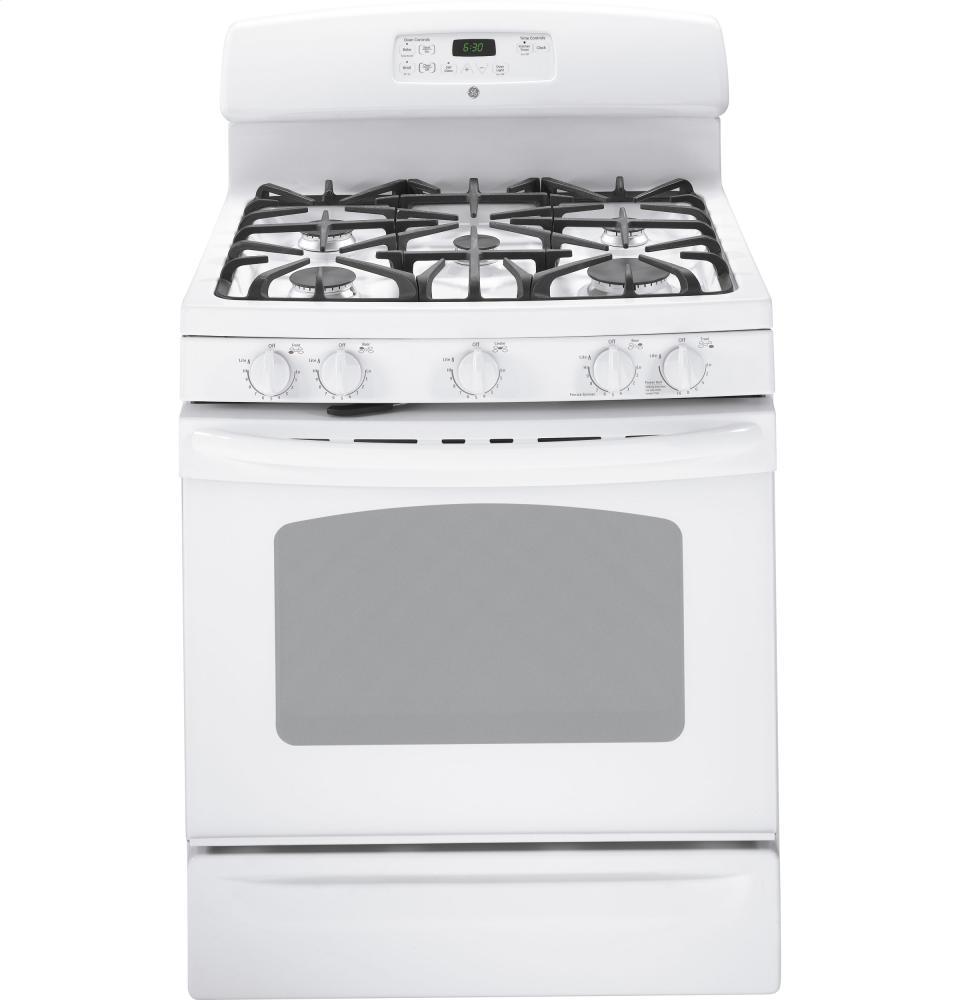

GE® 30" Free-Standing Gas Range
Model JGB400DEPWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB400DEPWWQuick Specs
Depth
26.25
Height
46.125
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
5
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.25
Height
46.125
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Super-large 5.0 oven capacity
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
- Heavy-cast, continuous grates
- Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
- Deep-recessed cooktop
- Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean
- Center round burner
- Round fifth burner allows for low, even heat distribution that is ideal for delicate foods and sauces
- PowerBoil™ 16,500 BTU burner
- This powerful burner instantly supplies the intense heat need for boiling, saute ing and stir frying
- Self-clean oven
- Super-large 5.0 oven capacity
- Heavy-cast, continuous grates
- Deep-recessed cooktop
- Center round burner
- PowerBoil(TM) 16,500 BTU burner
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Deep Recessed One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (1) 9,100 BTU/850 BTU |
| Center Round Burner | (1) 5,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 11,000/1,150 BTU |
| Power Boil Burner | (1) 16,500 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display Electronic Oven Controls QuickSet III SmartLogic™ Controls |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Certified Sabbath Mode Control Lock Capability Electronic Clock and Timer Hi / Low Broil In-Oven Broiling Oven Cycle Light Oven "ON" Light Self-Clean Cool Down Time Display |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Oven Interior | Oven Interior Light |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 213 lb |
| Cabinet Width | 30 in |
| Net Weight | 193 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 46 1/8 in |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.1; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.5 (1) 11.0 (1) 9.1 (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean oven
- Super-large 5.0 oven capacity
- Heavy-cast, continuous grates
- Deep-recessed cooktop
- Center round burner
- PowerBoil(TM) 16,500 BTU burner
