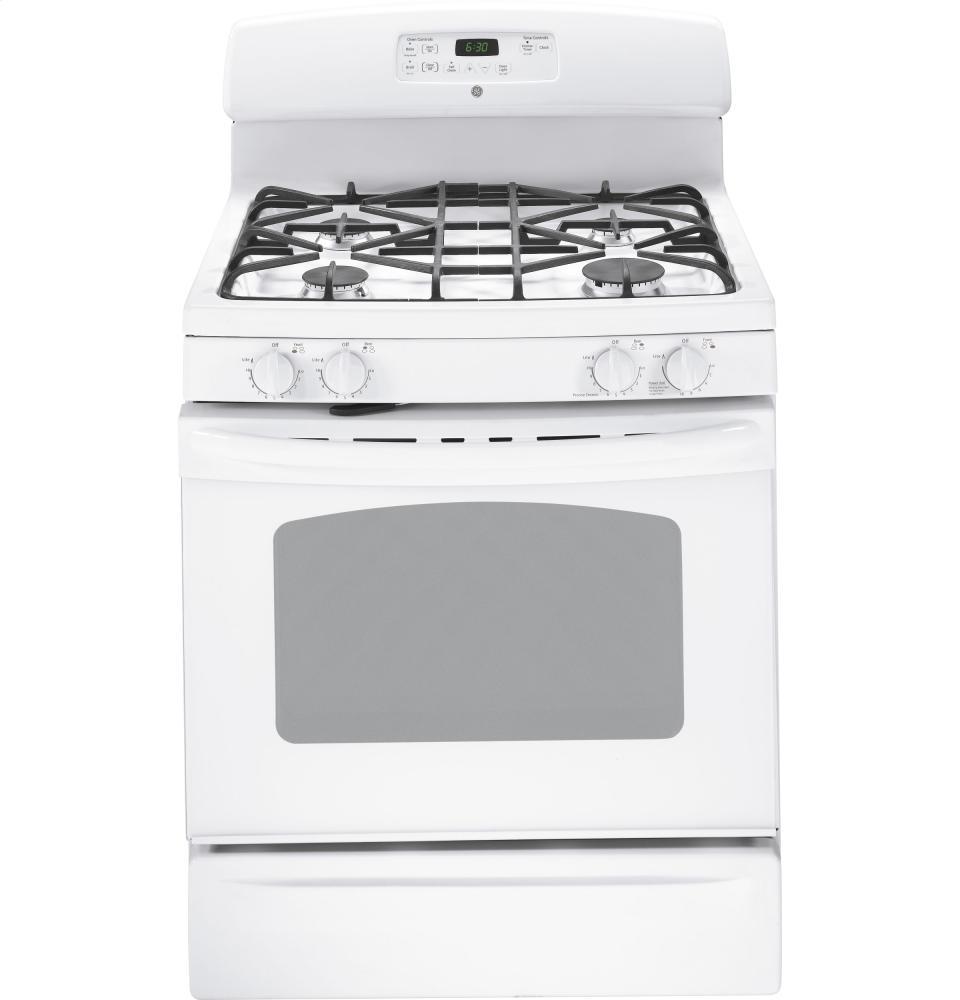

GE® 30" Free-Standing Gas Range
Model JGB300DEPWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB300DEPWWQuick Specs
Depth
26.25
Height
47
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
4
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.25
Height
47
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Super-large 5.0 oven capacity
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
- Heavy-cast, continuous grates
- Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
- Deep-recessed cooktop
- Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean
- PowerBoil™ 15,000 BTU burner
- This powerful element turns up the heat for boiling, saute ing and stir frying
- Precise Simmer burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces
- Self-clean oven
- Super-large 5.0 oven capacity
- Heavy-cast, continuous grates
- Deep-recessed cooktop
- PowerBoil(TM) 15,000 BTU burner
- Precise Simmer burner
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Porcelain-Enamel Deep Recessed One-Piece Upswept |
| All-Purpose Burners | (1) 9,100 BTU/850 BTU |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Power Boil Burner | (1) 15,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display Electronic Oven Controls SmartLogic™ Controls QuickSet III |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Electronic Clock and Timer Self-Clean Cool Down Time Display Oven Cycle Light Oven "ON" Light Certified Sabbath Mode Control Lock Capability Hi / Low Broil In-Oven Broiling |
| Cooking Technology | Traditional |
| Clock and Minute Timer | Electronic |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | Yes |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| CAPACITY | |
| Capacity (Cu. Ft.) | 5.0 |
| Total Capacity (cubic feet) | 5.0 cu ft |
| Unit Capacity | Super Large Oven |
| APPEARANCE | |
| Color Appearance | White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 213 lb |
| Cabinet Width | 30 in |
| Net Weight | 193 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Electrical Requirements | 120V; 60Hz; 5A |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.1; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0 (1) 9.1; (1) 5.0 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean oven
- Super-large 5.0 oven capacity
- Heavy-cast, continuous grates
- Deep-recessed cooktop
- PowerBoil(TM) 15,000 BTU burner
- Precise Simmer burner
