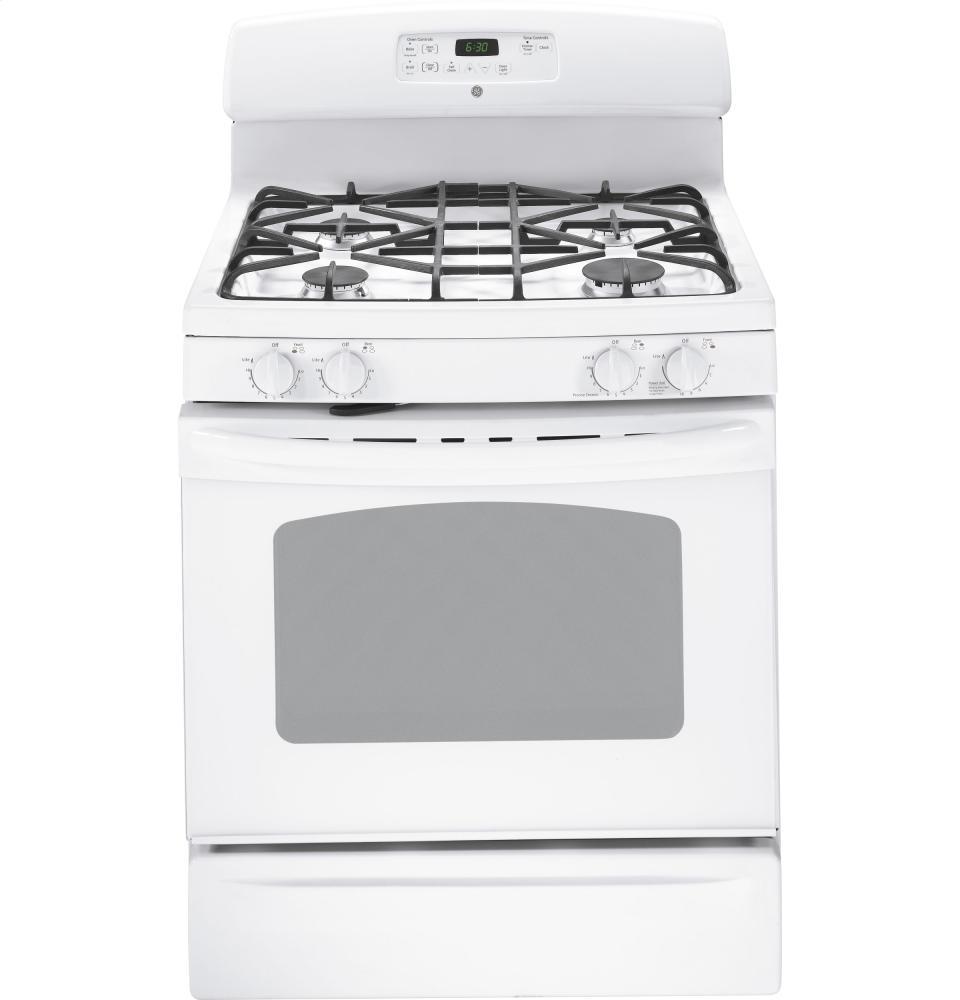

GE® 30" Free-Standing Gas Range
Model JGB3000ERWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB3000ERWWQuick Specs
Depth
U_26 5/8
Height
U_47
Sabbath
YES
ADA
NO
Storage
YES
Warming
NO
Burners
4
Grate
YES
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
U_26 5/8
Height
U_47
Sabbath Mode
YES
ADA
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Super-large oven capacity
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
- Heavy-cast, continuous grates
- Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
- Deep-recessed cooktop
- Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean
- PowerBoil™ 15,000 BTU burner
- This powerful element instantly supplies the intense heat need for boiling, saute ing and stir frying
- Precise Simmer burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces
- Self-clean oven
- Super-large oven capacity
- Heavy-cast, continuous grates
- Deep-recessed cooktop
- PowerBoil(TM) 15,000 BTU burner
- Precise Simmer burner
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Porcelain-Enamel Recessed One-Piece Upswept |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Cooktop Burner Grate Material | Heavy Cast |
| High Output Burner | (1) 15,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display QuickSet IV SmartLogic™ Controls Electronic |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Self-Clean Cool Down Time Display Oven Cycle Light Oven "ON" Light Certified Sabbath Mode In-Oven Broiling |
| Cooking Technology | Traditional |
| Clock and Minute Timer | Electronic |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | Yes |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Self-Clean Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Storage Drawer Features | Liner |
| CAPACITY | |
| Capacity (Cu. Ft.) | 5.0 |
| Total Capacity (cubic feet) | 5.0 cu ft |
| Unit Capacity | Super Large Oven |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched Sculptured |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 210 lb |
| Cabinet Width | 30 in |
| Net Weight | 190 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Electrical Requirements | 120V; 60Hz; 5A |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 10; (1) 9.5; (1) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0 |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean oven
- Super-large oven capacity
- Heavy-cast, continuous grates
- Deep-recessed cooktop
- PowerBoil(TM) 15,000 BTU burner
- Precise Simmer burner
