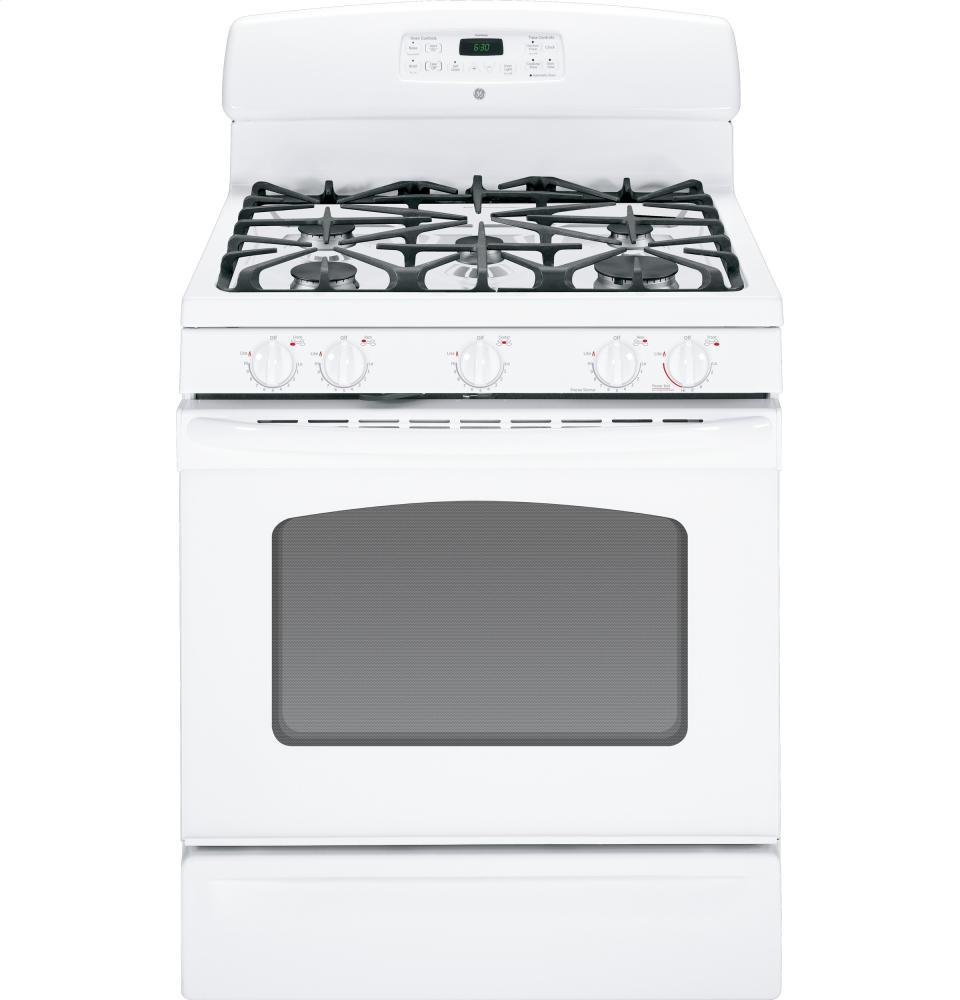

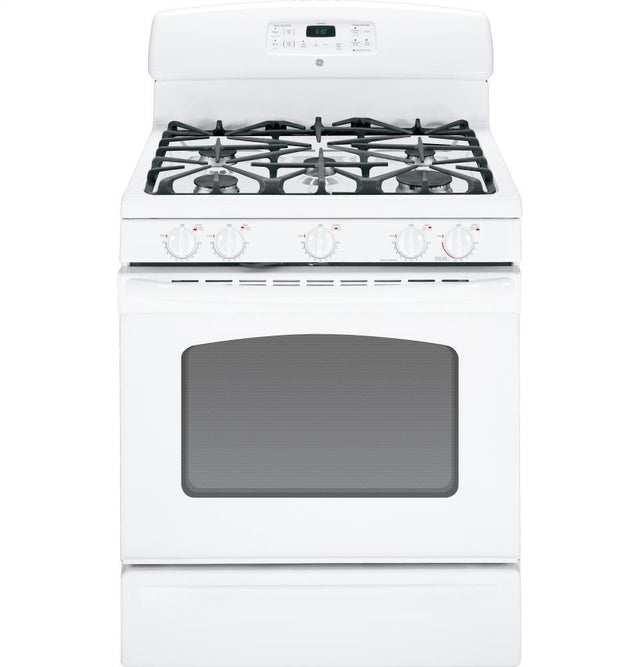

GE® 30" Free-Standing Gas Range
Model JGB285DETWW
Authorized Dealer
Loading...
Authorized Dealer
GE® 30" Free-Standing Gas Range
Model JGB285DETWWQuick Specs
Depth
26.625
Height
47
Sabbath
YES
ADA
NO
Burner
Sealed
Storage
YES
Warming
NO
Burners
5
GE® 30" Free-Standing Gas Range is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
26.625
Height
47
Sabbath Mode
YES
ADA
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
YES
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
- Extra-Large Oven Capacity
- Provides a large oven interior ideal for cooking more items at once
- PowerBoil™ 15,000 BTU burner
- This powerful element instantly supplies the intense heat need for boiling, saute ing and stir frying
- Center round burner
- Round fifth burner allows for low, even heat distribution that is ideal for delicate foods and sauces
- Precise Simmer burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces
- Self-Cleaning Oven Racks
- Porcelain-coated racks are designed to be left in the oven during the self-clean cycle for effortless cleaning
- Self-clean oven
- Extra-Large Oven Capacity
- PowerBoil(TM) 15,000 BTU burner
- Center round burner
- Precise Simmer burner
- Self-Cleaning Oven Racks
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Temperature Management System | TrueTemp™ System |
| Cleaning Time | Variable |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Color-Matched Deep Recessed One-Piece Upswept Porcelain-Enamel |
| All-Purpose Burners | (1) 9,500 BTU |
| Center Round Burner | (1) 5,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| High Output Burner | (1) 11,000 BTU |
| Power Boil Burner | (1) 15,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Valves (Degree of Turn) | 270 |
| Control Type | Digital Temperature Display Electronic Oven Controls QuickSet IV |
| Oven Control Features | Audible Preheat Signal Automatic Oven Timer (Time Bake) Auto Oven Shut-Off Auto Self Clean Certified Sabbath Mode Delay Bake Option (Time Bake) Electronic Clock and Timer Hi / Low Broil In-Oven Broiling Oven Cycle Light Oven "ON" Light Self-Clean Cool Down Time Display |
| Cooking Technology | Traditional |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Self-Clean Oven Racks 6 Embossed Rack Positions |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Oven Interior | Oven Interior Light |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 cu ft |
| APPEARANCE | |
| Color Appearance | White on White |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black Matte |
| Frameless Oven Door(s) | White Glass |
| Handle | Color-Matched |
| Oven Door Features | Big Hearth Oven Window |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 210 lb |
| Cabinet Width | 30 in |
| Net Weight | 190 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 26 5/8 in |
| Overall Height | 47 in |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46 3/8 in |
| POWER / RATINGS | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 12.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.5; (2) 5.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0; (1) 9.5; (2) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
- Self-clean oven
- Extra-Large Oven Capacity
- PowerBoil(TM) 15,000 BTU burner
- Center round burner
- Precise Simmer burner
- Self-Cleaning Oven Racks
