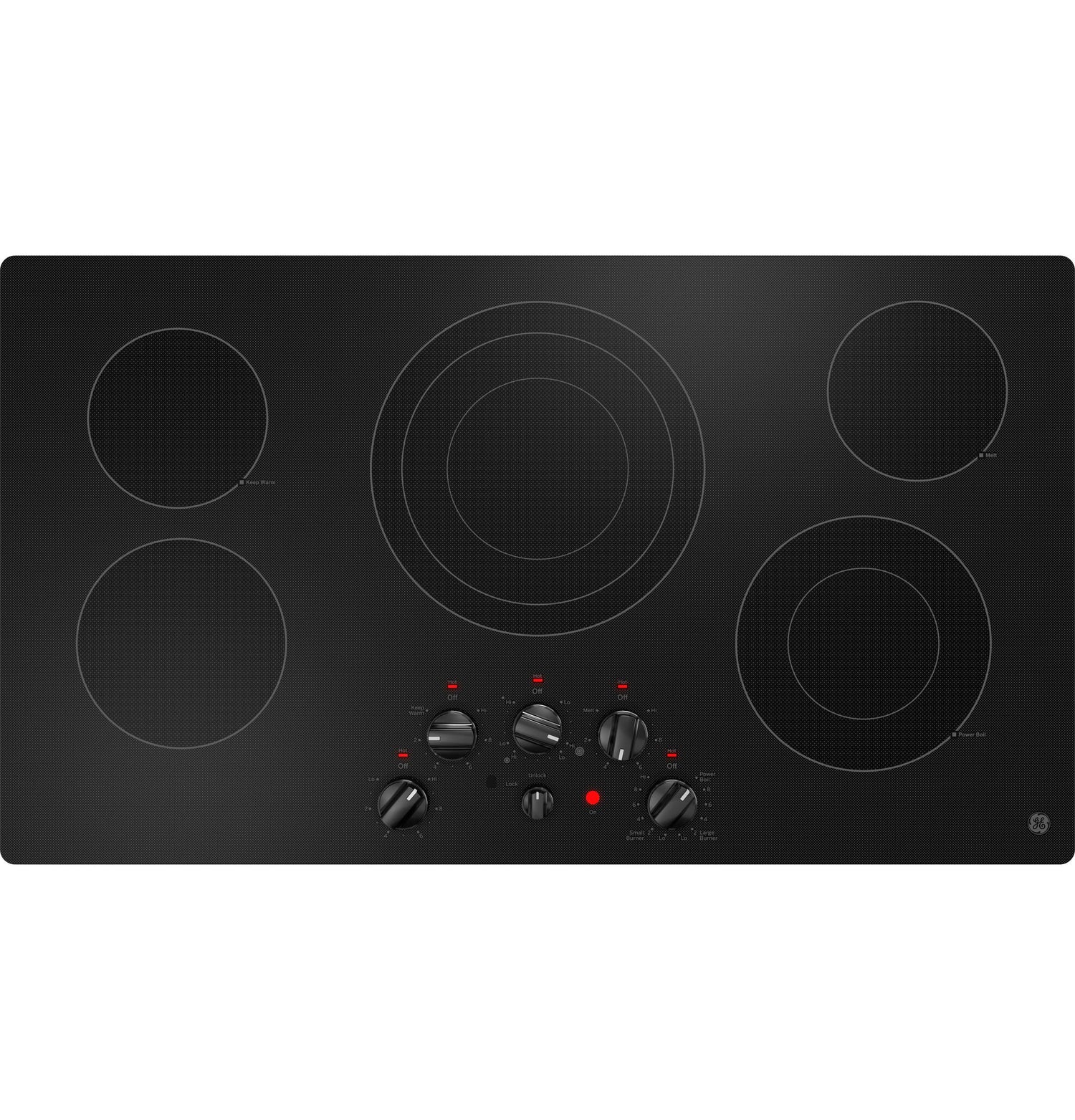

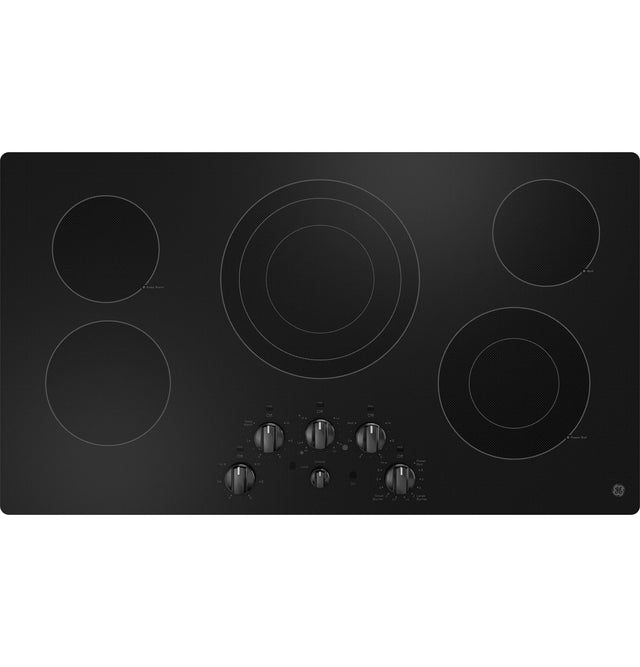

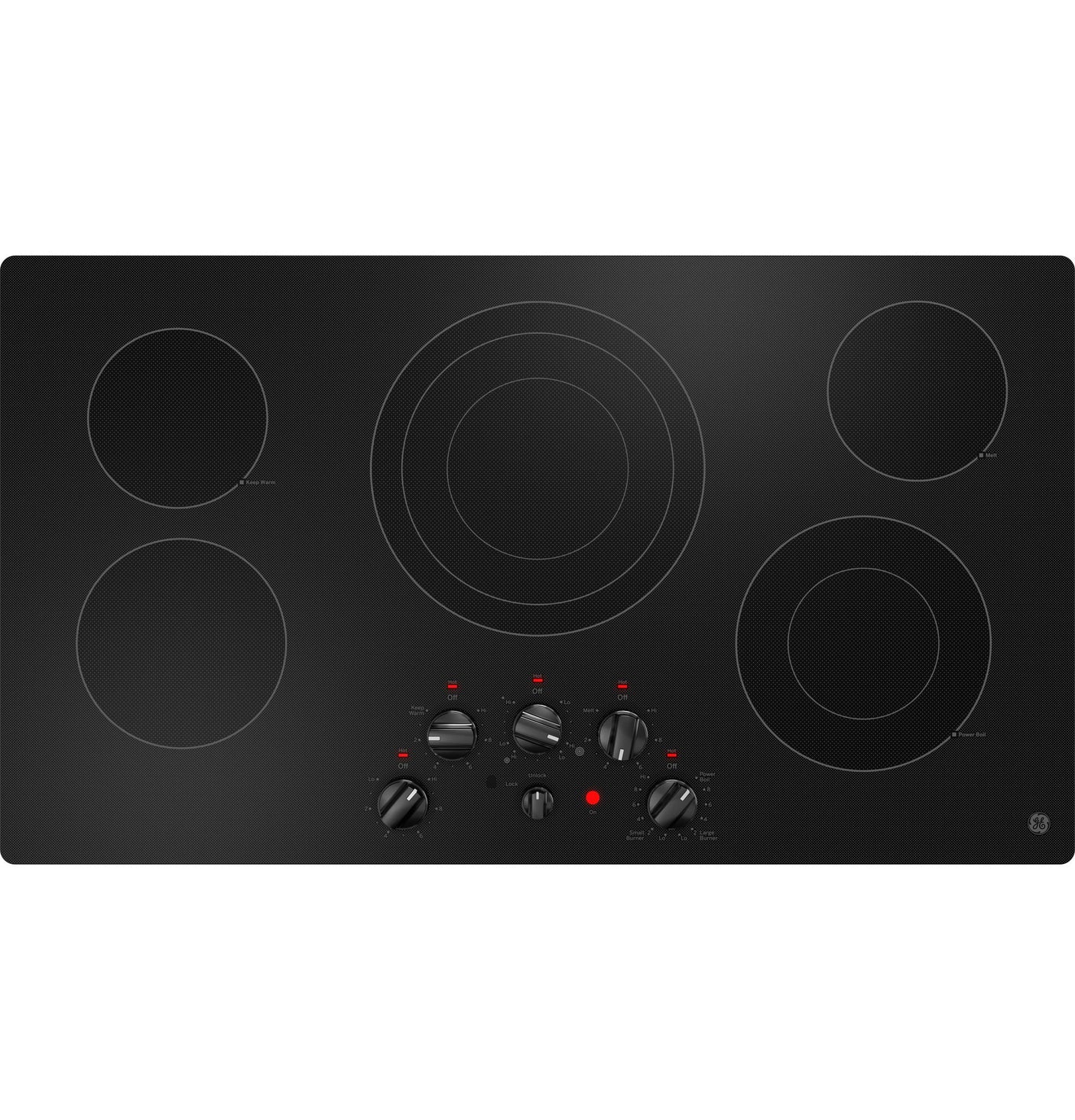

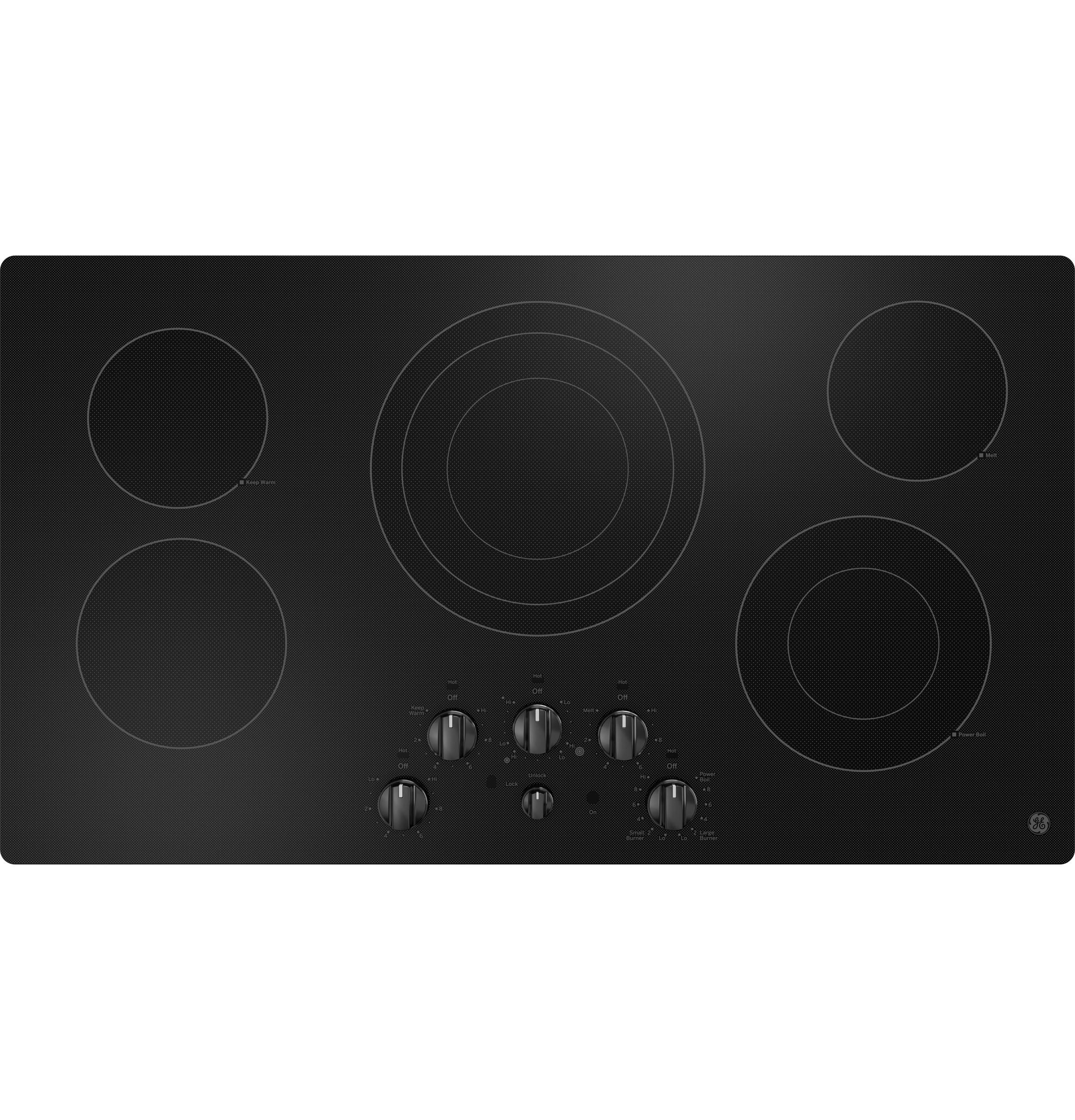

GE® 36" Built-In Knob Control Electric Cooktop
Model JEP5036DTBB
GE® 36" Built-In Knob Control Electric Cooktop
Model JEP5036DTBBQuick Specs
GE® 36" Built-In Knob Control Electric Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

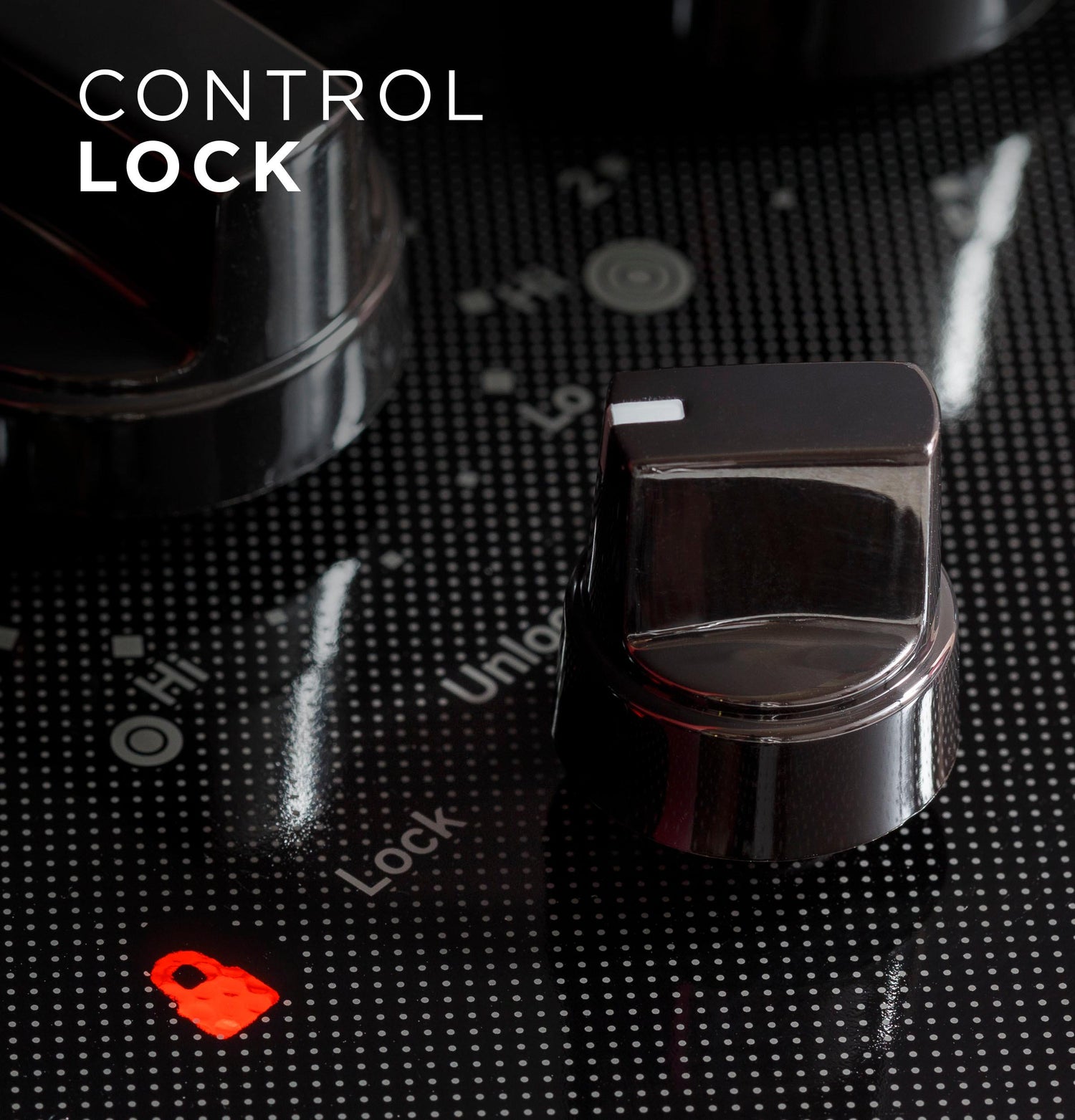

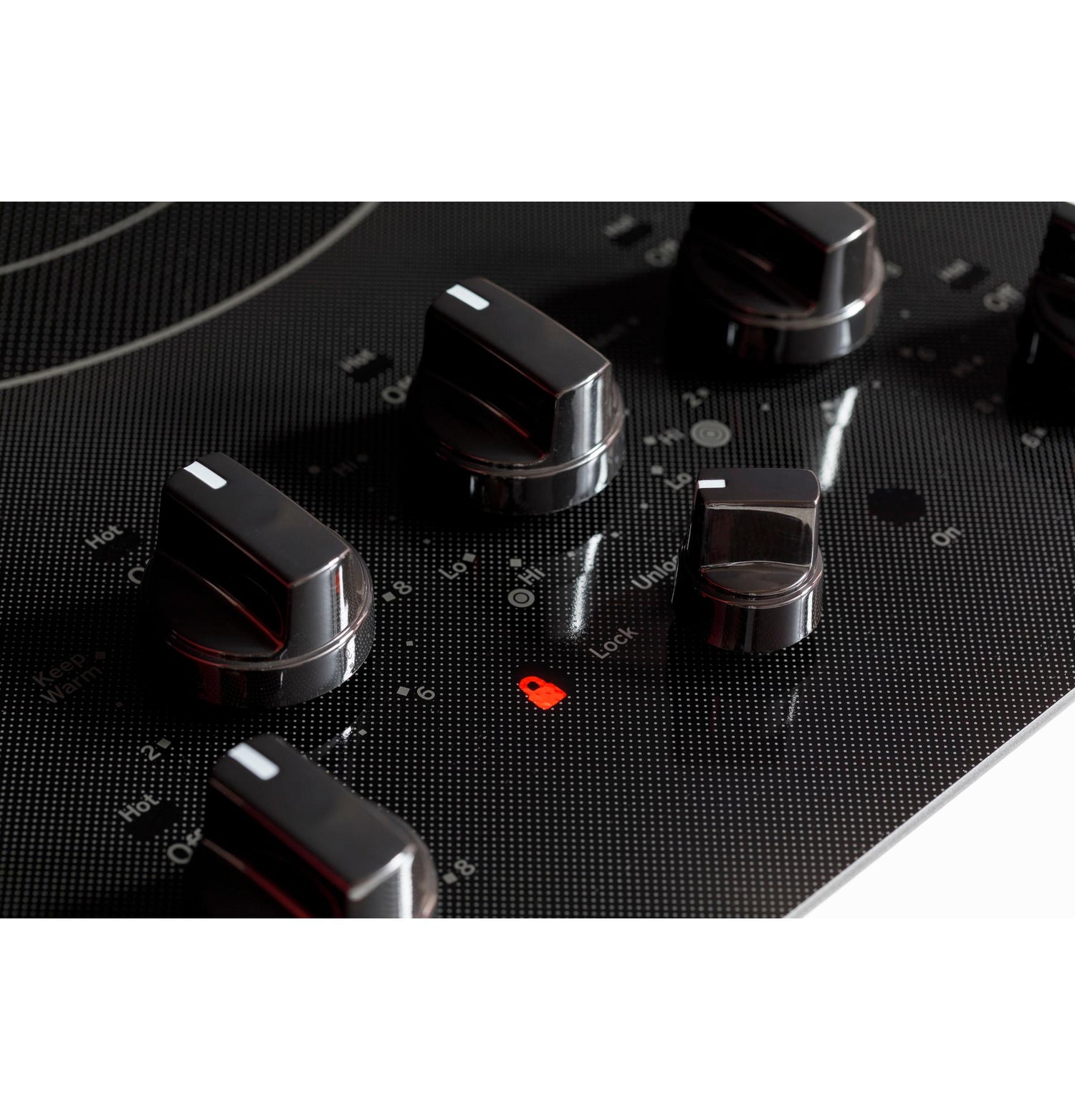

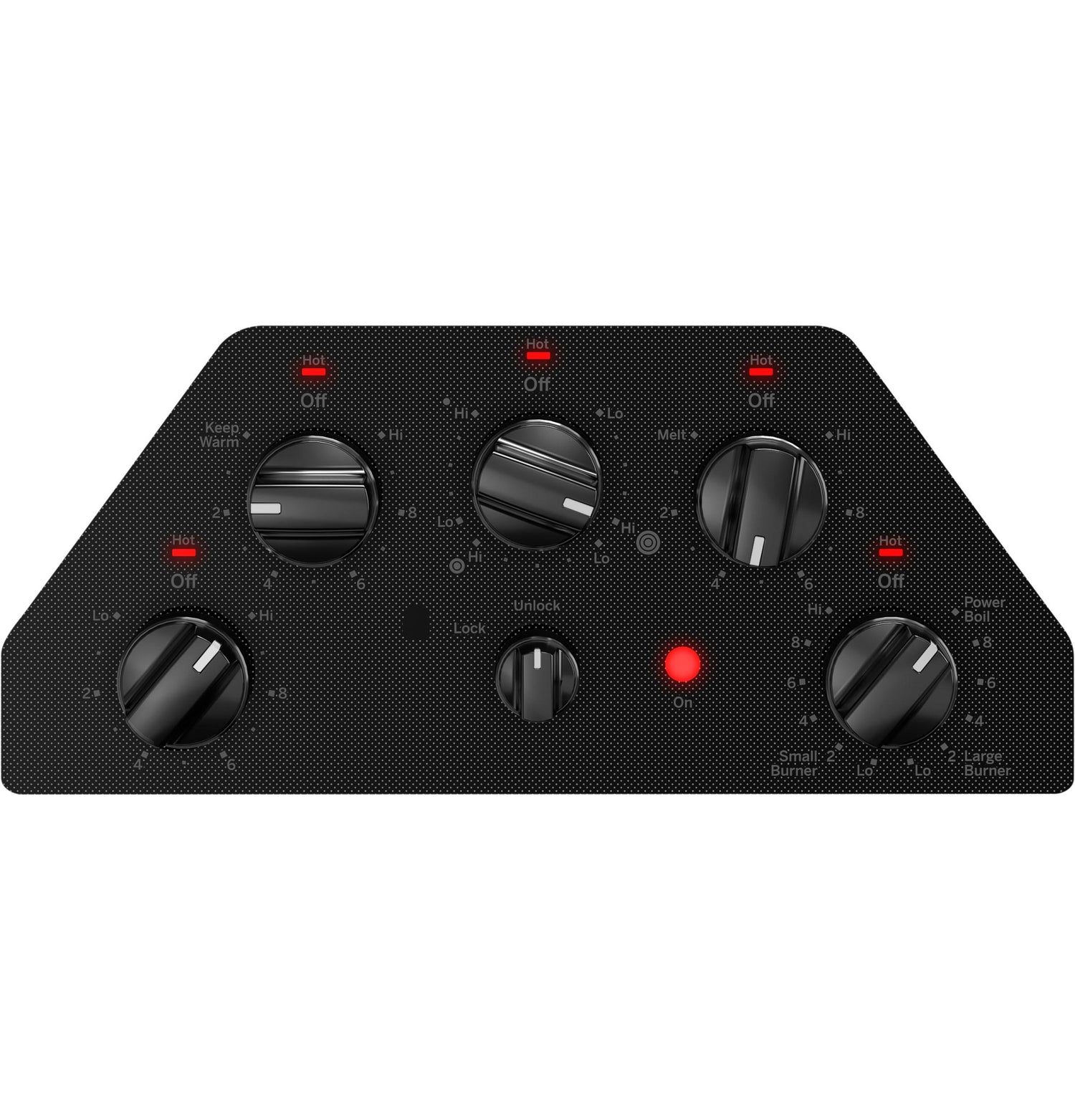

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

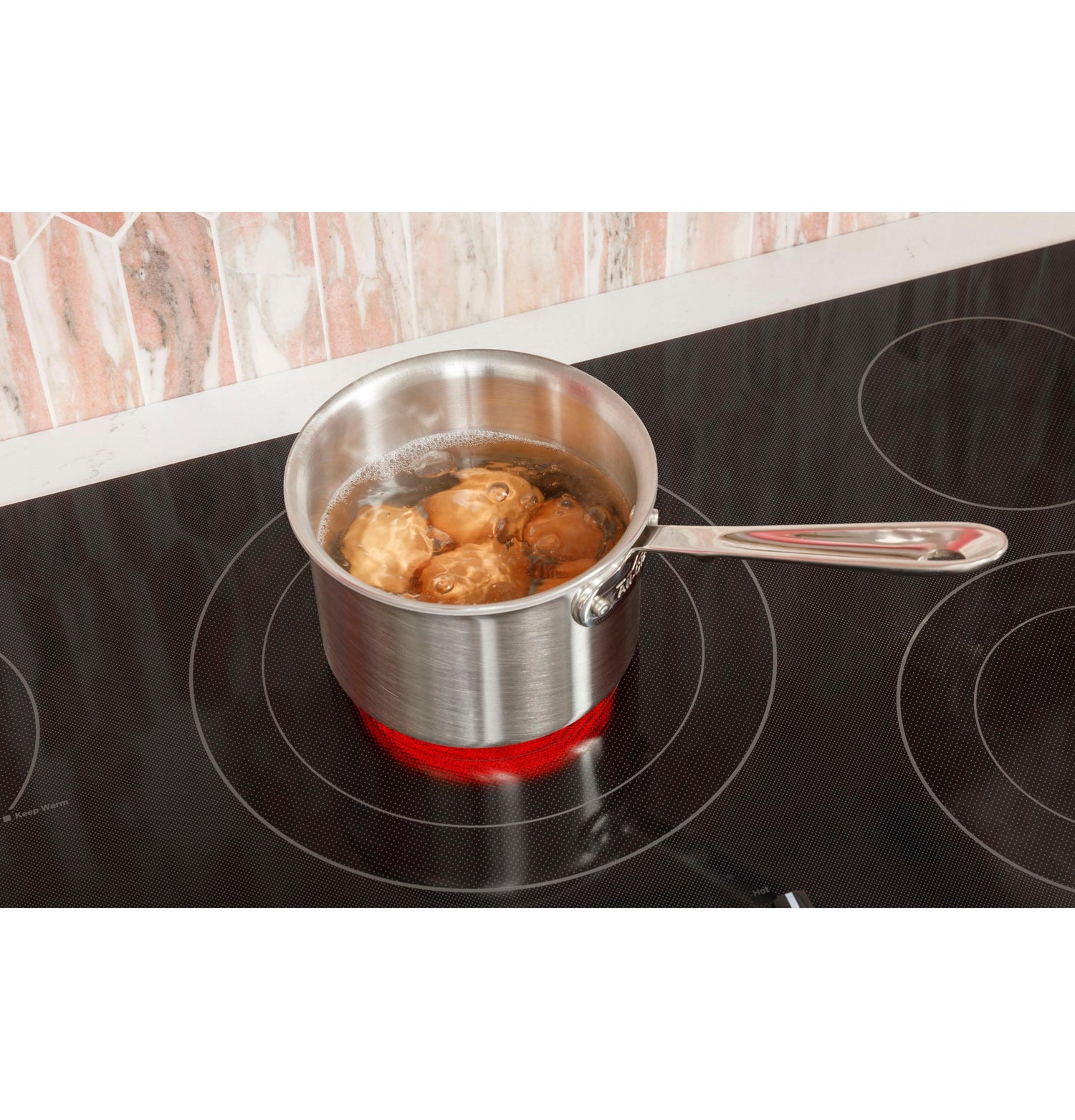

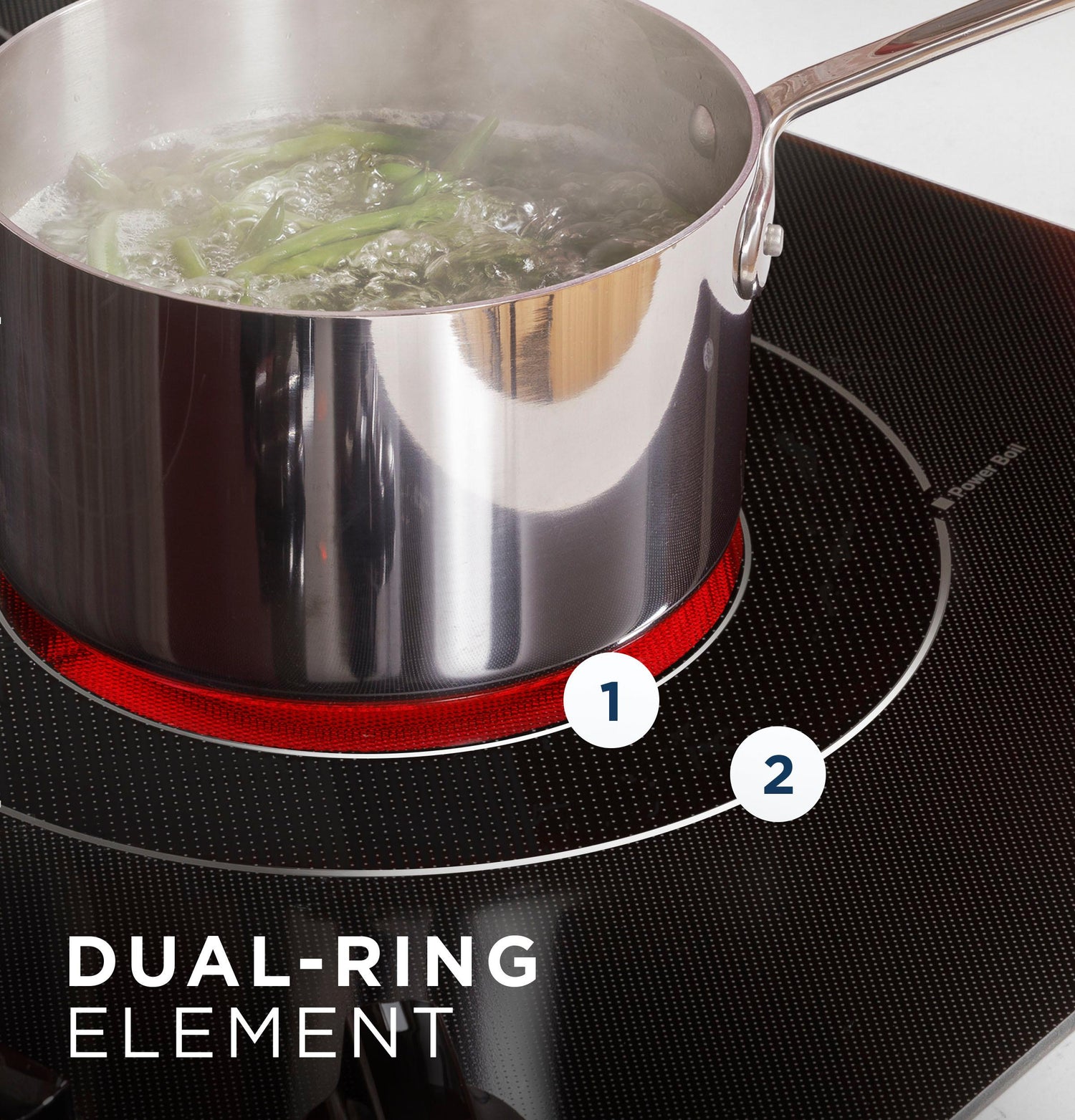

Power Boil Dual-Ring Element (2,400W)
Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes

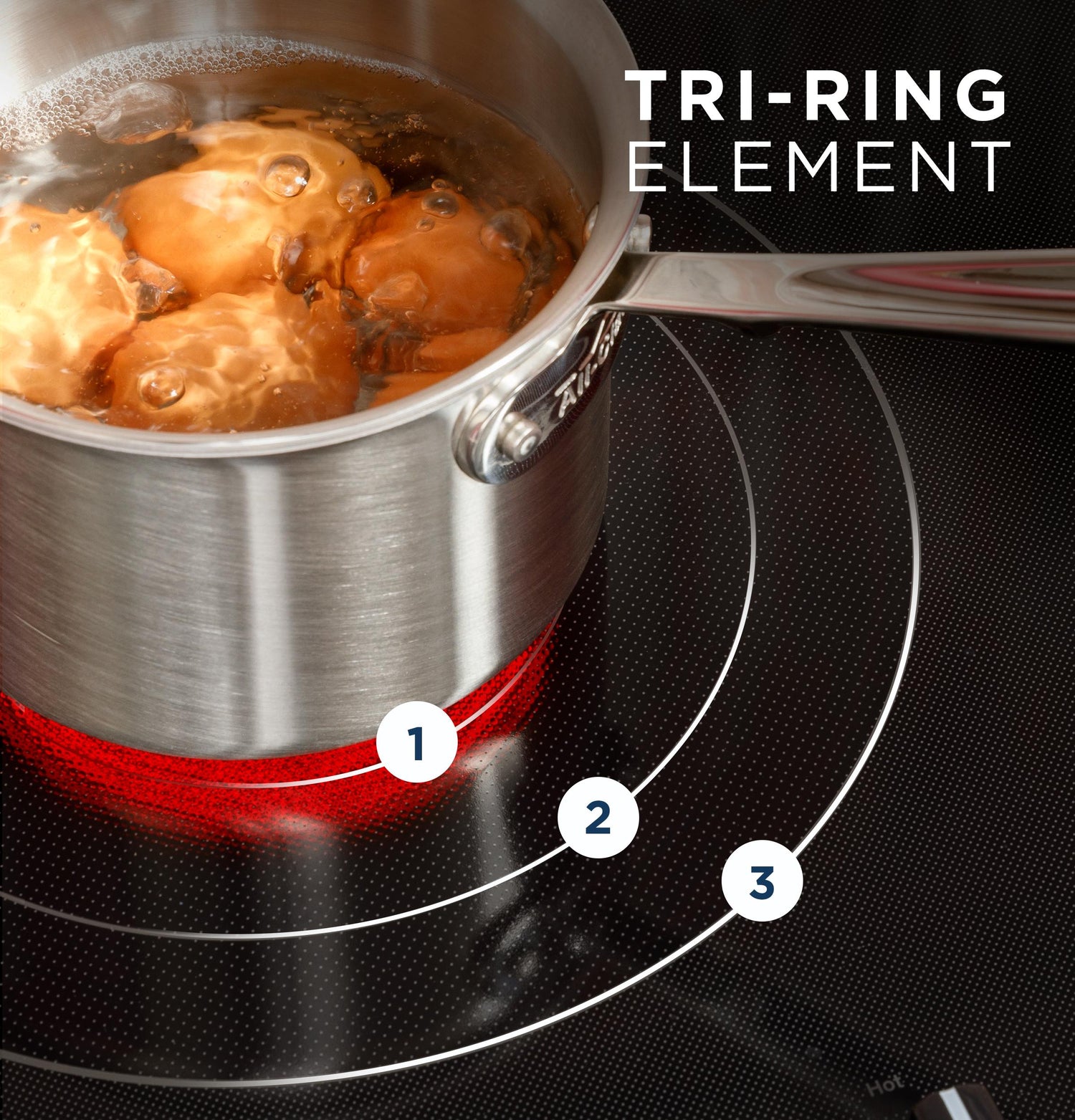

Power Boil on Tri-Ring Element
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element

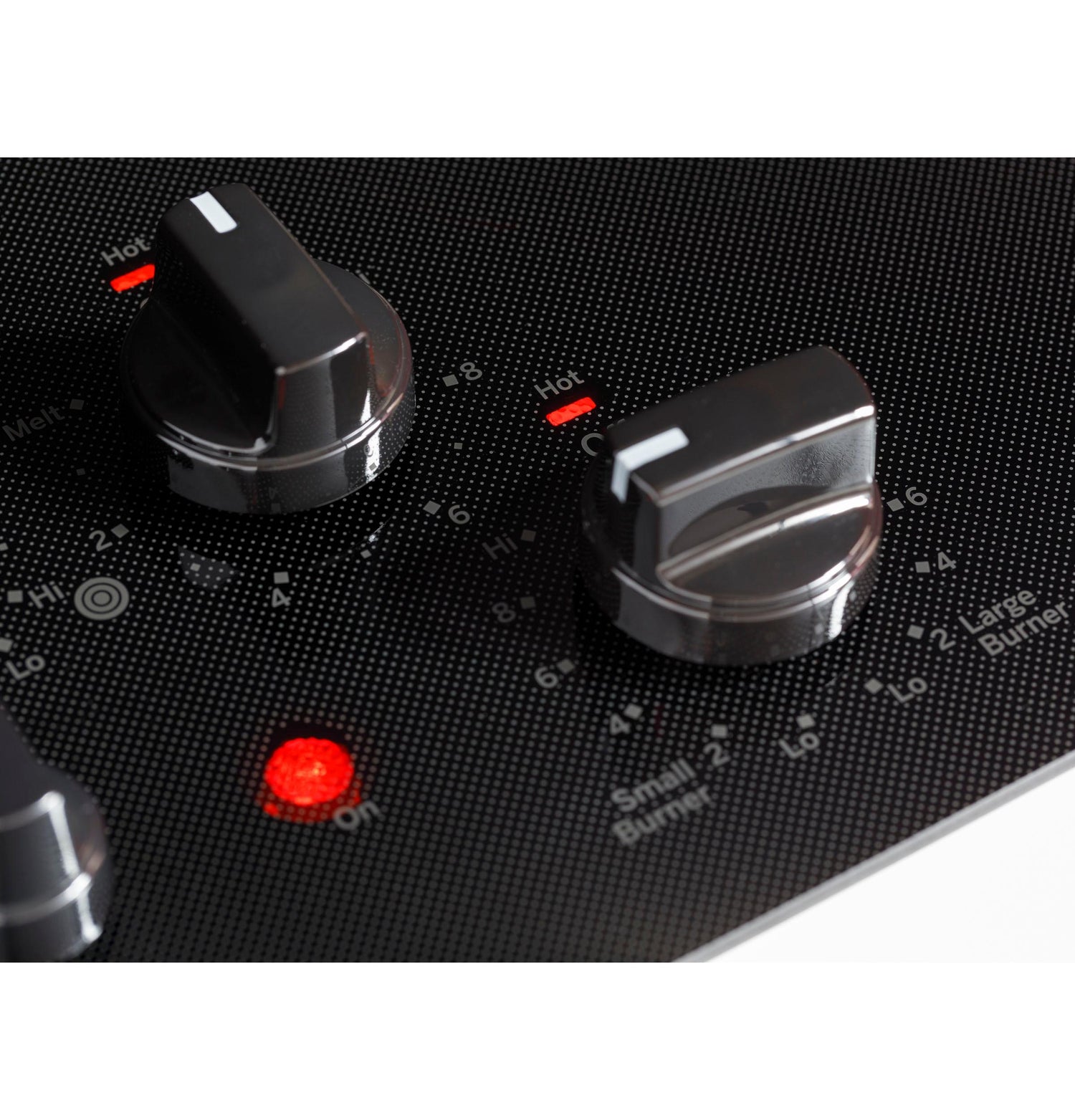

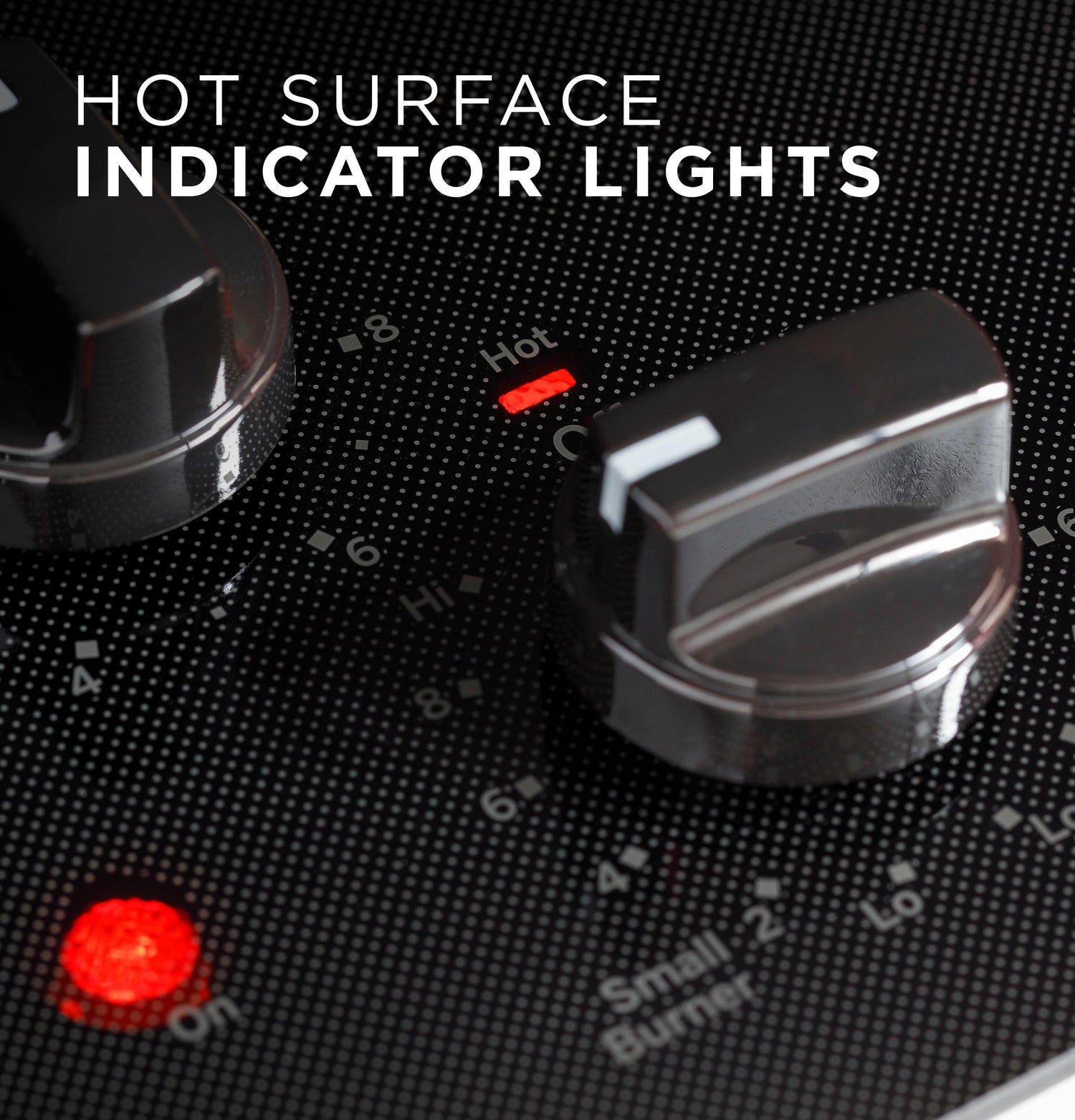

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

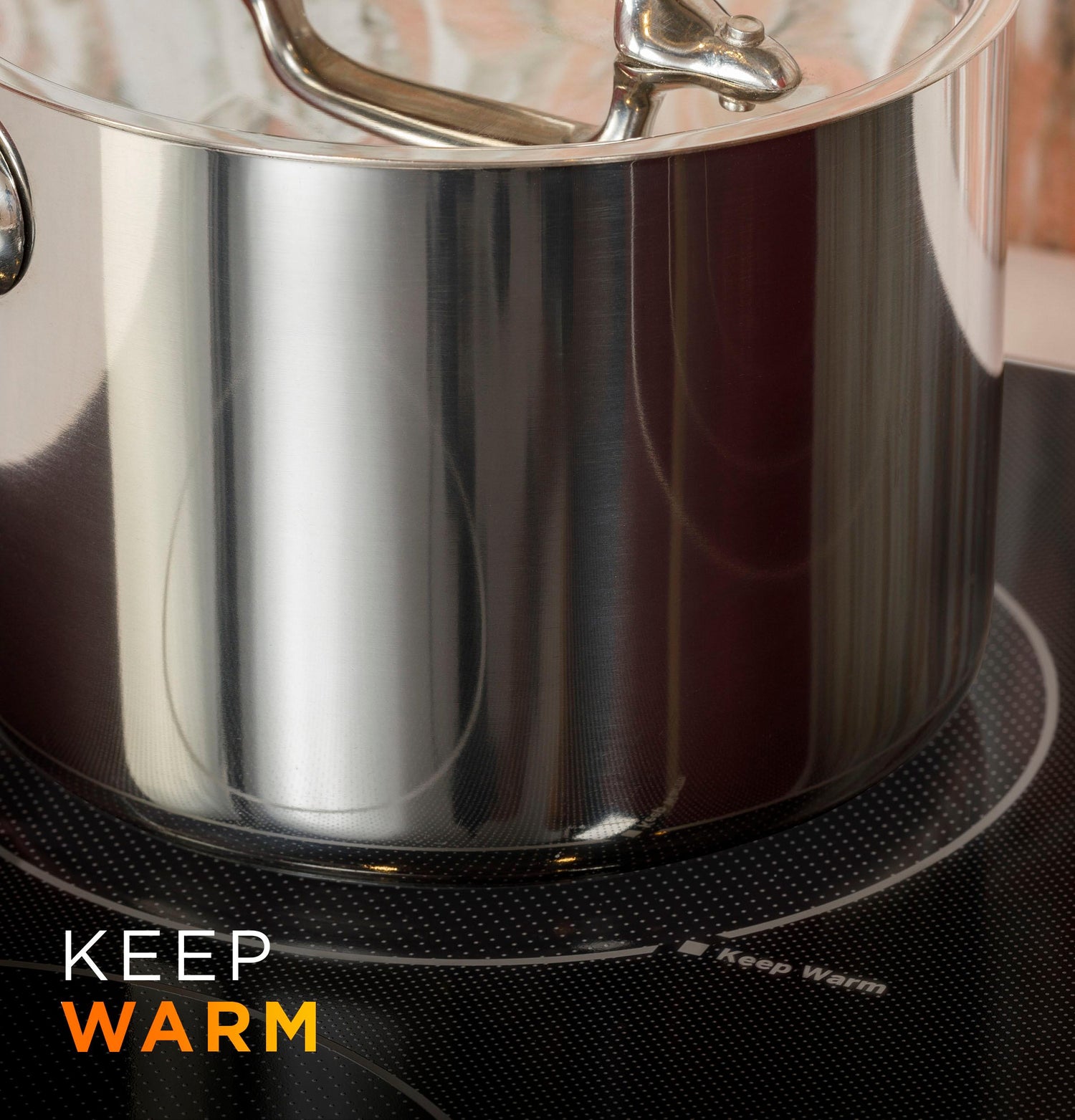

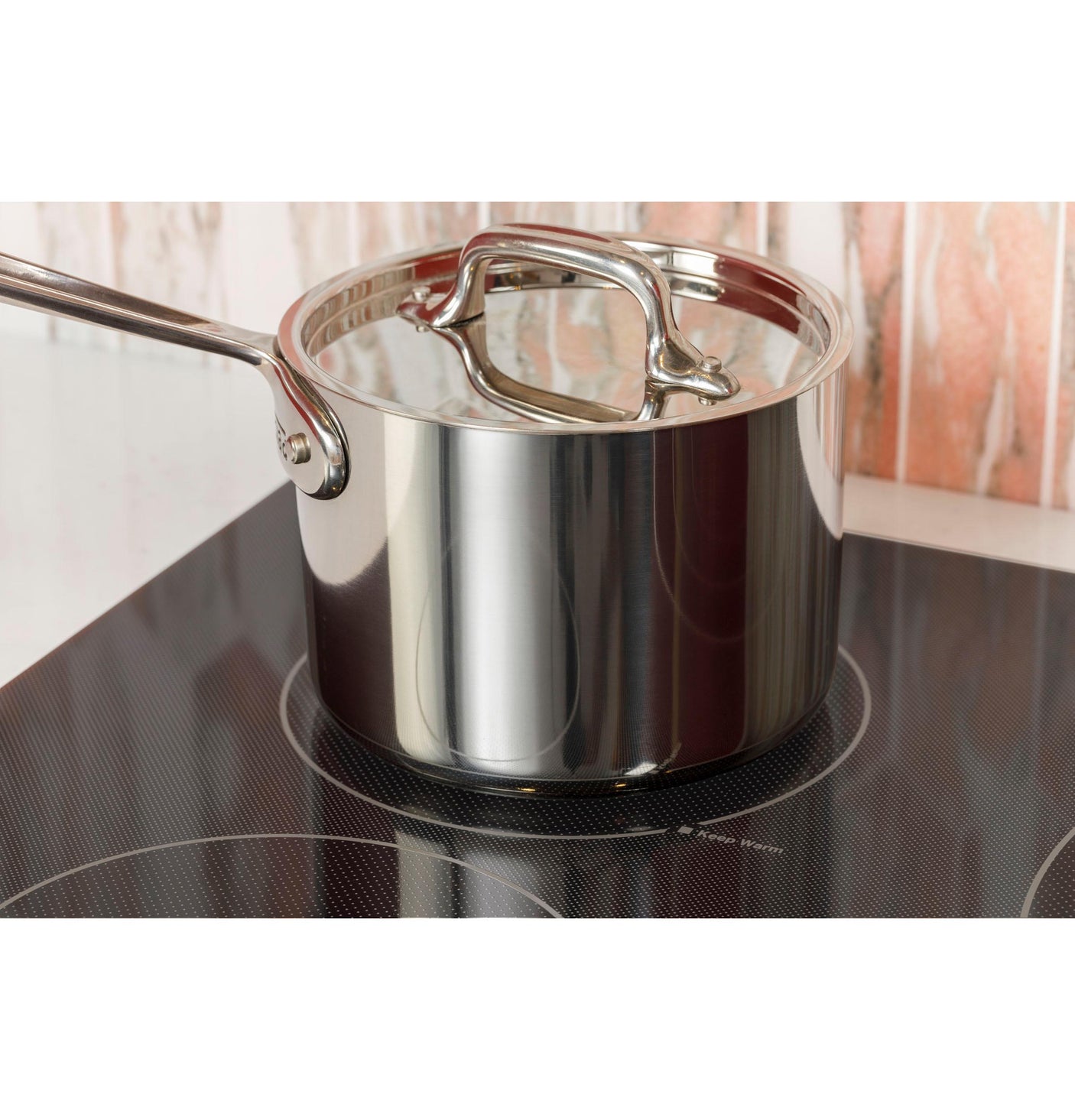

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

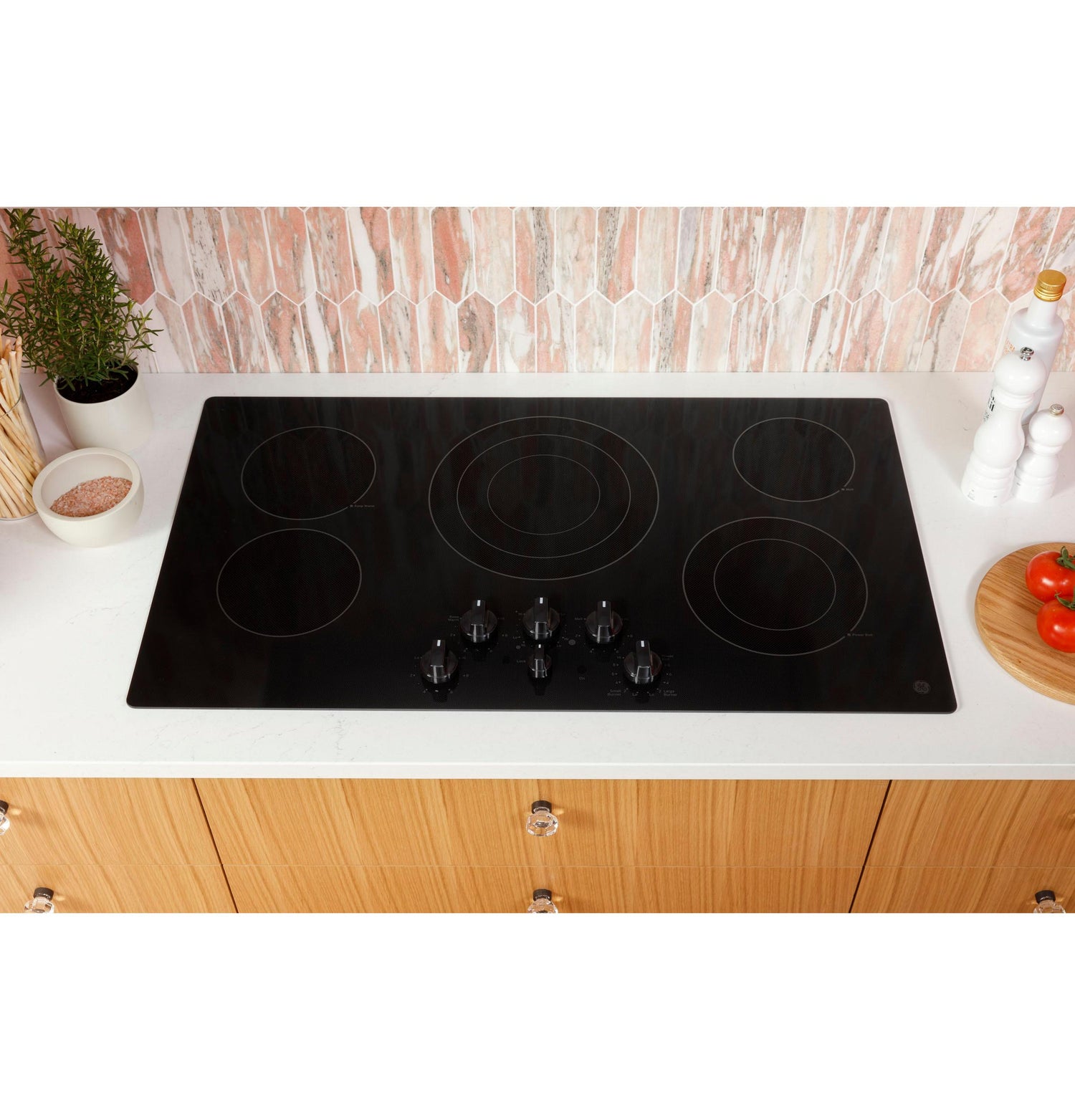

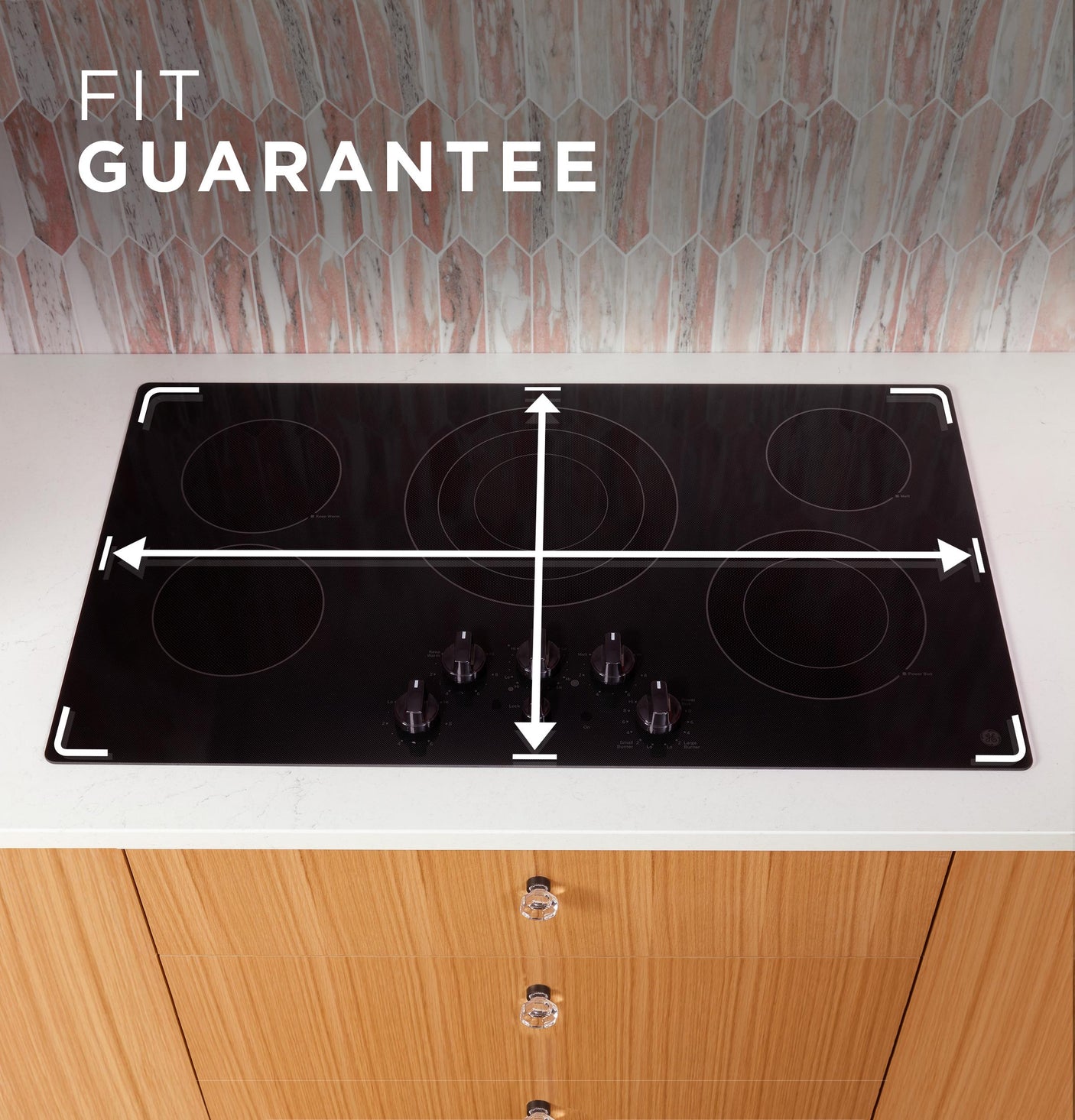

Fit Guarantee
This cooktop will fit your existing 36" cut-out or GE Appliances will help pay for modifications up to $100

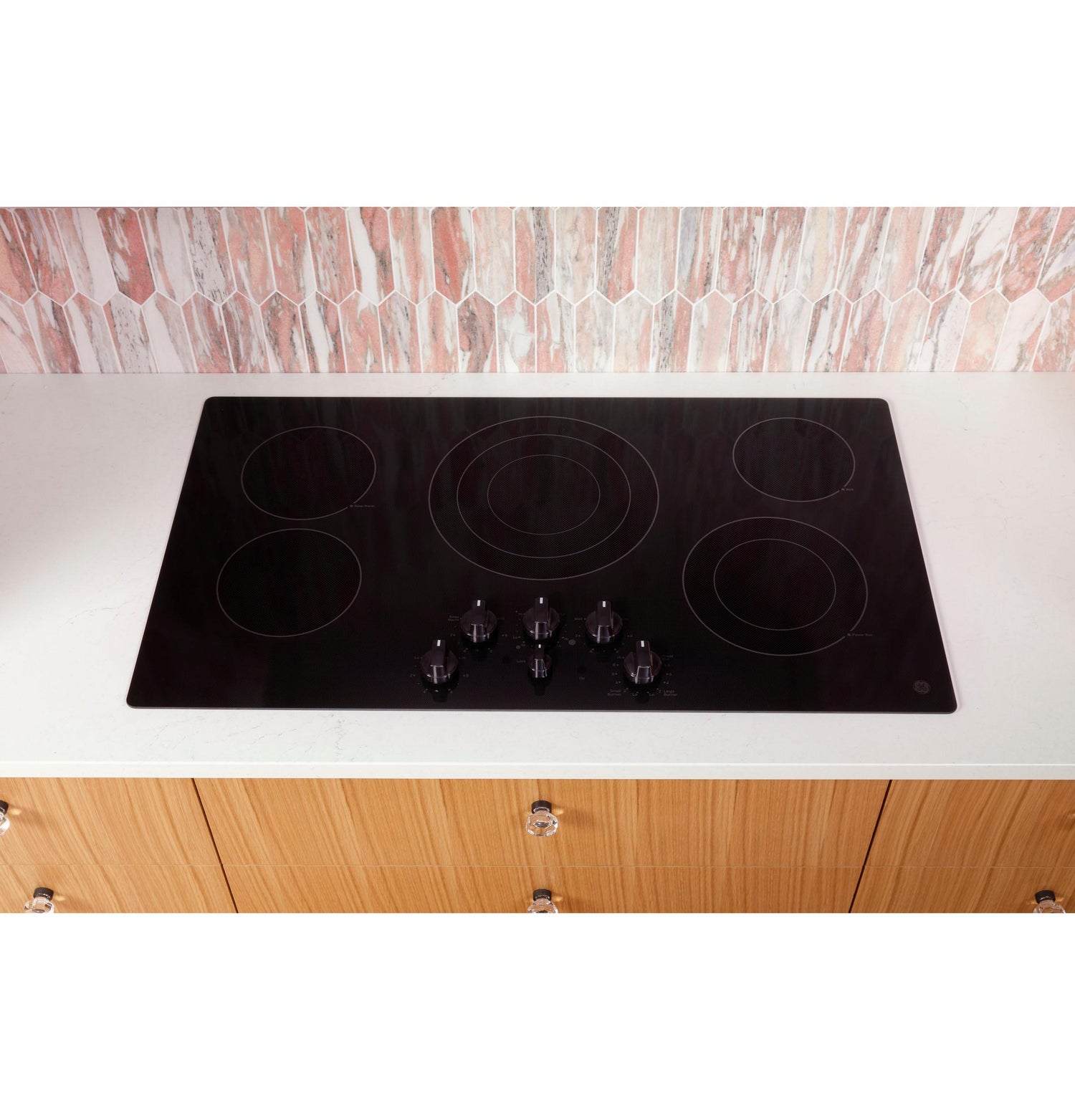

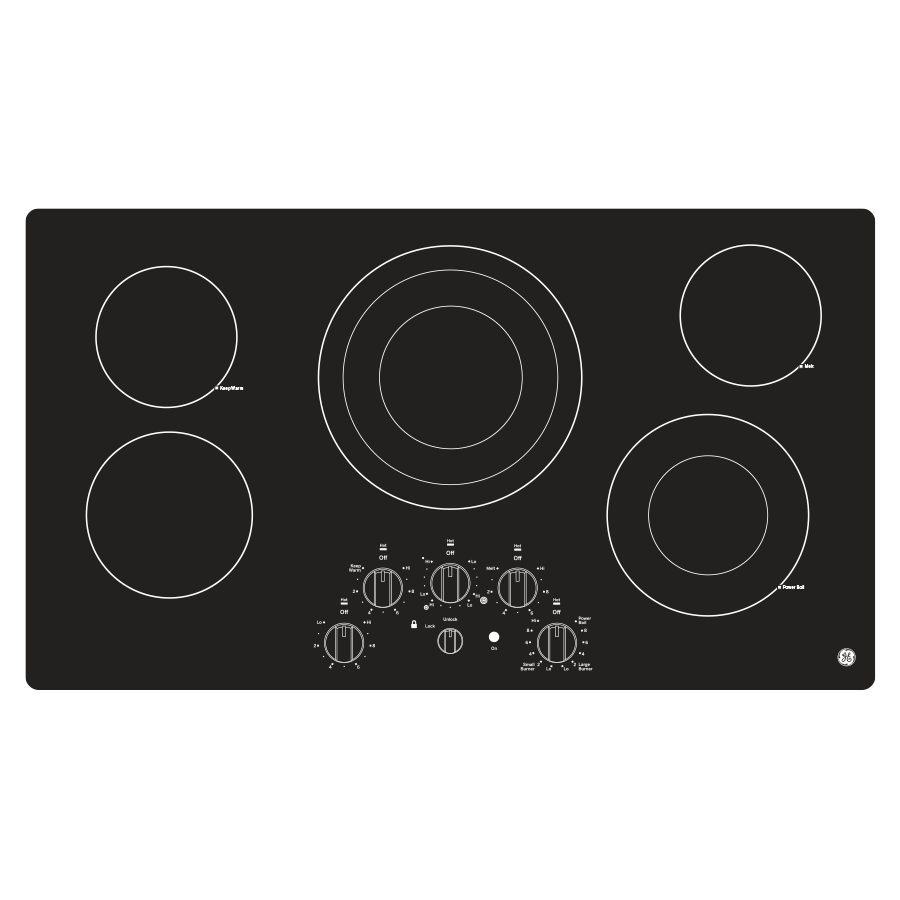

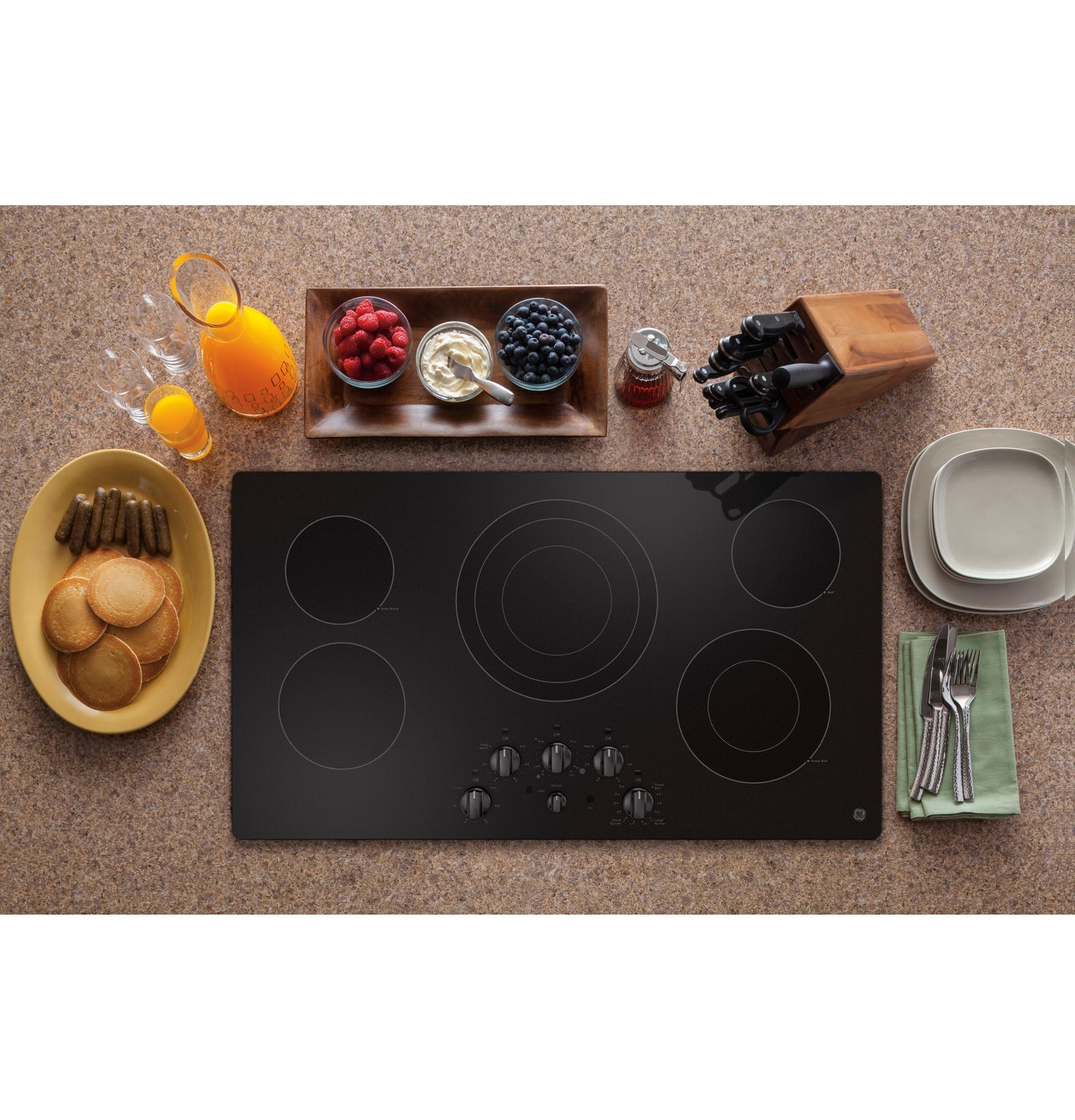

Flexible Cooktop

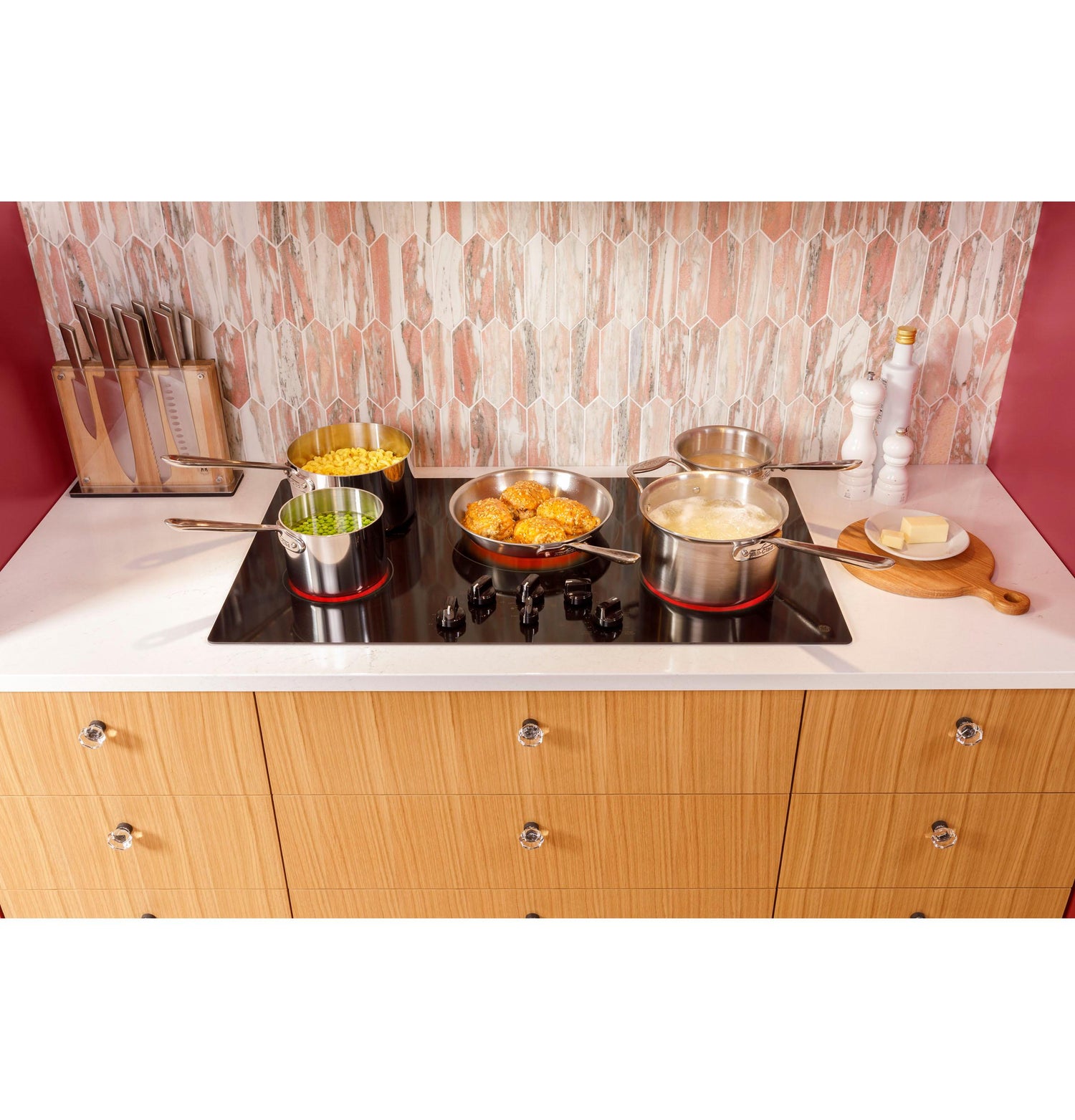

5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots

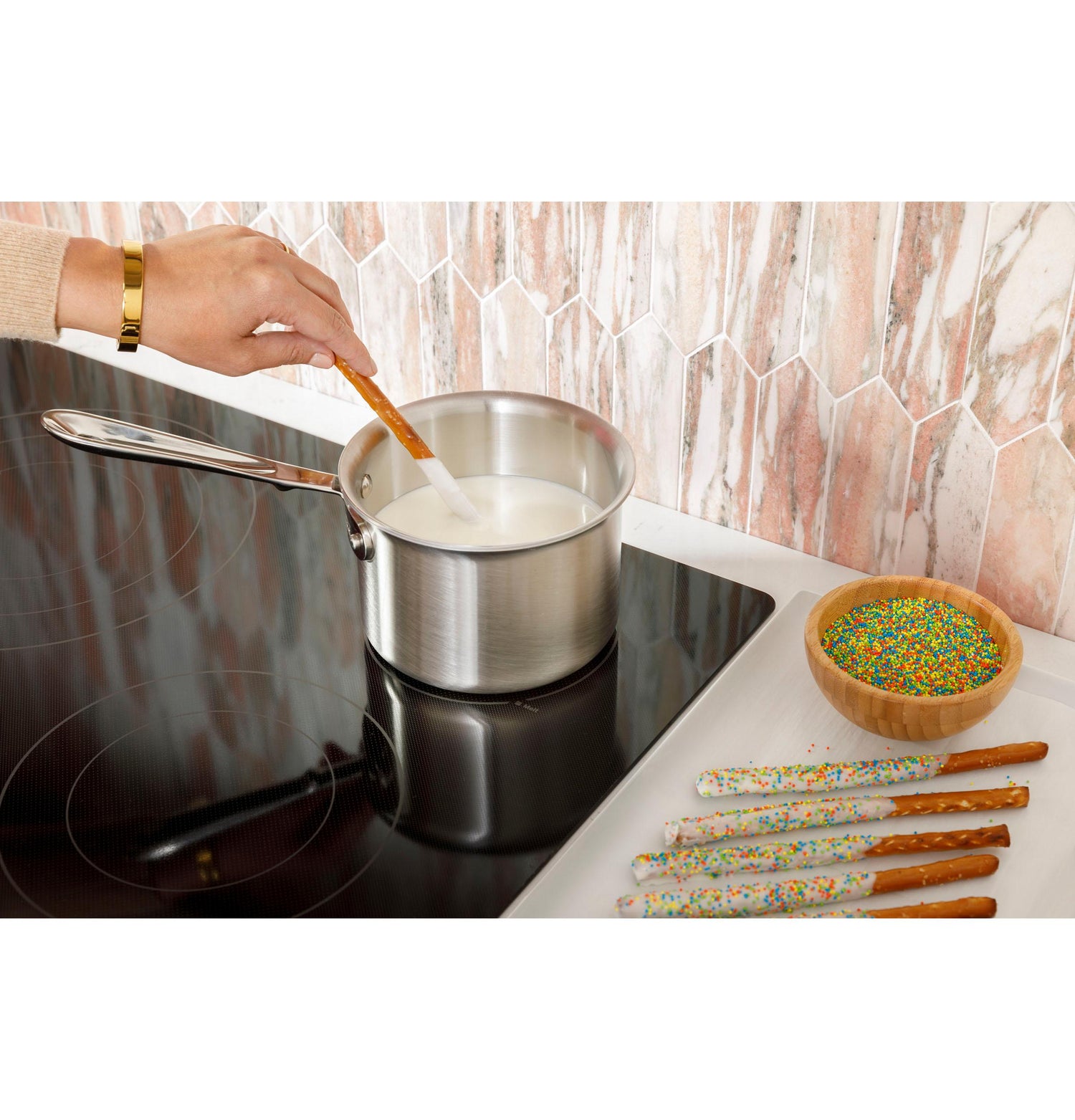

Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

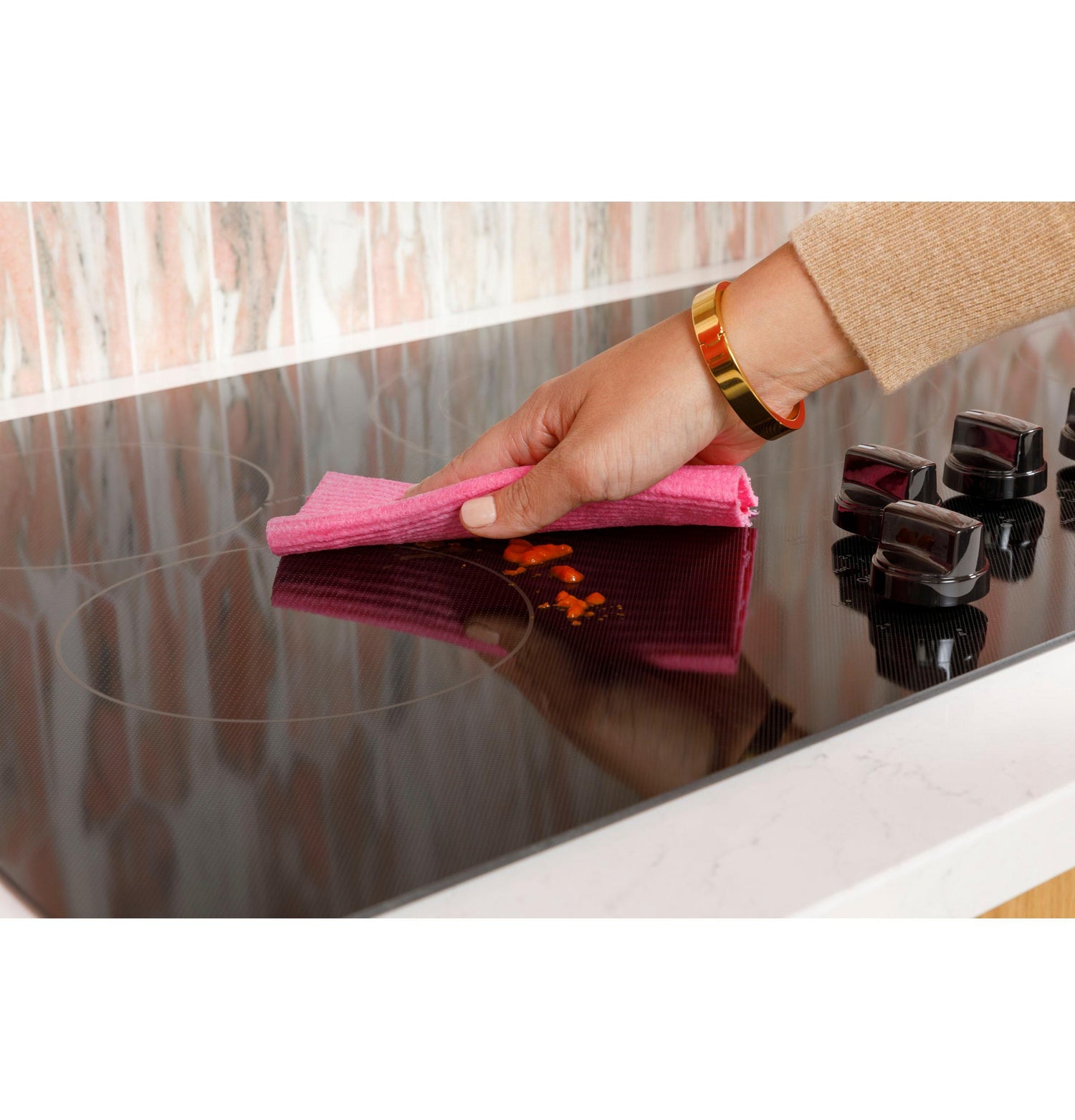

Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop
- Easy Clean Surface
- A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop
- Power Boil on Tri-Ring Element
- Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element
- Power Boil Dual-Ring Element (2,400W)
- Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes
- Keep Warm Setting
- This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water
- Control Lock
- Protect against unintentionally turning your cooktop on with a safety control lock setting
- Hot Surface Indicator Lights
- A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
- Fit Guarantee
- This cooktop will fit your existing 36" cut-out or GE Appliances will help pay for modifications up to $100
- Flexible Cooktop
- 5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
- Melt Setting
- Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
- Easy Clean Surface
- Power Boil on Tri-Ring Element
- Power Boil Dual-Ring Element (2,400W)
- Keep Warm Setting
- Control Lock
- Hot Surface Indicator Lights
- Fit Guarantee
- Flexible Cooktop
- Melt Setting
| FILTER | |
| App Filter - Cabinet Width | Cooking 36 in. |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Fuel Type | Electric |
| App Filter - Control Type | Digital touch |
| APPEARANCE | |
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.4 |
| Hertz | 60 |
| Max. Current Draw (Amps) at 240V | 39.2 |
| Max. Connected Load (kW) at 208V | 7.1 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.1 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |

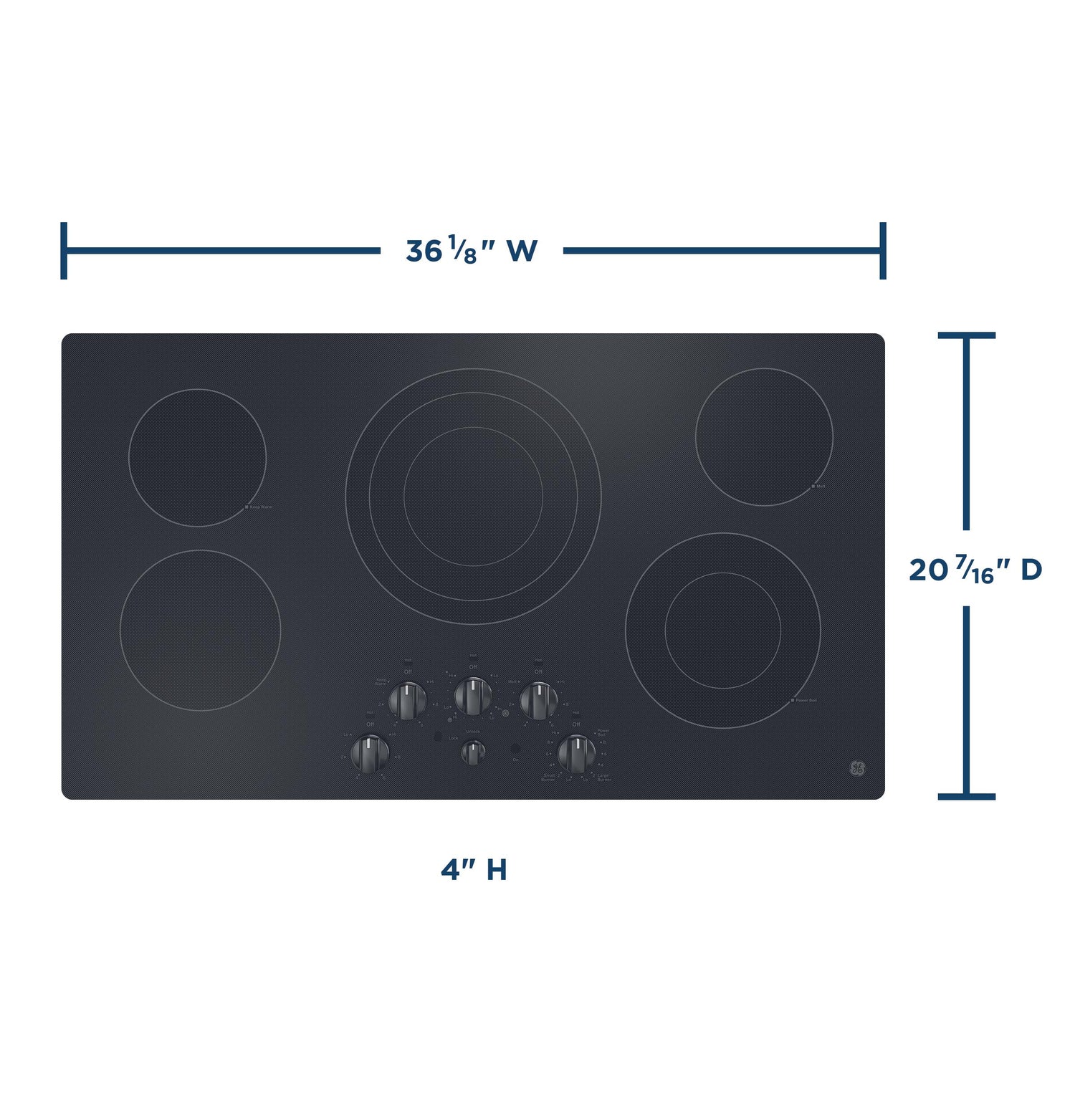

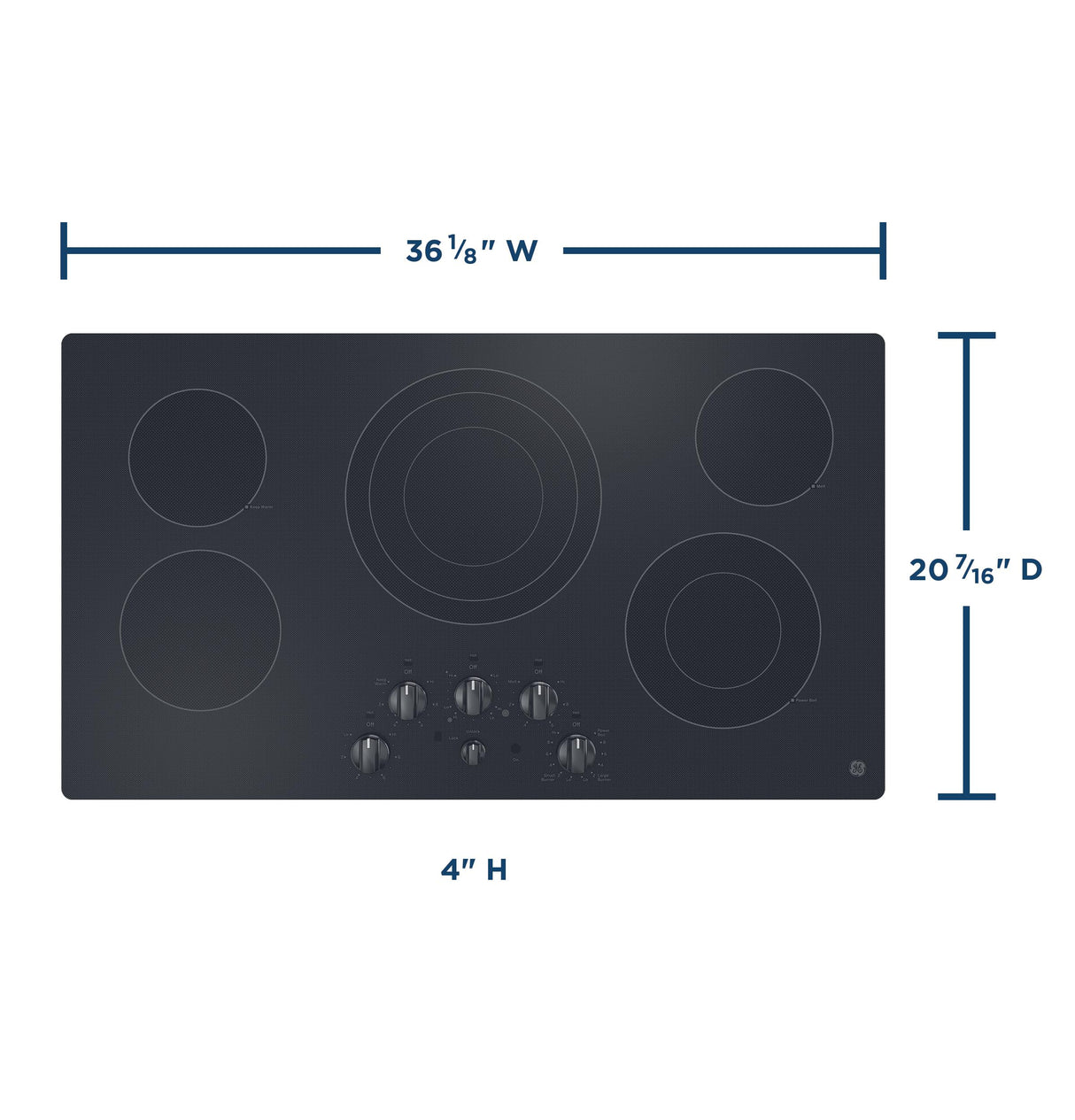

| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 36 in |
| Overall Height | 3.375 in |
| Cutout Depth (in) | 19 1/8 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 49 lb |
| Overall Width | 36.125 in |
| Net Weight | 43.4 lb |
| Cutout Width (in) | 33.875 |
| Overall Depth | 21 in |
| FEATURES | |
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | 5 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 7" 1500W (Keep Warm) |
| Indicator Lights | 5 Hot Surface Red Surface Element "ON" |
| Element - Right Front | 8"/5" 2400W Power Boil |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | Keep-Warm Setting Melt Setting |
| Timer | Yes |
| Element - Left Rear | 6" 1200W |

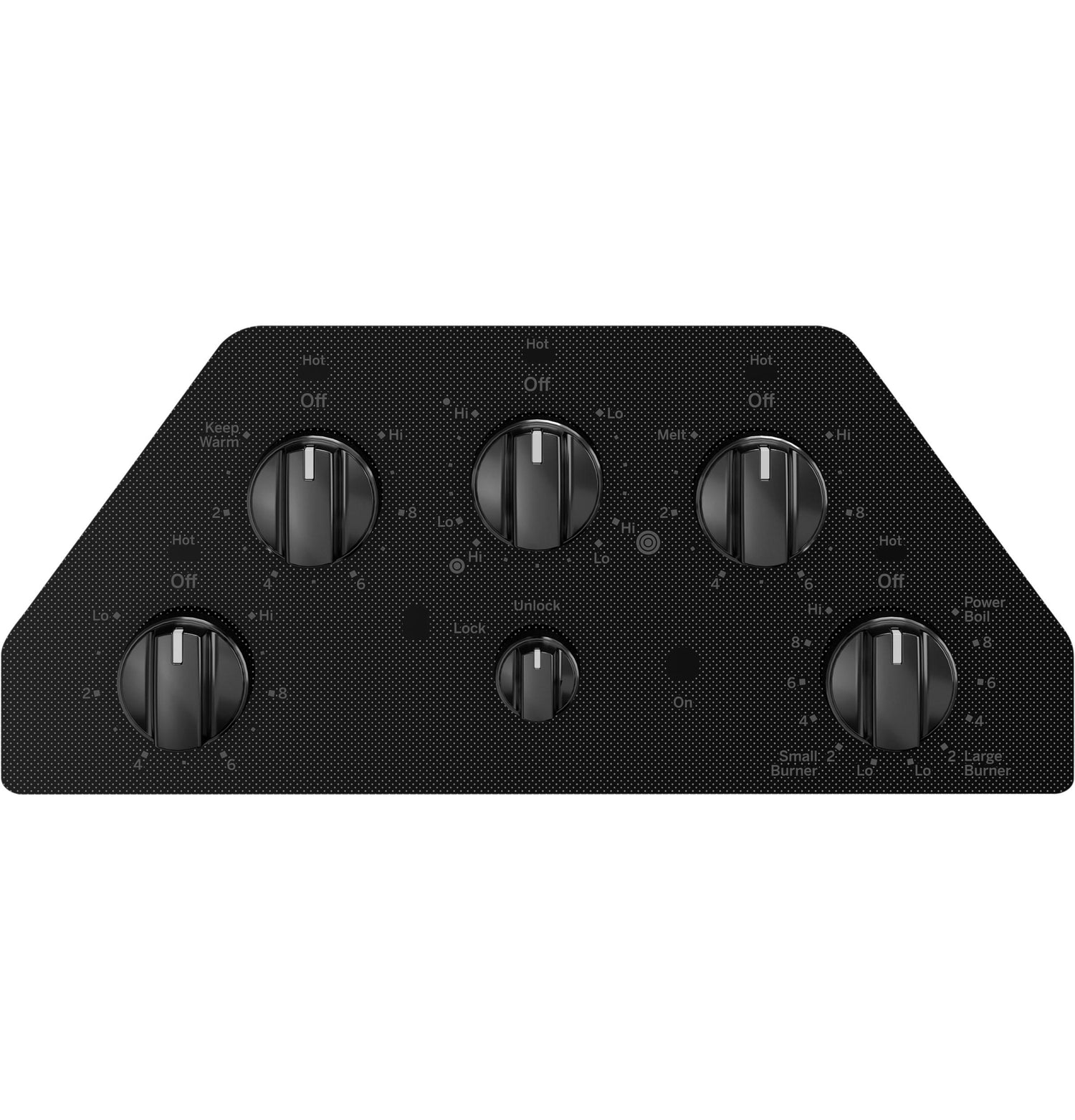

| Control Type | Knob (Infinite switch) |
| Element - Center | 12"/9"/6" 3000W Tri-ring Power Boil |
| Element - Right Rear | 6" 1200W (Melt) |
| Product Type | Cooktop |
