GE® 30" Drop-In Electric Range
Model JDS28DFWWQuick Specs
Depth
28 1/2
Height
27
ADA
YES
Wifi
NO
Storage
NO
Warming
NO
Cooktop
4
Conv
NO
GE® 30" Drop-In Electric Range is backordered and will ship as soon as it is back in stock.
Regular price
$1,815.81
Unit price
/
Unavailable
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
28 1/2
Height
27
ADA
YES
Wifi Connected
NO
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
4
Convection
NO
Self Clean
NO
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Cooking is Induction
NO
Drawer Proof Mode
NO

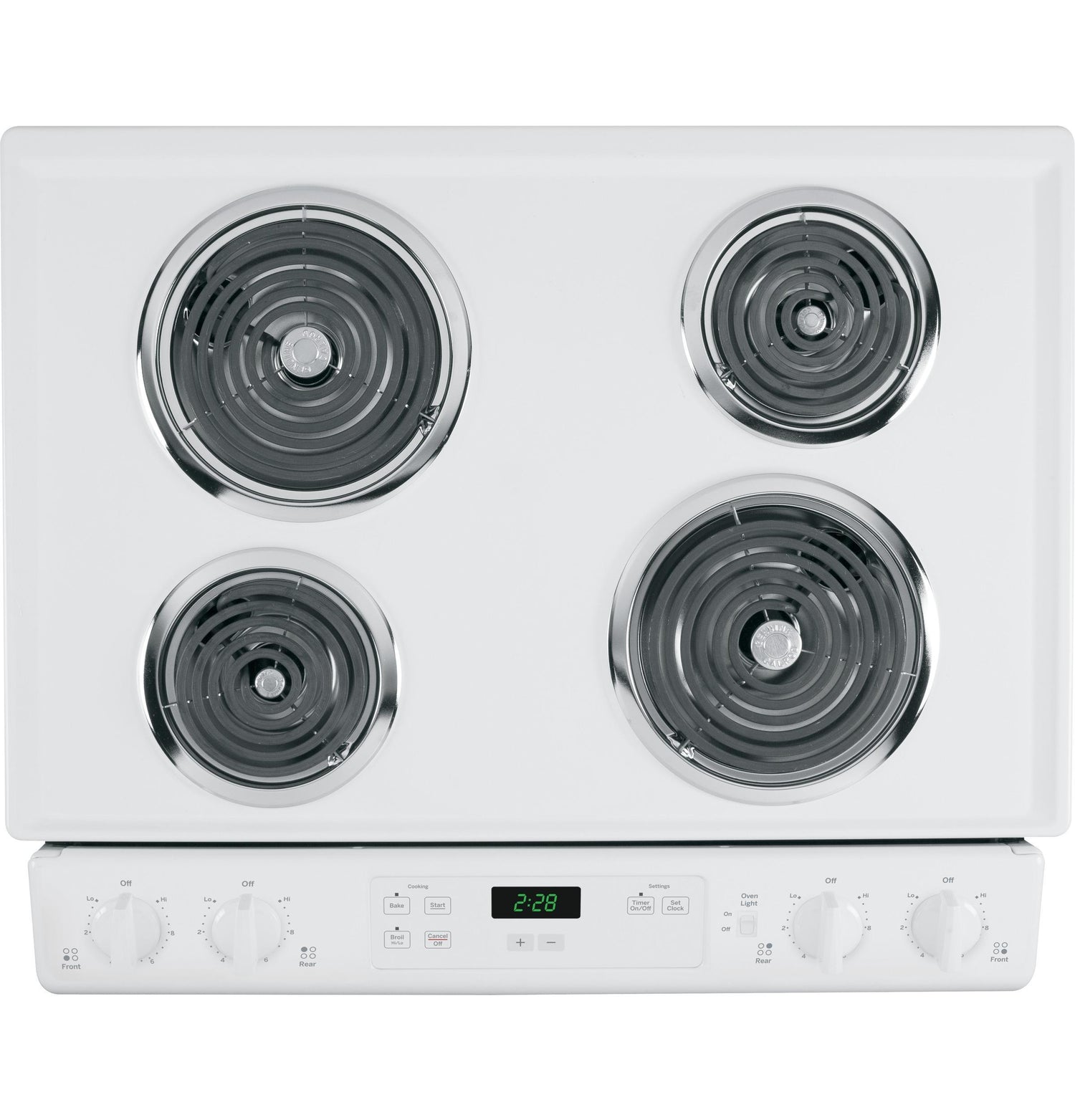

- Coil heating elements
- Provide even heat and easy cleanup

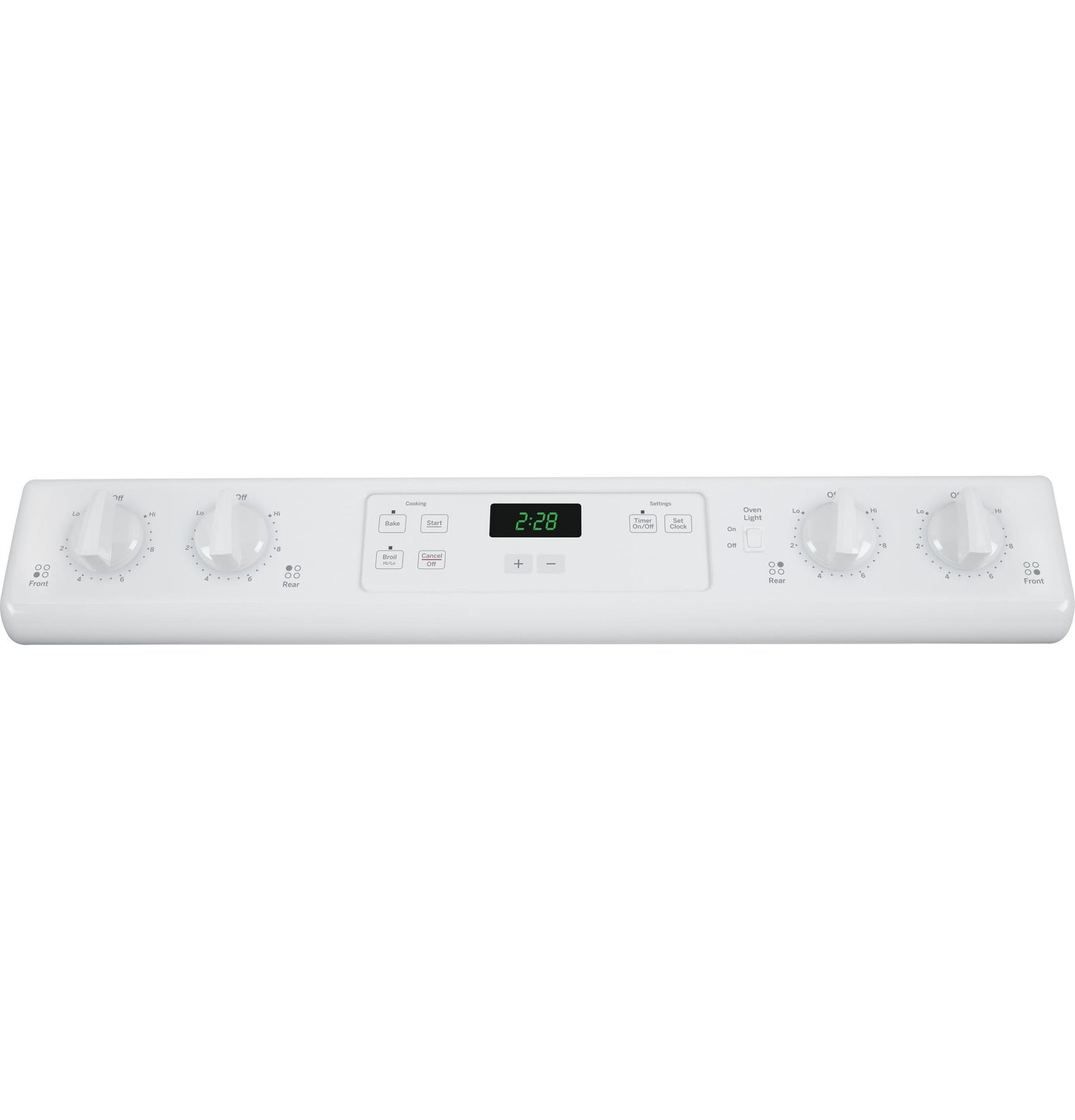

- Electronic oven controls
- Electronic touch pads are easy to operate

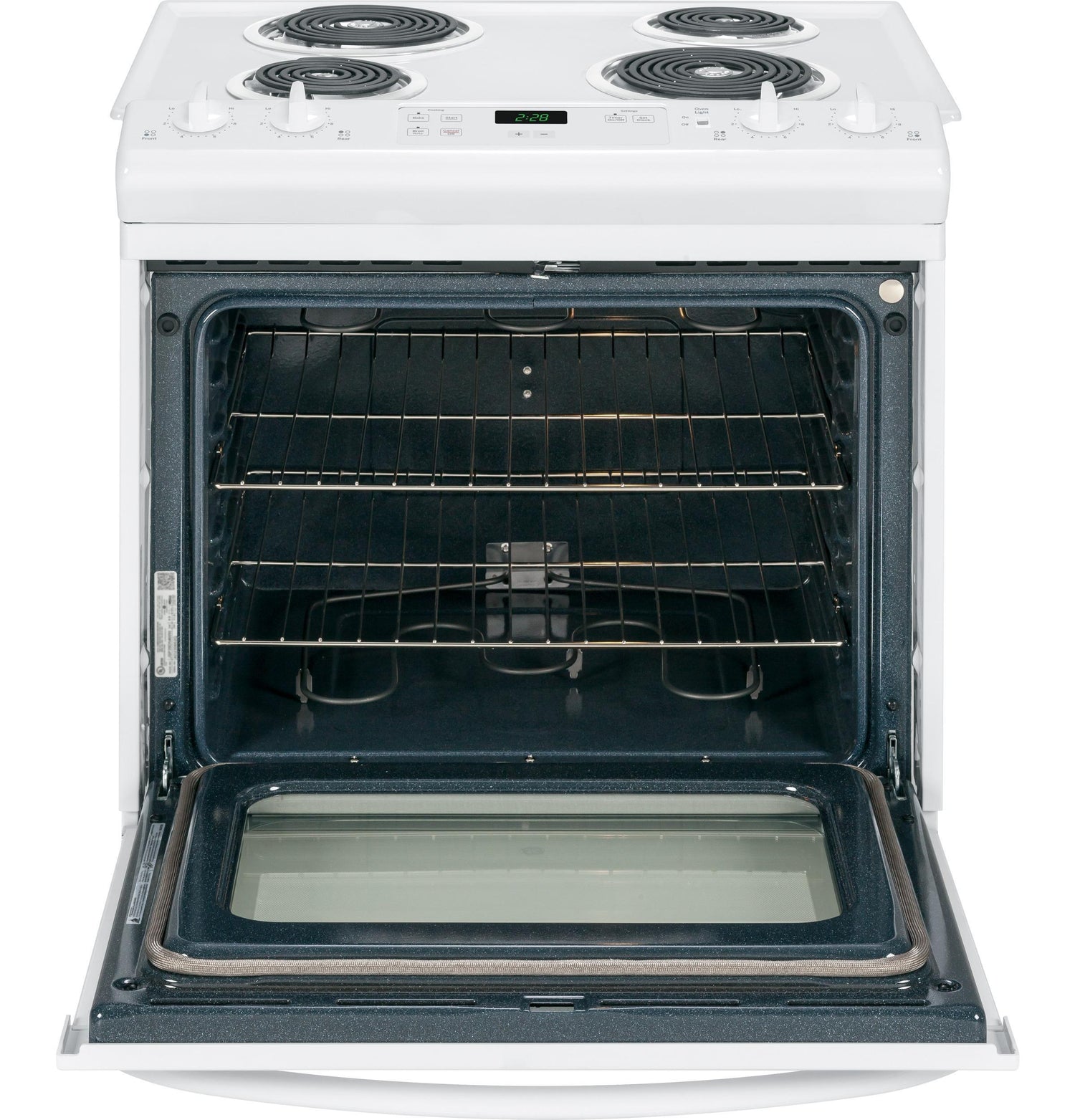

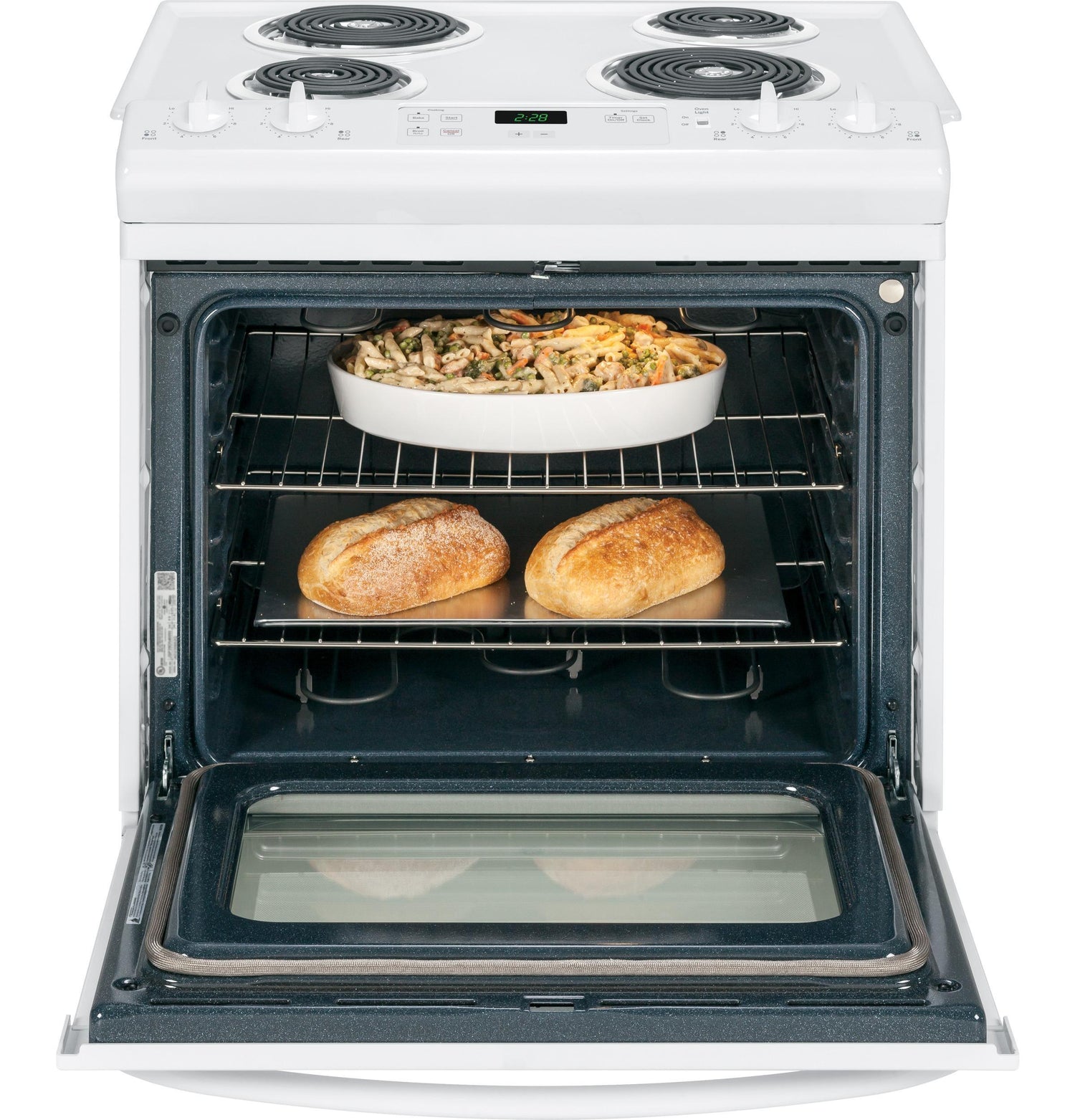

- 4.4 cu. ft. oven capacity
- Enough room to cook an entire meal at once
- Standard clean oven
- Smooth surface and rounded corners make clean-up quick and easy

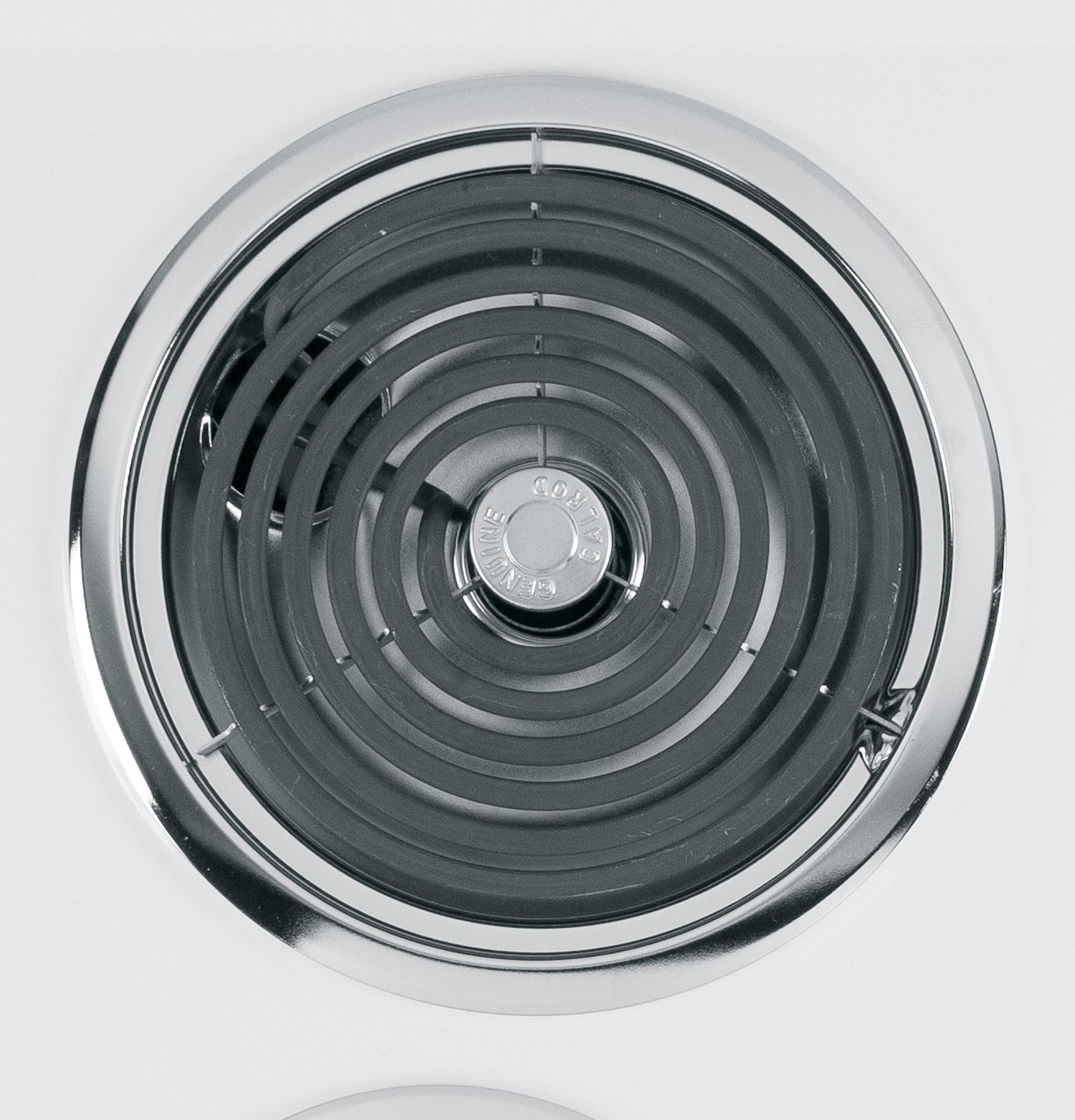

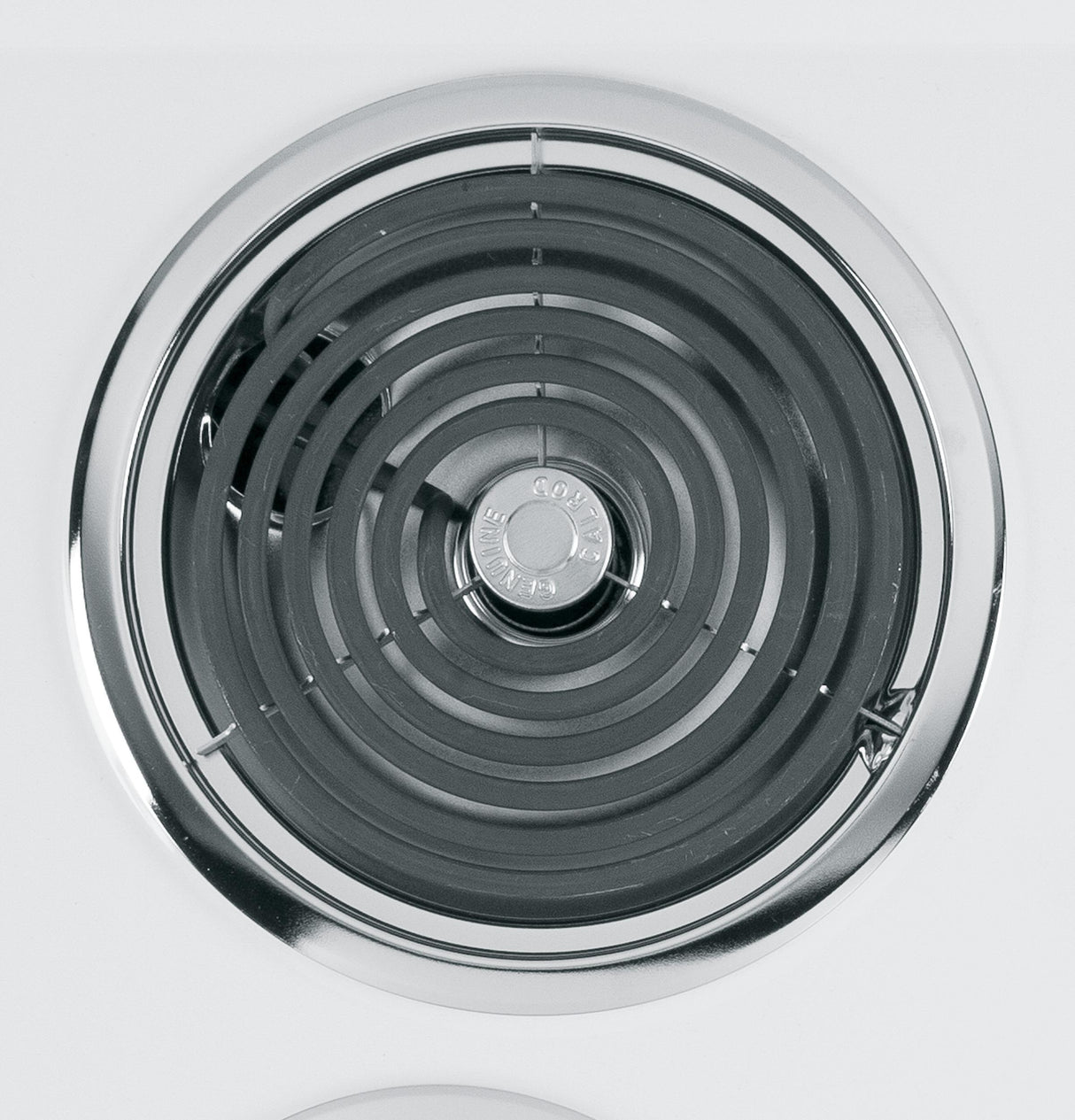

- Chrome drip bowls
- Contain spills and remove for easy cleaning
- Coil heating elements
- Electronic oven controls
- 4.4 cu. ft. oven capacity
- Standard clean oven
- Chrome drip bowls
(BR)(B)Coil heating elements(/B)(P)Provide even heat and easy cleanup(/P)(BR)(B)Electronic oven controls(/B)(P)Electronic touch pads are easy to operate(/P)(BR)(B)4.4 cu. ft. oven capacity(/B)(P)Enough room to cook an entire meal at once(/P)(BR)(B)Standard clean oven(/B)(P)Smooth surface and rounded corners make clean-up quick and easy(/P)(BR)(B)Chrome drip bowls(/B)(P)Contain spills and remove for easy cleaning(/P)
| CAPACITY | |
| Total Capacity (cubic feet) | 4.4 |
| FILTER | |
| App Filter - Cleaning Type | Manual |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Cooktop Type | Coil |
| App Filter - Cooking Technology | Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Drop-In |
| App Filter - Convection | No |
| App Filter - Fuel Type | Electric |
| APPEARANCE | |
| Control Knobs | White |
| Handle | D-shaped White |
| Installation | Flush Appearance |
| Oven Door Features | Big View Oven Window Glass Door |
| Color Appearance | White on White |
| POWER / RATINGS | |
| KW Rating at 208V | 8.1 |
| Bake Wattage | 3410W |
| KW Rating at 240V | 10.8 |
| Broiler Wattage | 3600W |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Optional Backguard | JXS32BB (Black) JXS32WW (White) |
| Optional Maintop Filler | JXS66WW (White) |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 116.0 |
| Overall Depth | 28.5 |
| Depth with Door Open | 46.375 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cabinet Opening | 30.0 |
| Overall Width | 31.25 |
| Overall Height | 27.0 |
| Approximate Shipping Weight | 136.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Coil |
| Element - Left Front | 6" 4-turn 1500W |
| Oven Rack Features | 2 Oven Racks 7 Rack Positions |
| Removable One-Piece Drip Bowls | Chrome |
| Oven Features | 6-Pass Bake Element 6-Pass Broil Element |
| Cooking Technology | Traditional |
| Cooktop Surface | Lift-Up Overhanging Cooktop Porcelain Enamel White |
| Control Type | Digital Temperature Display Electronic Touchpads |
| Element - Right Front | 8" 5-turn 2600W |
| Oven Control Features | Auto Oven Shut-Off Certified Sabbath Mode Electronic Clock & Kitchen Timer |
| Interior Oven Light | 1 Auto Incandescent |
| Control Location | Front |
| Element - Right Rear | 6" 4-turn 1500W |
| Heating Element "ON" Indicator Light | 1 |
| Element - Left Rear | 8" 5-turn 2600W |
- Coil heating elements
- Electronic oven controls
- 4.4 cu. ft. oven capacity
- Standard clean oven
- Chrome drip bowls
