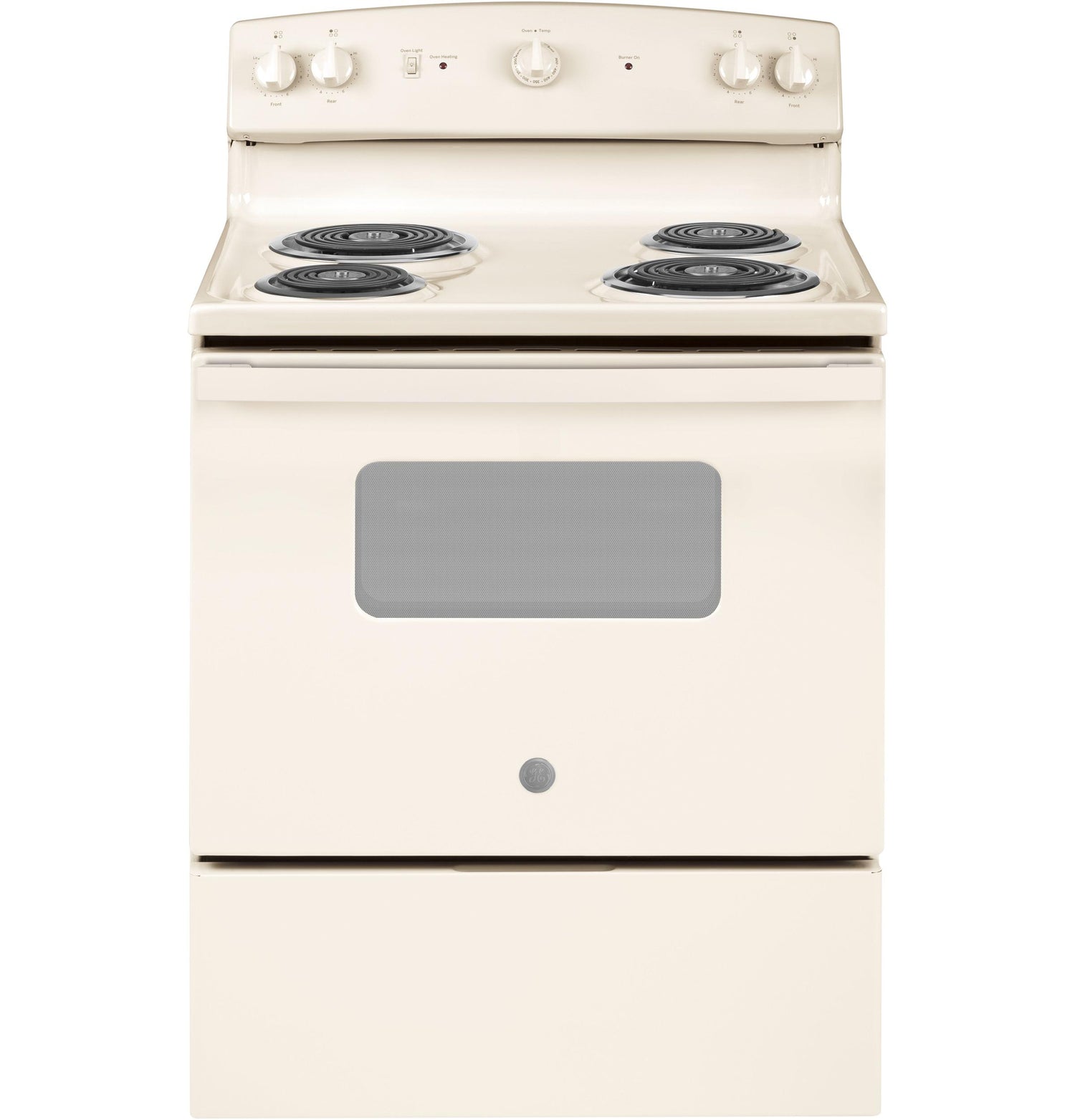

GE® 30" Free-Standing Electric Range
Model: JBS160DMCC
Authorized Dealer
1
of
11
Loading...
Authorized Dealer
GE® 30" Free-Standing Electric Range
Model: JBS160DMCCQuick Specs
Depth
29
Height
47
Sabbath
NO
ADA
NO
Wifi
NO
Storage
YES
Warming
NO
Cooktop
4
GE® 30" Free-Standing Electric Range is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$763.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
29
Height
47
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
4
Convection
NO
Self Clean
NO
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Drawer Proof Mode
NO
Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- Standard clean oven
- Smooth surface and rounded corners make clean-up quick and easy
- Sensi-temp technology
- Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
- Dual-element Bake
- Upper and lower elements produce even heat and great results
- Removable full-width storage drawer
- Large trays and other cookware can be conveniently stored for quick access
- 5.0 cu. ft. oven capacity
- Standard clean oven
- Sensi-temp technology
- Dual-element Bake
- Removable full-width storage drawer
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Rotary knobs |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Electric |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Manual |
| App Filter - Cooktop Type | Coil |
| APPEARANCE | |
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Metal Door Small Window |
| Handle Color | Bisque |
| Control Knobs | Color-Matched |
| Color Appearance | Bisque |
| POWER / RATINGS | |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 12.6 |
| Bake Wattage | 2585W |
| KW Rating at 208V | 9.9 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |

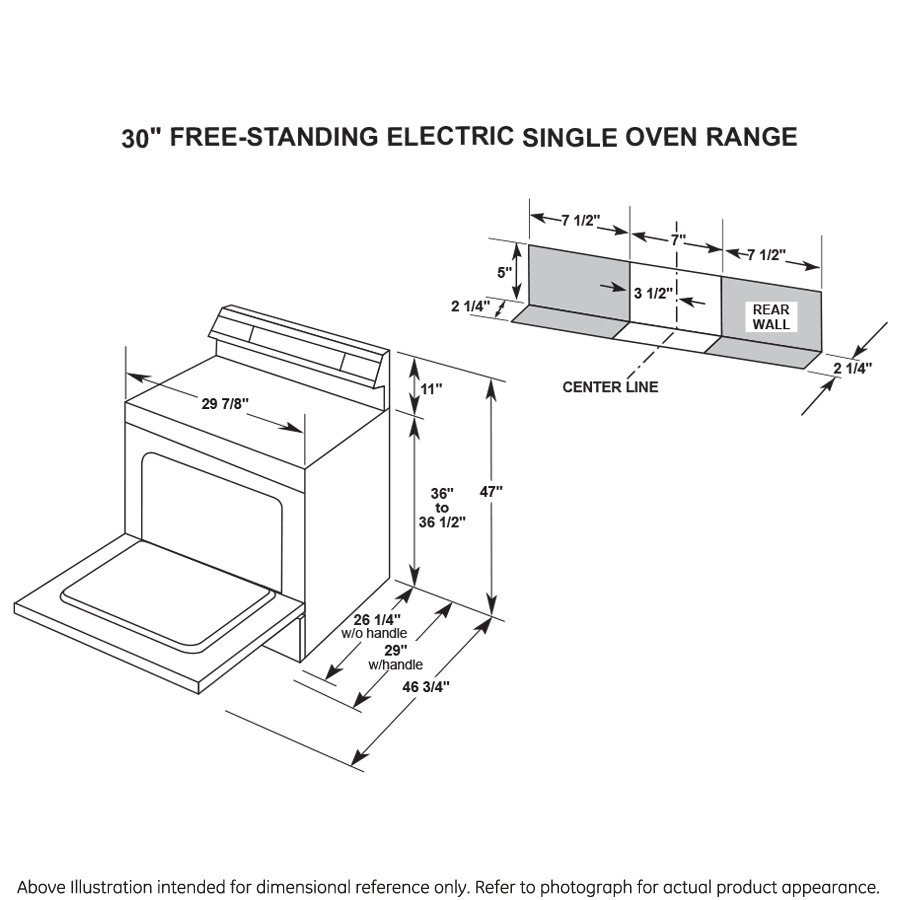

| WEIGHTS & DIMENSIONS | |
| Net Weight | 130 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 150 lb |
| Overall Width | 30 in |
| Overall Height | 47 in |
| Overall Depth | 29 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| FEATURES | |
| Cooking System | Traditional |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | 1 Incandescent Light |
| Oven Control Features | Oven "ON" Light |
| Lift-Up Cooktop With Support Rods | Yes |

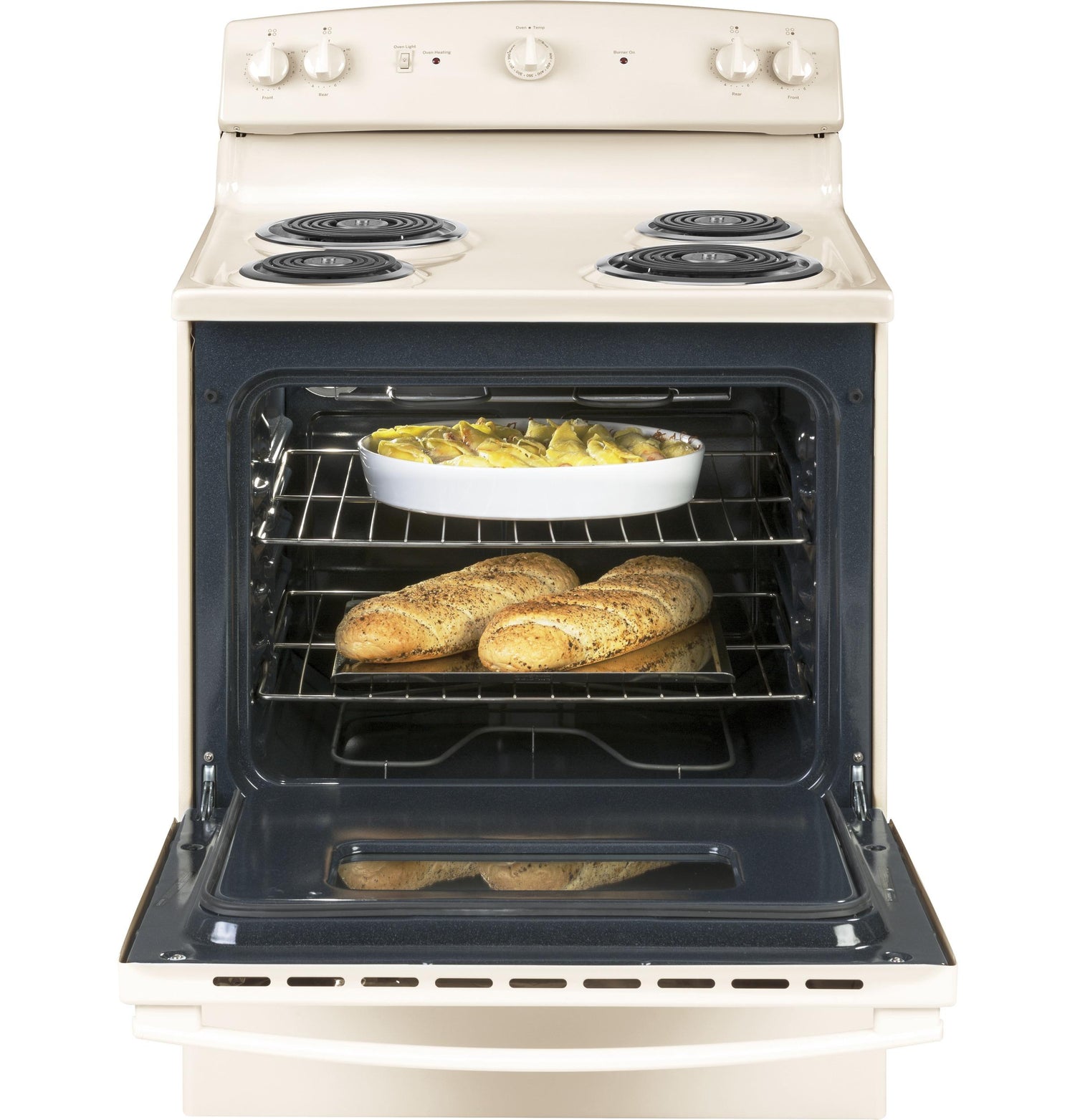

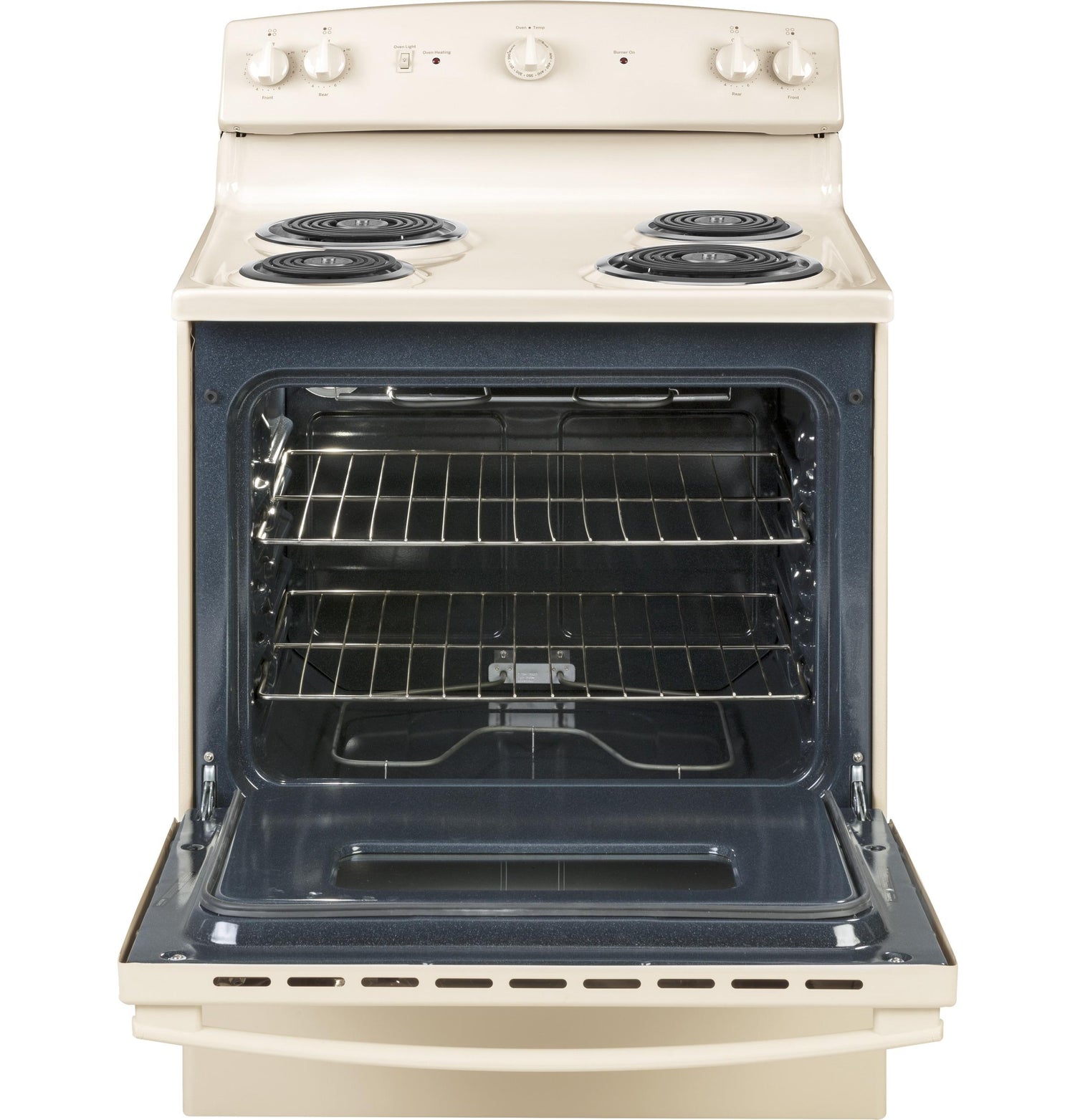

| Oven Rack Features | 2 Oven Racks |

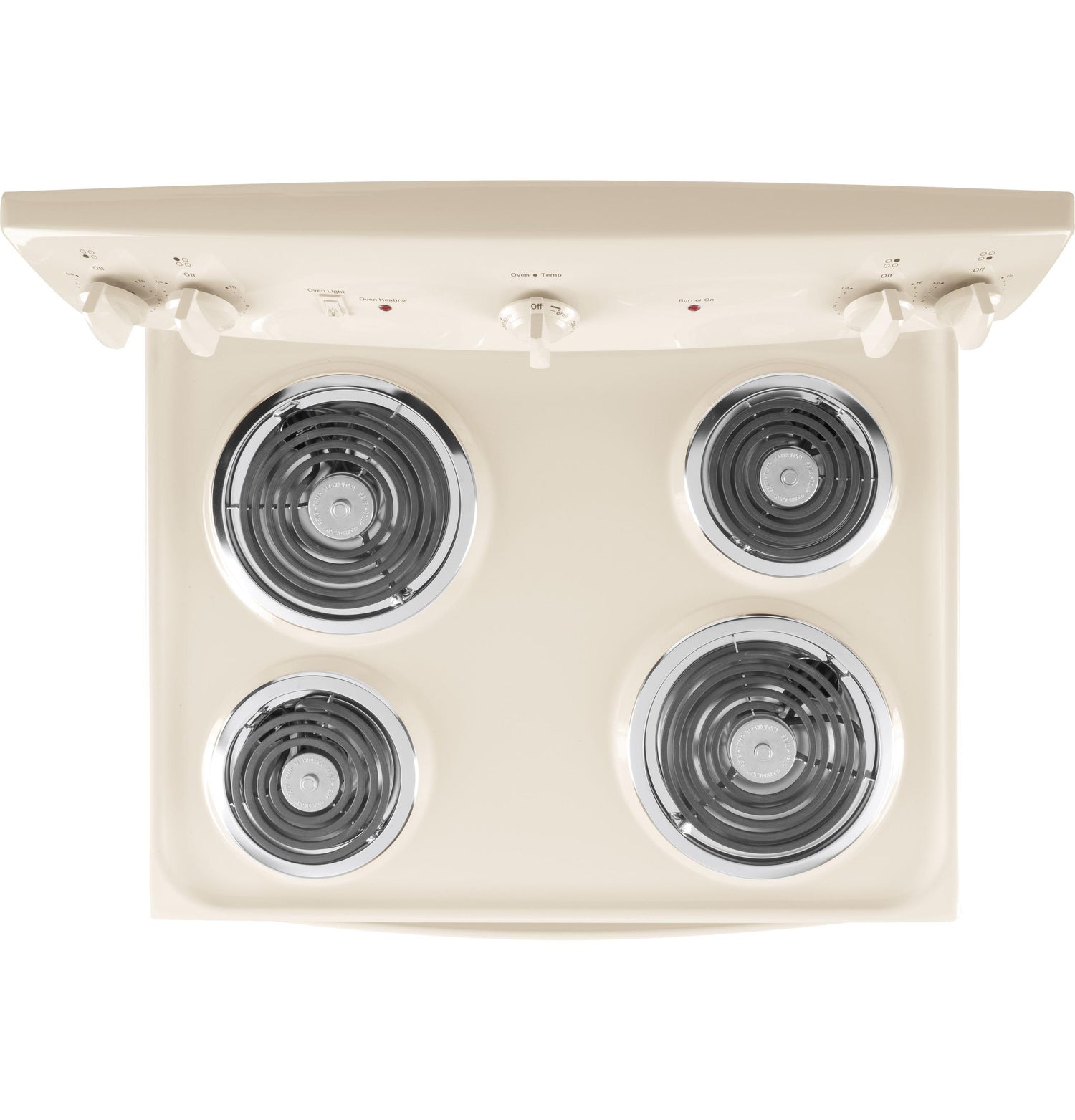

| Element - Left Front | 6" 1250W Temp Limiting Coil |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Type | Coil |
| Fuel Type | Electric |
| Element - Right Front | 8" 2400W Temp Limiting Coil |

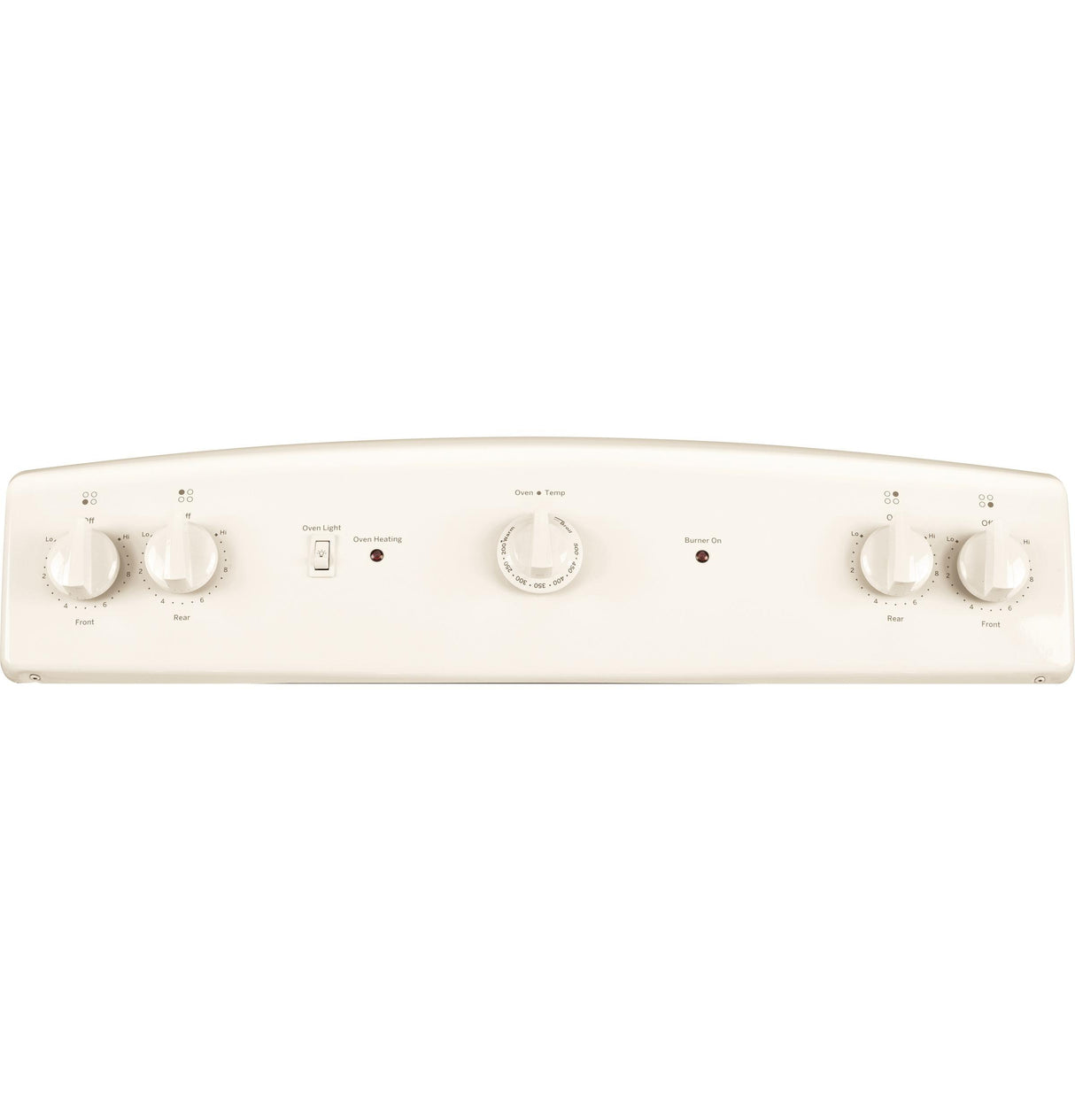

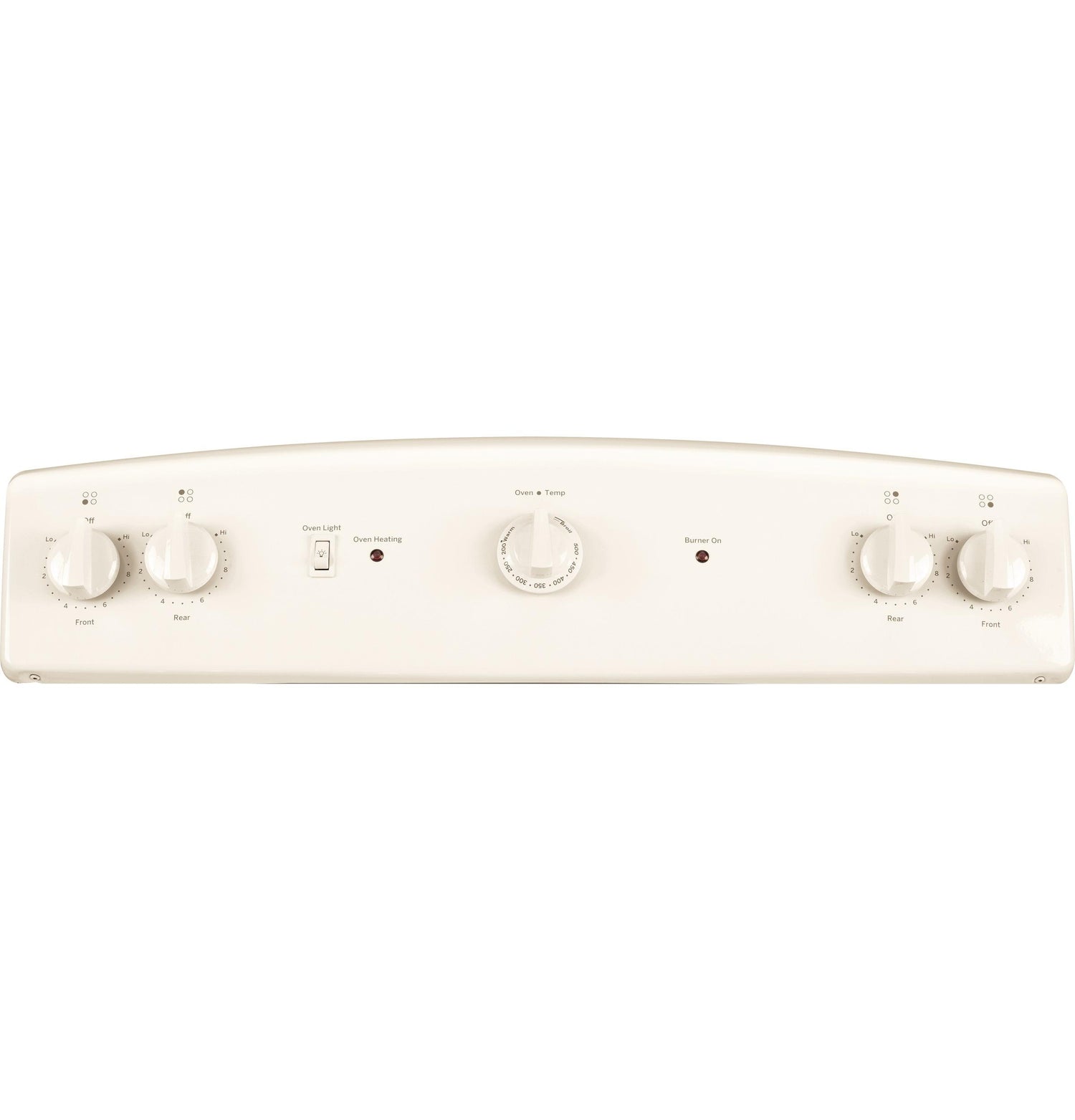

| Control Location | Backsplash |
| Drawer Type | Storage |
| Element - Left Rear | 8" 2400W Temp Limiting Coil |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
| Removable One-Piece Drip Bowls | Chrome |
| Cooktop Burner Type | Coil |
| Element - Right Rear | 6" 1250W Temp Limiting Coil |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
- 5.0 cu. ft. oven capacity
- Standard clean oven
- Sensi-temp technology
- Dual-element Bake
- Removable full-width storage drawer
