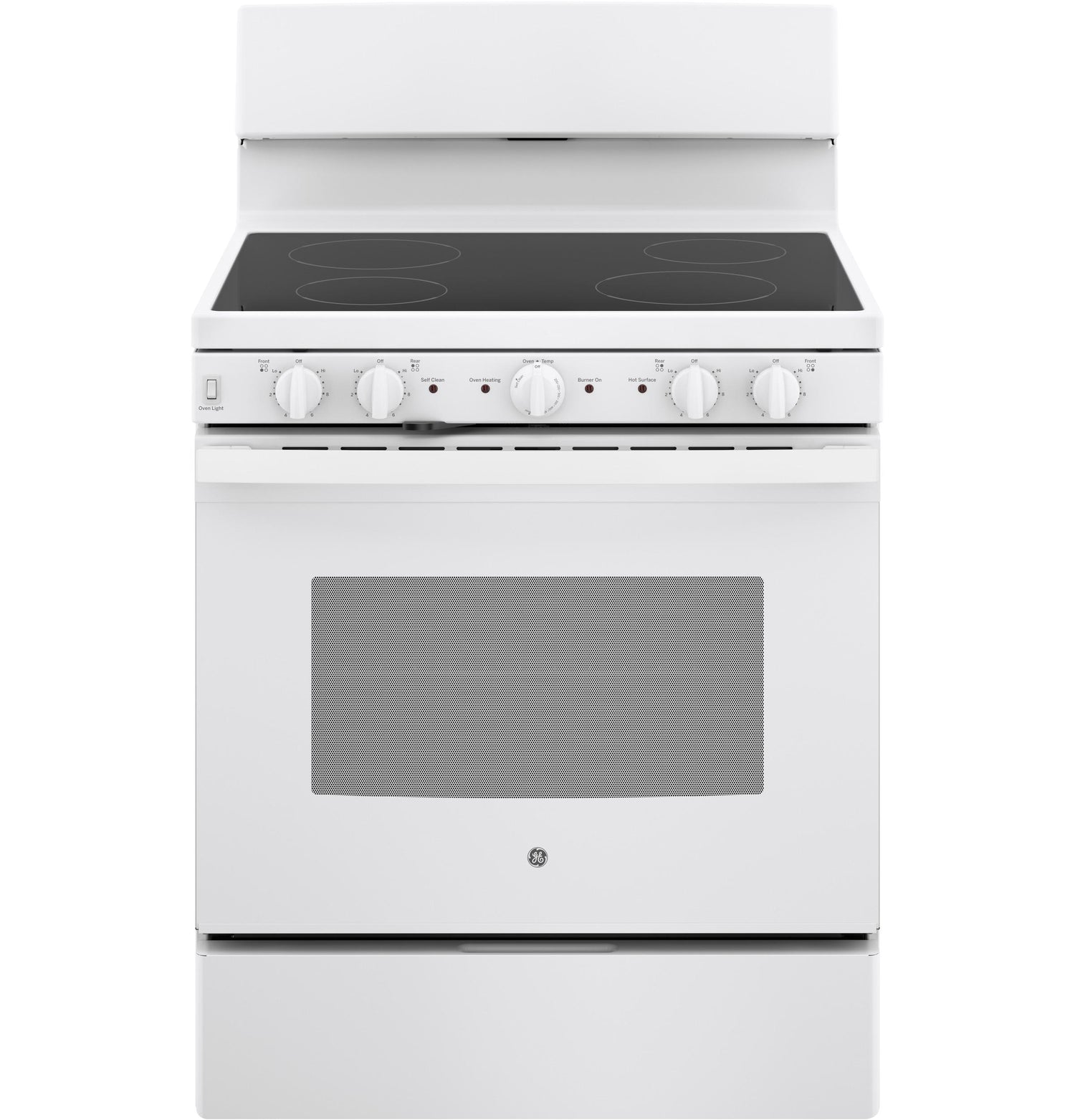

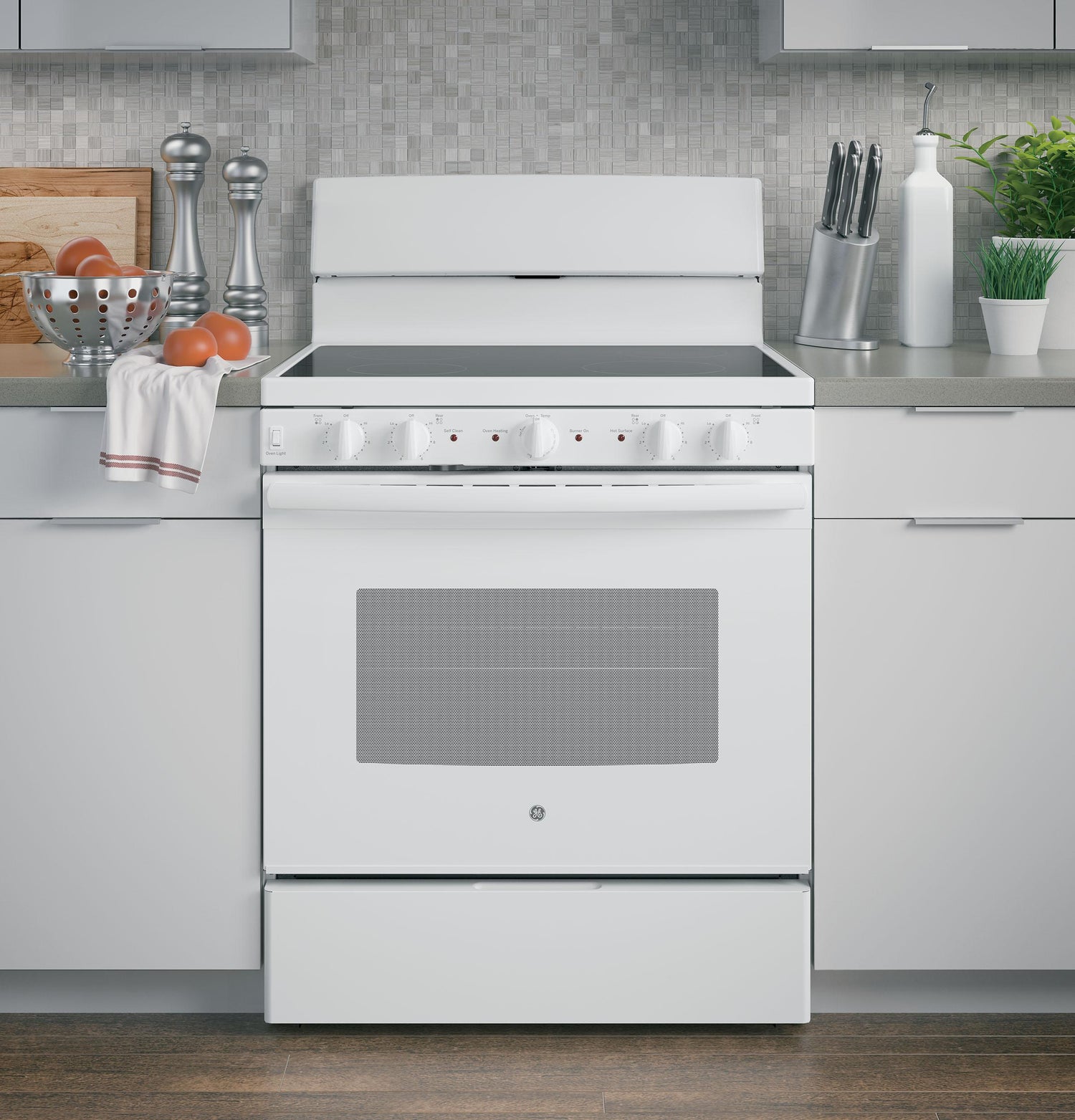

GE 30" Free-standing Electric Radiant Smooth Cooktop Range
Model: JB480DMWW
Authorized Dealer
1
of
10
Loading...
Authorized Dealer
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
Model: JB480DMWWQuick Specs
Depth
29
Height
47
Sabbath
YES
ADA
NO
Wifi
NO
Storage
YES
Warming
NO
Cooktop
4
GE 30" Free-standing Electric Radiant Smooth Cooktop Range is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$991.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
29
Height
47
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
4
Convection
NO
Self Clean
YES
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Cooking is Induction
NO
Drawer Proof Mode
NO
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access

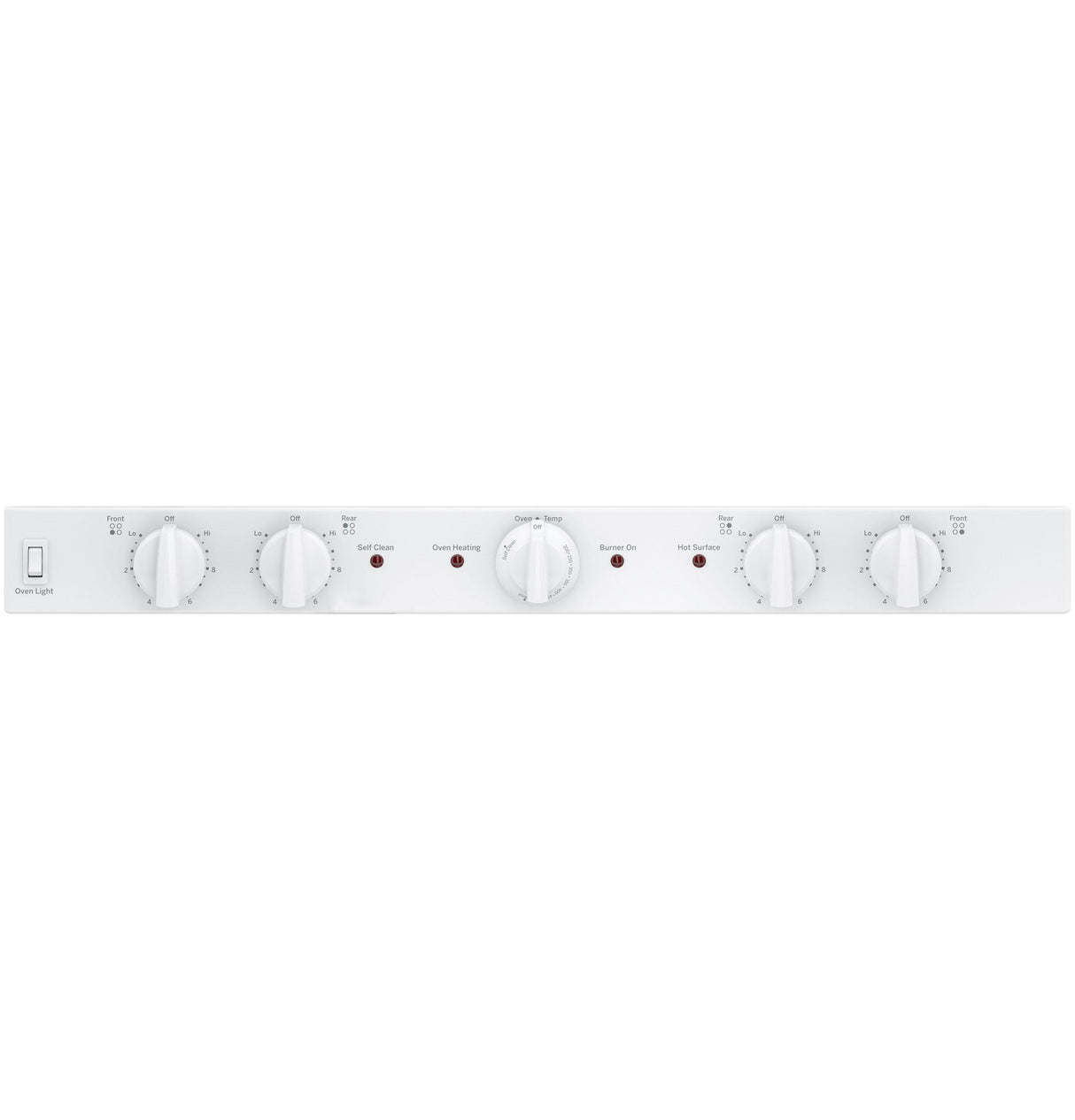

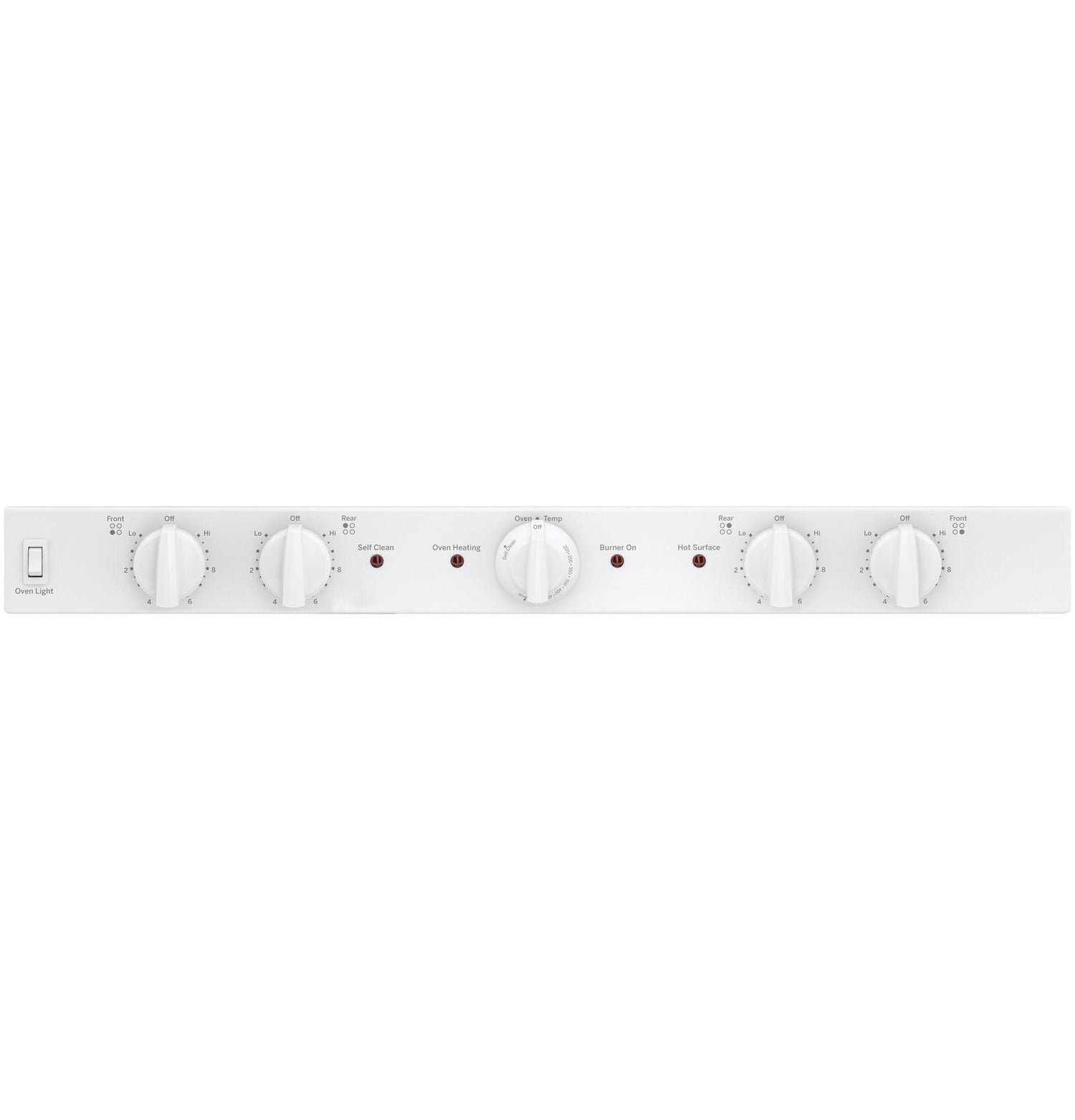

- Front controls
- Easily-accessible controls make it simple to control the stovetop and oven

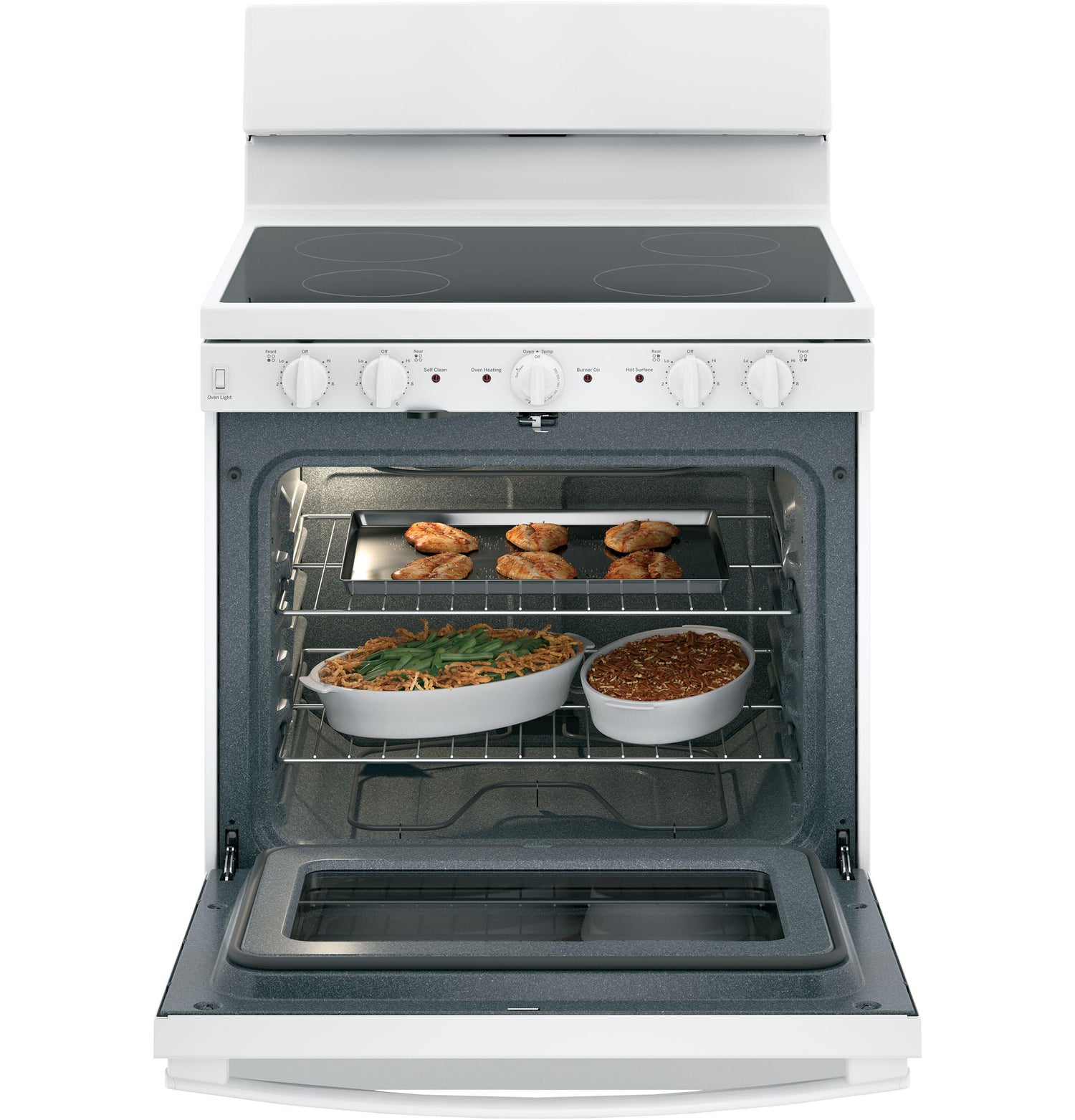

- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- Self-clean oven
- Cleans the oven cavity without the need for scrubbing
- Dual-element Bake
- Upper and lower elements produce even heat and great results
- Removable full-width storage drawer
- Large trays and other cookware can be conveniently stored for quick access
- Front controls
- 5.0 cu. ft. oven capacity
- Self-clean oven
- Dual-element Bake
- Removable full-width storage drawer
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Rotary knobs |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Electric |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Voltage | 240V |
| App Filter - Cooktop Type | Radiant Smoothtop |
| APPEARANCE | |
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Big View Oven Window Glass Door |
| Handle Color | White |
| Control Knobs | Color-Matched |
| Color Appearance | White |
| POWER / RATINGS | |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 10.5 |
| Bake Wattage | 2585W |
| KW Rating at 208V | 7.9 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |

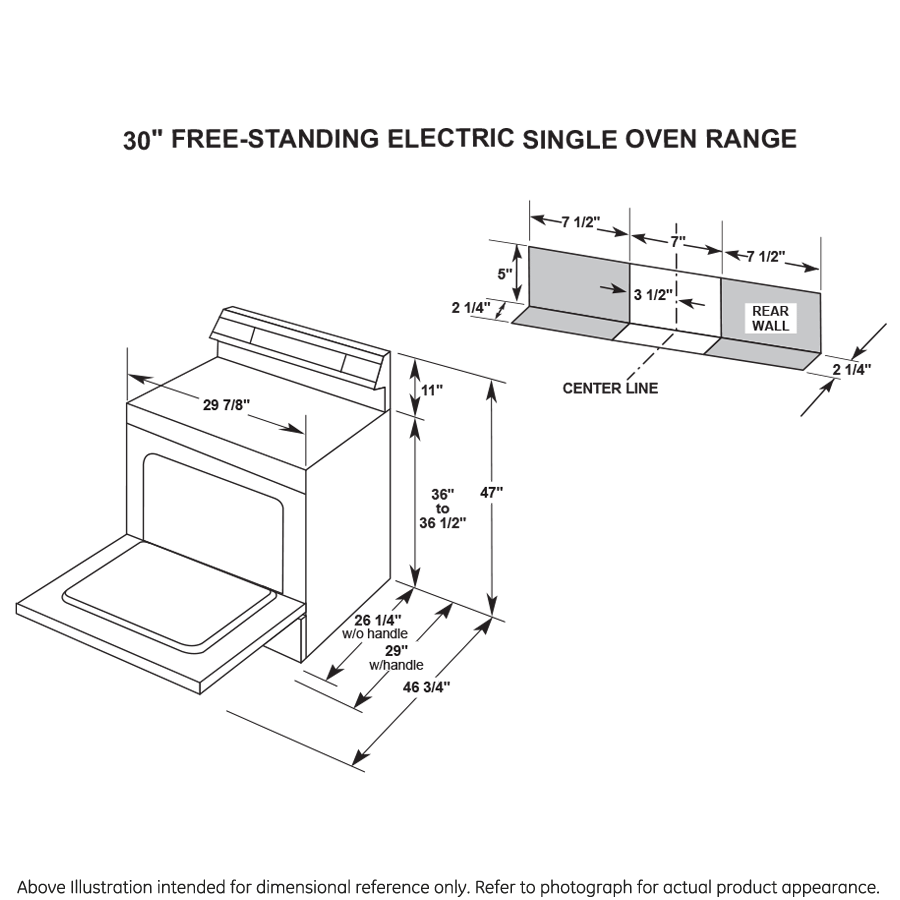

| WEIGHTS & DIMENSIONS | |
| Net Weight | 141 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
| Height w/ Legs Retracted - Minimum Height | 36 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 161 lb |
| Overall Width | 30 in |
| Cabinet Opening | 30 in |
| Overall Height | 47 in |
| Overall Depth | 29 in |
| Depth with Door Open | 46.75 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Height w/Legs Extended - Maximum Height | 36.5 in |
| FEATURES | |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | 1 Incandescent Light |
| Oven Control Features | Oven "ON" Light Self-Cleaning Cycling Light |

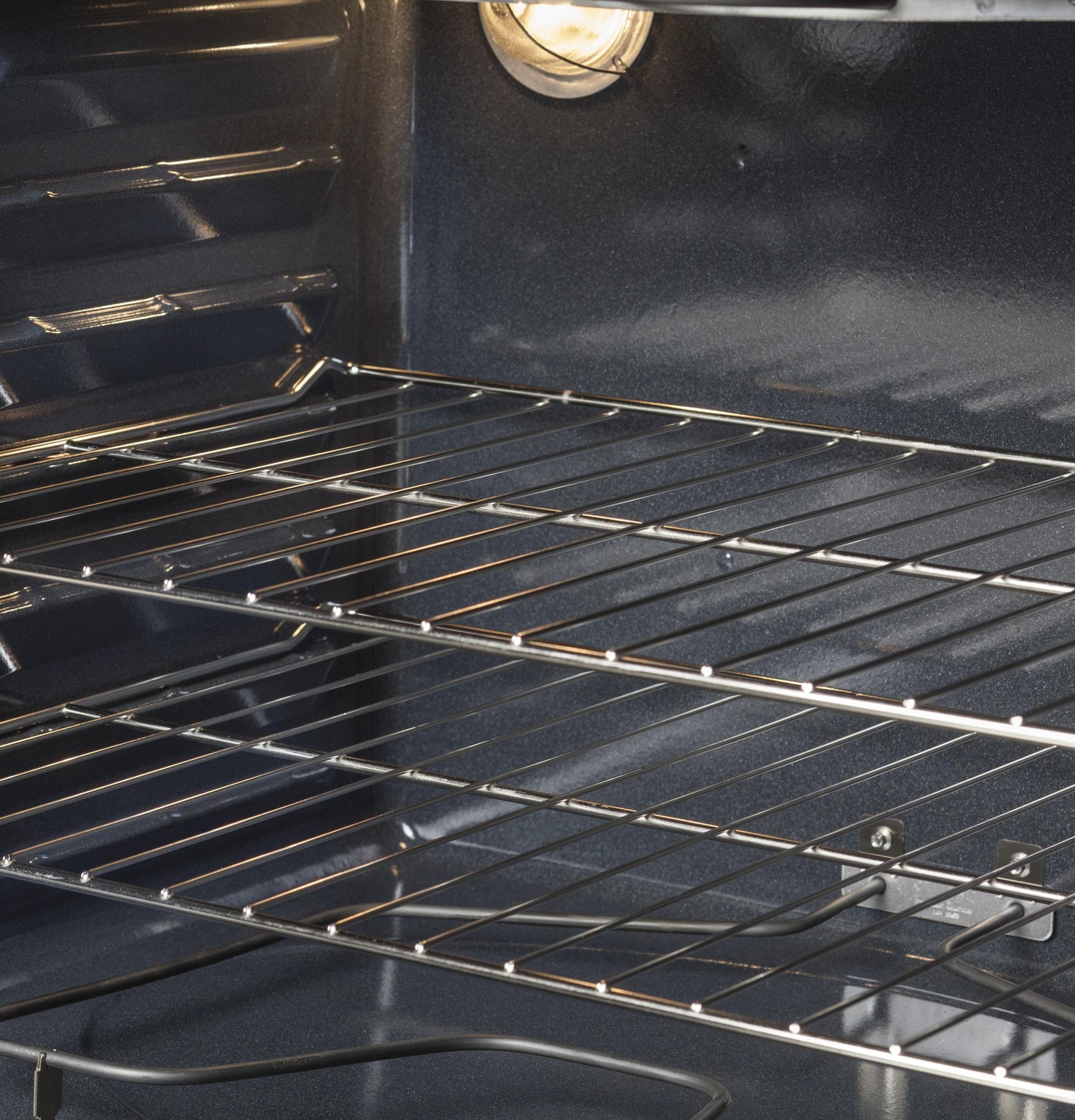

| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |

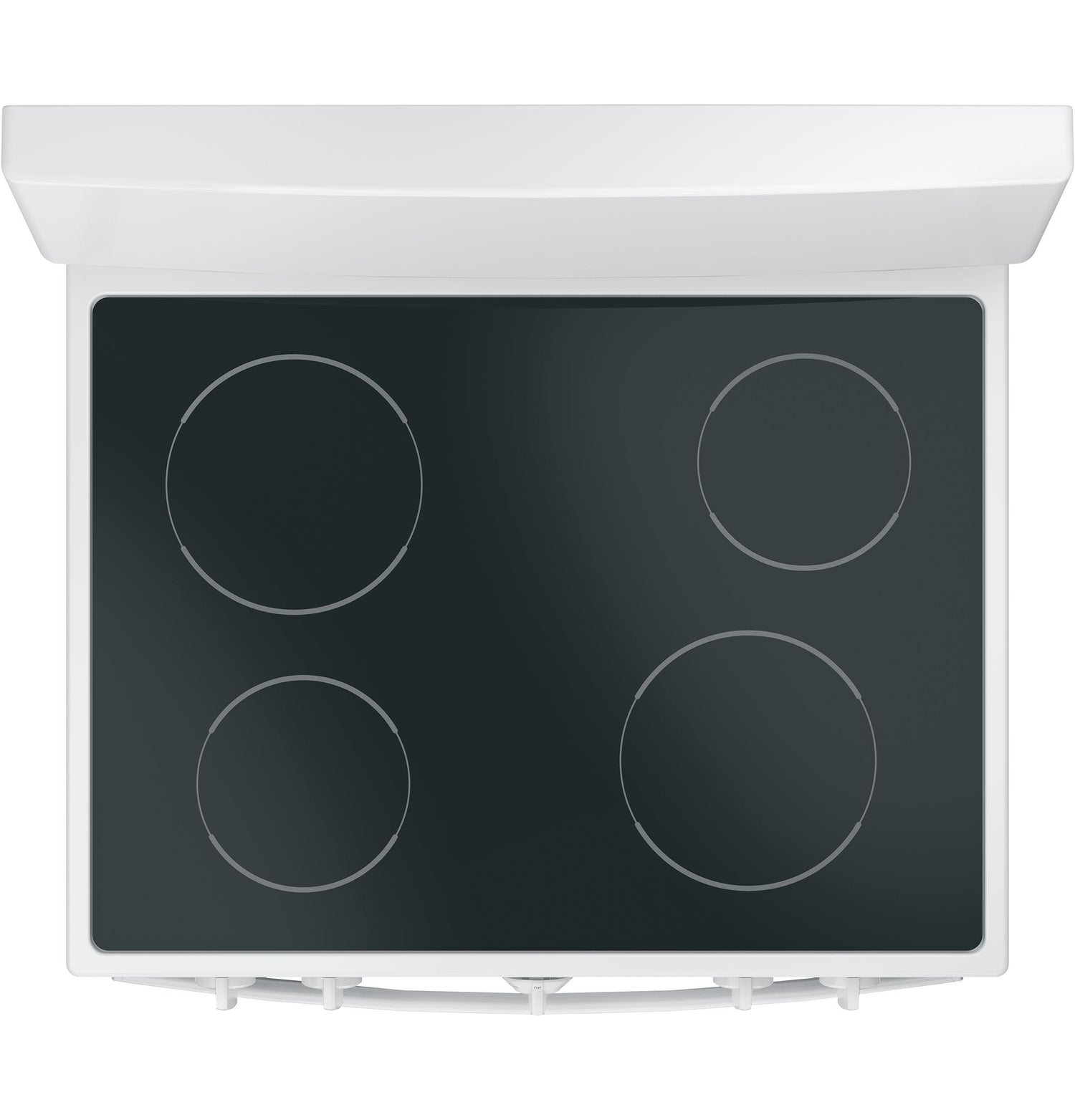

| Cooktop Type | Radiant Smoothtop |
| Fuel Type | Electric |
| Element - Right Front | 8" 2000W |
| Control Location | Front |
| Drawer Type | Storage |
| Hot Surface Indicator Lights | Yes |
| Element - Left Rear | 8" 2000W |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 4-Pass Bake Element 6-Pass Broil Element |
| Cooktop Burner Type | Radiant Smoothtop |
| Element - Right Rear | 6" 1500W |
| Cooktop Surface | Black Ceramic Glass |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
