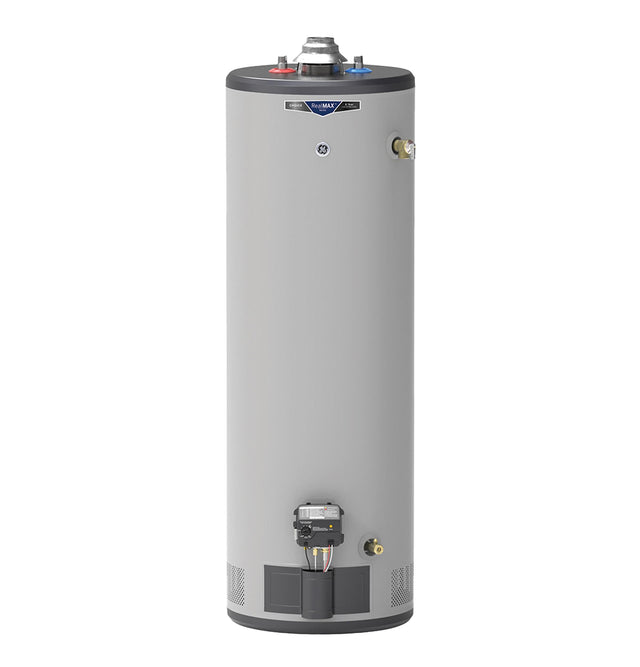

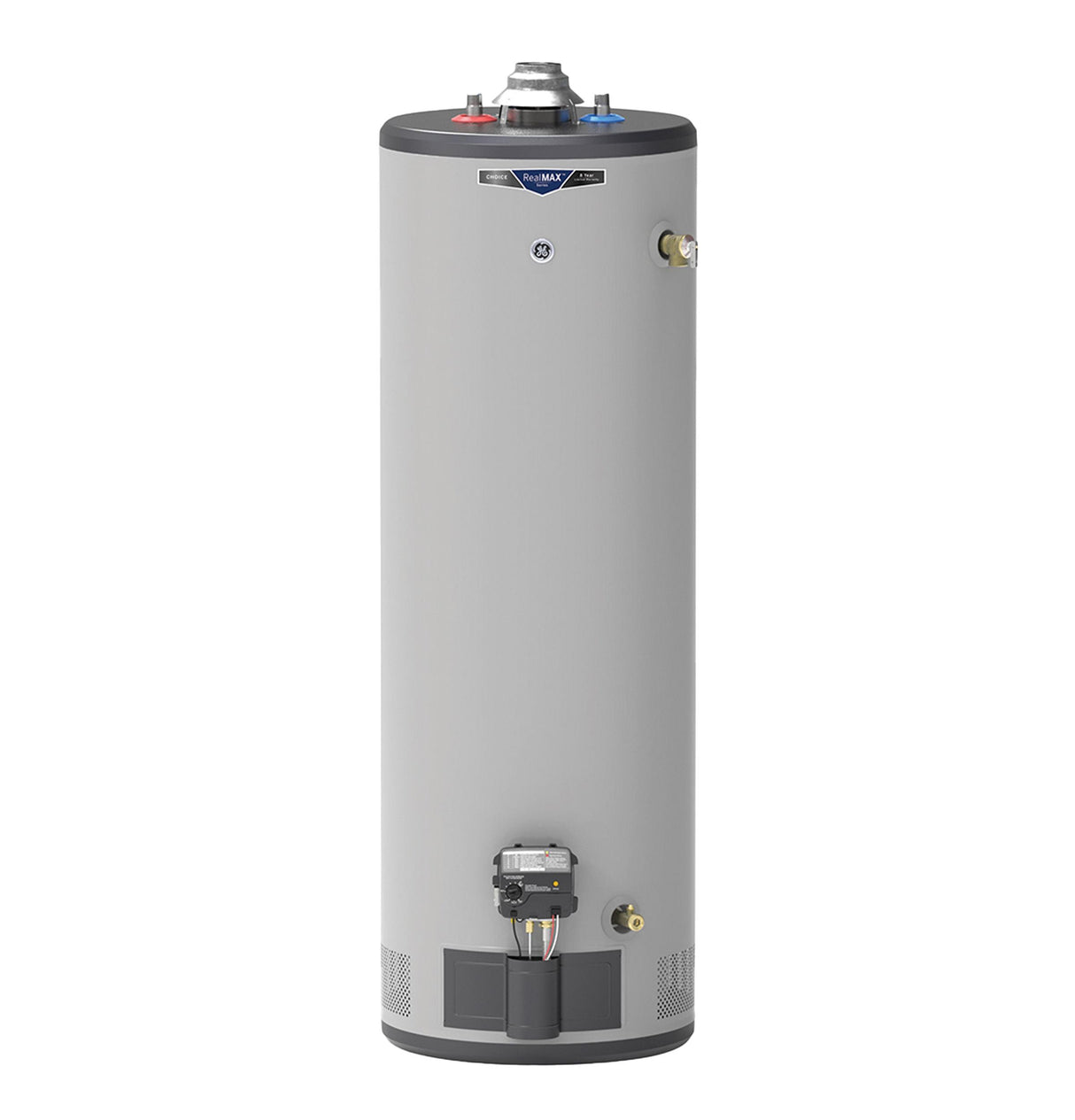

GE RealMAX Choice 40-Gallon Tall Natural Gas Atmospheric Water Heater
Model GG40T08BXR
GE RealMAX Choice 40-Gallon Tall Natural Gas Atmospheric Water Heater
Model GG40T08BXRQuick Specs
GE RealMAX Choice 40-Gallon Tall Natural Gas Atmospheric Water Heater is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

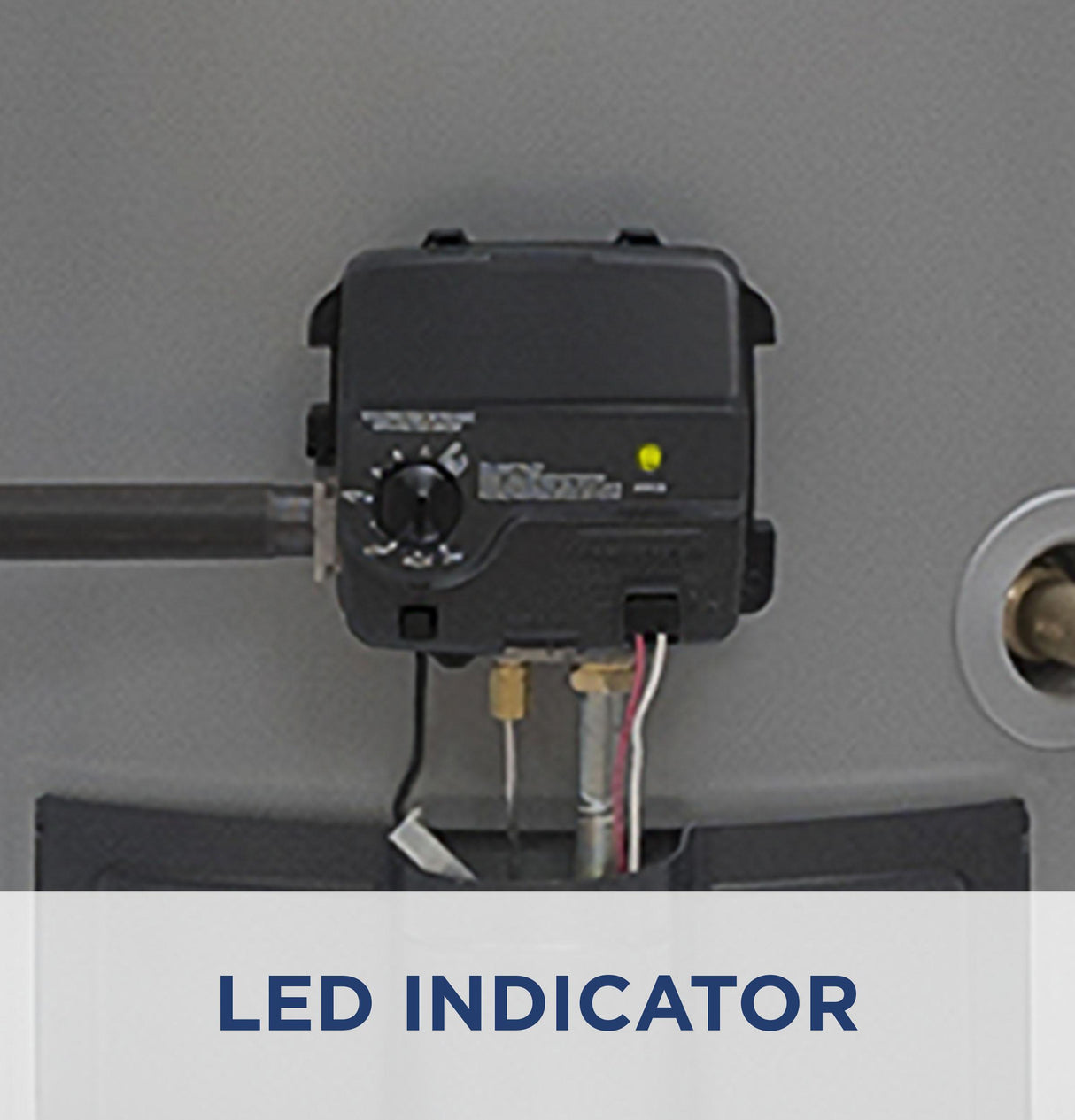

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

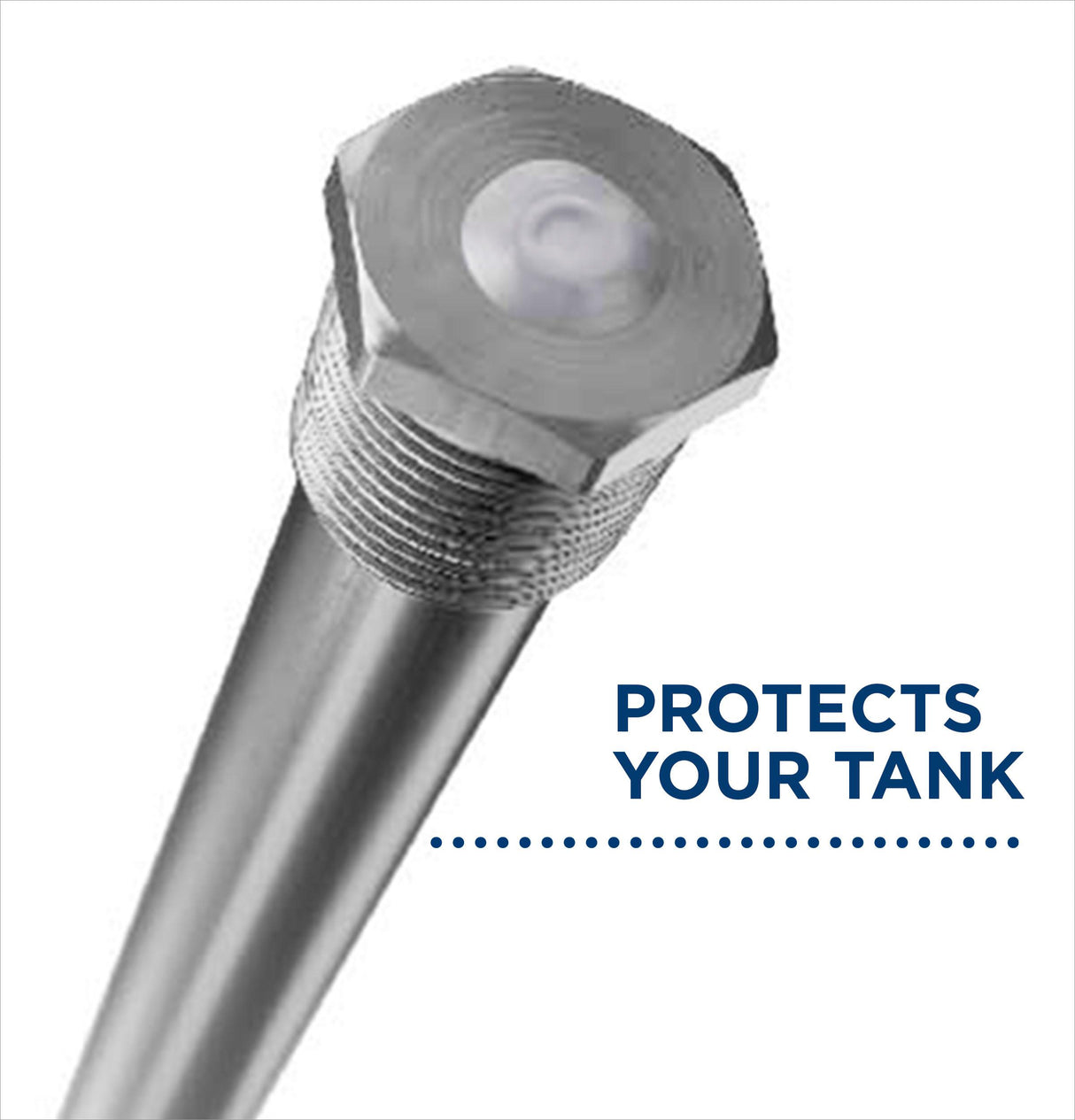

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner

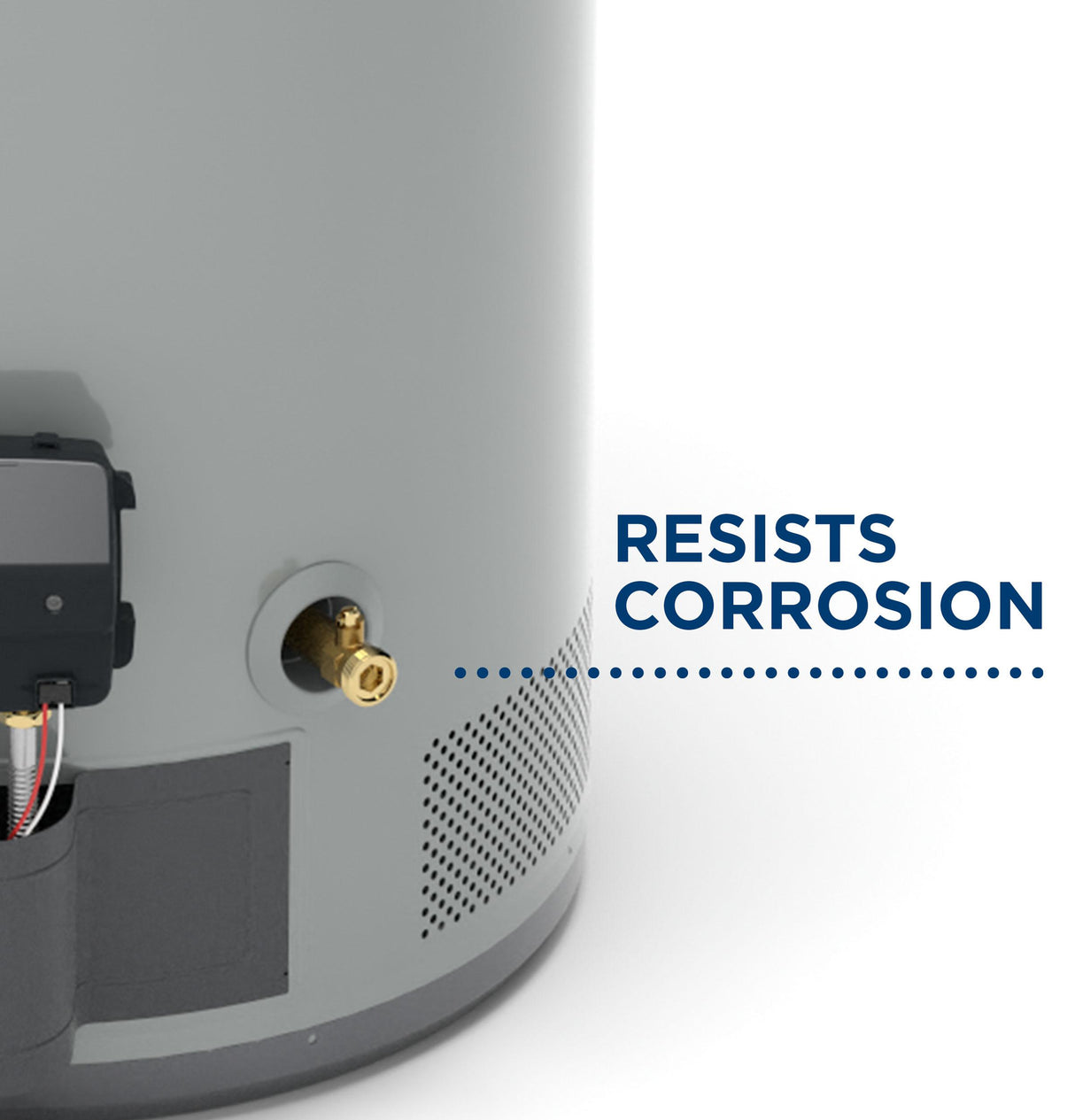

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

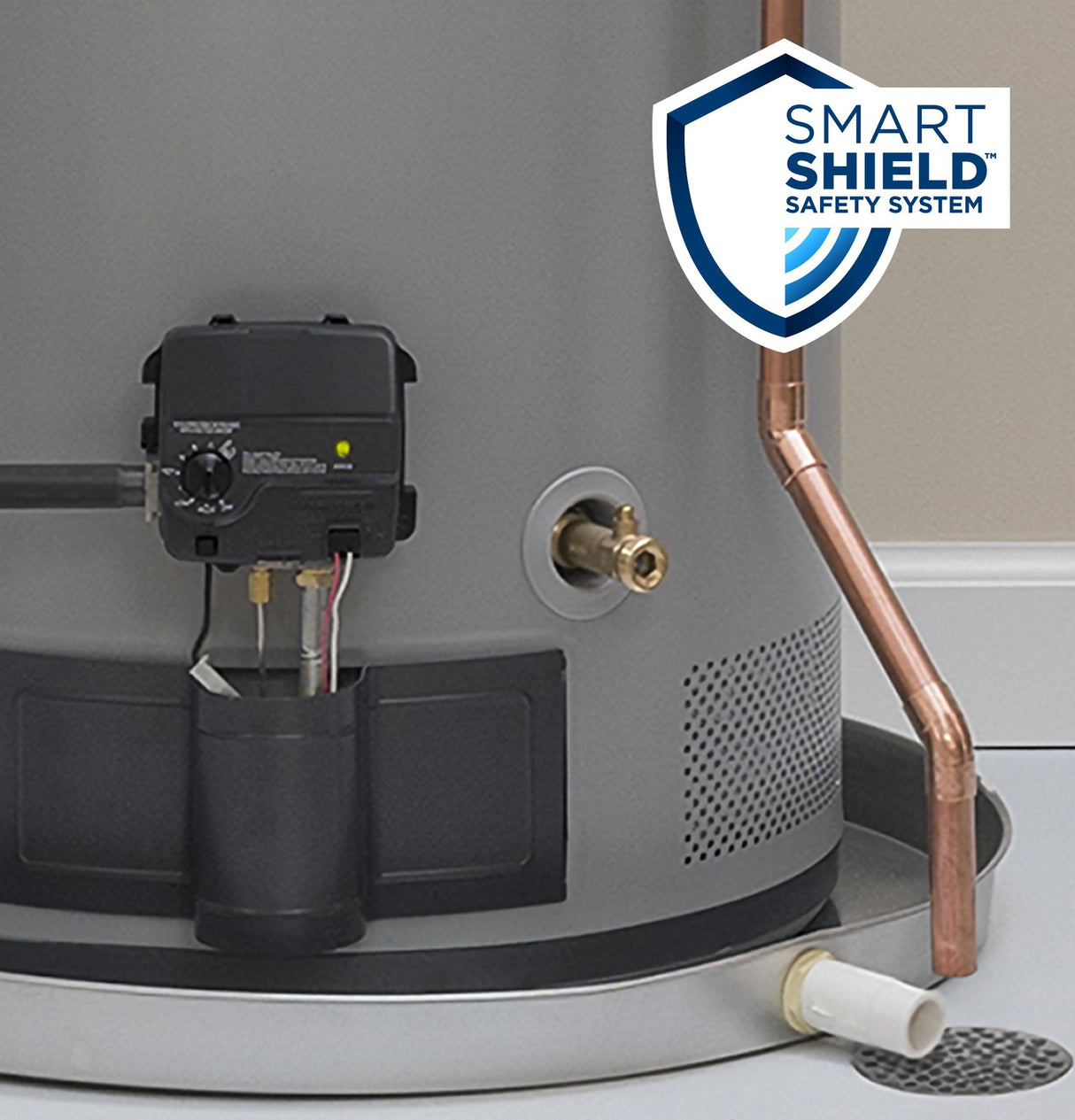

SmartShield (TM) Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections

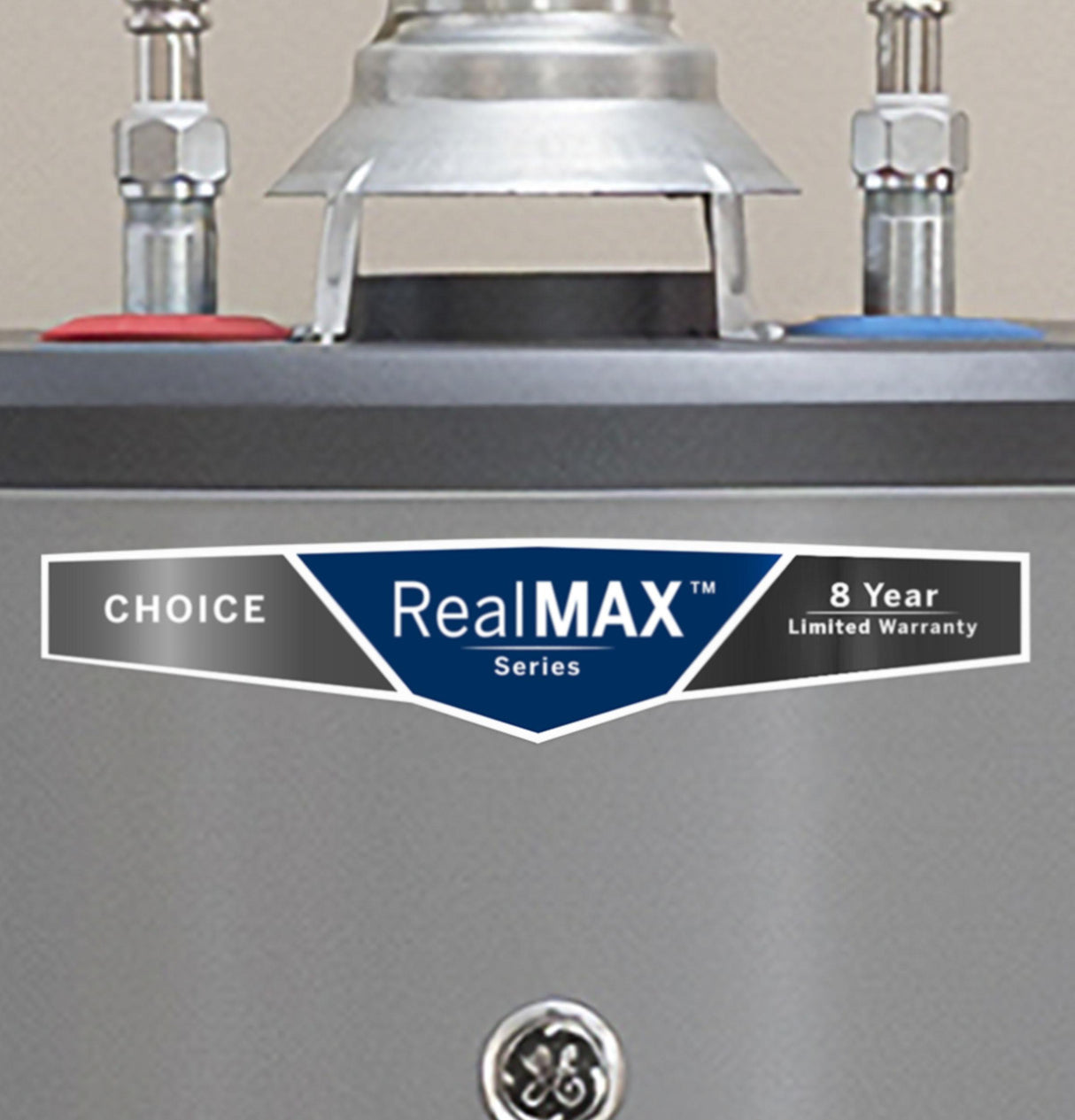

Built-To-Last Warranty
RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
Household Size
Provide hot water for the whole family of 2 to 4 persons
- Household Size
- Provide hot water for the whole family of 2 to 4 persons
- Quick Recovery
- Quickly replenish hot water with a max-performance 40K burner
- Anode Rod
- Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
- SmartShield ™ Safety System
- Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
- Self-Diagnostic
- Monitors and reports on gas system status via LED status indicator
- Brass Drain Valve
- Rust-proof construction can be counted on to provide long-lasting service
- Easy Installation
- Replace your old water heater quickly and easily using standard water and gas connections
- Built-To-Last Warranty
- RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
- Household Size
- Quick Recovery
- Anode Rod
- SmartShield (TM) Safety System
- Self-Diagnostic
- Brass Drain Valve
- Easy Installation
- Built-To-Last Warranty

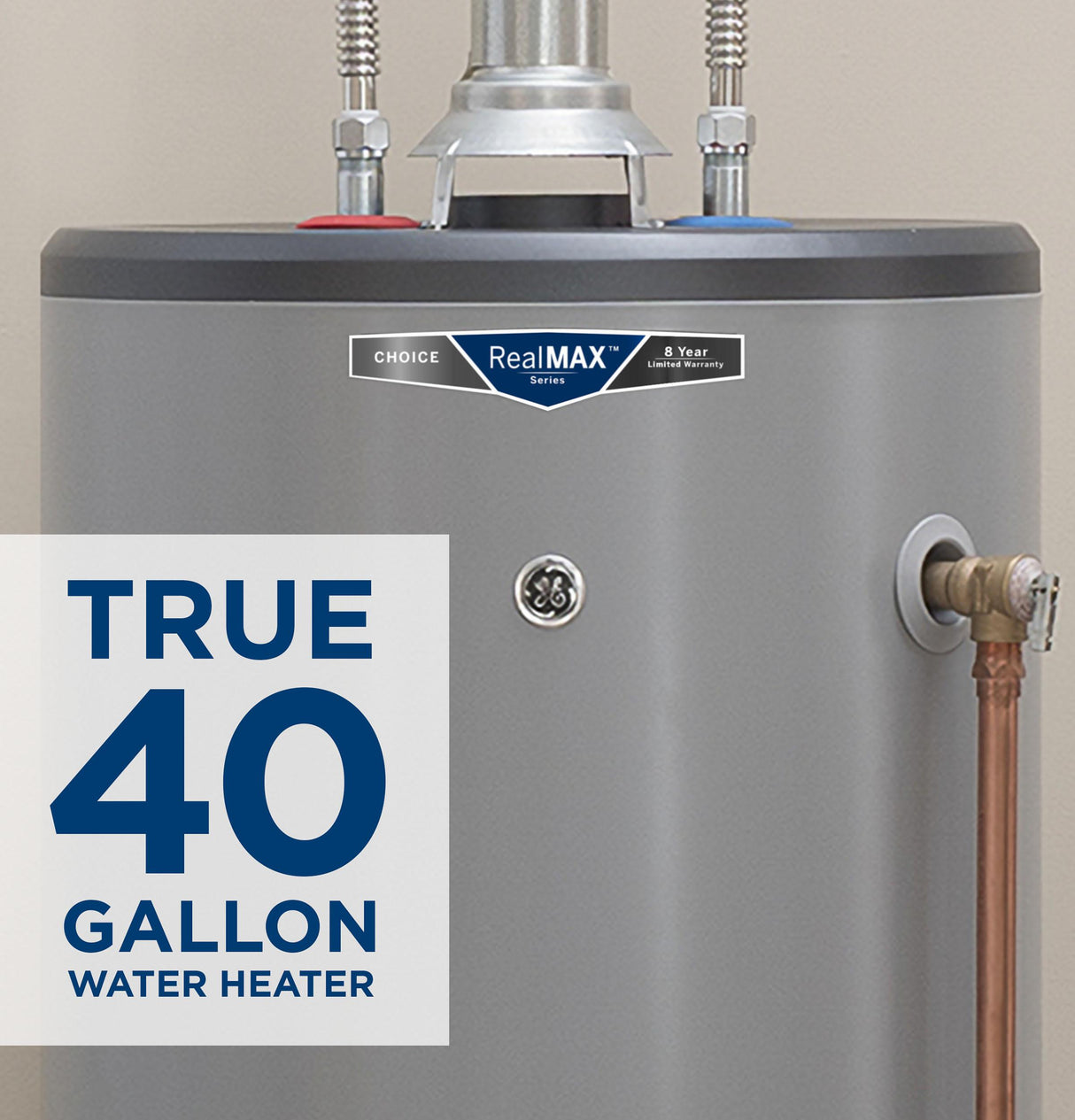

| CAPACITY | |
| Unit Capacity | 40 Gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| First Hour Delivery GPH | 83 gal/hr |
| Burner BTU Size (k) | 40 |
| Hertz | 60 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 8-year limited |
| Labor Warranty | 1-year limited |
| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 60 in |
| Height to Gas Control | 11.25 in |
| Approximate Shipping Weight | 147 lb |
| Overall Width | 20 in |
| Overall Height | 61.875 in |
| Product Height (to top of unit) | 58.5 in |
| Net Weight | 140 lb |
| Product Diameter | 20 in |
| Overall Depth | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Vent | Atmospheric |
| Controls | LED Indicator |
| UEF | .64 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Tall |
| Drain Valve Type | Plastic |
| Product Type | Atmospheric Gas |
| Family Size | 2-5 People |
| Bin Testing | High |
| Water Connection Location | Top |
| Overheat Protection | Dry Burning Protection |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Altitude Rating | 10100 ft |
| Temperature Setting | 45-160° F Range |
